PY7FF051021GSM/GPRS 850/900/1800/1900 Module

Confidential INTERFACE DESCRIPTION 1(31) Document number Revision 1/155 19-KRD 104 1025 Uen PA4 EDGE EE5x Interface Specification The information contained in this document is the proprietary information of Sony Ericsson Mobile Communications International. The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of Sony Ericsson Mobile Communications International, is strictly prohibited. Further, no portion of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, without the prior written consent of Sony Ericsson Mobile Communications International, the copyright holder. Confidential INTERFACE DESCRIPT 2(31) Document number Revision 1/155 19-KRD 104 1025 Uen PA4 Sony Ericsson Mobile Communications International publishes this document without making any warranty as to the content contained herein. Further Sony Ericsson Mobile Communications International reserves the right to make modifications, additions and deletions to this document due to typographical errors, inaccurate information, or improvements to programs and/or equipment at any time and without notice. Such changes will, nevertheless be incorporated into new editions of this document. All rights reserved. © Sony Ericsson Mobile Communications International, 2005 Revision Information PA1 Sep 2005 First release Confidential INTERFACE DESCRIPT 3(31) Document number Revision 1/155 19-KRD 104 1025 Uen PA4 Contents Part 1 : Overview...............................................................................................4 1 Introduction ..........................................................................................5 1.1 Target Users ........................................................................................6 1.2 Prerequisites........................................................................................6 1.3 Notation ...............................................................................................6 2 EDGE Wireless Modem.......................................................................7 2.1 EDGE Wireless Modem in a Communication System .........................7 2.2 Functional Block Diagram....................................................................9 2.3 Features ............................................................................................10 2.3.1 Mobile Station Characteristics ...........................................................10 2.3.2 Environmental Conditions..................................................................11 2.4 SIM Card ...........................................................................................11 2.5 Other Features ..................................................................................11 2.6 Precautions........................................................................................11 Part 2 : Daughter Card Description.................................................................12 3 Mechanical Description .....................................................................13 3.1 Physical Detail ...................................................................................13 3.2 Variant Information ............................................................................14 3.2.1 Board Outline.....................................................................................14 3.2.2 System Connector .............................................................................14 4 System Interface................................................................................15 4.1 Overview............................................................................................15 4.1.1 System Connector .............................................................................15 4.2 Electrical Interface Detail Format.......................................................18 5 Electrical Interface .............................................................................19 5.1 Power Interfaces................................................................................19 5.1.1 VIN.....................................................................................................20 5.1.2 3V3 ....................................................................................................21 5.1.3 VREF .................................................................................................21 5.1.4 GND...................................................................................................22 5.2 Status Interfaces................................................................................23 5.2.1 UVP ...................................................................................................23 5.2.2 OVP ...................................................................................................24 5.2.3 RI .......................................................................................................24 5.2.4 LED....................................................................................................25 5.2.5 VREF .................................................................................................25 5.3 Data Communication and Control Interfaces.....................................26 5.3.1 USB Interface ....................................................................................26 5.3.2 P_EN .................................................................................................26 5.4 ANTENNA CONNECTOR .................................................................27 6 Rudimentary Circuit Functions ..........................................................28 6.1 Power On Sequence ......................................................…

Text truncated - open the document above for the full version.

Confidential MEMORANDUM 1(1) Document number Revision 1/0062-9/FCP 101 3042 Uen A Prepared by Date SEM/BMDU MICHAEL BOWER 2005-10-06 Contents responsible if other than preparer Remarks Approved by SEM/BMDU (MICHAEL BOWER) This document is managed in metaDoc. Note: Any hard copy of this document is for reference only. Due to template and application dependencies the header and footer may fail to display correct data. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Manufacturer's Declaration Applicant: Sony Ericsson Mobile Communications AB Nya Vattentornet, SE-221 88 Lund, Sweden Product details: 1. Sony Ericsson EE54 type FAF-1051021-BV (FCCID PY7FF051021) GSM/GPRS/EGPRS Quad-band (850/900/1800/1900) Module. 2. Sony Ericsson EE52 type FAF-1031021-BV (FCCID PY7FF031021) GSM/GPRS/EGPRS Tri-band (850/1800/1900) Module. Declaration: 1. Hardware Revision Sony Ericsson declares that the EE54 hardware revision B is identical to the EE52 hardware revision B. The EE52 module with hardware revision B has previously received FCC certification. 2. GSM900 Band Sony Ericsson declares that the GSM900 band functionality has been factory enabled by means of software in the EE54 module. This functionality was disabled in the EE52 module without any possibility for the end user to re-enable the function. Signed for and on behalf of the applicant: Michael Bower Type Approval Manager Sony Ericsson Mobile Communications Int. AB Farnborough, UK Tel: +44 1252 551631 Email: [email protected]

Date October 6, 2005 CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Sony Ericsson Mobile Communications Int. AB requests confidentiality for the following product: FCC ID Number Product Title Type Number PY7FF051021 EE54 FAF-1051021-BV For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams and PCBs submitted as Equipment Authorization Electronic Filing attachment: “schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description”. 4. Part List and Tune Up Info submitted as Equipment Authorization Electronic Filing attachment: “Part List / Tune Up Info”. The above exhibits contain Sony Ericsson Mobile Communications AB trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our cellular modules. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please contact me at the address shown below. Sincerely, Michael Bower Sony Ericsson Mobile Communications Int. AB 1 Lakeside Road, Aerospace Centre, Farnborough, Hampshire, GU14 6XP, UK Phone: +441252551631 E-mail: [email protected]

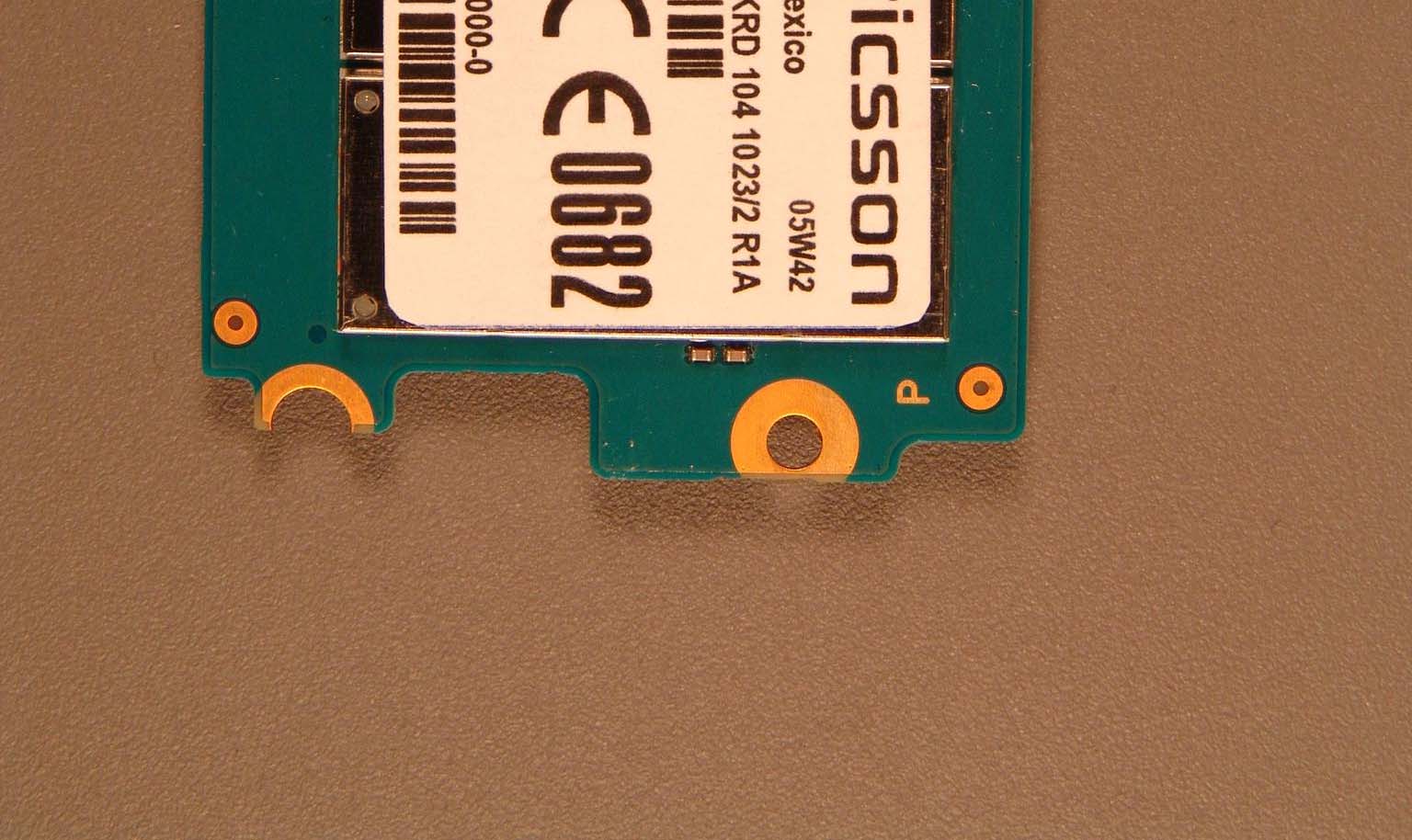

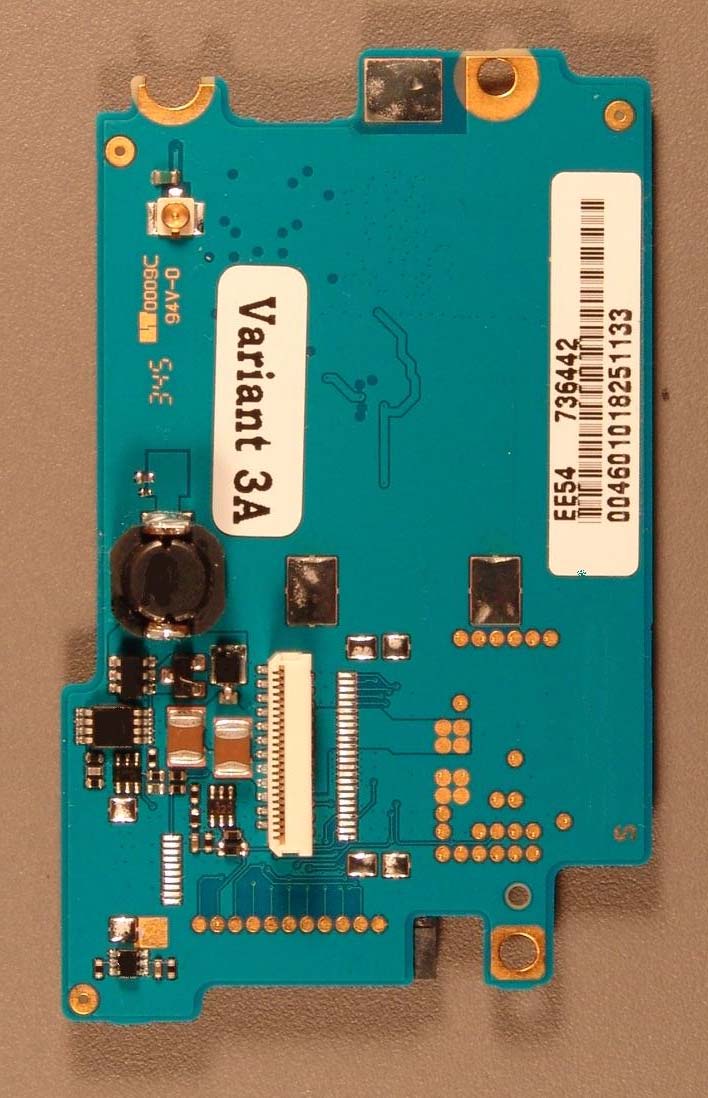

1(4) Prepared (also subject responsible if other) No. SEM/BMD/T Kevin Kitts 151 86-KRD 104 1023 Uen Approved Checked Date Rev Reference SEM/BMD/T (Kevin Kitts) 2005-08-25 A 1 Scope This document specifies the marking instructions for the Generic Module, KRD 104 1023. 2 Label Material Material (label) used for marking is defined in the manufacturing specification, 131 32 – KRD 104 1025. 3 Label Placement The type label must be placed across the shield cans on the module according to 151 88 – KRD 104 1025. 4 Label Information Each production label is to be printed with the information below. Prototypes require special marking. See section 4.1 for prototype label format. For Production labels: Line 1: Sony Ericsson logo See note 1 Line 2: Model Name: “EE54”. Manufacturing notice: “Made in Mexico”. Prod. wk of module: yyWww See note 2 Line 3: S/N BL3XXXXXX human readable, BL3 followed by the SNR portion of the IMEI number. KRD number and Revision state for the product. See note 5 Line 4: S/N bar code in code 128 format according to Ericsson corporate standard 102 01-109 Line 5: Type approval marks: 1-3: See note 6 1: “FCC ID: PY7FF051021” Marking – this should appear in a box 2: “IC: 4170B-FF051021” Marking 3: “CE 0682” Marking according to 1424 – SVF 930 52 . Sony Ericsson Logo Model Name Manufacturing Notice Production Week S/N BL3XXXXXX KRD Number and Revision State S/N bar code Type Approval Marks 1, 2 and 3 CE Mark Type Number IMEI 00000000-000000-0 IMEI bar code 2(4) Prepared (also subject responsible if other) No. SEM/BMD/T Kevin Kitts 151 86-KRD 104 1023 Uen Approved Checked Date Rev Reference SEM/BMD/T (Kevin Kitts) 2005-08-25 A Line 6: Type number: see table below for text. KRD 104 1023 variant Text /2 “Type FAF-1051021-BV” Line 7: IMEI 00000000-000000-0 human readable, shall include the "-" (hyphen). See note 3 Line 8: IMEI bar code in code 128 format according to Ericsson corporate standard 102 01-109 See note 4 Notes: General Placement and Format Notes: The text should begin a minimum of 1 mm from the top of the label; type size is TBD mm (except for Line 1). All text should be left justified, unless otherwise noted. Specific Notes for Fields: Note 1: Sony Ericsson Type size TBD mm bold. Sony Ericsson should be centered on the label. Sony Ericsson logo shall be according to Sony Ericsson corporate ID guidelines. Note 2: Marking with the time for assembly in the format year (yy) and week (ww), for example 04W51 Note 3: The IMEI number has the format: TAC-SNR-CD For released product with revision Rxx, the IMEI is as follows: TAC = Eight digit Type Approval Code assigned by the GSM Notified Body = see table below: KRD 104 1023 variant TAC /2 TBD SNR = A serial number from 000000 to 999999 CD = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Note 4: IMEI bar code containing only digits. The barcode shall not include a hyphen (dash). For unreleased products, with prototype revision Pxx, the test IMEI is as follows: TAC = Eight digit code assigned by the GSM Notified Body = 00460101 SNR = A serial number from 825000 to 826999 inclusive CD = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Note 5: The serial number prefix for HPDD for Celestica in Monterrey, Mexico, is BL3. Note 6: Type approval mark 3 (CE, notified body number) must be minimum 5mm height. This is a regulatory requirement. The Type Approval “CE” Mark may be placed in any orientation necessary to ensure that the 5mm height requirement is met (e.g. the CE mark may be oriented vertically along the right edge of the label). 2(4) Prepared (also subject responsible if other) No. SEM/BMD/T Kevin Kitts 151 86-KRD 104 1023 Uen Approved Checked Date Rev Reference SEM/BMD/T (Kevin Kitts) 2005-08-25 A 4.1 Print layout for prototypes (revisions ‘Pxx’) See Note 4 for prototype IMEI numbers. Lines 8 and Line 9 shall be replaced with the following: PROTOTYPE NOT TYPE APPROVED See example labels in the following section. 2(4) Prepared (also subject responsible if other) No. SEM/BMD/T Kevin Kitts 151 86-KRD 104 1023 Uen Approved Checked Date Rev Reference SEM/BMD/T (Kevin Kitts) 2005-08-25 A 5 Sample Labels Sample Production Label (Landscape orientation) 2(4) Prepared (also subject responsible if other) No. SEM/BMD/T Kevin Kitts 151 86-KRD 104 1023 Uen Approved Checked Date Rev Reference SEM/BMD/T (Kevin Kitts) 2005-08-25 A Sample Prototype Label REVISION HISTORY: Revision: Date: Revised by: Reason for Revision A 08-25-2005 Kevin Kitts Initial Revision

Application: PY7FF031021 Prediction of MPE limit at given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4 π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna Solving this equation for G G = S (4 π R 2 ) / P The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) Based on the above table the limits are for Part 24 device: 1 mW/cm 2 Part 22 device: 0.567 mW/cm 2 Prediction for Part 24: P Max power input to the antenna: 29.2 dBm / 0.832 W R Distance: 20 cm S MPE limit for uncontrolled exposure: 1 mW/cm 2 G Antenna gain: 6.04 numerical G Antenna gain: 7.81 dBi EIRP peak power limit according to §24.232(b): 2 W / 33 dBm Therefore the maximum antenna gain for part 24 shall not exceed 3.8 dBi Prediction for Part 22: P Max power input to the antenna: 32.4 dBm / 1.862 W R Distance: 20 cm S MPE limit for uncontrolled exposure: 0.567 mW/cm 2 G Antenna gain: 1.53 numerical G Antenna gain: 1.84 dBi / -0.3 dBd ERP power limit according to §22.913(a): 7 W Therefore the maximum antenna gain for part 22 shall not exceed –0.3 dBd

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-3875-01-01/05 Date: 2005-02-21 Page 1 of 80 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report no. : 2-3875-01-01/05 Applicant :Sony Ericsson Mobile Communication AB Type :Sony Ericsson EE52 type FAF- 1031021-BV Test Standard :FCC Part 22, 24 RSS132, 133 FCC ID :PY7FF031021 Certification No. IC :4170B-FF031021 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-3875-01-01/05 Date: 2005-02-21 Page 2 of 80 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 PCS 1900 ...................................................................................................................................................... 7 2.1.2 GSM 850 ....................................................................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 PART PCS 1900 ................................................................................................................................................... 8 3.1.1 RF Power Output .......................................................................................................................................... 8 3.1.2 Frequency Stability..................................................................................................................................... 12 3.1.3 Radiated Emissions..................................................................................................................................... 15 3.1.4 Receiver Radiated Emissions ...................................................................................................................... 25 3.1.5 Conducted Spurious Emissions ................................................................................................................... 29 3.1.6 Block Edge Compliance .............................................................................................................................. 33 3.1.7 Occupied Bandwidth................................................................................................................................... 36 3.2 PART GSM 850 ................................................................................................................................................. 43 3.2.1 RF Power Output ........................................................................................................................................ 43 3.2.2 Frequency Stability..................................................................................................................................... 46 3.2.3 Radiated Emissions..................................................................................................................................... 49 3.2.4 Receiver Radiated Emissions ...................................................................................................................... 59 3.2.5 Conducted Spurious Emissions ................................................................................................................... 63 3.2.6 Block Edge Compliance .............................................................................................................................. 67 4 USED TESTEQUIPMENT ...................................................................................................................................... 77 ANNEX A: PART 15 B TESTS ANNEX B: TEST SETUP PHOTOS ANNEX C: EXTERNAL PHOTOS ANNEX D: INTERNAL PHOTOS CETECOM ICT Services GmbH Untertürkheimer Str. 6-1…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3875-01-01/05 Date: 2005-02-21 Page 22 of 33 Photo 7 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3875-01-01/05 Date: 2005-02-21 Page 23 of 33 Photo 8 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3875-01-01/05 Date: 2005-02-21 Page 24 of 33 Photo 3 (Conducted Emissions):
