PY7PM-0000Mobile phone with Bluetooth, WLAN 802.11abgn, GPS/A-GPS, RFID and FM Rx

’12.2 INSTRUCTION MANUAL Introduction Thank you for your purchase of "SO-04D". For proper use of the SO-04D, read this manual carefully before and while you use the SO-04D. Before using the terminal SO-04D supports W-CDMA, GSM/GPRS and Wireless LAN Systems. Because a terminal operates using radio frequencies, it cannot be used inside a tunnel, underground, in a building or other locations where radio waves do not reach the terminal, in locations with weak radio wave condition, or outside of the FOMA's service area. The services may not be available on high upper floors of high-rise apartments or buildings, even if you can see no obstructions around you. On occasion, your calls may become disconnected even in areas with strong radio wave condition, even if you are not moving, or even if there are 4-antenna marks in the terminal's display. Note that because the terminal operates on radio frequencies, your calls are at risk of being intercepted by the third party. However, the W-CDMA, GSM/GPRS system automatically scrambles all calls through a private call feature. Therefore, even if third party successfully intercepts your call, they will only hear noise. The terminal operates on radio frequencies by converting voice into digital signals. If the caller moves into an area of adverse radio wave condition, the digital signal may not be restored accurately, and the voice received in the call may differ slightly from the actual voice. Note down the information saved in the terminal in a separate note and keep it safely. Even if the data may be lost as a result of malfunction, repair, change, or other handling of the terminal, under no condition will DOCOMO be held liable for any lost data saved in the terminal. You are recommended to save important data to microSD card. As with PCs, some user-installed applications may disrupt the stability of the terminal performance, or unexpectedly transmit information via the Internet causing improper use of your location information as well as personal information recorded on the terminal. Therefore, verify the supplier and operating conditions of the applications to be used before using them. This terminal has FOMA Plus-Area and FOMA HIGH-SPEED Area support. Descriptions in this manual are fore the terminal with a DOCOMO's UIM inserted. SIM unlock This terminal supports SIM unlock. If you release SIM lock, you can use SIM by a carrier other than NTT DOCOMO. The SIM unlock service is provided at a docomo Shop. A SIM unlock charge is separately required. If you use a SIM other than by DOCOMO, available services and functions will be limited. DOCOMO is not liable to any failures or malfunctions. For details of SIM unlock, refer to NTT DOCOMO website. 1 SO-04D (with warranty) (Quick Start Guide) (In Japanese only) SO-04D (Notes on usage Safety/Handling precautions) (In Japanese only) AC Adapter Cable SO04 (with warranty) Desktop Holder SO12 (with warranty) microSD card (2GB) * (Sample) (with manual) * Inserted in the terminal when purchased. Stereo Headset with Microphone (Sample) (with manual) For details on optional devices, see "Optional and related devices" (P.243). Supplied accessories Supplied accessories <AC adapter><microUSB cable> 2 In addition to this manual, the operations of SO-04D are described in " (Quick Start Guide)" (in Japanese only) and "Instruction Manual" application of the terminal. The initial operations and settings after purchasing the terminal, screen view contents and operations of main function are explained. (In Japanese only) Similarly to this manual, operations and settings of each function are explained. To use "Instruction Manual" application, from the Home screen, u Tap [Instruction Manual]. For the first time using, download and install it according to the onscreen instructions. You can use the application as an electronic book. You can also shift to actual operations by tapping the description in the contents or view reference contents.  Note For downloading or updating the application, a high packet communication charge will be applied because of a large amount data communication. For this reason, subscription of packet flat-rate service is highly recommended. * If you use Wi-Fi function to download, packet communication charges are not applied. Operations and settings of each function are explained. It can be downloaded from NTT DOCOMO website. http://www.nttdocomo.co.jp/english/ support/trouble/manual/download/ index.html * You can download the latest information of " (Quick Start Guide)" (in Japanese only). The URL and contents are subject to change without prior notice.  Note Reproduction or reprint of all or part of this manual without prior permission is prohibited. Important information for SO-04D is posted in the following website. Be sure to check before using. http://www.sonymobile.co.jp/support/use_support/ product/so-04d/ About manuals of SO-04D " (Quick Start Guide)" (Supplied accessories) "Instruction Manual" (Application of the terminal) "Instruction Manual" (PDF file) 3 In this manual, each key operation is described with p , x , y , t , m , k . And selection operations of the icons or function items on the touch panel are described as follows.  Information In this manual, the instructions are described with the default Home screen. If you set the other application to the home screen, the operations may differ from the descriptions. Display examples and illustrations used in this manual are just images for explanations and may be different from actual ones. In this manual, the easier procedure is described for the functions and settings which have multiple operating procedures. Please note that "SO-04D" is called "the terminal" in this manual. In this manual, explanations for "docomo" as Home application are provided. To switch the Home applications, see "Learning Home screen" (P.66). Operation descriptions DescriptionOperation From the Home screen, tap t and tap [Settings]. From the Home screen, tap t (…

Text truncated - open the document above for the full version.

SONY ma ke .believe Confidentiality Request 2012-05-25 CGQBDA12172 SEMC/CGQBDA Afrah Sadiq +46 10 80 12250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC 10: PY7PM-OOOO To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Mobile Communications AB requests confidentiality for the below listed items for our mobile phone type PM-OOOO-BV, FCC ID: PY7PM-OOOO: 1. Block Diagram 2 . Schematic Diagram 3. Part List 4 . OperationalfTechnical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. :&;-= Afrah Sadiq Staff Verificaiion Engineer Global Type Approval Sony Mobile Commu nications N ya Vattentornet 221 88 Lund, Sweden Fax +46 10 8002441 sony.com Sony Mobile Communications AB Styrelsens sate: Lund Moms nr. V.A.TNo: SE556615665801 Registered office: Lund Organisationsnr • Reg No: 556615-6658 Postadress • Mail Besoksa dress • Office address Telefon • Telephone Telefax • Telefax S E-221 88 Lund Nya Vattentornet Nat 046-1 9 40 00 Nat 046-1941 00 Sweden Lund Int + 4646 1940 00 int +46461941 00

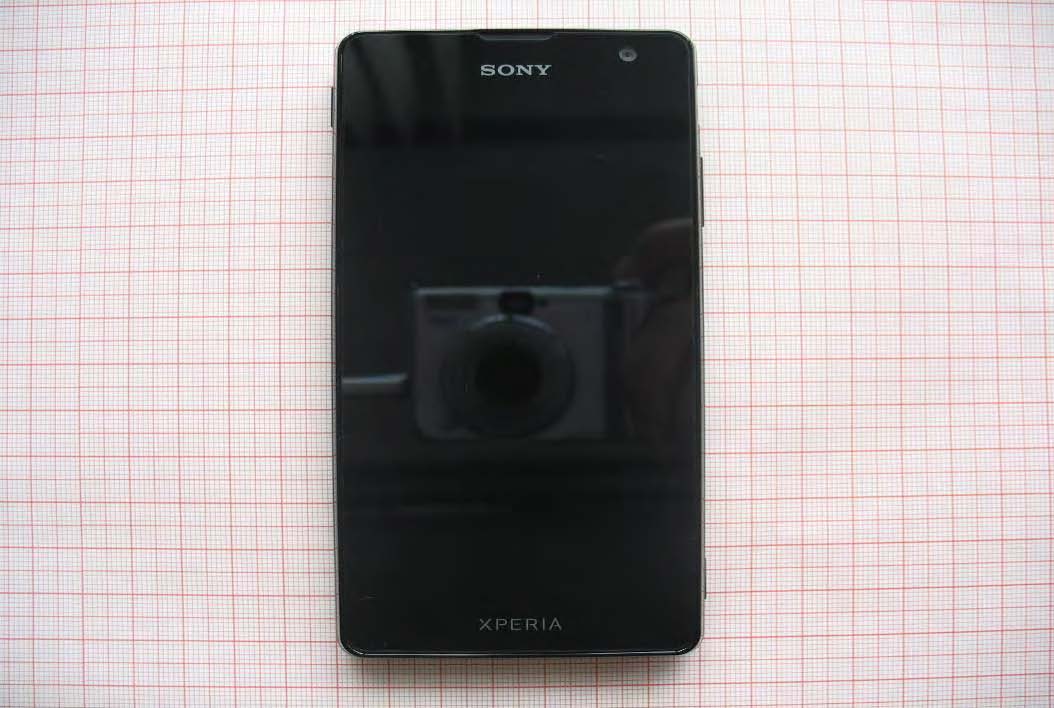

Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 22 of 37 An nex B External ph ot ogra phs o f the E UT Photo documentation: Photo 1: Photo 2: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 23 of 37 Photo 3: Photo 4: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 24 of 37 Photo 5: Photo 6: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 25 of 37 Photo 7: Photo 8: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 26 of 37 Photo 9: Photo 10: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 27 of 37 Photo 11:

Company Internal MARKING DRAWING 1 (4) Prepared (also subject responsible if other) No. SEM/CGOVDPLG, Anna Englund 1265-5276 Uen Approved Checked Date Rev Reference SEM/CGOVDPLG, Anna Englund 2012-05-08 2 5 SO-04D Hayabusa DCM Mobile Phone Label Content, White 1 General information MLCI=Main Label Content Information 2 Information Content Format Line 1 (7,5/2,5) SONY stylized name. Graphics, height 2,3 mm. According to 1263-9535. Line 2a (9,5/2,5) Operator logo in Japanese Graphics, height 1,5 mm. According to 1234-3760 Line 2b (9,5/11,0) “Product name in Japanese Graphics, height 1,5 mm. According to 1234-3743 Line 2c (9,0/20,0) Model Name “SO-04D” Text, height 1,5 mm. According to Chapter 1 in MLCI Line 2d (9,0/31,0) Colour of the included telephone, in English: e.g. “< White >” Text, height 1,5 mm. English colour names, if exchange PBA the color is “PBA”, according to Chapter 2.1 in MLCI. Line 3a (12,0/2,5) Product number with revision of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX.RR” Text, height 1,2 mm. Line 3b (12,0/19,0) Production week (flash), “yyWww” (yy = year, ww = week) Text, height 1,2 mm. Line 3b (12,0/24,5) Production date in Japanese (eg: year+ 年+ month+月 ) : “ 20XX 年 XX 月” Text, height 1,5 mm. Graphics, height 1,5 mm. According to 1234-3763, 1235- 6102 and 1235-6103 Mobile Phone label part no  1252-7558 Mobile Phone label content part no  1265-5277 Bar code  Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen  Quiet zone: No bar codes are allowed to be closer to a label edge than 2 mm! Text If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. Company Internal MARKING DRAWING 2 (4) Prepared (also subject responsible if other) No. SEM/CGOVDPLG, Anna Englund 1265-5276 Uen Approved Checked Date Rev Reference SEM/CGOVDPLG, Anna Englund 2012-05-08 2 5 Line 4a (14,0/2,5) Type number of the phone, “TYPE: PM-0000-BV”. Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 4b (14,0/19,0) HW & SW identification field, if applicable; “FFGG” Text, height 1,2 mm. According to Type-testing report under Product Model Specifying Document Line 4c (14,0/24,5) Repair week, if applicable. “RyyWww” (yy = year, ww = week) Text, height 1,2 mm Line 4d (14,0/32,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 5 (16,0/2,5) “FCC ID:PY7PM-0000” Text, height 1,2 mm. According to Chapter 1 in MLCI Line 5 (18,0/3,0) “製 “+ Actual electronic serial number (IMEI) of the Mobile Phone, “製 00000000-000000-0” Graphics, height 1,5 mm. According to 1234-3770. Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 6 (23,0/3,5) Line 6 in bar code, based on line 5, ie IMEI number. As desired by supplier (e.g. only actual number). Bar code, height 4,5 mm. As desired by supplier (e.g. Code 128 symbology). Line 7 (25,0/3,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 8 (31,2/3,5) Line 8 in bar code, based on line 7, ie serial number. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 9a (33,5/3,0) “CE approval symbol, The notified body number 0682 and Alert Symbol” Graphics, height 5 mm. According to 1242-7470 Line 9b (33,5/33,0) WEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202-5537 Line 9c (33,5/39,0) “Li-ion 00 Symbol” Graphics, min. height 5,0 mm, according to 1235-2267 Line 10a (37,0/3,0) “Caution symbol” Graphics, height 2 mm. According to 1234-3774 Line 10b (37,0/7,0) “Caution” in Japanese Graphics, height 1.8 mm. According to 1234-3790 Company Internal MARKING DRAWING 3 (4) Prepared (also subject responsible if other) No. SEM/CGOVDPLG, Anna Englund 1265-5276 Uen Approved Checked Date Rev Reference SEM/CGOVDPLG, Anna Englund 2012-05-08 2 5 Line 10c (37,0/12,0) “Do not remove this label” statement in Japanese, on two rows. Graphics, height for each row 1,5 mm. According to 1250-5471 Line 11 (41,2/30,2) Local Type Approval Number: T AD 12-0012 202 Text, height 1,2 mm Line 12 (41,7/29,9) Square around T above, see Line 11 □ Width 1,5 x Height 2,0 mm Line 13 (43,7/2,9) “Bluetooth value” logotype Graphics, min. height 4,5 mm. According to 1262-0427. Line 14a (44,1/22,5) “JATE” logo Graphics, height 5 mm. According to 1234-3837 Line 14b (44,1/30,2) Local Type Approval Number: R 202-SMA015 Text, height 1,2 mm. Line 15 (44,3/29,9) Square around R above, see Line 14b □ Width 1,5 x Height 2,0 mm Line 16 (46,0/2,0) Marking of origin. “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English Text, height 1,2 mm. Line 17 (48,5/2,0) Manufacturer name SONY in Japanese Graphics or text, Character height 2 mm. According to 1264-5801 Line 18a (54,0/9,0) WiFi certified -logo Graphics height 5 mm, According to 1264-8500 Line 18b (54,0/18,0) WLAN text in Japanese Graphics height 5 mm, or text, Character height 2 mm. According to 1262-5051 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. Company Internal MARKING DRAWING 4 (4) Prepared (also subject responsible if other) No. SEM/CGOVDPLG, Anna Englund 1265-5276 Uen Approved Checked Date Rev Reference SEM/CGOVDPLG, Anna Englund 2012-05-08 2 5 3.1 Conceptual picture double un…

Text truncated - open the document above for the full version.

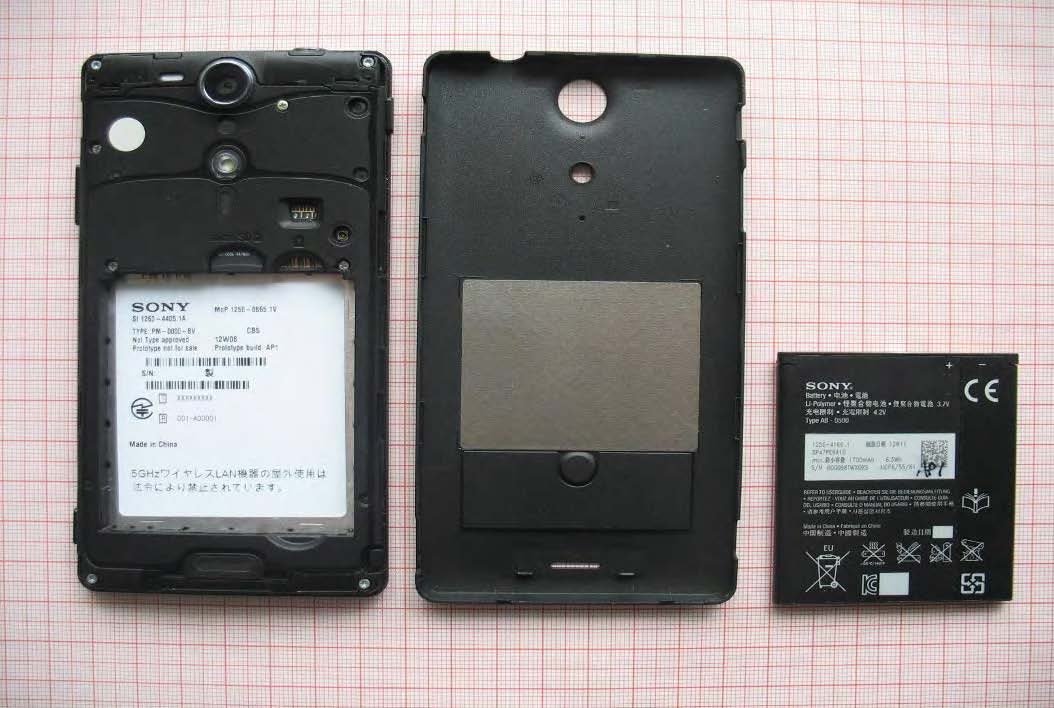

Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 28 of 37 An nex C Inter nal p ho to gra phs o f the E UT Photo documentation: Photo 1: Photo 2: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 29 of 37 Photo 3: Photo 4: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 30 of 37 Photo 5: Photo 6: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 31 of 37 Photo 7: Photo 8: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 32 of 37 Photo 9: Photo 10: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 33 of 37 Photo 11: Photo 12: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 34 of 37 Photo 13: Photo 14: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 35 of 37 Photo 15: Photo 16: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 36 of 37 An nex D Docu men t his to r y Version Applied changes Date of release 1.0 Initial release 2012-05-16 -A New photos 2012-05-09 An nex E Fur ther in for mati o n Glossary AVG - Average DUT - Device under test EMC - Electromagnetic Compatibility EN - European Standard EUT - Equipment under test ETSI - European Telecommunications Standard Institute FCC - Federal Communication Commission FCC ID - Company Identifier at FCC HW - Hardware IC - Industry Canada Inv. No. - Inventory number N/A - Not applicable PP - Positive peak QP - Quasi peak S/N - Serial number SW - Software Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 37 of 37 An nex F Acc redi tat ion Cer t ificate Front side of certificate Back side of certificate Note: The current certificate including annex is published on our website (see link below) or may be received from CETECOM ICT Services on request. http://www.cetecom.com/fileadmin/de/CETECOM_D_Saarbruecken/accreditations_Jan_2010/DAKKS_Akkredi_ Urk_EN17025-En_incl_Annex.pdf

2012-05-16 Page 1 of 37 TEST REPORT Test report no.: 1-4254/12-19-13-B Testing laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 Area of Testing: Radio/Satellite Communications Sony Mobile Communications AB Nya Vattentornet 22188 Lund / SWEDEN Phone: +46 46 19 30 00 Fax: +46 46 19 32 95 Contact: Håkan Sjöberg e-mail: [email protected] Phone: +46 46 19 35 59 Manufacturer Sony Mobile Communications AB Nya Vattentornet 22188 Lund / SWEDEN Test standard/s 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I Part 15 - Radio frequency devices RSS - 210 Issue 8 Spectrum Management and Telecommunications - Radio Standards Specification Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: GSM Mobile Phone GPRS/EGPRS 850/900/1800/1900; UMTS FDDI/FDDV/FDDVI/FDDXIX; HSPA; LTE Band 1; BT3.1; WLAN a/b/g/n; AGPS; RFID, FM Rx Model name: PM-0000-BV FCC ID: PY7PM-0000 IC: 4170B-PM-0000 Frequency: 13.56 MHz Technology tested: RFID Antenna: Integrated loop antenna Power Supply: 3.7 V DC by Li-polymer battery Temperature Range: -20°C to +55 °C Test report authorised: Test performed: p. o. 2012-05-16 Marco Bertolino 2012-05-16 Andreas Luckenbill Testing Manager Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 2 of 37 1 Table of contents 1 Table of contents ............................................................................................................................................ 2 2 General information ....................................................................................................................................... 3 2.1 Notes and disclaimer .......................................................................................................................... 3 2.2 Application details ............................................................................................................................... 3 3 Test standard/s ............................................................................................................................................... 3 4 Test environment ............................................................................................................................................ 4 5 Test item .......................................................................................................................................................... 4 6 Test laboratories sub-contracted ................................................................................................................. 4 7 Summary of measurement results ............................................................................................................... 5 8 RF measurements .......................................................................................................................................... 6 8.1 Description of test setup .................................................................................................................... 6 8.1.1 Radiated measurements............................................................................................................. 6 8.1.2 Conducted measurements.......................................................................................................... 7 8.2 Additional comments .......................................................................................................................... 7 8.3 RSP100 test report cover sheet / performance test data ................................................................ 8 9 Measurement results ...................................................................................................................................... 9 9.1 Timing of the transmitter .................................................................................................................... 9 9.2 Field strength of the fundamental ................................................................................................... 10 9.3 Field strength of the harmonics and spurious ............................................................................... 11 9.4 Frequency tolerance ......................................................................................................................... 15 9.5 AC line conducted ............................................................................................................................. 16 10 Test equipment and ancillaries used for tests ................................................................................... 17 11 Observations ......................................................................................................................................... 18 Annex A Photographs of the test setup ...................................................................................................... 19 Annex B External photographs of the EUT ................................................................................................. 22 Annex C Internal photographs of the EUT .................................................................................................. 28 Annex D Document history .......................................................................................................................... 36 Annex E Further information ........................…

Text truncated - open the document above for the full version.

Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 19 of 37 An nex A Pho tog raphs o f t h e test se tu p Photo documentation: Photo 1: Photo 2: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 20 of 37 Photo 3: Photo 4: Test report no.: 1-4254/12-19-13-B 2012-05-16 Page 21 of 37 Photo 5:
