Startup guide Xperia ™ TX LT29i Sony Mobile Communications AB SE-221 88 Lund, Sweden www.sonymobile.com 1266-4893.1 Welcome Important information Please read the Important information leaflet before you use your mobile phone. Assembly To remove the battery cover To insert the memory card and the micro SIM card The memory card may not be included at purchase in all markets. To attach the battery cover Press down firmly on all edges of the battery cover to make sure it gets attached tightly. Phone basics Phone overview 12 5 10 6 7 9 34 8 12 18 14 15 11 13 16 17 1. Light sensor 2. Proximity sensor 3. Ear speaker 4. Front camera lens 5. Notification LED 6. Volume/Zoom key 7. Camera key 8. Main microphone 9. Touchscreen 10. Power key 11. Headset connector 12. Camera lens 13. Camera LED light 14. Second microphone 15. Strap hole 16. Speaker 17. NFC detection area 18. Connector for charger/USB cable Use the accessories provided with your phone, or other compatible accessories, for optimal performance. Turning on the phone To turn on the phone 1 Press and hold down the power key on the left side of the phone until the phone vibrates. 2 Wait a while for the phone to start. Waking up the screen To activate the screen • Briefly press the power key . To unlock the screen • Drag to the right across the screen. Using the keys Back • Go back to the previous screen • Close the on-screen keypad, a dialog box, an options menu, or the Notification panel Home • Go to the Home screen Task • Tap to open a window showing your most recently used applications and a small apps bar Set up your phone What is Android™? Android is your phone's operating system. Since it's developed by Google™, your phone is preloaded with several Google™ services, such as Google Maps™ and Google™ web search. To use some of the services provided by Google™, you need a Google account. What is different about Android? Android™ is an open system, which means that you're not limited to using applications and services from only one provider. Google™ account With a Google™ account, you can use Gmail™ to send emails, Google Talk™ to chat with friends, and Google Play™ to download applications and games, music, movies and books. To set up a Google™ account in your phone 1 From your Home screen, tap . 2 Find and tap Settings > Accounts & sync > Add account > Google. 3 Follow the registration wizard to create a Google™ account, or sign in if you already have an account. Your phone is now ready to use with Gmail™ , Google Talk™ and Google Calendar™. You can also sign in or create a Google™ account from the setup guide the first time you start your phone. Or you can go online and create an account at www.google.com/accounts. Basic settings The first time you start your phone, a setup guide explains basic phone functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide manually 1 From the Home screen, tap . 2 Find and tap Setup guide. Transferring contacts to your new phone Transferring contacts to your new phone can sometimes be complicated, but help is available. You can transfer contacts from several phone brands, including iPhone, Samsung, HTC and Nokia. You need: • An Internet-connected PC running Windows® • A USB cable for your old phone • A USB cable for your new Android™ phone • Your old phone • Your new Android™ phone If you don't have access to all of the items listed above, go to www.sonymobile.com to find out about other ways to transfer your contacts. Get started transferring your contacts Use the PC Companion program to transfer your contacts. It's free, and the installation files are already saved on your new phone. PC Companion also offers a range of other features, including help to update your phone software. To install PC Companion 1 New phone: Turn on your new Android™ phone and connect it to a PC using a USB cable. 2 New phone: Tap Install to install PC Companion on the PC. 3 Computer: If a popup window appears, select Run Startme.exe. In the new popup window that appears, click Install to start the installation and then follow the instructions to complete the installation. To transfer contacts to your new phone using PC Companion 1 Make sure that PC Companion is installed on your PC. 2 Open the PC Companion program on the PC, then click Contacts Setup and follow the instructions to transfer your contacts. Finding your way Home screen Your phone Home screen is the equivalent of the desktop on a computer. You can customise your Home screen with widgets, shortcuts, folders, themes, wallpaper and other items. The Home screen extends beyond the regular screen display width, so you need to flick left or right to view content in one of the screen's four extensions. The items in the bar at the bottom of the screen are always available for quick access. To go to the Home screen • Press . To browse the Home screen • Flick right or left. To change your Home screen wallpaper 1 Tap an empty area on your Home screen, then tap . 2 Tap Wallpaper and select an option. Widgets Widgets are small applications that you can use directly on your Home screen. For example, the Music player widget allows you to start playing music directly. Some widgets are resizable, so you can expand them to view more content or shrink them to save space on your Home screen. Application screen The Application screen, which you open from your Home screen, contains the applications that come installed with your phone as well as the applications you download. The Application screen extends beyond the regular screen width, so you need to flick left and right to view all content. To open the Application screen • From your Home screen, tap . To open an application • From your Home screen or the Application screen, tap the application. Applications An application is a phone program that helps you perform a task. For example, there are applications to make calls, take photos and download more applications. Status a…

Text truncated - open the document above for the full version.

SONY Sony Mobile Communications SE-221 88 LUND· SWEDEN Confidentiality Request 2012-07-04 CGQBDA12:267 SEMC/ CGQBDA Afrah Sadiq +46 108012250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC 10: PY7PM-0010 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Mobile Communications AB requests confidentiality for the below listed items for our Sony mobile phone type PM-001 O-BV, FCC ID: PY7PM-0010: 1. Block Diagram 2. Schematic Diagram 3 . Part List 4. Operational/Technical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. ~Regard~ .--' ---:::::;::...~---­ ---?~. ? ~. \ Afrah Sadiq Staff Verification Engmeer Global Type Approval Sony MObile Communications Nya Vatten!orrl()1 221 88 Lund. Sweden Fax: +46 108 02441 '§!.2D.W..Qt>lle.co f T} Sony Mobile Communications Styrelsens sate: Lund Momsnr· \(A T.No: SE556615665801 Registered olfles: Lund OtganlSBtionsnt • Reg No: 556615-6658 Postadress • MilIl Besoksadres • Office address Telefon • Telephone Telefa>< • Teletax SE-221 88 Lund Nya Vattentomet Nat 010-80 00000 Nat 010-80 02.040 Sweden Lund I nt -A6 to 80 00000 Int .,.461080 02040

SONY Sony Mobile Communications SE-221 88 LUND· SWEDEN art Term Confidentiality Request 2012-07-13 CGOBOA12:309 SoMC! CGOBOA Afrah Sadiq +46 108012250 Receiver Federal Communications Commission Subject: Request for Temporary Confidentiality FCC 10: PY7PM·0010 To Whom It May Concern: In accordance with §0.459 of CFR 47 and Public Notice OA 04-1705, Sony Mobile Communications AB requests in addition to confidentiality request CGOBOA 12:267 temporary confidentiality for 180 days of the below listed items for our mobile phone type PM-0010-BV, FCC 10: PY7PM-0010: 1. User Manual 2. Test set-up 3. External and Internal photos When the announcement of the product is done, the TCB will be notified to remove the Short Term Confidentiality. . Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, ~ Afrah Sadiq Staff Verification Engineer Global Type Approval Sony Mobile Communications Nya Vatlenlornet 221 88 Lund, Sweden Fax +46 108002441 sonYl11ohile .CO I11 Sony Mobile Communications Styrelsens sate: Lund Momsnr· V.A. T.No: SE55661 5665801 Registered office: u,nd Organlsatlonsnr ' Reg No: 556615-6658 Postadress • Mall Besdksadress • Office address Telston • Telephone Telefax • Telefax SE-221 88 lund Nya Valtentornel Nat 010-80 00000 Nat 010-80 02040 Sweden Lund Int 46 10 80 00000 Int ->46 10 80 02040

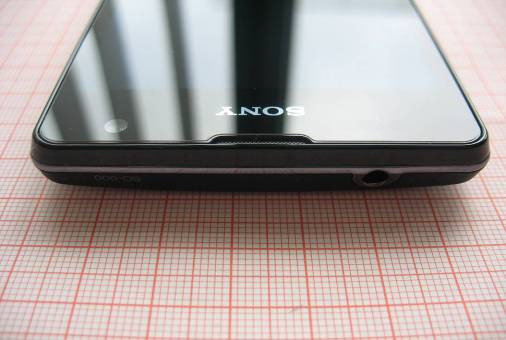

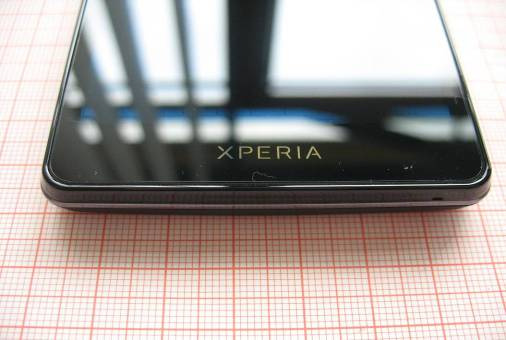

Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 71 of 86 An ne x B E x te rna l ph ot ogra phs o f the E UT Photo documentation: Photo 1: Photo 2: Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 72 of 86 Photo 3: Photo 4: Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 73 of 86 Photo 5: Photo 6: Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 74 of 86 Photo 7: Photo 8: Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 75 of 86 Photo 9: Photo 10: Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 76 of 86 Photo 11:

Company Internal MARKING DRAWING 1 (3) Prepared (also subject responsible if other) No. SEM/CGOVDPLG, Anna Englund 1261-6836 Uen Approved Checked Date Rev Reference SEM/CGOVDPLG, Anna Englund 2012-06-25 2 5 LT29i, Mobile Phone label content, ROW, Non Geo 1 General information MLCI=Main Label Content Information 2 Information Content Format Line 1a (9,0/4,0) SONY stylized name. Graphics, height 2,3 mm. According to 1263-9535. Line 1b (9,0/24,0) Model Name “LT29i” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 2a (11,0/4,0) Product number with revision of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX.RR” Text, height 1,2 mm. Line 2b (11,0/24,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 3a (15,0/5,0) Type number of the phone, “TYPE: PM-0010-BV”. Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 3b (14,0/22,0) HW & SW identification field, if applicable; “EFF” Text, height 1,2 mm. According to Type-testing report under Product Model Specifying Document Line 4a (17,0/5,0) ”FCC ID: PY7PM-0010” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 4b (17,0/24,0) Production week (flash), “00W01” (00 = year, 01 = week) Text, height 1,2 mm. Mobile Phone label part no • 1257-6455 Mobile Phone label content part no • 1261-6835 Bar code • Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen • Quiet zone: No bar codes are allowed to be closer to a label edge than 2 mm! Text If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. Company Internal MARKING DRAWING 2 (3) Prepared (also subject responsible if other) No. SEM/CGOVDPLG, Anna Englund 1261-6836 Uen Approved Checked Date Rev Reference SEM/CGOVDPLG, Anna Englund 2012-06-25 2 5 Line 5 (19,0/5,0) “IC: 4170B-PM0010” Text, height 1,2 mm. According to Chapter 1 in MLCI. Line 6 (24,0/5,0) Line 7 in bar code (ie serial number). As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 7 (2 6,0/5,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 8 (29,0/5,0) Line 9 in bar code (only actual number, without data identifier). Ie IMEI-number Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 9 (31,0/5,0) Actual electronic serial number (IMEI) of the mobile phone, “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 10a (38,0/3,0) CE approval symbol, the NB-“0682” and “Alert Symbol” in one artwork Graphics, height 5 mm. According to 1242-7470 Line 10b (38,0/34,0) WEEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202-5537. Line 11 (52,0/16,0) Marking of origin. “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English Text, height 1,2 mm. 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture Company Internal MARKING DRAWING 3 (3) Prepared (also subject responsible if other) No. SEM/CGOVDPLG, Anna Englund 1261-6836 Uen Approved Checked Date Rev Reference SEM/CGOVDPLG, Anna Englund 2012-06-25 2 5 double underlined = major changes since last revision.

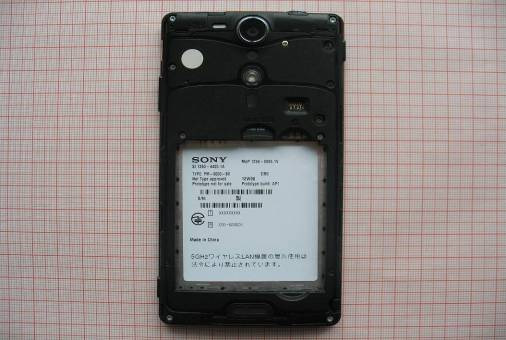

Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 77 of 86 An ne x C Inte r na l p ho to gra phs o f the E UT Photo documentation: Photo 1: Photo 2: Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 78 of 86 Photo 3: Photo 4: Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 79 of 86 Photo 5: Photo 6: Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 80 of 86 Photo 7: Photo 8: Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 81 of 86 Photo 9: Photo 10: Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 82 of 86 Photo 11: Photo 12: Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 83 of 86 Photo 13: Photo 14: Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 84 of 86 Photo 15: Photo 16: Test report no.: 1-4254/12-19-04-C 2012-05-15 Page 85 of 86 An ne x D Doc u me n t his to r y Version Applied changes Date of release 1.0 Initial release 2012-04-24 -A New photos 2012-04-26 -B New photos 2012-05-09 -C Changed EUT name 2012-05-14 An ne x E Fur the r in for ma ti o n Glossary AVG - Average DUT - Device under test EMC - Electromagnetic Compatibility EN - European Standard EUT - Equipment under test ETSI - European Telecommunications Standard Institute FCC - Federal Communication Commission FCC ID - Company Identifier at FCC HW - Hardware IC - Industry Canada Inv. No. - Inventory number N/A - Not applicable PP - Positive peak QP - Quasi peak S/N - Serial number SW - Software

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: LT29i FCC ID: PY7PM-0010 To: OET Bulletin 65 Supplement C: (2001-01) IEEE 1528: 2003 Test Report Serial No: RFI-SAR-RP86767JD02A V1.0 This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: (APPROVED SIGNATORY) Checked By: Richelieu Quoi (APPROVED SIGNATORY) Issue Date: 06 July 2012 Test Dates: 09 May 2012 to 03 July 2012 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by RFI Global Services Ltd. is under license. Other trademarks and trade names are those of their respective owners. Test Report Serial No: RFI-SAR-RP86767JD02A V1.0 Version 1.0 Issue Date: 06 July 2012 Page: 2 of 229 RFI Global Services Ltd. This page has been left intentionally blank. Test Report Serial No: RFI-SAR-RP86767JD02A V1.0 Version 1.0 Issue Date: 06 July 2012 Page: 3 of 229 RFI Global Services Ltd. TABLE OF CONTENTS 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures .............................................................. 12 Deviations from the Test Specification ............................................................................. 15 4. Operation and Configuration of the EUT during Testing ............................................ 16 5. Summary of Test Results ............................................................................................... 19 6. Measurements, Examinations and Derived Results .................................................... 22 7. Measurement Uncertainty .............................................................................................. 51 Appendix 1. Test Equipment Used .................................................................................... 60 Appendix 2. Measurement Methods .................................................................................. 64 Appendix 3. SAR Distribution Scans ................................................................................ 66 Appendix 4. Photographs ................................................................................................ 185 Appendix 5. System Check .............................................................................................. 217 Appendix 6. Simulated Tissues ....................................................................................... 226 Test Report Serial No: RFI-SAR-RP86767JD02A V1.0 Version 1.0 Issue Date: 06 July 2012 Page: 4 of 229 RFI Global Services Ltd. 1. Customer Information Company Name: Sony Mobile Communications AB Address: Nya Vattentornet 22188 Lund Sweden Test Report Serial No: RFI-SAR-RP86767JD02A V1.0 Version 1.0 Issue Date: 06 July 2012 Page: 5 of 229 RFI Global Services Ltd. 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: Mobile Handset Brand Name: Sony Model Name or Number: LT29i Type Number: PM-0010-BV Serial Number: CB5A1JYLXM IMEI Number: 00440214-538350-5 Hardware Version Number: AP1 Software Version Number: 7.0.A.0.474 Hardware Revision of GSM Module: None Specified Software Revision of GSM Module: None Specified FCC ID Number: PY7PM-0010 Country of Manufacture: China Date of Receipt: 17 April 2012 Note(s): This sample was used to perform WWAN SAR evaluation measurements only. The sample supports simultaneous transmission with the WWAN and WLAN antenna > 5 cm apart. Wireless Personal Hotspot is also supported and was evaluated as per KDB 941225 D06 "Hot Spot SAR v01" Description: Mobile Handset Brand Name: Sony Model Name or Number: LT29i Type Number: PM-0010-BV Serial Number: CB5A1JYMOC IMEI Number: 00440214-538349-7 Hardware Version Number: AP1 Software Version Number: 7.0.A.0.474 Hardware Revision of GSM Module: None Specified Software Revision of GSM Module: None Specified FCC ID Number: PY7PM-0010 Country of Manufacture: China Date of Receipt: 17 April 2012 Note(s): This sample was used to perform WWAN conducted measurements only. The sample supports simultaneous transmission with the WWAN and WLAN antenna > 5 cm apart. Wireless Personal Hotspot is also supported and was evaluated as per KDB 941225 D06 "Hot Spot SAR v01" Test Report Serial No: RFI-SAR-RP86767JD02A V1.0 Version 1.0 Issue Date: 06 July 2012 Page: 6 of 229 RFI Global Services Ltd. Identification of Equipment Under Test (EUT) (Continued) Description: Mobile Handset Brand Name: Sony Model Name or Number: LT29i Type Number: PM-0010-BV Serial Number: CB5A1JYLWN IMEI Number: 00440214-538346-3 Hardware Version Number: AP1 Software Version Number: ETS0.0.37b Hardware Revision of GSM Module: None Specified Software Revision of GSM Module: None Specified FCC ID Number: PY7PM-0010 Country of Manufacture: China Date of Receipt: 17 April 2012 Note(s): This sample was used to perform WLAN SAR evaluation and conducted power measurements only. The sample supports simultaneous transmission with the WWAN and WLAN antenna > 5 cm apart. Wireless Personal Hotspot is also supported and was evaluated as per KDB 941225 D06 "Hot Spot SAR v01" Test Report Serial No: RFI-SAR-RP86767JD02A V1.0 Version 1.0 Issue Date: 06 July 2012 Page: 7 of 229 RFI Global Services Ltd. 2.2. Description of EUT The Equipment Under Test is a Smart Mobile Phone with GSM 2G Quad Band, 3G Penta band and Wi-Fi bands. The EUT…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI-SAR-RP86767JD02A V1.0 Version 1.0 Issue Date: 06 July 2012 Page: 60 of 229 RFI Global Services Ltd. Appendix 1. Test Equipment Used RFI No. Instrument Manufacturer Type No. Serial No. Date Last Calibrated Cal. Interval (Months) A034 Narda 20W Termination Narda 374BNM 8706 Calibrated as part of system - A1097 SMA Directional Coupler MiDISCO MDC6223- 30 None Calibrated as part of system - A1137 3dB Attenuator Narda 779 04690 Calibrated as part of system - A1174 Dielectric Probe Kit Agilent Technologies 85070C Us99360072 Calibrated before use - A1328 Handset Positioner Schmid & Partner Engineering AG Modification SD 000 H01 DA - - A1182 Handset Positioner Schmid & Partner Engineering AG V3.0 None - - A1184 Data Acquisition Electronics Schmid & Partner Engineering AG DAE3 394 26 Jan 2012 12 A2111 Data Acquisition Electronics Schmid & Partner Engineering AG DAE3 432 02 May 2012 12 A2077 Probe Schmid & Partner Engineering AG EX3 DV4 3814 22 Sep 2011 12 A2113 Probe Schmid & Partner Engineering AG ET3 DV6 1587 11 May 2012 12 A2115 835 MHz Dipole Kit Schmid & Partner Engineering AG D835V2 438 07 May 2012 12 A1235 900 MHz Dipole Kit Schmid & Partner Engineering AG D900V2 124 09 Feb 2011 24 A1190 1800 MHz Dipole Kit Schmid & Partner Engineering AG D1800V2 264 13 July 2010 24 A1237 1900 MHz Dipole Kit Schmid & Partner Engineering AG D1900V2 540 08 Feb 2011 24 A1322 2450 MHz Dipole Kit Schmid & Partner Engineering AG D2450V2 725 08 Feb 2011 24 A1497 Amplifier Mini-Circuits zhl-42w (sma) e020105 Calibrated as part of system - A1566 SAM Phantom Schmid & Partner Engineering AG SAM a (Site 56) 002 Calibrated before use - A1238 SAM Phantom Schmid & Partner Engineering AG SAM b (Site 56) 001 Calibrated before use - Test Report Serial No: RFI-SAR-RP86767JD02A V1.0 Version 1.0 Issue Date: 06 July 2012 Page: 61 of 229 RFI Global Services Ltd. RFI No. Instrument Manufacturer Type No. Serial No. Date Last Calibrated Cal. Interval (Months) A2125 SAM Phantom Schmid & Partner Engineering AG SAM b (Site 57) TP-1031 Calibrated before use - A2124 SAM Phantom Schmid & Partner Engineering AG SAM a (Site 57) TP-1030 Calibrated before use - A215 20 dB Attenuator Narda 766-20 9402 Calibrated as part of system - A1531 Antenna AARONIA AG 7025 02458 - - M1015 Network Analyser Agilent Technologies 8753ES US39172406 27 Sept 2011 12 C1145 Cable Rosenberger MICRO- COAX FA147A F003003030 41843-1 Calibrated as part of system - C1146 Cable Rosenberger MICRO-COAX FA147A F030003030 41752-1 Calibrated as part of system - G0528 Robot Power Supply Schmid & Partner Engineering AG DASY4 None Calibrated before use - GO591 Robot Power Supply Schmid & Partner Engineering AG DASY4 None Calibrated before use - G087 PSU Thurlby Thandar CPX200 100701 Calibrated before use - M1047 Robot Arm Staubli RX908 L F00/SD8 9A1/A/01 Calibrated before use - M1653 Robot Arm Staubli RX908 L F01/5J8 6A1/C/01 Calibrated before use - M1159 Signal Generator Agilent Technologies E8241A US42110332 Internal Checked 14 Apr 2012 4 M1071 Spectrum Analyzer Agilent HP8590E 3647U00514 (Monitoring use only) - M1270 Digital Thermometer RS N/A N/A Internal Checked 13 May 2011 13 May 2012 12 S256 SAR Lab RFI Site 56 N/A Calibrated before use - S512 SAR Lab RFI Site 57 N/A Calibrated before use - Note: All the assets were in calibration during the course of testing. Test Report Serial No: RFI-SAR-RP86767JD02A V1.0 Version 1.0 Issue Date: 06 July 2012 Page: 62 of 229 RFI Global Services Ltd. A.1.1. Calibration Certificates This section contains the calibration certificates and data for the Probe(s) and Dipole(s) used, which are not included in the total number of pages for this report. The following information is justification to why the listed dipoles calibration period has been extended. This address FCC KDB 450824 D02 Cal Date Dipole Calibration History Dipole SN: 124, Frequency 900 MHz Head Parameters Body Parameters 1g (W/Kg) 10g (W/Kg) Return loss (dB) Real (Ω) Imaginary (Ω) 1g (W/Kg) 10g (W/Kg) Return loss (dB) Real (Ω) Imaginary (Ω) 27-Jun-12 Lab Annual Check of dipole -24.73 49.56-7.4 Lab Annual Check of dipole -21.92 48.18 -8.03 09-Feb-11 11.00 7.01 -21.60 48.90-8.20 11.10 7.14 -20.20 46.10 -8.60 23-Aug-07 10.20 6.56 -21.20 48.60-8.50 10.50 6.89 -20.20 45.40 -8.10 31-Aug-05 10.60 6.78 -24.70 49.10-5.70 10.50 6.77 -18.90 44.90 -8.90 13-May-03 10.60 6.76 -24.00 50.30-6.40 11.00 7.12 -20.60 46.20 -8.20 03-Aug-01 11.28 7.16 -25.40 50.80-5.60 Dipole calibrated for Head only Standard Deviation 0.42 0.23 1.77 0.85 1.25 0.32 0.18 1.08 1.25 0.37 |Mean Value| 10.74 6.85 23.61 10.78 6.98 20.36 Relative standard deviation % 3.87% 3.41% 7.49% 2.97% 2.58% 5.31% Cal Date Dipole Calibration History Dipole SN: 264, Frequency 1800 MHz Head Parameters Body Parameters 1g (W/Kg) 10g (W/Kg) Return loss (dB) Real (Ω) Imaginary (Ω) 1g (W/Kg) 10g (W/Kg) Return loss (dB) Real (Ω) Imaginary (Ω) 05-JuL-12 Lab Annual Check of dipole -22.97 46.16 -6.05 Lab Annual Check of dipole -21.40 45.46 -6.79 13-Jul-10 38.80 20.40 -22.50 45.80 -5.80 38.80 20.80 -20.30 43.00 -5.70 19-Jun-08 38.20 20.20 -25.00 46.50 -4.10 38.50 20.50 -20.10 42.00 -4.50 18-Apr-06 38.50 20.30 -23.50 46.00 -5.00 39.90 21.40 -19.70 41.70 -4.80 14-Apr-04 37.20 19.90 -23.50 46.90 -5.90 37.00 20.00 -21.30 44.30 -5.70 14-May-03 38.20 20.20 -22.60 46.70 -6.30 37.20 19.90 -19.70 42.30 -5.70 Standard Deviation 0.60 0.19 0.92 0.43 0.82 1.20 0.61 0.76 1.47 0.81 |Mean Value| 38.18 20.20 23.42 38.28 20.52 20.22 Relative standard deviation % 1.58% 0.93% 3.91% 3.13% 2.99% 3.76% Test Report Serial No: RFI-SAR-RP86767JD02A V1.0 Version 1.0 Issue Date: 06 July 2012 Page: 63 of 229 RFI Global Services Ltd. Calibration Certificates (Continued) Cal Date Dipole Calibration History Dipole SN: 540, Frequency 1900 MHz Head Parameters Body Parameters 1g (W/Kg) 10g (W/Kg) Return loss (dB) Real (Ω) Imaginary (Ω) 1g (W/Kg) 10g (W/Kg) Return loss (dB) Real (Ω) Imaginary (Ω) 27-Jun-12 Lab Annual Check of dipole -30.57 49.54 1.41 Lab…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI-SAR-RP86767JD02A V1.0 Version 1.0 Issue Date: 06 July 2012 Page: 64 of 229 RFI Global Services Ltd. Appendix 2. Measurement Methods A.2.1. Evaluation Procedure The Specific Absorption Rate (SAR) evaluation was performed in the following manner: a) (i) The evaluation was performed in an applicable area of the phantom depending on the type of device being tested. For devices worn about the ear during normal operation, both the left and right ear positions were evaluated at the centre frequency of the band at maximum power. The side, which produced the greatest SAR, determined which side of the phantom would be used for the entire evaluation. The positioning of the head worn device relative to the phantom was dictated by the test specification identified in section 3.1 of this report. (ii) For body worn devices or devices which can be operated within 20 cm of the body, the flat section of the SAM phantom was used were the size of the device(s) is normal. For bigger devices and base station the 2mm Oval phantom is used for evaluation. The type of device being evaluated dictated the distance of the EUT to the outer surface of the phantom flat section. b) The SAR was determined by a pre-defined procedure within the DASY4 software. The exposed region of the phantom was scanned near the inner surface with a grid spacing of 20mm x 20mm or appropriate resolution. c) A 5x5x7 matrix was performed around the greatest spatial SAR distribution found during the area scan of the applicable exposed region. SAR values were then calculated using a 3-D spline interpolation algorithm and averaged over spatial volumes of 1 and 10 grams. d) If the EUT had any appreciable drift over the course of the evaluation, then the EUT was re- evaluated. Any unusual anomalies over the course of the test also warranted a re-evaluation. Test Report Serial No: RFI-SAR-RP86767JD02A V1.0 Version 1.0 Issue Date: 06 July 2012 Page: 65 of 229 RFI Global Services Ltd. A.2.2. Specific Absorption Rate (SAR) Measurements to OET Bulletin 65 Supplement C: (2001- 01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields SAR measurements were performed in accordance with Appendix D of the standard FCC OET Bulletin 65 Supplement C: 2001, IEEE 1528 and FCC KDB procedures, against appropriate limits for each measurement position in accordance with the standard. In some cases the FCC was contacted using a PBA or KDB process to ensure test is performed correctly. The test was performed in a shielded enclosure with the temperature controlled to remain between +18.0ºC and +25.0ºC. The tissue equivalent material fluid temperature was controlled to give a maximum variation of ± 2.0ºC Prior to any SAR measurements on the EUT, system Check and material dielectric property measurements were conducted. In the absence of a detailed procedure wit…
