PY7PM-0140GSM/GPRS/EDGE/UMTS/HSPA/LTE mobile phone with Bluetooth, WLAN 802.11abgn, GPS/A-GPS, RFID and FM Rx

User guide Xperia ™ TL LT30at Contents Important information..................................................................6 Android™ – what and why?.........................................................7 Applications.......................................................................................7 Getting started..............................................................................8 Assembly...........................................................................................8 Turning the phone on and off ...........................................................8 Screen lock........................................................................................9 Accounts and services.......................................................................9 Getting to know your phone......................................................11 Phone overview................................................................................11 Using the keys.................................................................................12 Battery..............................................................................................12 Using the touchscreen.....................................................................15 Using the lockscreen.......................................................................17 Home screen....................................................................................18 Accessing and using applications...................................................20 Status and notifications...................................................................22 Phone settings menu.......................................................................24 Typing text.......................................................................................24 Customising your phone..................................................................29 Memory............................................................................................32 Using a headset with your phone....................................................33 Controlling data usage.....................................................................33 Calling..........................................................................................35 Emergency calls...............................................................................35 Call handling....................................................................................35 Voicemail..........................................................................................37 Multiple calls....................................................................................37 Conference calls..............................................................................37 Call settings.....................................................................................38 Contacts .....................................................................................40 Transferring contacts to your new phone........................................40 Contacts screen overview...............................................................42 Managing your contacts..................................................................42 Communicating with your contacts.................................................44 Sharing your contacts......................................................................44 Backing up contacts........................................................................45 Messaging...................................................................................46 Using text and multimedia messaging.............................................46 2 This is an Internet version of this publication. © Print only for private use. Text and multimedia message options............................................47 Email............................................................................................48 Using email......................................................................................48 Using email accounts.......................................................................51 Gmail™ and other Google™ services ............................................51 Google Talk™ ............................................................................53 Explore by Touch........................................................................54 Before using Explore by Touch........................................................54 Timescape™...............................................................................55 Timescape™ main view...................................................................55 Using Timescape™..........................................................................55 Timescape™ settings......................................................................57 Timescape™ Feed widget...............................................................57 Timescape™ Friends widget...........................................................58 Timescape™ Share widget..............................................................59 Getting started with Google Play™..........................................60 Downloading from Google Play™....................................................60 Clearing your application data.........................................................60 Permissions......................................................................................61 Installing applications not from Google Play™ ...............................61 Getting organised.......................................................................62 Calendar...........................................................................................62 Alarm clock......................................................................................62 Synchronising data on your phone...........................................65 Synchronising with Google™..................…

Text truncated - open the document above for the full version.

SONY Sony Mobile Communications SE-221 88 LUND· SWEDEN Confidentiality Request 2012-08-03 CGQBDA12:321 SoMC/CGQBDA Afrah Sadiq +46 1080 12250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC ID: PY7PM-0140 To Whom It May Concern : In accordance with §0.459 of CFR 47, Sony Mobile Communications AB requests confidentiality for the below listed items for our Sony mobile phone type PM-0140-BV, FCC ,10: PY7PM-0140: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operationalrrechnical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. ~ Afrah Sadiq Staff Verification Engi neer Glob al Type Approval Sony Mobile Comm unications Nya Vattentomet 221 88 Lund, Sweden Fax +46 1080 02441 sonymobile.com Sony Mobile Communications Styrelsens stile: Lund Momsnr· II. A. TNo' SE556615665801 Registered office: Lund Organisatlonsnr. Reg No: 556615-6658 Postadress • Mail 8esaksadress • Office address Telefon • Telephone Telefex • Telefax SE-221 88 Lund Nya Valtentornel Nat 010-80 00000 Nal 010-8002040 Sweden Lund In! t46 10 80 00000 Int +46 10 80 02040 SONY Sony Mobile Communications SE-221 88 LUND· SWEDEN hart Term Confidentiality Request 2012-08-16 CGQBDA 12:346 SoMCI CGQBDA Afrah Sadiq +46 10 80 12250 Receiver Federal Communications Commission Subject: Request for Temporary Confidentiality FCC 10: PY7PM-0140 To Whom It May Concern: In accordance with §0.459 of CFR 47 and Public Notice DA 04-1705, Sony Mobile Communications AB requests in addition to confidentiality request CGQBOA 12:321 temporary confidentiality for 180 days of the below listed items for our mobile phone type PM-0140-BV, FCC 10: PY7PM-0140: 1. User Manual 2. Test set-up 3 . External and Internal photos When the announcement of the product is done, the TCB will be notified to remove the Short Term Confidentiality. Please contact the undersigned if there are any further questions or additional information needed in this matter. Best Regards, h ~;rP: Afrah Sadiq Staff Verification Engineer Glo bal Type Approval Sony Mobi!e Communications Nya Vattenlomel 221 88 Lund, Sweden Fax +46 10 800244 1 sonymohl ie.c:om Sony Mobile Communications Styrelsens sate: Lund Momsnr • VA. T.No: SE55661566580 t Registered office: Lund Organisationsnr' Reg No : 556615-6658 Postadress • Mati Besbksadress • Office address Telefon • Telephone Telefax • Telelax SE-221 88 Lund Nya Vattentomet Nat 010-80 00000 Nat 010-80 02040 Sweden Lund Int +4 108000000 Int +461080 02040

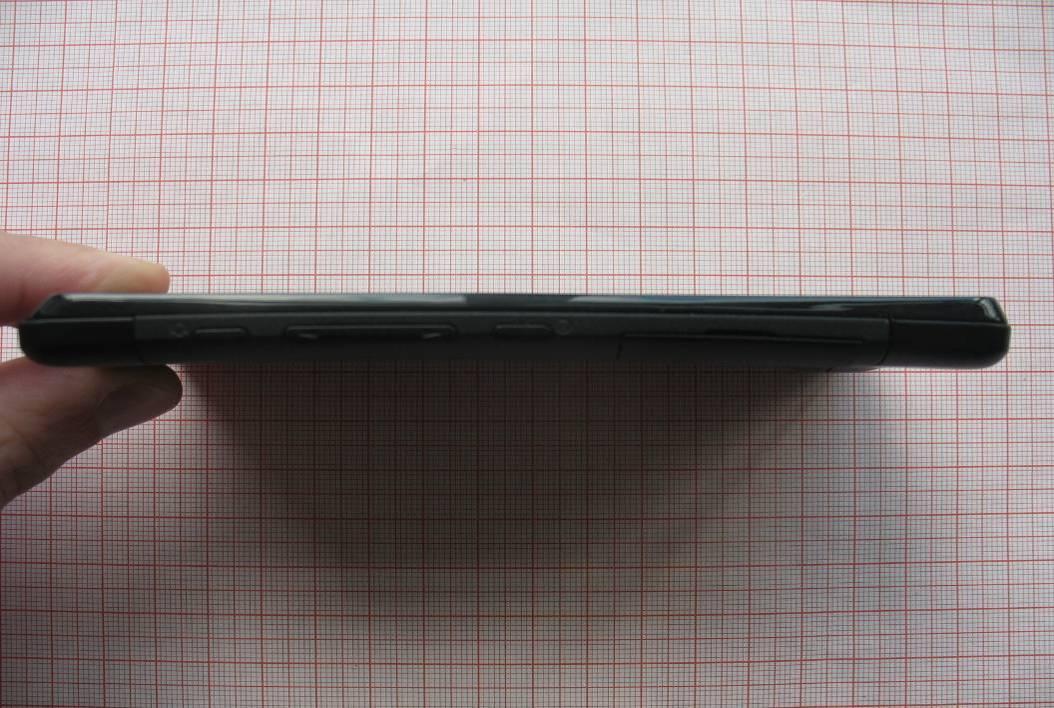

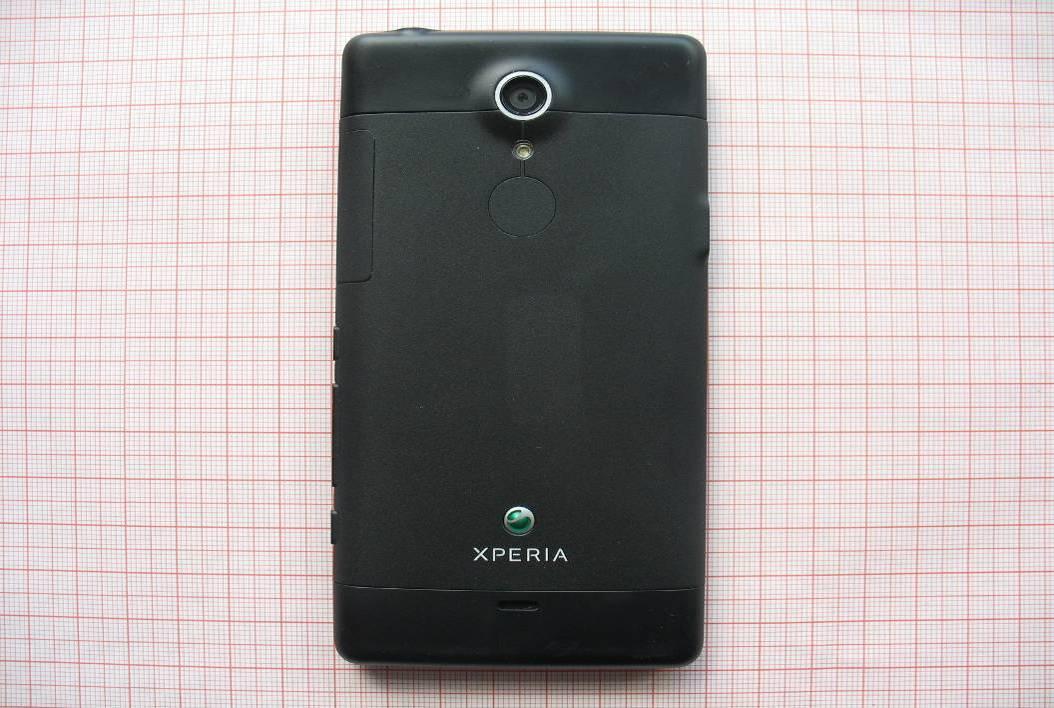

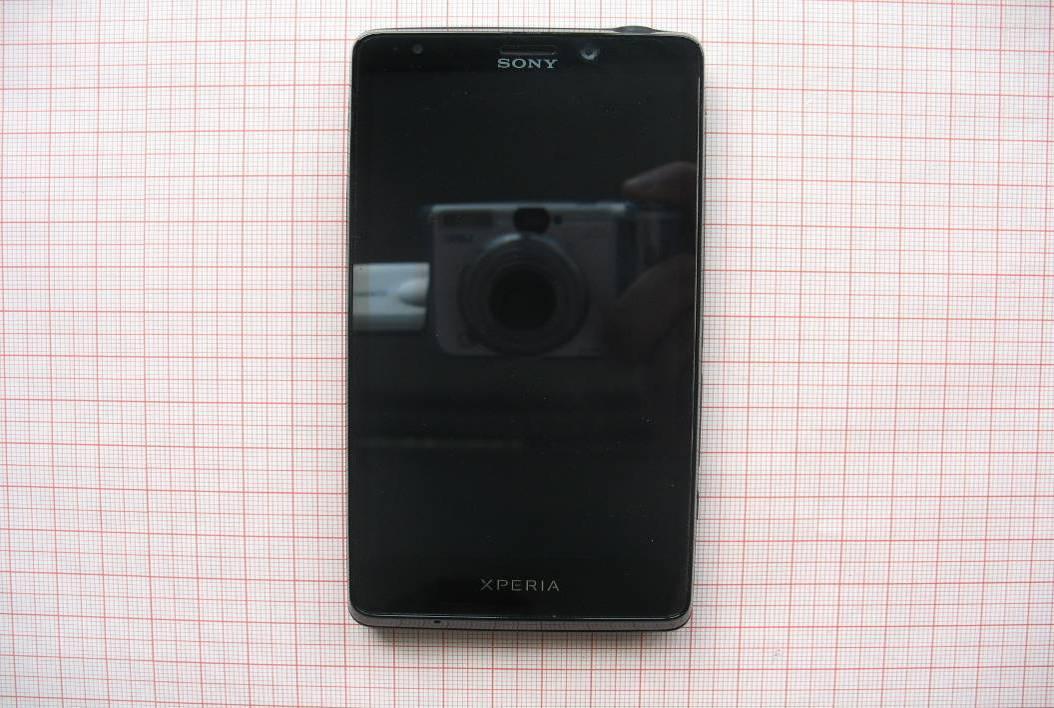

Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 155 of 170 An nex B External ph ot ogra phs o f the E UT Photo documentation: Photo 1: Photo 2: Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 156 of 170 Photo 3: Photo 4: Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 157 of 170 Photo 5: Photo 6:

Test report no.: 1-4254/12-16-21 2012-07-17 Page 15 of 30 An nex B External ph ot ogra phs o f the E UT Photo documentation: Photo 1: Photo 2: Test report no.: 1-4254/12-16-21 2012-07-17 Page 16 of 30 Photo 3: Photo 4: Test report no.: 1-4254/12-16-21 2012-07-17 Page 17 of 30 Photo 5: Photo 6:

1(6) Document number Revision 1267-9261 uen 2 Sony Mobile Communications AB Prepared by Date CGOVPDPLG, Anna Englund 2012-08-14 Contents responsible if other than preparer Remarks Approved by CGOVPDPLG, Anna Englund Mint label disposition on LT30at Abstract This document contains information on the phone label design required for Type Approval. This document is valid for Mint Amy LT30at. Type number: PM-0140-BV Marketing name: LT30at Contents 1 Mint Label Disposition ....................................................................... 1 2 Drawing of phone label front and back............................................... 3 2.1 Front, page one ................................................................................. 3 2.2 Front, page two and three - CE marking and Type numbers .............. 4 2.3 Back .................................................................................................. 5 3 Made in statement, SIM-and SD card info ......................................... 6 1 Mint Label Disposition NB! There are no pictures of the commercial phone labels, only drawings of the commercial label. All pictures are from prototype labels and all label pictures are from the Rita (LT30p) and Amy (LT30at) AP-build. Mint Mobile Phone Label Content information is spread over three different labels; 1) Label tray Front, page one, semi dynamic information 2) Label tray front page two and three (the so called peel read. This label is preprinted by the label supplier) 3) Label tray back, contains dynamic info such as IMEI number 2(6) Document number Revision 1267-9261 uen 2 Sony Mobile Communications AB Prepared by Date CGOVPDPLG, Anna Englund 2012-08-14 Contents responsible if other than preparer Remarks Approved by CGOVPDPLG, Anna Englund It is important in the User Documentation to include drawings, and clearly stated and show the customer where to find the CE-marking symbols and the IMEI-number. Below pictures illustrates where the label is located under the front tray and how to open it 1) Shows who to open the lid, where the label tray, SIM-card and Micro SD card are to inserted How to open the label tray and what it looks like once it has be opened 3(6) Document number Revision 1267-9261 uen 2 Sony Mobile Communications AB Prepared by Date CGOVPDPLG, Anna Englund 2012-08-14 Contents responsible if other than preparer Remarks Approved by CGOVPDPLG, Anna Englund 2 Drawing of phone label front and back 2.1 Front, page one Below is the drawing of the commercial label for the AT&T version Amy. According to SPACE label content part 1267-1453 for front label on tray Below is a picture of opened label tray, with prototype label content (from Rita LT30p). The below picture shows how the label will be pasted on the front of the tray. 4(6) Document number Revision 1267-9261 uen 2 Sony Mobile Communications AB Prepared by Date CGOVPDPLG, Anna Englund 2012-08-14 Contents responsible if other than preparer Remarks Approved by CGOVPDPLG, Anna Englund 2.2 Front, page two and three - CE marking and Type numbers In order to be able to find the CE-mark symbols, the label on the front label tray must be opened as illustrated in the two pictures below. The document is uploaded in SPACE, number 1267-8273. Below page two and three of the opened peel read label will contain the CE-mark symbols, as illustrated in the below drawing. 5(6) Document number Revision 1267-9261 uen 2 Sony Mobile Communications AB Prepared by Date CGOVPDPLG, Anna Englund 2012-08-14 Contents responsible if other than preparer Remarks Approved by CGOVPDPLG, Anna Englund The label is preprinted at the supplier’s DeRoyal Mark. CE approval symbol, WEEE trashcan without bar and Alert sign symbols are all graphics, height 5 mm acc to artwork in SPACE for CE mark 1210-0131, for WEE trashcan 1202-5537 and for Alert sign 1001-5859. The SONY company name will be printed on page 3 together with the type numbers, aw in SPACE 1263-9535. The SONY company name on the label measures, height 2,0 mm and width 11,3 mm 2.3 Back Below is the drawing and picture of the back of the label tray, where the label with production date, EFF-field and the IMEI number in clear text as well as barcode will be pasted. According to SPACE label content part for back 1267-3657. 6(6) Document number Revision 1267-9261 uen 2 Sony Mobile Communications AB Prepared by Date CGOVPDPLG, Anna Englund 2012-08-14 Contents responsible if other than preparer Remarks Approved by CGOVPDPLG, Anna Englund 3 Made in statement, SIM-and SD card info Below is the artwork of the “Made in statement” together with the SIM card symbol and the Micro SD-card symbol, as, all according to aw 1261-9696 in SPACE The picture below illustrates what this looks like on the phone. The label tray slightly covers the “made-in statement”. For sharp variant we have moved the SONY company name from the made in label to page 3 of the peel red label as stated above in chapter 2.2

Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 158 of 170 An nex C Inter nal p ho to gra phs o f the E UT Photo documentation: Photo 1: Photo 2: Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 159 of 170 Photo 3: Photo 4: Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 160 of 170 Photo 5: Photo 6: Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 161 of 170 Photo 7: Photo 8: Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 162 of 170 Photo 9: Photo 10: Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 163 of 170 Photo 11: Photo 12: Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 164 of 170 Photo 13: Photo 14: Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 165 of 170 Photo 15: Photo 16: Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 166 of 170 Photo 17: Photo 18: Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 167 of 170 Photo 19: Photo 20: Test report no.: 1-4254/12-16-12-A 2012-08-30 Page 168 of 170 Photo 21:

Test report no.: 1-4254/12-16-21 2012-07-17 Page 18 of 30 An nex C Inter nal p ho to gra phs o f the E UT Photo documentation: Photo 1: Photo 2: Test report no.: 1-4254/12-16-21 2012-07-17 Page 19 of 30 Photo 3: Photo 4: Test report no.: 1-4254/12-16-21 2012-07-17 Page 20 of 30 Photo 5: Photo 6: Test report no.: 1-4254/12-16-21 2012-07-17 Page 21 of 30 Photo 7: Photo 8: Test report no.: 1-4254/12-16-21 2012-07-17 Page 22 of 30 Photo 9: Photo 10: Test report no.: 1-4254/12-16-21 2012-07-17 Page 23 of 30 Photo 11: Photo 12: Test report no.: 1-4254/12-16-21 2012-07-17 Page 24 of 30 Photo 13: Photo 14: Test report no.: 1-4254/12-16-21 2012-07-17 Page 25 of 30 Photo 15: Photo 16: Test report no.: 1-4254/12-16-21 2012-07-17 Page 26 of 30 Photo 17: Photo 18: Test report no.: 1-4254/12-16-21 2012-07-17 Page 27 of 30 Photo 19: Photo 20: Test report no.: 1-4254/12-16-21 2012-07-17 Page 28 of 30 Photo 21:

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: LT30at To: OET Bulletin 65 Supplement C: (2001-01) and RSS-102 Issue 4 March 2010 FCC ID: PY7PM-0140; IC ID: 4170B-PM0140 Test Report Serial No: RFI-SAR-RP88281JD02A V2.0 Version 2.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: (APPROVED SIGNATORY) Checked By: Richelieu Quoi (APPROVED SIGNATORY) Issue Date: 21 August 2012 Test Dates: 18 June 2012 to 13 August 2012 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by RFI Global Services Ltd. is under license. Other trademarks and trade names are those of their respective owners. Test Report Serial No: RFI-SAR-RP88281JD02A V2.0 Version 2.0 Issue Date: 21 August 2012 Page: 2 of 472 RFI Global Services Ltd. This page has been left intentionally blank. Test Report Serial No: RFI-SAR-RP88281JD02A V2.0 Version 2.0 Issue Date: 21 August 2012 Page: 3 of 472 RFI Global Services Ltd. TABLE OF CONTENTS 1. Customer Information ..................................................................................................... 4 2. Equipment Under Test (EUT) .......................................................................................... 5 3. Test Specification, Methods and Procedures ............................................................. 19 4. Deviations from the Test Specification ....................................................................... 21 5. Operation and Configuration of the EUT during Testing ........................................... 22 6. Summary of Test Results ............................................................................................. 25 7. Measurements, Examinations and Derived Results ................................................... 38 8. Measurement Uncertainty ............................................................................................ 98 Appendix 1. Test Equipment Used ................................................................................ 109 Appendix 2. Measurement Methods .............................................................................. 113 Appendix 3. SAR Distribution Scans ............................................................................. 115 Appendix 4. System Check ............................................................................................ 443 Appendix 5. Simulated Tissues...................................................................................... 467 Test Report Serial No: RFI-SAR-RP88281JD02A V2.0 Version 2.0 Issue Date: 21 August 2012 Page: 4 of 472 RFI Global Services Ltd. 1. Customer Information Company Name: Sony Mobile Communications AB Address: Nya Vattentornet 22188 Lund Sweden Test Report Serial No: RFI-SAR-RP88281JD02A V2.0 Version 2.0 Issue Date: 21 August 2012 Page: 5 of 472 RFI Global Services Ltd. 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: Mobile Handset Brand Name: Sony Model Name or Number: LT30at Type Number: PM-0140-BV Serial Number: CB511Z7M5R IMEI Number: 00440245-023988-8 Hardware Version Number: AP1.2 Software Version Number: 7.0.A.1.68 Hardware Revision of GSM Module: Not Specified Software Revision of GSM Module: Not Specified FCC ID Number: PY7PM-0140 Industry Canada Number: 4170B-PM0140 Country of Manufacture: China Date of Receipt: 14 June 2012 Note(s): This sample was used to perform WWAN SAR evaluation measurements on bands GSM850 and PCS1900. The sample supports simultaneous transmission with the WWAN and WLAN antenna > 5 cm apart. Wireless Personal Hotspot is also supported and was evaluated as per KDB 941225 D06 "Hot Spot SAR v01" Description: Mobile Handset Brand Name: Sony Model Name or Number: LT30at Type Number: PM-0140-BV Serial Number: CB511Z7M8D IMEI Number: 00440245-023936-7 Hardware Version Number: AP1.2 Software Version Number: 7.0.A.1.68 Hardware Revision of GSM Module: Not Specified Software Revision of GSM Module: Not Specified FCC ID Number: PY7PM-0140 Industry Canada Number: 4170B-PM0140 Country of Manufacture: China Date of Receipt: 14 June 2012 Note(s): This sample was used to perform WWAN SAR evaluation measurements on bands UMTS FDD IV, LTE Band II, LTE Band V. The sample supports simultaneous transmission with the WWAN and WLAN antenna > 5 cm apart. Wireless Personal Hotspot is also supported and was evaluated as per KDB 941225 D06 "Hot Spot SAR v01" Test Report Serial No: RFI-SAR-RP88281JD02A V2.0 Version 2.0 Issue Date: 21 August 2012 Page: 6 of 472 RFI Global Services Ltd. Identification of Equipment Under Test (EUT) (Continued); Description: Mobile Handset Brand Name: Sony Model Name or Number: LT30at Type Number: PM-0140-BV Serial Number: CB511Z7M8G IMEI Number: 00440245-023919-3 Hardware Version Number: AP1.2 Software Version Number: 7.0.A.1.68 Hardware Revision of GSM Module: Not Specified Software Revision of GSM Module: Not Specified FCC ID Number: PY7PM-0140 Industry Canada Number: 4170B-PM0140 Country of Manufacture: China Date of Receipt: 14 June 2012 Note(s): This sample was used to perform WWAN SAR evaluation measurements on bands LTE Band IV and LTE Band XVII. The sample supports simultaneous transmission with the WWAN and WLAN antenna > 5 cm apart. Wireless Personal Hotspot is also supported and was evaluated as per KDB 941225 D06 "Hot Spot SAR v01" Description: Mobile Handset Brand Name: Sony Model Name or Number: LT30at Type Number: PM-0140-BV Serial Number: CB511Z…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI-SAR-RP88281JD02A V2.0 Version 2.0 Issue Date: 21 August 2012 Page: 115 of 472 RFI Global Services Ltd. Appendix 3. SAR Distribution Scans This appendix contains SAR distribution scans which are not included in the total number of pages for this report. SAR Distribution Scans Scan Reference Number Title SCN/88281JD02/001 Touch Left GSM CH190 SCN/88281JD02/002 Tilt Left GSM CH190 SCN/88281JD02/003 Touch Right GSM CH190 SCN/88281JD02/004 Tilt Right GSM CH190 SCN/88281JD02/005 Touch Left GSM CH128 SCN/88281JD02/006 Touch Left GSM CH251 SCN/88281JD02/007 Front of EUT Facing Phantom GPRS CH190 SCN/88281JD02/008 Back of EUT Facing Phantom GPRS CH190 SCN/88281JD02/009 Back of EUT Facing Phantom GPRS CH128 SCN/88281JD02/010 Back of EUT Facing Phantom GPRS CH251 SCN/88281JD02/011 Left Hand Side of EUT Facing Phantom GPRS CH190 SCN/88281JD02/012 Right Hand Side of EUT Facing Phantom GPRS CH190 SCN/88281JD02/013 Right Hand Side of EUT Facing Phantom GPRS CH128 SCN/88281JD02/014 Right Hand Side of EUT Facing Phantom GPRS CH251 SCN/88281JD02/015 Bottom of EUT Facing Phantom GPRS CH190 SCN/88281JD02/016 Back of EUT Facing Phantom at 15mm GPRS CH190 SCN/88281JD02/017 Back of EUT Facing Phantom with PHF GSM CH190 SCN/88281JD02/018 Touch Left PCS CH661 SCN/88281JD02/019 Tilt Left PCS CH661 SCN/88281JD02/020 Touch Right PCS CH661 SCN/88281JD02/021 Tilt Right PCS CH661 SCN/88281JD02/022 Touch Left PCS CH512 SCN/88281JD02/023 Touch Left PCS CH810 SCN/88281JD02/024 Front of EUT Facing Phantom GPRS CH661 SCN/88281JD02/025 Back of EUT Facing Phantom GPRS CH661 SCN/88281JD02/026 Left Hand Side of EUT Facing Phantom GPRS CH661 SCN/88281JD02/027 Right Hand Side of EUT Facing Phantom GPRS CH661 SCN/88281JD02/028 Bottom of EUT Facing Phantom GPRS CH661 SCN/88281JD02/029 Back of EUT Facing Phantom GPRS CH512 SCN/88281JD02/030 Back of EUT Facing Phantom GPRS CH810 SCN/88281JD02/031 Back of EUT Facing Phantom at 15mm GPRS CH661 SCN/88281JD02/032 Back of EUT Facing Phantom with PHF at 15mm GPRS CH661 SCN/88281JD02/033 Touch Left UMTS FDD II CH 9400 Test Report Serial No: RFI-SAR-RP88281JD02A V2.0 Version 2.0 Issue Date: 21 August 2012 Page: 116 of 472 RFI Global Services Ltd. SAR Distribution Scans (Continued): SCN/88281JD02/034 Tilt Left UMTS FDD II CH9400 SCN/88281JD02/035 Touch Right UMTS FDD II CH9400 SCN/88281JD02/036 Tilt Right UMTS FDD II CH9400 SCN/88281JD02/037 Touch Left UMTS FDD II CH9262 SCN/88281JD02/038 Touch Left UMTS FDD II CH9538 SCN/88281JD02/039 Front of EUT Facing Phantom UMTS FDD II CH 9400 SCN/88281JD02/040 Front of EUT Facing Phantom UMTS FDD II CH 9262 SCN/88281JD02/041 Front of EUT Facing Phantom UMTS FDD II CH 9538 SCN/88281JD02/042 Back of EUT Facing Phantom UMTS FDD II CH 9400 SCN/88281JD02/043 Back of EUT Facing Phantom UMTS FDD II CH 9262 SCN/88281JD02/044 Back of EUT Facing Phantom UMTS FDD II CH 9538 SCN/88281JD02/045 Left Hand Side of EUT Facing Phantom UMTS FDD II CH 9400 SCN/88281JD02/046 Right Hand Side of EUT Facing Phantom UMTS FDD II CH 9400 SCN/88281JD02/047 Bottom of EUT Facing Phantom UMTS FDD II CH 9400 SCN/88281JD02/048 Back of EUT Facing Phantom at 15mm UMTS FDD II CH 9400 SCN/88281JD02/049 Back of EUT Facing Phantom at 15mm UMTS FDD II CH 9262 SCN/88281JD02/050 Back of EUT Facing Phantom at 15mm UMTS FDD II CH 9538 SCN/88281JD02/051 Back of EUT Facing Phantom with PHF at 15mm UMTS FDD II CH 9262 SCN/88281JD02/052 Back of EUT Facing Phantom with PHF at 15mm UMTS FDD II CH 9400 SCN/88281JD02/053 Back of EUT Facing Phantom with PHF at 15mm UMTS FDD II CH 9538 SCN/88281JD02/054 Touch Left UMTS FDD IV CH1412 SCN/88281JD02/055 Tilt Left UMTS FDD IV CH1412 SCN/88281JD02/056 Touch Right UMTS FDD IV CH1412 SCN/88281JD02/057 Tilt Right UMTS FDD IV CH1412 SCN/88281JD02/058 Touch Left UMTS FDD IV CH1312 SCN/88281JD02/059 Touch Left UMTS FDD IV CH1513 SCN/88281JD02/060 Front of EUT Facing Phantom UMTS FDD IV CH1412 SCN/88281JD02/061 Back of EUT Facing Phantom UMTS FDD IV CH1412 SCN/88281JD02/062 Back of EUT Facing Phantom UMTS FDD IV CH1312 SCN/88281JD02/063 Back of EUT Facing Phantom UMTS FDD IV CH1513 SCN/88281JD02/064 Left Hand Side of EUT Facing Phantom UMTS FDD IV CH1412 SCN/88281JD02/065 Right Hand Side of EUT Facing Phantom UMTS FDD IV CH1412 SCN/88281JD02/066 Bottom of EUT Facing Phantom UMTS FDD IV CH1412 SCN/88281JD02/067 Bottom of EUT Facing Phantom UMTS FDD IV CH1312 SCN/88281JD02/068 Bottom of EUT Facing Phantom UMTS FDD IV CH1513 SCN/88281JD02/069 Back of EUT Facing Phantom at 15mm UMTS FDD IV CH1412 Test Report Serial No: RFI-SAR-RP88281JD02A V2.0 Version 2.0 Issue Date: 21 August 2012 Page: 117 of 472 RFI Global Services Ltd. SAR Distribution Scans (Continued): SCN/88281JD02/070 Back of EUT Facing Phantom at 15mm UMTS FDD IV CH1312 SCN/88281JD02/071 Back of EUT Facing Phantom at 15mm UMTS FDD IV CH1513 SCN/88281JD02/072 Back of EUT Facing Phantom with PHF at 15mm UMTS FDD IV CH1513 SCN/88281JD02/073 Touch Left UMTS FDD V CH4183 SCN/88281JD02/074 Tilt Left UMTS FDD V CH4183 SCN/88281JD02/075 Touch Right UMTS FDD V CH4183 SCN/88281JD02/076 Tilt Right UMTS FDD V CH4183 SCN/88281JD02/077 Touch Right UMTS FDD V CH4132 SCN/88281JD02/078 Touch Right UMTS FDD V CH4233 SCN/88281JD02/079 Front of EUT Facing Phantom UMTS FDD V CH 4183 SCN/88281JD02/080 Back of EUT Facing Phantom UMTS FDD V CH 4183 SCN/88281JD02/081 Back of EUT Facing Phantom UMTS FDD V CH 4132 SCN/88281JD02/082 Back of EUT Facing Phantom UMTS FDD V CH4233 SCN/88281JD02/083 Left Hand Side of EUT Facing Phantom UMTS FDD V CH 4183 SCN/88281JD02/084 Right Hand Side of EUT Facing Phantom UMTS FDD V CH 4183 SCN/88281JD02/085 Right Hand Side of EUT Facing Phantom UMTS FDD V CH 4132 SCN/88281JD02/086 Right Hand Side of EUT Facing Phantom UMTS FDD V CH 4233 SCN/88281JD02/087 Bottom of EUT Facing Phantom UMTS FDD V CH 4183 SCN/88281JD02/088 Back of EUT Facing Phantom at 15mm UMTS FDD V CH 4183 SCN/88281JD02/089 Back of EUT Facing Phantom at 15mm UMTS FDD V CH 4132 SCN/88281JD02/090 Back of EUT Facin…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI-SAR-RP88281JD02A V2.0 Version 2.0 Issue Date: 21 August 2012 Page: 324 of 472 RFI Global Services Ltd. SCN/88281JD02/200: Back of EUT Facing Phantom at 15mm LTE 17 10MHz BW 1 RB Low QPSK CH23790 Date: 13/07/2012 DUT: Sony Mint Amy; Type: Mint Amy; Serial: 00440245-023988-8 0 dB = 0.370mW/g Communication System: LTE - Band 17 / 10MHz Channel; Frequency: 710 MHz;Duty Cycle: 1:1 Medium: 750 MHz MSL Medium parameters used (interpolated): f = 710 MHz; σ = 0.922 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3814; ConvF(9.28, 9.28, 9.28); Calibrated: 22/09/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 26/01/2012 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Back of EUT Facing Phantom at 15mm - Middle/Area Scan (81x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.377 mW/g Back of EUT Facing Phantom at 15mm - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.0 V/m; Power Drift = -0.030 dB Peak SAR (extrapolated) = 0.460 W/kg SAR(1 g) = 0.353 mW/g; SAR(10 g) = 0.262 mW/g Maximum value of SAR (measured) = 0.370 mW/g Test Report Serial No: RFI-SAR-RP88281JD02A V2.0 Version 2.0 Issue Date: 21 August 2012 Page: 325 of 472 RFI Global Services …

Text truncated - open the document above for the full version.
