Startup guide Xperia ™ ZL C6502/C6503/C6506 Sony Mobile Communications AB SE-221 88 Lund, Sweden www.sonymobile.com 1269-7729.1 To insert the memory card and the SIM card The memory card may not be included at purchase in all markets. To attach the SIM and memory card cover Basics Device overview 2 11 910 4 5 7 1 8 3 6 13 19 15 17 16 18 1214 1. Proximity sensor 2. Ear speaker 3. Light sensor 4. Volume/Zoom key 5. Power key 6. IR lens 7. Camera key 8. Front/chat camera lens 9. Main microphone 10. Notification light 11. Touchscreen 12. Headset connector 13. Second microphone 14. Speaker 15. Port for charger/USB cable 16. Camera lens 17. Camera light 18. Strap hole 19. SIM and memory card cover Use the accessories provided with your device, or other compatible accessories, for optimal performance. Turning on the device To turn on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. 1 Press and hold down the power key until the device vibrates. 2 Wait a while for the device to start. Waking up the screen To activate the screen • Briefly press the power key . To unlock the screen • Drag up or drag down. Using the keys Back • Go back to the previous screen • Close the on-screen keypad, a dialog box, an options menu, or the Notification panel Home • Go to the Home screen Task • Tap to open a window showing your most recently used applications and a small apps bar Set up your device What is Android™? Android is your device's operating system. Since Android is developed by Google™, your device is preloaded with several Google™ services, such as Google Maps™ and Google™ web search. To use some of the services provided by Google™, you need a Google account. What is different about Android? Android™ is an open system, which means that you're not limited to using applications and services from only one provider. Google™ account With a Google™ account, you can use Gmail™ to send emails, Google Talk™ to chat with friends, and Google Play™ to download applications and games, music, movies and books. To set up a Google™ account on your device 1 From your Home screen, tap . 2 Find and tap Settings > Add account > Google. 3 Follow the registration wizard to create a Google™ account, or sign in if you already have an account. You can also sign in to or create a Google™ account from the setup guide the first time you start your device. Or you can go online and create an account at www.google.com/accounts. Basic settings The first time you start your device, a setup guide explains basic device functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide manually 1 From the Home screen, tap . 2 Tap Settings > Setup guide. Welcome Important Information Before you use your device, please read the Important Information provided in your device or in the box. Assembly To remove the SIM and memory card cover December 17, 2012 10:30:54 C6502-C6503-C6506__Booklet_EN_1269-7729.1.pdf 1 of 2 Transferring contacts to your new device Transferring contacts to your new device can sometimes be complicated, but help is available. You can transfer contacts from several device brands, including iPhone, Samsung, HTC and Nokia. You need: • An Internet-connected PC running Windows® • A USB cable for your old device • A USB cable for your new Android™ device • Your old device • Your new Android™ device Get started transferring your contacts Use the PC Companion program to transfer your contacts. It's free, and the installation files are already saved on your new device. PC Companion also offers a range of other features, including help to update your device software. To install PC Companion 1 New device: Turn on your new Android™ device and connect it to a PC using a USB cable. 2 New device: Tap Install to install PC Companion on the PC. 3 Computer: If a popup window appears to notify you about available PC software, select Run Startme.exe. 4 Computer: Click Install to start the installation and then follow the instructions to complete the installation. To transfer contacts to your new device using PC Companion 1 Make sure that PC Companion is installed on your PC. 2 Open the PC Companion program on the PC, then click Contacts Setup and follow the instructions to transfer your contacts. To open the Application screen • From your Home screen, tap . To open an application • From your Home screen or the Application screen, tap the application. Applications An application is a program on your device that helps you perform a task. For example, there are applications to make calls, take photos and download more applications. Status and notifications The status bar at the top of your screen shows what's going on in your device. For example, new message and calendar notifications appear here. Checking notifications and ongoing activities You can drag down the status bar to open the Notification panel and get more information. For example, you can use the panel to open a new message or view a calendar event. You can also open some applications that run in the background, such as the music player. To open the Notification panel • Drag the status bar downwards. Settings menu View and change settings for your device from the Settings menu. To access your device settings 1 From your Home screen, tap . 2 Tap Settings. You can also drag the status bar downwards on the Home screen and tap to access your device settings. More basics Calling To make a call by dialling 1 From your Home screen, tap . 2 Find and tap Phone. 3 Enter the number of the recipient and tap Call. To delete a number, tap . To end a call • Tap . To answer a call • Drag to the right across the screen. Multimedia and text messaging To create and send a message 1 From your Home screen, tap , then find and tap . 2 Tap . 3 Tap , then select the desired recipients from the Contacts list. If the recipient is not listed as a contact, enter the contact's number m…

Text truncated - open the document above for the full version.

Sony Mobile Communications Prepared by SEM/CGQB Håkan Sjöberg Contents responsible if other than preparer Approved by SEM/CGQB Håkan Sjöberg Subject: Request for Confidentiality FCC ID: PY7PM-0230 To Whom It May Concern: In accordance with §0.459 of CFR 47, confidentiality for the below listed it ID: PY7PM-0230: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operational/Technical Descriptions These items contain detailed system and equipment description and related information about the product whic confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Mobile Communications AB competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are an needed in this matter. Yours sincerely Håkan Sjöberg Global Type Approval Sony Mobile Communications Tel: +46 10 801 35 59 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected] Confidential LETTER Document number CGQBA13:095 Date 2013-02-01 Remarks Receiver Federal Communications Commission Request for Confidentiality 0230 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Mobile Communications AB confidentiality for the below listed items for our Sony mobile phone type P Block Diagram Schematic Diagram Operational/Technical Descriptions These items contain detailed system and equipment description and related information about the product which Sony Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general Since this design is a basis from which future technological products will evolve, nications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Sony Mobile Communications 221 88 Lund, Sweden [email protected] 1(1) Revision A Federal Communications Commission Mobile Communications AB requests mobile phone type PM-0230-BV, FCC These items contain detailed system and equipment description and related information considers to be proprietary, confidential and a custom design which otherwise would not be released to the general Since this design is a basis from which future technological products will evolve, Sony also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our y further questions or additional information

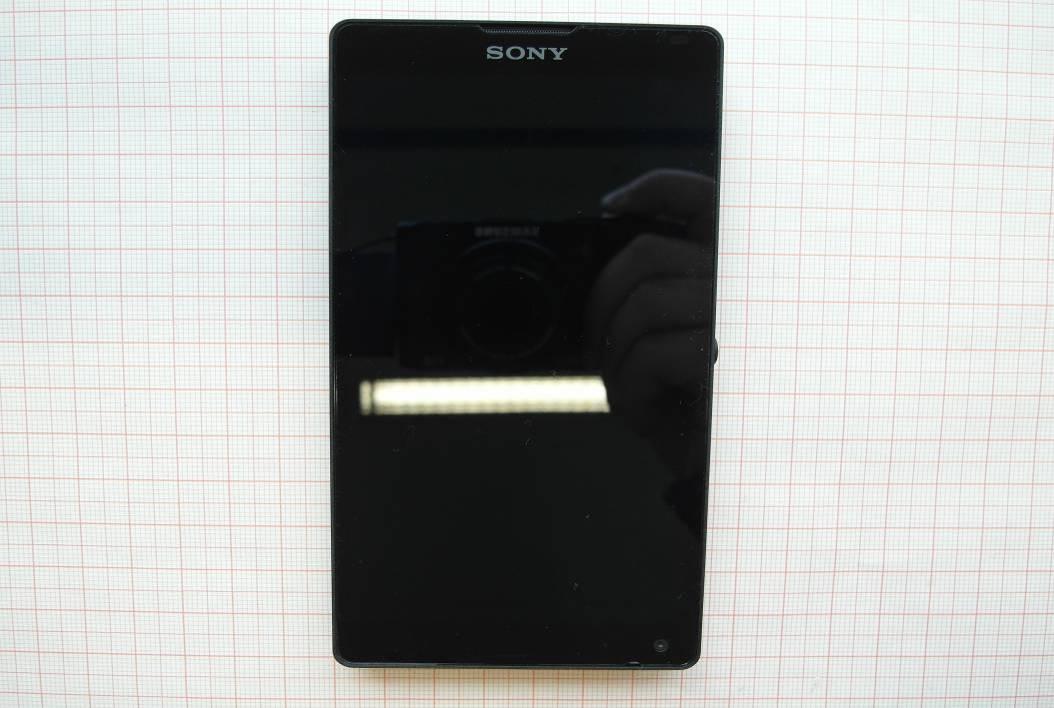

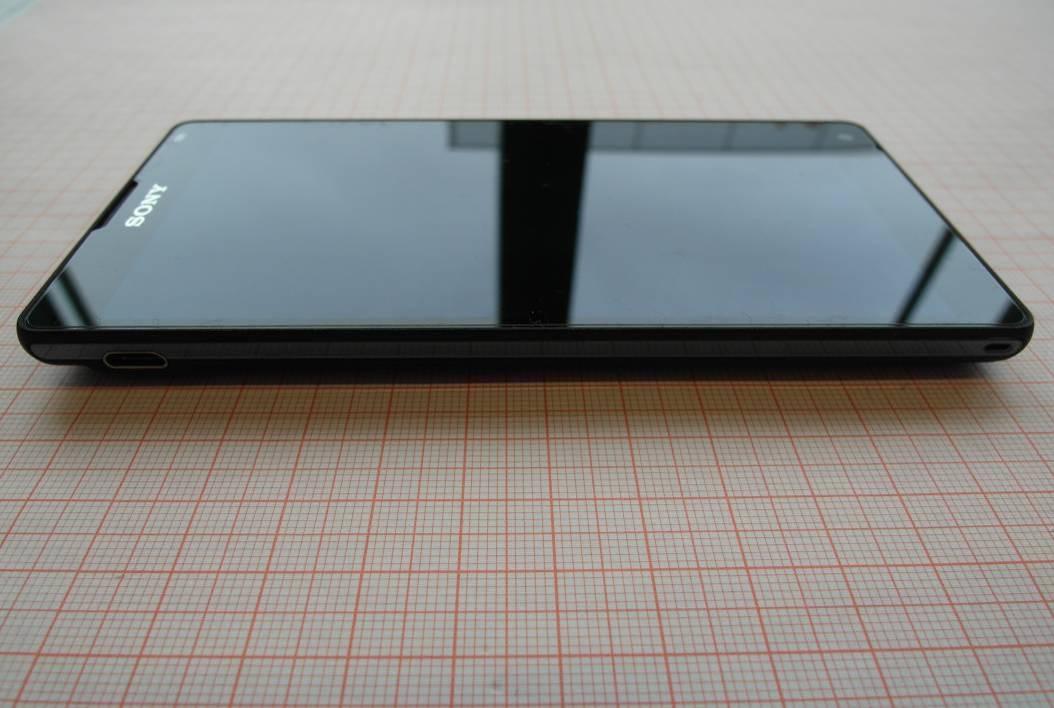

Test report no.: 1-4254/12-62-04 2012-11-21 Page 74 of 86 An nex B External ph ot ogra phs o f the E UT Photo documentation: Photo 1: Photo 2: Test report no.: 1-4254/12-62-04 2012-11-21 Page 75 of 86 Photo 3: Photo 4: Test report no.: 1-4254/12-62-04 2012-11-21 Page 76 of 86 Photo 5: Photo 6: Test report no.: 1-4254/12-62-04 2012-11-21 Page 77 of 86 Photo 7:
