Startup guide Xperia ™ E dual C1605/C1604 Sony Mobile Communications AB SE-221 88 Lund, Sweden www.sonymobile.com 1268-4710.1 To insert the battery To attach the battery cover To remove the bottom cover To attach the bottom cover 1 2 Phone basics Phone overview 2 11 78910 4 5 6 13 12 17 15 14 16 13 1. Proximity sensor 2. Ear speaker 3. Notification light 4. Volume/Zoom key 5. Power key 6. Camera key 7. Menu key 8. Microphone 9. Home key 10. Back key 11. Touchscreen 12. Camera lens 13. Second microphone 14. Headset jack (CTIA standard) 15. Port for charger/USB cable 16. Strap hole 17. Speaker Use the accessories provided with your phone, or other compatible accessories, for optimal performance. Turning on the phone To turn on the phone 1 Press and hold down the power key on the right side of the phone until the phone vibrates. 2 Wait a while for the phone to start. Waking up the screen To activate the screen • Briefly press the power key . To unlock the screen • Drag to the right across the screen. Using the keys Back • Go back to the previous screen • Close the on-screen keypad, a dialog box, an options menu, or the Notification panel Home • Go to the Home screen • Press and hold to open a window showing your most recently used applications Menu • Open a list of options available in the current screen or application Set up your phone What is Android™? Android is your phone's operating system. Since it's developed by Google™, your phone is preloaded with several Google™ services, such as Google Maps™ and Google™ web search. To use some of the services provided by Google™, you need a Google account. What is different about Android? Android™ is an open system, which means that you're not limited to using applications and services from only one provider. Google™ account With a Google™ account, you can use Gmail™ to send emails, Google Talk™ to chat with friends, and Google Play™ to download applications and games, music, movies and books. To set up a Google™ account in your phone 1 From your Home screen, tap . 2 Find and tap Settings > Accounts & sync > Add account > Google. 3 Follow the registration wizard to create a Google™ account, or sign in if you already have an account. Your phone is now ready to use with Gmail™ , Google Talk™ and Google Calendar™. You can also sign in or create a Google™ account from the setup guide the first time you start your phone. Or you can go online and create an account at www.google.com/accounts. Basic settings The first time you start your phone, a setup guide explains basic phone functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide manually 1 From the Home screen, tap . 2 Find and tap Setup guide. Transferring contacts to your new phone Transferring contacts to your new phone can sometimes be complicated, but help is available. You can transfer contacts from several phone brands, including iPhone, Samsung, HTC and Nokia. You need: • An Internet-connected PC running Windows® • A USB cable for your old phone • A USB cable for your new Android™ phone • Your old phone • Your new Android™ phone If you don't have access to all of the items listed above, go to www.sonymobile.com to find out about other ways to transfer your contacts. Get started transferring your contacts Use the PC Companion program to transfer your contacts. It's free, and the installation files are already saved on your new phone. PC Companion also offers a range of other features, including help to update your phone software. To install PC Companion 1 New phone: Turn on your new Android™ phone and connect it to a PC using a USB cable. 2 New phone: Tap Install to install PC Companion on the PC. 3 Computer: If a popup window appears, select Run Startme.exe. In the new popup window that appears, click Install to start the installation and then follow the instructions to complete the installation. To transfer contacts to your new phone using PC Companion 1 Make sure that PC Companion is installed on your PC. 2 Open the PC Companion program on the PC, then click Contacts Setup and follow the instructions to transfer your contacts. Welcome Important Information Before you use your device, please read the Important Information provided in your device or in the box. Assembly To remove the battery cover To insert a memory card To insert the SIM cards Do not insert an incompatible SIM card, for example, a micro SIM card, into the SIM card slot. Doing so could permanently damage your SIM card or your phone. November 5, 2012 09:18:22 C1605__Booklet_EN_1268-4710.1.pdf 1 of 2 Finding your way Home screen Your phone Home screen is the equivalent of the desktop on a computer. You can customise your Home screen with widgets, shortcuts, folders, themes, wallpaper and other items. The Home screen extends beyond the regular screen display width, so you need to flick left or right to view content in one of the screen's four extensions. The items in the bar at the bottom of the screen are always available for quick access. To go to the Home screen • Press . To browse the Home screen • Flick right or left. To change your Home screen wallpaper 1 From your Home screen, press . 2 Tap Wallpaper, then select a wallpaper. Widgets Widgets are small applications that you can use directly on your Home screen. For example, the Music player widget allows you to start playing music directly. Some widgets are resizable, so you can expand them to view more content or shrink them to save space on your Home screen. Application screen The Application screen, which you open from your Home screen, contains the applications that come installed with your phone as well as the applications you download. The Application screen extends beyond the regular screen width, so you need to flick left and right to view all content. To open the Application screen • From your Home screen, tap . Phone settings menu View and change your phone settings from the Settings menu. To access …

Text truncated - open the document above for the full version.

SAR Information FCC Statement Declaration of Conformity Sony C1605 UMTS HSPA Band 1 8 GSM GPRS/EDGE 850/900/1800/1900 Important Information U nited States & Canada THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The C1605 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the safe and efficient use chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.63 W/kg*, and when worn on the body is 0.49 W/kg* for speech and 1.22 W/kg* for data calls. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate Sony accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 2 10mm. Use of third-party accessories may result in different SAR levels than those reported. **Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID PY7PM-0251. Additional information on SAR can be found on the Cellular Telecommunications & Internet Association (CTIA) website at http://www.phonefacts.net. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. 3 Renseignements importants É tats-Unis et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles de la C1605 ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites* d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes standardisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le TAS, reportez-vous au chapitre sur l'utilisation efficace et sans danger du guide de l'utilisateur. Le TAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de 0.63 W/kg* lorsqu'il est testé en utilisation près de l'oreille, et de 0.49 W/kg* pour les appels vocaux et de 1.22 W/kg* pour les transmissions de données lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et 4 à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon adéquate avec un accessoire Sony et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », les mesures du TAS de l'appareil en mode WiFi ont été prises à une distance de sécurité de 10 mm. L'utilisation d'accessoires tiers peut produire des niveaux de TAS différents de ceux relevés…

Text truncated - open the document above for the full version.

Sony Mobile Communications Prepared by SEM/CGQB Håkan Sjöberg Contents responsible if other than preparer Approved by SEM/CGQB Håkan Sjöberg Telecommunication Certification Body UL Pavilion A Ashwood Park Ashwood Way Basingstoke Hampshire RG23 8BG England To whom it may concern This is to certify that Sony Mobile Communications AB Telecommunication Certification Body on our behalf phone C1605, FCC ID: PY7PM We certify that we are not subject to a denial of Federal pursuant to Section 5301 of the Anti conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for th Yours sincerely Håkan Sjöberg Manager - Global Type Approval Sony Mobile Communications Tel: +46 10 801 35 59 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected] Confidential LETTER Document number CGQBDA12:499 Date 2012-12-11 Remarks Telecommunication Certification Body To whom it may concern This is to certify that Sony Mobile Communications AB authorizes UL Telecommunication Certification Body on our behalf for the FCC application of PY7PM-0251 We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes.. Global Type Approval Sony Mobile Communications 221 88 Lund, Sweden [email protected] 1(1) Revision A UL to act as for the FCC application of our mobile benefits, that include FCC benefits, Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for

Sony Mobile Communications Prepared by SEM/CGQB Håkan Sjöberg Contents responsible if other than preparer Approved by SEM/CGQB Håkan Sjöberg Telecommunication Certification Body UL Pavilion A Ashwood Park Ashwood Way Basingstoke Hampshire RG23 8BG England Subject: Certification Application FCC ID: PY7PM-025 It is requested that the following information is to be held confidential on behalf of Sony Mobile Communications AB pursuant to FCC Rules Parts 0.457 and 0.459: • Block Diagrams • Schematics • Parts List • Tune Up Information • Operation Description These items contain detailed about the product which Sony Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Yours sincerely Håkan Sjöberg Global Type Approval Sony Mobile Communications Tel: +46 10 801 35 59 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected] Confidential LETTER Document number CGQBDA12:500 Date 2012-12-11 Remarks Telecommunication Certification Body Subject: Certification Application 51 that the following information is to be held confidential on behalf of Sony Mobile Communications AB pursuant to FCC Rules Parts 0.457 and 0.459: Block Diagrams Tune Up Information Operation Description These items contain detailed system and equipment description and related information about the product which Sony Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Sony Mobile Communications 221 88 Lund, Sweden [email protected] 1(1) Revision A that the following information is to be held confidential on behalf of Sony Mobile Communications AB pursuant to FCC Rules Parts 0.457 and 0.459: system and equipment description and related information about the product which Sony Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general a basis from which future technological products will evolve, Sony Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our Please contact the undersigned if there are any further questions or additional information

Sony Mobile Communications Prepared by SEM/CGQB Håkan Sjöberg Contents responsible if other than preparer Approved by SEM/CGQB Håkan Sjöberg Telecommunication Certification Body UL Pavilion A Ashwood Park Ashwood Way Basingstoke Hampshire RG23 8BG England Subject: Short term confidentiality request Applies to FCC ID: PY7PM In accordance with §0.459 of CFR 47 and Public Notice DA 04 Communications AB requests in addition to confidentiality request temporary confidentiality C1605, FCC ID: PY7PM • User manual • Test setup photos • External photos • Internal photos These items contain proprietary information related to the design of the product which has not yet been released to the market. The public disclosure of this infor launch may be harmful to Sony Mobile Communications AB and provide unjust benefits to its competitors. A period up to 2013 market launch, If the launch date is re again to cancel this restriction. Please contact the undersigned if there are any further questions or additional information needed in this matter. Yours sincerely Håkan Sjöberg Global Type Approval Sony Mobile Communications Tel: +46 10 801 35 59 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected] Confidential LETTER Document number CGQBDA12:501 Date 2012-12-11 Remarks Telecommunication Certification Body Short term confidentiality request PY7PM-0251 In accordance with §0.459 of CFR 47 and Public Notice DA 04-1705, Sony Mobile Communications AB requests in addition to confidentiality request temporary confidentiality until 2013-02-15 of the below listed items for our mobile pho , FCC ID: PY7PM-0251: photos photos nternal photos These items contain proprietary information related to the design of the product which has not yet been released to the market. The public disclosure of this infor launch may be harmful to Sony Mobile Communications AB and provide unjust benefits to its competitors. A period up to 2013-02-15 is requested to protect this information before formal market launch, If the launch date is re-scheduled to be earlier than 2013 ain to cancel this restriction. Please contact the undersigned if there are any further questions or additional information needed in this matter. Sony Mobile Communications 21 88 Lund, Sweden [email protected] 1(1) Revision A 1705, Sony Mobile Communications AB requests in addition to confidentiality request CGQBDA12:500 of the below listed items for our mobile phone These items contain proprietary information related to the design of the product which has not yet been released to the market. The public disclosure of this information prior to public launch may be harmful to Sony Mobile Communications AB and provide unjust benefits to its 15 is requested to protect this information before formal to be earlier than 2013-02-15 we will inform Please contact the undersigned if there are any further questions or additional information

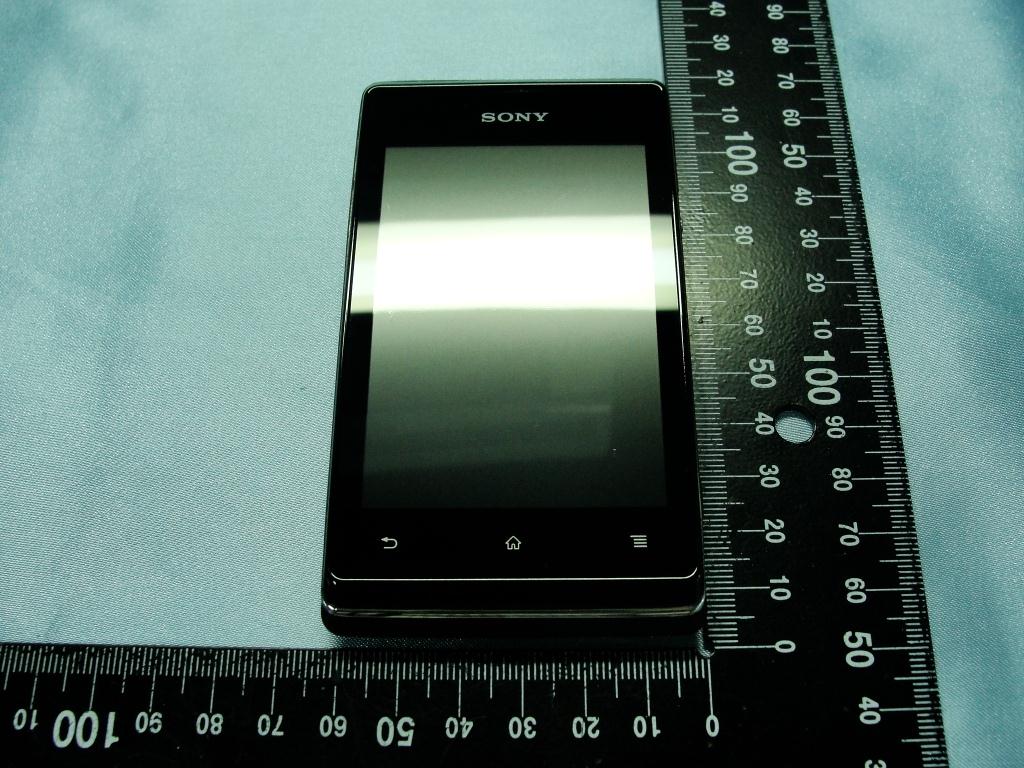

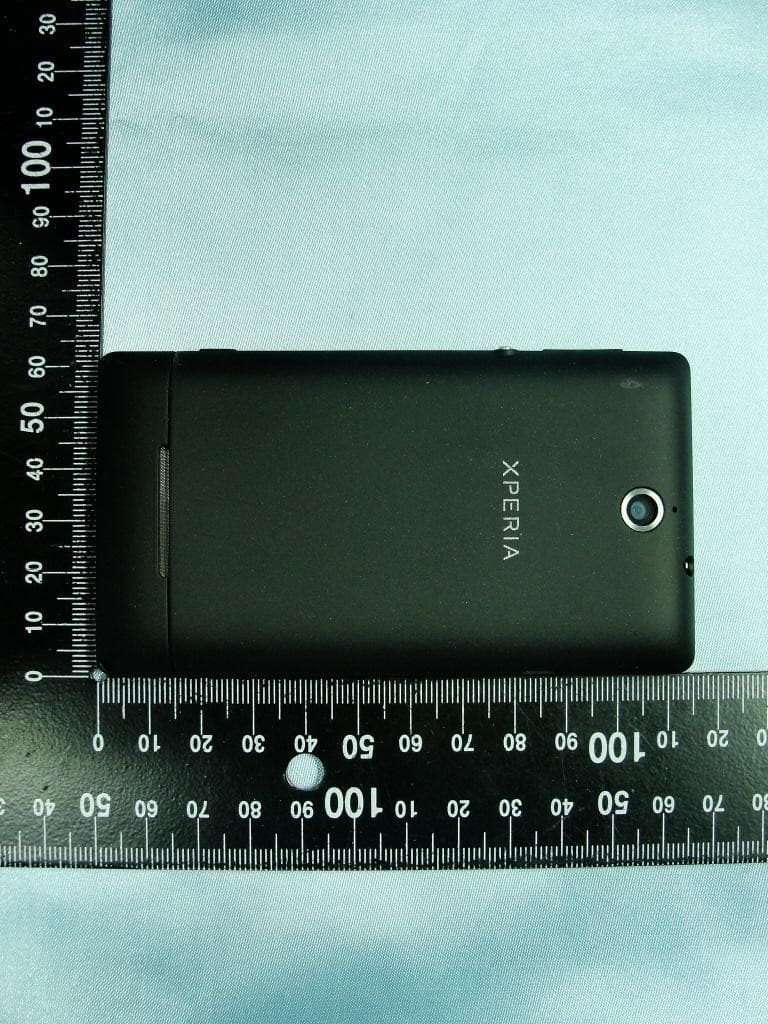

Photographs of EUT Report No.: EP292717 Brand Name: Sony / Model Name: PM-0251-BV / Marketing Name: C1605 SPORTON INTERNATIONAL INC. Page Number : 1 of 6 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PY7PM-0251 External Photograph of EUT Photographs of EUT Report No.: EP292717 Brand Name: Sony / Model Name: PM-0251-BV / Marketing Name: C1605 SPORTON INTERNATIONAL INC. Page Number : 2 of 6 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PY7PM-0251 Photographs of EUT Report No.: EP292717 Brand Name: Sony / Model Name: PM-0251-BV / Marketing Name: C1605 SPORTON INTERNATIONAL INC. Page Number : 3 of 6 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PY7PM-0251 Photographs of EUT Report No.: EP292717 Brand Name: Sony / Model Name: PM-0251-BV / Marketing Name: C1605 SPORTON INTERNATIONAL INC. Page Number : 4 of 6 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PY7PM-0251 Photographs of EUT Report No.: EP292717 Brand Name: Sony / Model Name: PM-0251-BV / Marketing Name: C1605 SPORTON INTERNATIONAL INC. Page Number : 5 of 6 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PY7PM-0251 Photographs of EUT Report No.: EP292717 Brand Name: Sony / Model Name: PM-0251-BV / Marketing Name: C1605 SPORTON INTERNATIONAL INC. Page Number : 6 of 6 TEL : 886-3-327-3456 Report Issued Date : Nov. 08, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : PY7PM-0251 720510
