PY7PM-0270GSM/UMTS/LTE Mobile Phone with WLAN, BT, RFID

SAR Information FCC Statement Declaration of Conformity Sony C6603 UMTS HSPA Band 1 5 8 GSM GPRS/EDGE 850/900/1800/1900 LTE Band 1 3 5 7 8 20 Important Information U nited States & Canada THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The C6603 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the safe and efficient use chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.85 W/kg*, and when worn on the body is 0.57 W/kg* for speech and 0.86 W/kg* for data calls. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate Sony accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 2 10mm. Use of third-party accessories may result in different SAR levels than those reported. **Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID PY7PM-0270. Additional information on SAR can be found on the Cellular Telecommunications & Internet Association (CTIA) website at http://www.phonefacts.net. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. 3 Renseignements importants É tats-Unis et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles de la C6603 ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites* d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes standardisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le TAS, reportez-vous au chapitre sur l'utilisation efficace et sans danger du guide de l'utilisateur. Le TAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de 0.85 W/kg* lorsqu'il est testé en utilisation près de l'oreille, et de 0.57 W/kg* pour les appels vocaux et de 0.86 W/kg* pour les transmissions de données lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et 4 à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon adéquate avec un accessoire Sony et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », les mesures du TAS de l'appareil en mode WiFi ont été prises à une distance de sécurité de 10 mm. L'utilisation d'accessoires tiers peut produire des niveaux de TAS di…

Text truncated - open the document above for the full version.

Startup guide Xperia ™ Z C6603 Sony Mobile Communications AB SE-221 88 Lund, Sweden www.sonymobile.com 1270-5802.1 Welcome Important Information Before you use your device, please read the Important Information provided in your device or in the box. Water and dust resistance >1m Ocean waterSwimming poolDiving Hot waterSand/mudOther liquid chemicals Your device has IP (Ingress Protection) ratings of IP5X, IPX5 and IPX7. This means that your device is dust protected and protected against the effects of immersion in water in depths of between 0 to 100 cm for up to 30 minutes, and is also protected against the effects of a low pressure water stream. The covers for the micro USB port, the micro SD card, the micro SIM card and the headset connector must be firmly closed in order for the device to meet the stated IP rating. More information about IP codes and important details about your device’s resistance to water can be found in the User guide for your device and on the Sony Mobile support website. www.sonymobile.com/support Assembly To insert the micro SIM card 1 2 3 4 5 To insert a memory card Do not insert a micro SIM card into the memory card slot. 1 22222 The memory card may not be included at purchase in all markets. Basics Device overview 123 4 5 6 7 8 91011 12 15 16 17 18 13 14 1. Front camera lens 2. Ear speaker 3. Ambient light sensor 4. Notification light 5. Main microphone 6. Charging dock connector 7. Memory card slot 8. Port for charger/USB cable 9. Headset connector 10. Camera lens 11. Second microphone 12. Camera light 13. NFC™ detection area 14. Strap hole 15. Speaker 16. Volume/Zoom key 17. Power key 18. Micro SIM slot Use the accessories provided with your device, or other compatible accessories, for optimal performance. Turning on the device To turn on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. 1 Press and hold down the power key until the device vibrates. 2 Wait a while for the device to start. Waking up the screen To activate the screen • Briefly press the power key . To unlock the screen • Drag up or drag down. Using the keys Back • Go back to the previous screen • Close the on-screen keypad, a dialog box, an options menu, or the Notification panel Home • Go to the Home screen Task • Tap to open a window showing your most recently used applications and a small apps bar Set up your device What is Android™? Android is your device's operating system. Since Android is developed by Google™, your device is preloaded with several Google™ services, such as Google Maps™ and Google™ web search. To use some of the services provided by Google™, you need a Google account. What is different about Android? Android™ is an open system, which means that you're not limited to using applications and services from only one provider. Google™ account With a Google™ account, you can use Gmail™ to send emails, Google Talk™ to chat with friends, and Google Play™ to download applications and games, music, movies and books. To set up a Google™ account on your device 1 From your Home screen, tap . 2 Find and tap Settings > Add account > Google. 3 Follow the registration wizard to create a Google™ account, or sign in if you already have an account. You can also sign in to or create a Google™ account from the setup guide the first time you start your device. Or you can go online and create an account at www.google.com/accounts. Basic settings The first time you start your device, a setup guide explains basic device functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide manually 1 From the Home screen, tap . 2 Tap Settings > Setup guide. Transferring contacts to your new device Transferring contacts to your new device can sometimes be complicated, but help is available. You can transfer contacts from several device brands, including iPhone, Samsung, HTC and Nokia. You need: • An Internet-connected PC running Windows® • A USB cable for your old device • A USB cable for your new Android™ device • Your old device • Your new Android™ device Get started transferring your contacts Use the PC Companion program to transfer your contacts. It's free, and the installation files are already saved on your new device. PC Companion also offers a range of other features, including help to update your device software. To install PC Companion 1 New device: Turn on your new Android™ device and connect it to a PC using a USB cable. 2 New device: Tap Install to install PC Companion on the PC. 3 Computer: If a popup window appears to notify you about available PC software, select Run Startme.exe. 4 Computer: Click Install to start the installation and then follow the instructions to complete the installation. To transfer contacts to your new device using PC Companion 1 Make sure that PC Companion is installed on your PC. 2 Open the PC Companion program on the PC, then click Contacts Setup and follow the instructions to transfer your contacts. Finding your way Home screen The Home screen of your device is the equivalent of the desktop on a computer. You can customise your Home screen with widgets, shortcuts, folders, themes, wallpaper and other items. The Home screen extends beyond the regular screen display width, so you need to flick left or right to view content in one of the screen's four extensions. The items in the bar at the bottom of the screen are always available for quick access. To go to the Home screen • Press . To browse the Home screen • Flick right or left. To change your Home screen wallpaper 1 Tap an empty area on your Home screen. 2 Tap Wallpaper and select an option. Widgets Widgets are small applications that you can use directly on your Home screen. For example, the Music player widget allows you to start playing music directly. Some widgets are resizable, so you can expand them to view more content or shrink them to save space on your Home screen. Application…

Text truncated - open the document above for the full version.

SONY Sony Mobile Communications AS SE-n1 88 LUND· SWEDEN Confidentiality Request 2013-01-18 CGQBA13:036 SoM/CGQBA Afrah Sadiq +46 10 80 12250 Receiver Federal Communications Commission Subject: Request for Confidentiality FCC 10: PY7PM-0270 To Whom It May Concern: In accordance with §0.459 of CFR 47, Sony Mobile Communications AB requests confidentiality for the below listed items for our Sony mobile phone type PM-0270-BV, FCC 10: PY7PM-0270: 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operational/Technical Descriptions These items contain detailed system and equipment description and related information about the product whi ch Sony Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. I Regards, Afrah Sadiq Staff Verification Engineer (;Iatlal Type Approval SOny Mobii8 Cern J1unlcatlon s NYi.'i·VallenIOrne ! <'~1 b8 LU I)\l, Sweden Fax. +46 j 0 80 ()24·~ 1 29'JY.!Tl..l.l12lliH!lln Sony Mobile Communications AS Styrelsens sale: Lund Momsnr • v.A.T.Ner. SE55661 5665801 Registered office: Lund Organrsatlonsnr .. Reg No; 556615-6658 Postadtess • Mall l3es6ksadress • Office address Telefon • Telephone Telefax • Telelax SE-221 88 Lund Nya Va tenlornet Nat 010-80 00000 Nat 010,80 02040 Swooen l.J..ind Int +4610 BO 00000 Int +46 10 80 02040

Sony Mobile Communications Prepared by SOMC/CGQBADS Håkan Sjöberg Contents responsible if other than preparer Approved by SOMC/CGQBADS Håkan Sjöberg Applies to : Product Typenumber C6603 PM Attestation statement for LTE Band 7 operation This phone m Code). If MCC matche It is automatically controlled by LTE band 7 in these countr Signed Håkan Sjöberg Manager - HW Verification Global Type Approval Sony Mobile Communications AB Company Internal Document number CGQBA13:069 Date 2013-01-28 Remarks Receiver Federal Communication Commission and Certification and Engineering Bureau Industry Canada Typenumber FCC ID IC ID PM-0270-BV PY7PM-0270 4170B-PM0270 Attestation statement for LTE Band 7 operation This phone model supports LTE band 7 which is enabled/disabled f MCC matches US and Canada countries LTE band 7 is It is automatically controlled by SW and MCC and the end user in these countries. Håkan Sjöberg HW Verification Global Type Approval Sony Mobile Communications AB 1(1) Revision A Federal Communication Commission and Certification PM0270 Attestation statement for LTE Band 7 operation nabled/disabled by MCC (Mobile Country LTE band 7 is automatically disabled. MCC and the end user has no possibility to enable

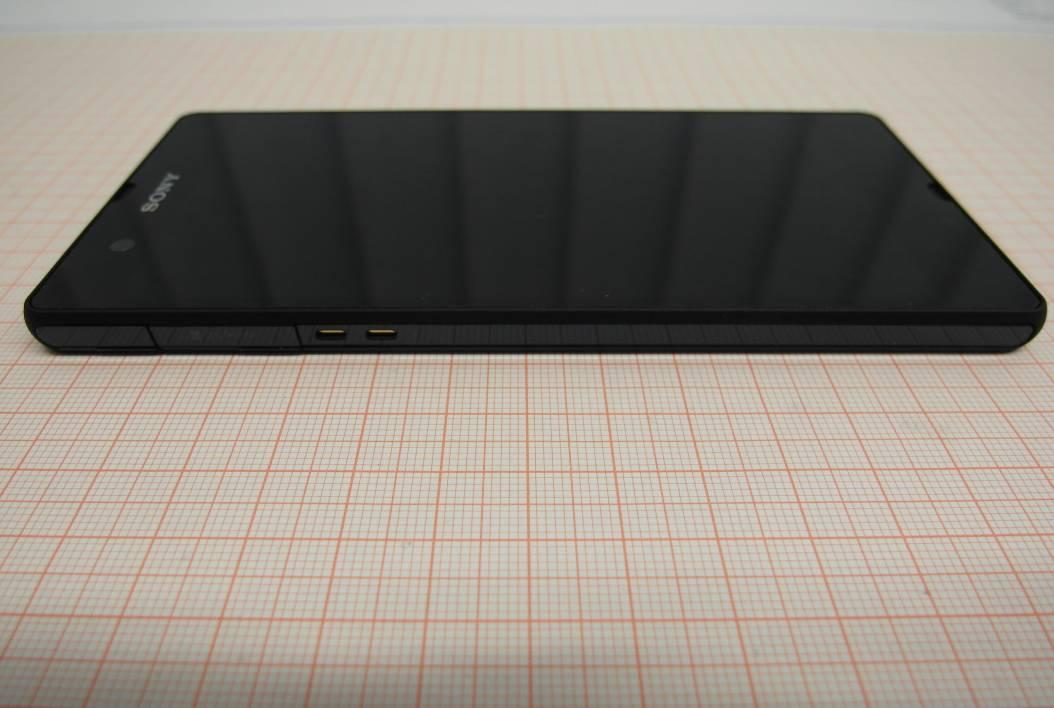

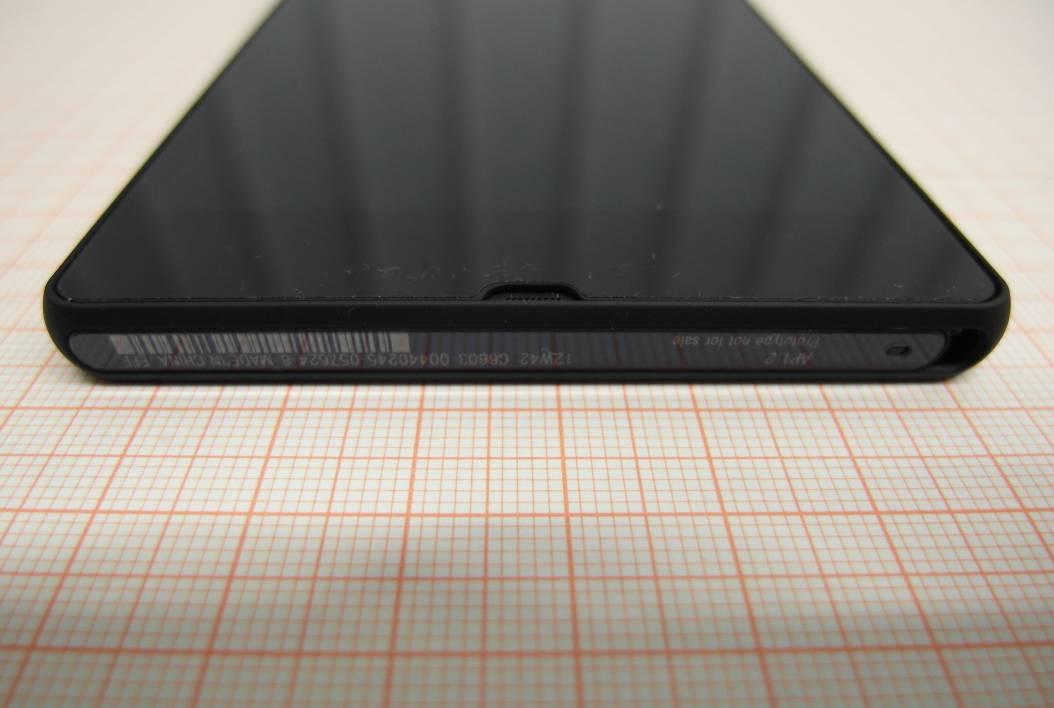

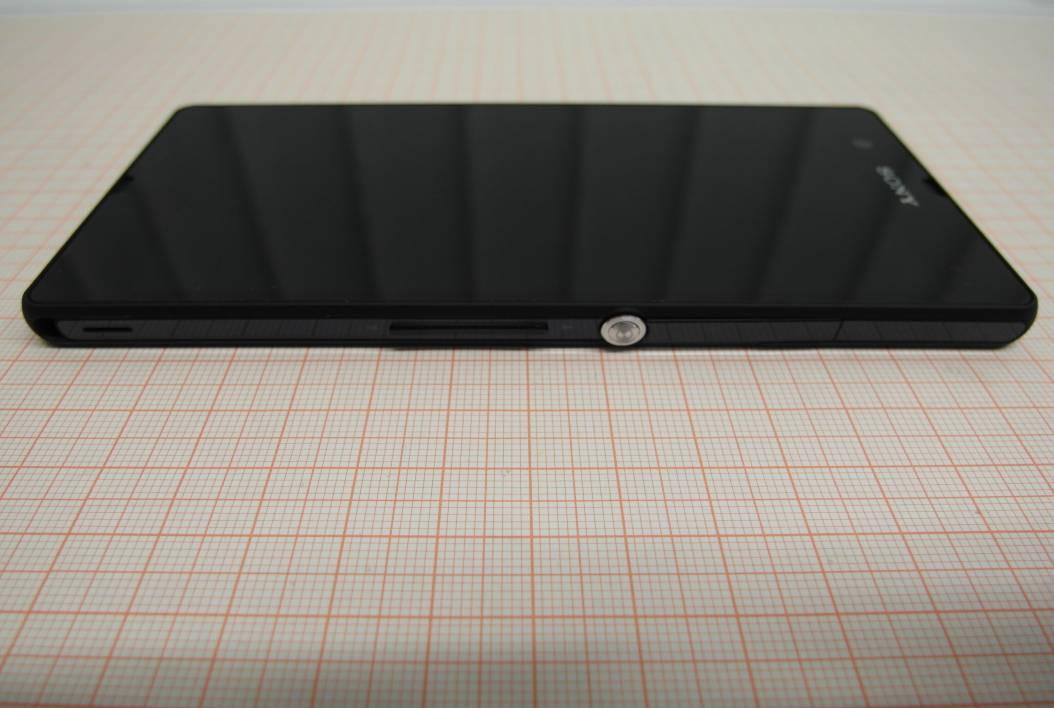

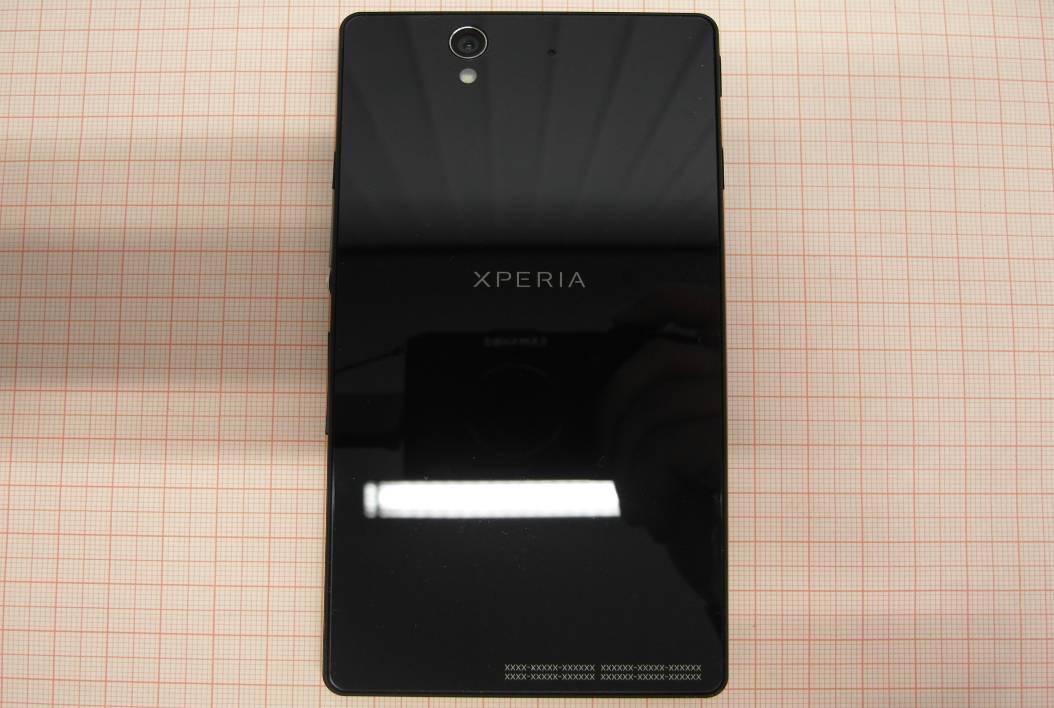

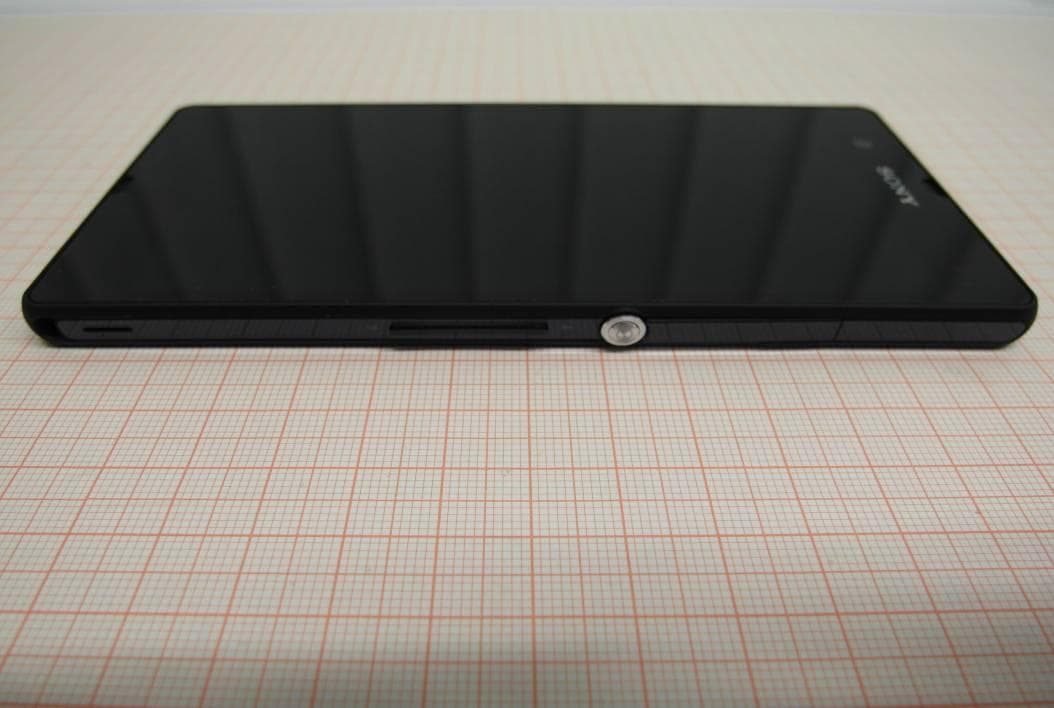

Test Report No.: Test report no.: 1-4254/12-71-03 2012-12-10 Page 20 of 29 An nex B External ph ot ogra phs o f the E UT Photo documentation: Photo 1: Photo 2: Test Report No.: Test report no.: 1-4254/12-71-03 2012-12-10 Page 21 of 29 Photo 3: Photo 4: Test Report No.: Test report no.: 1-4254/12-71-03 2012-12-10 Page 22 of 29 Photo 5: Photo 6:

Company Internal MARKING DRAWINGLABEL CONTENT 1 (4) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1265-6792 Approved Checked Date Rev Reference Leif Hedin (23056584) 2012-10-25 10 5State: Released Mobile Phone label content 1 General information 2 Printing information Content Format Line 1a (1,4/28,0) Marking of origin; “MADE IN CHINA” Text, height 1,2 mm. Line 1b (1,4/37,2) Model Name “C6603” Text, height 1,2 mm. According to model name in Chapter 1 in MLCI. Line 1c (1,4/41,6) Actual electronic serial number (IMEI) of the mobile phone, “00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 1d (1,4/54,0) Production week (flash), “00W01” (yy = year, ww = week) Text, height 1,2 mm. Line 1e (1,4/58,4) HW & SW identification field, if applicable; “EFF” Text, height 1,2 mm. According to Type-testing report under Product Model Specifying Document Line 2 (3,6/41,6) Line 2 in bar code, according to line 1c. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Mobile Phone label part no  Not applicable Mobile Phone label content part no  1265-6791 Bar code  Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen  Quiet zone: No bar codes are allowed to be closer to a label edge than 2 mm! Text If applicable, or nothing else specified, Helvetica Neue LT Std 37 Light Condensed 4.75 pt (kerning -20) is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. Company Internal MARKING DRAWINGLABEL CONTENT 2 (4) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1265-6792 Approved Checked Date Rev Reference Leif Hedin (23056584) 2012-10-25 10 5State: Released 3 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 3.1 Conceptual picture double underlined = major changes since last revision. Company Internal MARKING DRAWINGLABEL CONTENT 3 (4) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1265-6792 Approved Checked Date Rev Reference Leif Hedin (23056584) 2012-10-25 10 5State: Released Company Internal MARKING DRAWINGLABEL CONTENT 4 (4) Prepared (also subject responsible if other) No. Leif Hedin (23056584) 1265-6792 Approved Checked Date Rev Reference Leif Hedin (23056584) 2012-10-25 10 5State: Released

Test Report No.: Test report no.: 1-4254/12-71-03 2012-12-10 Page 23 of 29 An nex C Inter nal p ho to gra phs o f the E UT Photo documentation: Photo 1: Photo 2: Test Report No.: Test report no.: 1-4254/12-71-03 2012-12-10 Page 24 of 29 Photo 3: Photo 4: Test Report No.: Test report no.: 1-4254/12-71-03 2012-12-10 Page 25 of 29 Photo 5: Photo 6: Test Report No.: Test report no.: 1-4254/12-71-03 2012-12-10 Page 26 of 29 Photo 7: Photo 8: Test Report No.: Test report no.: 1-4254/12-71-03 2012-12-10 Page 27 of 29 Photo 9: Photo 10:

TEST REPORT Test of: C6603 To: OET Bulletin 65 Supplement C: (2001-01) IEEE1528:2003 Test Report Serial No: UL-SAR-RP90579JD02A V4.0 Version 4.0 supersedes all previous report versions This Test Report Is Issued Under The Authority Of Richelieu Quoi, SAR Technology Consultant: (APPROVED SIGNATORY) Checked By: Naseer Mirza (APPROVED SIGNATORY) Issue Date: 25 January 2013 Test Dates: 17 December 2012 to 14 January 2013 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of UL. The results in this report apply only to the sample(s) tested. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by UL is under license. Other trademarks and trade names are those of their respective owners. Test Report Serial No: UL-SAR-RP90579JD02A V4.0 Version 4.0 Issue Date: 25 January 2013 Page: 2 of 285 UL This page has been left intentionally blank. Test Report Serial No: UL-SAR-RP90579JD02A V4.0 Version 4.0 Issue Date: 25 January 2013 Page: 3 of 285 UL TABLE OF CONTENTS 1. Customer Information ..................................................................................................... 4 2. Summary of Test Results ............................................................................................... 5 3. Test Specification, Methods and Procedures ............................................................... 7 4. Equipment Under Test (EUT) .......................................................................................... 8 5. Deviations from the Test Specification ....................................................................... 22 6. Operation and Configuration of the EUT during Testing ........................................... 23 7. Measurements, Examinations and Derived Results ................................................... 27 8. Measurement Uncertainty ............................................................................................ 68 Appendix 1. Test Equipment Used .................................................................................. 76 Appendix 2. Measurement Methods ................................................................................ 81 Appendix 3. SAR Distribution Scans ............................................................................... 83 Appendix 4. Photographs ............................................................................................... 234 Appendix 5. System Check ............................................................................................ 269 Appendix 6. Simulated Tissues...................................................................................... 280 Appendix 7. DASY4 System Details ............................................................................... 282 Test Report Serial No: UL-SAR-RP90579JD02A V4.0 Version 4.0 Issue Date: 25 January 2013 Page: 4 of 285 UL 1. Customer Information Company Name: Sony Mobile Communications AB Address: Nya Vattentornet 22188 Lund Sweden Test Report Serial No: UL-SAR-RP90579JD02A V4.0 Version 4.0 Issue Date: 25 January 2013 Page: 5 of 285 UL 2. Summary of Test Results Test Name Specification Reference Result Specific Absorption Rate-GSM 850 OET Bulletin 65 Supplement C: (2001-01) Specific Absorption Rate-PCS 1900 OET Bulletin 65 Supplement C: (2001-01) Specific Absorption Rate-UMTS-FDD 5 OET Bulletin 65 Supplement C: (2001-01) Specific Absorption Rate - LTE Band 5 (1.4 MHz & 10MHz) OET Bulletin 65 Supplement C: (2001-01) Specific Absorption Rate-Wi-Fi 802.11b/g/n 2.4 GHz OET Bulletin 65 Supplement C: (2001-01) Specific Absorption Rate- Wi-Fi 802.11a/n 5.0 GHz OET Bulletin 65 Supplement C: (2001-01) Key to Results = Complied = Did not comply 2.1. Highest Reported Individual SAR per Band per Exposure condition Individual Transmitter Evaluation per Band: Exposure Configuration Technology Band Highest Reported 1g -SAR (W/kg) Equipment Class Max Rated Source base Avg Power + Max Tolerance [dBm] Highest Reported 1g-SAR (W/kg) HEAD (Separation Distance 0mm) GSM850 0.511 PCE 24.5 0.716 PCS1900 0.246 21.5 UMTS FDD 5 0.716 24.8 LTE Band 5 0.601 24.8 WLAN 2.4 GHz (802.11b) 0.853 DTS 16.0 0.853 WLAN 5.0 GHz (802.11a) 0.423 10.1 HOTSPOT (Separation Distance 10mm) GSM850 0.751 PCE 26.0 0.861 PCS1900 0.861 22.5 UMTS FDD 5 0.702 24.8 LTE Band 5 0.755 24.8 WLAN 2.4 GHz (802.11b) 0.262 DTS 16.0 0.262 WLAN 5.0 GHz (802.11a) - - BODY-WORN (Separation Distance 15mm) GSM850 0.544 PCE 24.5 0.565 PCS1900 0.362 21.5 UMTS FDD 5 0.605 24.8 LTE Band 5 0.646 24.8 WLAN 2.4 GHz (802.11b) 0.099 DTS 16.0 0.099 WLAN 5.0 GHz (802.11a) - - Test Report Serial No: UL-SAR-RP90579JD02A V4.0 Version 4.0 Issue Date: 25 January 2013 Page: 6 of 285 UL 2.2. Highest Reported Simultaneous Transmitter SAR per Exposure condition Simultineous Transmitter Evaluation: Exposure Configuration Technology Band Highest Reported 1g SAR (W/kg) Equipment Class Max Rated Source base Avg Power + Max Tolerance [dBm] Highest Reported Sum- SAR 1g-SAR (W/kg) HEAD (Separation Distance 0mm) UMTS FDD 5 0.716 PCE 24.8 1.569 WLAN 2.4 GHz 0.853 DTS 16.0 HOTSPOT (Separation Distance 10mm) PCS1900 0.819 PCE 22.5 1.081 WLAN 2.4 GHz 0.262 DTS 16.0 PCS1900 0.819 PCE 22.5 1.009 Bluetooth 2.4 GHz 0.190 DSS 9.6 BODY-WORN (Separation Distance 15mm) PCS1900 0.356 PCE 21.5 0.455 WLAN 2.4 GHz 0.099 DTS 16.0 LTE Band 5 0.646 PCE 24.8 0.773 Bluetooth 2.4 GHz 0.127 DSS 9.6 Note(s): Simultaneous transmission SAR test exclusion is determined for each operating configuration and exposure condition according to the reported standalone SAR of each applicable simultaneous transmitting antenna. Simultaneous transmission was not required as the summation was < 1.…

Text truncated - open the document above for the full version.

Test Report Serial No: UL-SAR-RP90579JD02A V4.0 Version 4.0 Issue Date: 25 January 2013 Page: 83 of 285 UL Appendix 3. SAR Distribution Scans This appendix contains SAR distribution scans which are not included in the total number of pages for this report. Scan Reference Number Title SCN/90579JD02/001 Touch Left GSM CH190 SCN/90579JD02/002 Tilt Left GSM CH190 SCN/90579JD02/003 Touch Right GSM CH190 SCN/90579JD02/004 Tilt Right GSM CH190 SCN/90579JD02/005 Touch Left GSM CH128 SCN/90579JD02/006 Touch Left GSM CH251 SCN/90579JD02/007 Front of EUT Facing Phantom GPRS CH190 SCN/90579JD02/008 Back of EUT Facing Phantom GPRS CH190 SCN/90579JD02/009 Left Hand Side of EUT Facing Phantom GPRS CH190 SCN/90579JD02/010 Right Hand Side of EUT Facing Phantom GPRS CH190 SCN/90579JD02/011 Bottom of EUT Facing Phantom GPRS CH190 SCN/90579JD02/012 Front of EUT Facing Phantom GPRS CH128 SCN/90579JD02/013 Front of EUT Facing Phantom GPRS CH251 SCN/90579JD02/014 Front of EUT Facing Phantom at 15mm GSM CH190 SCN/90579JD02/015 Front of EUT Facing Phantom at 15mm GSM CH128 SCN/90579JD02/016 Front of EUT Facing Phantom at 15mm GSM CH251 SCN/90579JD02/017 Front of EUT Facing Phantom at 15mm with PHF GSM CH251 SCN/90579JD02/018 Touch Left PCS CH661 SCN/90579JD02/019 Tilt Left PCS CH661 SCN/90579JD02/020 Touch Right PCS CH661 SCN/90579JD02/021 Tilt Right PCS CH661 SCN/90579JD02/022 Touch Left PCS CH512 SCN/90579JD02/023 Touch Left PCS CH810 SCN/90579JD02/024 Front of EUT Facing Phantom GPRS CH661 SCN/90579JD02/025 Back of EUT Facing Phantom GPRS CH661 SCN/90579JD02/026 Left Hand Side of EUT Facing Phantom GPRS CH661 SCN/90579JD02/027 Right Hand Side of EUT Facing Phantom GPRS CH661 SCN/90579JD02/028 Bottom Side of EUT Facing Phantom GPRS CH661 SCN/90579JD02/029 Bottom Side of EUT Facing Phantom GPRS CH512 SCN/90579JD02/030 Bottom Side of EUT Facing Phantom GPRS CH810 SCN/90579JD02/031 Back of EUT Facing Phantom at 15mm PCS CH512 SCN/90579JD02/032 Back of EUT Facing Phantom at 15mm PCS CH661 SCN/90579JD02/033 Back of EUT Facing Phantom at 15mm PCS CH810 Test Report Serial No: UL-SAR-RP90579JD02A V4.0 Version 4.0 Issue Date: 25 January 2013 Page: 84 of 285 UL SAR Distribution Scans (Continued): Scan Reference Number Title SCN/90579JD02/034 Back of EUT Facing Phantom with PHF at 15mm PCS CH512 SCN/90579JD02/035 Touch Left UMTS FDD 5 CH4183 SCN/90579JD02/036 Tilt Left UMTS FDD 5 CH4183 SCN/90579JD02/037 Touch Right UMTS FDD 5 CH4183 SCN/90579JD02/038 Tilt Right UMTS FDD 5 CH4183 SCN/90579JD02/039 Touch Left UMTS FDD 5 CH4132 SCN/90579JD02/040 Touch Left UMTS FDD 5 CH4233 SCN/90579JD02/041 Front of EUT Facing Phantom FDD 5 CH4183 SCN/90579JD02/042 Back of EUT Facing Phantom FDD 5 CH4183 SCN/90579JD02/043 Left Hand Side of EUT Facing Phantom FDD 5 CH4183 SCN/90579JD02/044 Right Hand Side of EUT Facing Phantom FDD 5 CH4183 SCN/90579JD02/045 Bottom of EUT Facing Phantom FDD 5 CH4183 SCN/90579JD02/046 Front of EUT Facing Phantom FDD 5 CH4132 SCN/90579JD02/047 Front of EUT Facing Phantom FDD 5 CH4233 SCN/90579JD02/048 Front of EUT Facing Phantom at 15mm FDD 5 CH4183 SCN/90579JD02/049 Front of EUT Facing Phantom at 15mm FDD 5 CH4132 SCN/90579JD02/050 Front of EUT Facing Phantom at 15mm FDD 5 CH4233 SCN/90579JD02/051 Front of EUT Facing Phantom at 15mm with PHF FDD 5 CH4132 SCN/90579JD02/052 Touch Left LTE Band 5 10MHz BW 1RB Middle CH20525 SCN/90579JD02/053 Touch Left LTE Band 5 10MHz BW 50% RB Middle CH20525 SCN/90579JD02/054 Tilt Left LTE Band 5 10MHz BW 1 RB Middle CH20525 SCN/90579JD02/055 Tilt Left LTE Band 5 10MHz BW 50% RB Middle CH20525 SCN/90579JD02/056 Touch Right LTE Band 5 10MHz BW 1 RB Middle CH20525 SCN/90579JD02/057 Touch Right LTE Band 5 10MHz BW 50% RB Middle CH20525 SCN/90579JD02/058 Tilt Right LTE Band 5 10MHz BW 1 RB Middle CH20525 SCN/90579JD02/059 Tilt Right LTE Band 5 10MHz BW 50% RB Middle CH20525 SCN/90579JD02/060 Touch Left LTE Band 5 10MHz BW 1 RB Middle CH20450 SCN/90579JD02/061 Touch Left LTE Band 5 10MHz BW 1 RB Middle CH20600 SCN/90579JD02/062 Front of EUT Facing Phantom LTE Band 5 10MHz BW 1RB Middle CH20525 SCN/90579JD02/063 Front of EUT Facing Phantom LTE Band 5 10MHz BW 50% RB Middle CH20525 SCN/90579JD02/064 Back of EUT Facing Phantom LTE Band 5 10MHz BW 1RB Middle CH20525 SCN/90579JD02/065 Back of EUT Facing Phantom LTE Band 5 10MHz BW 50% RB Middle CH20525 SCN/90579JD02/066 Left Hand Side of EUT Facing Phantom LTE Band 5 10MHz BW 1RB Middle CH20525 Test Report Serial No: UL-SAR-RP90579JD02A V4.0 Version 4.0 Issue Date: 25 January 2013 Page: 85 of 285 UL SAR Distribution Scans (Continued): Scan Reference Number Title SCN/90579JD02/067 Left Hand Side of EUT Facing Phantom LTE Band 5 10MHz BW 50% RB Middle CH20525 SCN/90579JD02/068 Right Hand Side of EUT Facing Phantom LTE Band 5 10MHz BW 1RB Middle CH20525 SCN/90579JD02/069 Right Hand Side of EUT Facing Phantom LTE Band 5 10MHz BW 50% RB Middle CH20525 SCN/90579JD02/070 Bottom of EUT Facing Phantom LTE Band 5 10MHz BW 1RB Middle CH20525 SCN/90579JD02/071 Bottom of EUT Facing Phantom LTE Band 5 10MHz BW 50% RB Middle CH20525 SCN/90579JD02/072 Front of EUT Facing Phantom LTE Band 5 10MHz BW 1RB Middle CH20450 SCN/90579JD02/073 Front of EUT Facing Phantom LTE Band 5 10MHz BW 1RB Middle CH20600 SCN/90579JD02/074 Front of EUT Faci…
