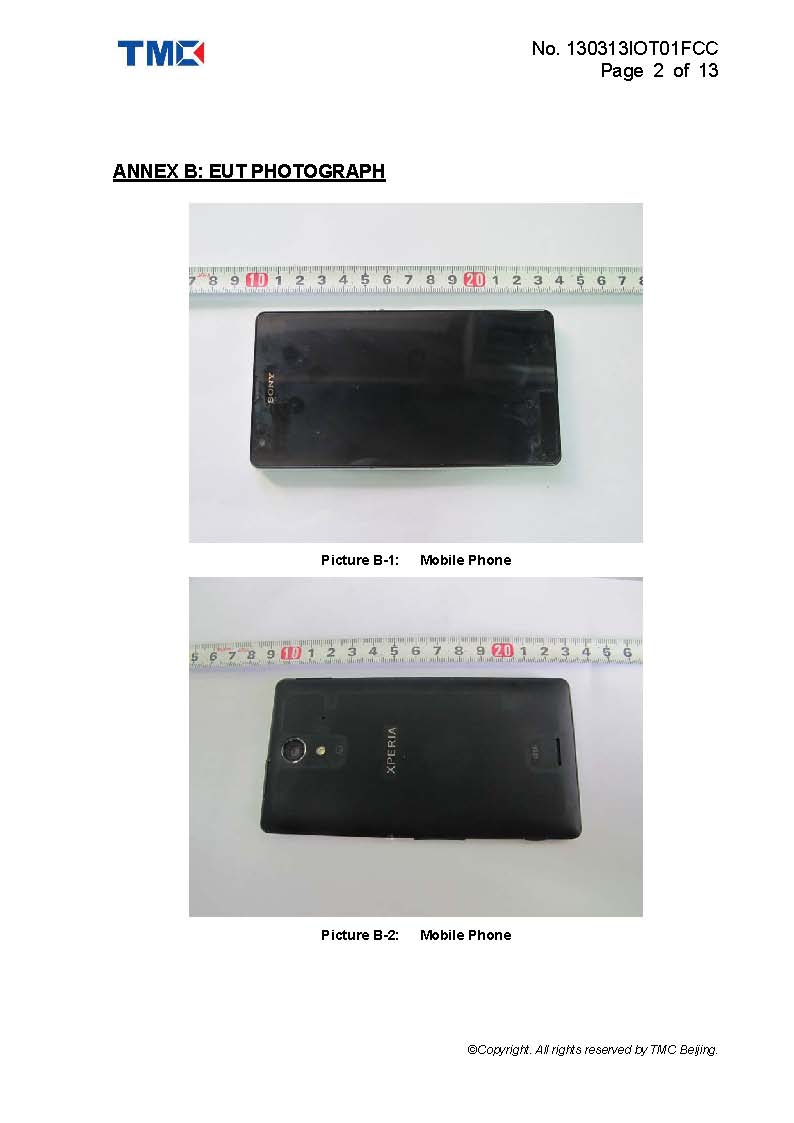

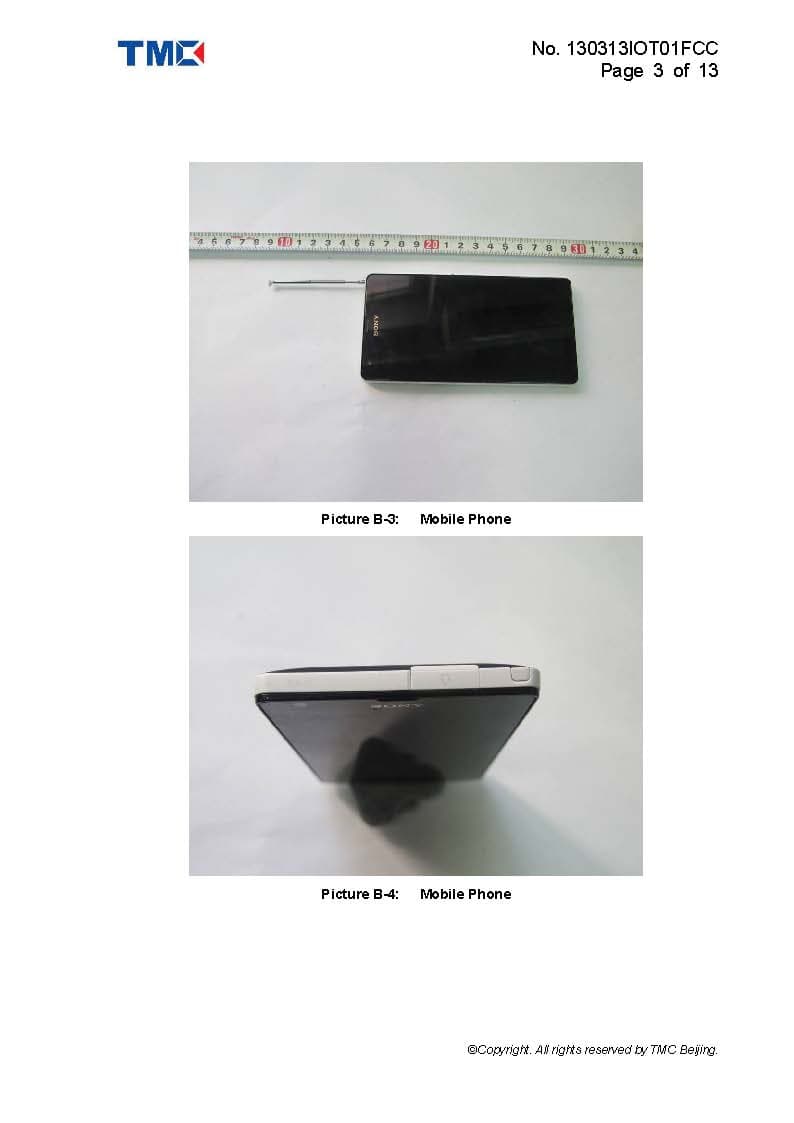

PY7PM-0400GSM/UMTS Mobile Phone with WLAN, BT, RFID

Mobile Phone GSM/GPRS/EDGE 850/900/1800/1900&UMTS/HSPA Bands1/2/5&LTE Bands1/11/18 United States THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The SOL22 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the important information chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.97 W/kg*, and when worn on the body is 1.47 W/kg* . For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include "WiFi hotspot" functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10mm. Use of third-party accessories may result in different SAR levels than those reported. ** Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http:// www.fcc.gov/oet/fccid after searching on FCC ID PY7PM-0400. Additional information on SAR can be found on the Cellular Telecommunications & Internet Association (CTIA) website at http:// www.ctia.org/. * In the United States, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. ** This paragraph is only applicable to authorities and customers in the United States. Europe This mobile phone model SOL22 has been designed to comply with applicable safety requirements for exposure to radio waves. These requirements are based on scientific guidelines that include safety margins designed to assure the safety of all persons, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the safety chapter in the User's Guide. SAR data information for residents in countries that have adopted the SAR limit recommended by the International Commission of Non- lonizing Radiation Protection (ICNIRP), which is 2 W/kg averaged over ten (10) gram of tissue (for example European Union, Japan, Brazil and New Zealand): The highest SAR value for this model phone tested by Sony Mobile Communications AB for use at the ear is 0.66 W/kg (10g). L019.fm Page 145 Thursday, April 25, 2013 5:12 PM This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any change or modification not expressly approved by Sony Mobile Communications AB may void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and…

Text truncated - open the document above for the full version.

Preface Thank you for buying "Xperia TM UL" (simply called the "product" from here on). Before using your terminal, read "Basic Manual" (this manual) and " (Full Instruction Manual)" (Japanese) to ensure safe use and handling. About Operating Instructions Basic Manual (this manual) Handles only basic operations for main features. For detailed descriptions on various functions, refer to the "Instruction Manual" (Japanese) application installed on the product or (Full Instruction Manual)" (Japanese) available on the au homepage. http://www.au.kddi.com/torisetsu/index.html Company names and product names referred to in this manual are trademarks or registered trademarks of respective companies. The TM, ® marks may be omitted in this manual. "Instruction Manual" (Japanese) application This product allows you to use the "Instruction Manual" (Japanese) application on the product to confirm detailed operational procedures. Certain functions can be directly activated from the application screens on which their operations are described. From the Home screen, []X[Instruction Manual] When you activate for the first time, follow the onscreen instructions to download and install application. For Those Requiring an English Instruction Manual You can download the English version of the Basic Manual from the au website (available from approximately one month after the product is released). Download URL: http://www.au.kddi.com/torisetsu/ index.html Safety Precautions Before you start using the product, make sure to read the "Notes on usage of Xperia TM UL" to ensure correct use. Before you assume that the product is malfunctioning, check for possible remedies in the following au Customer Support site of au homepage: http://cs.kddi.com/support/komatta/kosho/index.html When using the product Communication is not possible even inside the service area in places where the signal does not reach (e.g. tunnels and basements). Also, communication is sometimes not possible in poor reception areas. Communication is sometimes interrupted if you move into a poor reception areas during communications. Since this product uses radio waves, the possibility of communication intercepts by third parties cannot be eliminated. (Though LTE/CDMA/GSM/UMTS system has highly secure confidential communication features.) This product is compatible with the international roaming service. Each network service described in this manual varies depending on the area and service content. For details, refer to the "Instruction Manual" (Japanese) application installed on the product or "(Full Instruction Manual)" (Japanese) available on the au homepage. Since this product is a radio station under the Radio Law, you may be asked to temporarily submit the product for inspection in accordance with the Radio Law. The IMEI information of the cell phone is automatically sent to KDDI CORPORATION for maintenance and monitoring operational status of your cell phone. Take care not to inconvenience people around you when you use the product in a public place. To use it overseas, check the condition such as regulations of the country/region in advance. When the product is used by a child, parents or guardians should thoroughly read the "Basic Manual" "Cautions on using Xperia TM UL" and "Specific Absorption Rate (SAR) of cell phones" and teach the child how to use it. Use of the product is not allowed in the following places! Do not use a cell phone while driving a car or riding a motorbike or bicycle. Failure to do so might cause a traffic accident. Use of a cell phone while driving a car or motorbike is prohibited by law. Use of a cell phone while riding a bicycle may be punishable by some regulations. Do not use this product while you are aboard an airplane. Use of electric devices transmitting radio waves in airplane is prohibited by law. Some airline companies, however, allow their passengers to use cell phones. For details, contact the airline company you use. Regarding notations used in this document In this manual, keys are represented by simplified illustrations such as x, y, r. Operations of tapping menu items/icons/buttons on the screen etc. are indicated as [(name of the item etc.)]. Screen illustrations shown in this manual may look different from the actual screens. In some cases, minor details or a part of a screen may be omitted. In this manual, "microSD TM memory card" and "microSDHC TM memory card" are abbreviated as "microSD memory card" or "microSD". "The Company" as appears on the product refers to the following companies: Sold by: KDDI CORPORATION, OKINAWA CELLULAR TELEPHONE COMPANY Manufactured by: Sony Mobile Communications Japan, inc. Using au (au Disaster Countermeasure) You can use (Disaster message board) or emergency early warning mail (Emergency earthquake information, disaster evacuation information, tsunami warning) and (Disaster Voice Delivery Service). 1From the Home screen, []X[au (au Disaster Countermeasure)]. au (au Disaster Countermeasure) menu appears. Using Disaster Message Board Disaster Message Board service enables you to register information of well-being from an area of distress via LTE NET in case of large-scale disaster such as earthquake with a seismic intensity of over 6 lower. 1au (au Disaster Countermeasure) menu X[ (Disaster message board)]. ❖Information To register information of well-being, E-mail address (ezweb.ne.jp) is required. Set up E-mail address beforehand. Using emergency early warning mail The emergency early warning mail is a service that distributes emergency earthquake information or tsunami warning delivered from the meteorological bureau or disaster evacuation information delivered from the government or local public organization to all au cell phones in specified areas simultaneously. When you receive emergency earthquake information, ensure your safety and take proper action according to the situation around you. When you receive a tsunami warning, draw away from sea coast immediatel…

Text truncated - open the document above for the full version.

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision CGQBA13:240 A Prepared by Date SEM/CGQBAD RAZVAN BUJILA 2013-04-15 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQBAD (RAZVAN BUJILA) Telecommunication Certification Body CETECOM GmbH Im Teelbruch 116 45219 Essen Germany Confidentiality request letter - PY7TM-0400 Subject: Certification Application FCC ID: PY7TM-0400 It is requested that the following information is to be held confidential on behalf of Sony Mobile Communications AB pursuant to FCC Rules Parts 0.457 and 0.459:  Block Diagrams  Schematics  Parts List  Tune Up Information  Operation Description These items contain detailed system and equipment description and related information about the product which Sony Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Yours sincerely Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision CGQBA13:244 A Prepared by Date SEM/CGQBAD RAZVAN BUJILA 2013-05-08 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQBAD RAZVAN BUJILA Receiver Federal Communications Commission Subject: Request for Temporary Confidentiality FCC ID: PY7PM-0400 To Whom It May Concern: In accordance with §0.459 of CFR 47 and Public Notice DA 04-1705, Sony Mobile Communications AB requests in addition to confidentiality request CGQBA13:240 temporary confidentiality for 180 days of the below listed items for our mobile phone type PM-0400-BV, FCC ID: PY7PM-0400: 1. User Manual 2. Test set-up 3. External and Internal photos When the announcement of the product is done, the TCB will be notified to remove the Short Term Confidentiality. Please contact the undersigned if there are any further questions or additional information needed in this matter Yours sincerely Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

1(6) Document number Revision 1268-0947 1 Sony Mobile Communications AB Prepared by Date CGOVDPLG, Anna Englund 2012-10-11 Contents responsible if other than preparer Remarks Approved by CGOVDPLG, Anna Englund SOL22 Mobile Phone label, Black 1 General information Core Unit label part no 1270-2099 Bar code  Print quality: according to COSMETIC GUIDELINE – Bar code labels document 1222-6072 Uen  Quiet zone: No bar codes are allowed to be closer to a label edge than 2 mm! Text If applicable, or nothing else specified, Zebra printer Scalable Smooth Font Arial narrow is imposed. When needed, the text is adjusted to fit the label. Coordinates “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. MLCI= Main Label Content Information Document 2 Printing information Content Format Line 1 (7,5/38,5) logo Graphics, height 6,5 mm, width 11,4 mm According to 1267-8979. Line 2 (9,0/2,0) Two card-slot aw in Japanese Graphics, height 8 mm. According to 1273-1480. Line 3a (11,0/2,0) Sentence in Japanese: “ ” Graphics, height 1,2 mm. According to 1248-3733 Line 3b (11,0/10,0) Colour info of the included phone “SOL22MKA ” Text, height 1,2 mm. “XXX00XXX” “XXX” = different for each phone unit color. “Black”, use “MKA” 2(6) Document number Revision 1268-0947 1 Sony Mobile Communications AB Prepared by Date CGOVDPLG, Anna Englund 2012-10-11 Contents responsible if other than preparer Remarks Approved by CGOVDPLG, Anna Englund Line 3c (11,0/22,0) Production date in Japanese (eg: year+ 年+ month+月 ) : “ 20XX 年 XX 月” Text, height 1,5 mm. Graphics, height 1,5 mm. According to 1234-3763, 1235- 6102 and 1235-6103 Line 3d (11,0/41,5) Model Name “SOL22” Text, height 1,2 mm. According to Chapter 1 in MLCI Line 4a (13,0/2,0) Type number of the phone, “TYPE: PM-0400-BV”. Text, height 1,2 mm. According to Chapter 1 in MLCI Line 4b (14,5/18,5) HW & SW identification field, if applicable; “EFF” Text, height 1,2 mm. According to Type-testing report under Product Model Specifying Documents Line 5 (13,8/39,0) Local Type Approval Number: T AD13-0075001 Text, height 1,2 mm Line 6 (14,0/38,5) Square around T, see Line 5 Width 1,5 x Height 2,0 mm Line 7 (15,0/2,0) “FCC ID: PY7PM-0400” Text, height 1,2 mm. According to Chapter 1 in MLCI Line 8 (16,2/39,0) Local Type Approval Number: R 001-A00683 Text, height 1,2 mm. Line 9 (16,4/38,5) Square around R, see Line 8 Width 1,5 x Height 2,0 mm Line 10 (17,0/31,2) “JATE” logo Graphics, height 5 mm. According to 1234-3837 Line 11a (17,5/2,0) Product number of the Sales Item in which the phone is packed, if applicable. “SI XXXX-XXXX” Text, height 1,2 mm Line 11b (17,5/19,0) Production week (flash), “yyWww” (yy = year, ww = week) Text, height 1,2 mm. 3(6) Document number Revision 1268-0947 1 Sony Mobile Communications AB Prepared by Date CGOVDPLG, Anna Englund 2012-10-11 Contents responsible if other than preparer Remarks Approved by CGOVDPLG, Anna Englund Line 12 (22,0/2,0) Line 12 in bar code, according to line 13 (ie IMEI number, only actual number, without data identifier). Bar code, height 4,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 13 (23,2/2,0) Actual electronic serial number (IMEI) of the Mobile Phone, “IMEI: 00000000-000000-0” Text, height 1,2 mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 14 (25,8/2,0) Line 14 in bar code, according to line 15. As desired by supplier (e.g. only actual number). Bar code, height 2,0 mm. As desired by supplier (e.g. Code 128 symbology). Line 15 (27,0/2,0) Supplier’s identification for trace-ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1.2 mm. Defined by supplier Line 16 (29,0/36,0) Text within the frame; “2.4 FH1/XX8/DS4/OF4” Three bars under the text, each bar is 1 mm high and 3 mm long Bluetooth value with frame measurements; 13x 4,4 mm Text height 1,2 mm Line 17a (34,2/2,0) “CE approval symbol, The notified body number 0682 and Alert Symbol” Graphics, height 5 mm. According to 1242-7470 Line 17b (34,2/31,2) WEE trashcan without bar symbol Graphics, min. height 5mm, according to 1202-5537 4(6) Document number Revision 1268-0947 1 Sony Mobile Communications AB Prepared by Date CGOVDPLG, Anna Englund 2012-10-11 Contents responsible if other than preparer Remarks Approved by CGOVDPLG, Anna Englund Line 18 (36,0/37,0) ARIB STD-T71-logo Graphics height 6,0mm According to 1267-8998 Line 19 (38,7/2,0) KDDI Sentence in Japanese, 2 rows; Graphics height 3,5 acc to aw 1248-3733 Line 20a (42,0/2,0) “Caution symbol” Graphics, height 2.0 mm. According to 1234-3774 Line 20b (42,0/4,5) “Caution” in Japanese Graphics, height 2.0 mm. According to 1234-3790 Line 21a (43,0/9,5) “Do not remove this label” statement in Japanese, on two rows. ” “ Graphics, height 1,5 mm. According to 1272-3840 Line 21b (43,0/45,3) “Li-ion 00 Symbol” Graphics, min. height 5mm, according to 1235-2267 Line 22a (48,0/2,0) 5,2 Ghz WLAN text, two rows Graphics height 4,0 acc to aw 1271-8906 Line 22b (48,0/36,0) Marking of origin. “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English Text, height 1,2 mm. Line 23 (62,5/12,0) Line 23 in bar code, according to line 24 (ie IMEI number, only actual number, without data identifier). Bar code, height 10,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 24 (65,5/12,0) Actual electronic serial number (IMEI) of the Mobile Phone, “IMEI: 00000000-000000-0” Text, height 2,0 mm. In the format TAC-SNR-CD. TAC and SNR derived from pos 500 in BOM. CD = check digit according to the Luhn formula (ISO/…

Text truncated - open the document above for the full version.

TEST REPORT Test of: SOL22 To: OET Bulletin 65 Supplement C: (2001-01) IEEE1528: 2003 FCC ID: PY7PM-0400 Test Report Serial No: UL-SAR-RP92490JD02A V6.0 Version 6.0 supersedes all previous versions This Test Report Is Issued Under The Authority Of Richelieu Quoi, SAR Technology Consultant: (APPROVED SIGNATORY) Checked By: Naseer Mirza (APPROVED SIGNATORY) Issue Date: 13 May 2013 Test Dates: 13 March 2013 to 09 May 2013 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of UL. The results in this report apply only to the sample(s) tested. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by UL. is under license. Other trademarks and trade names are those of their respective owners. Test Report Serial No: UL-SAR-RP92490JD02A V6.0 Version 6.0 Issue Date: 13 May 2013 Page: 2 of 278 UL This page has been left intentionally blank. Test Report Serial No: UL-SAR-RP92490JD02A V6.0 Version 6.0 Issue Date: 13 May 2013 Page: 3 of 278 UL TABLE OF CONTENTS 1. Customer Information ..................................................................................................... 4 2. Summary of Test Results ............................................................................................... 5 3. Test Specification, Methods and Procedures ............................................................. 10 4. Equipment Under Test (EUT)........................................................................................ 11 5. Deviations from the Test Specification ....................................................................... 21 6. Operation and Configuration of the EUT during Testing ........................................... 22 7. Measurements, Examinations and Derived Results ................................................... 27 8. Measurement Uncertainty ............................................................................................ 62 Appendix 1. Test Equipment Used .................................................................................. 71 Appendix 2. Measurement Methods ................................................................................ 74 Appendix 3. SAR Distribution Scans ............................................................................... 76 Appendix 4. Photographs ............................................................................................... 215 Appendix 5. System Check ............................................................................................ 262 Appendix 6. Simulated Tissues...................................................................................... 267 Appendix 7. DASY4 System Details ............................................................................... 268 Appendix 8. 3G Test set-up ............................................................................................ 272 Test Report Serial No: UL-SAR-RP92490JD02A V6.0 Version 6.0 Issue Date: 13 May 2013 Page: 4 of 278 UL 1. Customer Information Company Name: Sony Mobile Communications AB Address: Nya Vattentornet 22188 Lund Sweden Test Report Serial No: UL-SAR-RP92490JD02A V6.0 Version 6.0 Issue Date: 13 May 2013 Page: 5 of 278 UL 2. Summary of Test Results Test Name Specification Reference Result Specific Absorption Rate - GSM 850 OET Bulletin 65 Supplement C: (2001-01) Specific Absorption Rate - PCS 1900 OET Bulletin 65 Supplement C: (2001-01) Specific Absorption Rate - UMTS FDD 2 OET Bulletin 65 Supplement C: (2001-01) Specific Absorption Rate - UMTS FDD 5 OET Bulletin 65 Supplement C: (2001-01) Specific Absorption Rate - Wi-Fi 802.11b/g/n 2.4 GHz OET Bulletin 65 Supplement C: (2001-01) Specific Absorption Rate- Wi-Fi 802.11a/n 5.0 GHz OET Bulletin 65 Supplement C: (2001-01) Key to Results = Complied = Did not comply 2.1. Highest Reported SAR Individual Transmitter Evaluation per Band: Exposure Configuration Technology Band Highest Reported 1g -SAR (W/kg) Equipment Class Max Rated Source base Avg Power + Max Tolerance [dBm] Highest Reported 1g-SAR (W/kg) HEAD (Separation Distance 0mm) GSM850 0.863 PCE 24.7 0.891 PCS1900 0.249 21.7 UMTS FDD 2 0.278 23.1 UMTS FDD 5 0.891 24.5 WLAN 2.4 GHz 0.602 DTS 14.5 0.602 WLAN 5.8 GHz 0.421 14.5 WLAN 5.2/5.3/5.6 GHz 0.969 NII 14.5 0.969 HOTSPOT (Separation Distance 10mm) GSM850 1.469 PCE 25.7 1.469 PCS1900 1.175 21.7 UMTS FDD 2 1.081 23.1 UMTS FDD 5 1.072 24.5 WLAN 2.4 GHz 0.179 DTS 14.5 0.179 WLAN 5.8 GHz 0.161 14.5 WLAN 5.2/5.3/5.6 GHz 0.281 NII 14.5 0.281 BODY-WORN (Separation Distance 15mm) GSM850 1.000 PCE 24.7 1.000 PCS1900 0.450 21.7 UMTS FDD 2 0.537 23.1 UMTS FDD 5 0.846 24.5 WLAN 2.4 GHz 0.083 DTS 14.5 0.083 WLAN 5.8 GHz - 14.5 WLAN 5.2/5.3/5.6 GHz 0.109 NII 14.5 0.109 Test Report Serial No: UL-SAR-RP92490JD02A V6.0 Version 6.0 Issue Date: 13 May 2013 Page: 6 of 278 UL 2.2. Highest Reported SAR (Continued): Simultaneous transmission SAR test exclusion is determined for each operating configuration and exposure condition according to the reported standalone SAR of each applicable simultaneous transmitting antenna. Simultaneous Transmitter Evaluation: Exposure Configuration Technology Band Highest Reported 1g SAR (W/kg) Equipment Class Max Rated Source base Avg Power + Max Tolerance [dBm] Highest Reported Sum- SAR 1g-SAR (W/kg) SPLSR Ratio HEAD (Separation Distance 0mm) GSM850 0.545 PCE 24.7 1.514 N/A WLAN 5.0GHz 0.969 NII 14.5 HOTSPOT (Separation Distance 10mm) GSM850 1.469 PCE 25.7 1.656 0.030 WLAN 5.0GHz 0.187 DTS 14.5 GSM850 1.469 PCE 25.7 1.653 0.021 Bluetooth 0.184 DSS 9.5 BODY-WORN (Separation Distance 15mm) GSM850 1.000 PCE 24.7 1.109 N/A WLAN 5.0GHz 0.109 DTS 14.5 GSM850 1.000 PCE 24.7 1.123 N/A Blu…

Text truncated - open the document above for the full version.

Test Report Serial No: UL-SAR-RP92490JD02A V6.0 Version 6.0 Issue Date: 13 May 2013 Page: 262 of 278 UL Appendix 5. System Check Prior to the assessment, the system was verified in the flat region of the phantom, 900 MHz, 1900 MHz, 2450 MHz and 5.0 GHz dipoles were used. A forward power of 250 mW was applied to the 900 MHz, 1900 MHz, 2450 MHz dipoles and 100 mW was applied to 5.0 GHz dipole and the system was verified to a tolerance of 5% for the 900MHz, 1900MHz, 2450 MHz and 5.0 GHz dipoles. The applicable verification normalised to 1 Watt. System Check 900 Head Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 900 24.0 ºC 23.0 ºC  r 41.50 41.29 -0.51 5.00 σ 0.97 0.98 0.62 5.00 1g SAR 10.50 10.64 1.33 5.00 10g SAR 6.74 6.92 2.67 5.00 System Check 900 Body Date: 14/03/2013 Validation Dipole and Serial Number: D900V2; SN: 035 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 24.0 ºC 23.1 ºC  r 55.00 52.92 -3.78 5.00 σ 1.05 1.07 1.90 5.00 1g SAR 10.80 10.72 -0.74 5.00 10g SAR 6.96 7.00 0.57 5.00 Date: 15/03/2013 Validation Dipole and Serial Number: D900V2; SN: 035 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 24.0 ºC 23.1 ºC  r 55.00 52.92 -3.78 5.00 σ 1.05 1.07 1.90 5.00 1g SAR 10.80 10.36 -4.07 5.00 10g SAR 6.96 7.20 3.45 5.00 Date: 18/03/2013 Validation Dipole and Serial Number: D900V2; SN: 035 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 24.0 ºC 23.0 ºC  r 55.00 53.01 -3.62 5.00 σ 1.05 1.05 0.24 5.00 1g SAR 10.80 10.84 0.37 5.00 10g SAR 6.96 7.12 2.30 5.00 Date: 13/03/2013 Validation Dipole and Serial Number: D900V2; SN: 035 Test Report Serial No: UL-SAR-RP92490JD02A V6.0 Version 6.0 Issue Date: 13 May 2013 Page: 263 of 278 UL System Check 1900 Head Date: 18/03/2013 Validation Dipole and Serial Number: D1900V2; SN: 537 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 1900 24.0ºC 22.8ºC  r 40.00 39.11 -2.23 5.00 σ 1.40 1.43 1.86 5.00 1g SAR 39.40 37.96 -3.65 5.00 10g SAR 20.70 20.00 -3.38 5.00 Date: 19/03/2013 Validation Dipole and Serial Number: D1900V2; SN: 537 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 1900 24.0 ºC 22.8 ºC  r 40.00 39.11 -2.23 5.00 σ 1.40 1.43 1.86 5.00 1g SAR 39.40 38.20 -3.05 5.00 10g SAR 20.70 20.20 -2.42 5.00 System Check 1900 Body Date: 19/03/2013 Validation Dipole and Serial Number: D1900V2; SN: 537 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 1900 24.0 ºC 23.3 ºC  r 53.30 51.26 -3.83 5.00 σ 1.52 1.49 -2.15 5.00 1g SAR 40.50 40.80 0.74 5.00 10g SAR 21.40 22.00 2.80 5.00 Date: 20/03/2013 Validation Dipole and Serial Number: D1900V2; SN: 537 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 1900 24.0 ºC 23.3 ºC  r 53.30 51.26 -3.83 5.00 σ 1.52 1.49 -2.15 5.00 1g SAR 40.50 40.80 0.74 5.00 10g SAR 21.40 22.00 2.80 5.00 Test Report Serial No: UL-SAR-RP92490JD02A V6.0 V…

Text truncated - open the document above for the full version.
