PY7PM-0440Quad GSM/WCDMA/LTE cellular mobile telephone with BT, WLAN, Ant+ and RF ID

INSTRUCTION MANUAL Introduction Thank you for your purchase of "SO-01F". For proper use of the SO-01F, read this manual carefully before and while you use the SO-01F. About manuals of SO-01F In addition to this manual, the operations of SO-01F are described in " (Quick Start Guide)" (in Japanese only) and "Instruction Manual" application of the terminal (in Japanese only). " (Quick Start Guide)" (Supplied accessories) The initial operations and settings after purchasing the terminal, screen view contents and operations of main function are explained. "Instruction Manual" (Application of the terminal) Similarly to this manual, operations and settings of each function are explained. To use "Instruction Manual" application, from the Home screen, tap and [Instruction Manual]. When using for the first time, download and install the application according to the onscreen instructions. You can use the application as an electronic book. You can also shift to actual operations by tapping the description in the contents or view reference contents. ❖ Note For downloading or updating the application, a high packet communication charge will be applied because of a large amount data communication. For this reason, subscription of packet flat-rate service is highly recommended. "Instruction Manual" (PDF file) Operations and settings of each function are explained. It can be downloaded from NTT DOCOMO website. http://www.nttdocomo.co.jp/english/support/ trouble/manual/download/index.html * You can download the latest information of " (Quick Start Guide)". The URL and contents are subject to change without prior notice. ❖ Note Reproduction or reprint of all or part of this manual without prior permission is prohibited. Important information for SO-01F is posted in the following website. Be sure to check before using. http://www.sonymobile.co.jp/support/use_support/ product/so-01f/ (In Japanese only) ( Tips of smartphone) (widget of the terminal (in Japanese only) An widget with which you can easily learn useful functions and basic operations you should know with Docomodake. To use (Tips of smartphone), from the Home screen, tap . 1 Operation descriptions In this manual, each key operation is described with P , x , y , r , m , k . And selection operations of the icons or function items on the touch screen are described as follows. ❖ Information In this manual, the instructions are described with the default Home screen. If you set the other application to the home screen, the operations may differ from the descriptions. Display examples and illustrations used in this manual are just images for explanations and may be different from actual ones. In this manual, the easier procedure is described for the functions and settings which have multiple operating procedures. Please note that "SO-01F" is called "the terminal" in this manual. In this manual, explanations for "docomo" as Home application are provided. To switch the Home applications, see "Switching Home application" (P.57). DescriptionOperation From the Home screen, tap and tap [Settings] u [About phone]. From the Home screen, tap (Applications button), and then tap "Settings" on the next screen and "About phone" on the following screen in order. Touch and hold an icon. Keep touching an icon longer (1-2 seconds). 2 SO-01F (with warranty) Back Cover SO22 (Quick Start Guide) (In Japanese only) SO-01F (Notes on usage Safety/Handling precautions) (In Japanese only) Desktop Holder SO17 (with warranty) For details on optional devices, see "Optional and related devices" (P.257). Supplied accessories Contents/Precautions 3 Contents Supplied accessories. . . . . . . . . . . . . . . . . 2 About using the terminal . . . . . . . . . . . . 5 Safety Precautions (Always follow these directions) . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Handling precautions . . . . . . . . . . . . . . . 17 Waterproofness/Dustproofness . . . . . 23 Before Using the Terminal . . . 29 Part names and functions................................................ 29 docomo mini UIM card ..................................................... 30 Charging ..................................................................................... 33 Turning power on/off......................................................... 37 Initial settings........................................................................... 39 Basic operations ..................................................................... 40 Notification LED ..................................................................... 43 Status bar ................................................................................... 44 Notification panel ................................................................. 46 Home screen............................................................................ 48 Application screen................................................................ 51 Task manager........................................................................... 57 Switching Home application ......................................... 58 Searching information in the terminal and web pages ............................................................................................ 58 Character entry ....................................................................... 60 Setting character entry ...................................................... 75 Setting Xperia ™ Japanese keyboard........................ 76 USB keyboard/Bluetooth keyboard ........................... 83 docomo Palette UI. . . . . . . . . . . 85 Home screen............................................................................ 85 Managing the Home screen .......................................... 85 Application screen................................................................ 91 Managing applications...................................................... 92 Phone . . . . . . . . . . . . . . . . . . . . . . 96 Making/Receiving a call ....…

Text truncated - open the document above for the full version.

Important Information United States THIS PHONE MODEL HAS BEEN CERTIFIED INCOMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The SO-01F Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR).Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the important information chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.797 W/kg*, and when worn on the body is 1.184 W/ kg*. For body-worn operation, this phone has been tested and meets the FCC RF exposure guidelines. Please use an accessory designated for this product or an accessory which contains no metal and which positions the handset a minimum of 1.5 cm from the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party accessories may result in different SAR levels than those reported. Radio Wave Exposure and Specific Absorption Rate (SAR) Information ** Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http:// www.fcc.gov/oet/fccid after searching on FCCID PY7PM-0440. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. *In the United States, the SAR limit for mobile phones used by the public is 1.6 watts/ kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: Any change or modification not expressly approved by Sony Mobile Communications AB may void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Statement for the USA (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. We, Sony Mobile Communications AB of Nya Vattentornet SE-221 88 Lund, Sweden declare under our sole responsibility that our product Sony type PM-0440-BV and in combination with our accessories, to which this declaration relates is in conformity with the appropriate standards EN 301 511:V9.0.2, EN 301 489- 7:V1.3.1, EN 301 908-1:V5.2.1, EN 301 908- 2:V5.2.1, EN 301 908-13:V5.2.1, EN 301 893:V1.7.1, EN 301 489-24:V1.5.1, EN 300 440-2:V1.4.1, EN 301 489-3:V1.4.1, EN 300 328:V1.8.1, EN 301 489-17:V2.1.1, EN 302 291-2:V1.1.1, EN 62209-1:2006 and EN 60950-1:2006 +A11:2009+A1:2010 +A12:2011 following the provisions of Radio Equipment and Telecommunication Terminal Equipment Directive 1999/5/EC Lund, August 2013 P ä r Thuresson Quality Officer, Quality & Customer Services R TTE 1999/5/EC We fulfill the requirements of the R TTE Directive (1999/5/EC) Declaration of Conformity for SO-01F

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 251/0061-LXE 110 0790 Uen PA3 Prepared by Date SEM/CGQTAD AFRAH SADIQ 2013-08-06 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England Variation Attestation and Test Report Re-use Statement - PY7PM-0440 Sony Mobile Communications AB, hereby declares the Sony mobile phone, FCC ID: PY7PM-0440, as a variant of the Sony mobile phone, FCC ID: PY7PM-0500 and the Sony mobile phone, FCC ID: PY7PM-0450  The differences between the PY7PM-0440, the PY7PM-0450 and PY7PM-0500 are: PY7PM-0440 does not support any US LTE bands.  Product form factor and all antennas (Cellular/BT/WLAN/Ant+) between the three versions remain identical  PCB/trace layout of the Bluetooth, WLAN 2.4GHz WLAN 5.0GHz and ANT+ hardware between the three variants remains identical  The component fit and form factor are the same between all three variants.  Software for the Bluetooth, WLAN2.4GHz, WLAN5GHz, RFID functionality between the three variants remains identical Based on this, the FCC part15 test reports for Bluetooth, WLAN 2.4GHz, WLAN 5GHz and Ant+ (issued by UL VS Ltd) for PY7PM-0500 and PY7PM-0450 respectively are applicable to PY7PM-0440. The test reports are listed below:  UL-RPT-RP10014952JD23A  UL-RPT-RP10014952JD24A  UL-RPT-RP10014952JD03A  UL-RPT-RP10014948JD15A  UL-RPT-RP10014948JD15B  UL-RPT-RP10014948JD13A Yours sincerely Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 154/0061-LXE 110 0790 Uen PA1 Prepared by Date SEM/CGQBAD HÅKAN SJÖBERG 2013-06-19 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England Subject: Certification Application FCC ID: PY7PM-0440 It is requested that the following information is to be held confidential on behalf of Sony Mobile Communications AB pursuant to FCC Rules Parts 0.457 and 0.459: Block Diagrams Schematics Parts List Tune Up Information Operation Description These items contain detailed system and equipment description and related information about the product which Sony Mobile Communications AB considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Yours sincerely Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 239/0061-LXE 110 0790 Uen PA2 Prepared by Date SEM/CGQTAD AFRAH SADIQ 2013-08-05 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England Subject: Certification Application FCC ID: PY7PM-0440 In accordance with §0.459 of CFR 47 and Public Notice DA 04-1705, Sony Mobile Communications AB requests in addition to Confidentiality Request 154/0061-LXE 110 0790 temporary confidentiality until 2014-02-05 of the below listed items for our mobile phone FCC ID PY7PM-0440: User manual Test setup photos External photos Internal photos These items contain proprietary information related to the design of the product which has not yet been released to the market. The public disclosure of this information prior to public launch may be harmful to Sony Mobile Communications AB and provide unjust benefits to its competitors. A period up to 2014-02-05 is requested to protect this information before formal market launch. If the launch date is re-scheduled to be earlier than 2014-02-05 Sony Mobile communications AB will inform again to cancel this restriction. Please contact the undersigned if there are any further questions or additional information needed in this matter. Yours sincerely Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 155/0061-LXE 110 0790 Uen PA3 Prepared by Date SEM/CGQTAD AFRAH SADIQ 2013-07-29 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England To whom it may concern This is to certify that Sony Mobile Communications AB authorizes UL to act as Telecommunication Certification Body on our behalf for the FCC application of our mobile phone FCC ID: PY7PM-0440. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Yours sincerely Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

Sony Mobile Communications Confidential LETTER 1(2) Document number Revision 163/0061-LXE 110 0790 Uen PA4 Prepared by Date SEM/CGQTAD AFRAH SADIQ 2013-07-29 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England To whom it may concern The mobile phone FCC ID: PY7PM-0440, is a cellular mobile telephone with Bluetooth, ANT+, WLAN and RFID supporting the following Frequency bands: GSM 850MHz Voice and (E)GPRS Data GSM 900MHz Voice and (E)GPRS Data GSM 1800MHz Voice and (E)GPRS Data GSM 1900MHz Voice and (E)GPRS Data UMTS FDD I 2100MHz Voice and Data Uplink 3GPP Release 6, HSUPA Cat. 6 Downlink 3GPP Release 5, HSDPA Cat. 10 UMTS FDD V 850MHz Voice and Data Uplink 3GPP Release 6, HSUPA Cat. 6 Downlink 3GPP Release 5, HSDPA Cat. 10 UMTS FDD VI 800MHz Voice and Data Uplink 3GPP Release 6, HSUPA Cat. 6 Downlink 3GPP Release 5, HSDPA Cat. 10 UMTS FDD XIX 800MHz Voice and Data Uplink 3GPP Release 6, HSUPA Cat. 6 Downlink 3GPP Release 5, HSDPA Cat. 10 LTE FDD 1 2100MHz Data Downlink 64-QAM modulation LTE FDD 3 1800MHz Data Downlink 64-QAM modulation LTE FDD 19 800MHz Data Downlink 64-QAM modulation LTE FDD 21 1500MHz Data Downlink 64-QAM modulation WLAN 2412 – 2462MHz WLAN 5150 – 5250MHz WLAN 5250 – 5350MHz WLAN 5470 – 5725MHz WLAN 5725 – 5850MHz Bluetooth 2402 – 2480MHz ANT+ 2402 – 2480MHz RFID 13.56MHz The device contains functions that are not operational in U.S Territories. The only cellular frequency bands operational in the U.S Territories are GSM 850MHz, PCS 1900MHz and UMTS FDD V Confidential LETTER 2(2) Document number Revision 163/0061-LXE 110 0790 Uen PA4 850MHz. This application relates to these bands and additionally Bluetooth, ANT+, WLAN and RFID. Yours sincerely Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

Prepared by SHIGERU, IWASAKI Contents responsible if other than preparer Approved by SHINICHI ENDO the responsibility of the user to ensure that they have a correct and valid PY7PM-0440, PY7PM-045 Front view: Rear view: 14 Confidential PROJECT REPORT Document number SEM/CVGAERB GAVIN HAN Date SEM/CVGAERB GAVIN HAN Remarks This document is managed in metaDoc. the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. External Photos: 50, PY7PM-0460, PY7PM-0470, PY7PM-0500, PY7PM 44.4 mm 1(2) Revision HAN9/0362-1/FCP 119 A HAN This document is managed in metaDoc. version. Any outdated hard copy is invalid and must be removed from possible use. 0500, PY7PM-0650 73.9 mm Side view: Top side view: Bottom side view: Confidential PROJECT REPORT Document number 9/0362-1/FCP 119 1010/1 Uen 2(2) Revision A 8.5 mm

Prepared by SHIGERU, IWASAKI Contents responsible if other than preparer Approved by SHINICHI ENDO the responsibility of the user to ensure that they have a correct and valid Applies to FCC ID: PY7PM- Marking Drawing The FCC ID is placed on a none removable label tray according to below picture Confidential PROJECT REPORT Document number SEM/CVGAERB GAVIN HAN Date SEM/CVGAERB GAVIN HAN Remarks This document is managed in metaDoc. the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. -0440 Marking Drawing - PY7PM-0440 The FCC ID is placed on a none removable label tray according to below picture 1(1) Revision HAN9/0362-1/FCP 119 A HAN This document is managed in metaDoc. version. Any outdated hard copy is invalid and must be removed from possible use. The FCC ID is placed on a none removable label tray according to below picture

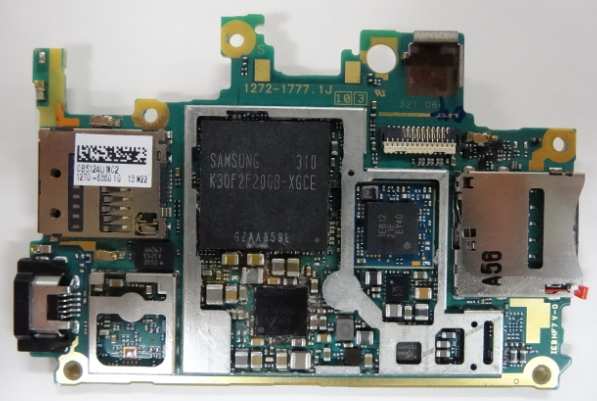

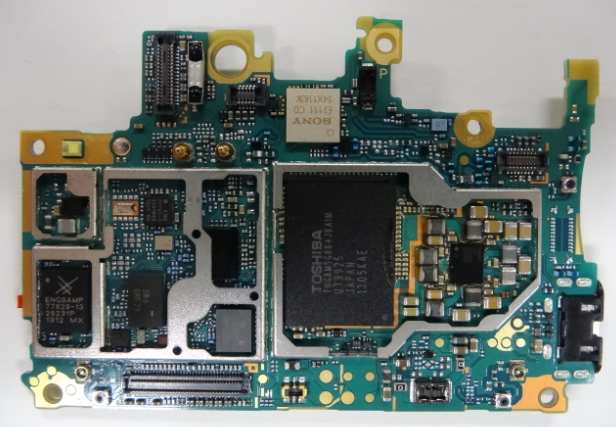

Prepared by SHIGERU, IWASAKI Contents responsible if other than preparer Approved by SHINICHI ENDO the responsibility of the user to ensure that they have a correct and valid PY7PM Without Rear lid: With/Without PWB: Confidential PROJECT REPORT Document number SEM/CVGAERB GAVIN HAN Date SEM/CVGAERB GAVIN HAN Remarks This document is managed in metaDoc. the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. PY7PM-0440: Internal Photos: 1(3) Revision HAN9/0362-1/FCP 119 A HAN s managed in metaDoc. version. Any outdated hard copy is invalid and must be removed from possible use. Internal PWB with/without Shield cases Confidential PROJECT REPORT Document number 9/0362-1/FCP 119 1010/1 Uen with/without Shield cases: 2(3) Revision A Battery: Rear lid: Confidential PROJECT REPORT Document number 9/0362-1/FCP 119 1010/1 Uen 3(3) Revision A

UL VS LTD Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP10014935JD03A Manufacturer : Sony Mobile Communications AB Type No. : PM-0440-BV FCC ID : PY7PM-0440 Technology : RFID – 13.56 MHz Test Standard(s) : FCC Parts 15.207, 15.209(a) & 15.225 1. This test report shall not be reproduced in full or partial, without the written approval of UL VS LTD. 2. The results in this report apply only to the sample(s) tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 1.0 Date of Issue: 31 July 2013 Checked by: Sarah Williams WiSE Laboratory Engineer Issued by : pp John Newell Group Quality Manager, WiSE Basingstoke, UL VS LTD This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its’ terms of accreditation. TEST REPORT SERIAL NO: UL-RPT-RP10014935JD03A VERSION 1.0 ISSUE DATE: 31 JULY 2013 Page 2 of 27 UL VS LTD This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP10014935JD03A VERSION 1.0 ISSUE DATE: 31 JULY 2013 UL VS LTD Page 3 of 27 Table of Contents 1. Customer Information .................................................................................................................4 2. Summary of Testing ....................................................................................................................5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) .....................................................................................................6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 8 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ..............................................................9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ...............................................................10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Transmitter AC Conducted Spurious Emissions 11 5.2.2. Transmitter Fundamental Field Strength 15 5.2.3. Transmitter Radiated Spurious Emissions 17 5.2.4. Transmitter Band Edge Radiated Emissions 21 5.2.5. Transmitter 20 dB Bandwidth 23 5.2.6. Transmitter Frequency Stability (Temperature & Voltage Variation) 24 6. Measurement Uncertainty ........................................................................................................26 7. Report Revision History ...........................................................................................................27 TEST REPORT SERIAL NO: UL-RPT-RP10014935JD03A VERSION 1.0 ISSUE DATE: 31 JULY 2013 Page 4 of 27 UL VS LTD 1. Customer Information Company Name: Sony Mobile Communications AB Address: Nya Vattentornet Lund SE-221 88 Sweden TEST REPORT SERIAL NO: UL-RPT-RP10014935JD03A VERSION 1.0 ISSUE DATE: 31 JULY 2013 UL VS LTD Page 5 of 27 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.225 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Radio Frequency Devices) - Section 15.225 Specification Reference: 47CFR15.207 and 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Sections 15.207 and 15.209 Site Registration: 209735 Location of Testing: UL VS LTD, Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 26 July 2013 to 30 July 2013 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.207 Transmitter AC Conducted Emissions Part 15.225(a)(b)(c)(d) Transmitter Fundamental Field Strength Part 15.209(a), 15.225(d) Transmitter Radiated Spurious Emissions Part 15.209(a), 15.225(c)(d) Transmitter Band Edge Radiated Emissions Part 2.1049 Transmitter 20 dB Bandwidth Part 15.225(e) Transmitter Frequency Stability (Temperature & Voltage Variation) Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: UL-RPT-RP10014935JD03A VERSION 1.0 ISSUE DATE: 31 JULY 2013 Page 6 of 27 UL VS LTD 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Sony IMEI: 004402540812108 (Radiated sample #1) Serial Number: CB5124UN3A Hardware Version Number: AP2 Software Version Number: 14.1.H.0.246 FCC ID: PY7PM-0440 Brand Name: Sony IMEI: 004402540811944 (Radiated sample #2, modified with a Dummy battery) Serial Number: CB5124UN43 Hardware Version Number: AP2 Software Version Number: 14.1.H.0.246 FCC ID: PY7PM-0440 Brand Name: Sony Description: AC Charger Model Name or Number: EP880 Brand Name: Sony Description: MHL Cable Model Name or Number: Not marked or stated Brand Name: Sony Description: MHL Adaptor Model Name or Number: IM750 Brand Name: Sony Description: Magnetic Plug Model Name or Number: EC801 Brand Name: Sony Description: USB cable Model Name or Number: EC21 TEST REPORT SERIAL NO: UL-RPT-RP10014935JD03A VERSION 1.0 ISSUE DATE: 31 JULY 2013 UL VS LTD Page 7 of 27 Identification of Equipment Under Test …

Text truncated - open the document above for the full version.

FCC ID: PY7PM-0440 Test Set-Up Photos for the Sony PY7PM-0440 Radiated Emissions: Accessory Configuration 1 Radiated Emissions: Accessory Configuration 2 FCC ID: PY7PM-0440 AC Conducted Emission: Accessory Configuration 1 FCC ID: PY7PM-0440 AC Conducted Emission: Accessory Configuration 2
