Startup guide Xperia ™ C6902/C6903/C6906 Sony Mobile Communications AB SE-221 88 Lund, Sweden www.sonymobile.com 1274-4566.1 Welcome Important Information Before you use your device, please read the Important Information provided in your device regarding warranty, safety and handling information. Assembly To insert the memory card Do not insert a micro SIM card into the memory card slot. The memory card may not be included at purchase in all markets. To insert the micro SIM card Do not insert a memory card into the micro SIM card slot. 2 3 4 1 5 Inserting the micro SIM card into the device without the SIM card holder could damage your micro SIM card or your device, and Sony Mobile does not warrant and will not be responsible for any damage caused by such action. To view the CE mark and the FCC ID 2 1 3 1 Detach the cover of the micro SIM card slot. 2 Place a fingernail under the right or left edge of the label tray, then drag the tray outwards to view the CE mark and the FCC ID. Protecting your device from water and dust <1.5m Swimming poolDivingSand/mud Salt waterOther liquid chemicals Your device has IP (Ingress Protection) ratings of IP5X, IPX5 and IPX8. These ratings mean that your device is dust resistant and is protected against low pressure water stream as well as against the effects of submersion for 30 minutes in fresh (non-saline) water up to 1.5 metres deep. Always firmly attach all covers to ensure the water and dust resistance of the device. If liquid is detected inside the device, for example, underneath one of the covers, your warranty will be void. If the speaker, microphone or headset jack get wet, dry these areas and wait for three hours before using them again. You can, however, use other features in the device that do not utilise the speaker or microphone. Before using your device in water and in dusty conditions, refer to the relevant section of the User guide for your device for more detailed information. An online User guide as well as a downloadable version is available at www.sonymobile.com/support. Basics Overview 1234 5 6 7 8 10 9 11131214 15 16 17 1. Headset jack 2. Proximity sensor/Light sensor 3. Ear receiver/Charging light/Notification light 4. Front camera lens 5. Micro SIM card slot cover 6. Power key 7. Volume/Zoom key 8. Camera key 9. Strap hole 10. Main speaker and microphone 11. Main camera lens 12. Camera light 13. Second microphone 14. NFC™ detection area 15. Memory card slot cover 16. Charger/USB cable port cover 17. Charging dock connector Do not insert fingers or other objects into the opening for the ear speaker (illustrated in item 14 above) to avoid damaging your device. Turning on the device To turn on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. 1 Press and hold down the power key until the device vibrates. 2 Wait a while for the device to start. Waking up the screen To activate the screen • Briefly press the power key . To unlock the screen • Swipe up or down on the lower part of the screen. Setting up your device What is Android™? Android is your device's operating system. Since Android is developed by Google™, your device is preloaded with several Google™ services, such as Google Maps™ and Google™ web search. To use some of the services provided by Google™, you need a Google account. Google™ account With a Google™ account, you can use Gmail™ to send emails, Google Talk™ to chat with friends, and Google Play™ to download applications and games, music, movies and books. To set up a Google™ account on your device 1 From your Home screen, tap . 2 Find and tap Settings > Add account > Google. 3 Follow the registration wizard to create a Google™ account, or sign in if you already have an account. You can also sign in to or create a Google™ account from the setup guide the first time you start your device. Or you can go online and create an account at www.google.com/accounts. Basic settings The first time you start your device, a setup guide explains basic device functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide manually 1 From the Home screen, tap . 2 Tap Settings > Setup guide. Transferring contacts to your new device Transferring contacts to your new device can sometimes be complicated, but help is available. You can transfer contacts from several device brands, including iPhone, Samsung, HTC and Nokia. You need: • An Internet-connected PC or Apple ® Mac ® computer. • A USB cable for your old device. • A USB cable for your new Android™ device. • Your old device and new Android™ device. Get started transferring your contacts If you are a PC user, use the PC Companion program to transfer your contacts. It's free, and the installation files are already saved on your new device. PC Companion also offers a range of other features, including help to update your device software. For Apple® Mac® computer users, the Sony™ Bridge for Mac application is available to help you transfer your contacts. It's also free and downloadable from www.sonymobile.com/support. To install PC Companion 1 New device: Turn on your new Android™ device and connect it to a PC using a USB cable. 2 New device: Tap Install to install PC Companion on the PC. 3 Computer: If a popup window appears to notify you about available PC software, select Run Startme.exe. 4 Computer: Click Install to start the installation and then follow the instructions to complete the installation. To transfer contacts to your new device using PC Companion 1 Make sure that PC Companion is installed on your PC. 2 Open the PC Companion program on the PC, then click Contacts Setup and follow the instructions to transfer your contacts. To install Sony™ Bridge for Mac 1 Using your Apple Mac computer, go to www.sonymobile.com/support, then search for and download the Sony™ Bridge for Mac application to a folder on the computer. 2 After the download is complete, ope…

Text truncated - open the document above for the full version.

Important information Sony Consumer Web site At www.sonymobile.com/support there is a support section where help and tips are only a few clicks away. Here you will find the latest computer software updates and tips on how to use your product more efficiently. Service and support You have access to a portfolio of exclusive service advantages such as: • Global and local Web sites providing support. • A global network of Contact Centers. • An extensive network of Sony service partners. • A warranty period. Learn more about the warranty conditions in theLimited warrantysection. At www.sonymobile.com/support, you can find the latest support tools and information. For operator-specific services and features, please contact your network operator. You can also contact our Contact Centers. If your country/region is not represented in the list below, please contact your local dealer. (Calls are charged according to national rates, including local taxes, unless the phone number is a toll-free number.) If your product needs service, please contact the dealer from whom it was purchased, or one of our service partners. For warranty claims, save proof of purchase. Guidelines for Safe and Efficient Use Please follow these guidelines. Failure to do so might entail a potential health risk or product malfunction. If in doubt as to its proper function, have the product 2 checked by a certified service partner before charging or using it. Recommendations for care and safe use of our products • Handle with care and keep in a clean and dust-free place. • Warning! May explode if disposed of in fire. • Do not expose to liquid or moisture or excess humidity. • For optimum performance, the product should not be operated in temperatures below -10°C(+14°F) or above +45°C(+113°F). Do not expose the battery to temperatures above +60°C(+140°F). • Do not expose to flames or lit tobacco products. • Do not drop, throw or try to bend the product. • Do not paint or attempt to disassemble or modify the product. Only Sony authorised personnel should perform service. • Consult with authorised medical staff and the instructions of the medical device manufacturer before using the product near pacemakers or other medical devices or equipment. • Discontinue use of electronic devices, or disable the radio transmitting functionality of the device, where required or requested to do so. • Do not use where a potentially explosive atmosphere exists. • Do not place the product, or install wireless equipment, in the area above an air bag in a car. • Caution: Cracked or broken displays may create sharp edges or splinters that could be harmful upon contact. • Do not use the Bluetooth Headset in positions where it is uncomfortable or will be subject to pressure. 3 www.sonymobile.com Sony Mobile Communications AB SE-221 88 Lund, Sweden 1222-9266.9 Children Warning! Keep out of the reach of children. Do not allow children to play with mobile phones or accessories. They could hurt themselves or others. Products may contain small parts that could become detached and create a choking hazard. Power supply (Charger) Connect the charger to power sources as marked on the product. Do not use outdoors or in damp areas. Do not alter or subject the cord to damage or stress. Unplug the unit before cleaning it. Never alter the plug. If it does not fit into the outlet, have a proper outlet installed by an electrician. When a power supply is connected there is a small drain of power. To avoid this small energy waste, disconnect the power supply when the product is fully charged. Use of charging devices that are not Sony branded may pose increased safety risks. Battery New or idle batteries can have short-term reduced capacity. Fully charge the battery before initial use. Use for the intended purpose only. Charge the battery in temperatures between +5°C(+41°F) and +45°C(+113°F). Do not put the battery into your mouth. Do not let the battery contacts touch another metal object. Turn off the product before removing the battery. Performance depends on temperatures, signal strength, usage patterns, features selected and voice or data transmissions. Only Sony service partners should remove or replace built-in batteries. Use of batteries that are not Sony branded may pose increased safety risks. Replace the battery only with another Sony battery that has been qualified with the product per the standard IEEE-1725. Use of an unqualified 4 battery may present a risk of fire, explosion, leakage or other hazard. Personal medical devices Mobile phones may affect implanted medical equipment. Reduce risk of interference by keeping a minimum distance of 15 cm(6 inches) between the phone and the device. Use the phone at your right ear. Do not carry the phone in your breast pocket. Turn off the phone if you suspect interference. For use in proximity to personal medical devices, please consult a physician and the device manufacturer. Driving Some vehicle manufacturers forbid the use of phones in their vehicles unless a handsfree kit with an external antenna supports the installation. Check with the vehicle manufacturer's representative to be sure that the mobile phone or Bluetooth handsfree will not affect the electronic systems in the vehicle. Full attention should be given to driving at all times and local laws and regulations restricting the use of wireless devices while driving must be observed. GPS/Location based functions Some products provide GPS/Location based functions. Location determining functionality is provided “As is” and “With all faults”. Sony does not make any representation or warranty as to the accuracy of such location information. Use of location-based information by the device may not be uninterrupted or error free and may additionally be dependent on network service availability. Please note that functionality may be reduced or prevented in certain environments such as building interiors or areas adjacent to buildings. 5 Caution: Do not use GPS function…

Text truncated - open the document above for the full version.

SAR Information FCC Statement Declaration of Conformity Sony C6906 UMTS HSPA Band 1 2 4 5 8 GSM GPRS/EDGE 850/900/1800/1900 LTE Band 1 2 4 5 7 8 17 Important Information U nited States & Canada THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The C6906 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the Important information in the Setup guide from your phone. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.868 W/kg*, and when worn on the body is 1.366 W/kg*. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party 2 accessories may result in different SAR levels than those reported. **Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID PY7PM-0460. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. 3 Renseignements importants É tats-Unis et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles de la série C6906 ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites* d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par l'entremise d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes normalisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le TAS, reportez-vous à la section Renseignements importants du guide de configuration de votre téléphone. Le TAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de 0.868 W/kg* lorsqu'il est mis à l'essai en utilisation près de l'oreille, et de 1.366 W/kg* lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon 4 adéquate avec un accessoire approprié et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », en mode d'utilisation porté sur le corps, les mesures du TAS de l'appareil en mode WiFi ont été prises à une distance de sécurité de 10 mm. L'utilisation d'accessoires tiers peut produire des niveaux de TAS différents de ceux relevés. **Avant qu'un modèle de téléphon…

Text truncated - open the document above for the full version.

Sony Mobile Communications Confidential LETTER 1(2) Document number Revision 217/0061-LXE 110 0790 Uen PA1 Prepared by Date SEM/CGQTAD AFRAH SADIQ 2013-07-24 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England To whom it may concern The following Sony Mobile Communications AB device FCC ID: PY7PM-0460, supports the following WLAN channels. Based on the UNII Device Declaration [UNIIDeviceDeclaration_PY7PM-0460_rev PA1.pdf], Active scanning is functional in the following frequencies only: 2412MHz – Channel 1 2437MHz – Channel 6 2462MHz – Channel 11 For all other frequencies and channel, Passive scanning is utilized. Please refer to the following table for a complete overview of the WLAN channels. This information is available in the Technical Description [PY7PM- 0460_TechnicalDescriptionGeneral_revPA4]. 802.11b(DSSS) band 2.4GHz 802.11a band 5.0 GHz Bit rate 1,2,5.5,11 [Mbps] Bit rate 6,9,12,18,24,36,48,54 [Mbps] Frequency[MHz] Channel Frequency[MHz] Channel 2412 1 5180 36 2437 6 5200 40 2462 11 5220 44 802.11g(OFDM) band 2.4GHz 5240 48 Bit rate 6,9,12,18,24,36,48,54 [Mbps] 5260 52 Frequency[MHz] Channel 5280 56 2412 1 5300 60 2437 6 5320 64 2462 11 5500 100 802.11n(OFDM) band 2.4GHz 5520 104 Bit rate 6.5,13,19.5,26,39,52,58.5,65 [Mbps] 5540 108 Confidential LETTER 2(2) Document number Revision 217/0061-LXE 110 0790 Uen PA1 Frequency[MHz] Channel 5560 112 2412 1 5580 116 2437 6 5660 132 2462 11 5680 136 5700 140 5745 149 5765 153 5785 157 5805 161 5825 165 802.11b(DSSS) band 2.4GHz 802.11a band 5.0 GHz Bit rate 1,2,5.5,11 [Mbps] Bit rate 6,9,12,18,24,36,48,54 [Mbps] Frequency[MHz] Channel Frequency[MHz] Channel 2412 1 5180 36 2437 6 5200 40 2462 11 5220 44 802.11g(OFDM) band 2.4GHz 5240 48 Bit rate 6,9,12,18,24,36,48,54 [Mbps] 5260 52 Frequency[MHz] Channel 5280 56 2412 1 5300 60 2437 6 5320 64 2462 11 5500 100 802.11n(OFDM) band 2.4GHz 5520 104 Bit rate 6.5,13,19.5,26,39,52,58.5,65 [Mbps] 5540 108 Frequency[MHz] Channel 5560 112 2412 1 5580 116 2437 6 5660 132 2462 11 5680 136 5700 140 5745 149 5765 153 5785 157 5805 161 5825 165 Yours sincerely Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 170/0061-LXE 110 0790 Uen PA1 Prepared by Date SEM/CGQBAD HÅKAN SJÖBERG 2013-06-27 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Federal Communication Commision Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: PY7PM-0460 1. DFS Device:  Master  Client with Radar detection capability  N/A  Client without radar detection capability, 2. Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412-2462  Yes  No  Yes  No  Yes  No  Yes  No 5745-5825  Yes  No  Yes  No  Yes  No  Yes  No 5755-5795  Yes  No  Yes  No  Yes  No  Yes  No 5180-5240  Yes  No  Yes  No  Yes  No  Yes  No 5190-5230  Yes  No  Yes  No  Yes  No  Yes  No 5260-5320  Yes  No  Yes  No  Yes  No  Yes  No 5270-5310  Yes  No  Yes  No  Yes  No  Yes  No 5500-5700  Yes  No  Yes  No  Yes  No  Yes  No 5510-5670  Yes  No  Yes  No  Yes  No  Yes  No 3. Country code selection ability  Yes  No 4. Meet 15.202 requirement  Yes  No please check below:  A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices  A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. 5. For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non- DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer.  Apply  Does not apply (If apply, please help to provide explanation on it was implement, and how software was controlled) 6. This device complies with the requirements for software configuration control as detailed in KDB594280.  Apply  Does not apply Best regards --------------------------------------- Razvan Bujila Global Type Approval Sony Mobile Communications AB Mobilvägen 10, SE-221 88 Lund, Sweden

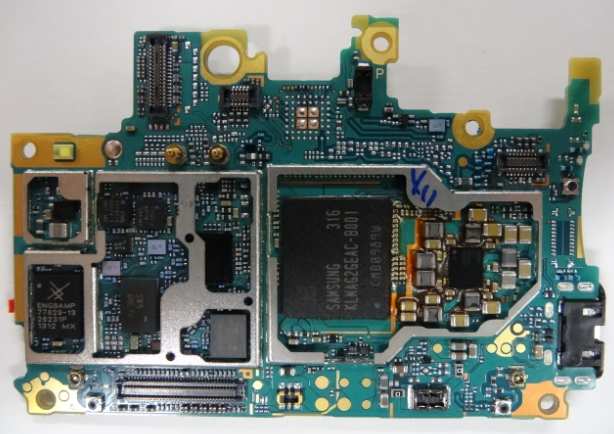

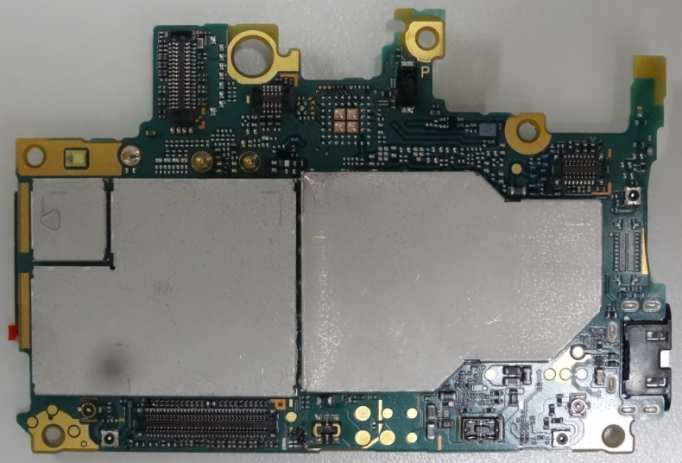

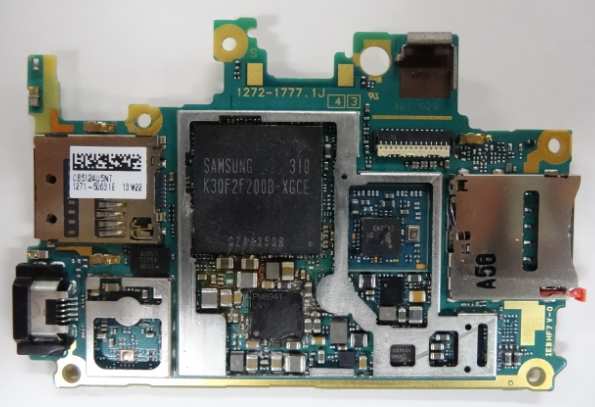

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 226/0061-LXE 110 0790 Uen PA2 Prepared by Date SEM/CGQTAD AFRAH SADIQ 2013-07-25 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England Sony Mobile Communications AB, hereby declares the Sony mobile phone, FCC ID: PY7PM-0460, as a variant of the Sony mobile phone, FCC ID: PY7PM-0450  The differences between FCC ID: PY7PM-0460 and, FCC ID: PY7PM-0450 are: FCC ID: PY7PM-0460 supports LTE B17 and doesn’t support LTE B3 and B20, compared to FCC ID: PY7PM-0450  Product form factor and all antennas (Cellular/BT/WLAN/Ant+/RFID/A-GPS/GPS) between the two versions remain identical  PCB/Components/trace layout of the Bluetooth, WLAN, Ant+ and RFID hardware between the two variants remains identical  Software for the Bluetooth, WLAN, Ant+ and RFID functionality between the two variants remains identical Based on this, the FCC part 15 test reports for Bluetooth, WLAN, Ant+ and RFID (issued by UL VS Ltd) issued for FCC ID: PY7PM-0450 also apply for FCC ID: PY7PM-0460. The test reports are listed below: Bluetooth FCC Part 15 report No. UL-RPT-RP10014948JD10A Bluetooth FCC Part 15 report No. UL-RPT-RP10014948JD11A WLAN FCC Part 15 report No. UL-RPT-RP10014948JD12A WLAN FCC Part 15 report No. UL-RPT-RP10014948JD15A WLAN FCC Part 15 report No. UL-RPT-RP10014948JD15B Ant+ FCC Part 15 report No. UL-RPT-RP10014948JD13A RFID FCC Part 15 report No. UL-RPT-RP10014948JD14A Yours sincerely Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 160/0061-LXE 110 0790 Uen PA2 Prepared by Date SEM/CGQTAD AFRAH SADIQ 2013-07-24 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England To whom it may concern This is to certify that Sony Mobile Communications AB authorizes UL to act as Telecommunication Certification Body on our behalf for the FCC application of our mobile phone , FCC ID: PY7PM-0460. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Yours sincerely Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

Sony Mobile Communications Confidential LETTER 1(2) Document number Revision 179/0061-LXE 110 0790 Uen PA2 Prepared by Date SEM/CGQTAD AFRAH SADIQ 2013-07-24 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England To whom it may concern The mobile phone, FCC ID: PY7PM-0460, is a cellular mobile telephone with Bluetooth, ANT+, WLAN, RFID and HAC supporting the following Frequency bands: GSM 850MHz Voice and (E)GPRS Data GSM 900MHz Voice and (E)GPRS Data GSM 1800MHz Voice and (E)GPRS Data GSM 1900MHz Voice and (E)GPRS Data UMTS FDD I 2100MHz Voice and Data Uplink 3GPP Release 6, HSUPA Cat. 6 Downlink 3GPP Release 5, HSDPA Cat. 24 UMTS FDD II 1900MHz Voice and Data Uplink 3GPP Release 6, HSUPA Cat. 6 Downlink 3GPP Release 5, HSDPA Cat. 24 UMTS FDD IV 1700MHz Voice and Data Uplink 3GPP Release 6, HSUPA Cat. 6 Downlink 3GPP Release 5, HSDPA Cat. 24 UMTS FDD V 850MHz Voice and Data Uplink 3GPP Release 6, HSUPA Cat. 6 Downlink 3GPP Release 5, HSDPA Cat. 24 UMTS FDD VIII 900MHz Voice and Data Uplink 3GPP Release 6, HSUPA Cat. 6 Downlink 3GPP Release 5, HSDPA Cat. 24 LTE FDD 1 2100MHz Data Downlink 64-QAM modulation LTE FDD 2 1900MHz Data Downlink 64-QAM modulation LTE FDD 4 1700MHz Data Downlink 64-QAM modulation LTE FDD 5 850MHz Data Downlink 64-QAM modulation LTE FDD 7 2600MHz Data Downlink 64-QAM modulation LTE FDD 8 900MHz Data Downlink 64-QAM modulation LTE FDD 17 700MHz Data Downlink 64-QAM modulation WLAN 2412 – 2462MHz WLAN 5150 – 5250MHz WLAN 5250 – 5350MHz WLAN 5470 – 5725MHz WLAN 5725 – 5850MHz Bluetooth 2402 – 2480MHz ANT+ 2402 – 2480MHz RFID 13.56MHz Confidential LETTER 2(2) Document number Revision 179/0061-LXE 110 0790 Uen PA2 The device contains functions that are not operational in U.S Territories. The only cellular frequency bands operational in the U.S Territories GSM 850MHz, PCS 1900MHz, UMTS FDD II 1900MHz, UMTS FDD IV 1700MHz, UMTS FDD V 850MHz, LTE FDD 2 1900MHz, LTE FDD 4 1700MHz, LTE FDD 5 850MHz , LTE FDD 7 2600MHz and LTE FDD 17 700MHz. This application relates to these bands and additionally Bluetooth, ANT+, WLAN, RFID and HAC. Yours sincerely Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

FCC ID: PY7PM-0460 This is to confirm that the Bluetooth EDR DSS, Bluetooth LE DTS, WLAN 2.4 GHz DTS, WLAN 5.0 GHz DTS NII, WLAN DFS NII, NFC/RFID DXX and ANT+ DXT test reports to support this application were originally used for the equipment certified under FCC ID: PY7PM-0450. These reports are considered acceptable based on the manufacturer’s attestation letter that states electrical equivalence of the PY7PM-0450 and PY7PM-0460 equipment models for these RF technologies. UL

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 161/0061-LXE 110 0790 Uen PA1 Prepared by Date SEM/CGQBAD HÅK…
