PY7PM-0570SMART PHONE

SAR Information FCC Statement Declaration of Conformity Sony C2305 UMTS HSPA Band 1 8 GSM GPRS/EDGE 900/1800/1900 Important Information United Sta tes & Canada THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the Important information in the Setup guide from your phone. The highest SAR value as reported to the authorities for this phone model when tested for use by the head is 0.540 W/kg*, and when worn on the body is 0.360 W/kg*. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. 2 Body-worn operations are restricted the specific belt-clips / holsters / accessories tested and authorized for use with this device, and to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5cm separation between the device and the user's body. Use of third-party accessories may result in different SAR levels than those reported. **Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the head and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID PY7PM-0570. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. 3 Renseignements importants États-Un is et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles de la série ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites* d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par l'entremise d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes normalisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le TAS, reportez-vous à la section Renseignements importants du guide de configuration de votre téléphone. Le TAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de 0.540 W/kg* lorsqu'il est mis à l'essai en utilisation près de l'oreille, et de 0.360 W/kg* lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon 4 adéquate avec un accessoire approprié et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi…

Text truncated - open the document above for the full version.

Startup guide Xperia ™ C2305 Sony Mobile Communications AB SE-221 88 Lund, Sweden www.sonymobile.com 1271-4312.1 Welcome Important Information Before you use your device, please read the Important Information provided in your device regarding warranty, safety and handling information. Assembly To remove the back cover 34444444 To insert the memory card The memory card may not be included at purchase in all markets. To insert the SIM cards Your device uses micro SIM cards only. For more information, contact your network operator. To attach the back cover To attach a strap to the strap holder Basics Overview 123 4 5 6 7 8 9 13 1415 101112 1. Ear speaker 2. Front camera lens 3. Proximity/Light sensor 4. Power key 5. Volume/Zoom key 6. Camera key 7. Notification light 8. Microphone 9. Touchscreen 10. Camera light 11. Main camera lens 12. Headset jack 13. Port for charger/USB cable 14. Speaker 15. Strap hole Turning on the device To turn on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. 1 Press and hold down the power key until the screen flashes. 2 Wait a while for the device to start. Waking up the screen To activate the screen • Briefly press the power key . To unlock the screen • Drag up or drag down. Using the keys Back • Go back to the previous screen • Close the on-screen keypad, a dialog box, an options menu, or the Notification panel Home • Go to the Home screen Task • Tap to open a window showing your most recently used applications and a small apps bar Set up your device What is Android™? Android is your device's operating system. Since Android is developed by Google™, your device is preloaded with several Google™ services, such as Google Maps™ and Google™ web search. To use some of the services provided by Google™, you need a Google account. What is different about Android? Android™ is an open system, which means that you're not limited to using applications and services from only one provider. Google™ account With a Google™ account, you can use Gmail™ to send emails, Google Talk™ to chat with friends, and Google Play™ to download applications and games, music, movies and books. To set up a Google™ account on your device 1 From your Home screen, tap . 2 Find and tap Settings > Add account > Google. 3 Follow the registration wizard to create a Google™ account, or sign in if you already have an account. You can also sign in to or create a Google™ account from the setup guide the first time you start your device. Or you can go online and create an account at www.google.com/accounts. Basic settings The first time you start your device, a setup guide explains basic device functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide manually 1 From the Home screen, tap . 2 Tap Settings > Setup guide. Transferring contacts to your new device Transferring contacts to your new device can sometimes be complicated, but help is available. You can transfer contacts from several device brands, including iPhone, Samsung, HTC and Nokia. You need: • An Internet-connected PC or Apple® Mac® computer • A USB cable for your old device • A USB cable for your new Android™ device • Your old device and new Android™ device Get started transferring your contacts If you are a PC user, use the PC Companion program to transfer your contacts. It's free, and the installation files are already saved on your new device. PC Companion also offers a range of other features, including help to update your device software. For Apple® Mac® computer users, the Sony™ Bridge for Mac application is available to help you transfer your contacts. It's also free and downloadable from www.sonymobile.com/support. To install PC Companion 1 New device: Turn on your new Android™ device and connect it to a PC using a USB cable. 2 New device: Tap Install to install PC Companion on the PC. 3 Computer: If a popup window appears to notify you about available PC software, select Run Startme.exe. 4 Computer: Click Install to start the installation and then follow the instructions to complete the installation. To transfer contacts to your new device using PC Companion 1 Make sure that PC Companion is installed on your PC. 2 Open the PC Companion program on the PC, then click Contacts Setup and follow the instructions to transfer your contacts. To install Sony™ Bridge for Mac 1 Using your Apple Mac computer, go to www.sonymobile.com/support, then search for and download the Sony™ Bridge for Mac application to a folder on the computer. 2 After the download is complete, open the folder and double-click the Sony Bridge for Mac.dmg file to start the installation. 3 Follow the instructions on your Apple ® Mac ® computer to complete the installation. To transfer contacts to your new device using Sony™ Bridge for Mac 1 Make sure the Sony™ Bridge for Mac application is installed on your Apple® Mac® computer. 2 Open the Sony™ Bridge for Mac application on your Apple® Mac® computer. 3 Double-click the Sony™ Bridge for Mac icon in the Applications folder, then follow the instructions to transfer your contacts. Finding your way Home screen The Home screen is your gateway to the main features on your device. You can customise your Home screen with widgets, shortcuts, folders, themes, wallpaper and other items. The Home screen extends beyond the regular screen display width, so you need to flick left or right to view content in all of the Home screen's panes. The items in the bar at the bottom of the screen are always available for quick access. To go to the Home screen • Press . To change your Home screen wallpaper 1 Touch and hold an empty area on your Home screen until the device vibrates. 2 Tap Wallpapers and select an option. Application screen The Application screen, which you open from your Home screen, contains the applications that come pre-installed on your device as well as the applications you download. The Appli…

Text truncated - open the document above for the full version.

Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: June 7, 2013 Statement We state that the label of our device, FCC ID: PY7PM-0570, will be put underneath the back cover and fixed on the phone. The label is visible to the users as they purchase the phone and install the SIM card. Sincerely yours, _______________________ Jones Tsai

Rev. 1/1/03 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: June 7, 2013 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: PY7PM-0570 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Schematics  Block Diagram  Parts List  Operation Description  Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, _______________________ Jones Tsai

1/1 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: June 7, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : PY7PM-0570 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which the applicant deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Jones Tsai

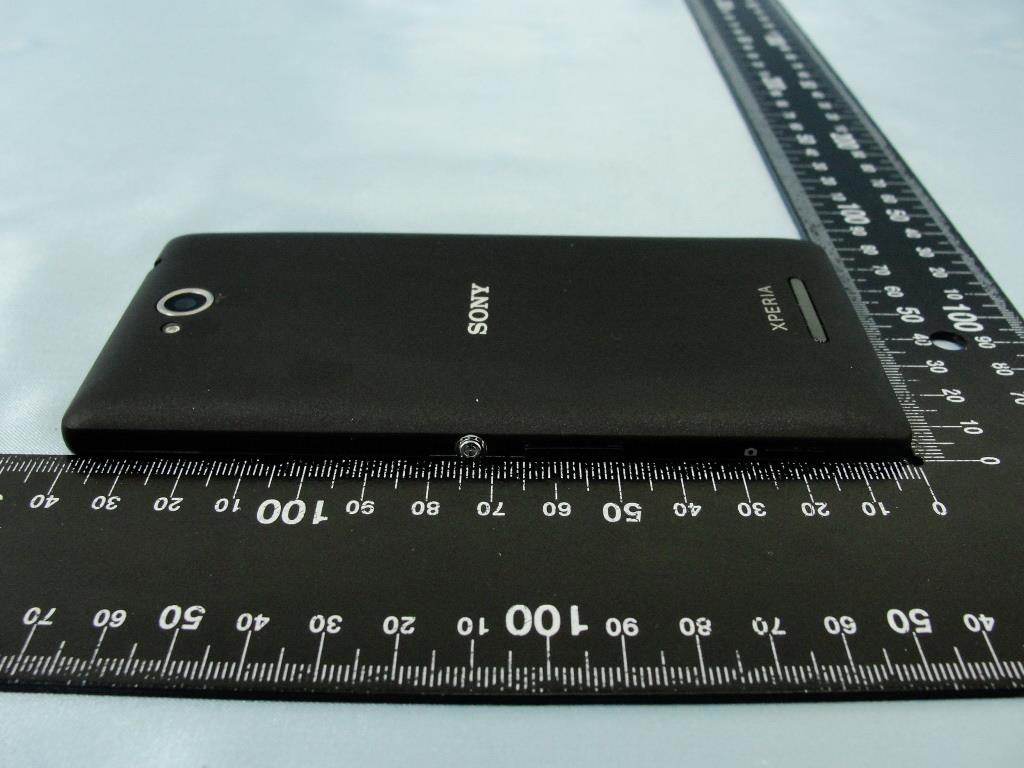

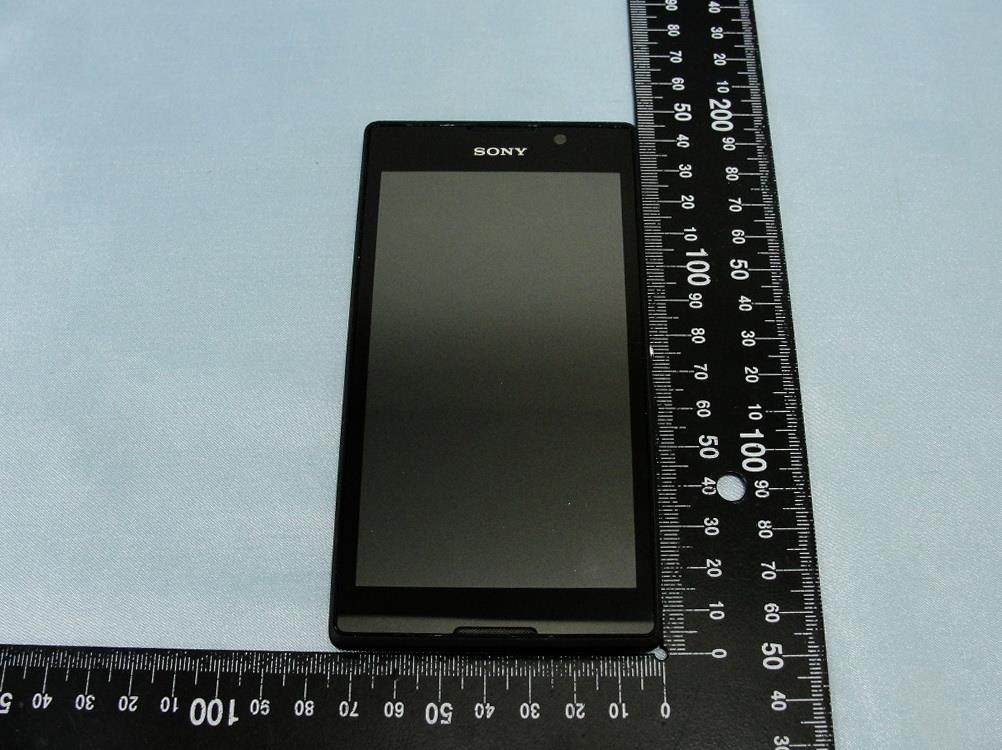

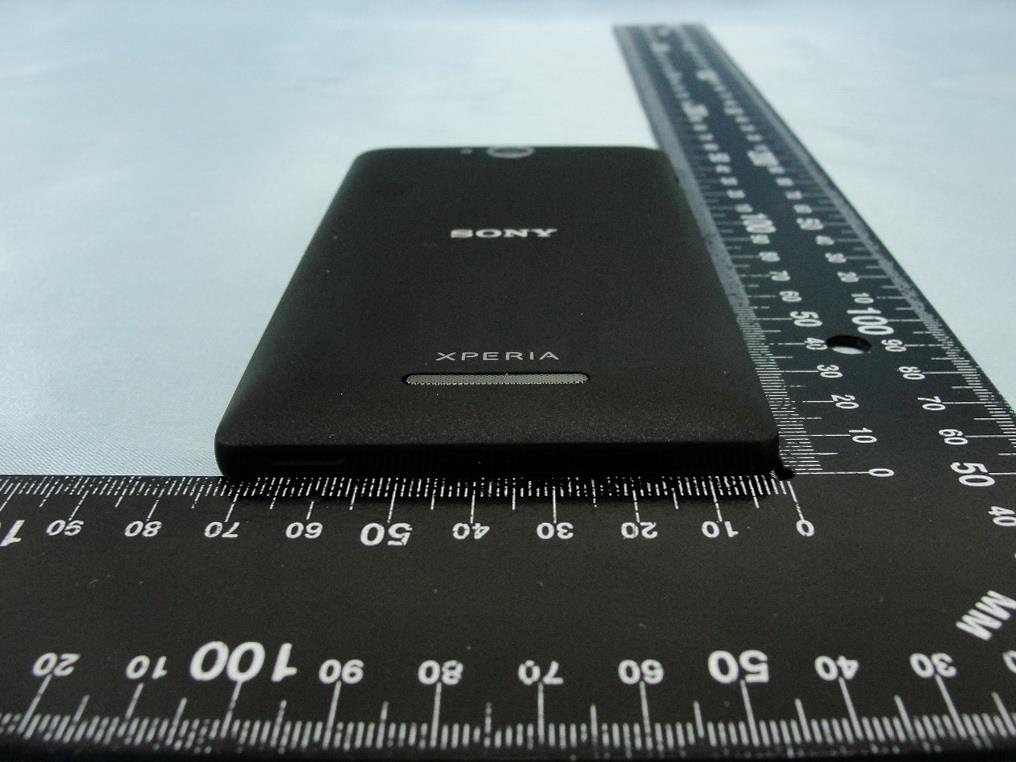

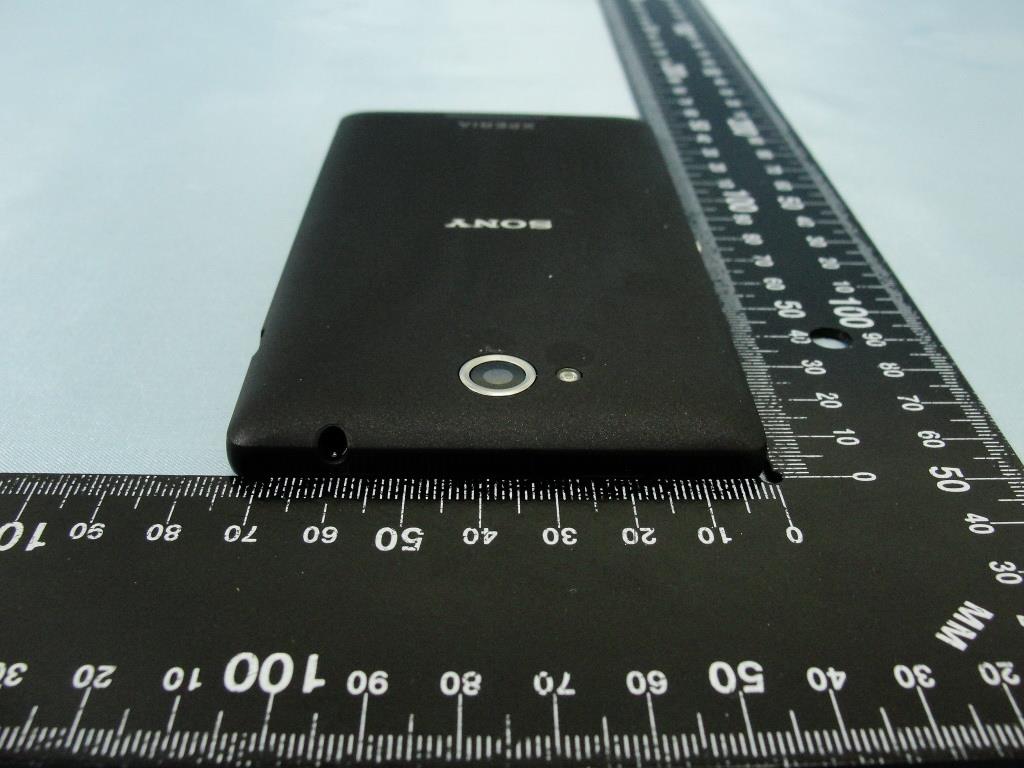

Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 1 of 6 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 External Photograph of EUT Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 2 of 6 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 3 of 6 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 4 of 6 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 5 of 6 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 6 of 6 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 720510

After removing the back cover to install the SIM card, the label can be seen. Label Location

Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 1 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Internal Photograph of EUT Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 2 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 3 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 4 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 5 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 6 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 7 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 8 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 9 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 10 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 11 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 WWAN Antenna Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 12 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 13 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Bluetooth & WLAN Antenna Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 14 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 15 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 GPS Antenna Photographs of EUT Report No.: EP342505 Brand Name: Sony / Model Name: C2305 / Type Name: PM-0570-BV SPORTON INTERNATIONAL INC. Page Number : 16 of 16 TEL : 886-3-327-3456 Report Issued Date : May 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 720510

Photographs of EUT Report No.: 342505 Brand Name: Sony / Model Name: C2305/ Type Name: PM-0570-BV SPORTON International Inc. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : May. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 EUT Length: 14.2 cm EUT Width: 7.5 cm Antenna Length Width WWAN Antenna <Tx / Rx> 6.0 cm 1.7 cm WLAN & Bluetooth Antenna <Tx / Rx> 1.7 cm 1.7 cm GPS Antenna <Rx> 2.6 cm 1.2 cm The shortest distance between the Tx antennas WWAN Antenna <Tx / Rx> to WLAN & Bluetooth Antenna <Tx / Rx> 10.3 cm WLAN & Bluetooth Antenna <Tx / Rx> WWAN Antenna <Tx / Rx> GPS Antenna <Rx> 12.3 cm 1.1 cm 5.6 cm 12.3 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 44 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Report Template No. : BU5-FA Version1.0 FCC SAR Test Report Report No. : FA342505 FCC SAR Test Report APPLICANT : Sony Mobile Communications AB EQUIPMENT : Smart phone BRAND NAME : Sony TYPE NAME : PM-0570-BV MODEL NAME : C2305 FCC ID : PY7PM-0570 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on May 06, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 44 TEL : 886-3-327-3456 Report Issued Date : Jun. 24, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0570 Report Template No. : BU5-FA Version1.0 FCC SAR Test Report Report No. : FA342505 Table of Contents 1. Statement of Compliance ....................................................................................................................................................... 4 2. Administration Data ................................................................................................................................................................ 5 2.1 Testing Laboratory ........................................................................................................................................................... 5 2.2 Applicant .......................................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................................ 5 3. General Information ................................................................................................................................................................ 6 3.1 Description of Equipment Under Test (EUT) .................................................................................................................... 6 3.2 Device Serial Number ...................................................................................................................................................... 6 3.3 Maximum RF output power among production units ........................................................................................................ 7 3.4 Applied Standard.............................................................................................................................................................. 8 3.5 Device Category and SAR Limits ..................................................................................................................................... 8 3.6 Test Conditions ................................................................................................................................................................ 8 4. Specific Absorption Rate (SAR) ............................................................................................................................................. 9 4.1 Introduction ...................................................................................................................................................................... 9 4.2 SAR Definition ................................................................................................................................................................. 9 5. SAR Measurement System ................................................................................................................................................... 10 5.1 E-Field Probe ................................................................................................................................................................. 11 5.2 Data Acquisition Electronics (DAE) ................................................................................................................................ 12 5.3 Robot ............................................................................................................................................................................. 12 5.4 Measurement Server ..................................................................................................................................................... 12 5.5 Phantom ........................................................................................................................................................................ 13 5.6 Device Holder ................................................................................................................................................................ 14 5.7 Data Storage and Evaluation ......................................................................................................................................... 15 5.8 Test Equipment List ........................................................................................................................................................ 17 6. Tissue Simulating Liquids ...................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/5/6 System Check_Head_1900MHz_130506 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_130506 Medium parameters used: f = 1900 MHz; σ = 1.435 mho/m; ε r = 38.114; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(5.05, 5.05, 5.05); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1446 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.2 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 91.846 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 16.009 mW/g SAR(1 g) = 9.82 mW/g; SAR(10 g) = 5.5 mW/g Maximum value of SAR (measured) = 12.1 mW/g 0 dB = 12.1 mW/g = 21.66 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/5/4 System Check_Body_1900MHz_130504 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_130504 Medium parameters used: f = 1900 MHz; σ = 1.533 S/m; ε r = 51.572; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.96, 6.96, 6.96); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: SAM LEFT; Type: QD000P40CD; Serial: TP:1718 - Measurement SW: DASY52, Version 52.8 (4); SEMCAD X Version 14.6.8 (7028) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.5 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 96.188 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 18.0 W/kg SAR(1 g) = 9.97 W/kg; SAR(10 g) = 5.18 W/kg Maximum value of SAR (measured) = 14.2 W/kg 0 dB = 14.2 W/kg = 11.52 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/5/6 System Check_Body_1900MHz_130506 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_130506 Medium parameters used: f = 1900 MHz; σ = 1.535 mho/m; ε r = 51.29; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.67, 4.67, 4.67); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1446 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.1 mW/g Con…

Text truncated - open the document above for the full version.
