PY7PM-0611GSM/WCDMA/LTE mobile phone

INSTRUCTION MANUAL Introduction Thank you for your purchase of "SO-04F". For proper use of the SO-04F, read this manual carefully before and while you use the SO-04F. About manuals of SO-04F In addition to this manual, the operations of SO-04F are described in " (Quick Start Guide)" (in Japanese only) and "Instruction Manual" application of the terminal (in Japanese only). " (Quick Start Guide)" (Supplied accessories) The initial operations and settings after purchasing the terminal, screen view contents and operations of main function are explained. "Instruction Manual" (Application of the terminal) Operations and settings of each function are explained. To use "Instruction Manual" application, from the Home screen, u [Instruction Manual]. When using for the first time, download and install the application according to the onscreen instructions. If you uninstall "Instruction Manual" application, access to Google Play from Play Store to download it again. From the Home screen, Tap [Play Store], search " (Instruction Manual)" application to select, then install it following the onscreen instructions. You can use the application as an electronic book. You can also shift to actual operations by tapping the description in the contents or view reference contents. "Instruction Manual" (PDF file) Operations and settings of each function are explained. It can be downloaded from NTT DOCOMO website. http://www.nttdocomo.co.jp/english/support/ trouble/manual/download/index.html * You can download the latest information of " (Quick Start Guide)". The URL and contents are subject to change without prior notice. ❖ Note Reproduction or reprint of all or part of this manual without prior permission is prohibited. Important information for SO-04F is posted in the following website. Be sure to check before using. http://www.sonymobile.co.jp/support/use_support/ product/so-04f/ 1 Operation descriptions In this manual, each key (key icon) operation is described with P , k , x , y , r . And selection operations of the icons or function items on the touch screen are described as follows. ❖ Information In this manual, the instructions are described with the default Home screen. If you set the other application to the home screen, the operations may differ from the descriptions. Display examples and illustrations used in this manual are just images for explanations and may be different from actual ones. In this manual, the easier procedure is described for the functions and settings which have multiple operating procedures. Please note that "SO-04F" is called "the terminal" in this manual. In this manual, explanations for "docomo" as Home screen are provided (P.59). DescriptionOperation From the Home screen, u [Settings] u [About phone]. From the Home screen, tap (Apps button), and then tap "Settings" on the next screen and "About phone" on the following screen in order. Touch and hold an icon. Keep touching an icon longer (1-2 seconds). 2 SO-04F (with warranty) Desktop Holder SO21 (with warranty) (Quick Start Guide) (In Japanese only) SO-04F (Notes on usage Safety/Handling precautions) (In Japanese only) 1Seg antenna cable SO01 Optional devices (P.191) Supplied accessories Contents/Precautions 3 Contents Supplied accessories. . . . . . . . . . . . . . . . . 2 About using the terminal . . . . . . . . . . . . 5 Safety Precautions (Always follow these directions) . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Handling precautions . . . . . . . . . . . . . . . 16 Waterproofness/Dustproofness . . . . . 22 Before Using the Terminal . . . 28 Part names and functions................................................ 28 docomo mini UIM card ..................................................... 29 CE mark and FCC ID............................................................. 31 Charging ..................................................................................... 31 Turning power on/off......................................................... 36 Initial settings........................................................................... 38 Basic operations ..................................................................... 39 Notification LED ..................................................................... 42 Status bar ................................................................................... 43 Notification panel ................................................................. 45 Home screen............................................................................ 46 Xperia ™ Application screen .......................................... 52 Task manager........................................................................... 58 Switching Home application ......................................... 59 Searching information in the terminal and web pages ............................................................................................ 60 Character entry ....................................................................... 61 Setting character entry ...................................................... 66 Setting Xperia ™ Japanese keyboard........................ 67 docomo LIVE UX . . . . . . . . . . . . 72 Home screen............................................................................ 72 Managing the Home screen .......................................... 72 Application screen................................................................ 75 Phone . . . . . . . . . . . . . . . . . . . . . . 78 Making/Receiving a call .................................................... 78 Operations during a call ................................................... 81 Call history................................................................................. 82 Call settings .............................................................................. 84 Phonebook ............................................................................... 86 Mail/Web browser . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Important information Sony Consumer Web site At www.sonymobile.com/support there is a support section where help and tips are only a few clicks away. Here you will find the latest computer software updates and tips on how to use your product more efficiently. Service and support You have access to a portfolio of exclusive service advantages such as: • Global and local Web sites providing support. • A global network of Contact Centers. • An extensive network of Sony service partners. • A warranty period. Learn more about the warranty conditions in theLimited warrantysection. At www.sonymobile.com/support, you can find the latest support tools and information. For operator-specific services and features, please contact your network operator. You can also contact our Contact Centers. If your country/region is not represented in the list below, please contact your local dealer. (Calls are charged according to national rates, including local taxes, unless the phone number is a toll-free number.) If your product needs service, please contact the dealer from whom it was purchased, or one of our service partners. For warranty claims, save proof of purchase. Guidelines for Safe and Efficient Use Please follow these guidelines. Failure to do so might entail a potential health risk or product malfunction. If in doubt as to its proper function, have the product 2 checked by a certified service partner before charging or using it. Recommendations for care and safe use of our products • Handle with care and keep in a clean and dust-free place. • Warning! May explode if disposed of in fire. • Do not expose to liquid or moisture or excess humidity. • For optimum performance, the product should not be operated in temperatures below -10°C(+14°F) or above +45°C(+113°F). Do not expose the battery to temperatures above +60°C(+140°F). • Do not expose to flames or lit tobacco products. • Do not drop, throw or try to bend the product. • Do not paint or attempt to disassemble or modify the product. Only Sony authorised personnel should perform service. • Consult with authorised medical staff and the instructions of the medical device manufacturer before using the product near pacemakers or other medical devices or equipment. • Discontinue use of electronic devices, or disable the radio transmitting functionality of the device, where required or requested to do so. • Do not use where a potentially explosive atmosphere exists. • Do not place the product, or install wireless equipment, in the area above an air bag in a car. • Caution: Cracked or broken displays may create sharp edges or splinters that could be harmful upon contact. • Do not use the Bluetooth Headset in positions where it is uncomfortable or will be subject to pressure. 3 www.sonymobile.com Sony Mobile Communications AB SE-221 88 Lund, Sweden 1222-9266.9 Children Warning! Keep out of the reach of children. Do not allow children to play with mobile phones or accessories. They could hurt themselves or others. Products may contain small parts that could become detached and create a choking hazard. Power supply (Charger) Connect the charger to power sources as marked on the product. Do not use outdoors or in damp areas. Do not alter or subject the cord to damage or stress. Unplug the unit before cleaning it. Never alter the plug. If it does not fit into the outlet, have a proper outlet installed by an electrician. When a power supply is connected there is a small drain of power. To avoid this small energy waste, disconnect the power supply when the product is fully charged. Use of charging devices that are not Sony branded may pose increased safety risks. Battery New or idle batteries can have short-term reduced capacity. Fully charge the battery before initial use. Use for the intended purpose only. Charge the battery in temperatures between +5°C(+41°F) and +45°C(+113°F). Do not put the battery into your mouth. Do not let the battery contacts touch another metal object. Turn off the product before removing the battery. Performance depends on temperatures, signal strength, usage patterns, features selected and voice or data transmissions. Only Sony service partners should remove or replace built-in batteries. Use of batteries that are not Sony branded may pose increased safety risks. Replace the battery only with another Sony battery that has been qualified with the product per the standard IEEE-1725. Use of an unqualified 4 battery may present a risk of fire, explosion, leakage or other hazard. Personal medical devices Mobile phones may affect implanted medical equipment. Reduce risk of interference by keeping a minimum distance of 15 cm(6 inches) between the phone and the device. Use the phone at your right ear. Do not carry the phone in your breast pocket. Turn off the phone if you suspect interference. For use in proximity to personal medical devices, please consult a physician and the device manufacturer. Driving Some vehicle manufacturers forbid the use of phones in their vehicles unless a handsfree kit with an external antenna supports the installation. Check with the vehicle manufacturer's representative to be sure that the mobile phone or Bluetooth handsfree will not affect the electronic systems in the vehicle. Full attention should be given to driving at all times and local laws and regulations restricting the use of wireless devices while driving must be observed. GPS/Location based functions Some products provide GPS/Location based functions. Location determining functionality is provided “As is” and “With all faults”. Sony does not make any representation or warranty as to the accuracy of such location information. Use of location-based information by the device may not be uninterrupted or error free and may additionally be dependent on network service availability. Please note that functionality may be reduced or prevented in certain environments such as building interiors or areas adjacent to buildings. 5 Caution: Do not use GPS function…

Text truncated - open the document above for the full version.

Important Information United States THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The SO-04F Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR).Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the important information chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 1.05 W/kg*, and when worn on the body is 0.92 W/ kg*. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party accessories may result in different SAR levels than those reported. Radio Wave Exposure and Specific Absorption Rate (SAR) Information ** Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http:// transition.fcc.gov/oet/ea/fccid/ after searching on FCCID PY7PM-0611. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http:// www.emfexplained.info/. *In the United States, the SAR limit for mobile phones used by the public is 1.6 watts/ kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: Any change or modification not expressly approved by Sony Mobile Communications AB may void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Statement for the USA (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. We, Sony Mobile Communications AB of Nya Vattentornet SE-221 88 Lund, Sweden declare under our sole responsibility that our product Sony type PM-0611-BV and in combination with our accessories, to which this declaration relates is in conformity with the appropriate standards EN 301 511:V9.0.2, EN 301 489- 7:V1.3.1, EN 301 908-1:V5.2.1, EN 301 908- 2:V5.2.1, EN 301 908-13:V5.2.1, EN 301 893:V1.7.1, EN 301 489-24:V1.5.1, EN 300 440-2:V1.4.1, EN 301 489-3:V1.6.1, EN 300 328:V1.8.1, EN 301 489-17:V2.2.1, EN 302 291-2:V1.1.1, EN 62209-1:2006, EN 62209- 2:2010 and EN 60950-1:2006 +A11:2009+A1:2010+A12:2011 following the provisions of Radio Equipment and Telecommunication Terminal Equipment Directive 1999/5/EC Lund, April 2014 P ä r Thuresson Quality Officer, SVP, Quality & Customer Services Declaration of Conformity for SO-04F

Mar 24 th , 2014 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: PY7PM-0611 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Yusheng Wu (武予生) Manager Global Type Approval China Sony Mobile Communications (China) Co.,Ltd

TMC Beijing, Telecommunication Metrology Center of MIIT. No 52, Huayuanbei Road,Haidian District, Beijing,P.R.China Tel:0086-10-62304633-2678 Fax:0086-10-62304633 Contact:Song Chongwen Email:[email protected] Page 1 of 1 Justification of Te s t As the test lab for PM-0611-BV from Sony Mobile Communications AB, we, TMC Beijing, declare on our sole responsibility that, according to the file “Comparison PM-0610-BV and PM-0611-BV” from the manufacturer, only FCC radiated part testing has been performed, all conducted results were reused from PM-0610-BV (FCC ID PY7PM-0610). (Li Guang) TMC Beijing, Telecommunication Metrology Center of MIIT. No 52, Huayuanbei Road,Haidian District, Beijing,P.R.China Te l : 0086-10-62304633-2685 Fax:0086-10-62304633 Email:[email protected]

___Mar 24 th 2014____ Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: PY7PM-0611 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:
External Photos
Internal Photos
Test Setup Photos
User’s Manual The applicant also acknowledges that they will also provide appropriate notice to ACB should either of the following occur: a) if the applicant requires additional 180 day extension periods they will notify ACB with a new request letter at least 7 days prior to the short- term confidentiality expiration date - [Note: up to a maximum of 3 extensions only are allowed], or b) immediately notify ACB in the event the information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, Yusheng Wu (武予生) Manager Global Type Approval China Sony Mobile Communications (China) Co.,Ltd

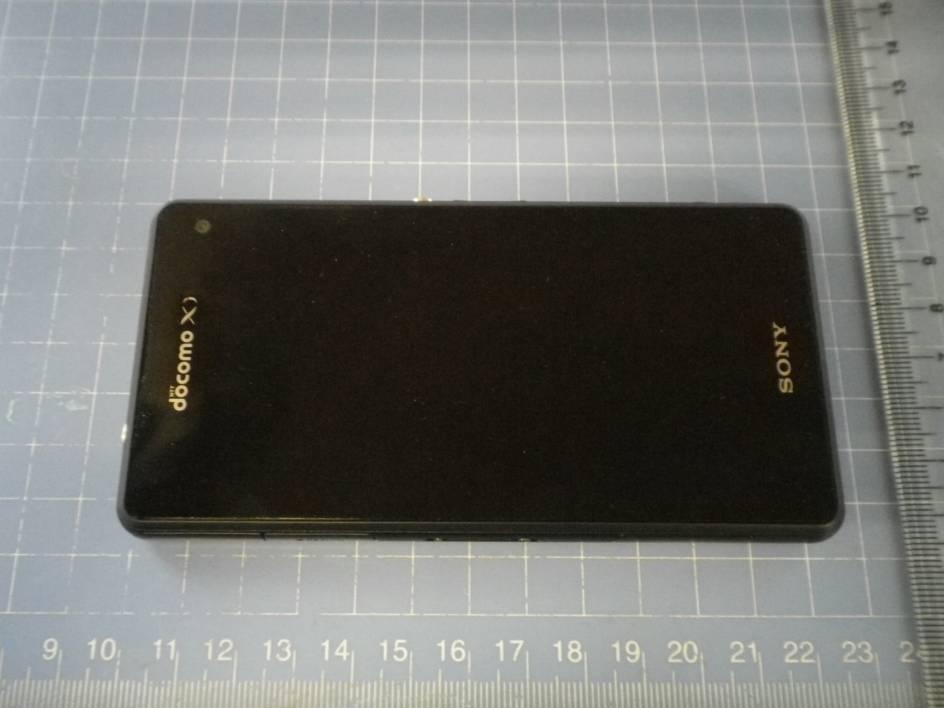

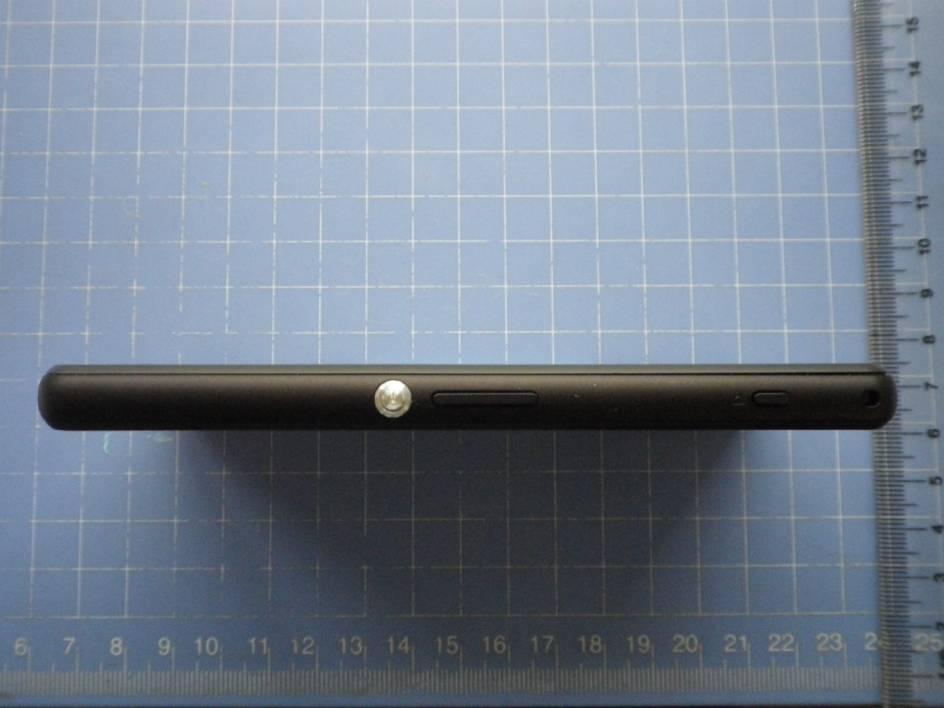

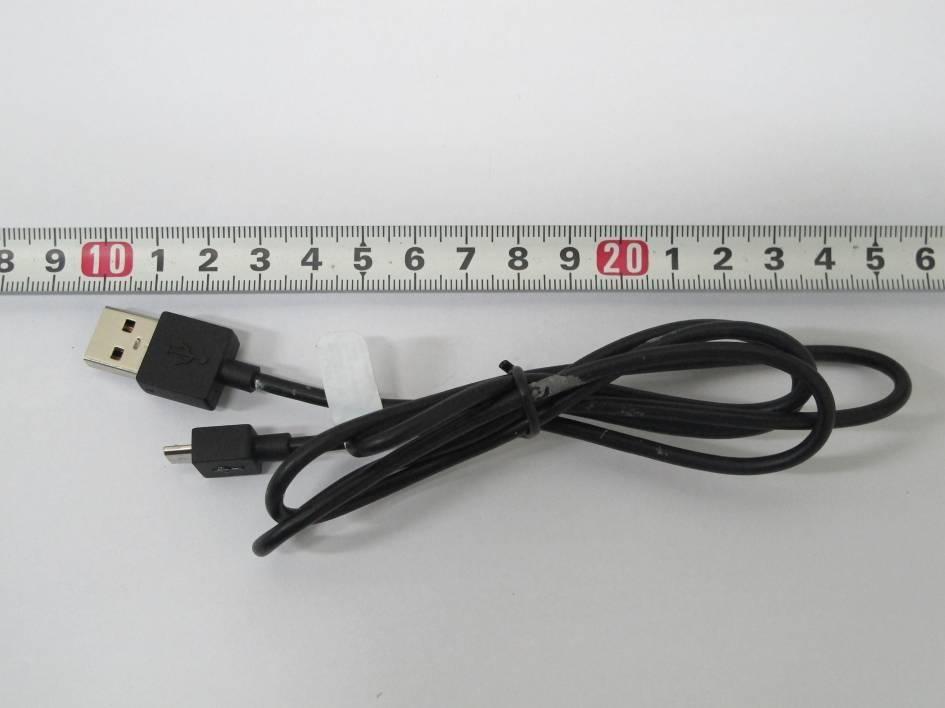

ANNEX C: PHOTOGRAPHS OF T HE EUT External Photo Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Mobile Phone Travel Charger Labe l of Travel Charge r USB Cable

Sony Mobile Communications Confidential DESIGN SPECIFICATION 1(1) Document number Revision 11/102 62-LXE 108 828 Uen A Prepared by Date SEM/CGQTAO TOSHIKO KITAHARA 2014-04 -01 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAO (TOSHIKO KITAHARA) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use.

Internal Photo Mobile Phone Disasse mbly and Inbuilt Batte ry Mobile Phone Disasse mbly and Inbuilt Batte ry Mobile Phone Disasse mbly Mobile Phone Disasse mbly Mobile Phone Disasse mbly Mobile Phone Disasse mbly Mobile Phone Disasse mbly Mobile Phone Disasse mbly

No. I14Z45356-SEM01 Page 60 of 147 Fig. 5-1 Z-Scan at power reference point (WCDMA 850 CH4233) No. I14Z45356-SEM01 Page 61 of 147 WCDMA 850 Body Rear High Date: 2014-3- 8 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.973 mho/m; εr = 55.456; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WCDMA; Frequency: 846.6 MHz; Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.73, 8.73, 8.73) Rear High/Area Scan (61x101x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.889 W/kg Rear High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.018 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.880 W/kg SAR(1 g) = 0.817 W/kg; SAR(10 g) = 0.687 W/kg Maximum value of SAR (measured) = 0.843 W/kg Fig.6 WCDMA 850 CH4233 No. I14Z45356-SEM01 Page 62 of 147 Fig. 6-1 Z-Scan at power reference point (WCDMA850 CH4233) No. I14Z45356-SEM01 Page 63 of 147 Wifi 802.11b Left Cheek Channel 6 Date: 2014-3- 10 Electronics: DAE4 Sn771 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.778 mho/m; ε r = 40.082; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.78, 6.78, 6.78) Cheek Middle/Area Scan (71x121x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.179 W/kg Cheek Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.109 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.255 W/kg SAR(1 g) = 0.147 W/kg; SAR(10 g) = 0.075 W/kg Maximum value of SAR (measured) = 0.180 W/kg Fig.7 2450 MHz CH6 No. I14Z45356-SEM01 Page 64 of 147 Fig. 7-1 Z-Scan at power reference point (2450 MHz CH6) No. I14Z45356-SEM01 Page 65 of 147 Wifi 802.11b Body Rear Channel 6 Date: 2014-3- 10 Electronics: DAE4 Sn771 Medium: Body 2450 MHz Medium parameters used (interpolated): f = 2437 MHz; σ = 1.919 mho/m; ε r = 51.983; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: WLan 2450 Frequency: 2437 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(6.73, 6.73, 6.73) Rear Middle/Area Scan (81x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.118 W/kg Rear Middle/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.712 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.259 W/kg SAR(1 g) = 0.106 W/kg; SAR(10 g) = 0.053 W/kg Maximum value of SAR (measured) = 0.156 W/kg Rear Middle/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.712 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.222 W/kg SAR(1 g) = 0.083 W/kg; SAR(10 g) = 0.044 W/kg Maximum value of SAR (measured) = 0.115 W/kg Fig.8 2450 MHz CH6 No. I14Z45356-SEM01 Page 66 of 147 Fig. 8-1 Z-Scan at power reference point (2450 MHz CH6) No. I14Z45356-SEM01 Page 67 of 147 Wifi 802.11a Right Cheek Channel 153 Date: 2014-3- 12 Electronics: DAE4 Sn771 Medium: Head 5 GHz Medium parameters used: f = 5760 MHz; σ = 5.36 mho/m; ε r = 35.484; ρ = 1000 kg/m 3 Ambient Temperature: 22.2 o C Liquid Temperature: 21.7 o C Communication System: WLan 5G Frequency: 5760 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(4.51, 4.51, 4.51) Cheek/Area Scan (91x151x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.0745 W/kg Cheek/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 0.534 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.302 W/kg SAR(1 g) = 0.078 W/kg; SAR(10 g) = 0.023 W/kg Maximum value of SAR (measured) = 0.0809 W/kg Fig.9 5GHz CH153 No. I14Z45356-SEM01 Page 68 of 147 Fig. 9-1 Z-Scan at power reference point (5GHz CH153) No. I14Z45356-SEM01 Page 69 of 147 Wifi 802.11ac-20M Rear Channel 52 Date: 2014-3- 11 Electronics: DAE4 Sn771 Medium: Body 5 GHz Medium parameters used: f = 5260 MHz; σ = 5.285 mho/m; ε r = 48.815; ρ = 1000 kg/m 3 Ambient Temperature: 22.2 o C Liquid Temperature: 21.7 o C Communication System: WLan 5G Frequency: 5260 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(4.17, 4.17, 4.17) Rear/Area Scan (91x151x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 0.136 W/kg Rear/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 1.306 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 1.65 W/kg SAR(1 g) = 0.145 W/kg; SAR(10 g) = 0.048 W/kg Maximum value of SAR (measured) = 0.116 W/kg Fig.10 5GHz CH52 No. I14Z45356-SEM01 Page 70 of 147 Fig. 10-1 Z-Scan at power reference point (5GHz CH52) No. I14Z45356-SEM01 Page 71 of 147 ANNEX B System Verification Results 835MHz Date: 2014-3- 8 Electronics: DAE4 Sn771 Medium: Head 850 MHz Medium parameters used: f = 835 MHz; σ = 0.91 mho/m; ε r = 42.38; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3846 ConvF(8.92, 8.92, 8.92) System Validation/Area Scan (81x161x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 53.312 V/m; Power Drift = -0.15 dB Fast SAR: SAR(1 g) = 2.33 W/kg; SAR(10 g) = 1.52 W/kg Maximum value of SAR (interpolated) = 2.54 W/kg System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.312 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 3.50 W/kg SAR(1 g) = 2.28 W/kg; SAR(10 g) = 1.49 W/kg Maximum value of SAR (measured) = 2.52 W/kg 0 dB = 2.54 W/kg = 8.10 dBW/kg Fig.B.1 validation 835MHz 250mW No. I14Z45356-SEM01 Page 72 of 147 835MHz Date: 2014-3- 8 Electronics: DAE4 Sn771 Medium: Body 850 MHz Medium parameters used: f = 835 MHz; σ = 0.962 mho/m; ε r = 55.6; ρ = 1000 kg/m 3 Ambient Temperature: 22.3 o C Liquid Temperature: 21.8 o C Communication System…

Text truncated - open the document above for the full version.

No. I14Z45356-SEM01 Page 109 of 147 No. I14Z45356-SEM01 Page 110 of 147 No. I14Z45356-SEM01 Page 111 of 147 No. I14Z45356-SEM01 Page 112 of 147 No. I14Z45356-SEM01 Page 113 of 147 No. I14Z45356-SEM01 Page 114 of 147 No. I14Z45356-SEM01 Page 115 of 147 No. I14Z45356-SEM01 Page 116 of 147 1900 MHz Dipole Calibration Certificate

No. I14Z45356-SEM01 Page 117 of 147 No. I14Z45356-SEM01 Page 118 of 147 No. I14Z45356-SEM01 Page 119 of 147 No. I14Z45356-SEM01 Page 120 of 147 No. I14Z45356-SEM01 Page 121 of 147 No. I14Z45356-SEM01 Page 122 of 147 No. I14Z45356-SEM01 Page 123 of 147 No. I14Z45356-SEM01 Page 124 of 147 2450 MHz Dipole Calibration Certificate No. I14Z45356-SEM01 Page 125 of 147 No. I14Z45356-SEM01 Page 126 of 147 No. I14Z45356-SEM01 Page 127 of 147 No. I14Z45356-SEM01 Page 128 of 147 No. I14Z45356-SEM01 Page 129 of 147 No. I14Z45356-SEM01 Page 130 of 147 No. I14Z45356-SEM01 Page 131 of 147 No. I14Z45356-SEM01 Page 132 of 147 5GHz Dipole Calibration Certificate No. I14Z45356-SEM01 Page 133 of 147 No. I14Z45356-SEM01 Page 134 of 147 No. I14Z45356-SEM01 Page 135 of 147 No. I14Z45356-SEM01 Page 136 of 147 No. I14Z45356-SEM01 Page 137 of 147 No. I14Z45356-SEM01 Page 138 of 147 No. I14Z45356-SEM01 Page 139 of 147 No. I14Z45356-SEM01 Page 140 of 147 No. I14Z45356-SEM01 Page 141 of 147 No. I14Z45356-SEM01 Page 142 of 147 No. I14Z45356-SEM01 Page 143 of 147 No. I14Z45356-SEM01 Page 144 of 147 No. I14Z45356-SEM01 Page 145 of 147 No. I14Z45356-SEM01 Page 146 of 147 No. I14Z45356-SEM01 Page 147 of 147

No.I14Z45356-SEM01 Page 1 of 147 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. I14Z45356-SEM01 For Sony Mobile Communications (China) Co. Ltd GSM/WCDMA/LTE mobile phone With Hardware Version: A Software Version: 14.3.B.0.53 (Main antenna) s_atp_1_32_2_18_a (WLAN antenna) FCC ID: PY7PM-0611 Issued Date: 2014-04-04 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com N…
