PY7PM-0723SMART PHONE

Important Information Before you use your device, please read the Important Information provided in your device regarding warranty, safety and handling information. Assembly To insert the micro SIM card Your phone requires a micro SIM card. For more information, contact your network operator. To insert a memory card Basics Overview 13 6 7 8 10 9 12 5 24 11 15 17 14 13 16 18 1. Proximity sensor/ Light sensor 2. Charging light/ Notification light 3. Ear speaker 4. Front camera lens 5. Micro SIM and memory card slot cover 6. Power key 7. Volume/Zoom key 8. Camera key 9. Strap hole 10. Speaker 11. Illumination bar 12. Main microphone 13. Main camera lens 14. Camera light 15. Headset jack 16. Second microphone 17. Port for charger/USB cable 18. NFC™ detection area Turning on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. To turn on the device 1 Press and hold down the power key until the device vibrates. 2 Wait a while for the device to start. Waking up the screen To activate the screen • Briefly press the power key . Setting up your device Setup guide The first time you start your device, a setup guide opens to help you configure basic settings, sign in to some accounts (for example, your Google™ account), and personalise your device. You can also manually access the setup guide at a later stage. To access the setup guide manually 1 From the Home screen, tap . 2 Tap > Setup guide. Settings menu View and change settings for your device from the Settings menu. To access your device settings 1 From your Home screen, tap . 2 Find and tap . Transferring your contacts Xperia™ Transfer and Contacts Setup are applications within the PC Companion and the Sony™ Bridge for Mac computer programs that help you to collect contacts from your old device and transfer them to your new device. These applications support several device brands, including iPhone, Samsung, HTC, BlackBerry, LG, Motorola and Nokia. You need: • An Internet-connected computer. • A USB cable for your old device. • A USB cable for your new Android™ device. • Your old device. • Your new Android™ device. To transfer contacts to your new device 1 Connect your device to a computer. In the window that appears, choose to install PC Companion or Bridge for Mac if you have not already installed these applications. 2 After successful installation, open the PC Companion application or the Sony™ Bridge for Mac application, then click Xperia™ Transfer or Contacts Setup and follow the relevant instructions to transfer your contacts. Finding your way Using the buttons Back • Go back to the previous screen. • Close the on-screen keypad, a dialog box, an options menu, or the Notification panel. Home • Go to the Home screen. • Press and hold to open a window showing your most recently used applications. Menu • Open a list of options available in the current screen or application. Application screen • Open the Application screen. Basic applications and settings Make phone calls by dialling the number manually or by using the smart dial function. Use the Messaging application to send and receive text and multimedia messages. Go to Google Play™ to download free and paid applications for your device. Optimise the device settings to suit your own requirements. Status and notifications To open or close the Notification panel Support on the web Visit www.sonymobile.com/support to access a range of support options for your device, including downloads, troubleshooting tips and a User guide. Legal information Sony D2303/D2305/D2306 Publication number: xxxx-xxxx.1 This Startup guide is published by Sony Mobile Communications AB or its local affiliated company, without any warranty. Improvements and changes to this Startup guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this Startup guide. All illustrations are for illustration only and may not accurately depict the actual device. See regulatory information such as the CE mark in the label tray of the device. All product and company names mentioned herein are the trademarks or registered trademarks of their respective owners. All other trademarks are property of their respective owners. Any rights not expressly granted herein are reserved. Visit www.sonymobile.com/us/legal/ for more information. Product compliance: This product has been manufactured by or on behalf of Sony Mobile Communications, Mobilvägen, SE-221 88 Lund, Sweden. Inquiries related to product compliance based on national legislation shall be addressed to Sony Mobile Quality Officer, Sony Mobile Communications AB, Mobilvägen, SE-221 88 Lund, Sweden. For any service or guarantee matters, please refer to the contact details provided in the separate service or guarantee documents. ©Sony Mobile Communications AB, 2013. All rights reserved. FCC Caution: Your device can only connect to an FCC approved access point when using 5 GHz WLAN for indoor and outdoor operation. This is because operation in the 5.15 GHz to 5.25 GHz frequency band is only permitted for indoor use. To view the CE mark and the FCC ID 1 2 1 Make sure your device is turned off. 2 Detach the cover for the micro SIM card slot. 3 Using a fingernail, remove the two label trays in the order shown in the illustration. 4 The FCC ID is displayed on the back of the first tray. The CE mark is displayed on the front of the second tray. Startup guide M2 D2303/D2305/D2306

SAR Information FCC Statement Declaration of Conformity Sony D2306 UMTS HSPA Band 1 2 4 5 GSM GPRS/EDGE 850/900/1800/1900 LTE Band 4 7 17 Important Information United States & Canada THIS PHONE MODEL HAS BEEN CER TIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The D2306 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the Important Information chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.84 W/kg*, and when worn on the body is 1.36 W/kg*. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party 2 accessories may result in different SAR levels than those reported. **Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://transition.fcc.gov/oet/ea/fccid after searching on FCC ID PY7PM-0723. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. 3 Renseignements importants États-Unis et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ C ERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles de la D2306 ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites* d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes standardisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le DAS, reportez-vous au chapitre sur les renseignements importants du guide de l'utilisateur. Le DAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de 0.84 W/kg* lorsqu'il est testé en utilisation près de l'oreille, et de 1.36 W/kg* lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon adéquate 4 avec un accessoire et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », les mesures du DAS de l'appareil en mode WiFi ont été prises à une distance de sécurité de 10 mm. L'utilisation d'accessoires tiers peut produire des niveaux de DAS différents de ceux relevés. **Avant qu'un modèle de téléphone ne soit mis en vente auprès du public aux États-Unis, la Commission fédérale des communica…

Text truncated - open the document above for the full version.

Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: February 10, 2014 Statement We state that the label of our device FCC ID: PY7PM-0723 is visible to the users as they detach the SIM cover to install the SIM card. Sincerely yours, _______________________ Jones Tsai

Rev. 1/1/03 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: February 10, 2014 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: PY7PM-0723 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Schematics  Block Diagram  Parts List  Operation Description  Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, _______________________ Jones Tsai

Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: February 19, 2014 Power of Attorney To whom it may concern, Please be notified that I, Jones Tsai, have designated Jerry Feng in COMPAL COMMUNICATIONS, INC. as the person being responsible for this project and to sign the related FCC and IC documentation. Any and all acts carried out by Jerry Feng in COMPAL COMMUNICATIONS, INC. on the matters of relating to all processes required in the FCC and IC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. This authorization is limited to the product of as following: FCC ID: PY7PM-0723 IC: 4170B-PM0723 Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Jones Tsai

Letter of Authority One behalf of Sony Mobile Communications AB, I, Yusheng Wu, manager hereby give: Name Representative of agent: Jones Tsai Agent Company name: SPORTON INTERNATIONAL, INC Address: No.52, Hwa Ya 1 st Road Hwa Ya Technology Park Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C Authority to apply for NB opinion and FCC certification only in respect of product identified below, This authorization will be only effective to filing, answering inquiring from Notify Body “ CETECOM ( Germany ) “or TCB reviewer “ TIMCO Engineering Inc.” , any associative matter involving application of this NB opinion and FCC certification, and it will not be extended beyond the aforementioned scope. Regards Yusheng Wu Manager, No.16, Guangshun South street, Chaoyang District Beijing, China, 100102

1/1 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: February 10, 2014 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : PY7PM-0723 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which the applicant deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Jones Tsai

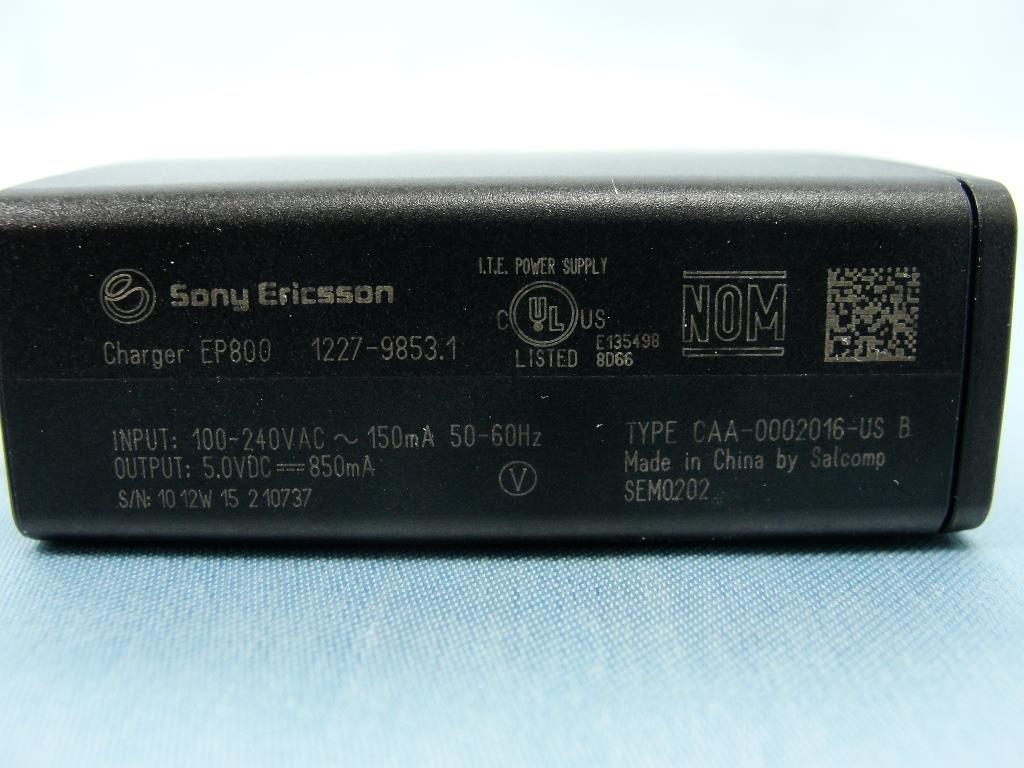

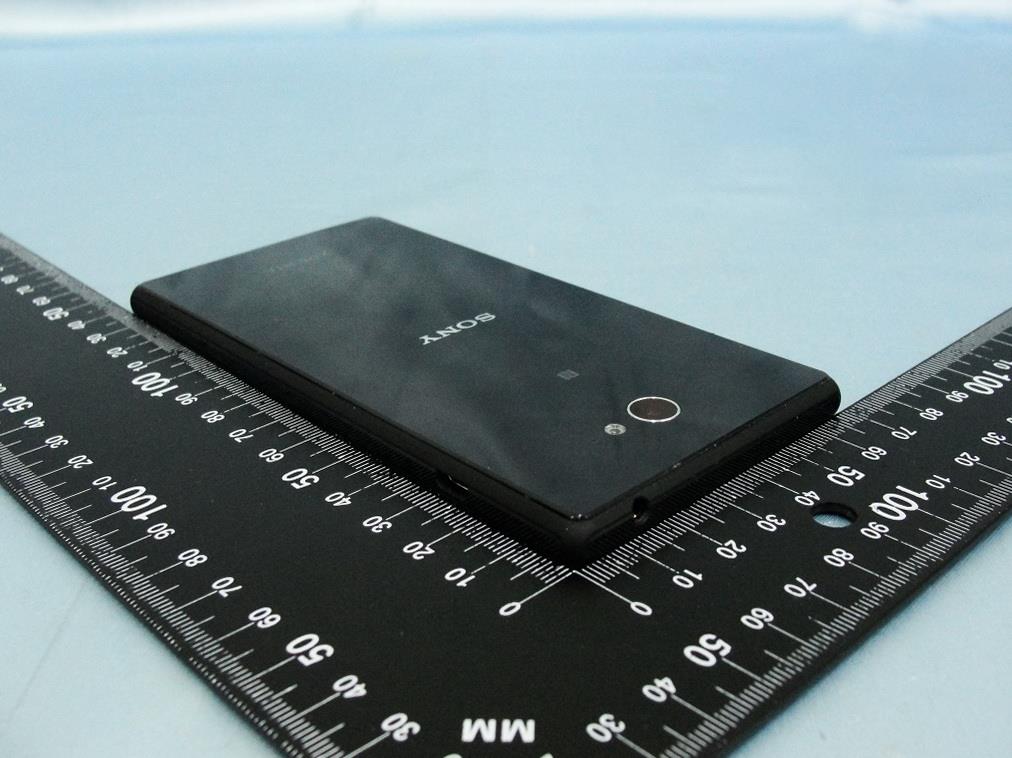

Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 1 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 2 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 3 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 4 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 5 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 6 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 Specification of Accessory AC Adapter Brand Name SONY Model Name EP800 Car Charger Brand Name SONY Model Name AN400 Battery Brand Name SONY Model Name LIS1502ERPC Earphone Brand Name SONY Model Name MH410c USB Cable Brand Name SONY Model Name AHAB EC450 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 7 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 8 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 AC Adapter Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 9 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Car Charger Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 10 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Battery Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 11 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 12 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Earphone Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 13 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 USB Cable

Side view of the device label location Detach the cover for the SIM slot and the label trays are visible to the users

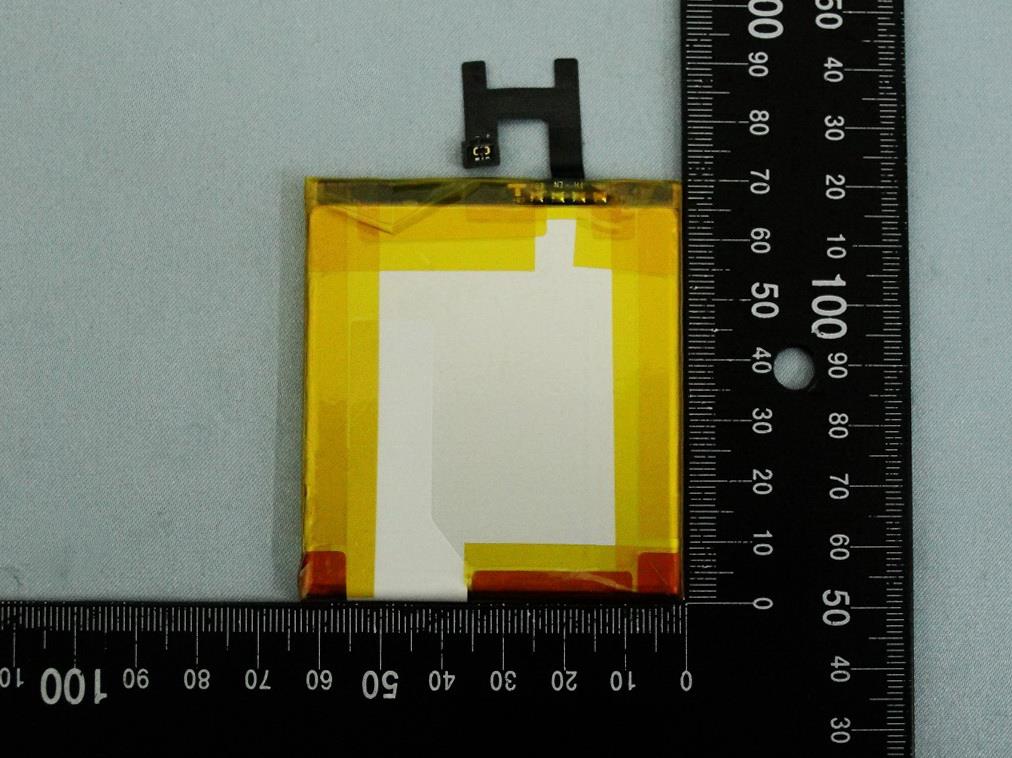

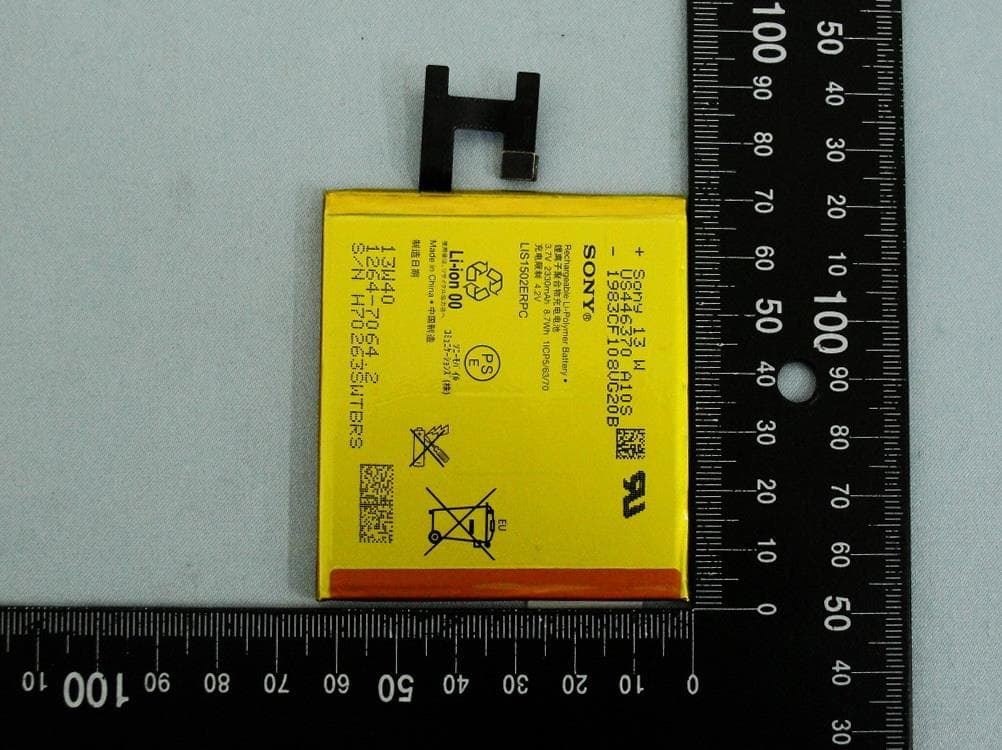

Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 14 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 15 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 16 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 17 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 18 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 19 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 20 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 21 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 22 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 23 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 24 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 25 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 26 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 27 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 WWAN Main Antenna WWAN Main Antenna Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 28 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 29 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 30 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 31 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 WWAN Aux. Antenna Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 32 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7PM-0723 IC : 4170B-PM0723 720510 Photographs of EUT Report No.: EP3N1535 Brand Name: SONY / Model Name: D2306 / Type Name: PM-0723-BV SPORTON INTERNATIONAL INC. Page Number : 33 of 39 TEL : 886-3-327-3456 Report Issued Date : Jan. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 F…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Report Template No.: BU5-FR15CANT Version 1.0 FCC/IC TEST REPORT Report No. : FR3N1535F FCC/IC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.249 Equipment : Smart phone Brand Name : SONY Model No. : D2306 Type Name : PM-0723-BV Applicant : Sony Mobile Communications AB Nya Vattentornet, 22188 Lund, Sweden FCC ID : PY7PM-0723 IC ID : 4170B-PM0723 Manufacturer : Compal Communications, INC. No. 385, Yangguang Street, Neihu, Taipei 11491, Taiwan Received Date : Nov. 15, 2013 Final Test Date : Mar. 20, 2014 Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C and IC RSS-210 issue 8. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page No. : i of ii TEL : 886-3-327-3456 Issued Date : Mar. 21, 2014 FAX : 886-3-328-4978 FCC ID : PY7PM-0723 IC : 4170B-PM0723 FCC/IC TEST REPORT Report No. : FR3N1535F Table of Contents 1. SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2. GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details .........................................................................................................................................................................................3 2.2 Table for Test Modes ...............................................................................................................................................................................3 2.3 Table for Testing Locations ......................................................................................................................................................................4 2.4 Table for Supporting Units .......................................................................................................................................................................4 2.5 Test Configurations ..................................................................................................................................................................................4 3. TEST RESULT ......................................................................................................................................................... 6 3.1 AC Power Line Conducted Emissions Measurement ..............................................................................................................................6 3.2 20dB and & 99% Occupied Bandwidth ..................................................................................................................................................11 3.3 Field Strength of Fundamental Emissions and Radiated Spurious Emissions ......................................................................................14 3.4 Antenna Requirements ..........................................................................................................................................................................25 4. LIST OF MEASURING EQUIPMENT .................................................................................................................... 26 SPORTON INTERNATIONAL INC. Page No. : ii of ii TEL : 886-3-327-3456 Issued Date : Mar. 21, 2014 FAX : 886-3-328-4978 FCC ID : PY7PM-0723 IC : 4170B-PM0723 FCC/IC TEST REPORT Report No. : FR3N1535F REVISION HISTORY REPORT…

Text truncated - open the document above for the full version.
