PY7PM-0741GSM/UMTS Mobile Phone with WLAN, BT, RFID Ant+

INSTRUCTION MANUAL Introduction Thank you for your purchase of "SO-03F". For proper use of the SO-03F, read this manual carefully before and while you use the SO-03F. About manuals of SO-03F In addition to this manual, the operations of SO-03F are described in " (Quick Start Guide)" (in Japanese only) and "Instruction Manual" application of the terminal (in Japanese only). " (Quick Start Guide)" (Supplied accessories) The initial operations and settings after purchasing the terminal, screen view contents and operations of main function are explained. "Instruction Manual" (Application of the terminal) Operations and settings of each function are explained. To use "Instruction Manual" application, from the Home screen, u [Instruction Manual]. When using for the first time, download and install the application according to the onscreen instructions. If you uninstall "Instruction Manual" application, access to Google Play from Play Store to download it again. From the Home screen, Tap [Play Store], search " (Instruction Manual)" application to select, then install it following the onscreen instructions. You can use the application as an electronic book. You can also shift to actual operations by tapping the description in the contents or view reference contents. "Instruction Manual" (PDF file) Operations and settings of each function are explained. It can be downloaded from NTT DOCOMO website. http://www.nttdocomo.co.jp/english/support/ trouble/manual/download/index.html * You can download the latest information of " (Quick Start Guide)". The URL and contents are subject to change without prior notice. ❖ Note Reproduction or reprint of all or part of this manual without prior permission is prohibited. Important information for SO-03F is posted in the following website. Be sure to check before using. http://www.sonymobile.co.jp/support/use_support/ product/so-03f/ 1 Operation descriptions In this manual, each key (key icon) operation is described with P , k , x , y , r . And selection operations of the icons or function items on the touch screen are described as follows. ❖ Information In this manual, the instructions are described with the default Home screen. If you set the other application to the home screen, the operations may differ from the descriptions. Display examples and illustrations used in this manual are just images for explanations and may be different from actual ones. In this manual, the easier procedure is described for the functions and settings which have multiple operating procedures. Please note that "SO-03F" is called "the terminal" in this manual. In this manual, explanations for "docomo" as Home screen are provided (P.59). DescriptionOperation From the Home screen, u [Settings] u [About phone]. From the Home screen, tap (Apps button), and then tap "Settings" on the next screen and "About phone" on the following screen in order. Touch and hold an icon. Keep touching an icon longer (1-2 seconds). 2 SO-03F (with warranty) Desktop Holder SO19 (with warranty) (Quick Start Guide) (In Japanese only) SO-03F (Notes on usage Safety/Handling precautions) (In Japanese only) 1Seg antenna cable SO01 Optional devices (P.191) Supplied accessories Contents/Precautions 3 Contents Supplied accessories. . . . . . . . . . . . . . . . . 2 About using the terminal . . . . . . . . . . . . 5 Safety Precautions (Always follow these directions) . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Handling precautions . . . . . . . . . . . . . . . 16 Waterproofness/Dustproofness . . . . . 22 Before Using the Terminal . . . 28 Part names and functions................................................ 28 docomo mini UIM card ..................................................... 29 CE mark and FCC ID............................................................. 31 Charging ..................................................................................... 31 Turning power on/off......................................................... 36 Initial settings........................................................................... 38 Basic operations ..................................................................... 39 Notification LED ..................................................................... 42 Status bar ................................................................................... 43 Notification panel ................................................................. 45 Home screen............................................................................ 46 Xperia ™ Application screen .......................................... 52 Task manager........................................................................... 58 Switching Home application ......................................... 59 Searching information in the terminal and web pages ............................................................................................ 60 Character entry ....................................................................... 61 Setting character entry ...................................................... 66 Setting Xperia ™ Japanese keyboard........................ 67 docomo LIVE UX . . . . . . . . . . . . 72 Home screen............................................................................ 72 Managing the Home screen .......................................... 72 Application screen................................................................ 75 Phone . . . . . . . . . . . . . . . . . . . . . . 78 Making/Receiving a call .................................................... 78 Operations during a call ................................................... 81 Call history ................................................................................. 82 Call settings .............................................................................. 84 Phonebook ............................................................................... 86 Mail/Web browser . . . . . . . . . . …

Text truncated - open the document above for the full version.

Important Information United States THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The SO-03F Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR).Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the important information chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.52 W/kg*, and when worn on the body is 0.59 W/ kg*. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party accessories may result in different SAR levels than those reported. Radio Wave Exposure and Specific Absorption Rate (SAR) Information 0.45W/ ** Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http:// transition.fcc.gov/oet/ea/fccid/ after searching on FCCID PY7PM-0741. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http:// www.emfexplained.info/. *In the United States, the SAR limit for mobile phones used by the public is 1.6 watts/ kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: Any change or modification not expressly approved by Sony Mobile Communications AB may void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Statement for the USA (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: Your device can only connect to an FCC approved access point when using 5 GHz WLAN for indoor and outdoor operation. This is because operation in the 5.15 GHz tp 5.25 GHz frequency band is only permitted for indoor use. We, Sony Mobile Communications AB of Nya Vattentornet SE-221 88 Lund, Sweden declare under our sole responsibility that our product Sony type PM-0741-BV and in combination with our accessories, to which this declaration relates is in conformity with the appropriate standards EN 301 511:V9.0.2, EN 301 489-3:V1.4.1, EN 301 489-7:V1.3.1, EN 301 489-17:V2.2.1, EN 301 489-24:V1.5.1, EN 300 328:V1.7.1, EN 301 908-1:V5.2.1, EN 301 908-2:V5.2.1, EN 301 908- 13:V5.2.1, EN 300 440-2:V1.4.1, EN 301 893:V1.7.1, EN 302 291-2:V1.1.1, EN 62 209-1:2006, EN 62 209-2:2010 and EN 60 950- 1:2006+A11:2009+A1:2010+A12:2011 following the provisions of Radio Equipment and Telecommunication Terminal Equipment Directive 1999/5/ EC Lund, April 2014 P ä r Thuresson Quality Officer, SVP, Quality & Customer Services Declaration of Confor…

Text truncated - open the document above for the full version.

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document number Revision 6/1483-LXE 108 828 Uen A Prepared by Date SEM/CGQTAO TOSHIKO KITAHARA 2014-02-26 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAO (TOSHIKO KITAHARA) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 2014/02/26 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID PY7PM-0741 For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Razvan Bujila Company: Sony Mobile Communications Address: Mobilvägen 10, SE-221 88 Lund, Sweden Phone: +46 10 801 53 23 Email: [email protected]

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document number Revision 5/1483-LXE 108 828 Uen A Prepared by Date SEM/CGQTAO TOSHIKO KITAHARA 2014-02-26 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAO (TOSHIKO KITAHARA) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 2014/02/26 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests short term confidentiality for the following product: FCC ID PY7PM-0741 For the product stated above, we request that the following information be held confidential: 1. External and Internal Photographs 2. Test Setup Photos 3. User Manual We request this confidentiality on the basis of ensuring that business sensitive information remains confidential for 180 days or the date of the marketing, whichever is earlier. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Razvan Bujila Company: Sony Mobile Communications Address: Mobilvägen 10, SE-221 88 Lund, Sweden Phone: +46 10 801 53 23 Email: [email protected]

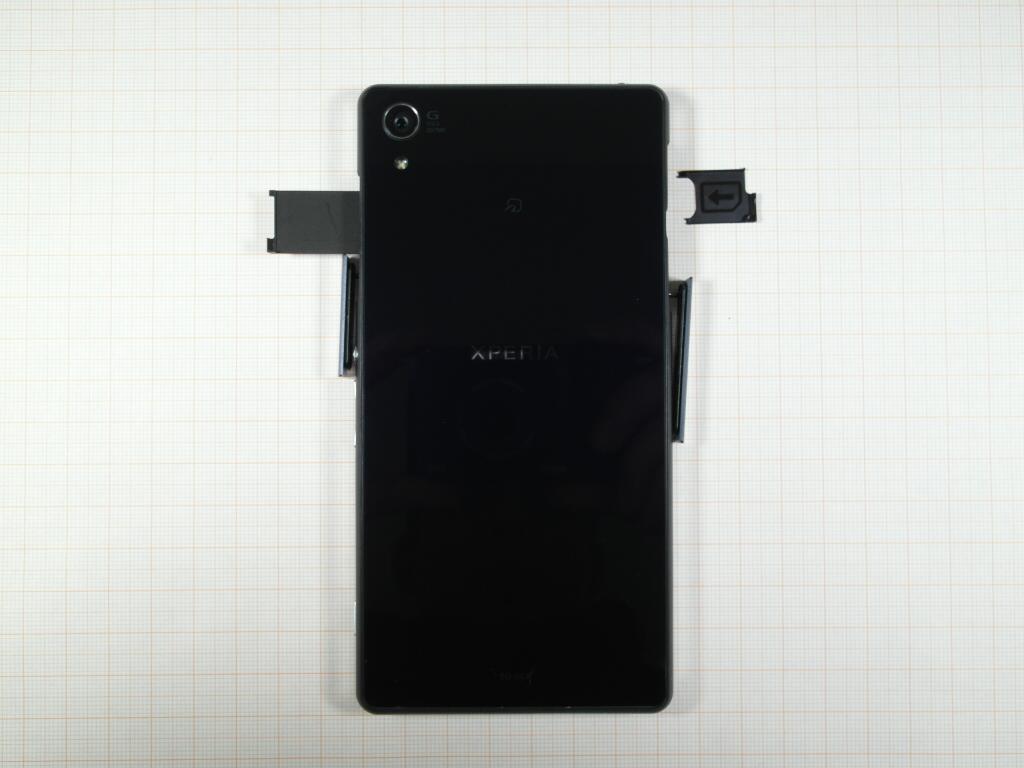

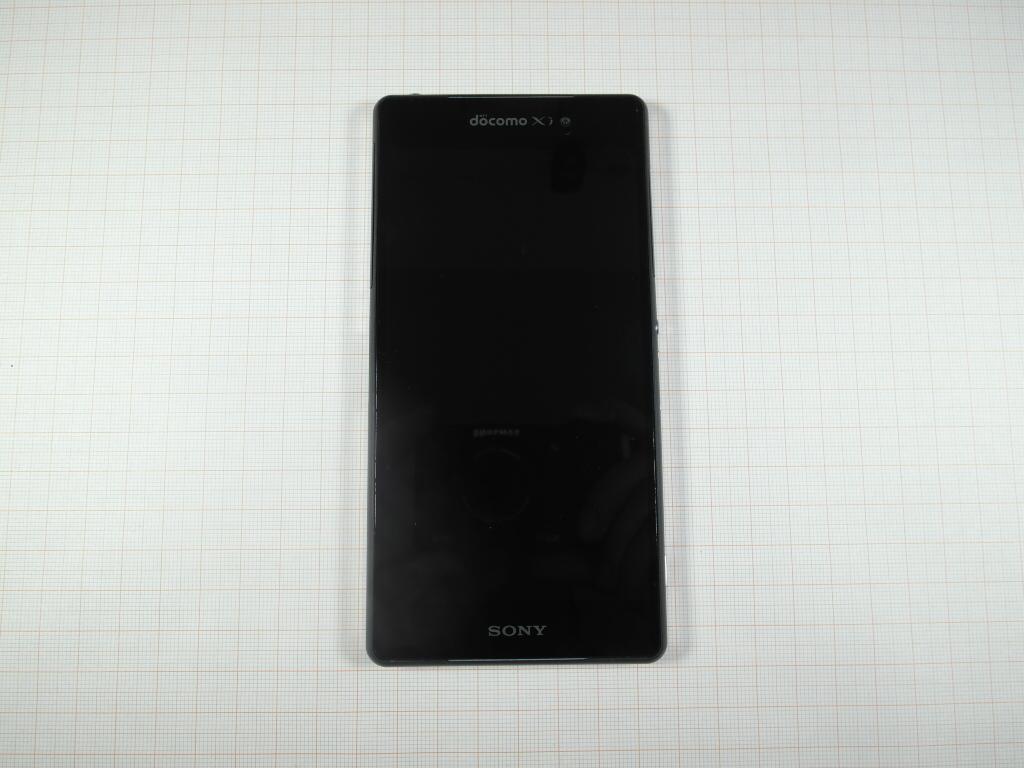

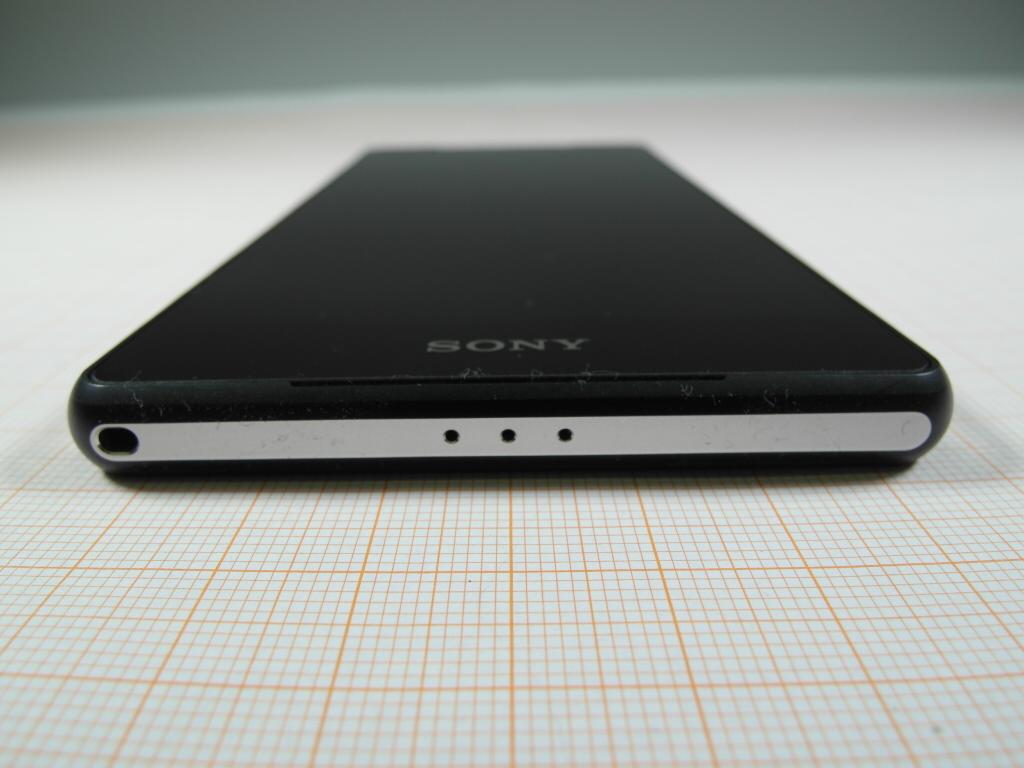

Test report no.: 1-6965/13-09-01_AnnexA 2014-02-24 Page 1 of 6 Annex A This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: Andreas Luckenbill Expert Test report no.: 1-6965/13-09-01_AnnexA 2014-02-24 Page 2 of 6 External ph ot os o f t he EU T Photo documentation: Photo 1: Photo 2: Test report no.: 1-6965/13-09-01_AnnexA 2014-02-24 Page 3 of 6 Photo 3: Photo 4: Test report no.: 1-6965/13-09-01_AnnexA 2014-02-24 Page 4 of 6 Photo 5: Photo 6: Test report no.: 1-6965/13-09-01_AnnexA 2014-02-24 Page 5 of 6 Photo 7: Photo 8: Test report no.: 1-6965/13-09-01_AnnexA 2014-02-24 Page 6 of 6 Docu men t his to r y Version Applied changes Date of release 1.0 Initial release 2014-02-24

Sony M Prepared SEM/C Contents Approved It is the r Mobile Commu by CGQTAO TOS responsible if other t by responsibility of th unications SHIKO KITAH than preparer he user to ensure L ARA that they have a c Label an correct and valid v nd Labe Confid DESIG Documen 1/102 Date 2014-0 Remarks This d version. Any outda el locati dential GN SPECIFICA nt number 62-LXE 108 8 02-26 ocument is m a ated hard copy is on Info ATION 828 Uen anaged in met invalid and must b FCC ID FCC ID SIM co Detail l descri b Guide. etaDoc. be removed from D: PY7PM-0 D is inside th ompartment ocation is bed in Startu 1(1) Revision PA2 possible use. 0741 he . up

Test report no.: 1-6965/13-09-01_AnnexB 2014-02-24 Page 1 of 12 Annex B This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: Andreas Luckenbill Expert Test report no.: 1-6965/13-09-01_AnnexB 2014-02-24 Page 2 of 12 Inter nal p ho tos of the E UT Photo documentation: Photo 1: Photo 2: Test report no.: 1-6965/13-09-01_AnnexB 2014-02-24 Page 3 of 12 Photo 3: Photo 4: Test report no.: 1-6965/13-09-01_AnnexB 2014-02-24 Page 4 of 12 Photo 5: Photo 6: Test report no.: 1-6965/13-09-01_AnnexB 2014-02-24 Page 5 of 12 Photo 7: Photo 8: Test report no.: 1-6965/13-09-01_AnnexB 2014-02-24 Page 6 of 12 Photo 9: Photo 10: Test report no.: 1-6965/13-09-01_AnnexB 2014-02-24 Page 7 of 12 Photo 11: Photo 12: Test report no.: 1-6965/13-09-01_AnnexB 2014-02-24 Page 8 of 12 Photo 13: Photo 14: Test report no.: 1-6965/13-09-01_AnnexB 2014-02-24 Page 9 of 12 Photo 15: Photo 16: Test report no.: 1-6965/13-09-01_AnnexB 2014-02-24 Page 10 of 12 Photo 17: Photo 18: Test report no.: 1-6965/13-09-01_AnnexB 2014-02-24 Page 11 of 12 Photo 19: Photo 20: Test report no.: 1-6965/13-09-01_AnnexB 2014-02-24 Page 12 of 12 Docu men t his to r y Version Applied changes Date of release 1.0 Initial release 2014-02-24

2014-02-19 Page 1 of 24 TEST REPORT Test report no.: 1-6965/13-09-04 Testing laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 Area of Testing: Radio Communications & EMC (RCE) Sony Mobile Communications AB Nya Vattentornet 22188 Lund / SWEDEN Phone: +46 46 19 30 00 Fax: -/- Contact: Mikael Nilsson e-mail: [email protected] Phone: +46 7 03 22 75 03 Manufacturer Sony Mobile Communications AB Nya Vattentornet 22188 Lund / SWEDEN Test standard/s 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Smart Phone GPRS/EGPRS 850/900/1800/1900; UMTS HSPA FDDI/V/VI/XIX; LTE FDD1/3/19/21; WLAN b/g/n/a/ac; BT 4.0; RFID; A-GPS FCC ID: PY7PM-0741 Frequency: 13.56 MHz Technology tested: RFID Antenna: Integrated antenna Power supply: 3.7 V DC by Li - polymer battery Temperature range: -30°C to +60°C This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorised: Test performed: Marco Bertolino Christoph Schneider Testing Manager Expert Test report no.: 1-6965/13-09-04 2014-02-19 Page 2 of 24 1 Table of contents 1 Table of contents ............................................................................................................................................ 2 2 General information ....................................................................................................................................... 3 2.1 Notes and disclaimer .......................................................................................................................... 3 2.2 Application details ............................................................................................................................... 3 3 Test standard/s ............................................................................................................................................... 3 4 Test environment ............................................................................................................................................ 4 5 Test item .......................................................................................................................................................... 4 5.1 Additional information ........................................................................................................................ 4 6 Test laboratories sub-contracted ................................................................................................................. 4 7 Description of the test setup ......................................................................................................................... 5 7.1 Radiated measurements ..................................................................................................................... 5 7.2 Open area site ...................................................................................................................................... 6 7.3 AC conducted ...................................................................................................................................... 7 7.4 Conducted measurements ................................................................................................................. 8 8 Summary of measurement results ............................................................................................................... 9 9 Additional comments ................................................................................................................................... 10 10 Measurement results ............................................................................................................................ 11 10.1 Timing of the transmitter ............................................................................................................... 11 10.2 Field strength of the fundamental ................................................................................................ 12 10.3 99 % emission bandwidth ............................................................................................................. 13 10.4 Field strength of the harmonics and spurious ........................................................................... 14 10.5 Frequency tolerance ...................................................................................................................... 18 10.6 AC line conducted ......................................................................................................................... 19 11 Test equipment and ancillaries used for tests ................................................................................... 21 12 Observations ......................................................................................................................................... 22 Annex A Document history .......................................................................................................................... 23 Annex B Further information ........................................................................................................................ 23 Annex C Accreditation Certificate ......................................................…

Text truncated - open the document above for the full version.

Test report no.: 1-6965/13-09-01_AnnexE 2014-02-25 Page 1 of 6 Annex E This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: Andreas Luckenbill Expert Test report no.: 1-6965/13-09-01_AnnexE 2014-02-25 Page 2 of 6 Test se tup ph o tos Photo documentation: Photo 1: Photo 2: Test report no.: 1-6965/13-09-01_AnnexE 2014-02-25 Page 3 of 6 Photo 3: Photo 4: Test report no.: 1-6965/13-09-01_AnnexE 2014-02-25 Page 4 of 6 Photo 5: Photo 6: Test report no.: 1-6965/13-09-01_AnnexE 2014-02-25 Page 5 of 6 Photo 7: Test report no.: 1-6965/13-09-01_AnnexE 2014-02-25 Page 6 of 6 Docu men t his to r y Version Applied changes Date of release 1.0 Initial release 2014-02-25
