PY7PM-0745GSM/UMTS/LTE Mobile Phone with WLAN, BT, RFID, ANT+

Startup guide D65 Sony Mobile Communications AB SE-221 88 Lund, Sweden www.sonymobile.com 1278-4238.1 4 3 Welcome Important Information Before you use your device, please read the Important Information provided in your device regarding warranty, safety and handling information. Protecting your device from water and dust Your device has IP (Ingress Protection) ratings of IP55 and IP58. These ratings mean that your device is dust resistant and is protected against low pressure water stream as well as against the effects of submersion for 30 minutes in fresh (non-saline) water up to 1.5 metres deep. Always firmly attach all covers to ensure the water and dust resistance of the device. If liquid is detected inside the device, for example, underneath one of the covers, your warranty will be void. Before using your device in water and in dusty conditions, refer to the relevant section of the User guide for your device for more detailed information. An online User guide as well as a downloadable version is available at www.sonymobile.com/support. Assembly Make sure you insert the micro SIM card into the micro SIM card holder before inserting it into the device. Also, don’t mix up the micro SIM card and the memory card slots. To insert the micro SIM card Make sure you reinsert the SIM card holder in the correct orientation. When you drag the holder out, do not turn it around. 1 Detach the cover for the micro SIM card holder. 2 Using a fingernail or other similar object, drag out the SIM card holder. 3 Place the micro SIM card in the SIM card holder, then reattach the micro SIM card slot cover. If you insert the SIM card while the device is powered on, the device restarts automatically. To insert the memory card 1 Remove the memory card slot cover. 2 Insert the memory card into the memory card slot with the gold coloured contacts facing up, then reattach the memory card slot cover. To view the CE mark and the FCC ID 1 2 333 1 Detach the cover of the SD card slot. 2 Place a fingernail under the right or left edge of the label tray, then drag the tray outwards. The information is displayed on the tray. Basics Overview 12 4 5 6 7 3 8 9 14 16 17 15 10121311 18 1. Proximity/Light sensor 2. Speaker/Charging light/Notification light 3. Front camera lens 4. Memory card slot cover 5. Power key 6. Volume/Zoom key 7. Camera key 8. Speaker 9. Microphone 10. Main camera lens 11. Camera light 12. Second microphone 13. Headset jack 14. Cover for charger/USB port and micro SIM slot 15. NFC™ detection area 16. Wi-Fi/GPS/Bluetooth antenna area 17. Charging dock connector 18. Strap hole Turning on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. 30min To turn on the device 1 Press and hold down the power key until the device vibrates. 2 Wait a while for the device to start. Waking up the screen To activate the screen • Briefly press the power key . To unlock the screen • Place a finger on the middle of the screen and swipe in any direction. Setting up your device What is Android™? Android is your device's operating system. Since Android is developed by Google™, your device is preloaded with several Google™ services, such as Google Maps™ and Google™ web search. To use some of the services provided by Google™, you need a Google account. Google™ account With a Google™ account, you can use Gmail™ to send emails, Hangouts™ to chat with friends, and Google Play™ to download applications and games, music, movies and books. To set up a Google™ account on your device 1 From your Home screen, tap . 2 Find and tap Settings > Add account > Google. 3 Follow the registration wizard to create a Google™ account, or sign in if you already have an account. You can also sign in to or create a Google™ account from the setup guide the first time you start your device. Or you can go online and create an account at www.google.com/accounts. Basic settings The first time you start your device, a setup guide explains basic device functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide manually 1 From the Home screen, tap . 2 Tap Settings > Setup guide. Transferring contacts using a computer Xperia™ Transfer and Contacts Setup are applications within the PC Companion and the Sony™ Bridge for Mac computer programs that help you to collect contacts from your old device and transfer them to your new device. These applications support several device brands, including iPhone, Samsung, HTC, BlackBerry, LG, Motorola and Nokia. You need: • An Internet-connected computer. • A USB cable for your old device. • A USB cable for your new Android™ device. • Your old device. • Your new Android™ device. To install PC Companion on a PC 1 Make sure the Install software checkbox under Settings > Xperia™ Connectivity > USB Connectivity is marked. 2 Connect your device to a PC using a USB cable. 3 Device: Tap Install. 4 Computer: The PC Companion installer starts automatically after a few seconds. Follow the on- screen instructions to install PC Companion. To install Sony™ Bridge for Mac on an Apple ® Mac ® computer 1 Make sure the Install software checkbox under Settings > Xperia™ Connectivity > USB Connectivity is marked. 2 Connect your device to an Apple ® Mac ® computer using a USB cable. 3 Device: Tap Install. 4 Computer: The Sony™ Bridge for Mac installer starts automatically after a few seconds. Follow the on- screen instructions to complete the installation. To transfer contacts to your new device using a computer 1 Make sure that PC Companion is installed on the PC or that Sony™ Bridge for Mac is installed on the Apple ® Mac ® computer. 2 Open the PC Companion application or the Sony™ Bridge for Mac application, then click Xperia™ Transfer or Contacts Setup and follow the instructions to transfer your contacts. Finding your way Home screen The Home screen is the starting point for using your device. You can customise it…

Text truncated - open the document above for the full version.

SAR Information FCC Statement Declaration of Conformity Sony '5503 UMTS HSPA Band 1 2 4 5 8 GSM GPRS/EDGE 850/900/1800/1900 LTE Band 1 2 3 4 5 7 8 20   Important Information United States & Canada THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The '5503 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the Important Information chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is . W/kg*, and when worn on the body is . W/kg*. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party 2   0.87 W/kg* accessories may result in different SAR levels than those reported. **Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://transition.fcc.gov/oet/ea/fccid after searching on FCC ID PY7PM-0640. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. 3    Renseignements importants États-Unis et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles de la '5503 ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites* d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes standardisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le DAS, reportez-vous au chapitre sur les renseignements importants du guide de l'utilisateur. Le DAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de . W/kg* lorsqu'il est testé en utilisation près de l'oreille, et de . W/kg* lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon adéquate 4   avec un accessoire et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », les mesures du DAS de l'appareil en mode WiFi ont été prises à une distance de sécurité de 10 mm. L'utilisation d'accessoires tiers peut produire des niveaux de DAS différents de ceux relevés. **Avant qu'un modèle de téléphone ne soit mis en ven…

Text truncated - open the document above for the full version.

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document numberRevision 45/1483-22/FCP 119 1432 UenPA1 Prepared byDate SEM/CGQTAO TOSHIKO KITAHARA2014-01-22 Contents responsible if other than preparerRemarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 2106 2014/01/22 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Type Number PY7PM-0745 PM-0745-BV For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected] 21046

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document number Revision 49/1483-22/FCP 119 1432 Uen PA1 Prepared by Date SEM/CGQTAO TOSHIKO KITAHARA 2014-01-22 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. SHORT-TERM CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 2014/01/22 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests short term confidentiality for the following product: FCC ID Type name PY7PM-0745 PM-0745-BV For the product stated above, we request that the following information be held confidential: 1. External and Internal Photographs 2. Test Setup Photos 3. User Manual We request this confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device, which is planned for for 180 days, starting from the original issued Certification grant date. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

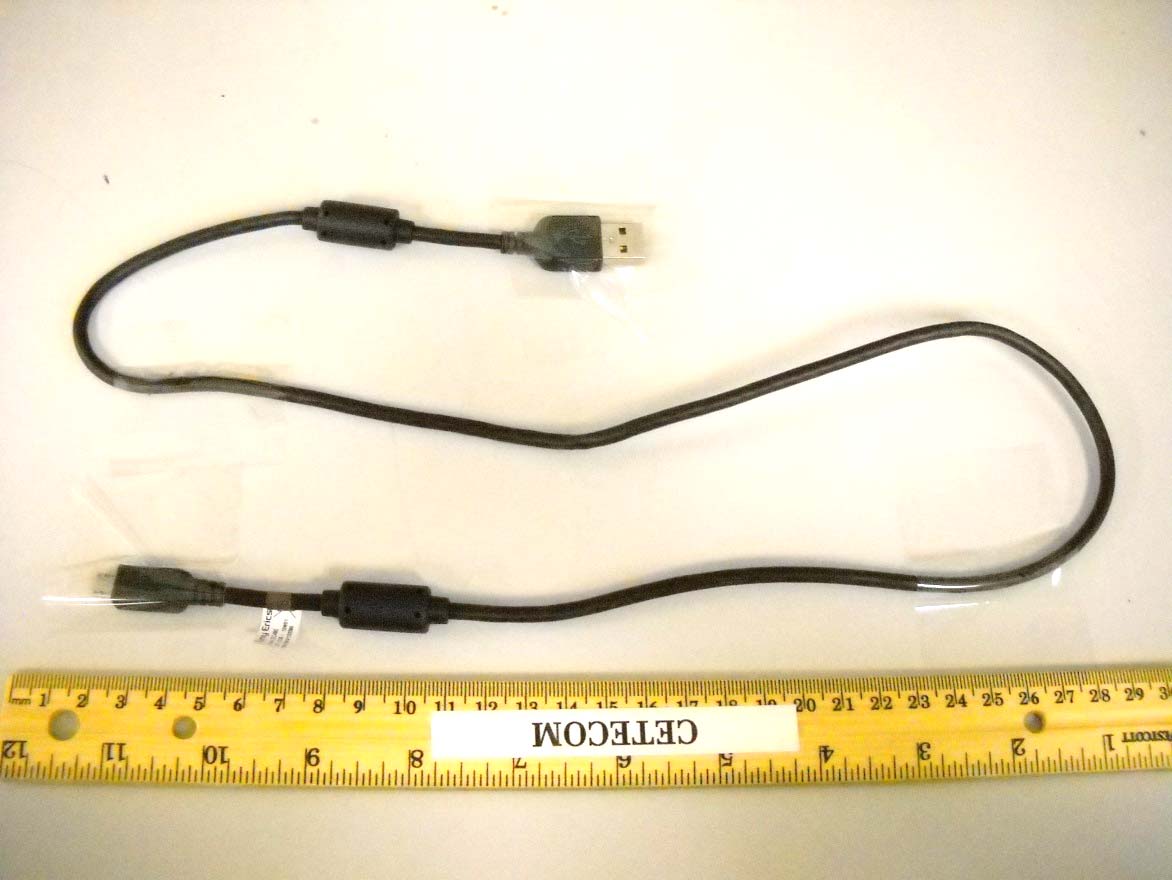

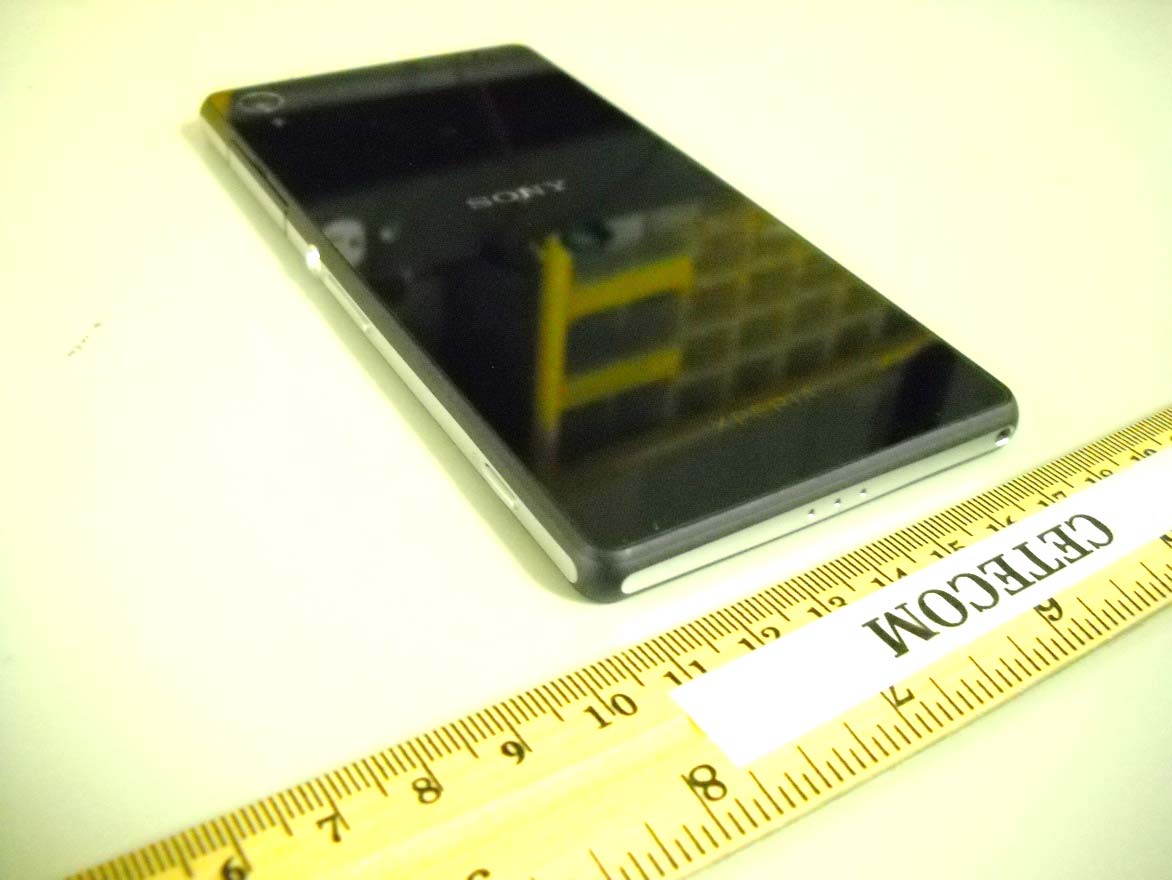

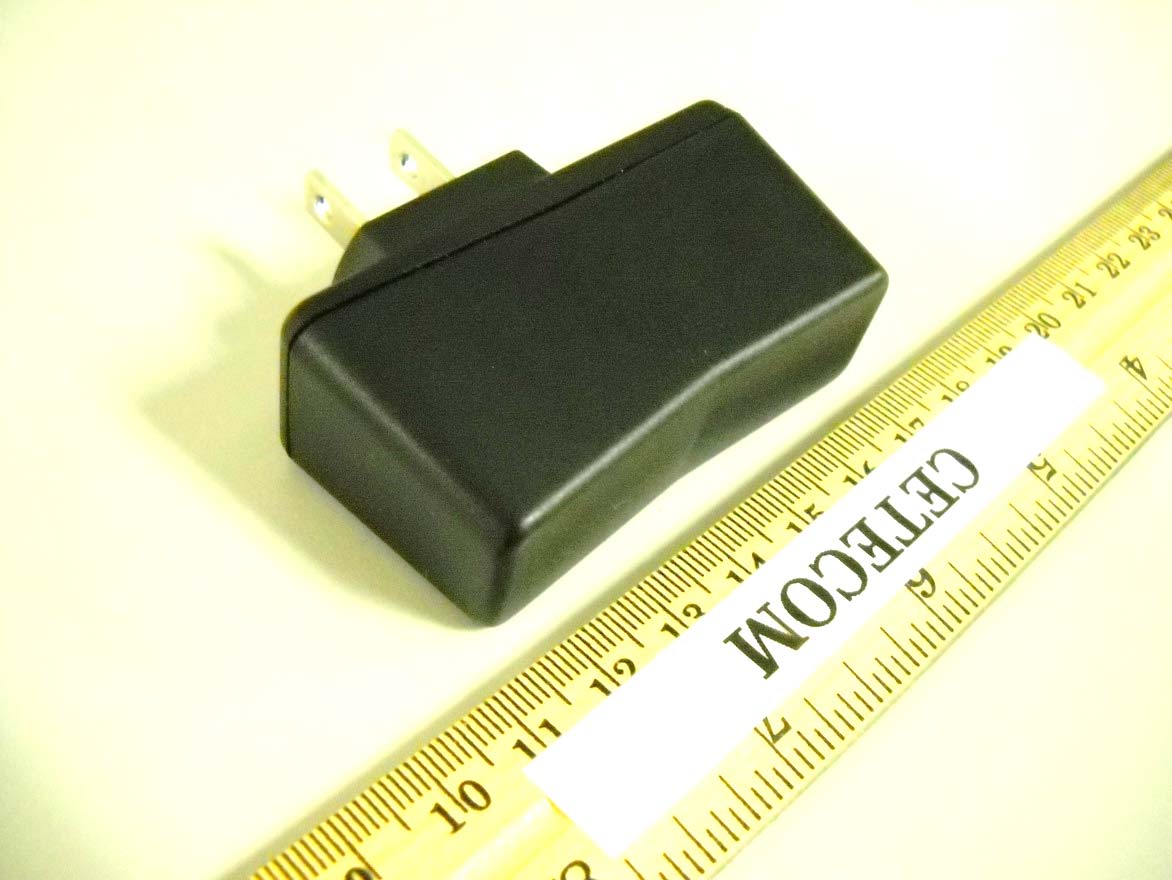

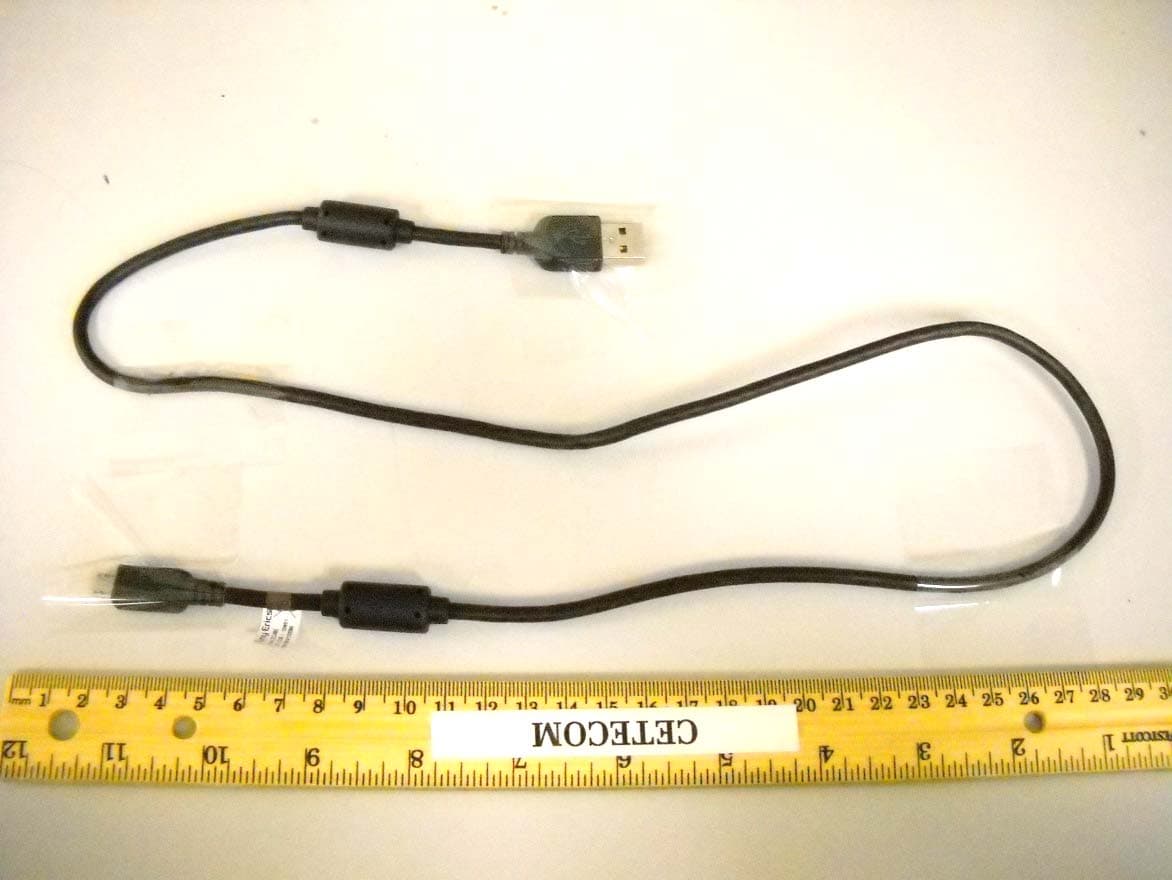

External Photos FCC ID: PY7PM-0745

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document number Revision 12/1483-22/FCP 119 1432 Uen PA1 Prepared by Date SEM/CGQTAO TOSHIKO KITAHARA 2014-01-07 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use.

Internal Photos FCC ID: PY7PM-0745

FCC : Accredited IC recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V3.0 2010-10-30 © Copyright by CETECOM FCC/IC Test Report FOR Manufacturer: Sony Type Number: PM-0745-BV FCC ID: PY7PM-0745 47 CFR Part ANT+ 15.249 TEST REPORT #: EMC_CETEC_063_13001_ANT+_15.249 DATE: 2014-01-22 Test Report #: EMC_CETEC_063_13001_ANT+_15.249 FCC ID: PY7PM-0745 Date of Report : 2014-01-22 TABLE OF CONTENTS 1 Assessment ......................................................................................................................................... 4 2 Administrative Data .......................................................................................................................... 5 2.1 Identification of the Testing Laboratory Issuing the Test Report ............................................................. 5 2.2 Identification of the Client ........................................................................................................................ 5 2.3 Identification of the Manufacturer ............................................................................................................ 5 3 Equipment under Test (EUT) .......................................................................................................... 6 3.1 Specification of the Equipment under Test ............................................................................................... 6 3.2 Identification of the Equipment Under Test (EUT) .................................................................................. 7 3.3 Identification of Accessory Equipment ..................................................................................................... 7 3.4 Environmental conditions during Test: ..................................................................................................... 7 3.5 Dates of Testing: ....................................................................................................................................... 7 3.6 Other Testing Notes: ................................................................................................................................. 8 4 Subject of Investigation .................................................................................................................... 9 5 Summary of Measurement Results ............................................................................................... 10 5.1 Measurement Method: ............................................................................................................................ 11 5.1.1 ANSI C63.4 (2009) Section 8.3.1.1: Exploratory radiated emission measurements .......................... 11 5.1.2 ANSI C63.4 (2009) Section 8.3.1.2: Final radiated emission measurements ..................................... 12 5.1.3 Sample Calculations for Radiated Measurements .............................................................................. 13 5.1.4 Test Setup Diagrams ........................................................................................................................... 14 5.2 Unwanted Emissions into Restricted Frequency Bands: Band Edge - Radiated .................................... 15 5.2.1 Limits .................................................................................................................................................. 15 5.2.2 Test Conditions: .................................................................................................................................. 16 5.2.3 Test Procedure: .................................................................................................................................. 16 5.2.4 Measurement Result – Unwanted Emissions into Restricted Frequency Bands: ............................... 16 Band Edge - Radiated ...................................................................................................................................... 16 5.2.5 Test Data/plots: .................................................................................................................................. 17 5.3 Unwanted Emissions into Restricted Frequency Bands - Radiated ........................................................ 21 5.3.1 Limits: ................................................................................................................................................. 21 5.3.2 Test Conditions: .................................................................................................................................. 22 5.3.3 Test Result: ......................................................................................................................................... 22 5.3.4 Testing Notes ...................................................................................................................................... 22 5.3.5 Measurement Verdict – Unwanted Emissions into Restricted Frequency Bands - Radiated ............. 22 5.3.6 Test data/plots ..................................................................................................................................... 23 5.4 AC Power Line Conducted Emissions .................................................................................................... 31 5.4.1 References: ......................................................................................................................................... 31 5.4.2 Limits: ................................................................................................................................................. 31 5.4.3 Test Conditions: .................................................................................................................................. 3…

Text truncated - open the document above for the full version.

Project #: EMC_CETEC_063_13001 FCC ID: PY7PM-0745 Date of Report : 2014-01-10 IC ID: Page 1 of 6 Test Setup Photographs Type Number: PM-0745-BV Product Description: Smart Phone GPRS/EGPRS 850/900/1800/1900; UMTS HSPA FDDI/II/IV/V/VIII; LTE FDD1/2/3/4/5/7/8; WLAN b/g/n/a/ac; BT 4.0; RFID; ANT+; A-GPS Manufacturer: Sony Mobile Communication AB FCC ID: PY7PM-0745 IC ID: Test Site Information: CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Project #: EMC_CETEC_063_13001 FCC ID: PY7PM-0745 Date of Report : 2014-01-10 IC ID: Page 2 of 6 Radiated Emissions Test Setup: 9kHz- 30MHz Measurement setup: EUT+AC Mode of test 9kHz- 30MHz Measurement setup: EUT+Notebook Mode of test Project #: EMC_CETEC_063_13001 FCC ID: PY7PM-0745 Date of Report : 2014-01-10 IC ID: Page 3 of 6 30MHz- 1GHz Measurement setup: EUT+AC Mode of test 30MHz- 1GHz Measurement setup: EUT+Notebook Mode of test Project #: EMC_CETEC_063_13001 FCC ID: PY7PM-0745 Date of Report : 2014-01-10 IC ID: Page 4 of 6 1GHz- 18GHz Measurement setup: EUT+AC Mode of test 1GHz- 18GHz Measurement setup: EUT+Notebook Mode of test Project #: EMC_CETEC_063_13001 FCC ID: PY7PM-0745 Date of Report : 2014-01-10 IC ID: Page 5 of 6 >18GHz Measurement setup: EUT+AC Mode of test >18GHz Measurement setup: EUT+Notebook Mode of test Project #: EMC_CETEC_063_13001 FCC ID: PY7PM-0745 Date of Report : 2014-01-10 IC ID: Page 6 of 6 Conducted Emissions Test Setup: 150kHz-30MHz Measurement setup: EUT+AC Mode of test 150kHz-30MHz Measurement setup: EUT+Notebook Mode of test
