PY7PM-0763GSM/WCDMA/LTE mobile phone

Startup guide Xperia ™ T2 Ultra D5303/D5306 Sony Mobile Communications AB SE-221 88 Lund, Sweden www.sonymobile.com 1279-8618.1 Welcome Important Information Before you use your device, please read the Important Information provided in your device regarding warranty, safety and handling information. Assembly To insert the micro SIM card 1 2 3 5 4 To insert a memory card Basics Overview 14 5 8 9 10 2 7 6 3 11 1312 17 16 15 14 1. Front camera lens 2. Proximity sensor/ Light sensor 3. Charging light/ Notification light 4. Speaker 5. Headset jack 6. Micro SIM card slot cover 7. Power key 8. Volume/Zoom key 9. Camera key 10. Microphone 11. Main camera lens 12. Camera light 13. Second microphone 14. Charger/USB port cover 15. NFC™ detection area 16. Memory card slot cover 17. Loudspeaker Turning on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. To turn on the device 1 Press and hold down the power key until the device vibrates. 2 Wait a while for the device to start. Waking up the screen To activate the screen • Briefly press the power key . To unlock the screen • Place a finger on the lower part of the screen and swipe up or down. Setting up your device What is Android™? Android is your device's operating system. Since Android is developed by Google™, your device is preloaded with several Google™ services, such as Google Maps™ and Google™ web search. To use some of the services provided by Google™, you need a Google account. Google™ account With a Google™ account, you can use Gmail™ to send emails, Hangouts™ to chat with friends, and Google Play™ to download applications and games, music, movies and books. To set up a Google™ account on your device 1 From your Home screen, tap . 2 Find and tap Settings > Add account > Google. 3 Follow the registration wizard to create a Google™ account, or sign in if you already have an account. You can also sign in to or create a Google™ account from the setup guide the first time you start your device. Or you can go online and create an account at www.google.com/accounts. Basic settings The first time you start your device, a setup guide explains basic device functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide manually 1 From the Home screen, tap . 2 Tap Settings > Setup guide. Transferring your contacts Xperia™ Transfer and Contacts Setup are applications within the PC Companion and the Sony™ Bridge for Mac computer programs that help you to collect contacts from your old device and transfer them to your new device. These applications support several device brands, including iPhone, Samsung, HTC, BlackBerry, LG, Motorola and Nokia. You need: • An Internet-connected computer. • A USB cable for your old device. • A USB cable for your new Android™ device. • Your old device. • Your new Android™ device. To install PC Companion on a PC 1 Make sure the Install software checkbox under Settings > Xperia™ Connectivity > USB Connectivity is marked. 2 Connect your device to a PC using a USB cable. 3 Device: Tap Install. 4 Computer: The PC Companion installer starts automatically after a few seconds. Follow the on- screen instructions to install PC Companion. To install Sony™ Bridge for Mac on an Apple ® Mac ® computer 1 Make sure the Install software checkbox under Settings > Xperia™ Connectivity > USB Connectivity is marked. 2 Connect your device to an Apple ® Mac ® computer using a USB cable. 3 Device: Tap Install. 4 Computer: The Sony™ Bridge for Mac installer starts automatically after a few seconds. Follow the on- screen instructions to complete the installation. To transfer contacts to your new device 1 Make sure that PC Companion is installed on the PC or that Sony™ Bridge for Mac is installed on the Apple ® Mac ® computer. 2 Open the PC Companion application or the Sony™ Bridge for Mac application, then click Xperia™ Transfer or Contacts Setup and follow the instructions to transfer your contacts. Finding your way Home screen The Home screen is the starting point for using your device. You can customise it with applications, widgets, shortcuts, folders, themes, and wallpaper. You can also add extra panes. The Home screen extends beyond the regular screen display width, so you need to flick left or right to view content in all of the Home screen's panes. To go to the Home screen • Press . Application screen The Application screen, which you open from your Home screen, contains the applications that come pre- installed on your device as well as the applications you download. The Application screen extends beyond the regular screen width, so you need to flick left and right to view all content. To open the Application screen • From your Home screen, tap . To open an application • From your Home screen or the Application screen, tap the application. Status and notifications The status bar at the top of your screen shows what's going on in your device. For example, new message and calendar notifications appear here. Checking notifications and ongoing activities You can drag down the status bar to open the Notification panel and get more information. For example, you can use the panel to open a new message or view a calendar event. You can also open some applications that run in the background, such as the music player. To open the Notification panel • Drag the status bar downwards. Using the keys Back • Go back to the previous screen • Close the on-screen keypad, a dialog box, an options menu, the Notification panel, or an application Home • Go to the Home screen Task • Tap to open a window showing your most recently used applications and a small apps bar More basics Calling To make a call by dialling 1 From your Home screen, tap . 2 Find and tap Phone. 3 Enter the number of the recipient and tap . To end a call • Tap . To answer a call • Drag to the right across the screen. Multimedia and text messaging To create and send a…

Text truncated - open the document above for the full version.

©2013 Important information Sony Consumer Web site At www.sonymobile.com/support there is a support section where help and tips are only a few clicks away. Here you will find the latest computer software updates and tips on how to use your product more efficiently. Service and support You have access to a portfolio of exclusive service advantages such as: • Global and local Web sites providing support. • A global network of Contact Centers. • An extensive network of Sony service partners. • A warranty period. Learn more about the warranty conditions in the Limited Warranty section. At www.sonymobile.com/support or www.sonymobile.com/contact, you can find the latest support tools and information. For operator-specific services and features, please contact your network operator. You can also contact our Contact Centers or contact your local dealer. (Calls are charged according to national rates, including local taxes, unless it is a toll-free number.) If your product needs service, please contact the dealer from whom it was purchased, or one of our service partners. To make a claim under the limited warranty, proof of purchase is required. Guidelines for Safe and Efficient Use Please follow these guidelines. Failure to do so might entail a potential health risk or product malfunction. If in doubt as to its proper function, have the product checked by a certified service partner before charging or using it. 2 Recommendations for care and safe use of our products • Handle with care and keep in a clean and dust-free place. • Warning! May explode if disposed of in fire. • Do not expose to liquid or moisture or excess humidity. • For optimum performance, the product should not be operated in temperatures below -10°C(+14°F) or above +45°C(+113°F). Do not expose the battery to temperatures above +60°C(+140°F). • Do not expose to flames or lit tobacco products. • Do not drop, throw or try to bend the product. • Do not paint or attempt to disassemble or modify the product. Only Sony authorised personnel should perform service. • Consult with authorised medical staff and the instructions of the medical device manufacturer before using the product near pacemakers or other medical devices or equipment. • Discontinue use of electronic devices, or disable the radio transmitting functionality of the device, where required or requested to do so. • Do not use where a potentially explosive atmosphere exists. • Do not place the product, or install wireless equipment, in the area above an air bag in a car. • Caution: Cracked or broken displays may create sharp edges or splinters that could be harmful upon contact. • Do not use a Bluetooth Headset in positions where it is uncomfortable or will be subject to pressure. Children Warning! Keep out of the reach of children. Do not allow children to play with mobile devices or accessories. They could hurt themselves or others. Products may 3 contain small parts that could become detached and create a choking hazard. Power supply (Charger) Connect the charger to power sources as marked on the product. Do not use outdoors or in damp areas. Do not alter or subject the cord to damage or stress. Unplug the unit before cleaning it. Never alter the plug. If it does not fit into the outlet, have a proper outlet installed by an electrician. When a power supply is connected there is a small drain of power. To avoid this small energy waste, disconnect the power supply when the product is fully charged. Use of charging devices that are not Sony branded may pose increased safety risks. Battery New or idle batteries can have short-term reduced capacity. Fully charge the battery before initial use. Use for the intended purpose only. Charge the battery in temperatures between +5°C(+41°F) and +45°C(+113°F). Do not put the battery into your mouth. Do not let the battery contacts touch another metal object. Turn off the product before removing the battery. Performance depends on temperatures, signal strength, usage patterns, features selected and voice or data transmissions. Only Sony service partners should remove or replace built-in batteries. Use of batteries that are not Sony branded may pose increased safety risks. Replace the battery only with another Sony battery that has been qualified with the product per the standard IEEE-1725. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. 4 Personal medical devices Mobile devices / devices with radio transmitters may affect implanted medical equipment. Reduce risk of interference by keeping a minimum distance of 15 cm(6 inches) between the Sony product and the medical device. Use the Sony device at your right ear, when applicable. Do not carry the device in your breast pocket. Turn off the device if you suspect interference. For use in proximity to personal medical devices, please consult a physician and the device manufacturer. Driving In some cases, vehicle manufacturers may forbid the use of mobile devices in their vehicles unless a handsfree kit with an external antenna supports the installation. Check with the vehicle manufacturer's representative to be sure that a mobile device or Bluetooth handsfree will not affect the electronic systems in the vehicle. Full attention should be given to driving at all times and local laws and regulations restricting the use of wireless devices while driving must be observed. GPS/Location based functions Some products provide GPS/Location based functions. Location determining functionality is provided “As is” and “With all faults”. Sony does not make any representation or warranty as to the accuracy of such location information. Use of location-based information by the device may not be uninterrupted or error free and may additionally be dependent on network service availability. Please note that functionality may be reduced or prevented in certain environments such as building interiors or areas adjacent to buildings. 5 www.sonymobile.com Sony Mobile Co…

Text truncated - open the document above for the full version.

American English Hearing Aid Compatibility Your phone is designed for Hearing Aid Compatibility (HAC) and can be used with hearing aids. This feature has not been tested in combination with WLAN. Hearing Aid Settings You can choose the setting in the phone to match the setting in your hearing aid before making or receiving calls. To select a phone setting for HAC 1 From the Home screen, tap . 2 Find and tap Settings > Call settings. 3 Mark the Hearing aids checkbox to turn on hearing aid compatibility. Hearing Aid Compatibility Information This phone has been tested and rated for use with hearing aids for some of the wireless technologies it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider or the manufacturer of this phone for information on hearing aid compatibility. If you have questions about return or exchange policies, consult your service provider or phone retailer. Hearing Aid Compatibility Rating This model handset was designed to comply with the requirements set forth in Section 20.19 of the Federal Communication Commission's (FCC) rules governing hearing aid compatibility (HAC), for the reduction of RF interference and magnetic coupling (T-coil) to hearing aids. The Microphone (M) rating and T-coil (T) rating is defined and labeled on the handset box. Devices meeting HAC compliance must have a minimum M3 and/or T3 rating or above as defined by the FCC in accordance with the latest ANSI Standard C63.19. The (M) rating refers to lower RF emission levels of the handset. The (T) rating refers to the magnetic coupling between the handset and the T-coil compatible hearing aid. Some hearing aids are also provided an (M) rating, and are more immune than others to interference. To determine the (M) rating of your hearing aid, please contact your hearing health professional. More information about digital wireless devices and hearing aid compatibility can be found at May 30, 2012 13:36:44 Important information Información importante www.sonymobile.com Sony Mobile Communications AB SE-221 88 Lund, Sweden http://blogs.sonymobile.com/about-us/sustainability/ accessibility/overview/hearing-aid-compatibility/. 1239-4751.5 October 24, 2013 14:55:51 Leaflet NAM HAC Leaflet AE XL FR A7 1239-4751.5.pdf 1 of 2 Español Latinoamericano Compatibilidad de aparatos auditivos Su teléfono está diseñado para la compatibilidad de aparatos auditivos (HAC, por su sigla en inglés) y se puede usar con aparatos auditivos. Esta función no se ha probado en combinación con WLAN. Ajustes de los aparatos auditivos Puede elegir que el ajuste del teléfono coincida con el ajuste de su aparato auditivo antes de realizar o recibir llamadas. Seleccionar una configuración de teléfono para HAC 1 Desde Home screen, toque suavemente . 2 Busque y toque suavemente Configuración > Config. de llamada. 3 Marque la casilla de verificación Hearing aids para activar la compatibilidad de aparatos auditivos. INFORMACIÓN SOBRE COMPATIBILIDAD CON EQUIPOS DE ASISTENCIA AUDITIVA Este teléfono ha sido probado y clasificado para su uso con equipos de asistencia auditiva para ciertas tecnologías de servicio móvil que usa. Sin embargo, pueden existir ciertas tecnologías nuevas de servicio móvil usadas en este teléfono que no han sido probadas aún para su uso con equipos de asistencia auditiva. Es importante probar minuciosamente y en diferentes sitios las distintas funciones de este teléfono, usando su equipo Français Compatibilité avec les appareils auditifs Votre téléphone est conçu pour la compatibilité avec les appareils auditifs (HAC) et peut être utilisé avec des appareils auditifs. Cette fonction n'a pas été testée avec les réseaux WLAN. Paramètres de l'appareil auditif Sur votre téléphone, vous pouvez choisir le même paramètre que celui de l'appareil auditif avant de passer ou de recevoir des appels. Pour sélectionner un paramètre de téléphone pour la HAC 1 Dans l'Home screen, tapez sur . 2 Tapez sur Paramètres > Paramètres d'appel. 3 Cochez la case Hearing aids pour activer la compatibilité avec les appareils auditifs. Informations relatives à la compatibilité avec les appareils auditifs Ce téléphone a été testé et classé pour offrir une compatibilité entre certaines des technologies sans fil qu'il utilise et les appareils auditifs. Cependant, il peut faire appel à des technologies sans fil plus récentes qui n'ont pas encore été testées avec les appareils auditifs. Il est donc important que vous essayiez les diverses fonctions de ce téléphone, de manière exhaustive et dans différents endroits, avec votre appareil auditif ou votre implant cochléaire pour déterminer si vous entendez des parasites. Pour plus d'informations sur la compatibilité de asistencia auditiva o implante coclear, para determinar si usted escucha algún ruido de interferencia. Consulte con su proveedor de servicio o el fabricante de este teléfono para información sobre compatibilidad con equipos de asistencia auditiva. Si tiene preguntas sobre las políticas de devolución o cambios, consulte con su proveedor de servicio o centro de venta de teléfonos. Clasificación de compatibilidad de los aparatos auditivos Este modelo de teléfono fue diseñado para cumplir los requisitos establecidos en la Sección 20.19 de las normas de la Federal Communication Commission (FCC) que rigen la compatibilidad de los aparatos auditivos (HAC, por sus siglas en inglés), para la reducción de la interferencia RF y el acoplamiento magnético (T-coil) con los aparatos auditivos. La clasificación de Micrófono (M) y la clasificación de T-coil (T) está definida y marcada en la caja del teléfono. Los dispositivos que cumplen los requisitos de HAC deben tener una clasificación mínima de M3 y/o T3 …

Text truncated - open the document above for the full version.

SAR Information FCC Statement Declaration of Conformity Sony D5 306 UMTS HSPA Band 1 2 4 5 8 GSM GPRS/EDGE 850/900/1800/1900 LTE Band 2 4 7 17 Important Information United States & Canada THIS PHONE MODEL HAS BE EN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The D5306 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the Important Information chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.46 W/kg*, and when worn on the body is 0.70 W/kg*. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party 2 accessories may result in different SAR levels than those reported. **Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://transition.fcc.gov/oet/ea/fccid after searching on FCC ID PY7PM-0763. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. 3 Renseignements importants États-Unis et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles de la D5306 ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites* d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes standardisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le DAS, reportez-vous au chapitre sur les renseignements importants du guide de l'utilisateur. Le DAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de 0.46 W/kg* lorsqu'il est testé en utilisation près de l'oreille, et de 0.70 W/kg* lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon adéquate 4 avec un accessoire et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », les mesures du DAS de l'appareil en mode WiFi ont été prises à une distance de sécurité de 10 mm. L'utilisation d'accessoires tiers peut produire des niveaux de DAS différents de ceux relevés. **Avant qu'un modèle de téléphone ne soit mis en vente auprès du public aux États-Unis, la Commission fédérale des commu…

Text truncated - open the document above for the full version.

Sony Mobile Communications Prepared by SEM/CGVGPDB SHERRY ZHANG Contents responsible if other than preparer Approved by SEM/CGVGPDA (EAGLE LIN) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid Tianchi Rex Tianchi Rex Tianchi Rex Tianchi Rex Support Declaration Support DeclarationSupport Declaration Support Declaration Applied to: Product D5306 Sony Mobile hereby declares that are listed in below NAS (Non Access Stratum; Layer 3): - ISR enhancement, in TS 24.301 CR0758, CR0931, CR1199, CR1362. - CSFB enhancement, in TS 24.301 CR0800, - Extend Periodic Timers, in TS 24.301 CR1098. - Backoff Timers enhancement, in TS 24.301 CR1047, CR1197, CR1260, CR1279, CR1312, CR1216, CR1238, CR1323, CR1371. - Emergency Bearer Services, in TS 24.301 CR1029, CR1155, CR1320. AS (Access Strat - Change to Buffer Status Reporting, BSR size can be extended to reflect higher payloads possible. - CSFB AC Barring, in TS 36.331 CR0477, CR0623 CR0490. - RLF Reporting Enhancement, in TS 36.331 CR548r4, CR664r1, CR672r2. And below Rel.10 - Mobility enhancement - Scheduling request improvement - Periodic CQI/PMI/RI mask - RSRQ-based cell selection/reselection - NULL integrity protection algorithm No other features from Rel.10 are capabilities are unchanged from Rel.8. Carrier Aggregation is not supported. RF performance such as RF output power, modulation or data rate since they are related to La Yours sincerely Confidential DESCRIPTION Document number 20/1050-FCP 119 1444 Uen Date 2014-01-17 Remarks This document is managed in metaDoc. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Tianchi Rex Tianchi Rex Tianchi Rex Tianchi Rex - -- -(PM (PM(PM (PM- -- -0763 07630763 0763- -- -BV) BV)BV) BV)- -- - Rel 10 Rel 10Rel 10 Rel 10 Support Declaration Support DeclarationSupport Declaration Support Declaration Applied to: Type number FCC ID PM-0763-BV PY7PM-0763 Sony Mobile hereby declares that for this device, the only Rel.10 features supported are listed in below: NAS (Non Access Stratum; Layer 3): ISR enhancement, in TS 24.301 CR0758, CR0931, CR1199, CR1362. CSFB enhancement, in TS 24.301 CR0800, CR0959, CR1202. Extend Periodic Timers, in TS 24.301 CR1098. Backoff Timers enhancement, in TS 24.301 CR1047, CR1197, CR1260, CR1279, CR1312, CR1216, CR1238, CR1323, CR1371. Emergency Bearer Services, in TS 24.301 CR1029, CR1155, CR1320. AS (Access Stratum; Layer 2/3): Change to Buffer Status Reporting, BSR size can be extended to reflect higher payloads CSFB AC Barring, in TS 36.331 CR0477, CR0623 CR0490. RLF Reporting Enhancement, in TS 36.331 CR548r4, CR664r1, CR672r2. Rel.10 features inherited from Rel.9 are also supported by this device Mobility enhancement Scheduling request improvement Periodic CQI/PMI/RI mask based cell selection/reselection NULL integrity protection algorithm o other features from Rel.10 are supported by this device. Other device capabilities are unchanged from Rel.8. Carrier Aggregation is not supported. And all the above listed features do not affect RF performance such as RF output power, modulation or data rate since they are related to Layer 2/3. Yours sincerely 1(2) Revision A managed in metaDoc. and must be removed from possible use. Rel 10 Rel 10Rel 10 Rel 10- -- -Feature FeatureFeature Feature- -- - IC ID 4170B-PM0763 or this device, the only Rel.10 features supported ISR enhancement, in TS 24.301 CR0758, CR0931, CR1199, CR1362. CR0959, CR1202. Backoff Timers enhancement, in TS 24.301 CR1047, CR1197, CR1260, CR1279, Emergency Bearer Services, in TS 24.301 CR1029, CR1155, CR1320. Change to Buffer Status Reporting, BSR size can be extended to reflect higher payloads CSFB AC Barring, in TS 36.331 CR0477, CR0623 CR0490. RLF Reporting Enhancement, in TS 36.331 CR548r4, CR664r1, CR672r2. from Rel.9 are also supported by this device. supported by this device. Other device ll the above listed features do not affect RF performance such as RF output power, modulation or data rate since they are ------------------------------------------ Yusheng Wu Manager Sony Mobile Communications China Confidential DESCRIPTION Document number 20/1050-FCP 119 1444 Uen ------------------------------------------ Yusheng Wu Sony Mobile Communications China 2(2) Revision A

Sony Mobile Communications (China) Co.,Ltd Sony Mobile R&D Center, No. 16, Guangshun South Street, Chaoyang District, Beijing, 100102 Jan 20 th , 2014 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: SHORT-TERM Confidentiality request for FCC ID: PY7PM-0763 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 days:

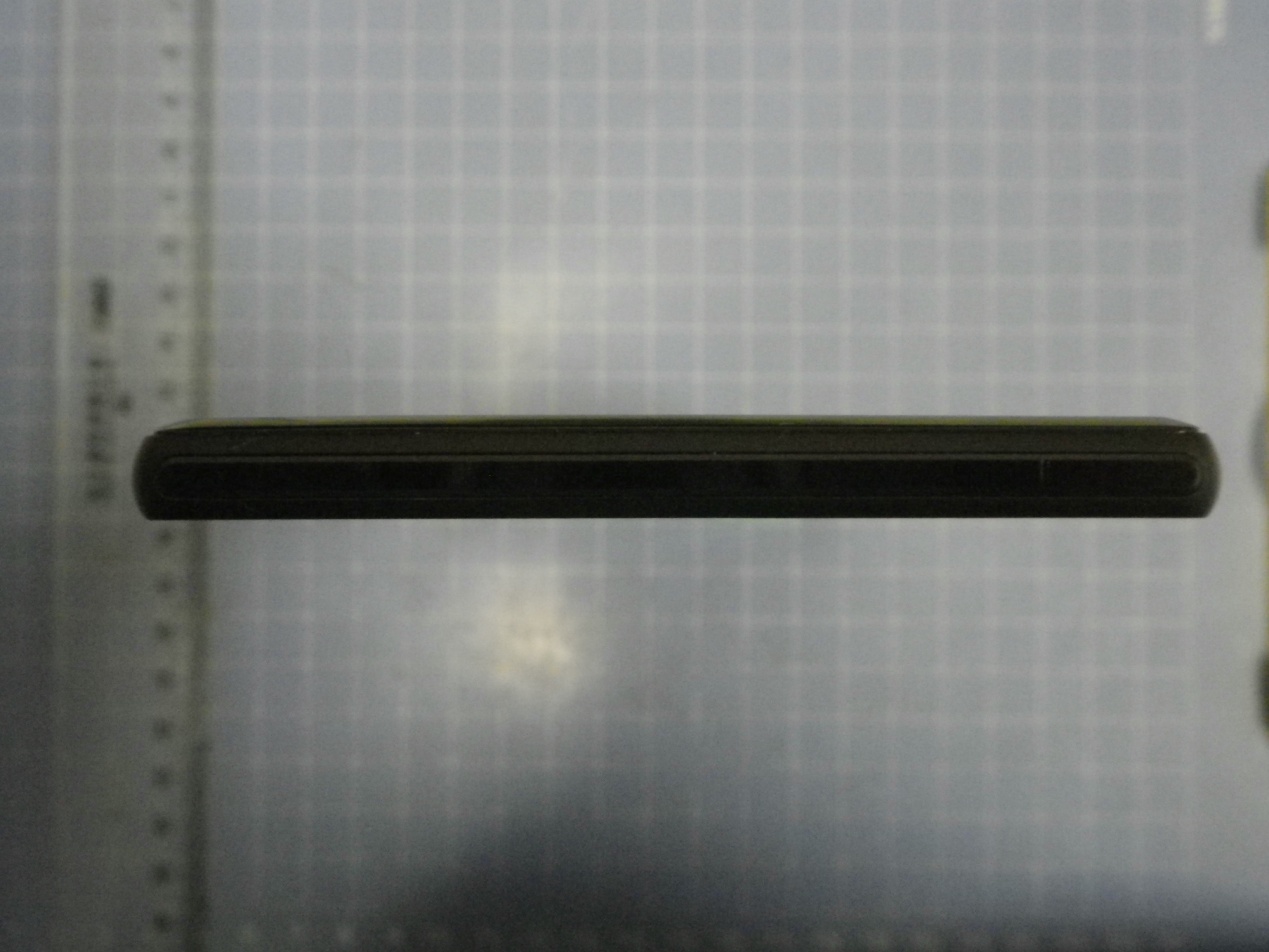

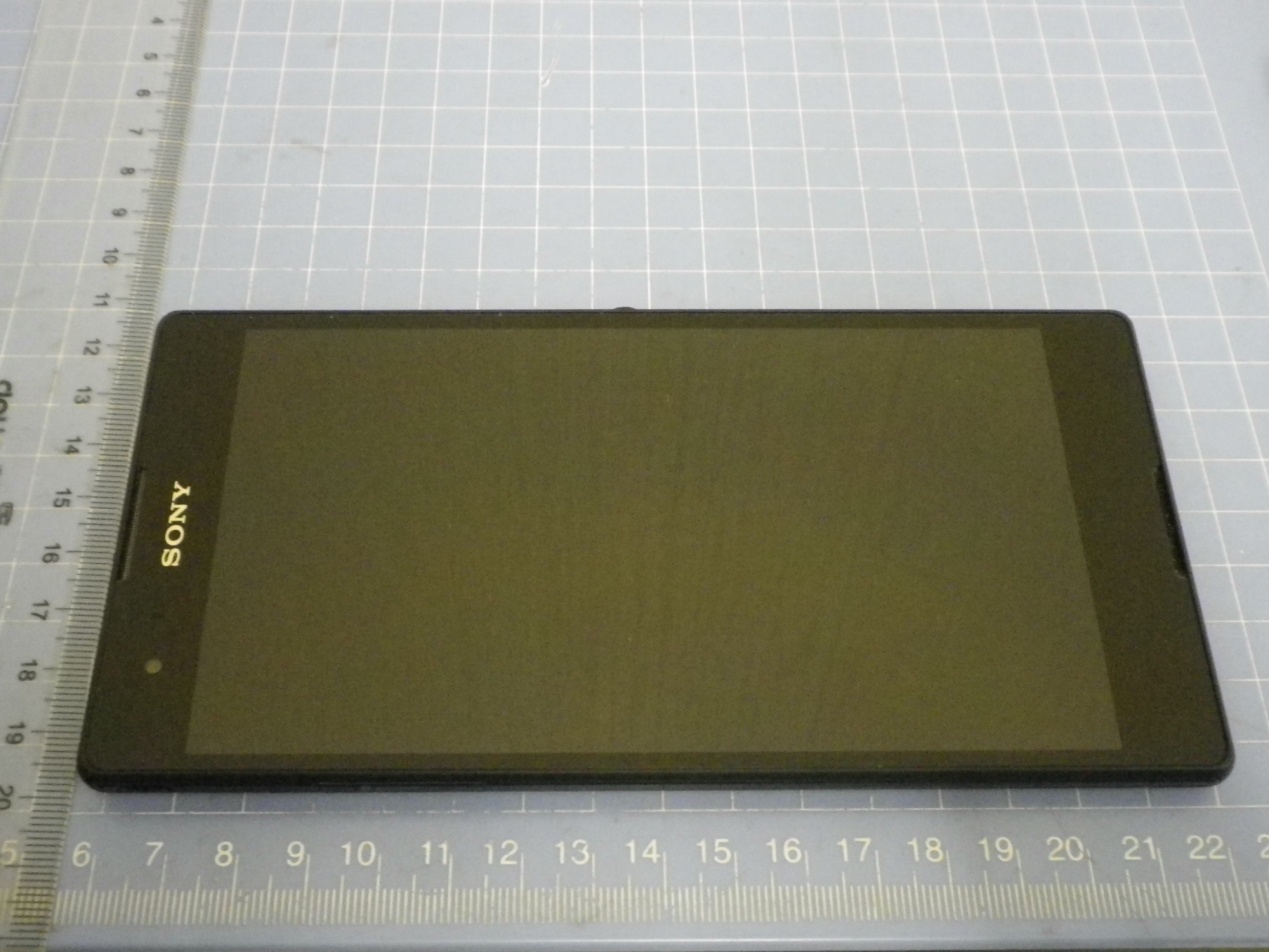

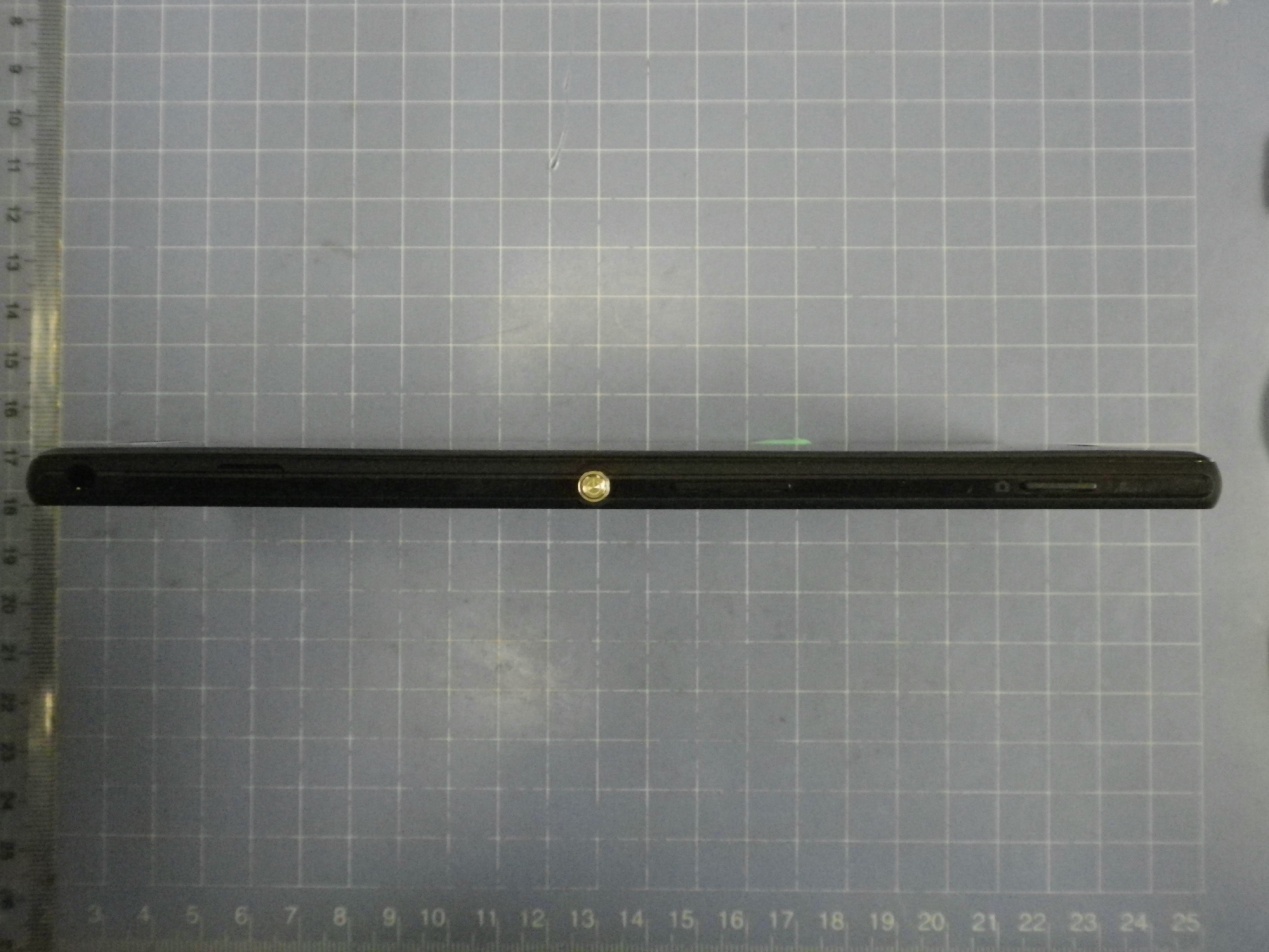

External Photos
Internal Photos
Test Setup Photos
User’s Manual The applicant also acknowledges that they will also provide appropriate notice to ACB should either of the following occur: a) if the applicant requires additional 45 day extension periods they will notify ACB with a new request letter at least 7 days prior to the short- term confidentiality expiration date - [Note: up to a maximum of 3 extensions only are allowed], or b) immediately notify ACB in the event the information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, Yusheng Wu (武予生) Manager Global Type Approval China Sony Mobile Communications (China) Co.,Ltd

1(5) Document number Revision 1281-8352 1 Sony Mobile Communications AB Prepa…
