PY7PM-0800Quad GSM/WCDMA/LTE cellular mobile telephone with BT, WLAN, Ant+, RF ID and HAC

Important Information Before you use your device, please read the Important Information provided in your device regarding warranty, safety and handling information. Protecting your device from water and dust Your device has IP (Ingress Protection) ratings of IP65 and IP68. These ratings mean that your device is dust tight and is protected against low pressure water stream as well as against the effects of submersion for 30 minutes in fresh (non-saline) water up to 1.5 metres deep. Always firmly attach all covers to ensure the water and dust resistance of the device. If liquid is detected inside the device, for example, underneath one of the covers, your warranty will be void. Before using your device in water and in dusty conditions, refer to the relevant section of the User guide for your device for more detailed information. An online User guide as well as a downloadable version is available at www.sonymobile.com/support. Overview 214356 7 8 9 10 11 121413 16 18 19 17 15 1. Charging/Notification light 2. Headset jack 3. Second microphone 4. Proximity/Light sensor 5. Ear speaker/Second speaker 6. Front camera lens 7. Cover for nano SIM and memory card slot 8. Power key 9. Volume/Zoom key 10. Camera key 11.Main microphone/Speaker 12. Main camera lens 13. Camera light 14. GPS antenna area 15. Wi-Fi/Bluetooth antenna area 16. Cover for charger/USB cable port 17. NFC™ detection area 18. Charging dock connector 19. Strap hole Assembly Your device only supports nano SIM cards. Make sure you insert the nano SIM card into the nano SIM card holder before inserting it into the device. Also, don’t confuse the nano SIM card slot with the memory card slot. To insert the nano SIM card If you insert the nano SIM card while the device is powered on, the device restarts automatically. 1 Detach the cover for the nano SIM card holder. 2 Using a fingernail or other similar object, drag out the nano SIM card holder. 3 Place the nano SIM card in the nano SIM card holder, then reinsert the holder. 4 Re-attach the cover. Make sure you reinsert the nano SIM card holder in the correct orientation. When you drag the holder out to insert the nano SIM card, do not turn the holder around. To insert the memory card 1 Remove the memory card slot cover. 2 With the gold coloured contacts facing down, insert the memory card into the memory card slot, then re-attach the memory card slot cover. Basics Turning on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. To turn on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. 1 Press and hold down the power key until the device vibrates. 2 Wait a while for the device to start. Waking up the screen To activate the screen • Briefly press the power key . • If Tap to wake up mode is enabled, double-tap the screen. To enable Tap to wake up mode, go to the Home screen, then tap > Settings > Display > Tap to wake up. Setting up your device Setup guide The first time you start your device, a setup guide opens to help you configure basic settings, sign in to some accounts (for example, your Google™ account), and personalise your device. You can also manually access the setup guide at a later stage. To access the setup guide manually 1 From the Home screen, tap . 2 Tap > Setup guide. Accessing settings View and change settings for your device from the Settings menu. The Settings menu is accessible from both the Application screen and the Quick settings panel. To access your device settings 1 From your Home screen, tap . 2 Find and tap . Transferring your contacts Xperia™ Transfer is an application within the PC Companion and the Sony Bridge for Mac computer programs that helps you to collect contacts from your old device and transfer them to your new device. Xperia™ Transfer supports several device brands, including iPhone, Samsung, HTC, BlackBerry, LG, and Nokia. You need: • An Internet-connected computer. • A USB cable for your old device. • A USB cable for your new Android™ device. • Your old device. • Your new Android™ device. To transfer contacts to your new device 1 Search and download PC Companion (on a PC) or Bridge for Mac (on a Mac computer) from www.sonymobile.com if the application is not already installed. 2 After successful installation, open the PC Companion application or the Sony Bridge for Mac application, then click Xperia™ Transfer and follow the relevant instructions to transfer your contacts. Finding your way Using the keys Back navigation key • Go back to the previous screen within an application or close the application. Home navigation key • Exit an application and go back to the Home screen. Task navigation key • Open the recently used applications window and the small apps bar. Application screen • Open the Application screen. Basic applications and settings Make phone calls by dialling the number manually or by using the smart dial function. Use the Messaging application to send and receive text and multimedia messages. Go to Google Play™ to download free and paid applications for your device. Optimise the device settings to suit your own requirements. Status and notifications To open or close the Notification panel Drag down two fingers instead of one to open the Quick settings panel instead. Support on the web Visit www.sonymobile.com/support to access a range of support options for your device, including downloads, troubleshooting tips and a User guide. Legal information Sony D6603/D6653/xxxx Publication number: xxxx-xxxx.1 This Startup guide is published by Sony Mobile Communications Inc. or its local affiliated company, without any warranty. Improvements and changes to this Startup guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Mobile Communications Inc. at any time and without notice. Such changes will, however, …

Text truncated - open the document above for the full version.

©2014 Important information Sony Consumer Web site At www.sonymobile.com/support there is a support section where help and tips are only a few clicks away. Here you will find the latest computer software updates and tips on how to use your product more efficiently. Service and support You have access to a portfolio of exclusive service advantages such as: • Global and local Web sites providing support. • A global network of Contact Centers. • An extensive network of Sony service partners. • A warranty period. Learn more about the warranty conditions in the Limited Warranty section. At www.sonymobile.com/support or www.sonymobile.com/contact, you can find the latest support tools and information. For operator-specific services and features, please contact your network operator. You can also contact our Contact Centers or contact your local dealer. (Calls are charged according to national rates, including local taxes, unless it is a toll-free number.) If your product needs service, please contact the dealer from whom it was purchased, or one of our service partners. To make a claim under the limited warranty, proof of purchase is required. Guidelines for Safe and Efficient Use Please follow these guidelines. Failure to do so might entail a potential health risk or product malfunction. If in doubt as to its proper function, have the product checked by a certified service partner before charging or using it. 2 Recommendations for care and safe use of our products • Handle with care and keep in a clean and dust-free place. • Warning! May explode if disposed of in fire. • Do not use in environments where relevant IP rating limitations, if applicable, are exceeded (including excess depths and/or pressures of liquid and/or dust) or expose to excess humidity. • For optimum performance, the product should not be operated in temperatures below -10°C(+14°F) or above +45°C(+113°F). Do not expose the battery to temperatures above +60°C(+140°F). • Do not expose to flames or lit tobacco products. • Do not drop, throw or try to bend the product. • Do not paint or attempt to disassemble or modify the product. Only Sony authorised personnel should perform service. • Consult with authorised medical staff and the instructions of the medical device manufacturer before using the product near pacemakers or other medical devices or equipment. • Discontinue use of electronic devices, or disable the radio transmitting functionality of the device, where required or requested to do so. • Do not use where a potentially explosive atmosphere exists. • Do not place the product, or install wireless equipment, in the area above an air bag in a car. • Caution: Cracked or broken displays may create sharp edges or splinters that could be harmful upon contact. • Do not use a Bluetooth Headset in positions where it is uncomfortable or will be subject to pressure. 3 Children Warning! Keep out of the reach of children. Do not allow children to play with mobile devices or accessories. They could hurt themselves or others. Products may contain small parts that could become detached and create a choking hazard. Power supply (Charger) Connect the charger to power sources as marked on the product. Do not use outdoors or in damp areas. Do not alter or subject the cord to damage or stress. Unplug the unit before cleaning it. Never alter the plug. If it does not fit into the outlet, have a proper outlet installed by an electrician. When a power supply is connected there is a small drain of power. To avoid this small energy waste, disconnect the power supply when the product is fully charged. Use of charging devices that are not Sony branded may pose increased safety risks. Battery New or idle batteries can have short-term reduced capacity. Fully charge the battery before initial use. Use for the intended purpose only. Charge the battery in temperatures between +5°C(+41°F) and +45°C(+113°F). Do not put the battery into your mouth. Do not let the battery contacts touch another metal object. Turn off the product before removing the battery. Performance depends on temperatures, signal strength, usage patterns, features selected and voice or data transmissions. Only Sony service partners should remove or replace built-in batteries. Use of batteries that are not Sony branded may pose increased safety risks. Replace the battery only with another Sony battery that has been qualified with the product per the standard IEEE-1725. Use of an unqualified 4 battery may present a risk of fire, explosion, leakage or other hazard. Personal medical devices Mobile devices / devices with radio transmitters may affect implanted medical equipment. Reduce risk of interference by keeping a minimum distance of 15 cm(6 inches) between the Sony product and the medical device. Use the Sony device at your right ear, when applicable. Do not carry the device in your breast pocket. Turn off the device if you suspect interference. For use in proximity to personal medical devices, please consult a physician and the device manufacturer. Driving In some cases, vehicle manufacturers may forbid the use of mobile devices in their vehicles unless a handsfree kit with an external antenna supports the installation. Check with the vehicle manufacturer's representative to be sure that a mobile device or Bluetooth handsfree will not affect the electronic systems in the vehicle. Full attention should be given to driving at all times and local laws and regulations restricting the use of wireless devices while driving must be observed. GPS/Location based functions Some products provide GPS/Location based functions. Location determining functionality is provided “As is” and “With all faults”. Sony does not make any representation or warranty as to the accuracy of such location information. Use of location-based information by the device may not be uninterrupted or error free and may additionally be dependent on network service availability. Please note that functionality may be reduced…

Text truncated - open the document above for the full version.

SAR Information FCC Statement Declaration of Conformity Sony '6603 UMTS HSPA Band 1 2 4 5 8 GSM GPRS/EDGE 850/900/1800/1900 LTE Band 1 2 3 4 5 7 8 13 17 20 Important Information United States & Canada THIS PHONE MODE L HAS BEEN CERTIFIED I N COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENT S FOR EXPOSURE TO RADI O WAVES. The '6603 Series mobile phones have been designed to comply with appli cable safety requirements for exposure to radio waves. Your wirele ss phone is a radio tran smitter a nd receiver. It is designed to not exceed the limits* of e xposure to radio frequency (RF) energy set by governmental authori ties. Th ese limits establish permitted levels of RF energy for the general population. Th e guidelines are based on standards th at were developed by international scientific organizations th rough periodi c and thorough evaluation of scientific studies. Th e standards include a safety margin designed to assure the safety of all individual s, re gardless of age and health. The ra dio wave exposure guidelines employ a unit of measure ment known as the Specific Absorption Rate (SAR). Te sts for SAR are conducted usi ng standardized methods wi th th e phone transmitting at its highe st certified power level in all used frequency bands. While the re may be difference s between the SAR levels of various phone models, they are all designed to mee t the relevant guidelines for exposure to radio waves. For more information on SAR, plea se refer to the Important Information chapter in the User Guide . The highest SAR value as reported to th e authorities for this phone model when tested for use by the ear is 0.885 W/kg*, and whe n worn on the body is 1.501 W/kg*. For body-worn operation , the phone has been tested whe n positioned a minimum of 15 mm from the body without any metal parts in th e vicin ity of the phone or when properly used with an appropriate accessory and worn on th e body. For devices whi ch i nclude “WiFi hotspot” functionality, SAR measu rements for the device ope rating in W iFi hotspot mode were take n using a separation distance of 10 mm. Use of third-party 2 accessories may re sult in diffe rent SAR levels than those reported. **Before a phone model is available for sale to the public in the US, it must be tested and certifie d by the Fede ral Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. Th e tests a re pe rformed in positions and locations (i.e., by the e ar and worn on the body) as requi red by the FCC for each model . The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evalu ated as in compliance with the FCC RF exposure guidelines. While there may be differences betwee n the SAR levels of various phones, all mobile phone s granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be fou nd u nde r the Di splay Gra nt se ction of http://transition .fcc.gov/oet/ea/fccid after searching on FCC ID PY7PM-0800. Addition al information on SAR can be foun d on the Mobile Manufacture rs Forum EMF website at http://www.emfexplained.info/. * In the United States an d Canada , the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporate s a margin of sa fety to give additional protection for the public an d to account for a ny variations in measurements. **This pa ragraph is only applicable to authorities and customers in the United States. 3 Renseignements importants États- Unis et Canada CE MODÈLE DE TÉ LÉPHONE A ÉTÉ C ERTIFI É CONFORME AUX EX I GENCES GOUVERNEMENTALE S RELATI VE S À L'EX POSITION AUX ONDES RADI OÉ LECTRI QUES. Les téléphones mobiles de la '6603 ont été conçus pour ré pondr e aux normes de sécuri té e n vigueur e n matière d'exposition aux ondes r adioélectriques. V otr e téléphone sans fil est un émetteur et un récepteur radi o. Il est conçu de manière à ne pa s dépasser les limites* d'exposi tion à l'énergie des fré quences ra dio (RF) établ ies pa r les a utorités gouvernemental es. Ces limites fixe nt l es nivea ux maxi ma ux d'énergie RF auxquel s peut être soumi s le gra nd public. Ces lignes dire ctrices sont basées sur des norme s qui ont ét é élaboré es par des or ga ni sations scientifique s internati onale s par le bi ais d'évaluations péri odiques et appr of ondies des études sci entifiques. Ces normes prévoient une marge de sécuri té visant à assur er la prot ection de tous le s i ndi vidus, pe u importe leur â ge et le ur état de santé. Les li gne s directrices r elatives à l'exposition aux ondes radioél ectriques uti lisent une unité de mesur e appelé e « T aux d'absor ption spécifique » (TAS). Les tests de T AS sont eff ectués selon des méthodes standardisée s dans lesqu elles le tél éphone émet dans toutes l es ba ndes de fr équence s utilisées, à la plus forte puissance pour laquelle il a été homol ogué. Bien que l e TA S puisse êtr e différ ent d'un modèl e de télé phone à un autr e, tous les appareils sont conçus pour respecter l es lignes directrices r elatives aux ondes r a dioél ectriques. Pour en sa voir plus sur le DAS, reportez-v ous au chapitre sur les renseigneme nts importants du gui de de l'util isate ur. Le DAS le plus él evé r el ev é par les a utorité s pour ce modèle de téléphone est de 0.885 W/kg* l orsqu'il est testé e n uti lisati on près de l 'or eill e, et de 1.501 W/kg* lor squ'il est porté sur l e cor ps. En mode d’utili sation porté sur l e cor ps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et à l’écart de toute piè ce en métal, ou l orsqu’il est utili sé de façon adéquate 4 avec un accessoire et porté sur le cor ps. Pour les appar eils muni s de la fonctionnalité « point d'accès WiFi », le s mesur es du DAS de l'appar eil en mode WiFi ont été prise s à une distance de sécurité de 10 mm…

Text truncated - open the document above for the full version.

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 338/0061-LXE 110 0790 Uen A Prepared by Date SEM/CGQTAGC CAROL LI 2014-06-19 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAGC (CAROL LI) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England To whom it may concern This is to certify that Sony Mobile Communications Inc authorizes UL to act as Telecommunication Certification Body on behalf for the FCC application of our mobile phone FCC ID: PY7PM-0800. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Yours sincerely Mika Kaneko Sony Mobile Communications Inc Tel: +81 3 5782 5706 Konan, Minato-ku, 108-0075, Tokyo, Japan [email protected]

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 13/0061-FCP 101 2600 Uen A Prepared by Date SEM/CGQTAGC CAROL LI 2014-06-19 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAGC (CAROL LI) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England Subject: Certification Application FCC ID: PY7PM-0800 It is requested that the following information is to be held confidential on behalf of Sony Mobile Communications Inc pursuant to FCC Rules Parts 0.457 and 0.459: Block Diagrams Schematics Parts List Tune Up Information Operation Description These items contain detailed system and equipment description and related information about the product which Sony Mobile Communications Inc considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Mobile Communications Inc also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Yours sincerely Mika Kaneko Sony Mobile Communications Inc Tel: +81 3 5782 5706 Konan, Minato-ku, 108-0075, Tokyo, Japan [email protected]

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 12/0061-FCP 101 2600 Uen A Prepared by Date SEM/CGQTAGC CAROL LI 2014-06-19 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAGC (CAROL LI) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England Subject: Short term confidentiality request Applies to FCC ID: PY7PM-0800 Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing Regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, Sony Mobile Communications Inc is requesting the commission to grant short-term confidentiality request on the following documents for 180 days from date of the Grant of Equipment Authorization. User manual Test setup photos External photos Internal photos If the launch date is re-scheduled to be earlier than the last day of this period, Sony Mobile Communications Inc will inform again to cancel this restriction. Please contact the undersigned if there are any further questions or additional information needed in this matter. Yours sincerely Mika Kaneko Sony Mobile Communications Inc Tel: +81 3 5782 5706 Konan, Minato-ku, 108-0075, Tokyo, Japan [email protected]

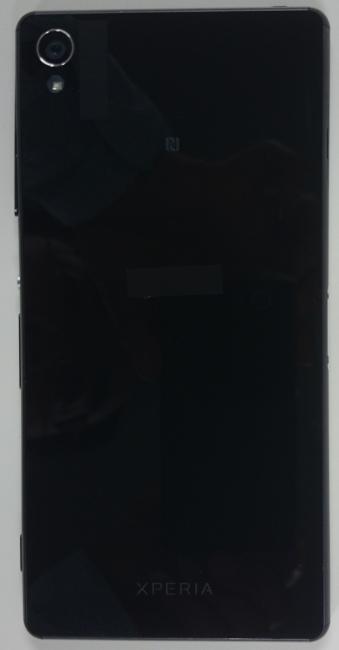

Sony Mobile Communications Confidential REPORT 1(1) Document number Revision PA1 Prepared by Date SOMC/CGVOHCD KATSUJI KAWAKAMI 2014-06-10 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by PY7PM-0800: External Photos: Front: Rear: Side view: Top/Bottom view:

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document number Revision 118/1483-LXE 108 828 Uen A Prepared by Date SEM/CGQTAOA TOSHIKO KITAHARA 2014-06-17 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAOA (MIGUEL DELORME) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. l-san The FCC ID is not on the exterior of the device but labelling meets the conditions allowed in KDB 784748 for the label to be placed in a user accessible area: 1. The device is handheld 2. The quick start manual directs the user where to find the FCC label 3. The user does not require any special tools to access the FCC label and the label is not removable 4. The FCC ID is on the label, 2-part statement in manual due to device size.

Sony Mobile Communications Confidential REPORT 1(3) Document number Revision PA2 Prepared by Date SOMC/CGVOHCD KATSUJI KAWAKAMI 2014-06-18 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. PY7PM-0800: Internal Photos: Without Rear Panel Without PWB Rear Panel With PWB Confidential REPORT 2(3) Document number Revision PA1 Internal PWB with/without Shield cases – Front (LCD)-side: Internal PWB with Shield cases (Front-side) Internal PWB without Shield cases (Front-side) Internal PWB with/without Shield cases - Rear-side: Internal PWB with Shield cases (Rear-side) Internal PWB without Shield cases (Rear-side) Confidential REPORT 3(3) Document number Revision PA1 Battery:

UL VS LTD Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP10295085JD01K V2.0 Manufacturer : Sony Mobile Communications Inc. FCC ID : PY7PM-0800 Technology : ANT+ Test Standard(s) : FCC Part 15.249 Subpart C 1. This test report shall not be reproduced in full or partial, without the written approval of UL VS LTD. 2. The results in this report apply only to the sample(s) tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 2.0 supersedes all previous versions. Date of Issue: 01 August 2014 Checked by: Sarah Williams Engineer, Radio Laboratory Issued by : pp John Newell Group Quality Manager Basingstoke, UL VS LTD This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its’ terms of accreditation. TEST REPORT SERIAL NO: UL-RPT-RP10295085JD01K VERSION 2.0 ISSUE DATE: 01 AUGUST 2014 Page 2 of 30 UL VS LTD This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP10295085JD01K VERSION 2.0 ISSUE DATE: 01 AUGUST 2014 UL VS LTD Page 3 of 30 Table of Contents 1. Customer Information ................................................................................................................ 4 2. Summary of Testing ................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) .................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................. 9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ...............................................................10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Transmitter AC Conducted Spurious Emissions 11 5.2.2. Transmitter Fundamental Field Strength 14 5.2.3. Transmitter Duty Cycle 17 5.2.4. Transmitter 20 dB Bandwidth 19 5.2.5. Transmitter Radiated Emissions 22 5.2.6. Transmitter Band Edge Radiated Emissions 27 6. Measurement Uncertainty ........................................................................................................29 7. Report Revision History ...........................................................................................................30 TEST REPORT SERIAL NO: UL-RPT-RP10295085JD01K VERSION 2.0 ISSUE DATE: 01 AUGUST 2014 Page 4 of 30 UL VS LTD 1. Customer Information Company Name: Sony Mobile Communications Inc. Address: Nya Vattentornet Mobilvägen 10 Lund 22188 Sweden TEST REPORT SERIAL NO: UL-RPT-RP10295085JD01K VERSION 2.0 ISSUE DATE: 01 AUGUST 2014 UL VS LTD Page 5 of 30 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.249 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Section 15.249 Specification Reference: 47CFR15.207 and 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Sections 15.207 and 15.209 Site Registration: 209735 Location of Testing: UL VS LTD, Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 17 June 2014 to 18 June 2014 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.207 Transmitter AC Conducted Emissions Part 15.249(a)(e) Transmitter Fundamental Field Strength Part 15.35(c) Duty cycle Note 1 Part 2.1049 Transmitter 20 dB Bandwidth Part 15.249(d)(e)/15.209(a) Transmitter Radiated Emissions Part 15.249(d)/15.209(a) Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply Note(s): 1. The measurements were performed to assist in the calculation of average Fundamental Field Strength and radiated emissions as the EUT was not constantly transmitting 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: UL-RPT-RP10295085JD01K VERSION 2.0 ISSUE DATE: 01 AUGUST 2014 Page 6 of 30 UL VS LTD 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Sony IMEI: 004402452705373 (Radiated sample) Test Sample Serial Number: CB5A1Z7PKX Hardware Version Number: A Software Version Number: ATP…
