PY7PM-0801Quad GSM/ WCDMA/ LTE cellular mobile telephone with BT, WLAN, Ant+ and RF ID

Important Information Before you use your device, please read the Important Information provided in your device regarding warranty, safety and handling information. Protecting your device from water and dust Your device has IP (Ingress Protection) ratings of IP65 and IP68. These ratings mean that your device is dust tight and is protected against low pressure water stream as well as against the effects of submersion for 30 minutes in fresh (non-saline) water up to 1.5 metres deep. Always firmly attach all covers to ensure the water and dust resistance of the device. If liquid is detected inside the device, for example, underneath one of the covers, your warranty will be void. Before using your device in water and in dusty conditions, refer to the relevant section of the User guide for your device for more detailed information. An online User guide as well as a downloadable version is available at www.sonymobile.com/support. Overview 214356 7 8 9 10 11 121413 16 18 19 17 15 1. Charging/Notification light 2. Headset jack 3. Second microphone 4. Proximity/Light sensor 5. Ear speaker/Second speaker 6. Front camera lens 7. Cover for nano SIM and memory card slot 8. Power key 9. Volume/Zoom key 10. Camera key 11.Main microphone/Speaker 12. Main camera lens 13. Camera light 14. GPS antenna area 15. Wi-Fi/Bluetooth antenna area 16. Cover for charger/USB cable port 17. NFC™ detection area 18. Charging dock connector 19. Strap hole Use the accessories, such as the charger and the charging cable, provided with your device for optimal performance. Assembly Please use the nano SIM card included in the box. This new card allows you to use the Wi-Fi Calling feature and other enhanced device features. For help transferring contacts from your previous SIM card, please ask a retail store representative to help you. Your device only supports nano SIM cards. Make sure you insert the nano SIM card into the nano SIM card holder before inserting it into the device. Also, don’t confuse the nano SIM card slot with the memory card slot. To insert the nano SIM card If you insert the nano SIM card while the device is powered on, the device restarts automatically. 1 Detach the cover for the nano SIM card holder. 2 Using a fingernail or other similar object, drag out the nano SIM card holder. 3 Place the nano SIM card in the nano SIM card holder, then reinsert the holder. 4 Re-attach the cover. Make sure you reinsert the nano SIM card holder in the correct orientation. When you drag the holder out to insert the nano SIM card, do not turn the holder around. To insert the memory card 1 Remove the memory card slot cover. 2 With the gold coloured contacts facing down, insert the memory card into the memory card slot, then re-attach the memory card slot cover. Basics Turning on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. To turn on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. 1 Press and hold down the power key until the device vibrates. 2 Wait a while for the device to start. Waking up the screen To activate the screen • Briefly press the power key . • If Tap to wake up mode is enabled, double-tap the screen. To enable Tap to wake up mode, go to the Home screen, then tap > Settings > Display > Tap to wake up. Setting up your device Setup guide The first time you start your device, a setup guide opens to help you configure basic settings, sign in to some accounts (for example, your Google™ account), and personalise your device. You can also manually access the setup guide at a later stage. To access the setup guide manually 1 From the Home screen, tap . 2 Tap > Setup guide. Accessing settings View and change settings for your device from the Settings menu. The Settings menu is accessible from both the Application screen and the Quick settings panel. To access your device settings 1 From your Home screen, tap . 2 Find and tap . Transferring your contacts Xperia™ Transfer is an application within the PC Companion and the Sony Bridge for Mac computer programs that helps you to collect contacts from your old device and transfer them to your new device. Xperia™ Transfer supports several device brands, including iPhone, Samsung, HTC, BlackBerry, LG, and Nokia. You need: • An Internet-connected computer. • A USB cable for your old device. • A USB cable for your new Android™ device. • Your old device. • Your new Android™ device. To transfer contacts to your new device 1 Search and download PC Companion (on a PC) or Bridge for Mac (on a Mac computer) from www.sonymobile.com if the application is not already installed. 2 After successful installation, open the PC Companion application or the Sony Bridge for Mac application, then click Xperia™ Transfer and follow the relevant instructions to transfer your contacts. Backing up content of your device Use the Back up & restore application to make backups of content to Google servers. Such backups can be used to restore your content and some settings in cases where your data gets lost or deleted. See the relevant section of the User guide for more detailed information. An online User guide as well as a downloadable version is available at www.sonymobile.com/support. Finding your way Using the keys Back navigation key • Go back to the previous screen within an application or close the application. Home navigation key • Exit an application and go back to the Home screen. Task navigation key • Open the recently used applications window and the small apps bar. Application screen • Open the Application screen. Basic applications and settings Make phone calls by dialling the number manually or by using the smart dial function. Use the Messaging application to send and receive text and multimedia messages. Go to Google Play™ to download free and paid applications for your device. Optimise the device settings to suit your own requirements. …

Text truncated - open the document above for the full version.

©2014 Important information Sony Consumer Web site At www.sonymobile.com/support there is a support section where help and tips are only a few clicks away. Here you will find the latest computer software updates and tips on how to use your product more efficiently. Service and support You have access to a portfolio of exclusive service advantages such as: • Global and local Web sites providing support. • A global network of Contact Centers. • An extensive network of Sony service partners. • A warranty period. Learn more about the warranty conditions in the Limited Warranty section. At www.sonymobile.com/support or www.sonymobile.com/contact, you can find the latest support tools and information. For operator-specific services and features, please contact your network operator. You can also contact our Contact Centers or contact your local dealer. (Calls are charged according to national rates, including local taxes, unless it is a toll-free number.) If your product needs service, please contact the dealer from whom it was purchased, or one of our service partners. To make a claim under the limited warranty, proof of purchase is required. Guidelines for Safe and Efficient Use Please follow these guidelines. Failure to do so might entail a potential health risk or product malfunction. If in doubt as to its proper function, have the product checked by a certified service partner before charging or using it. 2 Recommendations for care and safe use of our products • Handle with care and keep in a clean and dust-free place. • Warning! May explode if disposed of in fire. • Do not use in environments where relevant IP rating limitations, if applicable, are exceeded (including excess depths and/or pressures of liquid and/or dust) or expose to excess humidity. • For optimum performance, the product should not be operated in temperatures below -10°C(+14°F) or above +45°C(+113°F). Do not expose the battery to temperatures above +60°C(+140°F). • Do not expose to flames or lit tobacco products. • Do not drop, throw or try to bend the product. • Do not paint or attempt to disassemble or modify the product. Only Sony authorised personnel should perform service. • Consult with authorised medical staff and the instructions of the medical device manufacturer before using the product near pacemakers or other medical devices or equipment. • Discontinue use of electronic devices, or disable the radio transmitting functionality of the device, where required or requested to do so. • Do not use where a potentially explosive atmosphere exists. • Do not place the product, or install wireless equipment, in the area above an air bag in a car. • Caution: Cracked or broken displays may create sharp edges or splinters that could be harmful upon contact. • Do not use a Bluetooth Headset in positions where it is uncomfortable or will be subject to pressure. 3 Children Warning! Keep out of the reach of children. Do not allow children to play with mobile devices or accessories. They could hurt themselves or others. Products may contain small parts that could become detached and create a choking hazard. Power supply (Charger) Connect the charger to power sources as marked on the product. Do not use outdoors or in damp areas. Do not alter or subject the cord to damage or stress. Unplug the unit before cleaning it. Never alter the plug. If it does not fit into the outlet, have a proper outlet installed by an electrician. When a power supply is connected there is a small drain of power. To avoid this small energy waste, disconnect the power supply when the product is fully charged. Use of charging devices that are not Sony branded may pose increased safety risks. Battery New or idle batteries can have short-term reduced capacity. Fully charge the battery before initial use. Use for the intended purpose only. Charge the battery in temperatures between +5°C(+41°F) and +45°C(+113°F). Do not put the battery into your mouth. Do not let the battery contacts touch another metal object. Turn off the product before removing the battery. Performance depends on temperatures, signal strength, usage patterns, features selected and voice or data transmissions. Only Sony service partners should remove or replace built-in batteries. Use of batteries that are not Sony branded may pose increased safety risks. Replace the battery only with another Sony battery that has been qualified with the product per the standard IEEE-1725. Use of an unqualified 4 battery may present a risk of fire, explosion, leakage or other hazard. Personal medical devices Mobile devices / devices with radio transmitters may affect implanted medical equipment. Reduce risk of interference by keeping a minimum distance of 15 cm(6 inches) between the Sony product and the medical device. Use the Sony device at your right ear, when applicable. Do not carry the device in your breast pocket. Turn off the device if you suspect interference. For use in proximity to personal medical devices, please consult a physician and the device manufacturer. Driving In some cases, vehicle manufacturers may forbid the use of mobile devices in their vehicles unless a handsfree kit with an external antenna supports the installation. Check with the vehicle manufacturer's representative to be sure that a mobile device or Bluetooth handsfree will not affect the electronic systems in the vehicle. Full attention should be given to driving at all times and local laws and regulations restricting the use of wireless devices while driving must be observed. GPS/Location based functions Some products provide GPS/Location based functions. Location determining functionality is provided “As is” and “With all faults”. Sony does not make any representation or warranty as to the accuracy of such location information. Use of location-based information by the device may not be uninterrupted or error free and may additionally be dependent on network service availability. Please note that functionality may be reduced…

Text truncated - open the document above for the full version.

SAR Information FCC Statement Declaration of Conformity Sony D6616 UMTS HSPA Band 1 2 4 5 8 GSM GPRS/EDGE 850/900/1800/1900 LTE Band 2 4 12 Important Information United States THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The D6616 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the Important Information chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.988 W/kg*, and when worn on the body is 1.489 W/kg*. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party 2 accessories may result in different SAR levels than those reported. **Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://transition.fcc.gov/oet/ea/fccid after searching on FCC ID PY7PM-0801. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a mar gin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. 3 Renseignements importants États-Unis CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles de la D6616 ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites* d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes standardisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le DAS, reportez-vous au chapitre sur les renseignements importants du guide de l'utilisateur. Le DAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de 0.988 W/kg* lorsqu'il est testé en utilisation près de l'oreille, et de 1.489 W/kg* lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon adéquate 4 avec un accessoire et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », les mesures du DAS de l'appareil en mode WiFi ont été prises à une distance de sécurité de 10 mm. L'utilisation d'accessoires tiers peut produire des niveaux de DAS différents de ceux relevés. **Avant qu'un modèle de téléphone ne soit mis en vente auprès du public aux États-Unis, la Commission fédérale des communications (CFC) do…

Text truncated - open the document above for the full version.

Confidential 1(1) LETTER Sony Mobile Communications Document number Revision Prepared by 17/0061-LXE 110 1479 Uen A SEM/CGQTAGC CAROL LI Date Contents responsible if other than preparer 2014-06-27 Remarks Approved by This document is managed in metaDoc. SEM/CGQTAGC(CAROL LI) Telecommunications Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England UNII Device Declaration Letter – PY7PM-0801 To whom it may concern, With reference to KDB 905462 D03, we, Sony Mobile Communications Inc., hereby declare the following for FCC ID: PY7PM-0801:  The device client software and associated drivers will not initiate any transmissions on DFS frequencies without initiation by a master. This includes restrictions on transmissions for beacons and support for ad-hoc peer-to-peer modes. The device is a client device without detection on DFS frequencies.

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 330/0061-LXE 110 0790 Uen B Prepared by Date SEM/CGQTAGC CAROL LI 2014-06-16 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAGC (CAROL LI) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England To whom it may concern This is to certify that Sony Mobile Communications Inc authorizes UL to act as Telecommunication Certification Body on behalf for the FCC application of our mobile phone FCC ID: PY7PM-0801. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Yours sincerely Mika Kaneko Sony Mobile Communications Inc Tel: +81 3 5782 5706 Konan, Minato-ku, 108-0075, Tokyo, Japan [email protected]

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 9/0061-FCP 101 2600 Uen B Prepared by Date SEM/CGQTAGC CAROL LI 2014-06-16 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAGC (CAROL LI) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England Subject: Certification Application FCC ID: PY7PM-0801 It is requested that the following information is to be held confidential on behalf of Sony Mobile Communications Inc pursuant to FCC Rules Parts 0.457 and 0.459:  Block Diagrams  Schematics  Parts List  Tune Up Information  Operation Description These items contain detailed system and equipment description and related information about the product which Sony Mobile Communications Inc considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Mobile Communications Inc also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Yours sincerely Mika Kaneko Sony Mobile Communications Inc Tel: +81 3 5782 5706 Konan, Minato-ku, 108-0075, Tokyo, Japan [email protected]

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 10/0061-FCP 101 2600 Uen C Prepared by Date SEM/CGQTAGC CAROL LI 2014-06-19 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAGC (CAROL LI) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England Subject: Short term confidentiality request Applies to FCC ID: PY7PM-0801 Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing Regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, Sony Mobile Communications Inc is requesting the commission to grant short-term confidentiality request on the following documents for 180 days from date of the Grant of Equipment Authorization.  User manual  Test setup photos  External photos  Internal photos If the launch date is re-scheduled to be earlier than the last day of this period, Sony Mobile Communications Inc will inform again to cancel this restriction. Please contact the undersigned if there are any further questions or additional information needed in this matter. Yours sincerely Mika Kaneko Sony Mobile Communications Inc Tel: +81 3 5782 5706 Konan, Minato-ku, 108-0075, Tokyo, Japan [email protected]

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 344/0061-LXE 110 0790 Uen A Prepared by Date SEM/CGQTAGC CAROL LI 2014-06-26 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAGC (CAROL LI) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England We, Sony Mobile Communication Inc., hereby give the following justification for the use of FCC ID: PY7PM-0800 test report(s) for the FCC ID: PY7PM-0801 application The product form factors between the two FCC IDs are identical For WLAN 5GHz, the hardware, software and antenna type and construction are identical between the two FCC IDs. FCC ID: PY7PM-0800 has a higher antenna gain than FCC ID: PY7PM- 0801. Based on the above, the WLAN 5GHz Part 15C test report (issued by UL VS Ltd.) for FCC ID: PY7PM-0800 also applies to FCC ID: PY7PM-0801. The applicable test report is listed below: WLAN 5.0GHz 15.407 - NII - UL-RPT-RP10295085JD01I Yours sincerely Mika Kaneko Sony Mobile Communications Inc Tel: +81 3 5782 5706 Konan, Minato-ku, 108-0075, Tokyo, Japan [email protected]

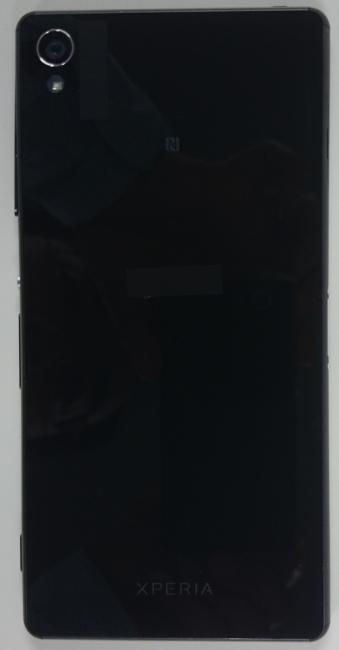

Sony Mobile Communications Confidential REPORT 1(1) Document number Revision PA1 Prepared by Date SOMC/CGVOHCD KATSUJI KAWAKAMI 2014-05-30 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. PY7PM-0801: External Photos: Front: Rear: Side view: Top/Bottom view:

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document number Revision 112/1483-LXE 108 828 Uen A Prepared by Date SEM/CGQTAOA TOSHIKO KITAHARA 2014-06-12 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAOA (MIGUEL DELORME) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. l-san The FCC ID is not on the exterior of the device but labelling meets the conditions allowed in KDB 784748 for the label to be placed in a user accessible area: 1. The device is handheld 2. The quick start manual directs the user where to find the FCC label 3. The user does not require any special tools to access the FCC label and the label is not removable 4. The FCC ID is on the label, 2-part statement in manual due to device size.

Sony Mobile Communications Confidential REPORT 1(3) Document number Revision PA1 Prepared by Date SOMC/CGVOHCD KATSUJI KAWAKAMI 2014-05-30 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. PY7PM-0801: Internal Photos: With PWB Without Rear Panel Without PWB Rear Panel Confidential REPORT 2(3) Document number Revision PA1 Internal PWB with/without Shield cases – Front (LCD)-side: Internal PWB with Shield cases (Front-side) Internal PWB without Shield cases (Front-side) Internal PWB with/without Shield cases - Rear-side: Internal PWB with Shield cases (Rear-side) Internal PWB without Shield cases (Rear-side) Confidential REPORT 3(3) Document number Revision PA1 Battery:

REPORT NO: UL-SAR-RP10295122JD06A V5.0 Issue Date: 15 July 2014 Page 91 of 156 UL Verification Services Ltd. Report. No.: 5.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. A.1.1. Calibration Certificates This section contains the calibration certificates and data for the Probe(s) and Dipole(s) used, which are not included in the total number of pages for this report.

REPORT NO: UL-SAR-RP10295122JD06A V5.0 Issue Date: 15 July 2014 Page 94 of 156 UL Verification Services Ltd. Report. No.: 5.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. APPENDIX 3. SAR DISTRIBUTION SCANS This appendix contains SAR distribution scans which are not included in the total number of pages for this report. REPORT NO: UL-SAR-RP10295122JD06A V5.0 Issue Date: 15 July 2014 UL Verification Services Ltd. Report. No.: 5.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. SAR DISTRIBUTION SCANS This appendix contains SAR distribution scans which are not included in the total number of pages for this report. Scan Reference Number Title 001 Touch Left GSM850 CH190 002 Tilt Left GSM850 CH190 003 Touch Right GSM850 CH190 004 Tilt Right GSM850 CH190 005 Touch Right GSM850 CH128 006 Touch Right GSM850 CH251 007 Front of EUT Facing Phantom GPRS 850 CH190 008 Back of EUT Facing Phantom GPRS 850 CH190 009 Left of EUT Facing Phantom GPRS 850 CH190 010 Right of EUT Facing Phantom GPRS 850 CH190 011 Bottom of EUT Facing Phantom GPRS 850 CH190 012 Back of EUT Facing Phantom GPRS 850 CH128 013 Back of EUT Facing Phantom GPRS 850 CH251 014 Front of EUT Facing Phantom GSM 850 CH190 015 Back of EUT Facing Phantom GSM 850 CH190 016 Back of EUT Facing Phantom GSM 850 CH128 017 Back of EUT Facing Phantom GSM 850 CH251 018 Touch Left Phantom PCS 1900 CH661 019 Tilt Left Phantom PCS 1900 CH661 020 Touch Right Phantom PCS 1900 CH661 021 Tilt Right Phantom PCS 1900 CH661 022 Touch Right Phantom PCS 1900 CH512 023 Touch Right Phantom PCS 1900 CH810 024 Front of EUT Facing Phantom GPRS 1900 CH661 025 Front of EUT Facing Phantom GPRS 1900 CH512 026 Back of EUT Facing Phantom GPRS 1900 CH661 027 Left of EUT Facing Phantom GPRS 1900 CH661 028 Right of EUT Facing Phantom GPRS 1900 CH661 029 Bottom of EUT Facing Phantom GPRS 1900 CH661 030 Front of EUT Facing Phantom GPRS 1900 CH810 031 Bottom of EUT Facing Phantom GPRS 1900 CH810 032 Bottom of EUT Facing Phantom GPRS 1900 CH512 REPORT NO: UL-SAR-RP10295122JD06A V5.0 Issue Date: 15 July 2014 UL Verification Services Ltd. Report. No.: 5.0 This report shall not be reproduced except in full, without the written approval of UL Verification Services Ltd. SAR Distribution Scans (Continued): Scan Reference Number Title 033 Front of EUT Facing Phantom PCS 1900 CH661 034 Back of EUT Facing Phantom…

Text truncated - open the document above for the full version.
