PY7PM-0803Quad GSM/WCDMA/LTE cellular mobile telephone with BT, WLAN, Ant+ and RF ID

SOL26 Preface Thank you for buying XXXXXXXX (simply called the "product" from here on). Before using the product, read "Basic Manual" (this manual) and " (Full Instruction Manual)" (Japanese) to ensure safe use and handling. About Operating Instructions Basic Manual (this manual) Handles only basic operations for main features. For detailed descriptions on various functions, refer to the "Instruction Manual" (Japanese) application installed on the product or " (Full Instruction Manual) (Japanese)" available on the au homepage. http://www.au.kddi.com/support/mobile/guide/manual/ Company names and product names referred to in this manual are trademarks or registered trademarks of respective companies. The TM, ® marks may be omitted in this manual. "Instruction Manual" (Japanese) application This product allows you to use the "Instruction Manual" (Japanese) application on the product to confirm detailed operational procedures. Certain functions can be directly activated from the application screens on which their operations are described. From the Home screen, []X[ (Customer support)]X[Basic Manual] (Japanese) When you activate for the first time, follow the onscreen instructions to download and install application. For Those Requiring an English Instruction Manual You can download the English version of the Basic Manual from the au homepage (available in approximately one month after the product is released). Download URL: http://www.au.kddi.com/support/mobile/guide/manual/ Safety Precautions Before you start using the product, make sure to read the "Cautions on using XXXXXXXX to ensure correct use. Before you assume that the product is malfunctioning, check for possible remedies in the following au Customer Support site of au homepage: http://www.au.kddi.com/support/mobile/trouble/repair Regarding notations used in this document In this manual, keys (key icons) are represented by simplified illustrations such as x, y, r, P, k. Operations of tapping menu items/icons/buttons on the screen etc. are indicated as [(name of the item etc.)]. Screen illustrations shown in this manual may look different from the actual screens. In some cases, minor details or a part of a screen may be omitted. In this manual, "microSD TM memory card", "microSDHC TM memory card" and "microSDXC TM memory card" are abbreviated as "microSD memory card" or "microSD". All of the indicated amounts exclude tax unless otherwise specified. "The Company" as appears on the product refers to the following companies: Sold by: KDDI CORPORATION, OKINAWA CELLULAR TELEPHONE COMPANY Manufactured by: Sony Mobile Communications Inc. Using au (au Disaster Countermeasure) You can use (Disaster Message Board) service, (Emergency Rapid Mail) service that distributes (Earthquake Early Warning), (Disaster and Evacuation Information) and (Tsunami Warning), and (Disaster Voice Messaging Service). 1From the Home screen, [au (au Disaster Countermeasure)] au (au Disaster Countermeasure) menu appears. Using (Disaster Message Board) Disaster Message Board service enables you to register information of well-being from an area of distress via LTE NET in case of large-scale disaster such as earthquake with a seismic intensity of over 6 lower. 1au (au Disaster Countermeasure) menuX[ (Disaster Message Board)] ❖Information To register information of well-being, E-mail address (ezweb.ne.jp) is required. Set up E-mail address beforehand. Using (Emergency Rapid Mail) Emergency Rapid Mail is a service that distributes Earthquake Early Warning or Tsunami Warning delivered from the meteorological bureau or Disaster and Evacuation Information delivered from the government or local public organization to all au cell phones in specified areas simultaneously. When you receive Earthquake Early Warning, ensure your safety and take proper action according to the situation around you. When you receive a Tsunami Warning, draw away from sea coast immediately and evacuate to safe place such as upland or well-built high building. 1au (au Disaster Countermeasure) menuX[ (Emergency Rapid Mail)] ❖Information Reception of Emergency Rapid Mail is notified by a special warning tone and vibration. It is not possible to change the warning tone. *Earthquake Early Warning is notified by warning tone and voice sound ("" (It is an earthquake)), and vibration. Earthquake Early Warning may not arrive before strong tremors in areas near the epicenter. Tsunami Warning is a major tidal wave/seismic sea wave notification delivered from the meteorological bureau to the area including target coast. Disaster and Evacuation Information is a service that distributes bulletins concerning residents' safety including evacuation advisories, evacuation orders and other warnings issued by the national and local governments. The service is available only in Japan (it cannot be used overseas). No information fee or communication charge is required for receiving Emergency Rapid Mail. KDDI is not liable for damages suffered by customers resulting from the service's information, lack or delay in the information caused by transmission or system breakdowns, or other events that are outside the responsibility of KDDI. Refer to the Japan Meteorological Agency web page for details about distribution of Earthquake Early Warning. http://www.jma.go.jp/ You cannot receive Emergency Rapid Mail when your cell phone is turned off or during a call. Emergency Rapid Mail may not be received when your cell phone is communicating such as while sending/receiving SMS/e-mail or using the browser, or if you are in a place where signal does not reach even in the service area (e.g. in a tunnel, basement) or in a place with a poor reception. You cannot receive the Emergency Rapid Mail that the reception is failed. This delivery system is different from Earthquake Early Warning provided through TV, radio, or other communication procedures, which means that the time the Earthquake Early Warning arrives may vary. Information from …

Text truncated - open the document above for the full version.

www.sonymobile.com Sony Mobile Communications I nc. 1222-9266.14 ©2014 Important information Sony Consumer Web site At www.sonymobile.com/support there is a support section where help and tips are only a few clicks away. Here you will find the latest computer software updates and tips on how to use your product more efficiently. Service and support You have access to a portfolio of exclusive service advantages such as: • Global and local Web sites providing support. • A global network of Contact Centers. • An extensive network of Sony service partners. • A warranty period. Learn more about the warranty conditions in the Limited Warranty section. At www.sonymobile.com/support or www.sonymobile.com/contact, you can find the latest support tools and information. For operator-specific services and features, please contact your network operator. You can also contact our Contact Centers or contact your local dealer. (Calls are charged according to national rates, including local taxes, unless it is a toll-free number.) If your product needs service, please contact the dealer from whom it was purchased, or one of our service partners. To make a claim under the limited warranty, proof of purchase is required. Guidelines for Safe and Efficient Use Please follow these guidelines. Failure to do so might entail a potential health risk or product malfunction. If in doubt as to its proper function, have the product checked by a certified service partner before charging or using it. Recommendations for care and safe use of our products • Handle with care and keep in a clean and dust-free place. • Warning! May explode if disposed of in fire. • Do not use in environments where relevant IP rating limitations, if applicable, are exceeded (including excess depths and/or pressures of liquid and/or dust) or expose to excess humidity. • For optimum performance, the product should not be operated in temperatures below -10°C(+14°F) or above +45°C(+113°F). Do not expose the battery to temperatures above +60°C(+140°F). • Do not expose to flames or lit tobacco products. • Do not drop, throw or try to bend the product. 2 • Do not paint or attempt to disassemble or modify the product. Only Sony authorised personnel should perform service. • Consult with authorised medical staff and the instructions of the medical device manufacturer before using the product near pacemakers or other medical devices or equipment. • Discontinue use of electronic devices, or disable the radio transmitting functionality of the device, where required or requested to do so. • Do not use where a potentially explosive atmosphere exists. • Do not place the product, or install wireless equipment, in the area above an air bag in a car. • Caution: Cracked or broken displays may create sharp edges or splinters that could be harmful upon contact. • Do not use a Bluetooth Headset in positions where it is uncomfortable or will be subject to pressure. C hildren Warning! Keep out of the reach of children. Do not allow children to play with mobile devices or accessories. They could hurt themselves or others. Products may contain small parts that could become detached and create a choking hazard. Power supply (Charger) Connect the charger to power sources as marked on the product. Do not use outdoors or in damp areas. Do not alter or subject the cord to damage or stress. Unplug the unit before cleaning it. Never alter the plug. If it does not fit into the outlet, have a proper outlet installed by an electrician. When a power supply is connected there is a small drain of power. To avoid this small energy waste, disconnect the power supply when the product is fully charged. Use of charging devices that are not Sony branded may pose increased safety risks. Battery New or idle batteries can have short-term reduced capacity. Fully charge the battery before initial use. Use for the intended purpose only. Charge the battery in temperatures between +5°C(+41°F) and +45°C(+113°F). Do not put the battery into your mouth. Do not let the battery contacts touch another metal object. Turn off the product before removing the battery. Performance depends on temperatures, signal strength, usage patterns, features selected and voice or data transmissions. Only Sony service partners should remove or replace built-in batteries. Use of batteries that are not Sony branded may pose increased safety risks. Replace the battery only with another Sony battery that has been qualified with the product per the standard IEEE-1725. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. 3 Personal medical devices Mobile devices / devices with radio transmitters may affect implanted medical equipment. Reduce risk of interference by keeping a minimum distance of 15 cm(6 inches) between the Sony product and the medical device. Use the Sony device at your right ear, when applicable. Do not carry the device in your breast pocket. Turn off the device if you suspect interference. For use in proximity to personal medical devices, please consult a physician and the device manufacturer. D riving In some cases, vehicle manufacturers may forbid the use of mobile devices in their vehicles unless a handsfree kit with an external antenna supports the installation. Check with the vehicle manufacturer's representative to be sure that a mobile device or Bluetooth handsfree will not affect the electronic systems in the vehicle. Full attention should be given to driving at all times and local laws and regulations restricting the use of wireless devices while driving must be observed. GPS/Location based functions Some products provide GPS/Location based functions. Location determining functionality is provided “As is” and “With all faults”. Sony does not make any representation or warranty as to the accuracy of such location information. Use of location-based information by the device may not be uninterrupted or error free and may additionally be dependent on network se…

Text truncated - open the document above for the full version.

Mobile Phone GSM/GPRS/EDGE 850/900/1800/1900&UMTS/HSPA Bands1/2/5&LTE Bands1/3/17/26/41&CDMA JP BC0/6 United States THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The SOL26 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the important information chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.58 W/kg*, and when worn on the body is 1.34 W/kg* . For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include "WiFi hotspot" functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10mm. Use of third-party accessories may result in different SAR levels than those reported. ** Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http:// transition.fcc.gov/oet/ea/fccid/ after searching on FCC ID PY7PM- 0803. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. * In the United States, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. ** This paragraph is only applicable to authorities and customers in the United States. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any change or modification not expressly approved by Sony may void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. SOL26_SAR_US.fm Page 139 Wednesday, July 23, 2014 3:20 PM We, Sony Mobile Communications AB of Nya Vattentornet SE-221 88 Lund, Sweden declare under our sole responsibility that our product Sony type PM-0803-BV and in combination with our accessories, to which this declaration relates is in conformity with the appropriate standards EN 301 489-3:V1.6.1, EN 301 489-7:V1.3.1, EN 301 489-17:V2.2.1, EN 301 489-24:V1.5.1, EN 300 328:V1.8.1, EN 300 440-2:V1.4.1, EN 301 511:V9.0.2, EN 301 893:V1.7.1, EN 301 908-1:V6.2.1, EN 301 908-2:V5.4.1, EN 301 908-13:V5.2.1, EN 302 291-2:V1.1.1, EN 62209- 1:2006, EN 62209-2:2010 and EN 60950-1:2006+A11:2009+A1:2010 +A12:2011 following the provisions of Radio Equipment and Telecommunication Terminal Equipment directive 1999/5/EC. Lund, July 2014 Pär Thuresson Quality Officer, SVP, Quality & Customer Services We fulfill the requirements of the R&TTE Directive (1999/5/EC) Signature SOL26_SAR_US.fm Page 140 Wednesday, July 23, 2014 3:20 PM

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document number Revision 125/1483-LXE 108 828 Uen A Prepared by Date SEM/CGQTAOA TOSHIKO KITAHARA 2014-06-23 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAOA (MIGUEL DELORME) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England To whom it may concern This is to certify that Sony Mobile Communications Inc authorizes UL to act as Telecommunication Certification Body on behalf for the FCC application of our mobile phone FCC ID: PY7PM-0803. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Yours sincerely Mika Kaneko Sony Mobile Communications Inc Tel: +81 3 5782 5706 Konan, Minato-ku, 108-0075, Tokyo, Japan [email protected]

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document number Revision 130/1483-LXE 108 828 Uen A Prepared by Date SEM/CGQTAOA TOSHIKO KITAHARA 2014-06-23 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAOA (MIGUEL DELORME) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England It is requested that the following information is to be held confidential on behalf of Sony Mobile Communications Inc pursuant to FCC Rules Parts 0.457 and 0.459: Block Diagrams Schematics Parts List Tune Up Information Operation Description These items contain detailed system and equipment description and related information about the product which Sony Mobile Communications Inc considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Mobile Communications Inc also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Yours sincerely Mika Kaneko Sony Mobile Communications Inc Tel: +81 3 5782 5706 Konan, Minato-ku, 108-0075, Tokyo, Japan [email protected]

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document number Revision 140/1483-LXE 108 828 Uen A Prepared by Date SEM/CGQTAOA TOSHIKO KITAHARA 2014-06-23 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAOA (MIGUEL DELORME) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing Regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, Sony Mobile Communications Inc is requesting the commission to grant short-term confidentiality request on the following documents for 180 days from date of the Grant of Equipment Authorization. User manual Test setup photos External photos Internal photos If the launch date is re-scheduled to be earlier than the last day of this period, Sony Mobile Communications Inc will inform again to cancel this restriction. Please contact the undersigned if there are any further questions or additional information needed in this matter. Yours sincerely Mika Kaneko Sony Mobile Communications Inc Tel: +81 3 5782 5706 Konan, Minato-ku, 108-0075, Tokyo, Japan [email protected]

Sony Mobile Communications Confidential LETTER 1(2) Document number Revision 6/0061-LXE 108 828 Uen D Prepared by Date SEM/CGQTAOA TOSHIKO KITAHARA 2014-08-01 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAOA (TOSHIKO KITAHARA) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Telecommunication Certification Body UL Pavilion A, Ashwood Park Ashwood Way Basingstoke, Hampshire RG23 8BG England Sony Mobile Communications Inc., hereby declares the Sony mobile phone, FCC ID: PY7PM-0803, as a variant of the Sony mobile phones, FCC ID: PY7PM-0800, FCC ID: PY7PM-0801and FCC ID: PY7PM-0802. Between FCC ID: PY7PM-0803 and FCC ID: PY7PM-0800, the differences are as follows: Product form factor and all antennas (Cellular/BT/WLAN/Ant+/RFID/A-GPS/GPS) between the two versions remain identical in type and construction. PCB/Components/trace layout of the BT/Ant+/2.4G and 5GHz WLAN hardware between the two variants remains identical. Software for the BT/Ant+/2.4G and 5GHz WLAN functionality between the two variants remains identical. Between FCC ID: PY7PM-0803 and FCC ID: PY7PM-0801, the differences are as follows: Product form factor and all antennas (Cellular/BT/WLAN/Ant+/RFID/A-GPS/GPS) between the two versions remain identical in type and construction. PCB/Components/trace layout of the 5GHz WLAN hardware between the two variants remains identical. Software for the 5GHz WLAN functionality between the two variants remains identical. Between FCC ID: PY7PM-0803 and FCC ID: PY7PM-0802, the differences are as follows: Product form factor and all antennas (Cellular/BT/WLAN/Ant+/RFID/A-GPS/GPS) between the two versions remain identical in type and construction. PCB/Components/trace layout of the RF ID hardware between the two variants remains identical. Software for the RF ID functionality between the two variants remains identical. Based on the model similarity declarations above, the PY7PM-0803 application uses the following reports from PY7PM-0800: BT BR&EDR Part 15 report No.: UL-RPT-RP10295085JD01C BT LE Part 15 report No.: UL-RPT-RP10295085JD01E Confidential LETTER 2(2) Document number Revision 6/0061-LXE 108 828 Uen D Ant+ Part 15 report No.: UL-RPT-RP10295085JD01K WLAN 2.4GHz DTS Part 15 report No.: UL-RPT-RP10295085JD01G WLAN 5GHz Part 15 report No.: UL-RPT-RP10295085JD01I Also the following reports used from PY7PM-0801: WLAN 5GHz DFS FCC part 15 report No.: UL-RPT-RP10295122JD01M Also the following reports used from PY7PM-0802: RF ID FCC part 15 report No.: UL-RPT-RP10295093JD01A Yours sincerely Mika Kaneko Sony Mobile Communications Inc Tel: +81 3 5782 5706 Konan, Minato-ku, 108-0075, Tokyo, Japan [email protected]

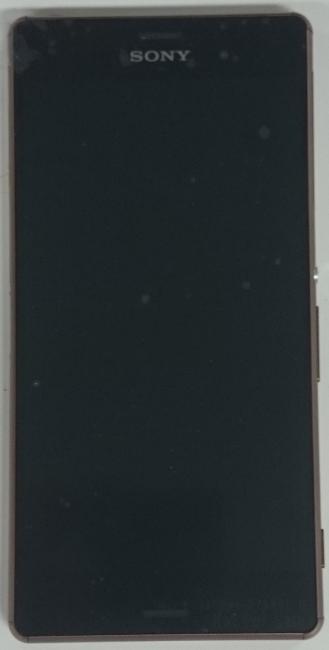

Sony Mobile Communications Confidential REPORT 1(1) Document number Revision PA1 Prepared by Date SOMC/CGVOHCD KATSUJI KAWAKAMI 2014-06-20 Contents responsible if other than preparer Remarks Approved by PY7PM-0803: External Photos: Front: Rear: Side view: Top/Bottom view:

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document number Revision 115/1483-LXE 108 828 Uen A Prepared by Date SEM/CGQTAOA TOSHIKO KITAHARA 2014-06-17 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAOA (MIGUEL DELORME) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. l-san The FCC ID is not on the exterior of the device but labelling meets the conditions allowed in KDB 784748 for the label to be placed in a user accessible area: 1. The device is handheld 2. The quick start manual directs the user where to find the FCC label 3. The user does not require any special tools to access the FCC label and the label is not removable 4. The FCC ID is on the label, 2-part statement in manual due to device size.

Sony Mobile Communications Confidential REPORT 1(3) Document number Revision PA1 Prepared by Date SOMC/CGVOHCD KATSUJI KAWAKAMI 2014-06-20 Contents responsible if other than preparer Remarks Approved by PY7PM-0803: Internal Photos: Without Rear Panel Without PWB Rear Panel With PWB Confidential REPORT 2(3) Document number Revision PA1 Internal PWB with/without Shield cases – Front (LCD)-side: Internal PWB with Shield cases (Front-side) Internal PWB without Shield cases (Front-side) Internal PWB with/without Shield cases - Rear-side: Internal PWB with Shield cases (Rear-side) Internal PWB without Shield cases (Rear-side) Confidential REPORT 3(3) Document number Revision PA1 Battery:

TEST REPORT Test Report No. : UL-RPT-RP10295093JD01A V2.0 Manufacturer : Sony Mobile Communications Inc. FCC ID : PY7PM-0802 Technology : RFID – 13.56 MHz Test Standard(s) : FCC Parts 15.207, 15.209(a) & 15.225 1. This test report shall not be reproduced in full or partial, without the written approval of UL VS LTD. 2. The results in this report apply only to the sample(s) tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 2.0 supersedes all previous versions. Date of Issue: 02 August 2014 Checked by: Issued by : Sarah Williams Engineer, Radio Laboratory pp John Newell Group Quality Manager Basingstoke, UL VS LTD This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its’ terms of accreditation. UL VS LTD Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT SERIAL NO: UL-RPT-RP10295093JD01A VERSION 2.0 ISSUE DATE: 02 AUGUST 2014 Page 2 of 25 UL VS LTD This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP10295093JD01A VERSION 2.0 ISSUE DATE: 02 AUGUST 2014 UL VS LTD Page 3 of 25 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................... 9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results .................................................................. 10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Transmitter AC Conducted Spurious Emissions 11 5.2.2. Transmitter Fundamental Field Strength 14 5.2.3. Transmitter Radiated Spurious Emissions 16 5.2.4. Transmitter Band Edge Radiated Emissions 19 5.2.5. Transmitter 20 dB Bandwidth 21 5.2.6. Transmitter Frequency Stability (Temperature & Voltage Variation) 22 6. Measurement Uncertainty ............................................................................................................. 24 7. Report Revision History ..........…
