PY7TS-0020Tablet PC with WLAN, BT, ANT+, RFID

SAR Information FCC Statement Declaration of Conformity Sony SGP 511 Important Information Unite d States & Canada THIS TABLET PC MODEL HAS BEEN CERTIFIED INCOMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTSFOR EXPOSURE TO RADIO WAVES. The SGP511 Series tablets personal computers have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless tablet personal computer is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR).Tests for SAR are conducted using standardized methods with the tablet personal computer transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various tablet personal computer models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the important information chapter in the User Guide. The highest SAR value as reported to the authorities for this tablet personal computer model when tested for use against the body is 0.72 W/kg*. The tablet personal computer has been tested when positioned of 0 mm from the body without any metal parts in the vicinity of the tablet personal computer or when properly used with an appropriate Sony. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 0 mm. 2 **Before a tablet personal computer model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this tablet personal computer model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various tablet personal computer, all mobile tablet personal computers granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this tablet personal computer model is on file at the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID PY7TS-0020. Additional information on SAR can be found on the Cellular Telecommunications & Internet Association (CTIA) website at http://www.phonefacts.net* In the United States and Canada, the SAR limit for mobile tablet personal computers used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. * In the United States and Canada, the SAR limit for mobile tablet personal computers used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. ** This paragraph is only applicable to authorities and customers in the United States. 3 Renseignements importants État s-Unis et Canada CE MODÈLE DE TABLETTE ÉLECTRONIQUE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les tablettes électroniques de la série SGP321 ont été conçues pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre tablette électronique sans fil est un émetteur et un récepteur radio. Elle est conçue de manière à ne pas dépasser les limites* d'exposition à l'énergie radiofréquence (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Débit d'absorption spécifique » (DAS). Les tests de DAS sont effectués selon des méthodes standardisées dans lesquelles la tablette électronique émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle elle a été homologuée. Bien que le DAS puisse être différent d'un modèle de tablette électronique à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le DAS, reportez-vous au chapitre sur les renseignements importants du guide de l'utilisateur. Le DAS le plus élevé relevé par les autorités pour ce modèle de tablette électronique est de 0.72 W/kg* lorsqu'il est testé en utilisation près du corps. La tablette électronique a été testée lorsqu’elle est à 0 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’elle est utilisée de façon adéquate avec un 4 accessoire Sony. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », les mesures du DAS de l'appareil en mode…

Text truncated - open the document above for the full version.

Startup guide Xperia ™ Tablet Z SGP511/SGP512 Sony Mobile Communications AB SE-221 88 Lund, Sweden www.sonymobile.com Welcome Important Information Before you use your device, please read the Important Information provided in your device regarding warranty, safety and handling information. Protecting your device from water and dust Your device has IP (Ingress Protection) ratings of IP55 and IP58. These ratings mean that your device is dust resistant and is protected against low pressure water stream as well as against the effects of submersion for 30 minutes in fresh (non-saline) water up to 1.5 metres deep. Always firmly attach all covers to ensure the water and dust resistance of the device. If liquid is detected inside the device, for example, underneath one of the covers, your warranty will be void. Before using your device in water and in dusty conditions, refer to the relevant section of the User guide for your device for more detailed information. An online User guide as well as a downloadable version is available at www.sonymobile.com/support. Assembly To insert a memory card 1 2 Overview 54 7 6 123 00440245-162947-5 Model:SGPXXX TYPE:XX-XXXX-XX FCC ID:XXXXX-XXXX IC:XXXXX-XXXXXX 13W41 EFF MADE IN CHINA 891011 12 13 1415 1. Front camera 2. Light sensor 3. Charging light/ Notification light 4. Speaker A 5. Speaker B 6. Volume key 7. Power key 8. Microphone 9. Infrared sensor 10. Charger/USB port cover 11. Memory card slot cover 12. Main camera 13. NFC™ detection area 14. Headset jack 15. Charging dock connector Turning on the device If it is the first time you turn on your device, make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. To turn on the device 1 Press and hold down the power key until the device vibrates. 2 Wait a while for the device to start. Waking up the screen To activate the screen • Briefly press the power key . • If Tap to wake up mode is enabled, double-tap the screen. To enable Tap to wake up mode, go to the Home screen, then tap > Settings > Display > Tap to wake up. To unlock the screen • Place a finger on the right part of the screen and swipe in any direction. Basic settings The first time you start your device, a setup guide explains basic device functions and helps you enter essential settings. You can also access the setup guide later. To access the setup guide manually 1 From the Home screen, tap . 2 Tap Settings > Setup guide. Finding your way Using the keys Back • Go back to the previous screen • Close the on-screen keypad, a dialog box, an options menu, the Notification panel, or an application Home • Go to the Home screen Task • Tap to open a window showing your most recently used applications and a small apps bar Home screen You can customise your Home screen with widgets, shortcuts, folders, themes, wallpaper and other items. You can also add more panes to it. You can view content in other panes of the Home screen by flicking left or right. The items in the bar at the top of the screen are always available for quick access. To go to the Home screen • Press . To browse the Home screen • Flick right or left. To add a widget to the Home screen 1 Touch and hold an empty area on your Home screen until the device vibrates, then tap Widgets. 2 Find and tap the widget that you want to add. Application screen The Application screen, which you open from your Home screen, contains the applications that come pre-installed on your device as well as the applications you download. The Application screen extends beyond the regular screen width, so you need to flick left and right to view all content. To open the Application screen • From your Home screen, tap . Status and notifications The status bar at the top of your screen shows what's going on in your device. For example, calendar notifications appear here. To open the Notification panel • Drag the left side of the status bar downwards. Setting up your device Accessing settings View and change settings for your device from the Settings menu. The Settings menu is accessible from both the Notification panel and the Application screen. To access your device settings 1 From your Home screen, tap . 2 Find and tap Settings. Connecting to wireless networks You can access the Internet wirelessly from your device using Wi-Fi® technology. This way you can browse the web and share media files over the same Wi-Fi® network with other DLNA Certified™ devices, for example, TVs and computers. If your company or organisation has a virtual private network (VPN), you can connect to this network using your device. You can use a VPN to access intranets and other internal services at your company. To turn on Wi-Fi® 1 From your Home screen, tap . 2 Find and tap Settings. 3 Drag the slider beside Wi-Fi to the right to turn on the Wi-Fi® function. It may take a few seconds before Wi-Fi® is enabled. To connect to a Wi-Fi® network automatically 1 From your Home screen, tap . 2 Find and tap Settings. 3 Tap Wi-Fi. All available Wi-Fi® networks are displayed. 4 Tap a Wi-Fi® network to connect to it. For secured networks, enter the relevant password. is displayed in the status bar once you are connected. Tap and then tap Scan to search for new available networks. Google™ account With a Google™ account, you can use Gmail™ to send emails, Hangouts™ to chat with friends, and Google Play™ to download applications and games, music, movies and books. To set up a Google™ account on your device 1 From your Home screen, tap . 2 Find and tap Settings > Add account > Google. 3 Follow the registration wizard to create a Google™ account, or sign in if you already have an account. You can also sign in to or create a Google™ account from the setup guide the first time you start your device. Or you can go online and create an account at www.google.com/accounts. Downloading from Google Play™ You can download all kinds of applications from Google Play™, including free applications. To open Google Pl…

Text truncated - open the document above for the full version.

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document number Revision 60/1483-22/FCP 119 1432 Uen PA1 Prepared by Date SEM/CGQTAO TOSHIKO KITAHARA 2014-01-29 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 2014/01/29 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID PY7TS-0020 For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document number Revision 59/1483-22/FCP 119 1432 Uen PA1 Prepared by Date SEM/CGQTAO TOSHIKO KITAHARA 2014-01-29 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 2014/01/29 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests short term confidentiality for the following product: FCC ID Number PY7TS-0020 For the product stated above, we request that the following information be held confidential: 1. External and Internal Photographs 2. Test Setup Photos 3. User Manual We request this confidentiality on the basis of ensuring that business sensitive information remains confidential for 180 days or the date of the marketing, whichever is earlier. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 287/0061-LXE 110 0790 Uen B Prepared by Date SEM/CGQTAC RAZVAN BUJILA 2014-02-04 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAC (RAZVAN BUJILA) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Receiver Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 TO WHOM IT MAY CONCERN We, Sony Mobile Communications, declare on our sole responsibility that the tablet with the FCC ID: PY7TS-0020 is identical in hardware and software between the 16GB and 32GB version. The only difference between these tablets is that one variant has a 16GB internal memory chip, while the other has a 32GB internal memory chip. We attest that above changing are not relevant for any RF behaviour subject to regulatory items. Therefore all submitted test reports issued for the 16GB variant are also applicable for the 32GB variant. If you have any questions, please feel free to contact us at the address shown below. Yours sincerely Razvan Bujila Global Type Approval Sony Mobile Communications Tel: +46 10 801 53 23 Mobilvägen 10, SE-221 88 Lund, Sweden [email protected]

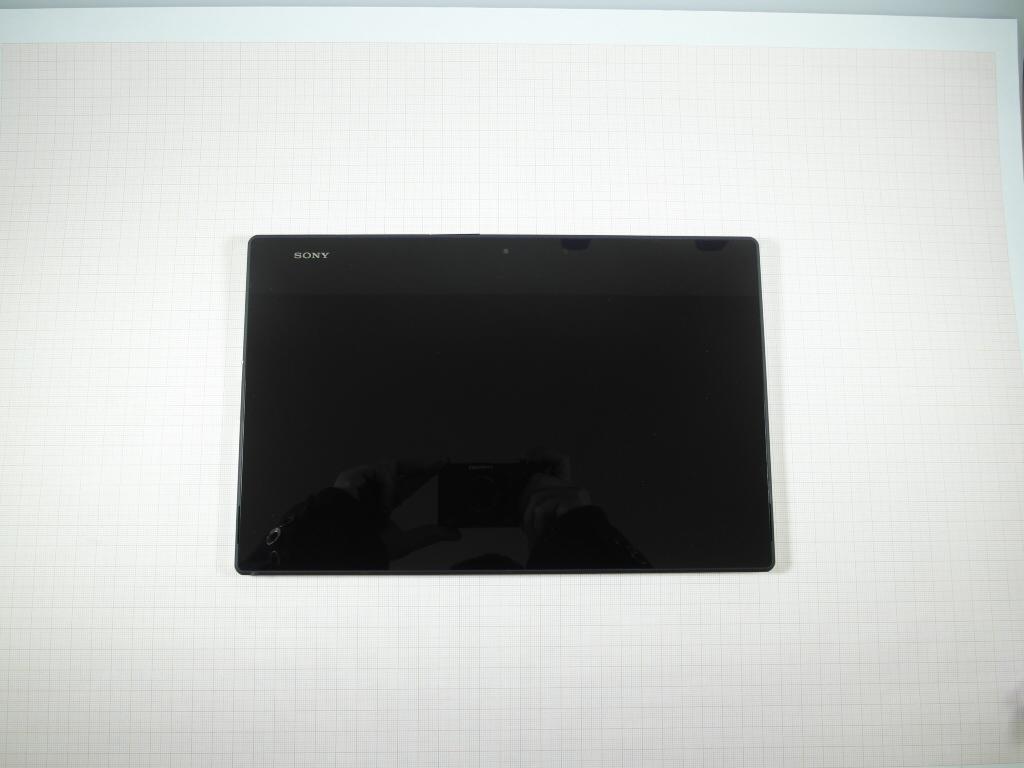

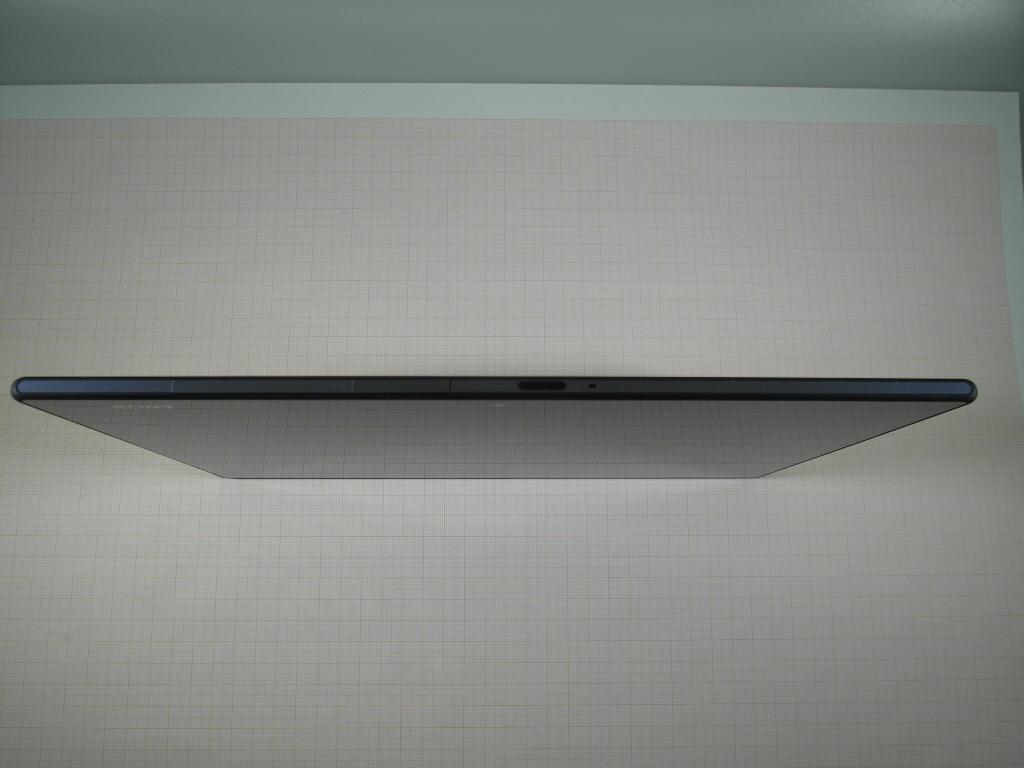

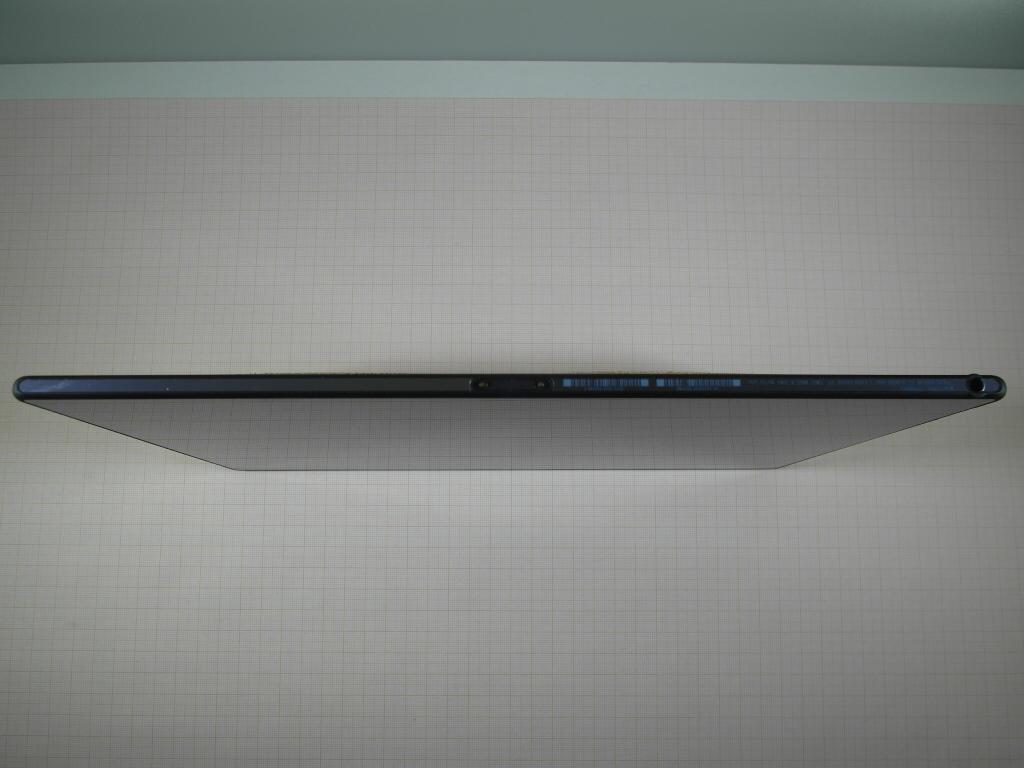

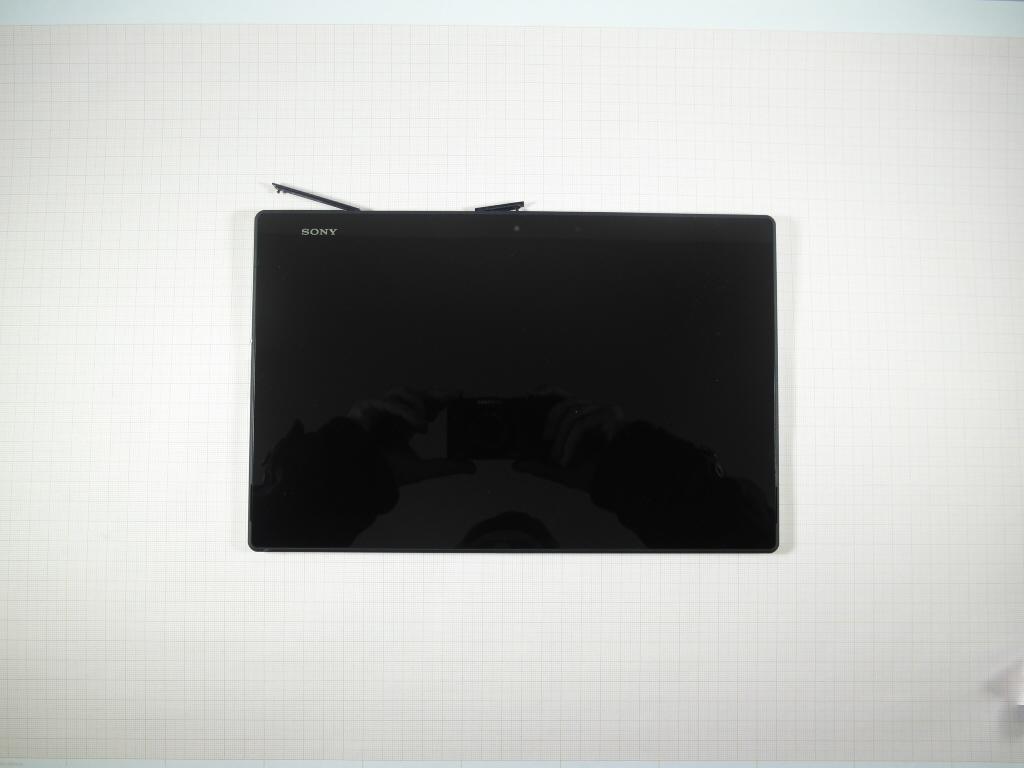

Test report no.: 1-6965/13-13-01_AnnexA 2014-01-31 Page 1 of 5 Annex A This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: Andreas Luckenbill Expert Test report no.: 1-6965/13-13-01_AnnexA 2014-01-31 Page 2 of 5 External ph ot os o f t he EU T Photo documentation: Photo 1: Photo 2: Test report no.: 1-6965/13-13-01_AnnexA 2014-01-31 Page 3 of 5 Photo 3: Photo 4: Test report no.: 1-6965/13-13-01_AnnexA 2014-01-31 Page 4 of 5 Photo 5: Photo 6: Test report no.: 1-6965/13-13-01_AnnexA 2014-01-31 Page 5 of 5 Docu men t his to r y Version Applied changes Date of release 1.0 Initial release 2014-01-31

Test report no.: 1-6965/13-13-01_AnnexB 2014-01-31 Page 1 of 4 Annex B This test report annex is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report annex authorised: Andreas Luckenbill Expert Test report no.: 1-6965/13-13-01_AnnexB 2014-01-31 Page 2 of 4 Inter nal p ho tos of the E UT Photo documentation: Photo 1: deliverd from Sony Mobile Communications Photo 2: deliverd from Sony Mobile Communications Test report no.: 1-6965/13-13-01_AnnexB 2014-01-31 Page 3 of 4 Photo 3: deliverd from Sony Mobile Communications Photo 4: deliverd from Sony Mobile Communications Test report no.: 1-6965/13-13-01_AnnexB 2014-01-31 Page 4 of 4 Docu men t his to r y Version Applied changes Date of release 1.0 Initial release 2014-01-31

Page 1 of 54 Annex D Appendix to Test Report No.: 1-6965/13-13-02 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 Appendix with Calibration data, Phantom certificate and system check information 2014-01-27 Annex D to Test report no.: 1-6965/13-13-02 Page 2 of 54 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 Calibration report “Probe ES3DV3” ........................................................................................................ 3 3 Calibration report “Probe EX3DV4” ...................................................................................................... 14 4 Calibration report “2450 MHz System validation dipole” .................................................................... 25 5 Calibration report “5GHz System check dipole” ................................................................................. 34 6 Calibration certificate of Data Acquisition Unit (DAE) ........................................................................ 47 7 Certificate of “SAM Twin Phantom V4.0/V4.0C’’ ................................................................................. 48 8 Application Note System Performance Check ..................................................................................... 49 8.1 Purpose of system performance check ..................................................................................... 49 8.2 System Performance check procedure ...................................................................................... 49 8.3 Uncertainty Budget ...................................................................................................................... 50 8.4 Power set-up for validation ......................................................................................................... 53 8.5 Laboratory reflection ................................................................................................................... 54 8.6 Additional system checks ........................................................................................................... 54 Annex D to Test report no.: 1-6965/13-13-02 Page 3 of 54 2 Calibration report “Probe ES3DV3” Annex D to Test report no.: 1-6965/13-13-02 Page 4 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 5 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 6 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 7 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 8 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 9 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 10 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 11 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 12 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 13 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 14 of 54 3 Calibration report “Probe EX3DV4” Annex D to Test report no.: 1-6965/13-13-02 Page 15 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 16 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 17 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 18 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 19 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 20 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 21 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 22 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 23 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 24 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 25 of 54 4 Calibration report “2450 MHz System validation dipole” Annex D to Test report no.: 1-6965/13-13-02 Page 26 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 27 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 28 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 29 of 54 Antenna Parameters with Head TSL From cal. data Measured 2013-08-13 Impedance; transformed to feed point 52.4 Ω +0.5 jΩ 51.1Ω +4.0 jΩ Return Loss -32.3 dB -28.1 dB Antenna Parameters with Body TSL From cal. data Measured 2013-08-13 Impedance; transformed to feed point 49.6Ω +2.7 jΩ 53.7Ω +4.4 jΩ Return Loss -31.4 dB -24.2 dB Annex D to Test report no.: 1-6965/13-13-02 Page 30 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 31 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 32 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 33 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 34 of 54 5 Calibration report “5GHz System check dipole” Annex D to Test report no.: 1-6965/13-13-02 Page 35 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 36 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 37 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 38 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 39 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 40 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 41 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 42 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 43 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 44 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 45 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 46 of 54 Annex D to Test report no.: 1-6965/13-13-02 Page 47 of 54 6 Calibration certificate of Data Acquisition Unit (DAE) Annex D to Test report no.: 1-6965/13-13-02 Page 48 of 54 7 Certificate of “SAM Twin Phantom V4.0/V4.0C’’ Annex D to Test report no…

Text truncated - open the document above for the full version.

Page 1 of 43 TEST REPORT Test Report No.: 1-6965/13-13-02-A Testing Laboratory Applicant CETECOM ICT Services GmbH Untertürkheimer Straße 6 – 10 66117 Saarbrücken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12076-01-01 Sony Mobile Communications AB Nya Vattentornet 22188 Lund/SWEDEN Phone: +46 46 19 30 00 Contact: Mikael Nilsson e-mail: [email protected] Phone: +46 7 03 22 75 03 Fax: --- Manufacturer Sony Mobile Communications AB Nya Vattentornet 22188 Lund/SWEDEN Test Standard/s IEEE 1528-2003 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR)in the Human Head from Wireless Communications Devices: Measurement Techniques RSS-102 Issue 4 Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Tablet PC Device type: portable device S/N serial number: CB51268FMT FCC-ID: PY7TS-0020 Hardware status: AP1 Software status: 17.0.A.0.274 Memory capacity: 16Gbyte Frequency: see technical details Antenna: integrated antenna Battery option: Integrated Li-polymer battery 3.7V Accessories: --- Test sample status: identical prototype Exposure category: general population / uncontrolled environment This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test Report authorised: Test performed: Thomas Vogler Oleksandr Hnatovskiy Senior Testing Manager Testing Manager Test report no.: 1-6965/13-13-02-A Page 2 of 43 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 General information .................................................................................................................................. 4 2.1 Notes and disclaimer ..................................................................................................................... 4 2.2 Application details ......................................................................................................................... 4 2.3 Statement of compliance ............................................................................................................... 4 2.4 Technical details............................................................................................................................. 5 2.5 Transmitter and Antenna Operating Configurations .................................................................. 5 3 Test standards/ procedures references .................................................................................................. 6 3.1 RF exposure limits ......................................................................................................................... 7 4 Summary of Measurement Results ......................................................................................................... 8 5 Test Environment ...................................................................................................................................... 8 6 Test Set-up ................................................................................................................................................. 9 6.1 Measurement system ..................................................................................................................... 9 6.1.1 System Description ................................................................................................................ 9 6.1.2 Test environment ................................................................................................................. 10 6.1.3 Probe description ................................................................................................................. 10 6.1.4 Phantom description ............................................................................................................ 11 6.1.5 Device holder description .................................................................................................... 12 6.1.6 Scanning procedure ............................................................................................................ 13 6.1.7 Spatial Peak SAR Evaluation .............................................................................................. 14 6.1.8 Data Storage and Evaluation............................................................................................... 15 6.1.9 Tissue simulating liquids: dielectric properties .................................................................... 17 6.1.10 Measurement uncertainty evaluation for SAR test .............................................................. 18 6.1.11 Measurement uncertainty evaluation for System Check ..................................................... 22 6.1.12 System check ...................................................................................................................... 24 6.1.13 System check procedure ..................................................................................................... 25 6.1.14 System validation ................................................................................................................ 26 7 Detailed Test Results .............................................................................................................................. 27 8 …

Text truncated - open the document above for the full version.

2014-02-13 Page 1 of 61 TEST REPORT Test report no.: 1-6965/13-13-07-A Testing laboratory Applicant CET…
