Startup guide Xperia ™ Z3 Tablet Compact SGP611/SGP612 Sony Mobile Communications Inc. 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan xxxx-xxxx.1 Welcome Important Information Before you use your device, please read the Important Information provided in your device regarding warranty, safety and handling information. Protecting your device from water and dust Your device has IP (Ingress Protection) ratings of IP65 and IP68. These ratings mean that your device is dust tight and is protected against low pressure water stream as well as against the effects of submersion for 30 minutes in fresh (non-saline) water up to 1.5 metres deep. Always firmly attach all covers to ensure the water and dust resistance of the device. If liquid is detected inside the device, for example, underneath one of the covers, your warranty will be void. Before using your device in water and in dusty conditions, refer to the relevant section of the User guide for your device for more detailed information. An online User guide as well as a downloadable version is available at www.sonymobile.com/support. Overview 2 910 3145 6 7 8 11 13 12 14 15 1617 1. Charging/Notification light 2. Speaker 3. Front camera lens 4. Light sensor 5. Headset jack 6. Microphone 7. Power key 8. Volume/Zoom key 9. Speaker 10. Cover for charger/USB cable port 11. Main camera lens 12. GPS antenna area 13. NFC™ detection area 14. Charging dock connector 15. Memory card slot cover 16. Main Wi-Fi/Bluetooth antenna area 17. Second Wi-Fi antenna area Assembly To insert a memory card Use a fine-tipped pen or other similar tool to insert the memory card. 1 3 2 Turning on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. To turn on the device 1 Press and hold down the power key until the device vibrates. 2 Wait a while for the device to start. Waking up the screen To activate the screen • Briefly press the power key . • If Tap to wake up mode is enabled, double-tap the screen. To enable Tap to wake up mode, go to the Home screen, then tap > Settings > Display > Tap to wake up. To unlock the screen • Place a finger on the middle of the screen and swipe in any direction. Finding your way Using the keys Back navigation key • Go back to the previous screen within an application or close the application. Home navigation key • Exit an application and go back to the Home screen. Task navigation key • Open the recently used applications window and the small apps bar. Application screen • Open the Application screen. Basic applications and settings Go to Google Play™ to download free and paid applications for your device. Optimise the device settings to suit your own requirements. Notifications and quick settings To open or close the Notification panel To open the Notification panel, drag the status bar downwards. To open or close the Quick settings panel To open the Quick settings panel, drag the status bar downwards by using two fingers. Setting up your device Accessing settings View and change settings for your device from the Settings menu. The Settings menu is accessible from both the Application screen and the Quick settings panel. To access your device settings 1 From your Home screen, tap . 2 Find and tap . Transferring your contacts Xperia™ Transfer is an application within the PC Companion and the Sony Bridge for Mac computer programs that helps you to collect contacts from your old device and transfer them to your new device. Xperia™ Transfer supports several device brands, including iPhone, Samsung, HTC, BlackBerry, LG, and Nokia. You need: • An Internet-connected computer. • A USB cable for your old device. • A USB cable for your new Android™ device. • Your old device. • Your new Android™ device. To transfer contacts to your new device 1 Search and download PC Companion (on a PC) or Bridge for Mac (on a Mac computer) from www.sonymobile.com if the application is not already installed. 2 After successful installation, open the PC Companion application or the Sony Bridge for Mac application, then click Xperia™ Transfer and follow the relevant instructions to transfer your contacts. Connecting to wireless networks You can access the Internet wirelessly from your device using Wi-Fi® technology. This way you can browse the web and share media files over the same Wi-Fi® network with other DLNA Certified™ devices, for example, TVs and computers. If your company or organisation has a virtual private network (VPN), you can connect to this network using your device. You can use a VPN to access intranets and other internal services at your company. To turn on Wi-Fi® 1 From your Home screen, tap . 2 Find and tap Settings. 3 Drag the slider beside Wi-Fi to the right to turn on the Wi- Fi® function. It may take a few seconds before Wi-Fi® is enabled. To connect to a Wi-Fi® network automatically 1 From your Home screen, tap . 2 Find and tap Settings. 3 Tap Wi-Fi. All available Wi-Fi® networks are displayed. 4 Tap a Wi-Fi® network to connect to it. For secured networks, enter the relevant password. is displayed in the status bar once you are connected. To search for new available networks, tap , and then tap Scan. Google™ account With a Google™ account, you can use Gmail™ to send emails, Hangouts™ to chat with friends, and Google Play™ to download applications and games, music, movies and books. To set up a Google™ account on your device 1 From your Home screen, tap . 2 Find and tap Settings > Add account > Google. 3 Follow the registration wizard to create a Google™ account, or sign in if you already have an account. You can also sign in to or create a Google™ account from the setup guide the first time you start your device. Or you can go online and create an account at www.google.com/accounts. Downloading from Google Play™ You can download all kinds of applications from Google Play™, including free applications. To open Google Play™ 1 From the Home screen, tap . 2 Find and tap Play Store…

Text truncated - open the document above for the full version.

SAR Information FCC Statement Declaration of Conformity Sony SGP611 Important Information United States & Canada THIS TABLET PC MODEL HAS BEEN CERTIFIED INCOMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTSFOR EXPOSURE TO RADIO WAVES. The SGP611 Seri es tablets personal computers have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless tablet personal computer is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR).Tests for SAR are conducted using standardized methods with the tablet personal computer transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various tablet personal computer models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the important information chapter in the User Guide. The highest SAR value as reported to the authorities for this tablet personal computer model when tested for use against the body is 1.382 W/kg*. The tablet personal computer has been tested when positioned of 0 mm from the body without any metal parts in the vicinity of the tablet personal computer or when properly used with an appropriate Sony. 2 **Before a tablet personal computer model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this tablet personal computer model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various tablet personal computer, all mobile tablet personal computers granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this tablet personal computer model is on file at the FCC and can be found under the Display Grant section of http://transition.fcc.gov/oet/ea/fccid after searching on FCC ID PY7TS-0040. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. * In the United States and Canada, the SAR limit for mobile tablet personal computers used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. ** This paragraph is only applicable to authorities and customers in the United States. 3 Renseignements importants États-Unis et Canada CE MODÈLE DE TABLETTE ÉLECTRONIQUE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES R ADIOÉLECTRIQUES. Les tablettes électroniques de la série SGP611 ont été conçues pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre tablette électronique sans fil est un émetteur et un récepteur radio. Elle est conçue de manière à ne pas dépasser les limites* d'exposition à l'énergie radiofréquence (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Débit d'absorption spécifique » (DAS). Les tests de DAS sont effectués selon des méthodes standardisées dans lesquelles la tablette électronique émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle elle a été homologuée. Bien que le DAS puisse être différent d'un modèle de tablette électronique à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le DAS, reportez-vous au chapitre sur les renseignements importants du guide de l'utilisateur. Le DAS le plus élevé relevé par les autorités pour ce modèle de tablette électronique est de 1.382 W/kg* lorsqu'il est testé en utilisation près du corps. La tablette électronique a été testée lorsqu’elle est à 0 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’elle est utilisée de façon adéquate avec un 4 accessoire Sony. **Avant qu'un modèle de tablette électronique ne soit mis en vente auprès du public aux États-Unis, la Commission fédérale des communications (CFC) doit le tester et certifier qu'il respecte les limites fixées dans les exigences gouvernementales d'exposition sans danger*. Pour chaque modèle, les tests sont effectués en position et aux endroits d'usage (c.-à-d. près de l'oreille et porté sur le corps), tel que requis par la CFC. La CFC a accordé une autorisation d'équipement pour ce modèle de tablette électronique, après que tous les niveaux de DAS indiqués aient été évalués et considérés c…

Text truncated - open the document above for the full version.

SAR Information FCC Statement Declaration of Conformity Sony SGP612 Important Information United States & Canada THIS TABLET PC MODEL HAS BEEN CERTIFIED INCOMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTSFOR EXPOSURE TO RADIO WAVES. The SGP612 Series ta blets personal computers have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless tablet personal computer is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR).Tests for SAR are conducted using standardized methods with the tablet personal computer transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various tablet personal computer models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the important information chapter in the User Guide. The highest SAR value as reported to the authorities for this tablet personal computer model when tested for use against the body is 1.382 W/kg*. The tablet personal computer has been tested when positioned of 0 mm from the body without any metal parts in the vicinity of the tablet personal computer or when properly used with an appropriate Sony. 2 **Before a tablet personal computer model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this tablet personal computer model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various tablet personal computer, all mobile tablet personal computers granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this tablet personal computer model is on file at the FCC and can be found under the Display Grant section of http://transition.fcc.gov/oet/ea/fccid after searching on FCC ID PY7TS-0040. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. * In the United States and Canada, the SAR limit for mobile tablet personal computers used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. ** This paragraph is only applicable to authorities and customers in the United States. 3 Renseignements importants États-Unis et Canada CE MODÈLE DE TABLETTE ÉLECTRONIQUE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉL ECTRIQUES. Les tablettes électroniques de la série SGP612 ont été conçues pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre tablette électronique sans fil est un émetteur et un récepteur radio. Elle est conçue de manière à ne pas dépasser les limites* d'exposition à l'énergie radiofréquence (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Débit d'absorption spécifique » (DAS). Les tests de DAS sont effectués selon des méthodes standardisées dans lesquelles la tablette électronique émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle elle a été homologuée. Bien que le DAS puisse être différent d'un modèle de tablette électronique à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le DAS, reportez-vous au chapitre sur les renseignements importants du guide de l'utilisateur. Le DAS le plus élevé relevé par les autorités pour ce modèle de tablette électronique est de 1.382 W/kg* lorsqu'il est testé en utilisation près du corps. La tablette électronique a été testée lorsqu’elle est à 0 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’elle est utilisée de façon adéquate avec un 4 accessoire Sony. **Avant qu'un modèle de tablette électronique ne soit mis en vente auprès du public aux États-Unis, la Commission fédérale des communications (CFC) doit le tester et certifier qu'il respecte les limites fixées dans les exigences gouvernementales d'exposition sans danger*. Pour chaque modèle, les tests sont effectués en position et aux endroits d'usage (c.-à-d. près de l'oreille et porté sur le corps), tel que requis par la CFC. La CFC a accordé une autorisation d'équipement pour ce modèle de tablette électronique, après que tous les niveaux de DAS indiqués aient été évalués et considérés c…

Text truncated - open the document above for the full version.

Sony Mobile Communications Confidential LETTER 1(2) Document number Revision 25/0061-LXE 108 828 Uen A Prepared by Date SEM/CGQTAOA TOSHIKO KITAHARA 2014-09-05 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAOA (TOSHIKO KITAHARA) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 FCC ID: PY7TS-0040 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Antenna Specification Parts List Tune up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180days from date of the Grant of Equipment Authorization. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Confidential LETTER 2(2) Document number Revision 25/0061-LXE 108 828 Uen A Yours sincerely Mika Kaneko Senior Architect – Global Type Approval Sony Mobile Communications Inc. Tel: +81 3 5782 5706 Konan, Minato-ku, 108-0075, Tokyo, Japan

Sony Mobile Communications Confidential LETTER 1(3) Document number Revision 24/0061-LXE 108 828 Uen A Prepared by Date SEM/CGQTAOA TOSHIKO KITAHARA 2014-09-05 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAOA (TOSHIKO KITAHARA) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Confidential LETTER 2(3) Document number Revision 24/0061-LXE 108 828 Uen A e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Yours sincerely Mika Kaneko Senior Architect – Global Type Approval Sony Mobile Communications Inc. Tel: +81 3 5782 5706 Konan, Minato-ku, 108-0075, Tokyo, Japan Confidential LETTER 3(3) Document number Revision 24/0061-LXE 108 828 Uen A

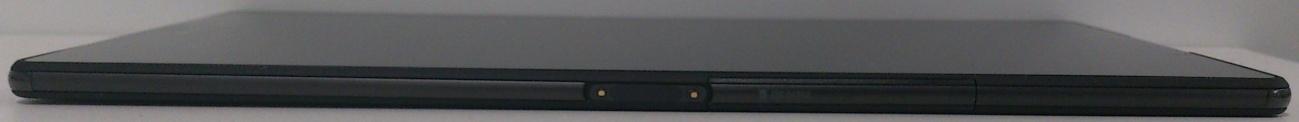

Sony Mobile Communications Company Internal REPORT 1(1) Document number Revision 12/0360-1/FCP 119 1495/4 Uen PA1 Prepared by Date 2014-08-29 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGVOHCA AKINORI YAMADA Company Internal REPORT 1(1) Document number Revision 12/0360-1/FCP 119 1495/4 Uen PA1 Prepared by Date 2014-08-29 Contents responsible if other than preparer Remarks Approved by SEM/CGVOHCA AKINORI YAMADA It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. PY7TS-0040: External Photos: Front: Rear: Side view: Top/Bottom view:

Sony Mobile Communications Confidential WORK DESCRIPTION 1(1) Document number Revision 166/1483-LXE 108 828 Uen A Prepared by Date SEM/CGQTAOA TOSHIKO KITAHARA 2014-08-05 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAOA (TOSHIKO KITAHARA) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. The FCC ID is not on the exterior of the device but labelling meets the conditions allowed in KDB 784748 for the label to be placed in a user accessible area: 1. The device is handheld 2. The quick start manual directs the user where to find the FCC label 3. The user does not require any special tools to access the FCC label and the label is not removable 4. The FCC ID is on the label, 2-part statement in manual due to device size.

Sony Mobile Communications Company Internal REPORT 1(3) Document number Revision 13/0360-1/FCP 119 1495/4 Uen PA1 Prepared by Date 2014-08-29 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGVOHCA AKINORI YAMADA Company Internal REPORT 1(3) Document number Revision 13/0360-1/FCP 119 1495/4 Uen PA1 Prepared by Date 2014-08-29 Contents responsible if other than preparer Remarks Approved by SEM/CGVOHCA AKINORI YAMADA It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. PY7TS-0040: Internal Photos: Without Rear Panel LCD – Rear side With PWB Without PWB Company Internal REPORT 2(3) Document number Revision A Internal PWB with/without Shield cases – Front (LCD)-side: Internal PWB with Shield cases (Front-side) Internal PWB without Shield cases (Front-side) Internal PWB - Rear-side: Battery: Company Internal REPORT 3(3) Document number Revision A

FCC 47 CFR PART 15 SUBPART B CERTIFICATION TEST REPORT FOR Tablet with Bluetooth, DTS/UNII a/b/g/n/ac, ANT+ and NFC FCC ID: PY7TS-0040 REPORT NUMBER: 14U17934-E13 REVISION A ISSUE DATE: SEPTEMBER 17, 2014 Prepared for SONY MOBILE COMMUNICATIONS, INC. NYA VATTENTORNET MOBILVAGEN 10 LUND 22188 SWEDEN Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 14U17934-E13A DATE: SEPTEMBER 17, 2014 FCC ID: PY7TS-0040 Page 2 of 20 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 9/05/14 Initial issue D. Coronia A 09/17/14 EUT description updated D. Coronia REPORT NO: 14U17934-E13A DATE: SEPTEMBER 17, 2014 FCC ID: PY7TS-0040 Page 3 of 20 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. FACILITIES AND ACCREDITATION ................................................................................. 5 3. CALIBRATION AND UNCERTAINTY ................................................................................ 5 3.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 3.2. SAMPLE CALCULATION ............................................................................................ 5 3.3. MEASUREMENT UNCERTAINTY ............................................................................... 5 4. EQUIPMENT UNDER TEST ............................................................................................... 6 4.1. DESCRIPTION OF EUT .............................................................................................. 6 4.2. PRELIMINARY TEST CONFIGURATIONS.................................................................. 6 4.3. MODE(S) OF OPERATION INVESTIGATED ............................................................... 6 4.4. MODIFICATIONS ........................................................................................................ 6 4.5. DETAILS OF TESTED SYSTEM ................................................................................. 7 5. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 9 6. APPLICABLE LIMITS AND TEST RESULTS ...................................................................10 6.1. RADIATED EMISSIONS .............................................................................................10 6.2. AC MAINS LINE CONDUCTED EMISSIONS .............................................................14 7. SETUP PHOTOS ...............................................................................................................19 REPORT NO: 14U17934-E13A DATE: SEPTEMBER 17, 2014 FCC ID: PY7TS-0040 Page 4 of 20 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SONY MOBILE COMMUNICATIONS, INC. EUT DESCRIPTION: Tablet with Bluetooth, DTS/UNII a/b/g/n/ac, ANT+ and NFC SERIAL NUMBER: CB5…
