PYW-QWERTYX-V2Bluetooth Keyboard

Kanex Bluetooth Keyboard User’s Manual Congratulations and thanks you choosing the Kanex Bluetooth Keyboard as your means of communication among Apple iOS Smartphone, iPad, most of Android OS 4.0+, 5.x device or Mac OSX, Window OS device. This keyboard is designed by Kanex. Before you starting use this device, please detail READ this user’s manual. Contents: 1.Package and Encloses 2.OS compatible 3.Prodcut function description 4.Operating 5.Troubleshooting 6. Product Guarantee 7.Radio frequency Warning Package and Encloses 1. Keyboard Unit*1 2.AAA Alkaline battery*2 3.User’s manual*1 OS Compatible: 1.iOS : iPhone Series, iPad Mini, iPad Series of iOS 5/6/7/8.x 2.Android : Compatible Android 3.0/4.0/5.x device with HID Bluetooth 3.Mac OS X : Mac OS 10.6 above 4.Window OS : XP / 2000 / 7 / 8 / 10 (Easily to link Notebook and external dongle embedded with Personal Computer) Product profile and function descriptions (Mac version ) Window Version Hotkey functions; 1.4-Bluetooth mode keys MacBT1, BT2, BT3, BT4 for setting connect with 4 devices each. Win version Fn+F1BT1, Fn+F2BT2, Fn+F3BT3, Fn+F4BT4 for setting connect with 4 devices. 2.Others normal keys; You can follow both version of BT-7301 the printing icons onto keycap shown then use it normally. LED signal description (from right to left) LED1White color LED1 will keep blink during each pairing mode process, once BT-7301 connect with device already, LED1 will light on 15 seconds then light off the LED. it also will have blink a time when you swap the BT1 to BT4 each device connect mode. 2.LED2White color LED2 will light on when Capslock key be pressed for represent the typing at upper case letters status. This LED will be lighting off after 2 minutes of uppercase LED lighting. 3.LED3Blue color. LED3 will have blink till power off when battery voltage lower under 2.2VDC, you have to replace a new AAA battery kits immediately. One/Off power switch On/Off slider switch which locate back side of Keyboard, when the slider switch have turn on, the power will be lighted on. When you turn off the slider switch, the power will be lighted off. ID button switch (locate at keyboard back side) Before you wanted pairing to connect with devices, please choose BT1, BT2, BT3, BT4 anyone mode you wanted connect, then press the ID button, keyboard function will become in pairing process. How to Operating: Before you starting use this keyboard, please detail READ below operating information; Notice: Please use the new AAA alkaline battery keep full power before you first time use BT-7301 Connect to Bluetooth host devices; 1.Take out BT-7301 unit from package box 2.Open PE bag of keyboard 3.Slider On/Off button to “on” status at keyboard backside, it is mean power on status for waiting pairing with iDevice(e.g. Apple device, Android Device or Notebook, PC with Window OS embedded Bluetooth dongle inside) 4.Open your iDevice Bluetooth searching mode. 5.Presse Bluetooth modes key(any mode key of BT1, BT2, BT3, BT4), then press the keyboard pairing button key(locate on keyboard back side). You will find “Kanex BT keyboard” string onto your iDevice screen shown. Select the the icon then press “Enter” key, your iDevice will automatically connect with Kanex BT keyboard well. 6.When you will not use keyboard for long time, suggest you shoud turn off power switch for saving battery power. If you want to use it again, you just turn on power on switch then Kanex BT keyboard will still connect with iDevce again, it is no need to pairing again. If you want to connect another iDevice in BT-7301, you can choose another BT mode key then press the key then follow above the process for connect device again. Troubleshooting Q1 : You can’t pairing Kanex BT Keyboard 1.As power saving design concern, if you didn’t touch ID button key over pass 30 minutes during pairing process, please re-open power switch again then you just follow press ID button for pairing again. 2.if the keyboard have any power transfer issue, you can try to turn off power switch then turn on it again, then you can re-pairing keyboard again between iDevice and Kanex BT Keyboard. 3.Please make sure does battery power is fully enough for working, may you can check LED2 if glitter status, If so, please recharge battery power immediately. Q2 : Hama KEY2GO X1000 connect with iDevice successfully but it is still not working: 1.Please make sure does batter power is fully enough for working, you can check LED3 status, if it blink during typing which is represent low power status, please replace a new one alkaline battery. 2.Make sure does Kanex BT Keyboard work on metal surface, if so, please move out the metal surface for operated in avoiding the metal surface conflict the RF signal. 3.If you still can smoothly troubleshooting the problem, please reach Kanex customer service people as contact mail or return the new keyboard to you purchased shop by keep original package. Product Guarantee: 1 year guarantee during normal used. Abnormal use are not including guarantee. Warning: F e d e r a l C o m m u n i c a t i o n s C o m m i s s i o n ( F C C ) S t a t e m e n t This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separatio…

Text truncated - open the document above for the full version.

DATE : 2015-05-29 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Peter Chin of Hong An Technology EMC Laboratory. No. 15-1, Cweishuh Keng, Cweipin Village, Linkou New Taipei City, Taiwan.. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, Still resides with Apogee Inc.

DATE : 2015-May-29 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: PYW-QWERTYX-V2 Product Name: Bluetooth Keyboard Subject : Model series declaration To whom it may concern: We Apogee Inc. declared that due to marketing purpose the model numbers QWERTYX-V2SV, KBK01-V2 and BT-7301 are identical to FCC authorization model QWERTYX-V2 as series models on electronic circuits and appearances except for brand name and color choice of the enclosure. Differentiation matrix of series numbers : Model Numbers Brand Name Color Choice QWERTYX-V2 Kanex Metallic white (Front); White (Rear) QWERTYX-V2SV Kanex Metallic black (Front); Black (Rear) KBK01-V2 Kanex Black (Front and Rear) BT-7301 Lexking Could be: Metallic white (Front); White (Rear) Metallic black (Front); Black (Rear) Black (Front and Rear) Sincerely Yours

DATE : 2015-05-29 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: PYW-QWERTYX-V2 Product Name: Bluetooth Keyboard Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.:  Test Setup Photos  External Photos  Internal Photos  User Manual These documents contain detailed system and equipment description and related information about the product which Apogee Inc. considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, Apogee Inc. considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market. This request is being made retroactively due to an over site on our part. We understand that the information has been publicly available 180 days after date of grant.

DATE : 2014-05-29 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: PYW-QWERTYX-V2 Product Name: Bluetooth Keyboard Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors.

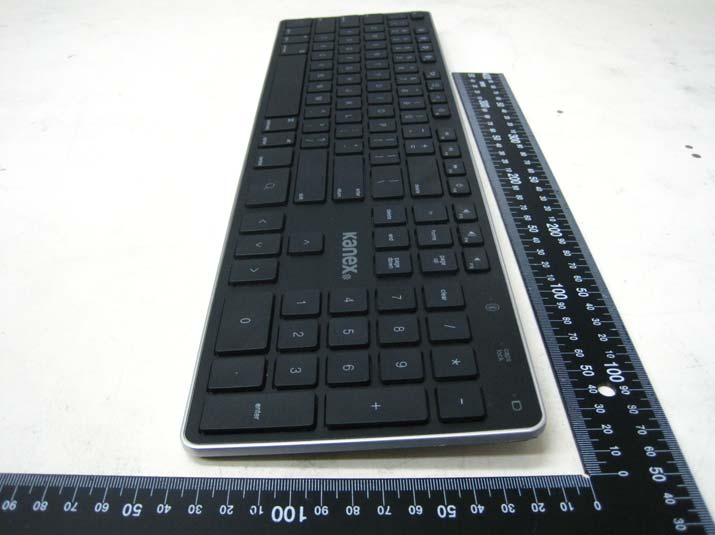

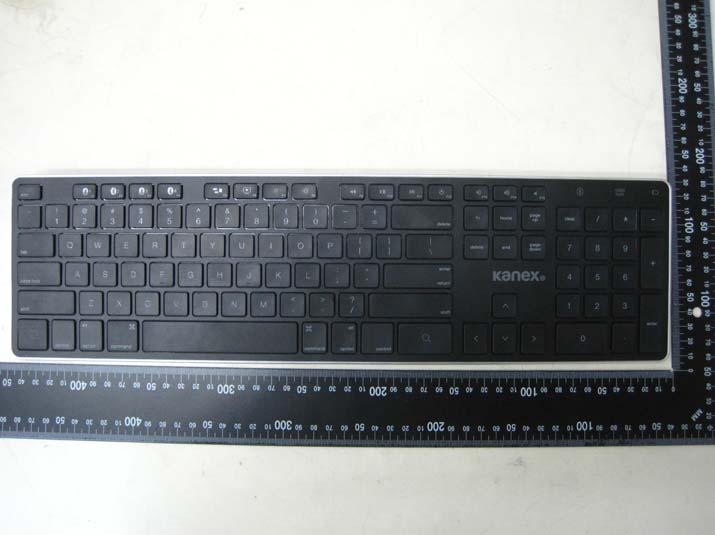

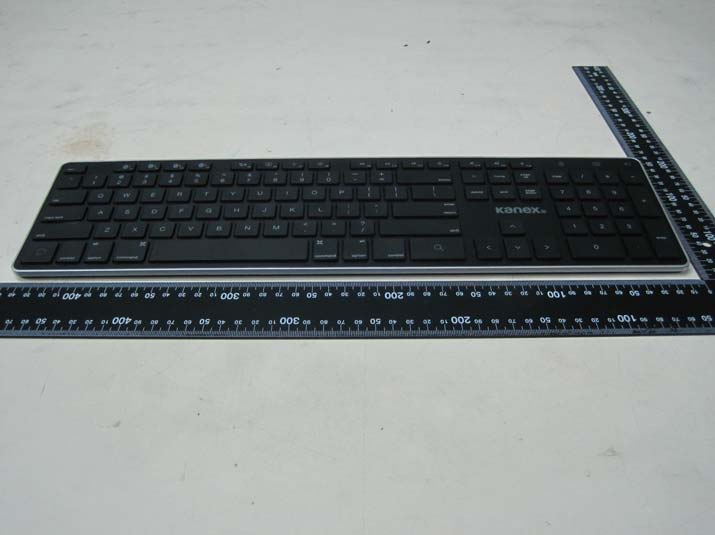

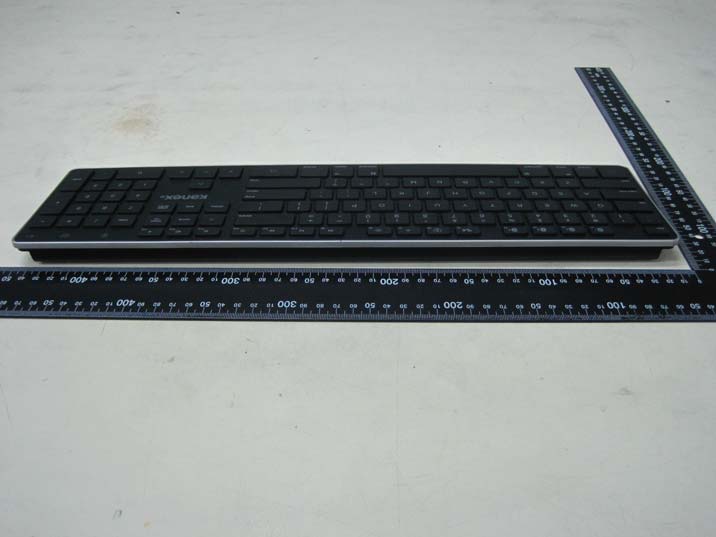

HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 82 of 87 14 Photographs of the EUT Front View of the EUT Rear View of the EUT HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 83 of 87 Side View of the EUT Side View of the EUT HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 84 of 87 Side View of the EUT Rear View of the PCB

FCC ID Label and Locations. Label

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product Product description: Bluetooth Keyboard Model No: QWERTYX-V2 FCC ID: PYW-QWERTYX-V2 The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The integral antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within the host device. A safety statement concerning minimum separation distances from enclosure of the Product : Bluetooth Keyboard will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no: HA150352-RA and the accompanying calculations: According to KDB 447498 D01 General RF Exposure Guidance v05r02, the 1-g SAR test exclusion thresholds for 100MHz to 6GHz at test separation distances of 50mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[√f(GHz)]≦3.0 for 1-g SAR, where min. test separation distance: 5 mm Frequency: 2.402 GHz (0.0132 mW/5mm) x √2.402GHz = 0.004092 <3 Result of Calculation: The result of calculation is far below 3 . Therefore, SAR test is not required.

HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 1 of 87 FCC COMPLIANCE TEST REPORT Technical Statement of Conformity in accordance with 47 CFR Part 15 Subpart C The product Equipment Under Test ： Bluetooth Keyboard Model Number ： QWERTYX-V2 Product Series ： QWERTYX-V2SV, KBK01-V2, BT-7301 Report Number ： HA150352-RA Issue Date ： 27-May-2015 Test Result ： Compliance is produced by Apogee Inc. 1405 Pioneer Street Brea, CA 92821 USA HongAn TECHNOLOGY CO., LTD. NO.15-1, CWEISHUH KENG, CWEIPIN VILLAGE, LINKOU, TAIPEI COUNTY, TAIWAN, R. O. C. TEL: +886-2-26030362 FAX: +886-2-26019259 E-mail: [email protected] BSMI Registration No.: SL2-IN-E-0023, SL2-A1-E-0023, FCC Designation No.: TW1071 SL2-IS-E-0023, SL2-R1-E-0023, TAF Accreditation No.: 1163 SL2-R2-E-0023, SL2-L1-E-0023 VCCI Registration No.: R-2156, C-2329, T-219 HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 2 of 87 Contents 1 General Description 6 1.1 Description of EUT 6 1.2 Test Instruments 8 1.3 Auxiliary Equipments 9 1.4 EUT SETUP 9 1.5 Identifying the Final Test Mode 9 1.6 Final Test Mode 10 1.7 Condition of Power Supply 10 1.8 EUT Configuration 10 1.9 Test Methodology 10 1.10 General Test Procedures 10 1.11 Modification 10 1.12 FCC Part 15.205 restricted bands of operations 11 1.13 Qualification of Test Facility 12 2 Power line Conducted Emission Measurement 13 2.1 Test Instruments 13 2.2 Test Arrangement and Procedure 13 2.3 Limit (§ 15.207) 13 2.4 Test Result 13 3 Radiated Emission Test 14 3.1 Test Instruments 14 3.2 Test Arrangement and Procedure 14 3.3 Limit (§ 15.205 & § 15.209) 15 3.4 Test Result 16 4 20 dB Bandwidth 25 4.1 Test Instruments 25 4.2 Test Arrangement and Procedure 25 4.3 Limit 25 4.4 Test Result 25 5 Hopping Frequency Separation 35 5.1 Test Instruments 35 5.2 Test Arrangement and Procedure 35 5.3 Limit (§ 15.247(a)(1)) 35 5.4 Test Result 35 HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 3 of 87 6 Number of Hopping Channels 40 6.1 Test Instruments 40 6.2 Test Arrangement and Procedure 40 6.3 Limit (§ 15.247(a)(1)(iii)) 40 6.4 Test Result 40 7 Average Time of Occupancy 42 7.1 Test Instruments 42 7.2 Test Arrangement and Procedure 42 7.3 Limit (§ 15.247(a)(1)(iii)) 42 7.4 Test Result 42 8 Peak Output Power 62 8.1 Test Instruments 62 8.2 Test Arrangement and Procedure 62 8.3 Limit (§ 15.247(b)) 62 8.4 Test Result 62 9 100kHz Bandwidth of Band Edges 67 9.1 Test Instruments 67 9.2 Test Arrangement and Procedure 67 9.3 Limit (§ 15.247(d)) 67 9.4 Test Result 67 10 Spurious RF Conducted Emissions 74 10.1 Test Instruments 74 10.2 Test Arrangement and Procedure 74 10.3 Limit (§ 15.247(d)) 74 10.4 Test Result 74 11 Antenna requirement 78 11.1 Limit (§ 15.203) 78 11.2 Test Result 78 12 Information about the FHSS characteristics 79 12.1 Pseudorandom Frequency Hopping Sequence 79 12.2 Example of a 79 hopping sequence in data mode: 79 12.3 Equal Hopping Frequency Use 79 13 Photographs of the Tests 80 13.1 Power line Conducted Emission Test (at Mains Terminals) 80 13.2 Radiated Disturbances Emission Test 81 14 Photographs of the EUT 82 HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 4 of 87 Test Result Certification Applicant ： Kanex Inc. Address of Applicant ： 1405 Pioneer Street Brea CA 92821 USA Manufacturer ： Dongguan You Hong Plastic Electronics Co., LTD. Address of Manufacturer ： Zhenhua Road, Tielukeng Village, Qishi Town, Dongguan City, China. Trade Name ： Kanex/ LEXKING Equipment Under Test ： Bluetooth Keyboard Model Number ： QWERTYX-V2 Product Series ： QWERTYX-V2SV, KBK01-V2, BT-7301 FCC ID ： PYW-QWERTYX-V2 Filing Type ： Certification Sample Received Date ： 14-May-2015 Test Standard ： FCC Part 15 Subpart C §15.247 Deviations from standard test methods & any other specifications : NONE Remark: 1. This report details the results of the test carried out on one sample. 2. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in both ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.203, 15.207, 15.209, 15.247. 3. This report a pplies to th e above sample only a nd shall not be reproduced in p art without written approval of HongAn Technology Co., Ltd. Documented by: 2015-05-27 Kay Wang/ ADM. Dept Staff Tested by: 2015-05-22 Eason Hsieh / ENG. Dept. Staff Approved by: Date: 2015-05-27 Peter Chin / Section Manager HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 5 of 87 Summary of Test Result Test Item Applicable Standard Test Result 1 Antenna Requirement FCC part 15 subpart C §203 Compliance 2 Conducted limits FCC part 15 subpart C §207 Not applicable 3 Radiated emission limits FCC part 15 subpart C §209 Compliance 4 20 dB Bandwidth FCC part 15 subpart C §247(a)(1) Compliance 5 Hopping Frequency Separation FCC part 15 subpart C §247(a)(1) Compliance 6 Number of Hopping Channels FCC part 15 subpart C §247(a)(1) Compliance 7 Average Time of Occupancy FCC part 15 subpart C §247(a)(1)(iii) Compliance 8 Peak Output Power FCC part 15 subpart C §247(b) Compliance 9 100kHz Bandwidth of Band Edges FCC part 15 subpart C §247(d) Compliance 10 Spurious RF Conducted Emissions FCC part 15 subpart C §247(d) Compliance HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 6 of 87 1 General Description 1.1 Description of EUT Equipment Under Test : Bluetooth Keyboard Model Number of EUT : QWERTYX-V2 Product Series : QWERTYX-V2SV, KBK01-V2, BT-7301 Power Supply : AAA Battery x 2 DC 3 V Frequency Range : 2402~2480 MHz Transmit Power : -18.78 dBm Number of Channels : 79 Channels Carrier Frequency of Each Channel : 00 2402 20 2422 40 2442 60 2462 01 2403 21 2423 41 2443 61 2463 02 2404 22 2424 42 2444 62 2464 03 2405 23 2425 43 2445 63 2465 04 2406 24 2426 44 2446 64 2466 05 2407 25 2427 45 2447 65 2467…

Text truncated - open the document above for the full version.

HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 41 of 87 HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 42 of 87 7 Average Time of Occupancy 7.1 Test Instruments Refer to Sec. 1.2 Test Instruments. 7.2 Test Arrangement and Procedure 1. The transmitter output was connected to a sp ectrum analyzer (through an atten uator, if it’ s necessary). 2. First, measure the number of pulses per 5 second, the RBW is set to 100 kHz and VBW is set to 100 kHz. Sweep is set to 5 sec. Span 0 Hz. 3. Second, measure the Pulse width, the RBW is set to 1MHz and VBW is set to 1MHz. Sweep i s adjusted to appropriate time to show a complete pulse. Span 0 Hz. 7.3 Limit (§ 15.247(a)(1)(iii)) The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. 7.4 Test Result Compliance. The final test data are shown on the following page(s). EUT Spectrum Analyzer HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 43 of 87 Bluetooth (1 Mbps) Channel 00 DH Packet Number of Hopping channels Number of Pulses per 5 sec Pulse Width (sec) AV time of Occupancy (sec) Limit (sec) DH1 79 50 0.00043188 0.136474 0.4 DH3 79 26 0.0017 0.279344 0.4 DH5 79 17 0.00294638 0.316559 0.4 Bluetooth (1 Mbps) Channel 39 DH Packet Number of Hopping channels Number of Pulses per 5 sec Pulse Width (sec) AV time of Occupancy (sec) Limit (sec) DH1 79 49 0.00043478 0.134642 0.4 DH3 79 23 0.0017 0.247112 0.4 DH5 79 19 0.00294348 0.353453 0.4 Bluetooth (1 Mbps) Channel 78 DH Packet Number of Hopping channels Number of Pulses per 5 sec Pulse Width (sec) AV time of Occupancy (sec) Limit (sec) DH1 79 49 0.00043188 0.133745 0.4 DH3 79 27 0.00170725 0.291325 0.4 DH5 79 17 0.00294348 0.316247 0.4 Remark: AV time of Occupancy (sec) = 79 (number of hopping channels) * 0.4 (sec) * Number of Pulses per 5 sec/ 5 * Pulse Width (sec) Note : 1. The EUT does not support AFH mode. HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 44 of 87 Temperature : 25.4°C Humidity : 40% Test Date : 25-May-2015 Tested by : Eason Hsieh Test Mode : BT (1 Mbps) DH1 Channel : 00 Number of Pulses Per 5 sec Pulse Width (sec) HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 45 of 87 HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 46 of 87 Test Mode : BT (1 Mbps) DH3 Channel : 00 Number of Pulses Per 5 sec Pulse Width (sec) HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 47 of 87 HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 48 of 87 Test Mode : BT (1 Mbps) DH5 Channel : 00 Number of Pulses Per 5 sec Pulse Width (sec) HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 49 of 87 HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 50 of 87 Test Mode : BT (1 Mbps) DH1 Channel : 39 Number of Pulses Per 5 sec Pulse Width (sec) HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 51 of 87 HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 52 of 87 Test Mode : BT (1 Mbps) DH3 Channel : 39 Number of Pulses Per 5 sec Pulse Width (sec) HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 53 of 87 HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 54 of 87 Test Mode : BT (1 Mbps) DH5 Channel : 39 Number of Pulses Per 5 sec Pulse Width (sec) HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 55 of 87 HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 56 of 87 Test Mode : BT (1 Mbps) DH1 Channel : 78 Number of Pulses Per 5 sec Pulse Width (sec) HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 57 of 87 HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 58 of 87 Test Mode : BT (1 Mbps) DH3 Channel : 78 Number of Pulses Per 5 sec Pulse Width (sec) HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 59 of 87 HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 60 of 87 Test Mode : BT (1 Mbps) DH5 Channel : 78 Number of Pulses Per 5 sec Pulse Width (sec) HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 61 of 87 HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 62 of 87 8 Peak Output Power 8.1 Test Instruments Refer to Sec. 1.2 Test Instruments. 8.2 Test Arrangement and Procedure 1. The transmitter output was connected to a sp ectrum analyzer (through an atten uator, if it’ s necessary). 2. The RBW is set to 3MHz and VBW is set to 3MHz. Span set to 5MHz. 3. Max Hold.. 8.3 Limit (§ 15.247(b)) 15.247(b) - The maximum peak conducted output power of the intentional radiator shall not excee d the following: 15.247(b)(1) - For frequency hopping systems operating in the 2400-2483.5 MHz band employing at least 75 non-overlapping hopping channels, and all frequency hopping systems in the 5725-5850 MHz band: 1 watt. F or all other frequency hopping systems in t he 2400-2483.5 MHz band: 0.125 watts. 15.247(b)(4) - The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are used, the co nducted output power fro m the intentional rad iator shall be reduced below the stated values in paragraphs (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. The maximum antenna gain is 3 dBi, therefore, the limit is 30 dBm. 8.4 Test Result Compliance. The final test data are shown on the following page(s). EUT Spectrum Analyzer HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 63 of 87 Bluetooth 1 Mbps (DH5) Channel Frequen…

Text truncated - open the document above for the full version.

HongAn TECHNOLOGY CO., LTD. Report No.: HA150021-RA FCC Test Report Page 81 of 87 13.2 Radiated Disturbances Emission Test Below 1 GHz Above 1 GHz
