Q2DMP1000Internet Phone

Quick & Easy Installation Internet Phone Please read this manual before use.The quality of voice of MiraPhone can be affected by your internet environment. << CONTENTS >> Hardware Requirements (p4)Features (p4)Attentions (p4)MiraPhone Installation (p5~p6)Using MiraPhone (p7~p10)FAQ (p11~p12)Warranty (p13)Package Contents (p3) MiraPhone Package Contents Program CD PC camera(not included) Serial port connecter Connect to RS-232 (COM port) of your PCConnect to PS/2 port of your PC - CPU: Pentium II, III or higher- OS:Windows 98SE/ME/2000/XP- RAM: 64MB or higher- HDD: 10MB Free Hard Disk space- Port: COM1 or COM2 enable- Internet Connection: ADSL, xDSL, Cable, LAN, Dial-up modem- Internet Speed: 45K byte (=36 Kbps) or faster- Microsoft Internet Explorer 5.01 or higher Hardware Requirements Features Attentions - Easy to use just after login- Excellent compatibility to other devices according to H.323 international standard protocol - Free calls between MiraPhones- Useful functions : Phonebook/ Short key/ Redial/ On-Hook- Please turn off your PC power before installation.- MiraPhone will work when your PC is working properly.- Keep your MiraPhone away from humidity or moisture.- Do not drop MiraPhone. Rough handling can break internal circuit.- Do not store MiraPhone in hot area. High temperatures can cause afire. - Do not attempt to open MiraPhone. MiraPhone may get damage.- Keep MiraPhone out of Water, Benzene, Alcohol, Thinner.- Turn off your PC when MiraPhone makes noise, smell, smoke and contact our service center. - Do not use any other cables or connectors which are not provided. Redial Phone Book Homepage On Hook Send Phone Connector Serial Connector PS/2 Connector MiraPhone Installation [1] MiraPhone Installation [2] Connect the phone jack to MiraPhone. Connect serial cable to COM port of your PC. Pull out the port jack from Mouse port or Key board port. Connect Mouse or Key boardJack to the PS/2 connector. Connect the PS/2 connector To Mouse or Key board port. Put MiraPhone installation CD and the program will be automatically installed. Installation is running. Files are copied.Installation is completed. Click on the button “Finish” andMiraPhone will work. <Computer Port Configuration> Phone Jack Receiver Jack Using MiraPhone [1] Using MiraPhone [2] Please register first by clicking “Register” button if you are not a MiraPhone service subscriber. You will get ANI number and password after registration. ANI number means your given number to use MiraPhone. Once MiraPhone is executed, a login screen is displayed. Enter the ANI number andpassword, and then click on the “Login” button. When login is successful, files are upgraded from MiraPhone server. When download is complete, dialer (MiraPhone.exe) runs. Recently Dialed Number : Contains the most 10 recent numbers dialed in the list. By double-clicking the phone numbers, you can place calls. Keypad : allows clicking on wanted number or symbols. Call/Hangup : Click on this button to make a call or Hang up. Cancel : Erase the phone numbers you entered. How to use : Linked to a user’s guide web page for MiraPhone. Video Call : A video screen appears with which video communications is provided. (see next page) Recharge : Linked to a recharge web page for MiraPhone. Inquiry Billing : Linked to a web page where usage details can be checked. Setting : Setting window is displayed. (Refer to FAQ page for the details.) Q&A : linked to service website’s Q&A board. Phone Book : A phonebook screen is displayed in the bottom part of the main screen. Logout : The current ANI number is logged out and a new window in which you can login appears. <Login Screen><Update Screen> <Main Dialer Screen> ANI display : ANI number of a login user is displayed. Phone number display : Phone number that is entered through a keypad or a phone is displayed. Account Balance : displays the left over amount. < Menu > Menu Using MiraPhone [3] Using MiraPhone [4] Pick up the MiraPhone receiver and then press SEND (or Call) button after pressing the phone number to make a call. You can also press numbers in your Key board or on the keypad of the dialer in the screen using mouse. You can make a call by pressing ON HOOK button without picking up the receiver. Press SEND button for redial.Calling MiraPhone to MiraPhone : Enter the receiver’s ANI number and click on Call (or press SEND) button. Korea Domestic Call : Area code + phone number (ex) 02-555-1234 Korea Domestic Mobile Call : Mobile Carrier Number + Phone Number same from overseas (ex)011 123 1234 Overseas Call : Country Code + Area Code + Phone number (ex) 81-123-555-4567 From your Phone book : Double-click on the number you put in the phone book.
Sending always the video when connecting other parties : if this option is checked, the Video Call screen appears automatically when PC-to-PC connection is made.
View Self : When ‘Play’ button is clicked, your own video image is displayed, and clicking on the stop button displays the default screen.
How to use Video Call : This is linked to a web page that contains manuals for video call use.
Group : a list of added groups are displayed.
Add : adds a user to Phone book
Modify : allows modifying a registered user’s information.
Delete : deletes a registered user from Phone book. When “video Call” button is clicked on (Only available for communications between MiraPhone terminals)How to make a phone call When “Phone Book” button is clicked on Group RegistrationInput name of group you want to create and click on “Add Group” button. Group ModifySelect group you want to modify and create new name for the group, and then click on “Modify” button. Phone number RegistrationInput name, phone number, mobile number, ANI number and select group for them and then click on “Add No.” button. Phone number ModifyModify name, phone number, mobile number, ANI number and select group for them and then click on “Modify” button. When click on “Add” button When click on “Modify” but…

Text truncated - open the document above for the full version.

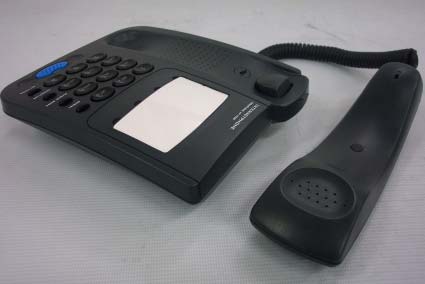

82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 MP-1000 External photos EUT

ID Label Internet Phone Model Name : MP-1000 Manufacturer: WebCall World Co., Ltd. S/N : N/A FCC ID : Q2DMP1000 This device complies with part 15 of the FCC Rules. Operation is subject to the fallowing two conditions. i) This device may not cause harmful interference and ii)This Device must accept any interference received, include interference that may cause undesired operation. MADE IN KOREA ID Label Location

82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 MP-1000 Internal photos Inside view 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 Main board

Operation Description This device is Internet Phone. It’s connected to personal computer via Serial connector. It’s excellent compatibility to other devices according to H.323 international standard protocol, easy to use just after login and need not external power supply.

Report No.: EMC-FCC-0065 Page : 1 of 15 EMI TEST REPORT Test report No. : EMC- FCC- 0065 Type of equipment : Internet Phone Model No. : MP-1000 FCC ID. : Q2DMP1000 Applicant : WebCall World Co., Ltd. Test standards : FCC part 15 subpart B, Class B Test Procedure and Items : - AC Power Line Conducted Emissions Measurement: ANSI C63.4-1992 - Radiated Emissions Measurement : ANSI C63.4-1992 Test result : Complied The above equipment was tested by EMC compliance Testing Laboratory for compliance with the requirements of FCC Rules and Regulations. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of test: 2003. 3. 21 Issued date: 2003 . 4. 6 Tested by : Approved by: Kim, Jung-Soo Chung, Min-Seok 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0065 Page : 2 of 15 [ Contents ] 1. Client information.......................................................................................................................3 2. Laboratory information..............................................................................................................4 3. Test system configuration..........................................................................................................5 3.1 Operation Environment...................................................................................................5 3.2 Measurement Uncertainty..............................................................................................5 3.3 Sample calculation..........................................................................................................6 4. Description of EUT.......................................................................................................................7 4.1 Product Description..........................................................................................................7 4.2 Peripherals.........................................................................................................................7 4.3 Used cables.......................................................................................................................8 4.4 Operating conditions.........................................................................................................8 4.5 EUT test configuration......................................................................................................9 5. Summary of test results..............................................................................................................9 5.1 Modification to the E.U.T..................................................................................................9 5.2 Standards & results...........................................................................................................9 6. Test results................................................................................................................................. 10 6.1 Conducted emission....................................................................................................10 6.1.1 Measurement procedure .........................................................................10 6.1.2 Used equipments .......................................................................................10 6.1.3 Measurement uncertainty .......................................................................10 6.1.4 Test data ......................................................................................................11 6.1.5. Result ...........................................................................................................11 6.2 Radiated emission.........................................................................................................12 6.2.1 Measurement procedure............................................................................12 6.2.2 Used equipments .......................................................................................12 6.2.3 Measurement uncertainty .......................................................................13 6.2.4 Test data ......................................................................................................13 6.2.5. Result ...........................................................................................................13 7. Test photographs.....................................................................................................................14 Conducted emission, Radiated emission 8. Test Graph................................................................................................................................. 14 Conducted emission test graph 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0065 Page : 3 of 15 1. Client information Applicant: WebCall World Co., Ltd. Address: 4F, KMIT Venture tower, 829-1, Yeoksam-Dong, Kangnam-Gu, Seoul, Korea Telephone number: 82-2-559-3683 Facsimile number: 82-2-559-3699 Contact person: JA-GYUN SA (Manager) Manufacture: WebCall World Co., Ltd. Address: 4F, KMIT Venture tower, 829-1, Yeoksam-Dong, Kangnam-Gu, Seoul, Korea Telephone number: 82-2-559-3683 Facsimile number: 82-2-559-3699 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 This test report shall not be reproduced except in full, Without the written approval. Report No.: EMC-FCC-0065 Page : 4 of 15 2. Laboratory information Address EMC compliance Ltd. 82-1, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA Telephone Numb…

Text truncated - open the document above for the full version.

82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 Conducted emission 82-1, JEIL-RI, YANGJI-MYUN, YONGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 9919 FAX : 82 31 336 4767 Radiated emission
