Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 Appendix 5. Block Diagram WebCall World Co., Ltd. Internet Phone Serial Phone

Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 Appendix 3. External Photographs of EUT Front of EUT Rear of EUT WebCall World Co., Ltd. Internet Phone Serial Phone

Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase(Labeling requirements per 2.925). This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : Serial Phone FCC ID : Q2DSERIALPHONE WebCall World Co., Ltd. Made in Korea FCC Label WebCall World Co., Ltd. Internet Phone Serial Phone

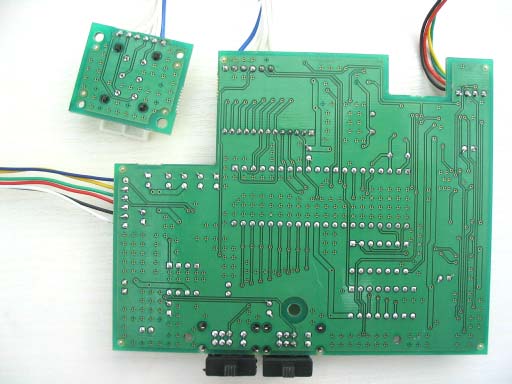

Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 Appendix 4. Internal Photographs of EUT WebCall World Co., Ltd. Internet Phone Serial Phone Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 WebCall World Co., Ltd. Internet Phone Serial Phone Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 WebCall World Co., Ltd. Internet Phone Serial Phone Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 WebCall World Co., Ltd. Internet Phone Serial Phone

Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 3. Product Information 3.1 Equipment Description The Equipment Under Test(EUT) is the WebCall World Co., Ltd. Internet Phone. model: Serial Phone (FCC ID : ). This Internet Phone is installed in the Personal Computer. 3.2 General Specification - Chassis Type : Plastic - List of Each OSC. or X-Tal. Freq.(>=1MHz) : X-Tal: 22.1184 MHz, 2.048 MHz - Power Source : DC 5 V(Powered by Personal Computer) - Operation environment : Windows 98/SE, ME, 2000 56K modem or higher Pentium 400 MHz or higher RAM 23 MB or higher Serial Port Interface - Applications of Solution : Company or family who has to call overseas Family or person who has to talk a lot by PC-PC, PC-Phone and Phone-PC - Features : Do not need sound card No external power adapter Speaker Phone function RS-232C Serial Interface NO device driver Function Keys DTMF generation Phone on/off hook Echo cancellation, Noise reduction Ring Generation Peer to Peer(Serial Phone to Serial Phone) communication - Interface : Serial Phone is only for digital internet phone which is connected with PC through serial port(RS232C) without PC sound card. 3.3 Variations covered by this report Model Difference: N/A Technical Deviation: N/A 3.4 Additional Information Related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the BWS TECH Inc. WebCall World Co., Ltd. Internet Phone Serial Phone

Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF FCC PART15 COMPLIANCE PRODUCT : Internet Phone MODEL/TYPE NO : Serial Phone FCC ID : Q2DSERIALPHONE TRADE NAME : WebCall World APPLICANT : WebCall World Co., Ltd. 5F Giyang Bldg, 1364, Seocho 2-Dong, Seocho-Gu, Seoul, 137-863, Korea Attn. : Park, Young-Ho / President FCC CLASSIFICATION : JBP : Part 15 Class B Computer Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B Class B FCC PROCEDURE : Certification DATES OF TEST : March 10 2004 DATES OF ISSUE : March 12 2004 TEST REPORT No. : BWS-04-EF-0013 TEST LAB. BWS TECH Inc. (Registration No.: 553281) This Internet Phone has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Lee Young-Soo Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~14 7. Sample Calculation and Other Information 15 8. Test Equipment List 16 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual WebCall World Co., Ltd. Internet Phone Serial Phone Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC). 1. General Information Applicant Information Manufacturer Information Company Name : WebCall World Co., Ltd. Company Address : 5F Giyang Bldg, 1364, Seocho 2-Dong, Seocho-Gu, Seoul, 137-863, Korea Phone/Fax : Phone: +82-2-525-7255 Fax: +82-2-525-7244 Company Name : C&S Telecom Corp. Company Address : 5F Giyang Bldg, 1364, Seocho 2-Dong, Seocho-Gu, Seoul, 137-863, Korea Phone/Fax : Phone: +82-2-525-7255 Fax: +82-2-525-7244 z EUT Type : Internet Phone z Model Number : Serial Phone z FCC Identifier : Q2DSERIALPHONE z S/N : Prototype z FCC Rule Part(s) : Part 15 Subpart B Class B z Test Procedure : ANSI C63.4-2000 z Date of Tests : March 10 2004 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 z Test Report No. : BWS-04-EF-0013 WebCall World Co., Ltd. Internet Phone Serial Phone Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission( Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated and conducted emissions from the WebCall World Co., Ltd . Internet Phone Model: Serial Phone. WebCall World Co., Ltd. Internet Phone Serial Phone Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 3. Product Information 3.1 Equipment Description The Equipment Under Test(EUT) is the WebCall World Co., Ltd. Internet Phone. model: Serial Phone (FCC ID : ). This Internet Phone is installed in the Personal Computer. 3.2 General Specification - Chassis Type : Plastic - List of Each OSC. or X-Tal. Freq.(>=1MHz) : X-Tal: 22.1184 MHz, 2.048 MHz - Power Source : DC 5 V(Powered by Personal Computer) - Operation environment : Windows 98/SE, ME, 2000 56K modem or higher Pentium 400 MHz or higher RAM 23 MB or higher Serial Port Interface - Applications of Solution : Company or family who has to call overseas Family or person who has to talk a lot by PC-PC, PC-Phone and Phone-PC - Features : Do not need sound card No external power adapter Speaker Phone function RS-232C Serial Interface NO device driver Function Keys DTMF generation Phone on/off hook Echo cancellation, Noise reduction Ring Generation Peer to Peer(Serial Phone to Serial Phone) communication …

Text truncated - open the document above for the full version.

Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 Appendix 1. Test Setup Photographs Conducted Emission Test Setup WebCall World Co., Ltd. Internet Phone Serial Phone Report No: BWS-04-EF-0013 FCC ID : Q2DSERIALPHONE Date of Test : March 10 2004 Radiated Emission Test Setup WebCall World Co., Ltd. Internet Phone Serial Phone
