Q2GIX104-010Tablet PC with built-in GPRS radio

ix104USER’S HANDBOOK iX104 USER'S HANDBOOK 4 iX104 User’s Handbook Xplore Technologies ® has made every effort to ensure the accuracy and completeness of this document; however, because ongoing development efforts are made to continually improve the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes herein. Xplore and the Xplore logo are registered trademarks of Xplore Technologies Corp.; iX104 is a trademark of Xplore Technologies Corp. Kensington and MicroSaver are registered trademarks of the Kensington Technology Group. Microsoft is a registered trademark of Microsoft Corporation. Windows 2000 Professional, Windows XP Professional, and Windows XP Tablet PC Edition are trademarks of Microsoft Corporation. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association. Intel, Pentium, and SpeedStep are registered trademarks of Intel Corporation. Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance (WECA). FireWire is a registered trademark of Apple Computer, Inc. ISODAMP is a registered trademark of Aearo Company. All other brands, product names, company names, trademarks and service marks used herein are property of their respective companies. Copyright © 2003 Xplore Technologies Corp. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Xplore Technologies. No part of this publication may be stored or transmitted in any electronic form without the prior consent of Xplore Technologies. Any unauthorized use is a violation of copyright laws. PN: 95-01016 Edition: First, April 2003 DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name: Xplore Technologies Corp. Address: 11675 Jollyville Rd. Suite 150, Austin, Texas 78759 Telephone: 512.336.7797 Declares that product: Model Series: iX104 Complies with Part 15 of the FCC Rules iX104 User’s Handbook 5 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance may void the user’s authority to operate this equipment. For more information about FCC rules and their applicability to the iX104, see Appendix E, “Agency Notices.” Warranty Information The iX104 and iX104-TPC are backed by a standard 12-month International Limited Warranty. An extended International Limited Warranty is available. Check the service kit included with your computer for warranty terms and conditions. a 6 iX104 User’s Handbook Important safety information Before you use the iX104 or the iX104 dock, read these safety instructions and the operation instructions in this handbook. Failure to observe all these instructions voids the Limited Warranty and may lead to suspension or denial of services to the offender, or legal action, or both. Follow any special regulations governing the use of the computer and, if radio-enabled, always switch it off in areas where radio devices are forbidden or when the radio device can cause interference or danger. Always follow any safety laws and regulations pertaining to the use of cell phones and two-way radios, because these laws and regulations typically apply to the use of the wireless-enabled iX104. Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, and wherever blasting operations are in progress or in any area in which restrictions on radio transmissions are imposed. Switch off the iX104 when in an aircraft. The iX104 is not FAA-approved for use on aircraft. The effect of the use of the iX104 in aircraft is unknown. Using the iX104 in an aircraft may affect aircraft instrumentation, communication, and performance; may disrupt the network; and may be illegal. Operating the wireless-enabled iX104 may interfere with the functioning of inadequately protected medical devices such as pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions. Radio signals from your iX104 will not affect the operation of most modern equipment, but certain electronic equipment, including automotive systems, may not be shielded against radio signals from your iX104. Check with the manufacturer of your motor vehicle or the manufacturer’s representative to determine whether using the iX104 will present any safety issues. Avoid using the iX104 in any environment that requires your full attention, such as when driving a vehicle. If you need to use your iX104 while driving, have a passenger use it for you or find a safe location to halt your vehicle. iX104 User’s Handbook 7 WARNING Use only battery types specified in this handbook. Using any other type of battery can be dangerous and can disable the iX104. WARNING Do not use any dock or any other accessory or attachment that is not manufactured or supplied by Xplore or an authorized Xplore accessories supplier. Use of any accessory or attachment that is not supplied or approved for use with the iX104 by Xplore is not permitted because it may cause hazards. Operate the iX104 only from the type of power source indicated on the marking label. (See page 53 for more information about the battery and power supply.) Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs and convenience receptacles, and at the point where cords exit from the computer or its dock. Do not overload wall outlets, extension cords, or integral convenience receptacles because this can cause fire or electric shock. Unplug the iX104 and refer the iX1…

Text truncated - open the document above for the full version.

1 of 2 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com STATEMENT This filing constitute a formal submittal pursuant to Subpart C of Part 15, 22 and 24 of FCC rules (CFR 47) regarding intentional radiators. Company Name: Xplore Technologies Model # IX104 Description: Tablet PC with built in GPRS (850/1900) and WLAN (802.11b) FCC ID: Q2GIX104-xxx The FCC-ID numbering for the different versions is as follow: Q2GIX104-xxx where xxx is, First n following dash is for co-location. 0 = no-colocation 1 = RIM 1902GS 2 = Sierra Wireless Aircard 510 (PO in process). Second n following dash is for wide area network radio options. 0 - none 1 = RIM 1902GS 2 = Sierra Wireless Aircard 510 (PO in process) Third n following dash is for local area network radio options. 0 = none 1 = Symbol Spectrum24 (FH) 2 = Cisco Aironet 350 3 = Neweb EM9-AB (PO in process) All filings with the middle number 1or 2 and the last digit other than 0 are filed through FCC directly because of the co-location. Examples Rim Module Q2GIX104-010 CISCO module Q2GIX104-002 Antenna Gain in calculated by the following equation: EIRP (Measured) – Conducted Power (Measured) = Gain (dBi) Peak Antenna Gain (dBi) Antenna Type 850 GSM Band 1900 PCS Band GPRS -9.54 -1.36 2400MHz (ISM Band) WLAN -1.6 2 of 2 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com SUMMARY OF TESTING Xplore IX104-11 is a tablet PC, which can be equipped with two different kind of radios. • RIM 1902G module for GPRS functions, • CISCO AIR-LMC350 PCMCIA or a Symbol Spectrum24 unit for WLAN function. These radios are off the shelf modules and have not been modified since the FCCID has been granted. IX104 has added a new antenna to the two modules mentioned above and integrated into their Tablet PC. The IX104 radios are not user accessible and the manufacturer can alter the configuration of the Tablet PC using the different WLAN’s Each configuration is filed separately and has its own FCC ID (see FCC ID selection above). EMC/Radio Test Reports: Test report RIM-0204-04 includes conducted results for RIM1902G module and EMC_448-2003FCC22-24_IX104-11 includes radiated results for Tablet PC including the RIM 1902G module with embedded antenna. Test report AIR-LMC350_LDK102040 includes conducted results for CISCO AIR- LMC350 PCMCIA card and EMC_448-2003-FCC15.247_IX104-11 includes radiated results for Tablet PC including the AIR-LMC350 card with embedded antenna. Test report J99013298B includes conducted results for the Symbol LA3021-100 PCMCIA card and EMC_448-2003FCC15.247_IX104-12 includes radiated results for LA3021-100 card with different antenna. SAR Test Reports: Each configuration was tested separately for SAR Lothar Schmidt Technical Manager

April 1, 2003 Federal Communication Commission Equipment Approval Service Attention: Authorization and Evaluation Division Reference: Xplore Technologies FCC ID: Q2GIX104-010 To Whom It May Concern: Subject: Request for Confidentiality Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s rules, the Applicant hereby requests confidential treatment of the Xplore Technologies supplied information accompanying this application. The confidential information includes the following: • Schematics • Block Diagrams • Bill of Materials • Tune up procedure • Operational description The materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of this information might be harmful to Xplore Technologies and provide unjustified benefits to our competitors. Xplore Technologies understands that pursuant to 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of the grant. Best regards, Douglas L. Fowler Sr. Project Engineer Xplore Technologies, Inc. Xplore Technologies, Inc. 11675 Jollyville Road Suite 150 Austin, TX 78759 888-44-XPLORE

April 1, 2003 Federal Communication Commission Equipment Approval Service Attention: Authorization and Evaluation Division Reference: Xplore Technologies FCC ID: Q2G IX104-xxx To Whom It May Concern: Subject: Cover Letter Xplore Technologies, Inc. herein is submitting a new filing for its iX104 Tablet Computer for FCC Part 2, 15, 22 and 24 Certification. The Model iX104 tablet computer is a device with radios for wireless communication including the. The Model iX104 tablet computer may include one of the following pre-approved: 1. Research In Motion 1902GS GPRS OEM Module (FCC ID: L6A R6420GN) The RIM Model 1902GS is a dual band GPRS PCS and Cellular band radio modem. This device will be used for data only and will not be used for voice calls. 2. Cisco Aironet 350 PCMCIA Direct Sequence WLAN Card (FCC ID: LDK102040) 3. Symbol Spectrum24 PCMCIA Frequency Hopping WLAN Card (FCC ID: H9PLA3021) These radios can installed as single radios and in combination with the RIM 1902GS module. Each configuration is filed with a separate FCC ID. The co-located versions are filed directly through the FCC. All required tests in compliance with Parts 2, 15, 22 and 24 of the FCC Rules including SAR have been completed in FCC approved test facilities at Cetecom in Milpitas, CA with satisfactory results as provided with the Exhibits accompanying this cover letter. The required tests in conformance with Part 15, Class B of the FCC Rules have been submitted as a “Verification” requirement pursuant to Section 15.101(b) of the FCC rules. Xplore Technologies would like to request confidentiality as indicated in the Form 731, Item 8 and as requested in the “Request for Confidentiality” letter in the Exhibit “Cover Letters”. Please do not hesitate to contact the undersigned should you require additional information or have any questions. Best regards, Douglas L. Fowler Sr. Project Engineer Xplore Technologies, Inc. Tel: (972) 334-0474 Fax: (512) 336-7791 Email: [email protected] Xplore Technologies, Inc. 11675 Jollyville Road Suite 150 Austin, TX 78759 888-44-XPLORE

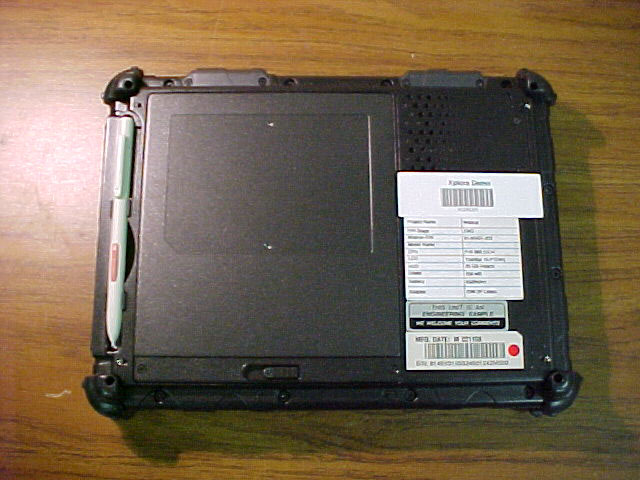

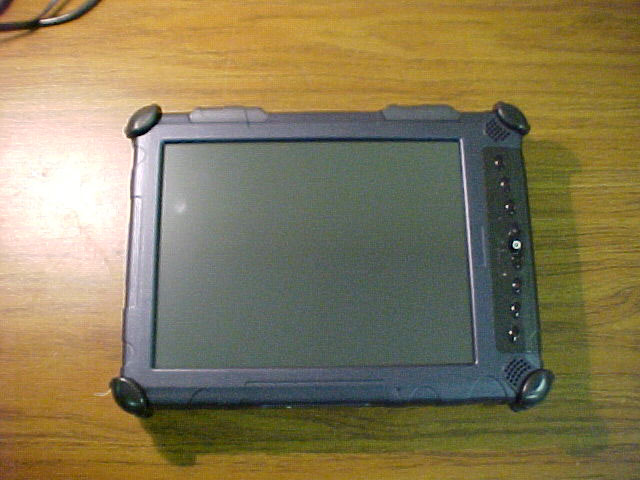

iX104: Exterior - F ront iX104: Exterior - B ack FCC Label iX104: Exterior – B attery Pack Removed

FCC ID: Q2GIX104- 010 IC: Radio Specific FCC/IC Label

iX104: Antenna Locations Wide A r ea Network AntennaLocal Area NetworkAntenna iX104: Antenna Cavities WAN Antenna GSM Antenna iX104: Interior View PCMCIASlot Mini-PCISlot iX104: RIM 1902G Module Location RIM 1902G Module iX104: Main Logic Board iX104: Keypad PCB iX104: I/O PCB iX104: I/O PCB Removed

SAR Test Report No : SAR_448_2003_FCC_850_1900 Date of Report:04/15/2003 Appendix A Page 1 of 8 Appendix A: Measurement Plots 1902G 850 MHz band: Plot 1. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass density (ρ): 1 DCP 1 X=9, Y=13.6, Z=8.7 Probe S/N:0123 Air Factor X=346, Y=318, Z=386 Probe S/N:0123 liquid/air conversion Factor 0.466 Simulated tissue dielectric parameters: ε r : 55.5 σ: 0.985 Test Position: bystander 1 cm Channel / Frequency 192 / 836.6 MHz Maximum 1 gram SAR: 0.315W/Kg Maximum 10 gram SAR: 0.215W/Kg Power reference start: 0.170W/Kg Power reference end 0.170W/Kg Power reference change 2 0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_448_2003_FCC_850_1900 Date of Report:04/15/2003 Appendix A Page 2 of 8 Plot 2. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass density (ρ): 1 DCP 1 X=9, Y=13.6, Z=8.7 Probe S/N:0123 Air Factor X=346, Y=318, Z=386 Probe S/N:0123 liquid/air conversion Factor 0.466 Simulated tissue dielectric parameters: ε r : 55.5 σ: 0.985 Test Position: lap Channel / Frequency 192 / 836.6 MHz Maximum 1 gram SAR: 0.140W/Kg Maximum 10 gram SAR: 0.103W/Kg Power reference start: 0.075W/Kg Power reference end 0.077W/Kg Power reference change 2 3.31% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_448_2003_FCC_850_1900 Date of Report:04/15/2003 Appendix A Page 3 of 8 Plot 3. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass density (ρ): 1 DCP 1 X=9, Y=13.6, Z=8.7 Probe S/N:0123 Air Factor X=346, Y=318, Z=386 Probe S/N:0123 liquid/air conversion Factor 0.466 Simulated tissue dielectric parameters: ε r : 56.12 σ: 0.971 Test Position: lap Channel / Frequency 128 / 824.2 MHz Maximum 1 gram SAR: 0.222W/Kg Maximum 10 gram SAR: 0.182W/Kg Power reference start: 0.105W/Kg Power reference end 0.101W/Kg Power reference change 2 -3.31% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_448_2003_FCC_850_1900 Date of Report:04/15/2003 Appendix A Page 4 of 8 Plot 4. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass density (ρ): 1 DCP 1 X=9, Y=13.6, Z=8.7 Probe S/N:0123 Air Factor X=346, Y=318, Z=386 Probe S/N:0123 liquid/air conversion Factor 0.466 Simulated tissue dielectric parameters: ε r : 55.38 σ: 0.979 Test Position: lap Channel / Frequency 251 / 848.8 MHz Maximum 1 gram SAR: 0.204W/Kg Maximum 10 gram SAR: 0.071W/Kg Power reference start: 0.028W/Kg Power reference end 0.029W/Kg Power reference change 2 1.91% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_448_2003_FCC_850_1900 Date of Report:04/15/2003 Appendix A Page 5 of 8 1902G 1900 MHz band: Plot 5. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass density (ρ): 1 DCP 1 X=9, Y=13.6, Z=8.7 Probe S/N:0123 Air Factor X=346, Y=318, Z=386 Probe S/N:0123 liquid/air conversion Factor 0.610 Simulated tissue dielectric parameters: ε r : 53.25 σ: 1.580 Test Position: bystander 1 cm Channel / Frequency 661 / 1880 MHz Maximum 1 gram SAR: 0.295W/Kg Maximum 10 gram SAR: 0.150W/Kg Power reference start: 0.079W/Kg Power reference end 0.079W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_448_2003_FCC_850_1900 Date of Report:04/15/2003 Appendix A Page 6 of 8 Plot 6. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass density (ρ): 1 DCP 1 X=9, Y=13.6, Z=8.7 Probe S/N:0123 Air Factor X=346, Y=318, Z=386 Probe S/N:0123 liquid/air conversion Factor 0.610 Simulated tissue dielectric parameters: ε r : 53.25 σ: 1.580 Test Position: lap Channel / Frequency 661 / 1880 MHz Maximum 1 gram SAR: 0.054W/Kg Maximum 10 gram SAR: 0.028W/Kg Power reference start: 0.010W/Kg Power reference end 0.010W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_448_2003_FCC_850_1900 Date of Report:04/15/2003 Appendix A Page 7 of 8 Plot 7. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass density (ρ): 1 DCP 1 X=9, Y=13.6, Z=8.7 Probe S/N:0123 Air Factor X=346, Y=318, Z=386 Probe S/N:0123 liquid/air conversion Factor 0.610…

Text truncated - open the document above for the full version.

SAR Test Report No.: SAR_448_2003_FCC_850_1900 Date of Report 04/15/2003 Appendix B Page 1 of 7 Appendix B: Photos EUT Photos: Photo 1. Antenna locations SAR Test Report No.: SAR_448_2003_FCC_850_1900 Date of Report 04/15/2003 Appendix B Page 2 of 7 Photo 2. EUT front SAR Test Report No.: SAR_448_2003_FCC_850_1900 Date of Report 04/15/2003 Appendix B Page 3 of 7 Photo 3. EUT back SAR Test Report No.: SAR_448_2003_FCC_850_1900 Date of Report 04/15/2003 Appendix B Page 4 of 7 Setup Photos Photo 4. GPRS antenna bystander position SAR Test Report No.: SAR_448_2003_FCC_850_1900 Date of Report 04/15/2003 Appendix B Page 5 of 7 Photo 5. bystander position distance SAR Test Report No.: SAR_448_2003_FCC_850_1900 Date of Report 04/15/2003 Appendix B Page 6 of 7 Photo 6. GPRS antenna lap position SAR Test Report No.: SAR_448_2003_FCC_850_1900 Date of Report 04/15/2003 Appendix B Page 7 of 7 Photo 7. Photo to demonstrate 15 cm Z-axis flat phantom

SAR Test Report No: SAR_448_2003_FCC_850_1900 Date of Report: 04/15/2003 Appendix C Page 1 of 38 Tissue Parameters 900 MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 49.46% distilled water 49.46% DGBE 1.0% salt 0.1% bactericide Di-electric constants measured on 04/03/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 900 41.2 0.973 850MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 49.8% distilled water 40.6% DGBE 8.9% salt 0.6% HEC 0.1% bactericide Di-electric constants measured on 04/03/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 824.2 56.12 0.971 836.6 55.50 0.985 848.8 55.38 0.979 SAR Test Report No: SAR_448_2003_FCC_850_1900 Date of Report: 04/15/2003 Appendix C Page 2 of 38 1900MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 54.9% distilled water 44.92% DGBE 0.18% salt 0.1% bactericide Di-electric constants measured on 04/03/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1900 39.27 1.432 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% distilled water 30.29% DGBE 0.44% salt 0.1% bactericide Di-electric constants measured on 04/03/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1850.2 53.38 1.566 1880 53.25 1.580 1909.8 53.02 1.586 Environment 04/03/2003: Temperature: 20.1 °C – 23.9°C Humidity: 45% _ 55 % SAR Test Report No: SAR_448_2003_FCC_850_1900 Date of Report: 04/15/2003 Appendix C Page 3 of 38 Test Equipment Test Equipment Model Serial Instrument description Supplier/Manufacturer Model Serial No. Calibration (date) Bench top Robot Mitsubishi supplied by Indexsar RV-E2 Serial No. N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by Indexsar SAM 04/02 FT08 N/A 900 MHz Head Tissue Simulant Cetecom Inc. 900 Head N/A 04/03/2003 850 MHz Body Tissue Simulant Cetecom Inc. 850 Body N/A 04/03/2003 1900 MHz Head Tissue Simulant Cetecom Inc. 1900 Head N/A 04/03/2003 1900 MHz Body Tissue Simulant Cetecom Inc. 1900 Body N/A 04/03/2003 900MHz Dipole IndexSAR – IEEE 1528 design IXD-090 090-0016 07/01/2002 1900MHz Dipole IndexSAR – IEEE 1528 design IXD-190 190-0016 07/30/2002 Netwok Analyzer Agilent 8753ES US39172511 04/04/2002 RF Amplifier Vectawave N/A N/A N/A Power Meter Rohde and Schwartz NRVD 836875/020 5/2002 Power Sensor Rohde and Schwartz URV5-Z2 836029/034 5/2002- Power Sensor Rohde and Schwartz URV5-Z2 836029/035 5/2002- SAR Probe IndexSAR IXP-050 S/N 0123 10/25/2002 Probe amplifier Indexsar IXA-010 S/N 043 N/A Thermometer Control Company 4039 20410549 11/20/2001 Dielectric Measurement Kit IndexSar Di-Line N/A N/A SAR Test Report No: SAR_448_2003_FCC_850_1900 Date of Report: 04/15/2003 Appendix C Page 4 of 38 Equipment Calibration/Performance Documents: Validation Dipoles Performance Measurements: Pages 5 to 15 Immersible SAR probe Calibration Report: Pages 16 to 38 Please Note: (The following pages of Appendix C show calibration documents. These calibration documents are inserted into this appendix. The header information with page numbering scheme is a part of this report and is included on all pages of the report and appendixes. This header is used to track all of the contents of this report.) SAR Test Report No: SAR_448_2003_FCC_850_1900 Date of Report: 04/15/2003 Appendix C Page 5 of 38 Report No. SN0016_090-180-245 July 1 st 2002 INDEXSAR Validation Dipoles Type IXD-090, IXD-180 & IXD-245 Performance measurements S/N: 090-0016 S/N: 180-0016 S/N: 245-0016 MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5DR. UK. Tel: +44 (0) 1306 631233 Fax: +44 (0) 1306 631834 e-mail: [email protected] SAR Test Report No: SAR_448_2003_FCC_850_1900 Date of Report: 04/15/2003 Appendix C Page 6 of 38 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An HP 8753B vector network analyser was used for the return loss measurements. The dipole was placed in a special holder made of low-permittivity, low-loss materials. This holder enables the dipole to be positioned accurately in the centre of the base of the Indexsar box-phantom used for flat-surface testing and validation checks. The validation dipoles are supplied with special spacers made form a low-permittivity, low-loss foam material. These spacers are fitted to the dipole arms to ensure that, when the dipole is offered up to the phantom surface, the spacing between the dipole and the liquid surface is accurately aligned according to the guidance in the relevant standards documentation. The spacers are rectangular with a central hole equal to the dipole arm diameter and dimensioned so that the longer side can be used to ensure a spacing of 15mm from the liquid in the phantom (for tests at 900MHz and below) and the shorter side can be used for tests at 1800MHz and above to ensure a spacing of 10mm from the liquid in the phantom. The spacers are made on a CNC milling machine with an accuracy of 1/40 th mm but they may suffer wear and tear and need to be replaced periodically. The material used is Rohacell, which has a relative permittivity of approx. 1.05 and a negligible loss tangent. The apparatus supplied by Indexsar for dipole validation tests thus includes: Balanced dipoles for each frequency required are dimensioned according to the guidelines given in IEEE 1528 [1]. The dipoles are made from semi-rigid 50 ohm co-ax, which is…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 f:\emc\projects\xplore\448-2003_ix104\sar\report\rim850_1900\sar_448_2003_fcc__850_1900.doc © Copyright by CETECOM SAR Test Report No. SAR_448_2003_FCC_850_1900 for the Xplore Technologies Tablet Computer Model Number: iX104 FCC ID: Q2GIX104-010 Date of Report: 04/15/2003 Date of issue: 04/15/2003 Report Copy No.: 01 SAR Test Report No. SAR_448_2003_FCC_850_1900 Date of Report: 04/15/2003 Page 2 of 27 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents 1 ASSESSMENT ...................................................................................................................4 2 ADMINISTRATIVE DATA...................................................................................................5 2.1 Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 2.2 Identification of the Client...........................................................................................5 2.3 Identification of the Manufacturer...............................................................................5 3 EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 3.1 Identification of the Equipment under Investigation ...................................................6 3.2 Front View of the Equipment under Investigation ......................................................7 4 SUBJECT OF INVESTIGATION ........................................................................................8 4.1 The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................8 4.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...8 4.3 Distinction between Maximum Permissible Exposure and SAR Limits......................9 4.4 SAR Limit ...................................................................................................................9 5 THE FCC MEASUREMENT PROCEDURE .....................................................................10 5.1 General Requirements.............................................................................................10 5.2 Device Operating Next to a Person’s Ear ................................................................10 5.3 Test Positions ..........................................................................................................11 5.4 Test positions of device relative to head..................................................................11 5.5 Test to be Performed ...............................................................................................14 5.6 Body-worn and Other Configurations.......................................................................14 5.7 Procedure for assessing the peak spatial-average SAR .........................................15 5.8 Determination of the largest peak spatial-average SAR ..........................................17 6 THE MEASUREMENT SYSTEM ......................................................................................18 6.1 Robot system specification ......................................................................................18 6.2 Probe and amplifier specification .............................................................................19 6.3 Phantoms.................................................................................................................19 6.4 SAR measurement procedure .................................................................................20 SAR Test Report No. SAR_448_2003_FCC_850_1900 Date of Report: 04/15/2003 Page 3 of 27 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 6.5 SARA2 In…
