Q2GIX104-149Tablet PC with wireless transmitter

USER’S HANDBOOK 4 iX104C 2 User’s Handbook Xplore Technologies ® has made every effort to ensure the accuracy and completeness of this document; however, because ongoing development efforts are made to continually improve the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes herein. Xplore and the Xplore logo are registered trademarks of Xplore Technologies Corp.; iX104, iX104C 2 , iX104C 2 Tablet PC, and iX104C 2 Dual Mode are trademarks of Xplore Technologies Corp. Kensington and MicroSaver are registered trademarks of the Kensington Technology Group. Microsoft is a registered trademark of Microsoft Corporation. Windows 2000 Professional, Windows XP Professional, and Windows XP Tablet PC Edition are trademarks of Microsoft Corporation. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association. Intel, Pentium, and SpeedStep are registered trademarks of Intel Corporation. Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance (WECA). FireWire is a registered trademark of Apple Computer, Inc. ISODAMP is a registered trademark of Aearo Company. All other brands, product names, company names, trademarks and service marks used herein are property of their respective companies. Copyright © 2003-2004 Xplore Technologies Corp. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Xplore Technologies. No part of this publication may be stored or transmitted in any electronic form without the prior consent of Xplore Technologies. Any unauthorized use is a violation of copyright laws. PN: 95-01030 Edition: First, August 2004 DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name: Xplore Technologies Corp. Address: 14000 Summit Drive, Suite 900, Austin, Texas 78728 Telephone: 512.336.7797 Declares that product: Model Series: iX104C 2 complies with Part 15 of the FCC Rules iX104C 2 User’s Handbook 5 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance may void the user’s authority to operate this equipment. For more information about FCC rules and their applicability to the iX104, see Appendix E, “Agency Notices.” Warranty Information The iX104C 2 Tablet PC, and iX104C 2 Dual Mode are backed by a standard 12-month International Limited Warranty. An extended International Limited Warranty is available. Check the service kit included with your computer for warranty terms and conditions. a 6 iX104C 2 User’s Handbook Important safety information Before you use the iX104C 2 Tablet PC or iX104C 2 Dual Mode (referred to as the tablet), read these safety instructions and the operation instructions in this handbook. Failure to observe all these instructions voids the Limited Warranty and may lead to suspension or denial of services to the offender, or legal action, or both. Follow any special regulations governing the use of the tablet and, if radio- enabled, always switch it off in areas where radio devices are forbidden or when the radio device can cause interference or danger. Always follow any safety laws and regulations pertaining to the use of cell phones and two-way radios, because these laws and regulations typically apply to the use of the wireless-enabled tablet. Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, and wherever blasting operations are in progress or in any area in which restrictions on radio transmissions are imposed. Switch off the tablet when in an aircraft. The tablet is not FAA-approved for use on aircraft. The effect of the use of the tablet in aircraft is unknown. Using the tablet in an aircraft may affect aircraft instrumentation, communication, and performance; may disrupt the network; and may be illegal. Operating the wireless-enabled tablet may interfere with the functioning of inadequately protected medical devices such as pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions. Radio signals from your tablet will not affect the operation of most modern equipment, but certain electronic equipment, including automotive systems, may not be shielded against radio signals from your tablet. Check with the manufacturer of your motor vehicle or the manufacturer’s representative to determine whether using the tablet will present any safety issues. Avoid using the tablet in any environment that requires your full attention, such as when driving a vehicle. If you need to use your tablet while driving, have a passenger use it for you or find a safe location to halt your vehicle. iX104C 2 User’s Handbook 7 WARNING Use only battery types specified in this handbook. Using any other type of battery can be dangerous and can disable the tablet. WARNING Do not use any dock or any other accessory or attachment that is not manufactured or supplied by Xplore or an authorized Xplore accessories supplier. Use of any accessory or attachment that is not supplied or approved for use with the tablet by Xplore is not permitted because it may cause hazards. Operate the tablet only from the type of power source indicated on the marking label. (See page 56 for more information about the battery and power supply.) Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs and convenience receptacles, and at the point where cords exit from the tablet or its dock. Do not overload wall outlets, extensi…

Text truncated - open the document above for the full version.

Xplore Technologies, Inc. 14000 Summit Road Suite 900 Austin, TX 78728 888-44-XPLORE Page 1 of 1 4/24/2006 April, 03, 2006 Federal Communication Commission Equipment Approval Service Attention: Authorization and Evaluation Division Reference: Xplore Technologies FCC ID: Q2GIX104-149 To Whom It May Concern: Subject: Request for Confidentiality Pursuant to Sections 0.457 (d) (1) (ii) and 0.459 of the Commission’s rules, the Applicant hereby requests confidential treatment of the Xplore Technologies supplied information accompanying this application. The confidential information includes the following: • Schematics • Block Diagrams • Bill of Materials • Operational Descriptions • Tune up information The materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of this information might be harmful to Xplore Technologies and provide unjustified benefits to our competitors. Xplore Technologies understands that pursuant to 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of the grant. Best regards, Mazyar Razzaz Electrical Engineer Xplore Technologies, Inc.

Appendix A Non-Conformities for US Radio Equipment Authorization Non-Conformities FCC ID: Q2GIX104-149 (Ref # E06-000133-1) The items listed below represent requests for information following review of this application. Further question may arise pending review of responses to these items. OK # Non-Conformity or Comment Submitted Response Y 1 Please provide a signed General Agreement. GA uploaded and signed Y 2 PhotosExternalREV2 is 5.051 Mbytes in size. Please break this file into two smaller ones so that all exhibits are under 4 Mbytes in size. New external photos uploaded N 3 User’s manual was uploaded and it does not provide a brief description of circuit functionality, how the device operates, or is modulated. Please provide an operational description. Provided operational description is inadequate. N 4 Please provide an updated copy of the test report to include 15.247 (a)(2) 6 dB BW plots, 15.247 (e) power spectral density plots, test setup photos, actual test equipment listing, and spurious emissions data. Partially okay with upload of origin 6300 report from MET Labs, but te s set up photos and actual test equipm listing are still missing. Also, where the radiated emissions data from 18 GHz to 24.7 GHz. Y 5 Please place the 2-part warning statement on the label with the FCC ID since the device is larger than palm size. Okay. N 6 No statement in the test report regarding the max power output evaluated with rated supply voltage being varied from 85% to 115% of normal rating. Please provide data regarding this. Please see 15.31(e). Testing is requi regardless at 85% and 115% of nor power. N 7 What antenna was used for radiated emissions below 30 MHz? Please refer to submitted block diagram. Emissions are required to MHz. N 8 User’s manual refers to a magnetic base external antenna but no mention in the test report of this being connected during power output measurements. Please explain. Please describe the antenna position for your user’s guide states variable antenna positions. Y 9 Please describe the uniqueness of the RF antenna connector and describe the gain of the antennas that can be used with this application. Okay Y 10 Set up photo of SAR does not show position of antenna used during this testing. Okay Non-Conformities FCC ID: Q2GIX104-149 (Ref # E06-000133-2) The items listed below represent requests for information following review of this application. Further question may arise pending review of responses to these items. OK # Non-Conformity or Comment Submitted Response Y 3-2 Provided operational description is inadequate. This information should refer to the tablet and include the module’s function also. Okay now Y 4-2 Partially okay with upload of original 6300 report from MET Labs, but test set up photos and actual test equipment listing are still missing from the test report you performed. Also, where is the radiated emissions data from 18 GHz to 24.7 GHz. New report was uploaded to files wi the missing test data and missing tes equipment. Y 6-2 Please see 15.31(e). Testing is required regardless at 85% and 115% of nominal power. New test report includes the require 15.31(e) statement. Y 7-2 Please refer to submitted block diagram. Emissions are required to 16 MHz. Loop antenna is now included as pa of the test report. Y 8-2 Please describe the antenna positions for the user’s guide you submitted states variable antenna positions. Please provide a user’s manual for this device for the required documents are inconsistent. This can be a draft copy. Correct user’s manual has been uploaded. In the manual it shows t h Bluetooth card can be installed so called Mike Grings to confirm that there was no such device in this application for grant. The items indicated above must be submitted before processing can continue on the referenced application. Failure to provide the requested information within 60 days may result in application dismissal pursuant to Section 2.917(c) and forfeiture of the filing fee pursuant to Section 1.1106.

FCC-ID Q2GIX104-149 FCC-ID Q2GIX104-149 FCC-ID Q2GIX104-149 FCC-ID Q2GIX104-149 FCC-ID Q2GIX104-149 FCC-ID Q2GIX104-149 FCC-ID Q2GIX104-149

Label & Label Location FCC ID: Q2GIX104-149 FCC ID: Q2GIX104-149 Label & Label Location FCC ID: Q2GIX104-149 FCC ID: Q2GIX104-149 iX104C2

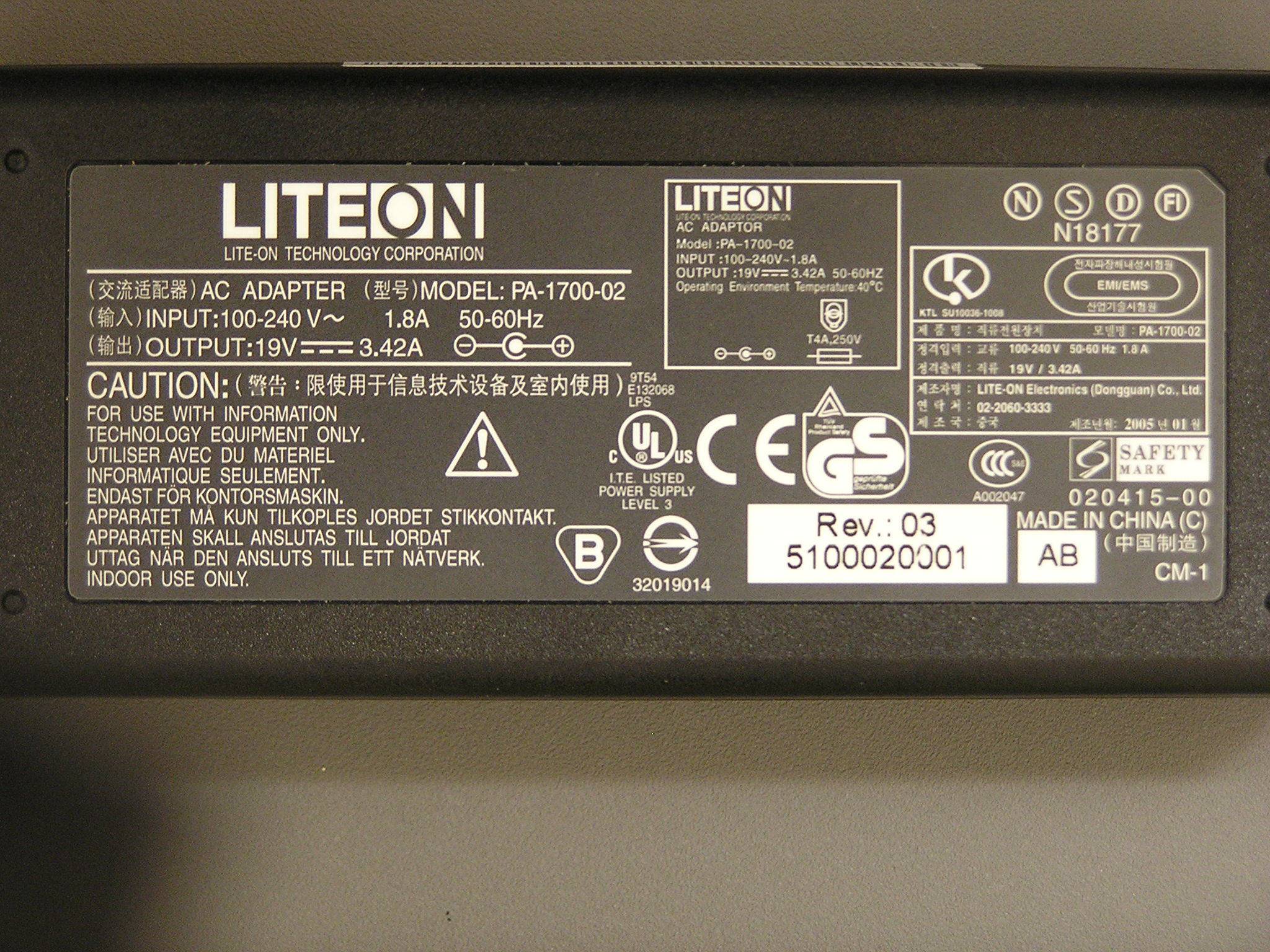

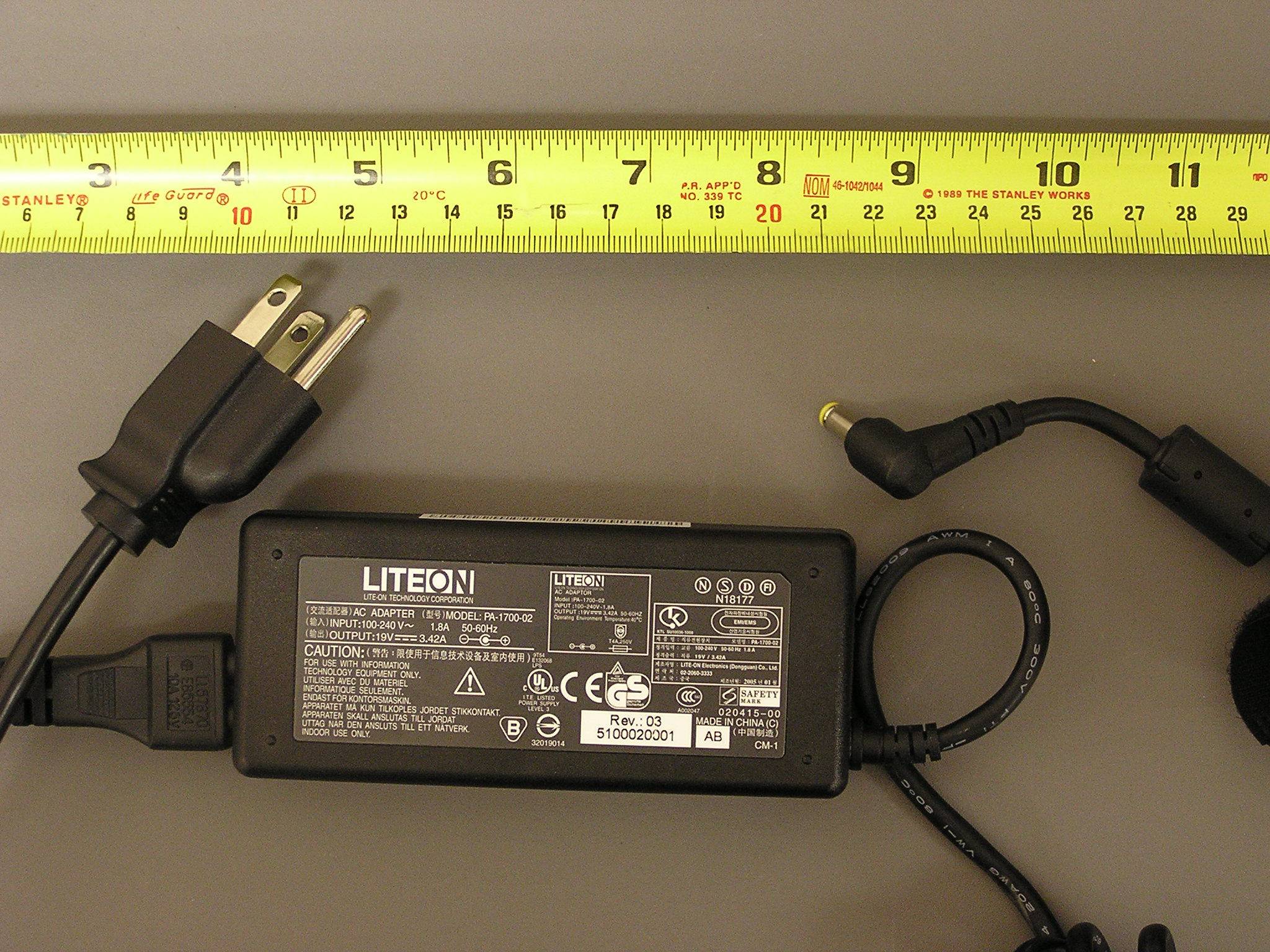

Xplore Technologies FCC ID: Q2GIX104-149 Xplore Technologies FCC ID: Q2GIX104-149 Xplore Technologies FCC ID: Q2GIX104-149 Xplore Technologies FCC ID: Q2GIX104-149

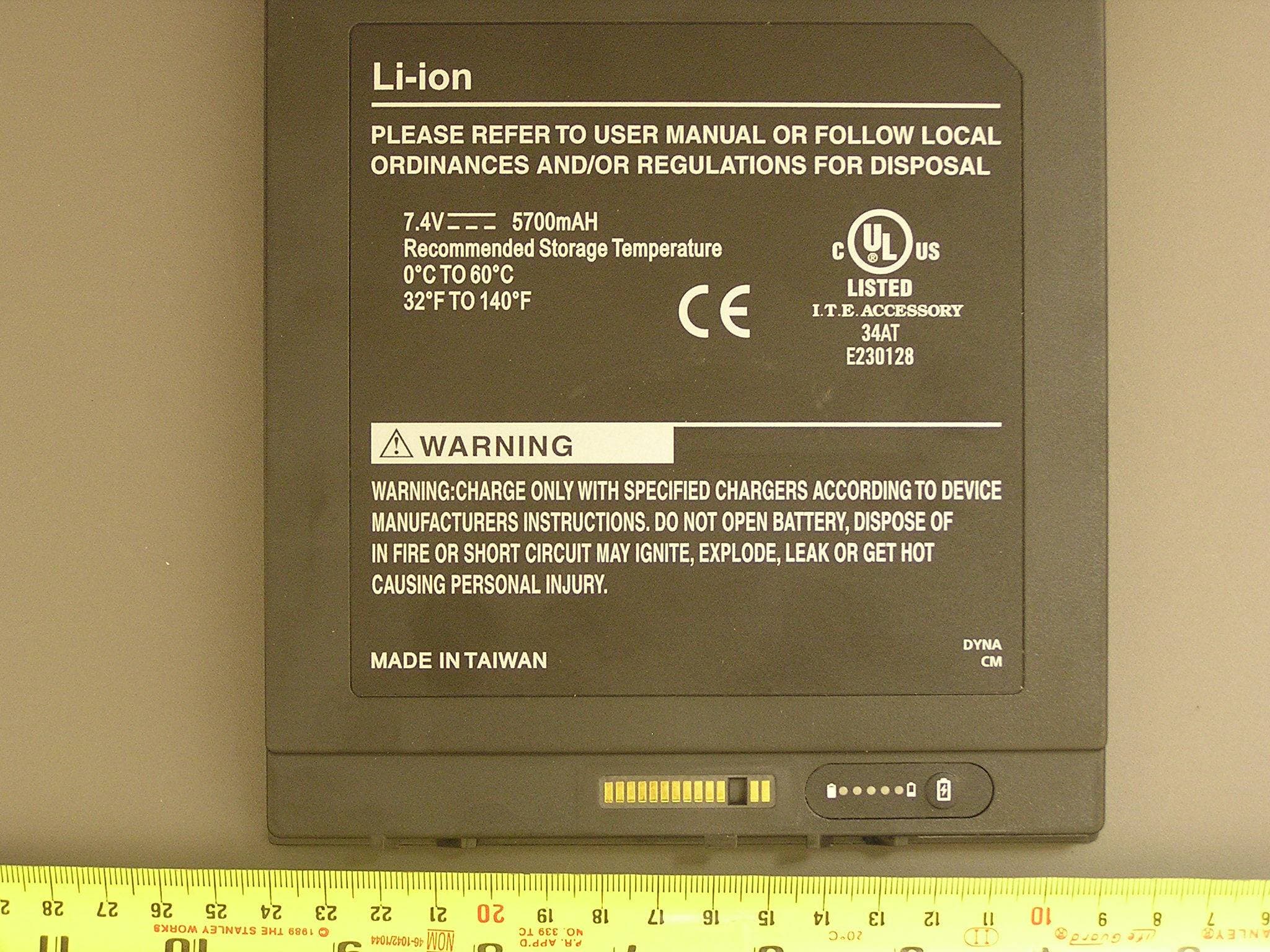

Xplore Technologies FCC ID: Q2GIX104-149 Xplore Technologies FCC ID: Q2GIX104-149 Xplore Technologies FCC ID: Q2GIX104-149

SAR Test Report No: XPLOR_004_06002_SAR Date of Report: 3/24/2006 Appendix C Miscellaneous Page 1 of 9 1 Tissue Parameters 2450MHz Head liquid: Recipe: 53.74% distilled water 22.59% DGBE 22.59% triton X-100 0.98% salt 0.1% bactericide Di-electric constants measured on 3/24/2006. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 2450 38.79 1.781 2450MHz Body Liquid: Recipe: 73.3% distilled water 12.88% DGBE 12.88% triton X-100 0.84% salt 0.1% bactericide Di-electric constants measured on 3/24/2006. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 2410 50.96 1.861 2450 50.79 1.921 2470 50.91 1.937 Environment: 3/24/2006: Temperature: 20.1 °C – 23.9°C Humidity: 45% _ 55 % SAR Test Report No: XPLOR_004_06002_SAR Date of Report: 3/24/2006 Appendix C Miscellaneous Page 2 of 9 2 Test Equipment Test Equipment Model Serial Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) Bench top Robot Mitsubishi supplied by IndexSAR RV-E2 EA1030108 N/A N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by IndexSAR SAM 03FT26 04/03 N/A Flat Phantom IndexSAR HeadBox_Spout N/A N/A N/A Software IndexSAR SARA2 v0.420 N/A N/A N/A 2450 MHz Head Tissue Simulant Cetecom Inc. 2450 Head N/A 3/24/2006 N/A 2450 MHz body Tissue Simulant Cetecom Inc. 2450 Body N/A 3/24/2006 N/A 2450 MHz Dipole IndexSAR – IEEE 1528 design IXD-245 0016 07/20/2005 07/20/2006 Directional coupler Werlatone C6529 11249 N/A N/A RF Amplifier Vectawave VTL5400 N/A N/A N/A SAR Probe IndexSAR IXP-030 M0016 9/29/2005 9/29/2006 Probe amplifier IndexSAR IXA-010 S/N 043 N/A N/A Dielectric Measurement Kit IndexSAR Di-Line N/A N/A N/A SAR Test Report No: XPLOR_004_06002_SAR Date of Report: 3/24/2006 Appendix C Miscellaneous Page 3 of 9 3 Equipment Calibration/Performance Documents: Validation Dipoles Performance Measurements: Pages 4 to 9 Please Note: (The following pages of Appendix C show calibration documents. These calibration documents are inserted into this appendix. The header information with page numbering scheme is a part of this report and is included on all pages of the report and appendixes. This header is used to track all of the contents of this report.) SAR Test Report No: XPLOR_004_06002_SAR Date of Report: 3/24/2006 Appendix C Miscellaneous Page 4 of 9 4 Report No. SN0016_090-180-190-245 July 1 st 2002 Revised 7/20/2005 INDEXSAR Validation Dipoles Type IXD-090, IXD-180, IXD-190 & IXD-245 Performance measurements S/N: 090-0016 S/N: 180-0016 S/N: 245-0016 S/N: 190-0016 MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5DR. UK. Tel: +44 (0) 1306 631233 Fax: +44 (0) 1306 631834 e-mail: [email protected] SAR Test Report No: XPLOR_004_06002_SAR Date of Report: 3/24/2006 Appendix C Miscellaneous Page 5 of 9 5 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An HP 8753B vector network analyser was used for the return loss measurements. The dipole was placed in a special holder made of low-permittivity, low-loss materials. This holder enables the dipole to be positioned accurately in the centre of the base of the Indexsar box-phantom used for flat-surface testing and validation checks. The validation dipoles are supplied with special spacers made form a low-permittivity, low-loss foam material. These spacers are fitted to the dipole arms to ensure that, when the dipole is offered up to the phantom surface, the spacing between the dipole and the liquid surface is accurately aligned according to the guidance in the relevant standards documentation. The spacers are rectangular with a central hole equal to the dipole arm diameter and dimensioned so that the longer side can be used to ensure a spacing of 15mm from the liquid in the phantom (for tests at 900MHz and below) and the shorter side can be used for tests at 1800MHz and above to ensure a spacing of 10mm from the liquid in the phantom. The spacers are made on a CNC milling machine with an accuracy of 1/40 th mm but they may suffer wear and tear and need to be replaced periodically. The material used is Rohacell, which has a relative permittivity of approx. 1.05 and a negligible loss tangent. The apparatus supplied by Indexsar for dipole validation tests thus includes: Balanced dipoles for each frequency required are dimensioned according to the guidelines given in IEEE 1528 [1]. The dipoles are made from semi-rigid 50 ohm co-ax, which is joined by soldering and is gold-plated subsequently. The constructed dipoles are easily deformed, if mis-handled, and periodic checks need to be made of their symmetry. Rohacell foam spacers designed for presenting the dipoles to 2mm thick PMMA box phantoms. These components also suffer wear and tear and should be replaced when the central hole is a loose-fit on the dipole arms or if the edges are too worn to ensure accurate alignment. The standard spacers are dimensioned for use with 2mm wall thickness (additional spacers are available for 4mm wall thickness). SAR Test Report No: XPLOR_004_06002_SAR Date of Report: 3/24/2006 Appendix C Miscellaneous Page 6 of 9 6 2. SAR Measurement SAR validation checks using the dipoles can be performed with the box-phantom located on the SARA2 phantom support base on the SARA2 robot system. Tests may be conducted at a feed power level of 0.25W. However, the actual power level should be recorded and used to normalise the results obtained to the standard input power conditions of 1W (forward power). The results can then be compared with Table 8.1 in [1]. Brain liquids should…

Text truncated - open the document above for the full version.

SAR Test Report No.: XPLOR_004_06002_SAR Date of Report: 3/24/2006 Appendix A Plots Page 1 of 3 System / software: SARA2 / 2.40 VPM Input Power Drift: Date / Time: 3/24/2006 2:36:37 PM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: M0016 Ambient Temperature: 22.8°C Liquid Simulant: 2450 Device Under Test: Xplore iX104 Mesh Relative Permittivity: 50.96 Relative Humidity: 30% Conductivity: 1.861 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -24.00 mm DUT Position: Lap Max SAR Z-axis Location: -170.00 mm Antenna Configuration: Mesh Max E Field: 11.07 V/m Test Frequency: 2410MHz SAR 1g: 0.184 W/kg Air Factors: 2390 / 2143 / 2668 SAR 10g: 0.105 W/kg Conversion Factors: .490 / .490 / .490 SAR Start: 0.049 W/kg Type of Modulation: SAR End: 0.049 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.00 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 3/20/2006 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: XPLOR_004_06002_SAR Date of Report: 3/24/2006 Appendix A Plots Page 2 of 3 System / software: SARA2 / 2.40 VPM Input Power Drift: Date / Time: 3/24/2006 4:07:44 PM DUT Battery Model/No: Filename: 2470lap_3d.txt Probe Serial Number: M0016 Ambient Temperature: 22.8°C Liquid Simulant: 2450 Device Under Test: Xplore iX104 Mesh Relative Permittivity: 50.70 Relative Humidity: 30% Conductivity: 1.921 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -15.00 mm DUT Position: Lap Max SAR Z-axis Location: -169.40 mm Antenna Configuration: Mesh Max E Field: 11.00 V/m Test Frequency: 2450MHz SAR 1g: 0.188 W/kg Air Factors: 2390 / 2143 / 2668 SAR 10g: 0.110 W/kg Conversion Factors: .490 / .490 / .490 SAR Start: 0.055 W/kg Type of Modulation: SAR End: 0.057 W/kg Modn. Duty Cycle: SAR Drift during Scan: 4.03 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 3/20/2006 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: XPLOR_004_06002_SAR Date of Report: 3/24/2006 Appendix A Plots Page 3 of 3 System / software: SARA2 / 2.40 VPM Input Power Drift: Date / Time: 3/24/2006 3:42:45 PM DUT Battery Model/No: Filename: 2450lap_3d.txt Probe Serial Number: M0016 Ambient Temperature: 22.8°C Liquid Simulant: 2470 Device Under Test: Xplore iX104 Mesh Relative Permittivity: 50.91 Relative Humidity: 30% Conductivity: 1.937 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -24.00 mm DUT Position: Lap Max SAR Z-axis Location: -168.80 mm Antenna Configuration: Mesh Max E Field: 12.10 V/m Test Frequency: 2450MHz SAR 1g: 0.216 W/kg Air Factors: 2390 / 2143 / 2668 SAR 10g: 0.106 W/kg Conversion Factors: .490 / .490 / .490 SAR Start: 0.052 W/kg Type of Modulation: SAR End: 0.053 W/kg Modn. Duty Cycle: SAR Drift during Scan: -1.92 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 3/20/2006 Input Power Level: max Extrapolation: poly4

Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 \\stupendousman\rootappsdata\emc\projects_emc\xplore\xplor_004_06002_wmc6300_pcmcia_mesh_card\2_t est_reports\sar\xplor_004_06002_sar.doc © Copyright by CETECOM SAR Test Report No.: XPLOR_004_06002_SAR for the Xplore Technologies Tablet Computer Model Number: iX104-Mesh FCC ID: Q2GIX104-149 Date of Report: 03/24/2006 Date of issue: 03/24/2006 Report Copy No.: 01 SAR Test Report No. XPLOR_004_06002_SAR Date of Report: 03/24/2006 Page 2 of 24 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents ASSESSMENT .........................................................................................................................4 1 ADMINISTRATIVE DATA...................................................................................................5 1.1 Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 1.2 Identification of the Client...........................................................................................5 1.3 Identification of the Manufacturer...............................................................................5 2 EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 2.1 Identification of the Equipment under Investigation ...................................................6 3 SUBJECT OF INVESTIGATION ........................................................................................7 3.1 The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................7 3.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...7 3.3 Distinction between Maximum Permissible Exposure and SAR Limits......................8 3.4 SAR Limit ...................................................................................................................8 4 THE FCC MEASUREMENT PROCEDURE .......................................................................9 4.1 General Requirements...............................................................................................9 4.2 Test Positions ..........................................................................................................10 4.3 Body-worn and Other Configurations.......................................................................10 4.4 Procedure for assessing the peak spatial-average SAR .........................................10 4.5 Determination of the largest peak spatial-average SAR ..........................................12 5 THE MEASUREMENT SYSTEM ......................................................................................14 5.1 Robot system specification ......................................................................................14 5.2 Probe and amplifier specification .............................................................................15 5.3 Phantoms.................................................................................................................15 5.4 SAR measurement procedure .................................................................................16 5.5 SARA2 Interpolation and Extrapolation schemes ....................................................16 5.6 Interpolation of 2D area scan...................................................................................17 5.7 Extrapolation of 3D scan..........................................................................................17 5.8 Interpolation of 3D scan and volume averaging.......................................................17 SAR Test Report No. XPLOR_004_06002_SAR Date of Report: 03/24/2006 Page 3 of 24 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 6 UNCERTAINTY ASSESSMENT.......................................................................................19 6.1 Table of Measurement Uncertainty Values of SAR Evaluations..............................20 6.2 Table of Measurement Uncertainty Values for SAR System Verification ................20 7 TEST RESULTS SUMMARY............................................................................................22 7.1 Radiated Output Power............................................................................................22 7.2 Test Positions and Configurations ...........................................................................22 7.3 2450 MHz band SAR Results for iX104-Mesh.........................................................22 7.4 Validation Check Results .........................................................................................23 8 REFERENCES..................................................................................................................24 SAR Test Report No. XPLOR_004_06002_SAR Date of Report: 03/24/2006 Page 4 of 24 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Assessment The Xplore Technologies iX104-Mesh Tablet Computer, FCC ID: Q2GIX104-149, is in compliance with the limits for general population uncontrolled exposure specified in FCC 2.1093. The device was tested according to measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and IEEE P1528/D1.2, April 21, 2003. 03/24/2006 lothar Schmidt Test Lab Manager SAR Test Report No. XPLOR_004…

Text truncated - open the document above for the full version.

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory July 14, 2004 MeshNetworks, Inc. 485 N. Keller Rd., Ste. 250 Maitland, FL 32751 Dear Rosalie Bibona, Enclosed is the EMC test report for compliance testing of the MeshNetworks, Inc., WMC6300 PCMCIA Card. The MeshNetworks, Inc., WMC6300 PCMCIA Card was tested to the requirements of Title 47 of the CFR, Part 15.247 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Cheryl Anicete Documentation Department Reference: (\MeshNetworks, Inc.\WMC6300 PCMCIA Card \ EMCS15416-FCC247) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by NVLAP or any Agency of the U.S. Government. This letter of transmittal is not a part of the attached report. MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 Electromagnetic Compatibility Criteria Test Report for the MeshNetworks, Inc. WMC6300 PCMCIA Card Verified under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.247, Subpart C for Intentional Radiators MET Report: EMCS15416-FCC247 July 14, 2004 Prepared For: MeshNetworks, Inc. 485 N. Keller Rd., Ste. 250 Maitland, FL 32751 Prepared By: MET Laboratories, Inc. 33439 Western Ave. Union City, California 94587 MeshNetworks, Inc. WMC6300 PCMCIA Card CFR Title 47, Part 15, Subpart C MET Report: EMCS15416-FCC247 © 2004, MET Laboratories, Inc. Page ii of vi Electromagnetic Compatibility Criteria Test Report for the MeshNetworks, Inc. WMC6300 PCMCIA Card Tested Under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.247, Subpart C for Intentional Radiators Alvin Ilarina, Manager Cheryl Anicete Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15.247, of the FCC Rules under normal use and maintenance. Kerwinn Corpuz Electromagnetic Compatibility Lab M…
