Q2GIX104-116Tablet PC with GSM and WLAN radios

ix104USER’S HANDBOOK iX104 USER'S HANDBOOK 4 iX104 User’s Handbook Xplore Technologies ® has made every effort to ensure the accuracy and completeness of this document; however, because ongoing development efforts are made to continually improve the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes herein. Xplore and the Xplore logo are registered trademarks of Xplore Technologies Corp.; iX104 is a trademark of Xplore Technologies Corp. Kensington and MicroSaver are registered trademarks of the Kensington Technology Group. Microsoft is a registered trademark of Microsoft Corporation. Windows 2000 Professional, Windows XP Professional, and Windows XP Tablet PC Edition are trademarks of Microsoft Corporation. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association. Intel, Pentium, and SpeedStep are registered trademarks of Intel Corporation. Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance (WECA). FireWire is a registered trademark of Apple Computer, Inc. ISODAMP is a registered trademark of Aearo Company. All other brands, product names, company names, trademarks and service marks used herein are property of their respective companies. Copyright © 2003 Xplore Technologies Corp. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Xplore Technologies. No part of this publication may be stored or transmitted in any electronic form without the prior consent of Xplore Technologies. Any unauthorized use is a violation of copyright laws. PN: 95-01016 Edition: Second, July 2003 DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name: Xplore Technologies Corp. Address: 14000 Summit Drive, Suite 900, Austin, Texas 78728 Telephone: 512.336.7797 Declares that product: Model Series: iX104 Complies with Part 15 of the FCC Rules iX104 User’s Handbook 5 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance may void the user’s authority to operate this equipment. For more information about FCC rules and their applicability to the iX104, see Appendix E, “Agency Notices.” Warranty Information The iX104 and iX104-TPC are backed by a standard 12-month International Limited Warranty. An extended International Limited Warranty is available. Check the service kit included with your computer for warranty terms and conditions. a 6 iX104 User’s Handbook Important safety information Before you use the iX104 or the iX104 dock, read these safety instructions and the operation instructions in this handbook. Failure to observe all these instructions voids the Limited Warranty and may lead to suspension or denial of services to the offender, or legal action, or both. Follow any special regulations governing the use of the computer and, if radio-enabled, always switch it off in areas where radio devices are forbidden or when the radio device can cause interference or danger. Always follow any safety laws and regulations pertaining to the use of cell phones and two-way radios, because these laws and regulations typically apply to the use of the wireless-enabled iX104. Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, and wherever blasting operations are in progress or in any area in which restrictions on radio transmissions are imposed. Switch off the iX104 when in an aircraft. The iX104 is not FAA-approved for use on aircraft. The effect of the use of the iX104 in aircraft is unknown. Using the iX104 in an aircraft may affect aircraft instrumentation, communication, and performance; may disrupt the network; and may be illegal. Operating the wireless-enabled iX104 may interfere with the functioning of inadequately protected medical devices such as pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions. Radio signals from your iX104 will not affect the operation of most modern equipment, but certain electronic equipment, including automotive systems, may not be shielded against radio signals from your iX104. Check with the manufacturer of your motor vehicle or the manufacturer’s representative to determine whether using the iX104 will present any safety issues. Avoid using the iX104 in any environment that requires your full attention, such as when driving a vehicle. If you need to use your iX104 while driving, have a passenger use it for you or find a safe location to halt your vehicle. iX104 User’s Handbook 7 WARNING Use only battery types specified in this handbook. Using any other type of battery can be dangerous and can disable the iX104. WARNING Do not use any dock or any other accessory or attachment that is not manufactured or supplied by Xplore or an authorized Xplore accessories supplier. Use of any accessory or attachment that is not supplied or approved for use with the iX104 by Xplore is not permitted because it may cause hazards. Operate the iX104 only from the type of power source indicated on the marking label. (See page 53 for more information about the battery and power supply.) Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs and convenience receptacles, and at the point where cords exit from the computer or its dock. Do not overload wall outlets, extension cords, or integral convenience receptacles because this can cause fire or electric shock. Unplug the iX104 and refer the iX10…

Text truncated - open the document above for the full version.

XPLORE TECHNOLOGIES ® - RIM CONFIGURATION AND USE 1 XPLORE TECHNOLOGIES CORP. XPLORE UserManual– RIM v.02_13_03_b Xplore Technologies Rim 1902g and 1802g Modem Configuration Requirements Please note these instructions are for the integrated RIM Modems only. This Unit has been configured for the RIM module, DO NOT change any other settings than listed below, otherwise modem might not operate. RIM OEM Radio Modem for GSM/GPRS Wireless Networks Required information Before you start, you should have the following information available: • access point name (APN) for your network • IP address for your primary domain name server (DNS) Connecting with Windows 2000/XP To connect the radio modem to your computer, you must perform the following tasks: • Modify the modem init string with APN Name • Modify the dial-up connection TCP/IP DNS information To Modify APN in modem properties 1. On the Start menu, select Settings > Control Panel. The Control Panel window appears. 2. Double-click the Phone and Modem Options icon. The Phone and Modem Options window 3. appears. 4. Click the Modems tab. 5. On the Modems tab, select the modem 28800 standard and click Properties. The Properties window appears. 6. Click the Advanced tab. 7. In the Extra initialization commands field, Change the last to the APN name given by Provider: at+cgdcont=1,"IP","apn_name" where apn_name is the access point name (APN) for your network 8. Click OK. The Phone and Modem Options window appears. 9. Click OK. To Modify DSN information in dialup connection 1. Select the Dialup connect (Named GPRS) properties, hightlight, right-click, properties. 2. Click the Networking tab. 3. Click Internet Protocol (TCP/IP) and click Properties. The Internet Protocol (TCP/IP) Properties window appears. 4. Enable the Use the following DNS server addresses option. In the Preferred DNS server field, type the IP address of your primary DNS server. 5. Click OK. The Properties window appears. 6. Click OK. 7. Click OK. To Use the RIM 1902G GPRS Modem Eventhough communication to the modem is possible the GPRS portion is off. This is the default every time the unit is booted. To turn on the radio, double click icon on desktop RIMON. Double click on the Dialup GPRS connection. If APN is typed correctly then the module will connect. To turn off the radio, double click icon on desktop RIMOFF.

Xplore Technologies, Inc. 14000 Summit Road Suite 900 Austin, TX 78728 888-44-XPLORE Page 1 of 1 10/10/2003 October 1, 2003 Federal Communication Commission Equipment Approval Service Attention: Authorization and Evaluation Division Reference: Xplore Technologies FCC ID: Q2GIX104-116 To Whom It May Concern: Subject: Request for Confidentiality Pursuant to Sections 0.457 (d)(1)(ii) and 0.459 of the Commission’s rules, the Applicant hereby requests confidential treatment of the Xplore Technologies supplied information accompanying this application. The confidential information includes the following: • Schematics • Block Diagrams • Bill of Materials • Operational Description • Tune-up procedure The materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of this information might be harmful to Xplore Technologies and provide unjustified benefits to our competitiors. Xplore Technologies understands that pursuant to 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of the grant. Xplore Technologies, Inc. 14000 Summit Road Suite 900 Austin, TX 78728 888-44-XPLORE Page 2 of 2 10/10/2003 Best regards, Douglas L. Fowler Sr. Project Engineer Xplore Technologies, Inc.

1 of 1 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com STATEMENT This filing constitutes a formal submittal and request for Equipment Authorization pursuant to Subpart C of Part 15, 22 & 24 of FCC rules (CFR 47) regarding two transmitters collocated in Tablet PC. Company Name: Xplore Technologies FCC ID: Q2GIX104-116 Tablet PC model# iX104 WLAN Model# S24-DS Collocated with GSM module model# 1902G SUMMARY OF TESTING Xplore Tablet PC model# iX104 can be equipped with two different kind of radios; • RIM model# 1902G for GSM/GPRS function • Symbol model# S24-DS for WLAN function These radios are off-the shelf modules and have not been modified since the FCC ID has been granted. Tablet PC iX104 provides new antenna to the two modules integrated in it. These radios in iX104 are not user accessible. EMC/Radio Test Reports: Test report no. EMC_544FCC15.247_2003_S24-DS_CoL The above-mentioned test report cover all radiated measurements done on Tablet PC with WLAN collocated with GSM module. Tablet PC model# iX104 was tested with both radios ON to show compliance with FCC 15.247 limits only based upon the fact that FCC 15.247 limits are more stringent than FCC22/24 limits. Test report no. J20008658d_part-1 & J20008658d_part-2 The above-mentioned test reports cover all conducted measurements required for WLAN Test report no. RIM-0204-04 The above-mentioned test report cover all conducted measurements for GSM module. Test report no. EMC_448-2003FCC22-24_IX104-11 The above-mentioned test report covers all radiated measurements done on Tablet PC with GSM module. 2 of 2 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com SAR Test Reports: Test report no. SAR_544_2003_FCC_850_1900_2450_RIM_S24DS This test report cover SAR testing done on Tablet PC with WLAN collocated with GSM module. Harpreet Sidhu EMC & Radio Engineer

iX104: Exterior - F ront iX104: Exterior - B ack FCC Label iX104: Exterior – B attery Pack Removed iX104: Antenna Locations Wide A r ea Network AntennaLocal Area NetworkAntenna iX104: I/O PCB

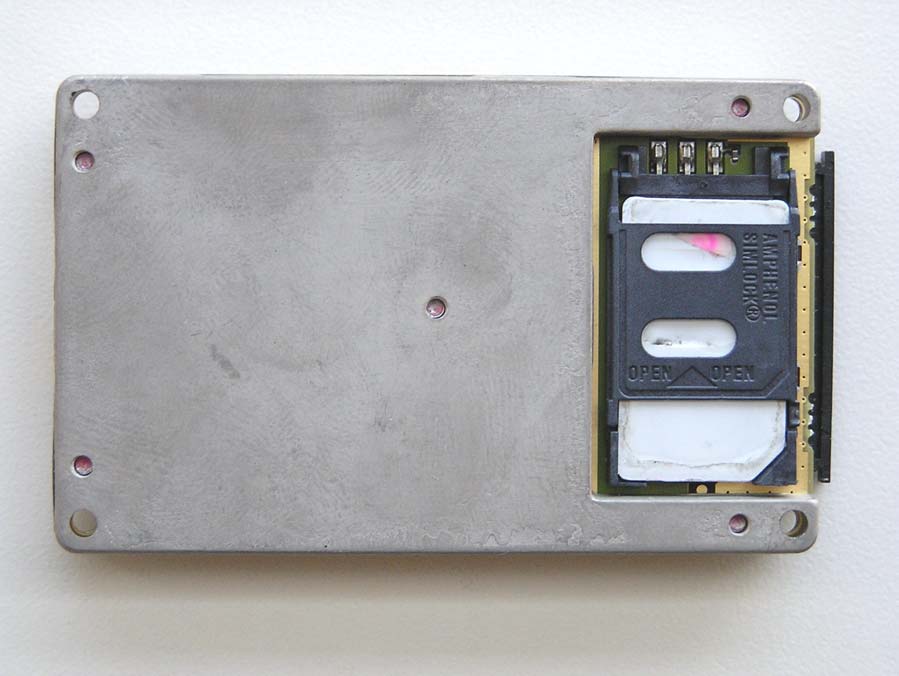

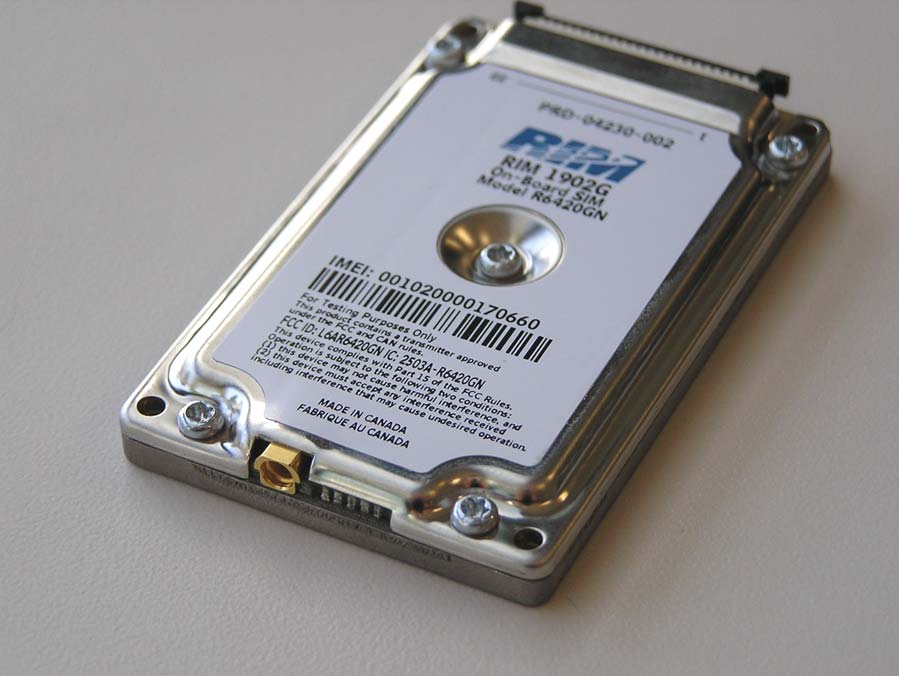

1902G – Top view 1902G – Bottom view 1902G – Profile view

0.125 1.250 4X R 0.025 NOTES: 1. Material: Polycarbonate T= 0.127mm with matted texture 2. Material must be approved by UL, CSA 3. Adhesive Spec Refer to ES-811-RO5 Sony 303 or Toyo Df2700MR or Equiv 4. Print Color: Letters Silver ACD M808 Background Black ACD-M8010 and cool gray 11 5. Print Tolerance of dimensions +0.3/.03 LABEL, IX104, WIRELESS, S24-DS + RIM1902 50-23044 A Xplore Technologies SCALE:2:1 SIZEDWG. NO. A REV. MATERIAL FINISH -- -- DO NOT SCALE DRAWINGAPPLICATION USED ONNEXT ASSY DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL ANGULAR: MACH BEND TWO PLACE DECIMAL THREE PLACE DECIMAL NAME DATE DRAWN CHECKED ENG APPR. MFG APPR. Q.A. SHEET 1 OF 1WEIGHT: COMMENTS: REVISIONS DESCRIPTION REV. DATEAPPROVED THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF XPLORE TECHNOLOGIES. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF XPLORE TECHNOLOGIES IS PROHIBITED. PROPRIETARY AND CONFIDENTIAL ZONE

Label & Label Location FCC ID: Q2GIX104-116 FCC ID: Q2GIX104-116 Label & Label Location FCC ID: Q2GIX104-116 FCC ID: Q2GIX104-116

iX104: Antenna Cavities WAN Antenna LAN Antenna iX104: Interior View PCMCIASlot Mini-PCISlot 1902G S24-DS iX104: Main Logic Board iX104: Keypad PCB iX104: I/O PCB iX104: I/O PCB Removed

SAR Test Report No.: SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix A Plots Page 1 of 12 1902G 850 MHz band: Plot 1. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass density (ρ): 1 DCP 1 X=9, Y=13.6, Z=8.7 Probe S/N:0123 Air Factor X=346, Y=318, Z=386 Probe S/N:0123 liquid/air conversion Factor 0.466 Simulated tissue dielectric parameters: ε r : 55.5 σ: 0.985 Test Position: bystander 1 cm Channel / Frequency 192 / 836.6 MHz Maximum 1 gram SAR: 0.315W/Kg Maximum 10 gram SAR: 0.215W/Kg Power reference start: 0.170W/Kg Power reference end 0.170W/Kg Power reference change 2 0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No.: SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix A Plots Page 2 of 12 Plot 2. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass density (ρ): 1 DCP 1 X=9, Y=13.6, Z=8.7 Probe S/N:0123 Air Factor X=346, Y=318, Z=386 Probe S/N:0123 liquid/air conversion Factor 0.466 Simulated tissue dielectric parameters: ε r : 55.5 σ: 0.985 Test Position: lap Channel / Frequency 192 / 836.6 MHz Maximum 1 gram SAR: 0.140W/Kg Maximum 10 gram SAR: 0.103W/Kg Power reference start: 0.075W/Kg Power reference end 0.077W/Kg Power reference change 2 3.31% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No.: SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix A Plots Page 3 of 12 Plot 3. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass density (ρ): 1 DCP 1 X=9, Y=13.6, Z=8.7 Probe S/N:0123 Air Factor X=346, Y=318, Z=386 Probe S/N:0123 liquid/air conversion Factor 0.466 Simulated tissue dielectric parameters: ε r : 56.12 σ: 0.971 Test Position: lap Channel / Frequency 128 / 824.2 MHz Maximum 1 gram SAR: 0.222W/Kg Maximum 10 gram SAR: 0.182W/Kg Power reference start: 0.105W/Kg Power reference end 0.101W/Kg Power reference change 2 -3.31% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No.: SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix A Plots Page 4 of 12 Plot 4. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass density (ρ): 1 DCP 1 X=9, Y=13.6, Z=8.7 Probe S/N:0123 Air Factor X=346, Y=318, Z=386 Probe S/N:0123 liquid/air conversion Factor 0.466 Simulated tissue dielectric parameters: ε r : 55.38 σ: 0.979 Test Position: lap Channel / Frequency 251 / 848.8 MHz Maximum 1 gram SAR: 0.204W/Kg Maximum 10 gram SAR: 0.071W/Kg Power reference start: 0.028W/Kg Power reference end 0.029W/Kg Power reference change 2 1.91% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No.: SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix A Plots Page 5 of 12 1902G 1900 MHz band: Plot 5. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass density (ρ): 1 DCP 1 X=9, Y=13.6, Z=8.7 Probe S/N:0123 Air Factor X=346, Y=318, Z=386 Probe S/N:0123 liquid/air conversion Factor 0.610 Simulated tissue dielectric parameters: ε r : 53.25 σ: 1.580 Test Position: bystander 1 cm Channel / Frequency 661 / 1880 MHz Maximum 1 gram SAR: 0.295W/Kg Maximum 10 gram SAR: 0.150W/Kg Power reference start: 0.079W/Kg Power reference end 0.079W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No.: SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix A Plots Page 6 of 12 Plot 6. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass density (ρ): 1 DCP 1 X=9, Y=13.6, Z=8.7 Probe S/N:0123 Air Factor X=346, Y=318, Z=386 Probe S/N:0123 liquid/air conversion Factor 0.610 Simulated tissue dielectric parameters: ε r : 53.25 σ: 1.580 Test Position: lap Channel / Frequency 661 / 1880 MHz Maximum 1 gram SAR: 0.054W/Kg Maximum 10 gram SAR: 0.028W/Kg Power reference start: 0.010W/Kg Power reference end 0.010W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No.: SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix A Plots Page 7 of 12 Plot 7. Date: 04/03/2003 Temperature Air / Liquid: 21.0°C / 21.0°C Liquid mass dens…

Text truncated - open the document above for the full version.

SAR Test Report No. SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix C Misc. Page 1 of 41 1 Tissue Parameters 900 MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 49.46% distilled water 49.46% DGBE 1.0% salt 0.1% bactericide Di-electric constants measured on 04/03/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 900 41.2 0.973 850MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 49.8% distilled water 40.6% DGBE 8.9% salt 0.6% HEC 0.1% bactericide Di-electric constants measured on 04/03/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 824.2 56.12 0.971 836.6 55.50 0.985 848.8 55.38 0.979 SAR Test Report No. SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix C Misc. Page 2 of 41 2 1900MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 54.9% distilled water 44.92% DGBE 0.18% salt 0.1% bactericide Di-electric constants measured on 04/03/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1900 39.27 1.432 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% distilled water 30.29% DGBE 0.44% salt 0.1% bactericide Di-electric constants measured on 04/03/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1850.2 53.38 1.566 1880 53.25 1.580 1909.8 53.02 1.586 Environment 04/03/2003: Temperature: 20.1 °C – 23.9°C Humidity: 45% _ 55 % 2450MHz Head liquid: Recipe: 53.74% distilled water 22.59% DGBE 22.59% triton X-100 0.98% salt 0.1% bactericide SAR Test Report No. SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix C Misc. Page 3 of 41 3 Di-electric constants measured on 9/04/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. 9/04/2003 Freq. Rel. Condy (MHz) Perm. (S/m) 2450 39.17 1.783 2450MHz Body Liquid: Recipe: 73.3% distilled water 12.88% DGBE 12.88% triton X-100 0.84% salt 0.1% bactericide Di-electric constants measured on 9/04/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. 9/04/2003 Freq. Rel. Condy (MHz) Perm. (S/m) 2412 51.6 1.932 2437 51.5 1.945 2462 51.10 1.961 Environment 9/04/2003: Temperature: 20.1 °C – 23.9°C Humidity: 45% _ 55 % SAR Test Report No. SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix C Misc. Page 4 of 41 4 Test Equipment Test Equipment Model Serial Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) Bench top Robot Mitsubishi supplied by IndexSAR RV-E2 EA1030108 N/A N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by IndexSAR SAM 03FT26 04/03 N/A Flat Phantom IndexSAR HeadBox_Spout N/A N/A N/A Software IndexSAR SARA2 v0.420 N/A N/A N/A 900 MHz Head Tissue Simulant Cetecom Inc. 900 Head N/A 04/03/2003 N/A 850 MHz Body Tissue Simulant Cetecom Inc. 850 Body N/A Cetecom Inc. N/A 1900 MHz Head Tissue Simulant Cetecom Inc. 1900 Head N/A Cetecom Inc. N/A 1900 MHz Body Tissue Simulant Cetecom Inc. 1900 Body N/A Cetecom Inc. N/A 2450 MHz Head Tissue Simulant Cetecom Inc. 2450 Head N/A 09/04/2003 N/A 2450 MHz Body Tissue Simulant Cetecom Inc. 2450 Body N/A 09/04/2003 N/A 900MHz Dipole IndexSAR – IEEE 1528 design IXD-090 090-0016 07/20/2003 07/20/2004 1900MHz Dipole IndexSAR – IEEE 1528 design IXD-190 190-0016 07/20/2003 07/20/2004 2450 MHz Dipole IndexSAR – IEEE 1528 design IXD-245 0016 07/20/2003 07/20/2004 Netwok Analyzer Agilent 8753ES US39172511 04/22/2003 04/22/2004 Signal generator Rohde and Schwartz SMP02 830228/009 05/10/2003 05/10/2004 Directional coupler Werlatone C6529 11249 N/A N/A RF Amplifier Vectawave VTL5400 N/A N/A N/A Power Meter HP EPM-442A GB37170232 8/19/2003 8/19/2004 SAR Test Report No. SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix C Misc. Page 5 of 41 5 Power Sensor HP 8481A 1926A20587 8/19/2003 8/19/2004 Power Sensor HP 8481H 3318A15893 12/30/2002 12/30/2003 SAR Probe IndexSAR IXP-050 S/N 0106 7/15/2003 7/15/2004 Probe amplifier IndexSAR IXA-010 S/N 043 N/A N/A Thermometer Control Company 4039 20410549 11/20/2001 11/20/2003 Dielectric Measurement Kit IndexSAR Di-Line N/A N/A N/A Equipment Calibration/Performance Documents: Validation Dipoles Performance Measurements: Pages 6 to 12 Immersible SAR probe Calibration Report: Pages 13 to 41 SAR Test Report No. SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix C Misc. Page 6 of 41 6 Please Note: (The following pages of Appendix C show calibration documents. These calibration documents are inserted into this appendix. The header information with page numbering scheme is a part of this report and is included on all pages of the report and appendixes. This header is used to track all of the contents of this report.) SAR Test Report No. SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix C Misc. Page 7 of 41 7 Report No. SN0016_090-180-245 July 1 st 2002 INDEXSAR Validation Dipoles Type IXD-090, IXD-180 & IXD-245 Performance measurements S/N: 090-0016 S/N: 180-0016 S/N: 245-0016 MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5DR. UK. Tel: +44 (0) 1306 631233 Fax: +44 (0) 1306 631834 e-mail: [email protected] SAR Test Report No. SAR_544_2003_FCC_850_1900_2450_RIM_S24DS Date of Report: 10/07/2003 Appendix C Misc. Page 8 of 41 8 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the …

Text truncated - open the document above for the full version.

This report shall NOT be reproduced except in full without the written consent of Research In Motion Limited. Copyright 2002, Research In Motion Limited EMI Test Report Research In Motion Limited REPORT NO.: RIM-0204-04 PRODUCT Model No: PRD-4230-001 & PRD-4230-002 Type Name: RIM 1902G and 1902GS FCC ID: L6AR6420GN Approved by: _______________ Paul G. Cardinal, Ph.D. Manager, Compliance and Certification Date: 9 May, 2002 Page 1 of 8 RESEARCH IN MOTION Report No. RIM-0204-04 Test Date: April 23 to 30, 2002 This report shall NOT be reproduced except in full without the written consent of Research In Motion Limited. Copyright 2002, Research In Motion Limited Table of Contents A) Scope ------------------------------------------------------------------------------------------------ Pg. 2 B) Product Identification -------------------------------- -------------------------------------------- Pg. 2 C) Support Equipment Used for Testing of the EUT ----------------------------------------- Pg. 3 D) Test Voltage ---------------------------------------------------------------------------------------- Pg. 3 E) Test Results Chart -------------------------------------------------------------------------------- Pg. 4 F) Modifications to EUT ----------------------------------------------------------------------------- Pg. 4 G) Summary of Results ------------------------------------------------------------------------------ Pg. 4 H) Compliance Test Equipment Used ----------------------------------------- ------------------ Pg. 7 I) Declaration ------------------------------------------------------------------------------------------ Pg. 8 Appendix 1 Conducted Emissions Test Data/Plots Appendix 2 Conducted RF Output Power Test Data Appendix 3 Frequency Stability Test Data Appendix 4 Radiated Emissions Test Data Page 2 of 8 RESEARCH IN MOTION Report No. RIM-0204-04 Test Date: April 23 to 30, 2002 This report shall NOT be reproduced except in full without the written consent of Research In Motion Limited. Copyright 2002, Research In Motion Limited A) Scope This report details the results of compliance tests which were performed in accordance with the requirements of: FCC CFR 47 Part 22, Subpart H, Cellular Radiotelephone Services FCC CFR 47 Part 24, Subpart E, Broadband PCS Industry Canada, RSS-128 Issue 2, Rev 1, Nov. 6/99, 800 MHz Dual-Mode TDMA Cellular Telephones Industry Canada, RSS-133 Issue 2, Rev. 1 Nov. 6/99, 2.0 GHz Personal Communications Services B) Product Identification The equipment under test (EUT) was tested at the Research In Motion Limited (RIM) EMI test facility, located at: 305 Phillip Street Waterloo, Ontario Canada, N2L 3W8 The testing began on April 23, 2002 and completed on April 30, 2002. The sample equipment under test (EUT) were: 1. GPRS OEM Radio Modem kit, model number PRD-4230-001 The kit includes the following items: a. GPRS OEM Radio Modem, type RIM 1902G, model number R6420GN, IMEI 001020000070260, FCC ID L6AR6420GN (has 6 pin ZIF FPC connector for off- board SIM). b. AC Adapter, Globtek, model number SA-052AU-1, part number WR91A2400CCP, with an output voltage of 5volt dc. c. GPRS OEM Interface and Test Board, PCB-04020-002 Rev. A d. Broadcast Antenna, Andrew, Eclipse II, magnet mount e. Ribbon cable, Parlex Corp., part number 3999 f. Ribbon cable, part number WIR-02214-001 g. RF cable, MMCX male to SMA female, part number WIR-01908-001 h. DB-9 to DB-9 straight through serial cable i. Audio headset, model number HDW-03458-001 Page 3 of 8 RESEARCH IN MOTION Report No. RIM-0204-04 Test Date: April 23 to 30, 2002 This report shall NOT be reproduced except in full without the written consent of Research In Motion Limited. Copyright 2002, Research In Motion Limited 2. GPRS OEM Radio Modem kit, model number PRD-4230-002 The kit includes the following items: a. GPRS OEM Radio Modem, type RIM 1902GS, model number R6420GN, IMEI 001020000070270, FCC ID L6AR6420GN (on-board SIM connector). b. AC Adapter, Globtek, model number SA-052AU-1, part number WR91A2400CCP, with an output voltage of 5volt dc. c. GPRS OEM Interface and Test Board, PCB-04020-002 Rev. A d. Broadcast Antenna, Andrew, Eclipse II, magnet mount e. Ribbon cable, part number WIR-02214-001 f. RF cable, MMCX male to SMA female, part number WIR-01908-001 g. DB-9 to DB-9 straight through serial cable h. Audio headset, model number HDW-03458-001 C) Support Equipment Used for the Testing of the EUT 1) Communication Tester, Rohde & Schwarz, model CMU200, serial number 837493/073 2) PC, Dell, model number MMP, serial number 6SPS20B 3) Monitor, KDS, model number KD-1460, serial number 4530019652 4) Printer, H/P, model number C5884A, serial number US8251W0VQ 5) DC Power Supply, H/P, model 6632B, serial number US37472179 D) Te…

Text truncated - open the document above for the full version.
