Q2GIX104-125Tablet PC with BT and GSM/GPRS

Xplore Technologies Corp.

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Jul 28, 2004
Application Purpose: Original Equipment
Date of Application: Jul 28, 2004
Equipment Note: Tablet PC with BT and GSM/GPRS
Frequency Range: 824.20000000 - 848.80000000
Company: Xplore Technologies Corp.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

4 iX104AtR User’s Handbook Xplore Technologies ® has made every effort to ensure the accuracy and completeness of this document; however, because ongoing development efforts are made to continually improve the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes herein. Xplore and the Xplore logo are registered trademarks of Xplore Technologies Corp.; iX104, iX104AtR, and iX104AtR 2 are trademarks of Xplore Technologies Corp. Kensington and MicroSaver are registered trademarks of the Kensington Technology Group. Microsoft is a registered trademark of Microsoft Corporation. Windows 2000 Professional, Windows XP Professional, and Windows XP Tablet PC Edition are trademarks of Microsoft Corporation. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association. Intel, Pentium, and SpeedStep are registered trademarks of Intel Corporation. Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance (WECA). FireWire is a registered trademark of Apple Computer, Inc. ISODAMP is a registered trademark of Aearo Company. All other brands, product names, company names, trademarks and service marks used herein are property of their respective companies. Copyright © 2003-2004 Xplore Technologies Corp. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Xplore Technologies. No part of this publication may be stored or transmitted in any electronic form without the prior consent of Xplore Technologies. Any unauthorized use is a violation of copyright laws. PN: 95-01030 Edition: First, July 2004 DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name: Xplore Technologies Corp. Address: 14000 Summit Drive, Suite 900, Austin, Texas 78728 Telephone: 512.336.7797 Declares that product: Model Series: iX104AtR Complies with Part 15 of the FCC Rules iX104AtR User’s Handbook 5 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance may void the user’s authority to operate this equipment. For more information about FCC rules and their applicability to the iX104, see Appendix E, “Agency Notices.” Warranty Information The iX104AtR, and iX104AtR 2 are backed by a standard 12-month International Limited Warranty. An extended International Limited Warranty is available. Check the service kit included with your computer for warranty terms and conditions. a 6 iX104AtR User’s Handbook Important safety information Before you use the iX104AtR or iX104TrR 2 (referred to as the tablet), read these safety instructions and the operation instructions in this handbook. Failure to observe all these instructions voids the Limited Warranty and may lead to suspension or denial of services to the offender, or legal action, or both. Follow any special regulations governing the use of the tablet and, if radio- enabled, always switch it off in areas where radio devices are forbidden or when the radio device can cause interference or danger. Always follow any safety laws and regulations pertaining to the use of cell phones and two-way radios, because these laws and regulations typically apply to the use of the wireless-enabled tablet. Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, and wherever blasting operations are in progress or in any area in which restrictions on radio transmissions are imposed. Switch off the tablet when in an aircraft. The tablet is not FAA-approved for use on aircraft. The effect of the use of the tablet in aircraft is unknown. Using the tablet in an aircraft may affect aircraft instrumentation, communication, and performance; may disrupt the network; and may be illegal. Operating the wireless-enabled tablet may interfere with the functioning of inadequately protected medical devices such as pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions. Radio signals from your tablet will not affect the operation of most modern equipment, but certain electronic equipment, including automotive systems, may not be shielded against radio signals from your tablet. Check with the manufacturer of your motor vehicle or the manufacturer’s representative to determine whether using the tablet will present any safety issues. Avoid using the tablet in any environment that requires your full attention, such as when driving a vehicle. If you need to use your tablet while driving, have a passenger use it for you or find a safe location to halt your vehicle. iX104AtR User’s Handbook 7 WARNING Use only battery types specified in this handbook. Using any other type of battery can be dangerous and can disable the tablet. WARNING Do not use any dock or any other accessory or attachment that is not manufactured or supplied by Xplore or an authorized Xplore accessories supplier. Use of any accessory or attachment that is not supplied or approved for use with the tablet by Xplore is not permitted because it may cause hazards. Operate the tablet only from the type of power source indicated on the marking label. (See page 56 for more information about the battery and power supply.) Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs and convenience receptacles, and at the point where cords exit from the tablet or its dock. Do not overload wall outlets, extension cords, or integral convenience receptacles because this can cause fire or electr…

Text truncated - open the document above for the full version.

Cover Letter(s)

Xplore Technologies, Inc. 14000 Summit Road Suite 900 Austin, TX 78728 888-44-XPLORE Page 1 of 1 July 1, 2004 Federal Communication Commission Equipment Approval Service Attention: Authorization and Evaluation Division Reference: Xplore Technologies FCC ID: Q2GIX104-125 To Whom It May Concern: Subject: Request for Confidentiality Pursuant to Sections 0.457 (d) (1) (ii) and 0.459 of the Commission’s rules, the Applicant hereby requests confidential treatment of the Xplore Technologies supplied information accompanying this application. The confidential information includes the following: • Schematics • Block Diagrams • Parts list / Tune-up procedure • Operational Description/Tune up procedure The materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of this information might be harmful to Xplore Technologies and provide unjustified benefits to our competitors. Xplore Technologies understands that pursuant to 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of the grant. Best regards, Mazyar Razzaz Electrical Engineer Xplore Technologies, Inc.

External Photos

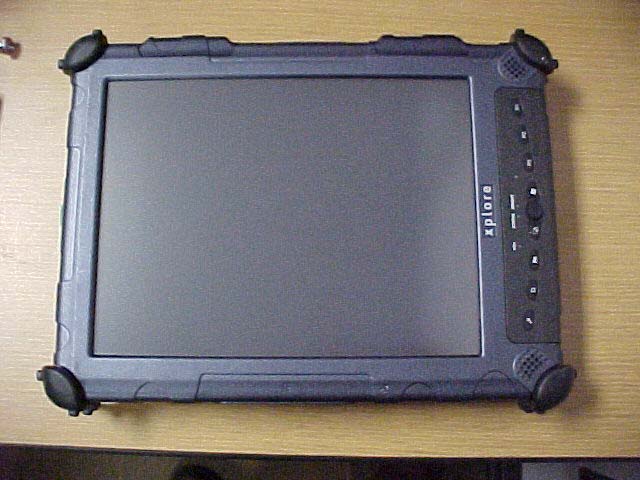

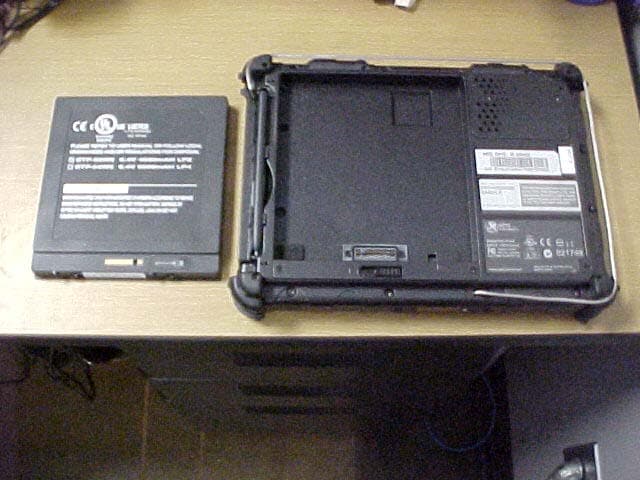

External Photos iX104 EUT – Top view External Photos iX104 EUT – Bottom view External Photos iX104 EUT – Bottom view without battery

ID Label/Location Info

Label & Label Location FCC ID: Q2GIX104-125 & IC ID: 4596A-IX104WBG FCC ID: Q2GIX104-125 IC ID: 4596A-IX104WBG Label & Label Location FCC ID: Q2GIX104-125 & IC ID: 4596A-IX104WBG FCC ID: Q2GIX104-125 IC ID: 4596A-IX104WBG iX104-TM60+MC56

Internal Photos

Internal Photos iX104_BT+GSM EUT – Internal view Internal Photos iX104_BT+GSM EUT – Internal view showing BT radio module BT Antenna BT module Internal Photos iX104_BT+GSM GSM Antenna Siemens GSM module EUT – Internal view showing GSM module Internal Photos iX104_BT+GSM MVC-013F – PCB Internal Photos iX104_BT+GSM MLB – PCB Internal Photos iX104_BT+GSM I/O Ports Internal Photos iX104_BT+GSM I/O Ports + PCB

Internal Photos

CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 92 (97) Test site CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 93 (97) Card with connection board and sample antenna CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 94 (97) Card with connection board CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 95 (97) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 96 (97) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 97 (97) Photographs of the equipment

RF Exposure Info

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 (408) 586 6200 Fax: + 1 (408) 586 6299 E-mail: [email protected] http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 \\stupendousman\rootappsdata\emc\projects_emc\xplore\684_2004_sar_4_proj678\bt+850_1900_gprs_mc56\ sar_684_2004_fcc__850_1900_2450_mc56_tm60m665rev1.doc © Copyright by CETECOM SAR Test Report No. SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665rev1 for the Xplore Technologies Tablet Computer Model Number: iX104-TM60+MC56 FCC ID: Q2GIX104-125 Date of Report: 07/12/2004 Date of issue: 07/12/2004 Report Copy No.: 01 SAR Test Report No. SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665rev1 Date of Report: 07/12/2004 Page 2 of 28 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. SAR 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Contents 1 ASSESSMENT ...................................................................................................................4 2 ADMINISTRATIVE DATA...................................................................................................5 2.1 Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 2.2 Identification of the Client...........................................................................................5 2.3 Identification of the Manufacturer...............................................................................5 3 EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 3.1 Identification of the Equipment under Investigation ...................................................6 3.2 Front View of the Equipment under Investigation ......................................................7 4 SUBJECT OF INVESTIGATION ........................................................................................8 4.1 The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................8 4.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...8 4.3 Distinction between Maximum Permissible Exposure and SAR Limits......................9 4.4 SAR Limit ...................................................................................................................9 5 THE FCC MEASUREMENT PROCEDURE .....................................................................10 5.1 General Requirements.............................................................................................10 5.2 Test Positions ..........................................................................................................11 5.3 Body-worn and Other Configurations.......................................................................11 5.4 Procedure for assessing the peak spatial-average SAR .........................................11 5.5 Determination of the largest peak spatial-average SAR ..........................................13 6 THE MEASUREMENT SYSTEM ......................................................................................15 6.1 Robot system specification ......................................................................................15 6.2 Probe and amplifier specification .............................................................................16 6.3 Phantoms.................................................................................................................16 6.4 SAR measurement procedure .................................................................................17 6.5 SARA2 Interpolation and Extrapolation schemes ....................................................17 6.6 Interpolation of 2D area scan...................................................................................18 SAR Test Report No. SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665rev1 Date of Report: 07/12/2004 Page 3 of 28 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. SAR 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. 6.7 Extrapolation of 3D scan..........................................................................................18 6.8 Interpolation of 3D scan and volume averaging.......................................................18 7 UNCERTAINTY ASSESSMENT.......................................................................................20 7.1 Table of Measurement Uncertainty Values of SAR Evaluations..............................21 7.2 Table of Measurement Uncertainty Values for SAR System Verification ................22 8 TEST RESULTS SUMMARY............................................................................................23 8.1 Conducted Output Power.........................................................................................23 8.2 Test Positions and Configurations ...........................................................................23 8.3 GPRS Operating Mode ............................................................................................23 8.4 BT Operating Mode..................................................................................................23 8.5 850 MHz band SAR Results for iX104-TM60+MC56 with Siemens MC56..............24 8.6 1900 MHz band SAR Results for iX104-TM60+MC56 with Siemens MC56............24 8.7 2450 MHz band SAR Results for iX104-TM60+MC56 with TM60M665 ..................24 8.8 Co-location Test plan and results evaluation methods ............................................25 8.9 Validation Check Results .........................................................................................27 9 REFERENCES..................................…

Text truncated - open the document above for the full version.

RF Exposure Info

SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665 Date of Report: 07/12/2004 Appendix A Plots Page 1 of 8 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/22/2004 10:51:21 AM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0106 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Relative Permittivity: 55.71 Relative Humidity: 50% Conductivity: 0.991 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: 10.00 mm DUT Position: lap Max SAR Z-axis Location: -175.60 mm Antenna Configuration: AUX Max E Field: 11.30 V/m Test Frequency: 836MHz SAR 1g: 0.111 W/kg Air Factors: 415 / 805 / 371 SAR 10g: 0.075 W/kg Conversion Factors: 0.357 / 0.357 / 0.357 SAR Start: 0.047 W/kg Type of Modulation: SAR End: 0.048 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.04 dB Diode Compression Factors (V*200): 12.81 / 5.68 / 11.4 Probe battery last changed: 06/03/2004 Input Power Level: max 2 timeslots TX Extrapolation: poly4 SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665 Date of Report: 07/12/2004 Appendix A Plots Page 2 of 8 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/22/2004 10:11:00 AM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0106 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Relative Permittivity: 55.71 Relative Humidity: 50% Conductivity: 0.991 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -15.00 mm DUT Position: bystander 1cm Max SAR Z-axis Location: -151.60 mm Antenna Configuration: AUX Max E Field: 20.78 V/m Test Frequency: 836MHz SAR 1g: 0.368 W/kg Air Factors: 415 / 805 / 371 SAR 10g: 0.243 W/kg Conversion Factors: 0.357 / 0.357 / 0.357 SAR Start: 0.164 W/kg Type of Modulation: SAR End: 0.164 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.00 dB Diode Compression Factors (V*200): 12.81 / 5.68 / 11.4 Probe battery last changed: 06/03/2004 Input Power Level: max 2 timeslots TX Extrapolation: poly4 SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665 Date of Report: 07/12/2004 Appendix A Plots Page 3 of 8 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/22/2004 11:41:49 AM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0106 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Relative Permittivity: 56.12 Relative Humidity: 50% Conductivity: 0.977 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -9.00 mm DUT Position: bystander 1cm Max SAR Z-axis Location: -150.80 mm Antenna Configuration: AUX Max E Field: 19.57 V/m Test Frequency: 824.2MHz SAR 1g: 0.316 W/kg Air Factors: 415 / 805 / 371 SAR 10g: 0.206 W/kg Conversion Factors: 0.357 / 0.357 / 0.357 SAR Start: 0.140 W/kg Type of Modulation: SAR End: 0.141 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.02 dB Diode Compression Factors (V*200): 12.81 / 5.68 / 11.4 Probe battery last changed: 06/03/2004 Input Power Level: max 2 timeslots TX Extrapolation: poly4 SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665 Date of Report: 07/12/2004 Appendix A Plots Page 4 of 8 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/22/2004 12:17:02 PM DUT Battery Model/No: Filename: bystand128_3d.txt Probe Serial Number: 0106 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Relative Permittivity: 55.56 Relative Humidity: 50% Conductivity: 0.987 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -9.00 mm DUT Position: bystander 1cm Max SAR Z-axis Location: -150.80 mm Antenna Configuration: AUX Max E Field: 24.48 V/m Test Frequency: 848.8MHz SAR 1g: 0.501 W/kg Air Factors: 415 / 805 / 371 SAR 10g: 0.328 W/kg Conversion Factors: 0.357 / 0.357 / 0.357 SAR Start: 0.223 W/kg Type of Modulation: SAR End: 0.225 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.03 dB Diode Compression Factors (V*200): 12.81 / 5.68 / 11.4 Probe battery last changed: 06/03/2004 Input Power Level: max 2 timeslots TX Extrapolation: poly4 SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665 Date of Report: 07/12/2004 Appendix A Plots Page 5 of 8 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/24/2004 2:50:58 PM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0106 Ambient Temperature: 22.0°C Liquid Simulant: 1900 Device Under Test: Xplore Relative Permittivity: 53.19 Relative Humidity: 50% Conductivity: 1.573 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: 8.00 mm DUT Position: lap Max SAR Z-axis Location: -177.60 mm Antenna Configuration: main Max E Field: 11.29 V/m Test Frequency: 1880MHz SAR 1g: 0.169 W/kg Air Factors: 415 / 805 / 371 SAR 10g: 0.103 W/kg Conversion Factors: 0.477 / 0.477 / 0.477 SAR Start: 0.051 W/kg Type of Modulation: SAR End: 0.051 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.01 dB Diode Compression Factors (V*200): 12.81 / 5.68 / 11.4 Probe battery last changed: 06/03/2004 Input Power Level: max 2 timeslots TX Extrapolation: poly4 SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665 Date of Report: 07/12/2004 Appendix A Plots Page 6 of 8 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/24/2004 1:53:53 PM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0106 Ambient Temperature: 22.0°C Liquid Simulant: 1900 Device Under Test: Xplore Relative Permittivity: 53.19 Relative Humidity: 50% Conductivity: 1.573 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -12.00 mm DUT Position: bystander 1cm Max SAR Z-axis Location: -148.80 mm Antenna Configuration: main Max E Field: 27.66 V/m Test Frequency: 1880MHz SAR 1g: 0.909 W/kg Air Factors: 415 / 805 / 37…

Text truncated - open the document above for the full version.

RF Exposure Info

SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665 Date of Report: 07/12/2004 Appendix B Page 1 of 7 Appendix B: Photos EUT Photos: Photo 1. Antenna locations SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665 Date of Report: 07/12/2004 Appendix B Page 2 of 7 Photo 2. EUT front SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665 Date of Report: 07/12/2004 Appendix B Page 3 of 7 Photo 3. EUT back SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665 Date of Report: 07/12/2004 Appendix B Page 4 of 7 Setup Photos Photo 4. GPRS antenna bystander position SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665 Date of Report: 07/12/2004 Appendix B Page 5 of 7 Photo 5. bystander position distance SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665 Date of Report: 07/12/2004 Appendix B Page 6 of 7 Photo 6. GPRS antenna lap position SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_TM60M665 Date of Report: 07/12/2004 Appendix B Page 7 of 7 Photo 7. Photo to demonstrate 15 cm Z-axis flat phantom

RF Exposure Info

Text truncated - open the document above for the full version.

Test Report

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11Issued test report consists of 97 pagesPage 1 (97) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2_3450-01-01/03 FCC Part 24/22/15 MC56 FCC ID: QIPMC56 IC: 267W-MC56 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 2 (97) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-166/98 Listed by: Federal Communications Commission (FCC) Identification/Registration No : 90462 Accredited Bluetooth TM Test Facility (BQTF) BLUETOO…

Text truncated - open the document above for the full version.

Contact Information

Applicant

David J Ball(Senior Regulatory and Compliance Engineer)

[email protected]512-485-1556Fax: 512-336-7791

Test Firm

Cetecom Inc.Lothar Schmidt

[email protected]408-586-6200Fax: 510-252-0559

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	22H	824.2 MHz - 848.8 MHz	2 W	300KGXW	0.0412 ppm

Confidentiality

Long Term

Grant Notes

Power Output listed is conducted. This filing is applicable for BT and GSM/GPRS operations as demontrated in the filing. The antennas and transmitters in this device must be installed by the manufacturer as shown in the filing. The antennas must not be co-located or operating in conjunction with any other antenna(s) or transmitter than included in this filing. The SAR data in this filing are applicable to demonstrate compliance for the final product. End-users and installers must be provided transmitter operating conditions for satisfying RF exposure compliance. The highest reported body worn (lap-held) SAR value is 0.176 W/kg. This device contains 1800 MHz GSM functions that are not operational in U.S. Territories.
