Q2GIX104-126Tablet PC with BT and CDMA

4 iX104AtR User’s Handbook Xplore Technologies ® has made every effort to ensure the accuracy and completeness of this document; however, because ongoing development efforts are made to continually improve the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes herein. Xplore and the Xplore logo are registered trademarks of Xplore Technologies Corp.; iX104, iX104AtR, and iX104AtR 2 are trademarks of Xplore Technologies Corp. Kensington and MicroSaver are registered trademarks of the Kensington Technology Group. Microsoft is a registered trademark of Microsoft Corporation. Windows 2000 Professional, Windows XP Professional, and Windows XP Tablet PC Edition are trademarks of Microsoft Corporation. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association. Intel, Pentium, and SpeedStep are registered trademarks of Intel Corporation. Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance (WECA). FireWire is a registered trademark of Apple Computer, Inc. ISODAMP is a registered trademark of Aearo Company. All other brands, product names, company names, trademarks and service marks used herein are property of their respective companies. Copyright © 2003-2004 Xplore Technologies Corp. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Xplore Technologies. No part of this publication may be stored or transmitted in any electronic form without the prior consent of Xplore Technologies. Any unauthorized use is a violation of copyright laws. PN: 95-01030 Edition: First, July 2004 DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name: Xplore Technologies Corp. Address: 14000 Summit Drive, Suite 900, Austin, Texas 78728 Telephone: 512.336.7797 Declares that product: Model Series: iX104AtR Complies with Part 15 of the FCC Rules iX104AtR User’s Handbook 5 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance may void the user’s authority to operate this equipment. For more information about FCC rules and their applicability to the iX104, see Appendix E, “Agency Notices.” Warranty Information The iX104AtR, and iX104AtR 2 are backed by a standard 12-month International Limited Warranty. An extended International Limited Warranty is available. Check the service kit included with your computer for warranty terms and conditions. a 6 iX104AtR User’s Handbook Important safety information Before you use the iX104AtR or iX104TrR 2 (referred to as the tablet), read these safety instructions and the operation instructions in this handbook. Failure to observe all these instructions voids the Limited Warranty and may lead to suspension or denial of services to the offender, or legal action, or both. Follow any special regulations governing the use of the tablet and, if radio- enabled, always switch it off in areas where radio devices are forbidden or when the radio device can cause interference or danger. Always follow any safety laws and regulations pertaining to the use of cell phones and two-way radios, because these laws and regulations typically apply to the use of the wireless-enabled tablet. Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, and wherever blasting operations are in progress or in any area in which restrictions on radio transmissions are imposed. Switch off the tablet when in an aircraft. The tablet is not FAA-approved for use on aircraft. The effect of the use of the tablet in aircraft is unknown. Using the tablet in an aircraft may affect aircraft instrumentation, communication, and performance; may disrupt the network; and may be illegal. Operating the wireless-enabled tablet may interfere with the functioning of inadequately protected medical devices such as pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions. Radio signals from your tablet will not affect the operation of most modern equipment, but certain electronic equipment, including automotive systems, may not be shielded against radio signals from your tablet. Check with the manufacturer of your motor vehicle or the manufacturer’s representative to determine whether using the tablet will present any safety issues. Avoid using the tablet in any environment that requires your full attention, such as when driving a vehicle. If you need to use your tablet while driving, have a passenger use it for you or find a safe location to halt your vehicle. iX104AtR User’s Handbook 7 WARNING Use only battery types specified in this handbook. Using any other type of battery can be dangerous and can disable the tablet. WARNING Do not use any dock or any other accessory or attachment that is not manufactured or supplied by Xplore or an authorized Xplore accessories supplier. Use of any accessory or attachment that is not supplied or approved for use with the tablet by Xplore is not permitted because it may cause hazards. Operate the tablet only from the type of power source indicated on the marking label. (See page 56 for more information about the battery and power supply.) Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs and convenience receptacles, and at the point where cords exit from the tablet or its dock. Do not overload wall outlets, extension cords, or integral convenience receptacles because this can cause fire or electr…

Text truncated - open the document above for the full version.

Xplore Technologies, Inc. 14000 Summit Road Suite 900 Austin, TX 78728 888-44-XPLORE Page 1 of 1 July 1, 2004 Federal Communication Commission Equipment Approval Service Attention: Authorization and Evaluation Division Reference: Xplore Technologies FCC ID: Q2GIX104-126 To Whom It May Concern: Subject: Request for Confidentiality Pursuant to Sections 0.457 (d) (1) (ii) and 0.459 of the Commission’s rules, the Applicant hereby requests confidential treatment of the Xplore Technologies supplied information accompanying this application. The confidential information includes the following: • Schematics • Block Diagrams • Parts list / Tune-up procedure • Operational Description / Tune-up Procedure The materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of this information might be harmful to Xplore Technologies and provide unjustified benefits to our competitors. Xplore Technologies understands that pursuant to 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of the grant. Best regards, Mazyar Razzaz Electrical Engineer Xplore Technologies, Inc.

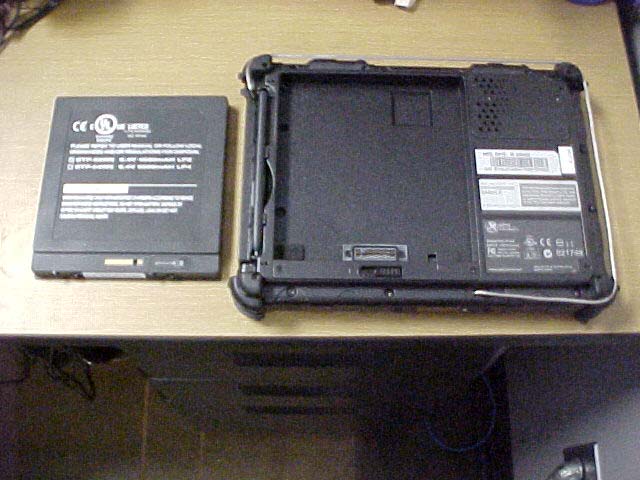

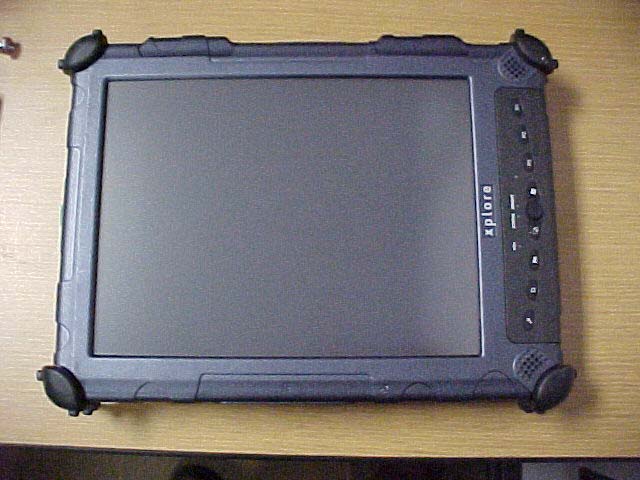

External Photos iX104 EUT – Top view External Photos iX104 EUT – Bottom view External Photos iX104 EUT – Bottom view without battery

Label & Label Location FCC ID: Q2GIX104-126 & IC ID: 4596A-IX104WBC FCC ID: Q2GIX104-126 IC ID: 4596A-IX104WBC Label & Label Location FCC ID: Q2GIX104-126 & IC ID: 4596A-IX104WBC FCC ID: Q2GIX104-126 IC ID: 4596A-IX104WBC iX104-TM60+AC55x

AC555 – Top view AC555 – Bottom view AC555 – Profile view

Internal Photos iX104_BT+CDMA EUT – Internal view Internal Photos iX104_BT+CDMA EUT – Internal view showing BT & CDMA module CDMA Module BT Module CDMA Antenna BT Antenna WLAN NOT Included in this option Internal Photos iX104_BT+CDMA MVC-013F – PCB Internal Photos iX104_BT+CDMA MLB – PCB Internal Photos iX104_BT+CDMA I/O Ports Internal Photos iX104_BT+CDMA I/O Ports + PCB

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 \\stupendousman\rootappsdata\emc\projects_emc\xplore\684_2004_sar_4_proj678\bt+cdma\sar_684_2004_fc c__850_1900_2450_ac555_tm60m665rev1.doc © Copyright by CETECOM SAR Test Report No. SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665rev1 for the Xplore Technologies Tablet Computer Model Number: iX104-TM60+AC55X FCC ID: Q2GIX104-126 Date of Report: 07/12/2004 Date of issue: 07/12/2004 Report Copy No.: 01 SAR Test Report No. SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665rev 1 Date of Report: 07/12/2004 Page 2 of 26 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents 1 ASSESSMENT ...................................................................................................................4 2 ADMINISTRATIVE DATA...................................................................................................5 2.1 Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 2.2 Identification of the Client...........................................................................................5 2.3 Identification of the Manufacturer...............................................................................5 3 EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 3.1 Identification of the Equipment under Investigation ...................................................6 3.2 Front View of the Equipment under Investigation ......................................................7 4 SUBJECT OF INVESTIGATION ........................................................................................8 4.1 The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................8 4.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...8 4.3 Distinction between Maximum Permissible Exposure and SAR Limits......................9 4.4 SAR Limit ...................................................................................................................9 5 THE FCC MEASUREMENT PROCEDURE .....................................................................10 5.1 General Requirements.............................................................................................10 5.2 Phantom Requirements ...........................................................................................10 5.3 Body-worn and Other Configurations.......................................................................10 5.4 Procedure for assessing the peak spatial-average SAR .........................................11 5.5 Determination of the largest peak spatial-average SAR ..........................................13 6 THE MEASUREMENT SYSTEM ......................................................................................14 6.1 Robot system specification ......................................................................................14 6.2 Probe and amplifier specification .............................................................................15 6.3 Phantoms.................................................................................................................15 6.4 SAR measurement procedure .................................................................................16 6.5 SARA2 Interpolation and Extrapolation schemes ....................................................16 SAR Test Report No. SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665rev 1 Date of Report: 07/12/2004 Page 3 of 26 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 6.6 Interpolation of 2D area scan...................................................................................17 6.7 Extrapolation of 3D scan..........................................................................................17 6.8 Interpolation of 3D scan and volume averaging.......................................................17 7 UNCERTAINTY ASSESSMENT.......................................................................................19 7.1 Table of Measurement Uncertainty Values of SAR Evaluations..............................20 7.2 Table of Measurement Uncertainty Values for SAR System Verification ................21 8 TEST RESULTS SUMMARY............................................................................................23 8.1 Conducted Output Power.........................................................................................23 8.2 Test Positions and Configurations ...........................................................................23 8.3 850 MHz band SAR Results for iX104-TM60+AC55X with Sierra AC555 ...............24 8.4 1900 MHz band SAR Results for iX104-TM60+AC55X with Sierra AC555 .............24 8.5 2450 MHz band SAR Results for iX104-TM60+AC55X with TM60M665 ................24 8.6 Co-location Test plan and results evaluation methods ............................................25 8.7 Validation Check Results .........................................................................................26 9 REFERENCES..................................................................................................................27 SAR Test Report No. SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665rev 1 Date of Report: 07/12/2004 P…

Text truncated - open the document above for the full version.

SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 07/12/2004 Appendix A Plots Page 1 of 8 Date / Time: 9/4/2003 10:23:36 AM Position: Lap Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: Xplore iX104 CDMA Head Rotation: 0 Antenna: integral Test Frequency: 835 Shape File: xplorgprslap.csv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_CDMA X Y Z Air 415 805 371 DCP 20 20 20 Cal Factors: Lin 0.35 7 0.35 7 0.35 7 Amp Gain: 2 Averaging: 6 Batteries Replaced: 09/03/2003 Liquid: 850 Type: Body Conductivity: 0.986 Relative Permittivity: 55.4 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.073 0.073 Change during Scan (%) -0.12 Max E-field (V/m): 14.28 1g 10g Max SAR (W/kg) 0.174 0.115 X Y Z Location of Max (mm): 75.1 -49.0 -174.7 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -190.0 -100.0 10.0 SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 07/12/2004 Appendix A Plots Page 2 of 8 Date / Time: 9/4/2003 10:50:14 AM Position: bystander 1.5cm Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: Xplore iX104 CDMA Head Rotation: 0 Antenna: integral Test Frequency: 835 Shape File: xplorgprsbystand.csv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_CDMA X Y Z Air 415 805 371 DCP 20 20 20 Cal Factors: Lin 0.35 7 0.35 7 0.35 7 Amp Gain: 2 Averaging: 6 Batteries Replaced: 09/03/2003 Liquid: 850 Type: Body Conductivity: 0.986 Relative Permittivity: 55.4 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.186 0.185 Change during Scan (%) -0.24 Max E-field (V/m): 20.86 1g 10g Max SAR (W/kg) 0.376 0.257 X Y Z Location of Max (mm): 75.0 13.0 -149.5 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -190.0 -100.0 10.0 SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 07/12/2004 Appendix A Plots Page 3 of 8 Date / Time: 9/4/2003 11:16:22 AM Position: bystander 1.5cm Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: Xplore iX104 CDMA Head Rotation: 0 Antenna: integral Test Frequency: 825.25 Shape File: xplorgprsbystand.csv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_CDMA X Y Z Air 415 805 371 DCP 20 20 20 Cal Factors: Lin 0.35 7 0.35 7 0.35 7 Amp Gain: 2 Averaging: 6 Batteries Replaced: 09/03/2003 Liquid: 850 Type: Body Conductivity: 0.977 Relative Permittivity: 55.8 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.130 0.130 Change during Scan (%) -0.06 Max E-field (V/m): 17.53 1g 10g Max SAR (W/kg) 0.262 0.180 X Y Z Location of Max (mm): 75.0 13.0 -149.5 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -190.0 -100.0 10.0 SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 07/12/2004 Appendix A Plots Page 4 of 8 Date / Time: 9/4/2003 11:43:05 AM Position: bystander 1.5cm Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: Xplore iX104 CDMA Head Rotation: 0 Antenna: integral Test Frequency: 847.75 Shape File: xplorgprsbystand.csv Power Level: maximum Probe: 0106 Cal File: 106_835_BODY_CDMA X Y Z Air 415 805 371 DCP 20 20 20 Cal Factors: Lin 0.35 7 0.35 7 0.35 7 Amp Gain: 2 Averaging: 6 Batteries Replaced: 09/03/2003 Liquid: 850 Type: Body Conductivity: 0.992 Relative Permittivity: 55.3 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.161 0.161 Change during Scan (%) -0.05 Max E-field (V/m): 19.60 1g 10g Max SAR (W/kg) 0.331 0.225 X Y Z Location of Max (mm): 75.0 12.0 -149.3 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -190.0 -100.0 10.0 SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 07/12/2004 Appendix A Plots Page 5 of 8 1900MHz: Date / Time: 9/3/2003 3:32:01 PM Position: Lap Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: Xplore iX104 CDMA Head Rotation: 0 Antenna: integral Test Frequency: 1880 Shape File: xplorgprslap.csv Power Level: maximum Probe: 0106 Cal File: 106_1900_BODY_CDMA X Y Z Air 415 805 371 DCP 20 20 20 Cal Factors: Lin 0.47 7 0.47 7 0.47 7 Amp Gain: 2 Averaging: 6 Batteries Replaced: 09/03/2003 Liquid: 1900 Type: Body Conductivity: 1.540 Relative Permittivity: 53.27 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.178 0.177 Change during Scan (%) -0.69 Max E-field (V/m): 21.08 1g 10g Max SAR (W/kg) 0.573 0.346 X Y Z Location of Max (mm): 75.1 -40.0 -174.7 AREA SCAN: Min Max Steps Y 50.0 -50.0 10.0 Scan Extent: Z -190.0 -100.0 10.0 SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 07/12/2004 Appendix A Plots Page 6 of 8 Date / Time: 9/3/2003 4:26:52 PM Position: bystander 1.5cm Filename: *.txt Phantom: HeadBox_new_spout.csv Device Tested: Xplore iX104 CDMA Head Rotation: 0 Antenna: integral Test Frequency: 1880 Shape File: xplorgprsbystand.csv Power Level: maximum Probe: 0106 Cal File: 106_1900_BODY_CDMA X Y Z Air 415 805 371 DCP 20 20 20 Cal Factors: Lin 0.47 7 0.47 7 0.47 7 Amp Gain: 2 Averaging: 6 Batteries Replaced: 09/03/2003 Liquid: 1900 Type: Body Conductivity: 1.540 Relative Permittivity: 53.27 Liquid Temp (deg C): 22.0 Ambient Temp (deg C): 22.0 Ambient RH (%): 50 Density (kg/m3): 1000 Software Version: 0.420 ZOOM SCAN RESULTS: Start Scan End Scan Spot SAR (W/kg): 0.330 0.330 Change during Scan (%) 0.22 Max E-field (V/m): 29.60 1g 10g Max SAR (W/kg) 1.067 0.587 X Y Z Location of Max (mm): 75.1 -2.0 -145.0 AREA SCAN: Min Max Steps Y 50.0 -50.0 1…

Text truncated - open the document above for the full version.

SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report 07/12/2004 Appendix B Page 1 of 7 Appendix B: Photos EUT Photos: Photo 1. Antenna locations SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report 07/12/2004 Appendix B Page 2 of 7 Photo 2. EUT front SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report 07/12/2004 Appendix B Page 3 of 7 Photo 3. EUT back SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report 07/12/2004 Appendix B Page 4 of 7 Setup Photos Photo 4. CDMA antenna bystander position SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report 07/12/2004 Appendix B Page 5 of 7 Photo 5. bystander position distance SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report 07/12/2004 Appendix B Page 6 of 7 Photo 6. CDMA antenna lap position SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report 07/12/2004 Appendix B Page 7 of 7 Photo 7. Photo to demonstrate 15 cm Z-axis flat phantom

SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 7/12/2004 Appendix B Page 1 of 41 1 Tissue Parameters 850MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 49.46% distilled water 49.46% DGBE 1.0% salt 0.1% bactericide Di-electric constants measured on 09/04/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 900 41.47 0.979 850MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 49.8% distilled water 40.6% DGBE 8.9% salt 0.6% HEC 0.1% bactericide Di-electric constants measured on 09/04/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 825.25 55.8 0.977 836.5 55.4 0.986 847.75 55.3 0.992 SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 7/12/2004 Appendix B Page 2 of 41 2 1900MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 54.9% distilled water 44.92% DGBE 0.18% salt 0.1% bactericide Di-electric constants measured on 09/03/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1900 40.32 1.392 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% distilled water 30.29% DGBE 0.44% salt 0.1% bactericide Di-electric constants measured on 09/03/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1850.2 53.46 1.531 1880 53.27 1.540 1909.8 53.06 1.551 SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 7/12/2004 Appendix B Page 3 of 41 3 2450MHz Head liquid: Recipe: 53.74% distilled water 22.59% DGBE 22.59% triton X-100 0.98% salt 0.1% bactericide Di-electric constants measured on 06/21/2004. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 2450 39.58 1.78 2450MHz Body Liquid: Recipe: 73.3% distilled water 12.88% DGBE 12.88% triton X-100 0.84% salt 0.1% bactericide Di-electric constants measured on 06/21/2004. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 2412 52.35 1.962 2437 52.29 1.966 2462 52.09 1.997 Environment: 09/03/2003, 09/04/2003 & 06/21/2004: Temperature: 20.1 °C – 23.9°C Humidity: 45% _ 55 % SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 7/12/2004 Appendix B Page 4 of 41 4 Test Equipment Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) Bench top Robot Mitsubishi supplied by IndexSAR RV-E2 EA1030108 N/A N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by IndexSAR SAM 03FT26 04/03 N/A Flat Phantom IndexSAR HeadBox_Spout N/A N/A N/A Software IndexSAR SARA2 v0.420 N/A N/A N/A 900 MHz Head Tissue Simulant Cetecom Inc. 900 Head N/A 09/04/2003 N/A 850 MHz Body Tissue Simulant Cetecom Inc. 850 Body N/A 09/04/2003 N/A 1900 MHz Head Tissue Simulant Cetecom Inc. 1900 Head N/A 09/03/2003 N/A 1900 MHz Body Tissue Simulant Cetecom Inc. 1900 Body N/A 09/03/2003 N/A 2450 MHz Head Tissue Simulant Cetecom Inc. 2450 Head N/A 06/21/2004 N/A 2450 MHz Body Tissue Simulant Cetecom Inc. 2450 Body N/A 06/21/2004 N/A 900 MHz Dipole IndexSAR – IEEE 1528 design IXD-090 0016 07/20/2003 07/20/2004 1900 MHz Dipole IndexSAR – IEEE 1528 design IXD-190 0016 07/20/2003 07/20/2004 2450 MHz Dipole IndexSAR – IEEE 1528 design IXD-245 245-0016 07/20/2003 07/20/2004 Netwok Analyzer Agilent 8753ES US39172511 05/03/2004 05/03/2005 Directional coupler Werlatone C6529 11249 N/A N/A RF Amplifier Vectawave VTL5400 N/A N/A N/A Power Meter HP EPM-442A GB37170232 8/19/2003 8/19/2004 Power Sensor HP 8481A 1926A20587 8/19/2003 8/19/2004 Power Sensor HP 8481H 3318A15893 02/10/2004 02/10/2005 SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 7/12/2004 Appendix B Page 5 of 41 5 SAR Probe IndexSAR IXP-050 S/N 0106 7/15/2003 7/15/2004 Probe amplifier IndexSAR IXA-010 S/N 043 N/A N/A Thermometer Control Company 4039 20410549 11/20/2001 11/20/2004 Dielectric Measurement Kit IndexSAR Di-Line N/A N/A N/A Test Equipment Model Serial SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 7/12/2004 Appendix B Page 6 of 41 6 Equipment Calibration/Performance Documents: Validation Dipoles Performance Measurements: Pages 7 to 13. Immersible SAR probe Calibration Report: Pages 14 to 41 Please Note: (The following pages of Appendix C show calibration documents. These calibration documents are inserted into this appendix. The header information with page numbering scheme is a part of this report and is included on all pages of the report and appendixes. This header is used to track all of the contents of this report.) SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 7/12/2004 Appendix B Page 7 of 41 7 Report No. SN0016_090-180-245 July 1 st 2002 INDEXSAR Validation Dipoles Type IXD-090, IXD-180 & IXD-245 Performance measurements S/N: 090-0016 S/N: 180-0016 S/N: 245-0016 MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5DR. UK. Tel: +44 (0) 1306 631233 Fax: +44 (0) 1306 631834 e-mail: [email protected] SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_AC555_TM60M665 Date of Report: 7/12/2004 Appendix B Page 8 of 41 8 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An HP 8753B vector network analyser was used for the return loss measurement…

Text truncated - open the document above for the full version.

1365 Adams Court, Menlo Park, CA 94025 Sierra Wireless Inc. AIRCARD 555 Date of Test: July 16-28, 2001 FCC ID: N7NACRD555 Report # 2054479 2 FCC Part 22 & 24 TABLE OF CONTENTS 1.0Introduction..............................................................................................................4 1.1Test Summary........................................................................................................................4 1.2Product Description...............................................................................................................5 1.3Test Configuration.................................................................................................................5 1.4Related Submittal(s) Grants..................................................................................................5 2.0RF Power Output.......................................................................................................6 2.1Test Procedure........................................................................................................................6 2.2Test Equipment......................................................................................................................6 2.3Test Results............................................................................................................................6 3.0Radiated Power........................................................................................................13 3.1Test Procedure......................................................................................................................13 3.2Test Equipment....................................................................................................................13 3.3Test Results..........................................................................................................................14 4.0Occupied Bandwidth................................................................................................15 4.1Test Procedure......................................................................................................................15 4.2Test Equipment....................................................................................................................15 4.3Test Results..........................................................................................................................15 5.0Out of Band Emissions at Antenna Terminals........................................................18 5.1Test Procedure......................................................................................................................18 5.2Test Equipment....................................................................................................................18 5.3Test Results...........................................................................…

Text truncated - open the document above for the full version.
