Q2GIX104-127Tablet PC with GSM Module

4 iX104AtR User’s Handbook Xplore Technologies ® has made every effort to ensure the accuracy and completeness of this document; however, because ongoing development efforts are made to continually improve the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes herein. Xplore and the Xplore logo are registered trademarks of Xplore Technologies Corp.; iX104, iX104AtR, and iX104AtR 2 are trademarks of Xplore Technologies Corp. Kensington and MicroSaver are registered trademarks of the Kensington Technology Group. Microsoft is a registered trademark of Microsoft Corporation. Windows 2000 Professional, Windows XP Professional, and Windows XP Tablet PC Edition are trademarks of Microsoft Corporation. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association. Intel, Pentium, and SpeedStep are registered trademarks of Intel Corporation. Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance (WECA). FireWire is a registered trademark of Apple Computer, Inc. ISODAMP is a registered trademark of Aearo Company. All other brands, product names, company names, trademarks and service marks used herein are property of their respective companies. Copyright © 2003-2004 Xplore Technologies Corp. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Xplore Technologies. No part of this publication may be stored or transmitted in any electronic form without the prior consent of Xplore Technologies. Any unauthorized use is a violation of copyright laws. PN: 95-01030 Edition: First, July 2004 DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name: Xplore Technologies Corp. Address: 14000 Summit Drive, Suite 900, Austin, Texas 78728 Telephone: 512.336.7797 Declares that product: Model Series: iX104AtR Complies with Part 15 of the FCC Rules iX104AtR User’s Handbook 5 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance may void the user’s authority to operate this equipment. For more information about FCC rules and their applicability to the iX104, see Appendix E, “Agency Notices.” Warranty Information The iX104AtR, and iX104AtR 2 are backed by a standard 12-month International Limited Warranty. An extended International Limited Warranty is available. Check the service kit included with your computer for warranty terms and conditions. a 6 iX104AtR User’s Handbook Important safety information Before you use the iX104AtR or iX104TrR 2 (referred to as the tablet), read these safety instructions and the operation instructions in this handbook. Failure to observe all these instructions voids the Limited Warranty and may lead to suspension or denial of services to the offender, or legal action, or both. Follow any special regulations governing the use of the tablet and, if radio- enabled, always switch it off in areas where radio devices are forbidden or when the radio device can cause interference or danger. Always follow any safety laws and regulations pertaining to the use of cell phones and two-way radios, because these laws and regulations typically apply to the use of the wireless-enabled tablet. Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, and wherever blasting operations are in progress or in any area in which restrictions on radio transmissions are imposed. Switch off the tablet when in an aircraft. The tablet is not FAA-approved for use on aircraft. The effect of the use of the tablet in aircraft is unknown. Using the tablet in an aircraft may affect aircraft instrumentation, communication, and performance; may disrupt the network; and may be illegal. Operating the wireless-enabled tablet may interfere with the functioning of inadequately protected medical devices such as pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions. Radio signals from your tablet will not affect the operation of most modern equipment, but certain electronic equipment, including automotive systems, may not be shielded against radio signals from your tablet. Check with the manufacturer of your motor vehicle or the manufacturer’s representative to determine whether using the tablet will present any safety issues. Avoid using the tablet in any environment that requires your full attention, such as when driving a vehicle. If you need to use your tablet while driving, have a passenger use it for you or find a safe location to halt your vehicle. iX104AtR User’s Handbook 7 WARNING Use only battery types specified in this handbook. Using any other type of battery can be dangerous and can disable the tablet. WARNING Do not use any dock or any other accessory or attachment that is not manufactured or supplied by Xplore or an authorized Xplore accessories supplier. Use of any accessory or attachment that is not supplied or approved for use with the tablet by Xplore is not permitted because it may cause hazards. Operate the tablet only from the type of power source indicated on the marking label. (See page 56 for more information about the battery and power supply.) Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs and convenience receptacles, and at the point where cords exit from the tablet or its dock. Do not overload wall outlets, extension cords, or integral convenience receptacles because this can cause fire or electr…

Text truncated - open the document above for the full version.

Xplore Technologies, Inc. 14000 Summit Road Suite 900 Austin, TX 78728 888-44-XPLORE Page 1 of 1 July 1, 2004 Federal Communication Commission Equipment Approval Service Attention: Authorization and Evaluation Division Reference: Xplore Technologies FCC ID: Q2GIX104-127 To Whom It May Concern: Subject: Request for Confidentiality Pursuant to Sections 0.457 (d) (1) (ii) and 0.459 of the Commission’s rules, the Applicant hereby requests confidential treatment of the Xplore Technologies supplied information accompanying this application. The confidential information includes the following: • Schematics • Block Diagrams • Parts List / Tune-up procedure • Operational Description The materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of this information might be harmful to Xplore Technologies and provide unjustified benefits to our competitors. Xplore Technologies understands that pursuant to 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of the grant. Best regards, Mazyar Razzaz Electrical Engineer Xplore Technologies, Inc.

1 of 1 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com STATEMENT This filing constitutes a formal submittal and request for Equipment Authorization pursuant to Part 15/22/24 of FCC rules (CFR 47) regarding 2.4 GHz WLAN and GSM 850/1900 modules in Tablet PC. Company Name: Xplore Technologies FCC ID: Q2GIX104-127 Tablet PC model# iX104-2200+MC56 WLAN Model# 2200BG GSM module Model# MC56 SUMMARY OF TESTING Xplore Tablet PC model# iX104-2200+MC56 is equipped with WLAN model# 2200BG and GSM module model# MC56. These radios are off-the shelf modules and have not been modified since the FCC ID has been granted. Tablet PC provides new antenna to the modules integrated in it. The radios in iX104 are not user accessible. All radios are tested individually and in collocation setups in tablet PC. In every case all test results complies with applicable FCC limits. Harpreet Sidhu EMC & Radio Engineer 411 Dixon Landing Rd, Milpitas, CA 95035 PH: +1 408 586 6210

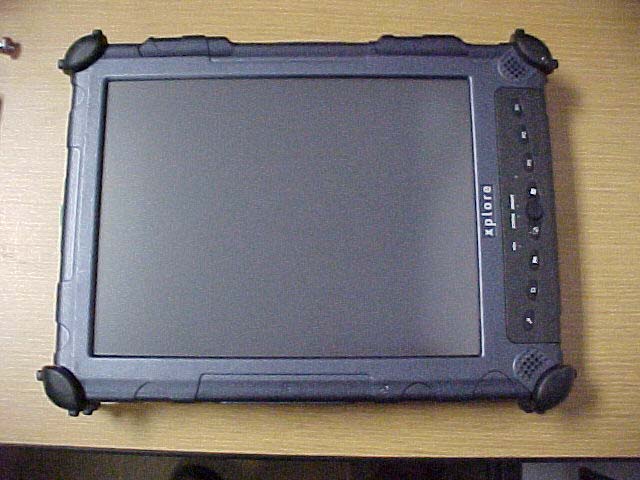

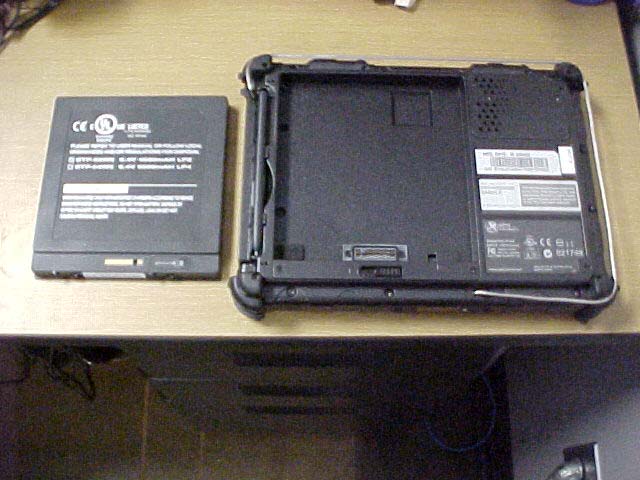

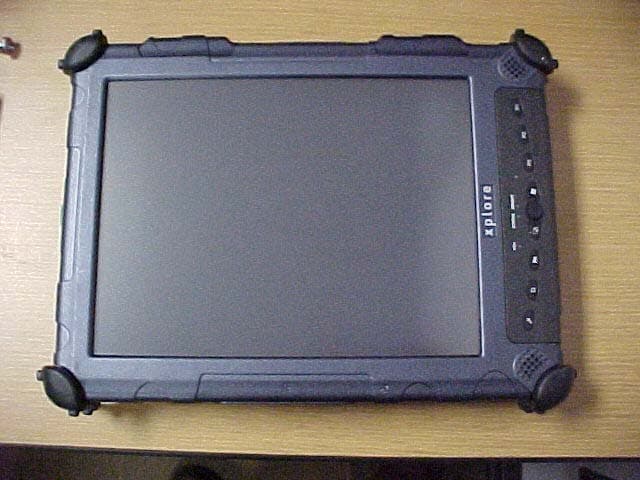

External Photos iX104 EUT – Top view External Photos iX104 EUT – Bottom view External Photos iX104 EUT – Bottom view without battery

Label & Label Location FCC ID: Q2GIX104-127 & IC ID: 4596A-iX104WBG FCC ID: Q2GIX104-127 IC ID: 4596A-iX104WBG Label & Label Location FCC ID: Q2GIX104-127 & IC ID: 4596A-iX104WBG FCC ID: Q2GIX104-127 IC ID: 4596A-iX104WBG iX104-2200+MC56

Internal Photos iX104_WLAN+GSM_127 EUT – Internal view Internal Photos iX104_WLAN+GSM_127 GSM antenna GSM Module model MC56 Internal Photos iX104_WLAN+GSM_127 EUT – Internal view showing WLAN Intel WLAN mini PCI card WLAN antenna Internal Photos iX104_WLAN+GSM_127 MVC-013F – PCB Internal Photos iX104_WLAN+GSM_127 MLB – PCB Internal Photos iX104_WLAN+GSM_127 I/O Ports Internal Photos iX104_WLAN+GSM_127 I/O Ports + PCB

CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 92 (97) Test site CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 93 (97) Card with connection board and sample antenna CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 94 (97) Card with connection board CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 95 (97) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 96 (97) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 97 (97) Photographs of the equipment

SAR Test Report No: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 7/12/2004 Appendix A Plots Page 1 of 12 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/22/2004 10:51:21 AM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0106 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Relative Permittivity: 55.71 Relative Humidity: 50% Conductivity: 0.991 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: 10.00 mm DUT Position: lap Max SAR Z-axis Location: -175.60 mm Antenna Configuration: AUX Max E Field: 11.30 V/m Test Frequency: 836MHz SAR 1g: 0.111 W/kg Air Factors: 415 / 805 / 371 SAR 10g: 0.075 W/kg Conversion Factors: 0.357 / 0.357 / 0.357 SAR Start: 0.047 W/kg Type of Modulation: SAR End: 0.048 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.04 dB Diode Compression Factors (V*200): 12.81 / 5.68 / 11.4 Probe battery last changed: 06/03/2004 Input Power Level: max 2 timeslots TX Extrapolation: poly4 SAR Test Report No: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 7/12/2004 Appendix A Plots Page 2 of 12 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/22/2004 10:11:00 AM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0106 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Relative Permittivity: 55.71 Relative Humidity: 50% Conductivity: 0.991 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -15.00 mm DUT Position: bystander 1cm Max SAR Z-axis Location: -151.60 mm Antenna Configuration: AUX Max E Field: 20.78 V/m Test Frequency: 836MHz SAR 1g: 0.368 W/kg Air Factors: 415 / 805 / 371 SAR 10g: 0.243 W/kg Conversion Factors: 0.357 / 0.357 / 0.357 SAR Start: 0.164 W/kg Type of Modulation: SAR End: 0.164 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.00 dB Diode Compression Factors (V*200): 12.81 / 5.68 / 11.4 Probe battery last changed: 06/03/2004 Input Power Level: max 2 timeslots TX Extrapolation: poly4 SAR Test Report No: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 7/12/2004 Appendix A Plots Page 3 of 12 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/22/2004 11:41:49 AM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0106 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Relative Permittivity: 56.12 Relative Humidity: 50% Conductivity: 0.977 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -9.00 mm DUT Position: bystander 1cm Max SAR Z-axis Location: -150.80 mm Antenna Configuration: AUX Max E Field: 19.57 V/m Test Frequency: 824.2MHz SAR 1g: 0.316 W/kg Air Factors: 415 / 805 / 371 SAR 10g: 0.206 W/kg Conversion Factors: 0.357 / 0.357 / 0.357 SAR Start: 0.140 W/kg Type of Modulation: SAR End: 0.141 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.02 dB Diode Compression Factors (V*200): 12.81 / 5.68 / 11.4 Probe battery last changed: 06/03/2004 Input Power Level: max 2 timeslots TX Extrapolation: poly4 SAR Test Report No: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 7/12/2004 Appendix A Plots Page 4 of 12 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/22/2004 12:17:02 PM DUT Battery Model/No: Filename: bystand128_3d.txt Probe Serial Number: 0106 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Relative Permittivity: 55.56 Relative Humidity: 50% Conductivity: 0.987 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -9.00 mm DUT Position: bystander 1cm Max SAR Z-axis Location: -150.80 mm Antenna Configuration: AUX Max E Field: 24.48 V/m Test Frequency: 848.8MHz SAR 1g: 0.501 W/kg Air Factors: 415 / 805 / 371 SAR 10g: 0.328 W/kg Conversion Factors: 0.357 / 0.357 / 0.357 SAR Start: 0.223 W/kg Type of Modulation: SAR End: 0.225 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.03 dB Diode Compression Factors (V*200): 12.81 / 5.68 / 11.4 Probe battery last changed: 06/03/2004 Input Power Level: max 2 timeslots TX Extrapolation: poly4 SAR Test Report No: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 7/12/2004 Appendix A Plots Page 5 of 12 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/24/2004 2:50:58 PM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0106 Ambient Temperature: 22.0°C Liquid Simulant: 1900 Device Under Test: Xplore Relative Permittivity: 53.19 Relative Humidity: 50% Conductivity: 1.573 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: 8.00 mm DUT Position: lap Max SAR Z-axis Location: -177.60 mm Antenna Configuration: main Max E Field: 11.29 V/m Test Frequency: 1880MHz SAR 1g: 0.169 W/kg Air Factors: 415 / 805 / 371 SAR 10g: 0.103 W/kg Conversion Factors: 0.477 / 0.477 / 0.477 SAR Start: 0.051 W/kg Type of Modulation: SAR End: 0.051 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.01 dB Diode Compression Factors (V*200): 12.81 / 5.68 / 11.4 Probe battery last changed: 06/03/2004 Input Power Level: max 2 timeslots TX Extrapolation: poly4 SAR Test Report No: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 7/12/2004 Appendix A Plots Page 6 of 12 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/24/2004 1:53:53 PM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0106 Ambient Temperature: 22.0°C Liquid Simulant: 1900 Device Under Test: Xplore Relative Permittivity: 53.19 Relative Humidity: 50% Conductivity: 1.573 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -12.00 mm DUT Position: bystander 1cm Max SAR Z-axis Location: -148.80 mm Antenna Configuration: main Max E Field: 27.66 V/m Test Frequency: 1880MHz SAR 1g: 0.909 W/kg Air Factors: 415 / 805 / 371 SAR 10g: 0.466 W…

Text truncated - open the document above for the full version.

SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 07/12/2004 Appendix B Page 1 of 10 Appendix B: Photos EUT Photos: Photo 1. Antenna locations SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 07/12/2004 Appendix B Page 2 of 10 Photo 2. EUT front SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 07/12/2004 Appendix B Page 3 of 10 Photo 3. EUT back SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 07/12/2004 Appendix B Page 4 of 10 Setup Photos Photo 4. GPRS antenna bystander position SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 07/12/2004 Appendix B Page 5 of 10 Photo 5. bystander position distance SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 07/12/2004 Appendix B Page 6 of 10 Photo 6. GPRS antenna lap position SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 07/12/2004 Appendix B Page 7 of 10 Photo 7. 2450 MHz antenna bystander position SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 07/12/2004 Appendix B Page 8 of 10 Photo 8. bystander position distance SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 07/12/2004 Appendix B Page 9 of 10 Photo 9. 2450 MHz antenna lap position SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report: 07/12/2004 Appendix B Page 10 of 10 Photo 10. Photo to demonstrate 15 cm Z-axis flat phantom

SAR Test Report No: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report:07/12/2004 Appendix C Miscellaneous Page 1 of 50 1 Tissue Parameters 850MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 49.46% distilled water 49.46% DGBE 1.0% salt 0.1% bactericide Di-electric constants measured on 06/22/2004. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 900 41.45 0.971 850MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 49.8% distilled water 40.6% DGBE 8.9% salt 0.6% HEC 0.1% bactericide Di-electric constants measured on 06/22/2004. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 824.2 56.12 0.977 836.0 55.71 0.991 848.8 55.56 0.987 SAR Test Report No: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report:07/12/2004 Appendix C Miscellaneous Page 2 of 50 2 1900MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 54.9% distilled water 44.92% DGBE 0.18% salt 0.1% bactericide Di-electric constants measured on 06/24/2004. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1900 39.87 1.443 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% distilled water 30.29% DGBE 0.44% salt 0.1% bactericide Di-electric constants measured on 06/24/2004. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1850.2 53.33 1.56 1880 53.19 1.573 1909.8 53.01 1.579 SAR Test Report No: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report:07/12/2004 Appendix C Miscellaneous Page 3 of 50 3 2450MHz Head liquid: Recipe: 53.74% distilled water 22.59% DGBE 22.59% triton X-100 0.98% salt 0.1% bactericide Di-electric constants measured on 06/21/2004. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 2450 39.58 1.78 2450MHz Body Liquid: Recipe: 73.3% distilled water 12.88% DGBE 12.88% triton X-100 0.84% salt 0.1% bactericide Di-electric constants measured on 06/21/2004. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 2412 52.35 1.962 2437 52.29 1.966 2462 52.09 1.997 Environment06/21/2004, 06/22/2004 & 06/24/2004: Temperature: 22.0 °C ± 2°C Humidity: 45% _ 55 % SAR Test Report No: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report:07/12/2004 Appendix C Miscellaneous Page 4 of 50 4 Test Equipment Test Equipment Model Serial Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) Bench top Robot Mitsubishi supplied by IndexSAR RV-E2 EA1030108 N/A N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by IndexSAR SAM 03FT26 04/03 N/A Flat Phantom IndexSAR HeadBox_Spou t N/A N/A N/A Software IndexSAR SARA2 v0.420 N/A N/A N/A 900 MHz Head Tissue Simulant Cetecom Inc. 900 Head N/A 06/22/2004 N/A 850 MHz Body Tissue Simulant Cetecom Inc. 850 Body N/A 06/22/2004 N/A 1900 MHz Head Tissue Simulant Cetecom Inc. 1900 Head N/A 06/24/2004 N/A 1900 MHz Body Tissue Simulant Cetecom Inc. 1900 Body N/A 06/24/2004 N/A 2450 MHz Head Tissue Simulant Cetecom Inc. 2450 Head N/A 06/21/2004 N/A 2450 MHz Body Tissue Simulant Cetecom Inc. 2450 Body N/A 06/21/2004 N/A 900 MHz Dipole IndexSAR – IEEE 1528 design IXD-090 0016 07/20/2003 07/20/2004 1900 MHz Dipole IndexSAR – IEEE 1528 design IXD-190 0016 07/20/2003 07/20/2004 2450 MHz Dipole IndexSAR – IEEE 1528 design IXD-245 245-0016 07/20/2003 07/20/2004 Netwok Analyzer Agilent 8753ES US39172511 05/03/2004 05/03/2005 Directional coupler Werlatone C6529 11249 N/A N/A RF Amplifier Vectawave VTL5400 N/A N/A N/A Power Meter HP EPM-442A GB37170232 8/19/2003 8/19/2004 Power Sensor HP 8481A 1926A20587 8/19/2003 8/19/2004 Power Sensor HP 8481H 3318A15893 02/10/2004 02/10/2005 SAR Probe IndexSAR IXP-050 S/N 0106 7/15/2003 7/15/2004 Probe amplifier IndexSAR IXA-010 S/N 043 N/A N/A Thermometer Control Company 4039 20410549 11/20/2001 11/20/2004 Dielectric Measurement Kit IndexSAR Di-Line N/A N/A N/A SAR Test Report No: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report:07/12/2004 Appendix C Miscellaneous Page 5 of 50 5 Equipment Calibration/Performance Documents: Validation Dipoles Performance Measurements: Pages 6 to 18 Immersible SAR probe Calibration Report: Pages 19 to 46 Please Note: (The following pages of Appendix C show calibration documents. These calibration documents are inserted into this appendix. The header information with page numbering scheme is a part of this report and is included on all pages of the report and appendixes. This header is used to track all of the contents of this report.) SAR Test Report No: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report:07/12/2004 Appendix C Miscellaneous Page 6 of 50 6 Report No. SN0016_090-180-245 July 1 st 2002 INDEXSAR Validation Dipoles Type IXD-090, IXD-180 & IXD-245 Performance measurements S/N: 090-0016 S/N: 180-0016 S/N: 245-0016 MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5DR. UK. SAR Test Report No: SAR_684_2004_FCC_850_1900_2450_MC56_2200BG Date of Report:07/12/2004 Appendix C Miscellaneous Page 7 of 50 7 Tel: +44 (0) 1306 631233 Fax: +44 (0) 1306 631834 e-mail: [email protected] 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An HP 8753B vector network analyser was used for the return loss measurements. The dipole was placed in a special holder made of l…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 \\stupendousman\rootappsdata\emc\projects_emc\xplore\684_2004_sar_4_proj678\wlan+850_1900_gprs_mc 56\sar_684_2004_fcc_850_1900_2450_m56_2200bgrev2.doc © Copyright by CETECOM SAR Test Report No.: SAR_684_2004_FCC_850_1900_2450_M56_2200BGrev2 for the Xplore Technologies Tablet Computer Model Number: iX104-2200+MC56 FCC ID: Q2GIX104-127 Date of Report: 07/12/2004 Date of issue: 07/12/2004 Report Copy No.: 01 SAR Test Report No. SAR_684_2004_FCC_850_1900_2450_M56_2200BGrev2 Date of Report: 07/12/2004 Page 2 of 27 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents 1 ASSESSMENT ...................................................................................................................4 2 ADMINISTRATIVE DATA...................................................................................................5 2.1 Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 2.2 Identification of the Client...........................................................................................5 2.3 Identification of the Manufacturer...............................................................................5 3 EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 3.1 Identification of the Equipment under Investigation ...................................................6 3.2 Front View of the Equipment under Investigation ......................................................7 4 SUBJECT OF INVESTIGATION ........................................................................................8 4.1 The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................8 4.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...8 4.3 Distinction between Maximum Permissible Exposure and SAR Limits......................9 4.4 SAR Limit ...................................................................................................................9 5 THE FCC MEASUREMENT PROCEDURE .....................................................................10 5.1 General Requirements.............................................................................................10 5.2 Body-worn and Other Configurations.......................................................................10 5.3 Procedure for assessing the peak spatial-average SAR .........................................11 5.4 Determination of the largest peak spatial-average SAR ..........................................13 6 THE MEASUREMENT SYSTEM ......................................................................................14 6.1 Robot system specification ......................................................................................14 6.2 Probe and amplifier specification .............................................................................15 6.3 Phantoms.................................................................................................................15 6.4 SAR measurement procedure .................................................................................16 6.5 SARA2 Interpolation and Extrapolation schemes ....................................................16 6.6 Interpolation of 2D area scan...................................................................................17 SAR Test Report No. SAR_684_2004_FCC_850_1900_2450_M56_2200BGrev2 Date of Report: 07/12/2004 Page 3 of 27 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 6.7 Extrapolation of 3D scan..........................................................................................17 6.8 Interpolation of 3D scan and volume averaging.......................................................17 7 UNCERTAINTY ASSESSMENT.......................................................................................19 7.1 Table of Measurement Uncertainty Values of SAR Evaluations..............................20 7.2 Table of Measurement Uncertainty Values for SAR System Verification ................21 8 TEST RESULTS SUMMARY............................................................................................23 8.1 Conducted Output Power.........................................................................................23 8.2 Test Positions and Configurations ...........................................................................23 8.3 GPRS Operating Mode ............................................................................................23 8.4 WLAN Operating Mode............................................................................................24 8.5 850 MHz band SAR Results for iX104-2200+MC56 with Siemens MC56 ...............24 8.6 1900 MHz band SAR Results for iX104-2200+MC56 with Siemens MC56 .............24 8.7 WLAN 2450 MHz band SAR Results for iX104-2200+MC56 with 2200BG .............24 8.8 Co-location Test plan and results evaluation methods ............................................25 8.9 Co-location results evaluation:.................................................................................25 8.10 Validation Check Results ........................................................................................…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_678FCC22-24_2004_GSM_127 FCC Part 22, 24 / RSS 132, 133 EUT…

Text truncated - open the document above for the full version.
