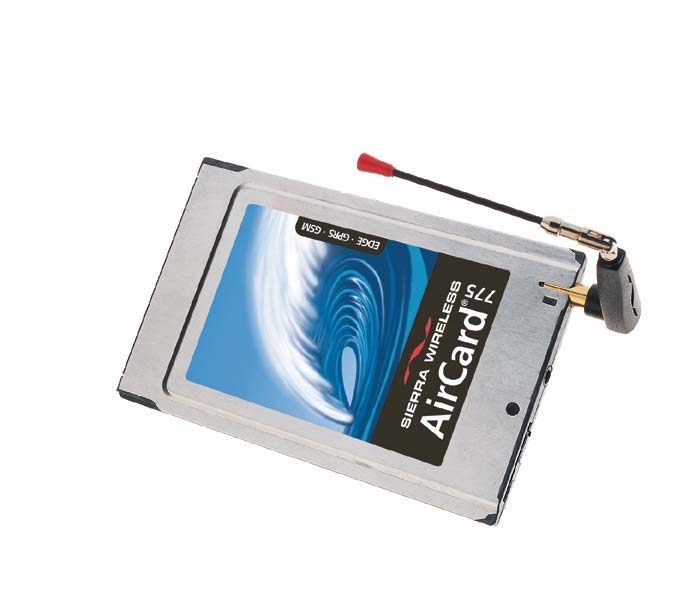

1 of 1 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com STATEMENT This filing constitutes a formal submittal and request for Equipment Authorization pursuant to Part 22/24 of FCC rules (CFR 47) regarding GSM radio in Tablet PC. Company Name: Xplore Technologies FCC ID: Q2GIX104-131 Tablet PC model# iX104C2 GSM module Model# AC775 SUMMARY OF TESTING Xplore Tablet PC model# iX104C2 is equipped with GSM module model# AC775. This radio is off-the shelf module and have not been modified since the FCC ID has been granted. Tablet PC provides new antenna to the modules integrated in it. The radio in iX104 is not user accessible. Harpreet Sidhu EMC & Radio Engineer 411 Dixon Landing Rd, Milpitas, CA 95035 PH: +1 408 586 6210

External Photos iX104 EUT – Top view External Photos iX104 EUT – Bottom view External Photos iX104 EUT – Bottom view without battery

Label & Label Location FCC ID: Q2GIX104-131 & IC ID: 4596A-IX104WBG FCC ID: Q2GIX104-131 IC ID: 4596A-iX104WBG Label & Label Location FCC ID: Q2GIX104-131 & IC ID: 4596A-IX104WBG FCC ID: Q2GIX104-131 IC ID: 4596A-iX104WBG iX104C2

Internal Photos Tablet PC EUT – Internal view Internal Photos Tablet PC MVC-013F – PCB Internal Photos Tablet PC MLB – PCB Internal Photos Tablet PC I/O Ports Internal Photos Tablet PC I/O Ports + PCB

SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix A Plots Page 1 of 6 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/17/2005 5:21:38 PM DUT Battery Model/No: Filename: 128_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore iX104 Relative Permittivity: 55.42 Relative Humidity: 50% Conductivity: 0.987 Phantom S/No: HeadBox_spout.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -49.00 mm DUT Position: lap Max SAR Z-axis Location: -178.00 mm Antenna Configuration: integral Max E Field: 13.41 V/m Test Frequency: 836.6MHz SAR 1g: 0.147 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.077 W/kg Conversion Factors: .522 / .522 / .522 SAR Start: 0.081 W/kg Type of Modulation: SAR End: 0.083 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.10 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 2/3/05 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix A Plots Page 2 of 6 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/17/2005 4:51:00 PM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore iX104 Relative Permittivity: 55.97 Relative Humidity: 50% Conductivity: 0.981 Phantom S/No: HeadBox_spout.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -50.00 mm DUT Position: lap Max SAR Z-axis Location: -177.00 mm Antenna Configuration: integral Max E Field: 11.98 V/m Test Frequency: 824.2MHz SAR 1g: 0.127 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.086 W/kg Conversion Factors: .522 / .522 / .522 SAR Start: 0.058 W/kg Type of Modulation: SAR End: 0.058 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.00 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 2/3/05 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix A Plots Page 3 of 6 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/17/2005 5:52:27 PM DUT Battery Model/No: Filename: 190_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore iX104 Relative Permittivity: 55.21 Relative Humidity: 50% Conductivity: 0.991 Phantom S/No: HeadBox_spout.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -36.00 mm DUT Position: lap Max SAR Z-axis Location: -175.00 mm Antenna Configuration: integral Max E Field: 18.54 V/m Test Frequency: 848.8MHz SAR 1g: 0.299 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.208 W/kg Conversion Factors: .522 / .522 / .522 SAR Start: 0.118 W/kg Type of Modulation: SAR End: 0.119 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.02 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 2/3/05 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix A Plots Page 4 of 6 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/16/2005 1:19:14 PM DUT Battery Model/No: Filename: 512_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 1900 Device Under Test: Xplore iX104 Relative Permittivity: 53.12 Relative Humidity: 50% Conductivity: 1.542 Phantom S/No: HeadBox_spout.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -28.00 mm DUT Position: lap Max SAR Z-axis Location: -180.00 mm Antenna Configuration: integral Max E Field: 12.57 V/m Test Frequency: 1880MHz SAR 1g: 0.212 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.130 W/kg Conversion Factors: 0.666 / 0.666 / 0.666 SAR Start: 0.066 W/kg Type of Modulation: SAR End: 0.066 W/kg Modn. Duty Cycle: SAR Drift during Scan: -0.01 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 2/3/05 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix A Plots Page 5 of 6 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/16/2005 12:33:47 PM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 1900 Device Under Test: Xplore iX104 Relative Permittivity: 53.28 Relative Humidity: 50% Conductivity: 1.525 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -29.00 mm DUT Position: lap Max SAR Z-axis Location: -179.00 mm Antenna Configuration: integral Max E Field: 11.79 V/m Test Frequency: 1850.2MHz SAR 1g: 0.172 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.100 W/kg Conversion Factors: 0.666 / 0.666 / 0.666 SAR Start: 0.049 W/kg Type of Modulation: SAR End: 0.047 W/kg Modn. Duty Cycle: SAR Drift during Scan: -0.16 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 2/3/05 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix A Plots Page 6 of 6 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/16/2005 1:49:28 PM DUT Battery Model/No: Filename: 661_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 1900 Device Under Test: Xplore iX104 Relative Permittivity: 53.01 Relative Humidity: 50% Conductivity: 1.555 Phantom S/No: HeadBox_spout.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -28.00 mm DUT Position: lap Max SAR Z-axis Location: -181.00 mm Antenna Configuration: integral Max E Field: 12.10 V/m Test Frequency: 1909.8MHz SAR 1g: 0.183 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.111 W/kg Conversion Factors: 0.666 / 0.666 / 0.666 SAR Start: 0.066 W/kg Type of Modulation: SAR End: 0.066 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.01 dB Diode Compression Factor…

Text truncated - open the document above for the full version.

SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 02/24/2005 Appendix B Page 1 of 5 Appendix B: Photos EUT Photos: Photo 1. Antenna locations SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 02/24/2005 Appendix B Page 2 of 5 Photo 2. EUT front SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 02/24/2005 Appendix B Page 3 of 5 Photo 3. EUT back SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 02/24/2005 Appendix B Page 4 of 5 Setup Photos Photo 4. GPRS antenna lap position SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 02/24/2005 Appendix B Page 5 of 5 Photo 5. Photo to demonstrate 15 cm Z-axis flat phantom

SAR Test Report No: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix C Miscellaneous Page 1 of 10 1 Tissue Parameters 850MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 49.46% distilled water 49.46% DGBE 1.0% salt 0.1% bactericide Di-electric constants measured on 2/17/2005. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 900 41.36 0.975 850MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 49.8% distilled water 40.6% DGBE 8.9% salt 0.6% HEC 0.1% bactericide Di-electric constants measured on 2/17/2005. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 824.2 55.97 0.981 836.0 55.42 0.987 848.8 55.21 0.991 SAR Test Report No: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix C Miscellaneous Page 2 of 10 2 1900MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 54.9% distilled water 44.92% DGBE 0.18% salt 0.1% bactericide Di-electric constants measured on 2/16/2005. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1900 39.62 1.409 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% distilled water 30.29% DGBE 0.44% salt 0.1% bactericide Di-electric constants measured on 2/16/2005. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1850.2 53.28 1.525 1880 53.12 1.542 1909.8 53.01 1.555 Environment: 2/16/2005 & 2/17/2005 Temperature: 22.0 °C ± 2°C Humidity: 45% _ 55 % SAR Test Report No: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix C Miscellaneous Page 3 of 10 3 Test Equipment Test Equipment Model Serial Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) Bench top Robot Mitsubishi supplied by IndexSAR RV-E2 EA1030108 N/A N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by IndexSAR SAM 03FT26 04/03 N/A Flat Phantom IndexSAR HeadBox_Spou t N/A N/A N/A Software IndexSAR SARA2 v0.420 N/A N/A N/A 900 MHz Head Tissue Simulant Cetecom Inc. 900 Head N/A 2/17/2005 N/A 850 MHz Body Tissue Simulant Cetecom Inc. 850 Body N/A 2/17/2005 N/A 1900 MHz Head Tissue Simulant Cetecom Inc. 1900 Head N/A 2/16/2005 N/A 1900 MHz Body Tissue Simulant Cetecom Inc. 1900 Body N/A 2/16/2005 N/A 900 MHz Dipole IndexSAR – IEEE 1528 design IXD-900 0016 07/20/2004 07/20/2005 1900 MHz Dipole IndexSAR – IEEE 1528 design IXD-190 0016 07/20/2004 07/20/2005 Netwok Analyzer Agilent 8753ES US39172511 05/03/2004 05/03/2005 Directional coupler Werlatone C6529 11249 N/A N/A RF Amplifier Vectawave VTL5400 N/A N/A N/A SAR Probe IndexSAR IXP-050 S/N 0123 10/07/2004 10/07/2005 Probe amplifier IndexSAR IXA-010 S/N 043 N/A N/A Thermometer Control Company 4039 20410549 11/20/2001 11/20/2005 Dielectric Measurement Kit IndexSAR Di-Line N/A N/A N/A SAR Test Report No: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix C Miscellaneous Page 4 of 10 4 Equipment Calibration/Performance Documents: Validation Dipoles Performance Measurements: Pages 5 to 10 Please Note: (The following pages of Appendix C show calibration documents. These calibration documents are inserted into this appendix. The header information with page numbering scheme is a part of this report and is included on all pages of the report and appendixes. This header is used to track all of the contents of this report.) SAR Test Report No: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix C Miscellaneous Page 5 of 10 5 Report No. SN0016_090-180-190-245 July 1 st 2002 Revised 7/20/2004 INDEXSAR Validation Dipoles Type IXD-090, IXD-180, IXD-190 & IXD-245 Performance measurements S/N: 090-0016 S/N: 180-0016 S/N: 245-0016 S/N: 190-0016 MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5DR. UK. Tel: +44 (0) 1306 631233 Fax: +44 (0) 1306 631834 e-mail: [email protected] SAR Test Report No: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix C Miscellaneous Page 6 of 10 6 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An HP 8753B vector network analyser was used for the return loss measurements. The dipole was placed in a special holder made of low-permittivity, low-loss materials. This holder enables the dipole to be positioned accurately in the centre of the base of the Indexsar box-phantom used for flat-surface testing and validation checks. The validation dipoles are supplied with special spacers made form a low-permittivity, low-loss foam material. These spacers are fitted to the dipole arms to ensure that, when the dipole is offered up to the phantom surface, the spacing between the dipole and the liquid surface is accurately aligned according to the guidance in the relevant standards documentation. The spacers are rectangular with a central hole equal to the dipole arm diameter and dimensioned so that the longer side can be used to ensure a spacing of 15mm from the liquid in the phantom (for tests at 900MHz and below) and the shorter side can be used for tests at 1800MHz and above to ensure a spacing of 10mm from the liquid in the phantom. The spacers are made on a CNC milling machine with an accuracy of 1/40 th mm but they may suffer wear and tear and need to be replaced periodically. The material used is Rohacell, which has a relative permittivity of approx. 1.05 and a negligible loss tangent. The apparatus supplied by Indexsar for dipole validation tes…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 ACCREDITED ACCORDING TO ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 x:\emc\projects_emc\xplore\848-2005_ix104c2\sar\gprs\sar_848_2005_fcc__850_1900_gprs.doc © Copyright by CETECOM SAR Test Report No. SAR_848_2005_FCC_850_1900_GPRS_rev2 for the Xplore Technologies Tablet Computer Model Number: iX104C2 FCC ID: Q2GIX104-131 IC-ID: IC 4596A-IX104WBG Date of Report: 02/24/2005 Date of issue: 02/24/2005 Report Copy No.: 01 SAR Test Report No. SAR_848_2005_FCC_850_1900_GPRS_rev2 Date of Report: 02/24/2005 Page 2 of 26 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents 1 ASSESSMENT ...................................................................................................................4 2 ADMINISTRATIVE DATA...................................................................................................5 2.1 Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 2.2 Identification of the Client...........................................................................................5 2.3 Identification of the Manufacturer...............................................................................5 3 EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 3.1 Identification of the Equipment under Investigation ...................................................6 3.2 Front View of the Equipment under Investigation ......................................................7 4 SUBJECT OF INVESTIGATION ........................................................................................8 4.1 The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................8 4.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...8 4.3 Distinction between Maximum Permissible Exposure and SAR Limits......................9 4.4 SAR Limit ...................................................................................................................9 5 THE FCC MEASUREMENT PROCEDURE .....................................................................10 5.1 General Requirements.............................................................................................10 5.2 Test Positions ..........................................................................................................11 5.3 Body-worn and Other Configurations.......................................................................11 5.4 Procedure for assessing the peak spatial-average SAR .........................................11 5.5 Determination of the largest peak spatial-average SAR ..........................................13 6 THE MEASUREMENT SYSTEM ......................................................................................15 6.1 Robot system specification ......................................................................................15 6.2 Probe and amplifier specification .............................................................................16 6.3 Phantoms.................................................................................................................16 6.4 SAR measurement procedure .................................................................................17 6.5 SARA2 Interpolation and Extrapolation schemes ....................................................17 6.6 Interpolation of 2D area scan...................................................................................18 SAR Test Report No. SAR_848_2005_FCC_850_1900_GPRS_rev2 Date of Report: 02/24/2005 Page 3 of 26 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 6.7 Extrapolation of 3D scan..........................................................................................18 6.8 Interpolation of 3D scan and volume averaging.......................................................18 7 UNCERTAINTY ASSESSMENT.......................................................................................20 7.1 Table of Measurement Uncertainty Values of SAR Evaluations..............................21 7.2 Table of Measurement Uncertainty Values for SAR System Verification ................22 8 TEST RESULTS SUMMARY............................................................................................23 8.1 Conducted Output Power.........................................................................................23 8.2 Test Positions and Configurations ...........................................................................23 8.3 GPRS Operating Mode ............................................................................................23 8.4 850 MHz band SAR Results for iX104C2 ................................................................24 8.5 1900 MHz band SAR Results for iX104C2 ..............................................................24 8.6 Validation Check Results .........................................................................................25 9 REFERENCES..................................................................................................................26 SAR Test Report No. SAR_848_2005_FCC_850_1900_GPRS_rev2 Date of Report: 02/24/2005 Page 4 of 26 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 1 Assessme…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_848FCC22-24_2005_GSM_131 FCC Part 22, 24 / RSS 132, 133 EUT Tablet PC Model: iX104C2 With GSM module Model: AC775 FCC ID: Q2GIX104-131 IC: 4596A-IX104WBG Test report no.: EMC_848FCC22-24_2005_GSM_131 Issue date: 2005-02-25 Page 2 (51) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_848FCC22-24_2005_GSM_131 Issue date: 2005-02-25 Page 3 (51) 1.3 Details of applicant Name : Xplore Technologies Street : 14000 Summit Road, Suite 900 City / Zip Code : Austin, TX 78728 Country : USA Contact : Douglas L. Fowler Telephone : +1 512 336 7797 Tele-fax : +1 512 336 7791 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2005-02-15 Date of test : 2005-02-15 to 2005-02-22 1.5 Test item Manufacturer : Applicant Marketing Name : iX104C2 Model No. : iX104C2 Description : Tablet PC with GSM module FCC-ID : Q2GIX104-131 IC ID : 4596A-IX104WBG Additional information Test Sample ID : 03CW00a Troy Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : Embedded Power supply : via host Tablet PC Output power …
