Xplore Technologies, Inc. 14000 Summit Road Suite 900 Austin, TX 78728 888-44-XPLORE Page 1 of 1 3/1/2005 March 1, 2005 To Whom It May Concern: Subject: None Co-Transmission of WLAN and GSM Declaration WE, Xplore Technologies, 14000 Summit Road Suite 900 Austin, TX 78728 Herby declare under our sole responsibilities that the iX104C2 tablet equipped with the radio WLAN, EDGE/GSM and Bluetooth radios. Only one transmitter either WLAN or GSM can operate, these radios are set up to not transmit simultaneously. Only following set of radios are set up to co-transmit: • WLAN and BT • EDGE/GSM and BT Best regards, Mazyar Razzaz Electrical Engineer Xplore Technologies, Inc.

Xplore Technologies, Inc. 14000 Summit Road Suite 900 Austin, TX 78728 888-44-XPLORE Page 1 of 1 3/1/2005 February 23, 2004 Federal Communication Commission Equipment Approval Service Attention: Authorization and Evaluation Division Reference: Xplore Technologies FCC ID: Q2GIX104-133 To Whom It May Concern: Subject: Request for Confidentiality Pursuant to Sections 0.457 (d) (1) (ii) and 0.459 of the Commission’s rules, the Applicant hereby requests confidential treatment of the Xplore Technologies supplied information accompanying this application. The confidential information includes the following: • Schematics • Block Diagrams • Bill of Materials • Operational Description The materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of this information might be harmful to Xplore Technologies and provide unjustified benefits to our competitors. Xplore Technologies understands that pursuant to 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of the grant. Best regards, Mazyar Razzaz Electrical Engineer Xplore Technologies, Inc.

1 of 1 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com STATEMENT This filing constitutes a formal submittal and request for Equipment Authorization pursuant to Part 15.247/22/24 of FCC rules (CFR 47) regarding 2.4 GHz WLAN and GSM radios in Tablet PC. Company Name: Xplore Technologies FCC ID: Q2GIX104-133 Tablet PC model# iX104C2 WLAN model# 2200BG GSM module Model# AC775 SUMMARY OF TESTING Xplore Tablet PC model# iX104C2 is equipped with WLAN model# 2200BG & GSM module model# AC775. These radio are off-the shelf module and have not been modified since the FCC ID has been granted. Tablet PC provides new antenna to the modules integrated in it. The radios in iX104 are not user accessible. Harpreet Sidhu EMC & Radio Engineer 411 Dixon Landing Rd, Milpitas, CA 95035 PH: +1 408 586 6210

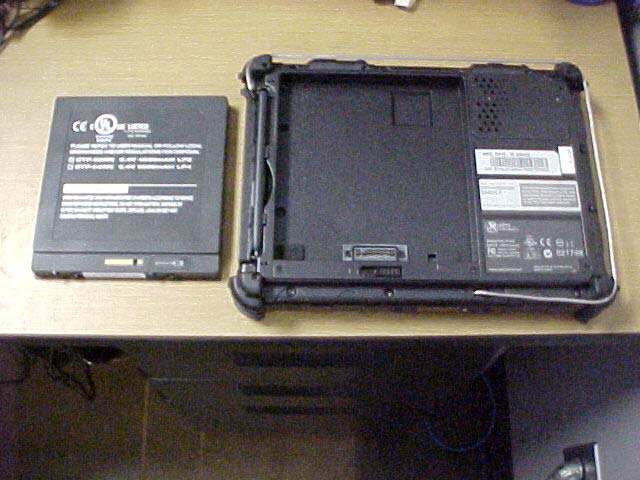

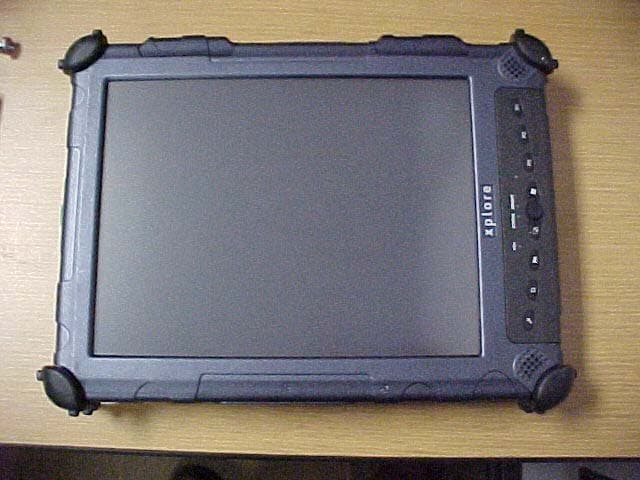

External Photos iX104 EUT – Top view External Photos iX104 EUT – Bottom view External Photos iX104 EUT – Bottom view without battery

Label & Label Location FCC ID: Q2GIX104-133 & IC ID: 4596A-IX104WBG FCC ID: Q2GIX104-133 IC ID: 4596A-iX104WBG Label & Label Location FCC ID: Q2GIX104-133 & IC ID: 4596A-IX104WBG FCC ID: Q2GIX104-133 IC ID: 4596A-iX104WBG iX104C2

Internal Photos Tablet PC EUT – Internal view Internal Photos Tablet PC MVC-013F – PCB Internal Photos Tablet PC MLB – PCB Internal Photos Tablet PC I/O Ports Internal Photos Tablet PC I/O Ports + PCB

Internal Photos Tablet PC + GSM + WLAN EUT – Internal view Internal Photos Tablet PC + GSM + WLAN EUT – Internal view showing GSM & WLAN modules GSM module GSM antenna WLAN module WLAN antenna

SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix A Plots Page 1 of 6 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/17/2005 5:21:38 PM DUT Battery Model/No: Filename: 128_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore iX104 Relative Permittivity: 55.42 Relative Humidity: 50% Conductivity: 0.987 Phantom S/No: HeadBox_spout.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -49.00 mm DUT Position: lap Max SAR Z-axis Location: -178.00 mm Antenna Configuration: integral Max E Field: 13.41 V/m Test Frequency: 836.6MHz SAR 1g: 0.147 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.077 W/kg Conversion Factors: .522 / .522 / .522 SAR Start: 0.081 W/kg Type of Modulation: SAR End: 0.083 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.10 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 2/3/05 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix A Plots Page 2 of 6 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/17/2005 4:51:00 PM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore iX104 Relative Permittivity: 55.97 Relative Humidity: 50% Conductivity: 0.981 Phantom S/No: HeadBox_spout.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -50.00 mm DUT Position: lap Max SAR Z-axis Location: -177.00 mm Antenna Configuration: integral Max E Field: 11.98 V/m Test Frequency: 824.2MHz SAR 1g: 0.127 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.086 W/kg Conversion Factors: .522 / .522 / .522 SAR Start: 0.058 W/kg Type of Modulation: SAR End: 0.058 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.00 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 2/3/05 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix A Plots Page 3 of 6 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/17/2005 5:52:27 PM DUT Battery Model/No: Filename: 190_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore iX104 Relative Permittivity: 55.21 Relative Humidity: 50% Conductivity: 0.991 Phantom S/No: HeadBox_spout.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -36.00 mm DUT Position: lap Max SAR Z-axis Location: -175.00 mm Antenna Configuration: integral Max E Field: 18.54 V/m Test Frequency: 848.8MHz SAR 1g: 0.299 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.208 W/kg Conversion Factors: .522 / .522 / .522 SAR Start: 0.118 W/kg Type of Modulation: SAR End: 0.119 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.02 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 2/3/05 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix A Plots Page 4 of 6 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/16/2005 1:19:14 PM DUT Battery Model/No: Filename: 512_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 1900 Device Under Test: Xplore iX104 Relative Permittivity: 53.12 Relative Humidity: 50% Conductivity: 1.542 Phantom S/No: HeadBox_spout.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -28.00 mm DUT Position: lap Max SAR Z-axis Location: -180.00 mm Antenna Configuration: integral Max E Field: 12.57 V/m Test Frequency: 1880MHz SAR 1g: 0.212 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.130 W/kg Conversion Factors: 0.666 / 0.666 / 0.666 SAR Start: 0.066 W/kg Type of Modulation: SAR End: 0.066 W/kg Modn. Duty Cycle: SAR Drift during Scan: -0.01 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 2/3/05 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix A Plots Page 5 of 6 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/16/2005 12:33:47 PM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 1900 Device Under Test: Xplore iX104 Relative Permittivity: 53.28 Relative Humidity: 50% Conductivity: 1.525 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -29.00 mm DUT Position: lap Max SAR Z-axis Location: -179.00 mm Antenna Configuration: integral Max E Field: 11.79 V/m Test Frequency: 1850.2MHz SAR 1g: 0.172 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.100 W/kg Conversion Factors: 0.666 / 0.666 / 0.666 SAR Start: 0.049 W/kg Type of Modulation: SAR End: 0.047 W/kg Modn. Duty Cycle: SAR Drift during Scan: -0.16 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 2/3/05 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix A Plots Page 6 of 6 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/16/2005 1:49:28 PM DUT Battery Model/No: Filename: 661_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 1900 Device Under Test: Xplore iX104 Relative Permittivity: 53.01 Relative Humidity: 50% Conductivity: 1.555 Phantom S/No: HeadBox_spout.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -28.00 mm DUT Position: lap Max SAR Z-axis Location: -181.00 mm Antenna Configuration: integral Max E Field: 12.10 V/m Test Frequency: 1909.8MHz SAR 1g: 0.183 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.111 W/kg Conversion Factors: 0.666 / 0.666 / 0.666 SAR Start: 0.066 W/kg Type of Modulation: SAR End: 0.066 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.01 dB Diode Compression Factor…

Text truncated - open the document above for the full version.

SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 02/24/2005 Appendix B Page 1 of 5 Appendix B: Photos EUT Photos: Photo 1. Antenna locations SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 02/24/2005 Appendix B Page 2 of 5 Photo 2. EUT front SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 02/24/2005 Appendix B Page 3 of 5 Photo 3. EUT back SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 02/24/2005 Appendix B Page 4 of 5 Setup Photos Photo 4. GPRS antenna lap position SAR Test Report No.: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 02/24/2005 Appendix B Page 5 of 5 Photo 5. Photo to demonstrate 15 cm Z-axis flat phantom

SAR Test Report No: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix C Miscellaneous Page 1 of 10 1 Tissue Parameters 850MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 49.46% distilled water 49.46% DGBE 1.0% salt 0.1% bactericide Di-electric constants measured on 2/17/2005. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 900 41.36 0.975 850MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 49.8% distilled water 40.6% DGBE 8.9% salt 0.6% HEC 0.1% bactericide Di-electric constants measured on 2/17/2005. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 824.2 55.97 0.981 836.0 55.42 0.987 848.8 55.21 0.991 SAR Test Report No: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix C Miscellaneous Page 2 of 10 2 1900MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 54.9% distilled water 44.92% DGBE 0.18% salt 0.1% bactericide Di-electric constants measured on 2/16/2005. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1900 39.62 1.409 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% distilled water 30.29% DGBE 0.44% salt 0.1% bactericide Di-electric constants measured on 2/16/2005. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1850.2 53.28 1.525 1880 53.12 1.542 1909.8 53.01 1.555 Environment: 2/16/2005 & 2/17/2005 Temperature: 22.0 °C ± 2°C Humidity: 45% _ 55 % SAR Test Report No: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix C Miscellaneous Page 3 of 10 3 Test Equipment Test Equipment Model Serial Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) Bench top Robot Mitsubishi supplied by IndexSAR RV-E2 EA1030108 N/A N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by IndexSAR SAM 03FT26 04/03 N/A Flat Phantom IndexSAR HeadBox_Spou t N/A N/A N/A Software IndexSAR SARA2 v0.420 N/A N/A N/A 900 MHz Head Tissue Simulant Cetecom Inc. 900 Head N/A 2/17/2005 N/A 850 MHz Body Tissue Simulant Cetecom Inc. 850 Body N/A 2/17/2005 N/A 1900 MHz Head Tissue Simulant Cetecom Inc. 1900 Head N/A 2/16/2005 N/A 1900 MHz Body Tissue Simulant Cetecom Inc. 1900 Body N/A 2/16/2005 N/A 900 MHz Dipole IndexSAR – IEEE 1528 design IXD-900 0016 07/20/2004 07/20/2005 1900 MHz Dipole IndexSAR – IEEE 1528 design IXD-190 0016 07/20/2004 07/20/2005 Netwok Analyzer Agilent 8753ES US39172511 05/03/2004 05/03/2005 Directional coupler Werlatone C6529 11249 N/A N/A RF Amplifier Vectawave VTL5400 N/A N/A N/A SAR Probe IndexSAR IXP-050 S/N 0123 10/07/2004 10/07/2005 Probe amplifier IndexSAR IXA-010 S/N 043 N/A N/A Thermometer Control Company 4039 20410549 11/20/2001 11/20/2005 Dielectric Measurement Kit IndexSAR Di-Line N/A N/A N/A SAR Test Report No: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix C Miscellaneous Page 4 of 10 4 Equipment Calibration/Performance Documents: Validation Dipoles Performance Measurements: Pages 5 to 10 Please Note: (The following pages of Appendix C show calibration documents. These calibration documents are inserted into this appendix. The header information with page numbering scheme is a part of this report and is included on all pages of the report and appendixes. This header is used to track all of the contents of this report.) SAR Test Report No: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix C Miscellaneous Page 5 of 10 5 Report No. SN0016_090-180-190-245 July 1 st 2002 Revised 7/20/2004 INDEXSAR Validation Dipoles Type IXD-090, IXD-180, IXD-190 & IXD-245 Performance measurements S/N: 090-0016 S/N: 180-0016 S/N: 245-0016 S/N: 190-0016 MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5DR. UK. Tel: +44 (0) 1306 631233 Fax: +44 (0) 1306 631834 e-mail: [email protected] SAR Test Report No: SAR_848_2005_FCC_850_1900_GPRS Date of Report: 2/24/2005 Appendix C Miscellaneous Page 6 of 10 6 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An HP 8753B vector network analyser was used for the return loss measurements. The dipole was placed in a special holder made of low-permittivity, low-loss materials. This holder enables the dipole to be positioned accurately in the centre of the base of the Indexsar box-phantom used for flat-surface testing and validation checks. The validation dipoles are supplied with special spacers made form a low-permittivity, low-loss foam material. These spacers are fitted to the dipole arms to ensure that, when the dipole is offered up to the phantom surface, the spacing between the dipole and the liquid surface is accurately aligned according to the guidance in the relevant standards documentation. The spacers are rectangular with a central hole equal to the dipole arm diameter and dimensioned so that the longer side can be used to ensure a spacing of 15mm from the liquid in the phantom (for tests at 900MHz and below) and the shorter side can be used for tests at 1800MHz and above to ensure a spacing of 10mm from the liquid in the phantom. The spacers are made on a CNC milling machine with an accuracy of 1/40 th mm but they may suffer wear and tear and need to be replaced periodically. The material used is Rohacell, which has a relative permittivity of approx. 1.05 and a negligible loss tangent. The apparatus supplied by Indexsar for dipole validation tes…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 ACCREDITED ACCORDING TO ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 x:\emc\projects_emc\xplore\848- 2005_ix104c2\sar\gprs_wlan\gprs\sar_848_2005_fcc__850_1900_gprs_rev2.doc © Copyright by CETECOM SAR Test Report No. SAR_848_2005_FCC_850_1900_GPRS_rev2 for the Xplore Technologies Tablet Computer Model Number: iX104C2 FCC ID: Q2GIX104-133 IC-ID: IC 4596A-IX104WBG Date of Report: 02/24/2005 Date of issue: 02/24/2005 Report Copy No.: 01 SAR Test Report No. SAR_848_2005_FCC_850_1900_GPRS_rev2 Date of Report: 02/24/2005 Page 2 of 26 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents 1 ASSESSMENT ...................................................................................................................4 2 ADMINISTRATIVE DATA...................................................................................................5 2.1 Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 2.2 Identification of the Client...........................................................................................5 2.3 Identification of the Manufacturer...............................................................................5 3 EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 3.1 Identification of the Equipment under Investigation ...................................................6 3.2 Front View of the Equipment under Investigation ......................................................7 4 SUBJECT OF INVESTIGATION ........................................................................................8 4.1 The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................8 4.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...8 4.3 Distinction between Maximum Permissible Exposure and SAR Limits......................9 4.4 SAR Limit ...................................................................................................................9 5 THE FCC MEASUREMENT PROCEDURE .....................................................................10 5.1 General Requirements.............................................................................................10 5.2 Test Positions ..........................................................................................................11 5.3 Body-worn and Other Configurations.......................................................................11 5.4 Procedure for assessing the peak spatial-average SAR .........................................11 5.5 Determination of the largest peak spatial-average SAR ..........................................13 6 THE MEASUREMENT SYSTEM ......................................................................................15 6.1 Robot system specification ......................................................................................15 6.2 Probe and amplifier specification .............................................................................16 6.3 Phantoms.................................................................................................................16 6.4 SAR measurement procedure .................................................................................17 6.5 SARA2 Interpolation and Extrapolation schemes ....................................................17 6.6 Interpolation of 2D area scan...................................................................................18 SAR Test Report No. SAR_848_2005_FCC_850_1900_GPRS_rev2 Date of Report: 02/24/2005 Page 3 of 26 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 6.7 Extrapolation of 3D scan..........................................................................................18 6.8 Interpolation of 3D scan and volume averaging.......................................................18 7 UNCERTAINTY ASSESSMENT.......................................................................................20 7.1 Table of Measurement Uncertainty Values of SAR Evaluations..............................21 7.2 Table of Measurement Uncertainty Values for SAR System Verification ................22 8 TEST RESULTS SUMMARY............................................................................................23 8.1 Conducted Output Power.........................................................................................23 8.2 Test Positions and Configurations ...........................................................................23 8.3 GPRS Operating Mode ............................................................................................23 8.4 850 MHz band SAR Results for iX104C2 ................................................................24 8.5 1900 MHz band SAR Results for iX104C2 ..............................................................24 8.6 Validation Check Results .........................................................................................25 9 REFERENCES..................................................................................................................26 SAR Test Report No. SAR_848_2005_FCC_850_1900_GPRS_rev2 Date of Report: 02/24/2005 Page 4 of 26 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U…

Text truncated - open the document above for the full version.

PCB stack up rcquestform Placement Top_Placement Bottom_Placement L1 L2GND L3 CRT GTL BUS DDR BUS LVDS BUS HUB LINK IDE LPC BUS SERIAL USB L4GND L5 PCI BUS GTL-CONTROL L6VCC L7GND L8 GTL BUS CRT DDR BUS AUDO PCI BUS USB LVDS BUS SERIAL L9GND L10 5 Via 9 Via 9A 9Via 360Mil 40 Mil 1 Via 40 Mil 1Via 4.3A 5 Via 180 Mil ???? ???? 400 MIL 10 VIA Xplore Wildcat II SA DC/DC 3V/5V/1D8V_S0/1D5V_S5 A2 2938Monday, February 09, 2004 Title SizeDocument NumberRev Date:Sheet of Wistron Corporation 21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan, R.O.C. M1632_P5 1632_+5VSB +5VAUX 12V_S3 3D3V_AUX 12V_S0 12V_S3 5V_S3 DCBATOUT DCBATOUT 1632_+5VSB1632_+5VSB 1D5V_S5 3D3V_S5 3D3V_AUX3D3V_S5 NOTE:CHECK LAYOUT PAD 1 2 3 4 GAP STATE-->DUMMY DUMMY SA TO SB Modify SB to SC I max = 150 mA SB-35 KBC_BAT_TYPE High Low Battery TypeBL4 Voltage 7.4V Lion 2s3p Lion 6V 5.2V M1632_BST3_1 1632_L3 M1632_FB3 M1632_DH3 M1632_V+ M1632_BST3 1632_+5VSB M1632_D_L 1632_L5 M1632_FB5 M1632_TIME_ON5 1632_LX3_1 LAN_+3.3V_ON M1632_BST5_1 M1632_BST5 M1632_DL3 1632_LX3 DCDC_MISC_1 DCDC_MISC_2 M1632_DH5 M1632_REF M1632_DL5 M1632_LX5 M1632_DCBATOUT MAX1632_SHDN# MAX1632_SHDN# MAX1632_SKIP# PM_SLP_S3# BC231 SC10U35V0ZY-U 1 2 BC232 SC10U35V0ZY-U 1 2 BC230 SC10U35V0ZY-U 1 2 BC229 SC10U35V0ZY-U 1 2 BC239 SC10U35V0ZY-U 1 2 BC228 SCD1U50V3KX 1 2 BC238 SCD1U50V3KX 1 2 BC226 SCD1U50V3KX 1 2 BC236 SC10U25V6MX 1 2 TCD2 ST680U4VDM 1 2 BC235 SCD1U50V5MX D13 EC11FS2-1 2 1 BC242 SCD1U50V5MX BC246 SC100P BC251 SC100P BC249 SC47P BC234 SC47P TP140 TPAD30 R442 4D7R3 1 2 R4444D7R3 12 TC19 ST100U6D3V-U ZZ.21071.011 1 2 BC227 SCD1U50V5MX G6 GAP-CLOSE 12 R450 10KR3F 1 2 R434 10R5 1 2 Q30 TP0610T 12 3 D15 F1J2F 1 2 R439 100KR3 1 2 D16 F1J2F 1 2 R4431KR3 12 R4401KR3 12 R441 1MR3 1 2 R45420KR3F 1 2 R435 220KR3 ZZ.63.22434…
