Q2GIX104-145Tablet PC with GSM/EGPRS/WCDMA transmitter

USER’S HANDBOOK 4 iX104C 2 User’s Handbook Xplore Technologies ® has made every effort to ensure the accuracy and completeness of this document; however, because ongoing development efforts are made to continually improve the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes herein. Xplore and the Xplore logo are registered trademarks of Xplore Technologies Corp.; iX104, iX104C 2 , iX104C 2 Tablet PC, and iX104C 2 Dual Mode are trademarks of Xplore Technologies Corp. Kensington and MicroSaver are registered trademarks of the Kensington Technology Group. Microsoft is a registered trademark of Microsoft Corporation. Windows 2000 Professional, Windows XP Professional, and Windows XP Tablet PC Edition are trademarks of Microsoft Corporation. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association. Intel, Pentium, and SpeedStep are registered trademarks of Intel Corporation. Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance (WECA). FireWire is a registered trademark of Apple Computer, Inc. ISODAMP is a registered trademark of Aearo Company. All other brands, product names, company names, trademarks and service marks used herein are property of their respective companies. Copyright © 2003-2004 Xplore Technologies Corp. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Xplore Technologies. No part of this publication may be stored or transmitted in any electronic form without the prior consent of Xplore Technologies. Any unauthorized use is a violation of copyright laws. PN: 95-01030 Edition: First, August 2004 DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name: Xplore Technologies Corp. Address: 14000 Summit Drive, Suite 900, Austin, Texas 78728 Telephone: 512.336.7797 Declares that product: Model Series: iX104C 2 complies with Part 15 of the FCC Rules iX104C 2 User’s Handbook 5 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance may void the user’s authority to operate this equipment. For more information about FCC rules and their applicability to the iX104, see Appendix E, “Agency Notices.” Warranty Information The iX104C 2 Tablet PC, and iX104C 2 Dual Mode are backed by a standard 12-month International Limited Warranty. An extended International Limited Warranty is available. Check the service kit included with your computer for warranty terms and conditions. a 6 iX104C 2 User’s Handbook Important safety information Before you use the iX104C 2 Tablet PC or iX104C 2 Dual Mode (referred to as the tablet), read these safety instructions and the operation instructions in this handbook. Failure to observe all these instructions voids the Limited Warranty and may lead to suspension or denial of services to the offender, or legal action, or both. Follow any special regulations governing the use of the tablet and, if radio- enabled, always switch it off in areas where radio devices are forbidden or when the radio device can cause interference or danger. Always follow any safety laws and regulations pertaining to the use of cell phones and two-way radios, because these laws and regulations typically apply to the use of the wireless-enabled tablet. Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, and wherever blasting operations are in progress or in any area in which restrictions on radio transmissions are imposed. Switch off the tablet when in an aircraft. The tablet is not FAA-approved for use on aircraft. The effect of the use of the tablet in aircraft is unknown. Using the tablet in an aircraft may affect aircraft instrumentation, communication, and performance; may disrupt the network; and may be illegal. Operating the wireless-enabled tablet may interfere with the functioning of inadequately protected medical devices such as pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions. Radio signals from your tablet will not affect the operation of most modern equipment, but certain electronic equipment, including automotive systems, may not be shielded against radio signals from your tablet. Check with the manufacturer of your motor vehicle or the manufacturer’s representative to determine whether using the tablet will present any safety issues. Avoid using the tablet in any environment that requires your full attention, such as when driving a vehicle. If you need to use your tablet while driving, have a passenger use it for you or find a safe location to halt your vehicle. iX104C 2 User’s Handbook 7 WARNING Use only battery types specified in this handbook. Using any other type of battery can be dangerous and can disable the tablet. WARNING Do not use any dock or any other accessory or attachment that is not manufactured or supplied by Xplore or an authorized Xplore accessories supplier. Use of any accessory or attachment that is not supplied or approved for use with the tablet by Xplore is not permitted because it may cause hazards. Operate the tablet only from the type of power source indicated on the marking label. (See page 56 for more information about the battery and power supply.) Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs and convenience receptacles, and at the point where cords exit from the tablet or its dock. Do not overload wall outlets, extensi…

Text truncated - open the document above for the full version.

Xplore Technologies, Inc. 14000 Summit Road Suite 900 Austin, TX 78728 888-44-XPLORE Page 1of 12/28/2006 February, 01, 2006 Federal Communication Commission Equipment Approval Service Attention: Authorization and Evaluation Division Reference: Xplore Technologies FCC ID: Q2GIX104-145 To Whom It May Concern: Subject: Request for Confidentiality Pursuant to Sections 0.457 (d) (1) (ii) and 0.459 of the Commission’s rules, the Applicant hereby requests confidential treatment of the Xplore Technologies supplied information accompanying this application. The confidential information includes the following: •Schematics •Block Diagrams •Bill of Materials •Operational Descriptions •Tune up information The materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of this information might be harmful to Xplore Technologies and provide unjustified benefits to our competitors. Xplore Technologies understands that pursuant to 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of the grant. Best regards, Mazyar Razzaz ElectricalEngineer Xplore Technologies, Inc.

Schmidt, Gerald Von: Generic Office of Engineering Technology [[email protected]] Gesendet: Freitag, 3. Februar 2006 16:29 An: Schmidt, Gerald Betreff: Response to Inquiry to FCC (Tracking Number 264075) Kategorien: FCC 06.02.2006 Inquiry: Dear Sirs, We, Cetecom ICT Services GmbH, are TCB and we have several application for Certification of WCDMA devices (with or without SAR) According to training notes dated October 05, a TCB must request advice from FCC prior to certifying a device. Test cases and configurations have been choosen with good engineering judgment (by using the TCB) and current procedures. Hereby we request additional guidance. Response: Preliminary info document attached - OET/Lab is continuing investigations and developing evaluation procedures and should update this info soon. Please ensure that various applicable device operating modes are properly evaluated. FYI from October 2005 TCB training: - TCBs must request advice from FCC prior to certifying a device, preferably using KDB correspondence - Present advice for CDMA-2000 and UMTS is: TCB should digest preliminary info documents provided by OET/Lab (CDMA-2000 or WCDMA), then perform reviews of tests considering guidelines to best extent possible. TCBs in their review should apply good engineering judgment and present procedures such as Supplement C to the extent applicable. Additional guidance information is under development. Info documents for other technologies ha! ve not been developed at present. - When unsure how to address a particular point in their review, TCB should again contact OET/Lab for specific advice - Request-for-info correspondence and FCC response should be included as EAS cover-letter exhibit in the filing, to demonstrate that TCB has requested and reviewed info prior to certification. For other questions on this specific matter, please use "Reply to an Inquiry Response" (https://gullfoss2.fcc.gov/prod/oet/cf/kdb/forms/ResponseReplyEntry . or for different topics "Submit An Inquiry" (https://gullfoss2.fcc.gov/prod/oet/cf/kdb/forms/InquiryForm.cfm ) Do not reply to ! this mes sage. Please select the Reply to an Inquiry Response link from the OET Inquiry S ystem to add any additional information pertaining to this inquiry.

XPLORE AC860 : External PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : External PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : External PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : External PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : External PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG

Label & Label Location FCC ID: Q2GIX104-145 & IC ID: 4596A-IX104WBG FCC ID: Q2GIX104-145 IC ID: 4596A-IX104WBG Label & Label Location FCC ID: Q2GIX104-145 & IC ID: 4596A-IX104WBG FCC ID: Q2GIX104-145 IC ID: 4596A-IX104WBG iX104C2

SIERRA WIRELESS AC 860PC Card without Shielding FCC ID : Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148 IC ID : 4596-AIX104-AC860 SIERRA WIRELESS AC 860PC Card without Shielding FCC ID : Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148 IC ID : 4596-AIX104-AC860

XPLORE AC860 : Internal PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : Internal PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : Internal PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : Internal PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : Internal PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG

SAR Test Report No.: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix A Plots Page 1 of 12 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 1/30/2006 4:58:28 PM DUT Battery Model/No: Filename: lap128_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Ix104 w/ AC860 Relative Permittivity: 56.59 Relative Humidity: 50% Conductivity: 1.581 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -33.33 mm DUT Position: Lap Max SAR Z-axis Location: -176.00 mm Antenna Configuration: integral Max E Field: 22.72 V/m Test Frequency: 824.2 GPRSMHz SAR 1g: 0.435 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.288 W/kg Conversion Factors: 0.666 / 0.666 / 0.666 SAR Start: 0.222 W/kg Type of Modulation: SAR End: 0.222 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.01 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 01/11/2006 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix A Plots Page 2 of 12 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/1/2006 7:28:09 AM DUT Battery Model/No: Filename: lap192_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Ix104 w/ AC860 Relative Permittivity: 56.18 Relative Humidity: 50% Conductivity: 1.581 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -28.67 mm DUT Position: Lap Max SAR Z-axis Location: -176.00 mm Antenna Configuration: integral Max E Field: 26.01 V/m Test Frequency: 837 GPRSMHz SAR 1g: 0.577 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.381 W/kg Conversion Factors: 0.666 / 0.666 / 0.666 SAR Start: 0.239 W/kg Type of Modulation: SAR End: 0.242 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.05 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 01/11/2006 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix A Plots Page 3 of 12 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/1/2006 8:04:28 AM DUT Battery Model/No: Filename: lap251_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Ix104 w/ AC860 Relative Permittivity: 55.90 Relative Humidity: 50% Conductivity: 1.581 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -27.33 mm DUT Position: Lap Max SAR Z-axis Location: -177.00 mm Antenna Configuration: integral Max E Field: 25.37 V/m Test Frequency: 848.8 GPRSMHz SAR 1g: 0.546 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.359 W/kg Conversion Factors: 0.666 / 0.666 / 0.666 SAR Start: 0.225 W/kg Type of Modulation: SAR End: 0.225 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.01 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 01/11/2006 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix A Plots Page 4 of 12 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/1/2006 8:47:03 AM DUT Battery Model/No: Filename: lap4132_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Ix104 w/ AC860 Relative Permittivity: 56.59 Relative Humidity: 50% Conductivity: 1.581 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -26.67 mm DUT Position: Lap Max SAR Z-axis Location: -176.00 mm Antenna Configuration: integral Max E Field: 18.00 V/m Test Frequency: 826.4 UMTSMHz SAR 1g: 0.276 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.182 W/kg Conversion Factors: 0.666 / 0.666 / 0.666 SAR Start: 0.116 W/kg Type of Modulation: SAR End: 0.113 W/kg Modn. Duty Cycle: SAR Drift during Scan: -0.11 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 01/11/2006 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix A Plots Page 5 of 12 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/1/2006 9:20:28 AM DUT Battery Model/No: Filename: lap4182_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Ix104 w/ AC860 Relative Permittivity: 56.18 Relative Humidity: 50% Conductivity: 1.581 Phantom S/No: HeadBox_new_spout.cs v Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -22.00 mm DUT Position: Lap Max SAR Z-axis Location: -177.00 mm Antenna Configuration: integral Max E Field: 18.56 V/m Test Frequency: 836.4 UMTSMHz SAR 1g: 0.296 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.194 W/kg Conversion Factors: 0.666 / 0.666 / 0.666 SAR Start: 0.121 W/kg Type of Modulation: SAR End: 0.121 W/kg Modn. Duty Cycle: SAR Drift during Scan: -0.01 dB Diode Compression Factors (V*200): 11.9 / 12.3 / 10 Probe battery last changed: 01/11/2006 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix A Plots Page 6 of 12 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 2/1/2006 9:53:50 AM DUT Battery Model/No: Filename: lap4233_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Xplore Ix104 w/ AC860 Relative Permittivity: 55.90 Relative Humidity: 50% Conductivity: 1.581 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -18.67 mm DUT Position: Lap Max SAR Z-axis Location: -176.00 mm Antenna Configuration: integral Max E Field: 20.24 V/m Test Frequency: 846.6 UMTSMHz SAR 1g: 0.350 W/kg Air Factors: 346 / 318 / 38…

Text truncated - open the document above for the full version.

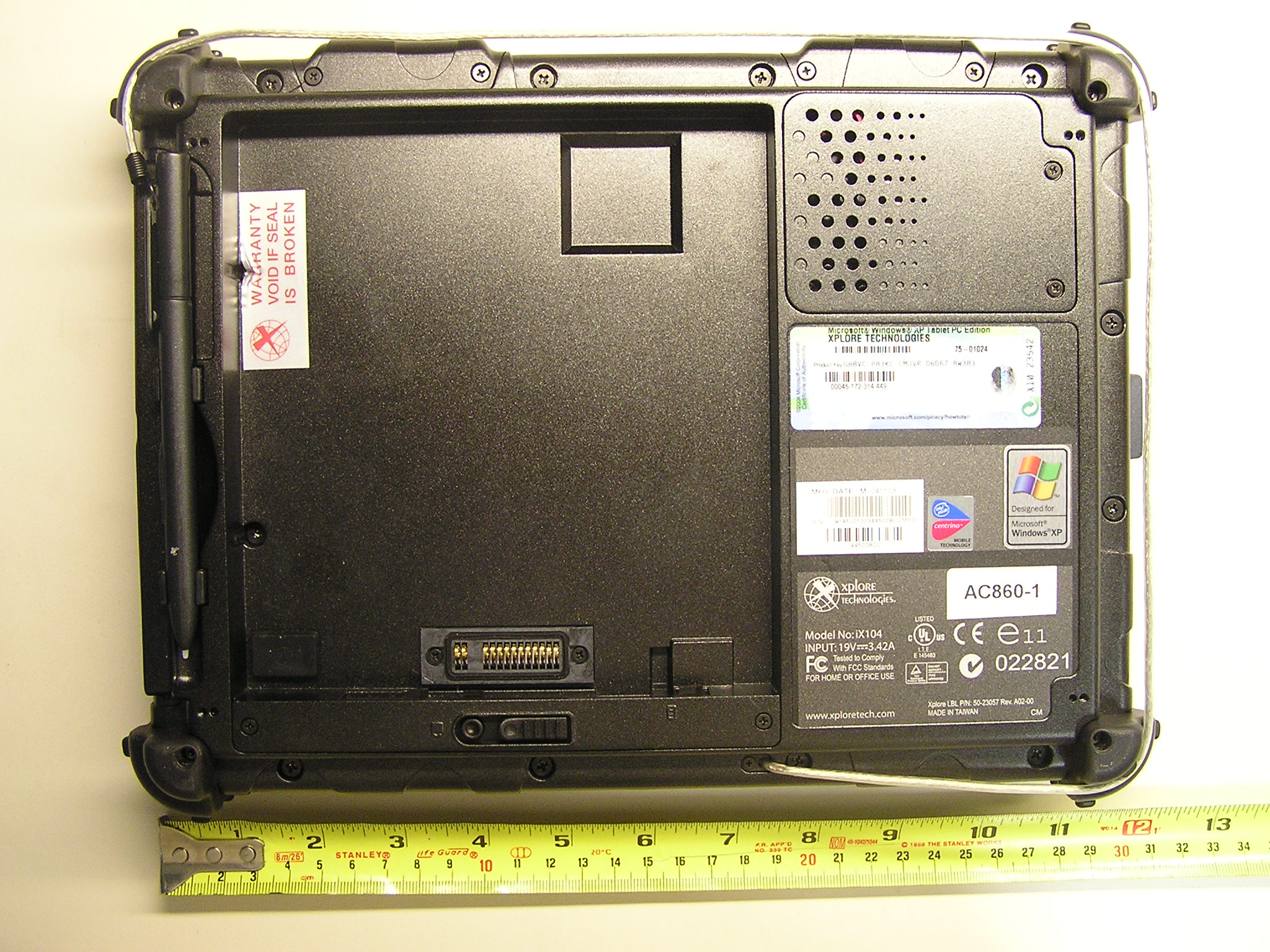

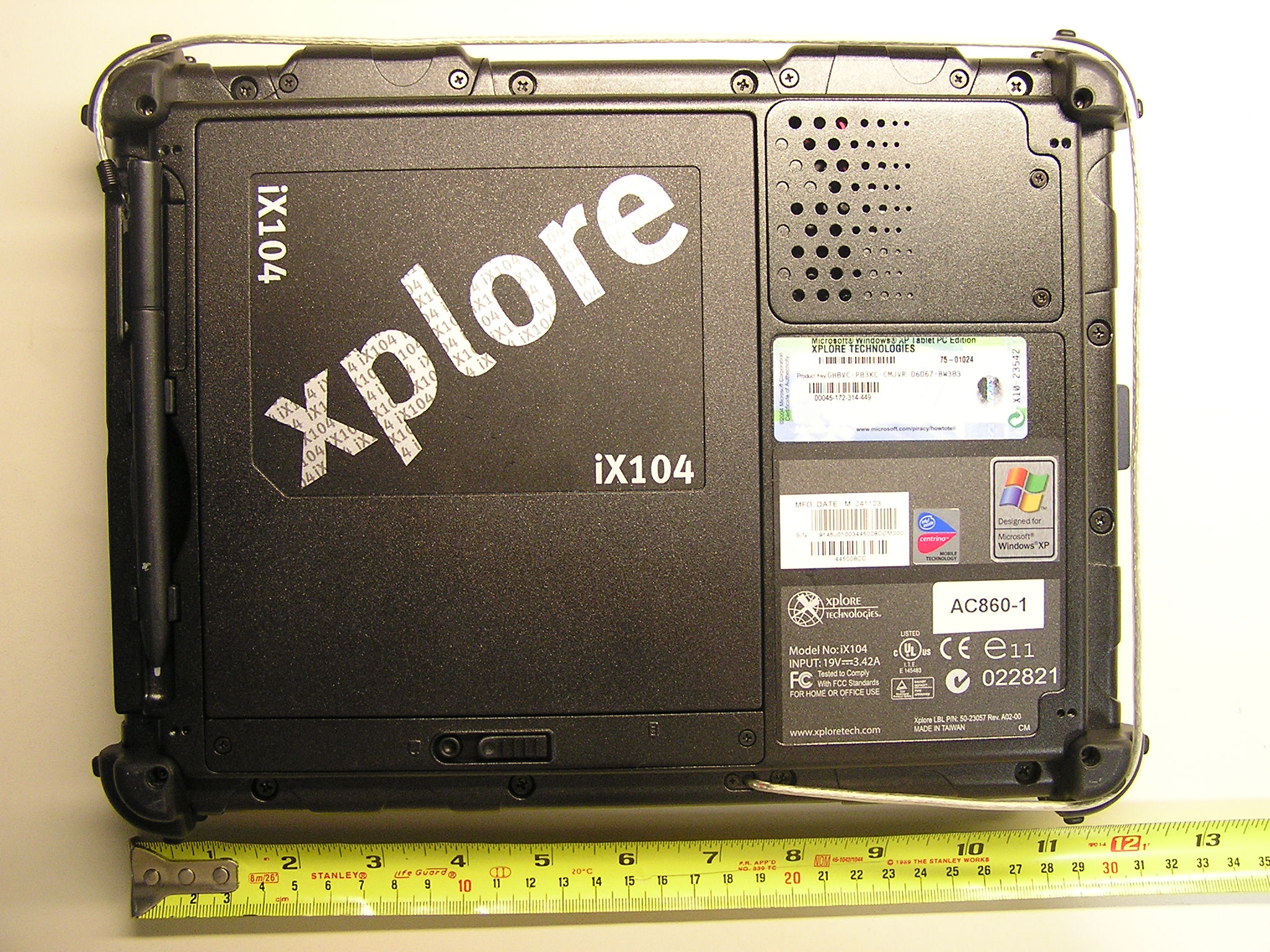

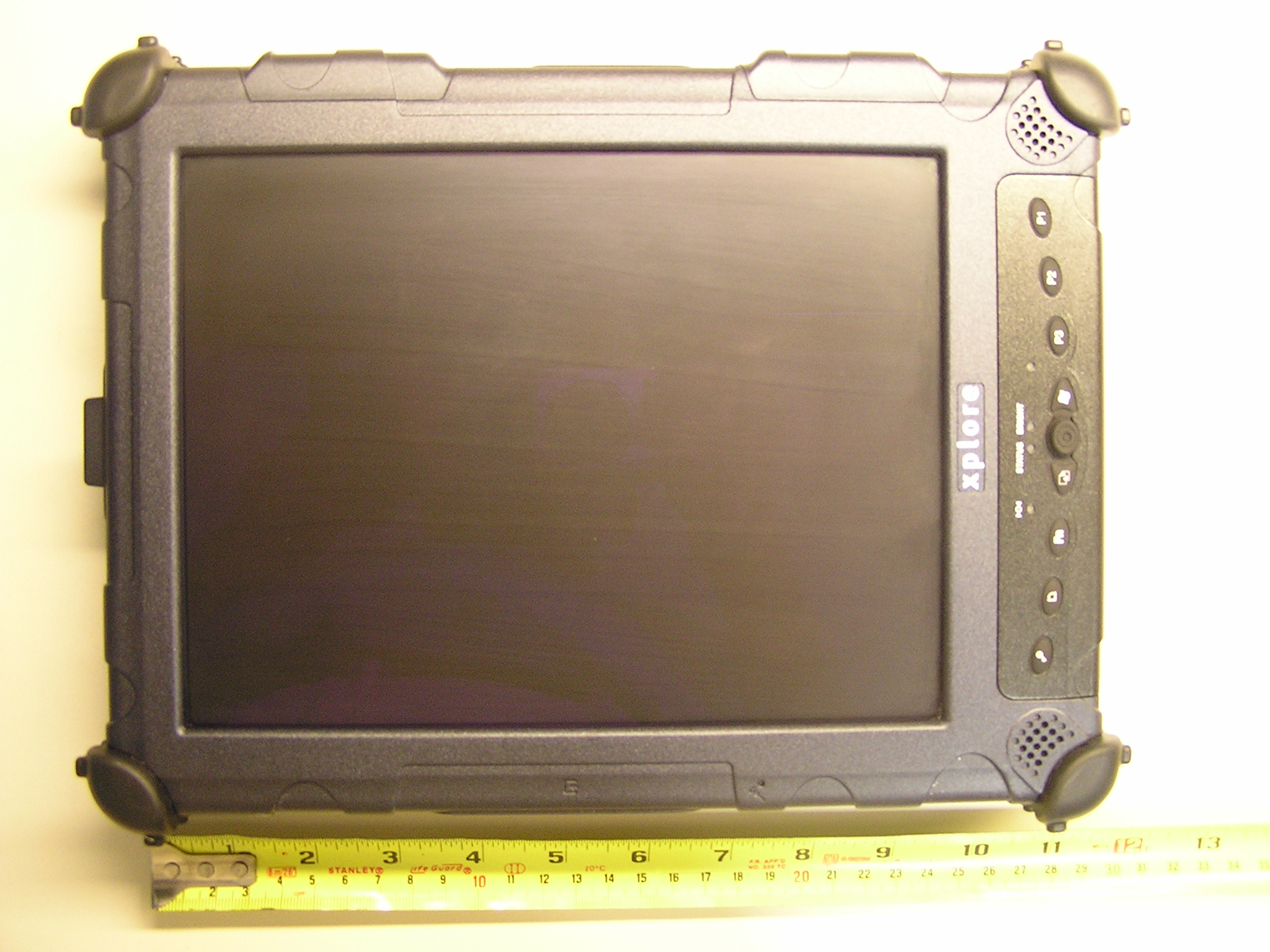

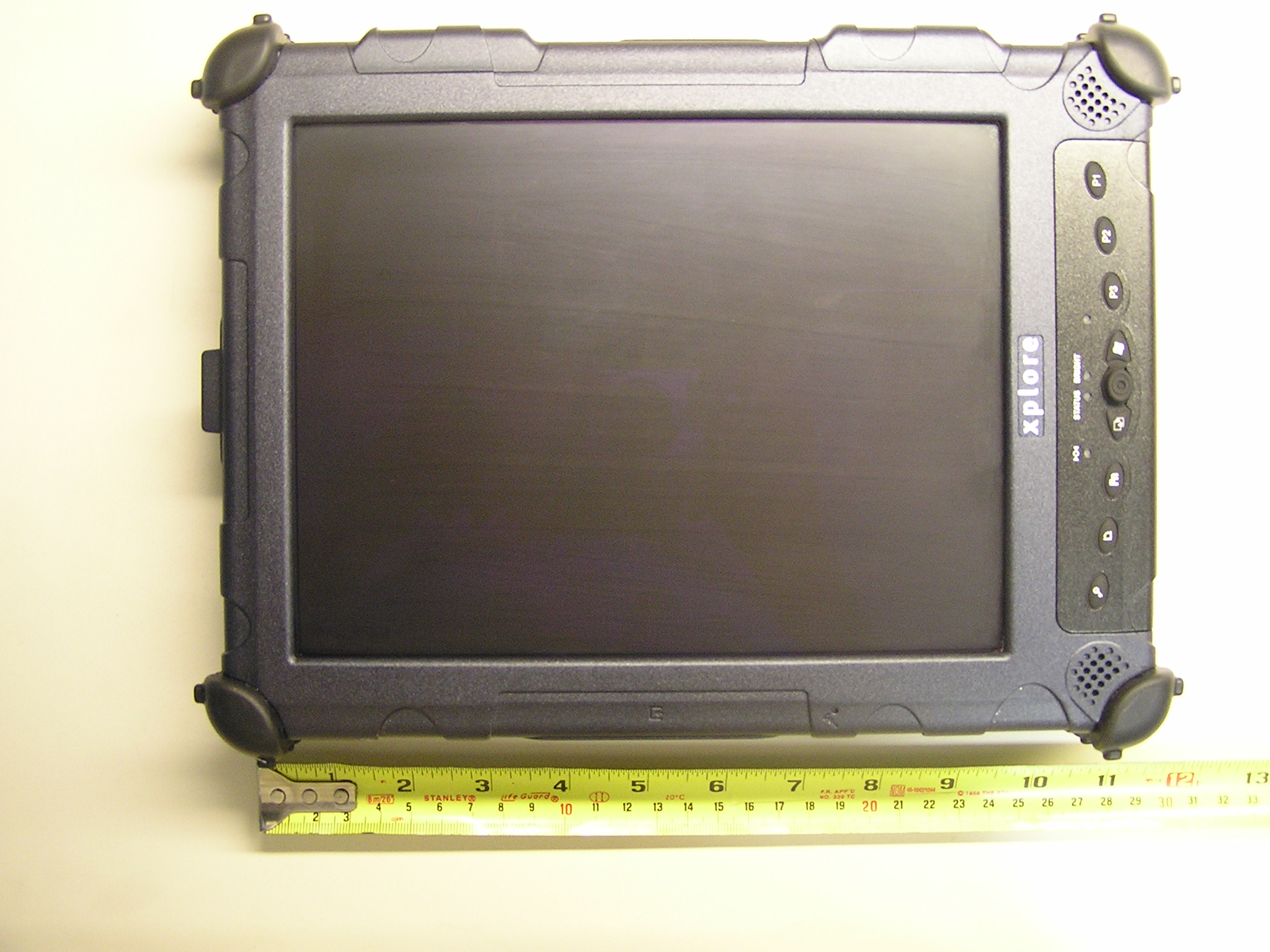

SAR Test Report No.: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix B Page 1 of 5 Appendix B: Photos EUT Photos: Photo 1. Antenna locations Please note: all three antennas are installed in the device even if the corresponding radio module is not installed. SAR Test Report No.: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix B Page 2 of 5 Photo 2. EUT front SAR Test Report No.: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix B Page 3 of 5 Photo 3. EUT back SAR Test Report No.: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix B Page 4 of 5 Setup Photos Photo 4. Lap position SAR Test Report No.: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix B Page 5 of 5 Photo 5. Photo to demonstrate 15 cm Z-axis flat phantom

SAR Test Report No: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix C Miscellaneous Page 1 of 11 1 Tissue Parameters 850MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 49.46% distilled water 49.46% DGBE 1.0% salt 0.1% bactericide SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 02/01/2006 900 41.87 0.906 850MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 49.8% distilled water 40.6% DGBE 8.9% salt 0.6% HEC 0.1% bactericide SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 02/01/2006 824.2 56.59 0.979 02/01/2006 836.6 56.18 0.985 02/01/2006 848.8 55.90 0.988 SAR Test Report No: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix C Miscellaneous Page 2 of 11 2 1900MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 54.9% distilled water 44.92% DGBE 0.18% salt 0.1% bactericide SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 02/01/2006 1900 38.63 1.409 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% distilled water 30.29% DGBE 0.44% salt 0.1% bactericide SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 02/01/2006 1850.2 53.33 1.56 02/01/2006 1880 53.19 1.579 02/01/2006 1909.8 53.02 1.581 Environment: 02/01/2006: Temperature: 22.0 °C ± 2°C Humidity: 45% _ 55 % SAR Test Report No: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix C Miscellaneous Page 3 of 11 3 Test Equipment Test Equipment Model Serial Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) Bench top Robot Mitsubishi supplied by IndexSAR RV-E2 EA1030108 N/A N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by IndexSAR SAM 03FT26 04/03 N/A Flat Phantom IndexSAR HeadBox_Spou t N/A N/A N/A Software IndexSAR SARA2 v0.420 N/A N/A N/A 900 MHz Head Tissue Simulant Cetecom Inc. 900 Head N/A 02/01/2006 N/A 850 MHz Body Tissue Simulant Cetecom Inc. 850 Body N/A 02/01/2006 N/A 1900 MHz Head Tissue Simulant Cetecom Inc. 1900 Head N/A 02/01/2006 N/A 1900 MHz Body Tissue Simulant Cetecom Inc. 1900 Body N/A 02/01/2006 N/A 900 MHz Dipole IndexSAR – IEEE 1528 design IXD-900 0016 07/20/2005 07/20/2006 1900 MHz Dipole IndexSAR – IEEE 1528 design IXD-190 0016 07/20/2005 07/20/2006 Directional coupler Werlatone C6529 11249 N/A N/A RF Amplifier Vectawave VTL5400 N/A N/A N/A SAR Probe IndexSAR IXP-050 S/N 0123 10/07/2004 10/07/2006 Probe amplifier IndexSAR IXA-010 S/N 043 N/A N/A Dielectric Measurement Kit IndexSAR Di-Line N/A N/A N/A SAR Test Report No: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix C Miscellaneous Page 4 of 11 4 Equipment Calibration/Performance Documents: Validation Dipoles Performance Measurements: Pages 5 to 10 Please Note: (The following pages of Appendix C show calibration documents. These calibration documents are inserted into this appendix. The header information with page numbering scheme is a part of this report and is included on all pages of the report and appendixes. This header is used to track all of the contents of this report.) SAR Test Report No: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix C Miscellaneous Page 5 of 11 5 Report No. SN0016_090-180-190-245 July 1 st 2002 Revised 7/20/2005 INDEXSAR Validation Dipoles Type IXD-090, IXD-180, IXD-190 & IXD-245 Performance measurements S/N: 090-0016 S/N: 180-0016 S/N: 245-0016 S/N: 190-0016 MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5DR. UK. Tel: +44 (0) 1306 631233 Fax: +44 (0) 1306 631834 SAR Test Report No: XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Appendix C Miscellaneous Page 6 of 11 6 e-mail: [email protected] 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An HP 8753B vector network analyser was used for the return loss measurements. The dipole was placed in a special holder made of low-permittivity, low-loss materials. This holder enables the dipole to be positioned accurately in the centre of the base of the Indexsar box-phantom used for flat-surface testing and validation checks. The validation dipoles are supplied with special spacers made form a low-permittivity, low-loss foam material. These spacers are fitted to the dipole arms to ensure that, when the dipole is offered up to the phantom surface, the spacing between the dipole and the liquid surface is accurately aligned according to the guidance in the relevant standards documentation. The spacers are rectangular with a central hole equal to the dipole arm diameter and dimensioned so that the longer side can be used to ensure a spacing of 15mm from the liquid in the phantom (for tests at 900MHz and below) and the shorter side can be used for tests at 1800MHz and above to ensure a spacing of 10mm from the liquid in the phantom. The spacers are made on a CNC milling machine with an accuracy of 1/40 th mm but they may suffer wear and tear and need to be replaced periodically. The material used is Rohacell, which has a relative permittivity of approx. 1.05 and a negligible loss tangent. The apparatus supplied by Indexsar for dipole validation tests thus includes: Balanced dipoles for each frequency required are dimensioned according to the guidelines given in IEEE 1528 [1]. The dipoles are made from semi-rig…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 ACCREDITED ACCORDING TO ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 \\stupendousman\rootappsdata\emc\projects_emc\xplore\xplor-002-05002 - ix104_w_ac860\2_test_reports\sar\q2gix104-145_ac860\xplor_002_05002_sar_fcc_850_1900_145.doc © Copyright by CETECOM SAR Test Report No.: XPLOR_002_05002_SAR_FCC_850_1900_145 for the Xplore Technologies Tablet Computer Model Number: iX104-AC860 FCC ID: Q2GIX104-145 IC-ID: 4596A-IX104WBG Date of Report: 02/01/2006 Date of issue: 02/01/2006 Report Copy No.: 01 SAR Test Report No. XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Page 2 of 26 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents ASSESSMENT .........................................................................................................................4 1 ADMINISTRATIVE DATA...................................................................................................5 1.1 Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 1.2 Identification of the Client...........................................................................................5 1.3 Identification of the Manufacturer...............................................................................5 2 EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 2.1 Identification of the Equipment under Investigation ...................................................6 3 SUBJECT OF INVESTIGATION ........................................................................................7 3.1 The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................7 3.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...7 3.3 Distinction between Maximum Permissible Exposure and SAR Limits......................8 3.4 SAR Limit ...................................................................................................................8 4 THE FCC MEASUREMENT PROCEDURE .......................................................................9 4.1 General Requirements...............................................................................................9 4.2 Test Positions ..........................................................................................................10 4.3 Body-worn and Other Configurations.......................................................................10 4.4 Procedure for assessing the peak spatial-average SAR .........................................10 4.5 Determination of the largest peak spatial-average SAR ..........................................12 5 THE MEASUREMENT SYSTEM ......................................................................................14 5.1 Robot system specification ......................................................................................14 5.2 Probe and amplifier specification .............................................................................15 5.3 Phantoms.................................................................................................................15 5.4 SAR measurement procedure .................................................................................16 5.5 SARA2 Interpolation and Extrapolation schemes ....................................................16 5.6 Interpolation of 2D area scan...................................................................................17 5.7 Extrapolation of 3D scan..........................................................................................17 5.8 Interpolation of 3D scan and volume averaging.......................................................17 SAR Test Report No. XPLOR_002_05002_SAR_FCC_850_1900_145 Date of Report: 02/01/2006 Page 3 of 26 This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 6 UNCERTAINTY ASSESSMENT.......................................................................................19 6.1 Table of Measurement Uncertainty Values of SAR Evaluations..............................20 6.2 Table of Measurement Uncertainty Values for SAR System Verification ................20 7 TEST RESULTS SUMMARY............................................................................................22 7.1 Radiated Output Power............................................................................................22 7.2 Test Positions and Configurations ...........................................................................22 7.3 GPRS/EDGE Operating Mode.................................................................................22 7.4 UMTS Operating Mode ............................................................................................22 7.5 GPRS 850 MHz band SAR Results for iX104-AC860 .............................................23 7.6 UMTS 850 MHz band SAR Results for iX104-AC860 .............................................23 7.7 GPRS 1900 MHz band SAR Results for iX104-AC860 ...........................................24 7.8 GPRS 1900 MHz band SAR Results for iX104-AC860 ...........................................24 7.9 Validation Check Results .........................................................................................25 8 REFERENCES..................................................................................................................…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 A…
