Q2GIX104-147Tablet PC with WLAN/GSM/EGPRS/WCDMA transmitters

USER’S HANDBOOK 4 iX104C 2 User’s Handbook Xplore Technologies ® has made every effort to ensure the accuracy and completeness of this document; however, because ongoing development efforts are made to continually improve the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes herein. Xplore and the Xplore logo are registered trademarks of Xplore Technologies Corp.; iX104, iX104C 2 , iX104C 2 Tablet PC, and iX104C 2 Dual Mode are trademarks of Xplore Technologies Corp. Kensington and MicroSaver are registered trademarks of the Kensington Technology Group. Microsoft is a registered trademark of Microsoft Corporation. Windows 2000 Professional, Windows XP Professional, and Windows XP Tablet PC Edition are trademarks of Microsoft Corporation. PCMCIA and CardBus are registered trademarks of the Personal Computer Memory Card International Association. Intel, Pentium, and SpeedStep are registered trademarks of Intel Corporation. Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance (WECA). FireWire is a registered trademark of Apple Computer, Inc. ISODAMP is a registered trademark of Aearo Company. All other brands, product names, company names, trademarks and service marks used herein are property of their respective companies. Copyright © 2003-2004 Xplore Technologies Corp. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Xplore Technologies. No part of this publication may be stored or transmitted in any electronic form without the prior consent of Xplore Technologies. Any unauthorized use is a violation of copyright laws. PN: 95-01030 Edition: First, August 2004 DECLARATION OF CONFORMITY according to FCC Part 15 Responsible Party Name: Xplore Technologies Corp. Address: 14000 Summit Drive, Suite 900, Austin, Texas 78728 Telephone: 512.336.7797 Declares that product: Model Series: iX104C 2 complies with Part 15 of the FCC Rules iX104C 2 User’s Handbook 5 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and, (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance may void the user’s authority to operate this equipment. For more information about FCC rules and their applicability to the iX104, see Appendix E, “Agency Notices.” Warranty Information The iX104C 2 Tablet PC, and iX104C 2 Dual Mode are backed by a standard 12-month International Limited Warranty. An extended International Limited Warranty is available. Check the service kit included with your computer for warranty terms and conditions. a 6 iX104C 2 User’s Handbook Important safety information Before you use the iX104C 2 Tablet PC or iX104C 2 Dual Mode (referred to as the tablet), read these safety instructions and the operation instructions in this handbook. Failure to observe all these instructions voids the Limited Warranty and may lead to suspension or denial of services to the offender, or legal action, or both. Follow any special regulations governing the use of the tablet and, if radio- enabled, always switch it off in areas where radio devices are forbidden or when the radio device can cause interference or danger. Always follow any safety laws and regulations pertaining to the use of cell phones and two-way radios, because these laws and regulations typically apply to the use of the wireless-enabled tablet. Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, and wherever blasting operations are in progress or in any area in which restrictions on radio transmissions are imposed. Switch off the tablet when in an aircraft. The tablet is not FAA-approved for use on aircraft. The effect of the use of the tablet in aircraft is unknown. Using the tablet in an aircraft may affect aircraft instrumentation, communication, and performance; may disrupt the network; and may be illegal. Operating the wireless-enabled tablet may interfere with the functioning of inadequately protected medical devices such as pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions. Radio signals from your tablet will not affect the operation of most modern equipment, but certain electronic equipment, including automotive systems, may not be shielded against radio signals from your tablet. Check with the manufacturer of your motor vehicle or the manufacturer’s representative to determine whether using the tablet will present any safety issues. Avoid using the tablet in any environment that requires your full attention, such as when driving a vehicle. If you need to use your tablet while driving, have a passenger use it for you or find a safe location to halt your vehicle. iX104C 2 User’s Handbook 7 WARNING Use only battery types specified in this handbook. Using any other type of battery can be dangerous and can disable the tablet. WARNING Do not use any dock or any other accessory or attachment that is not manufactured or supplied by Xplore or an authorized Xplore accessories supplier. Use of any accessory or attachment that is not supplied or approved for use with the tablet by Xplore is not permitted because it may cause hazards. Operate the tablet only from the type of power source indicated on the marking label. (See page 56 for more information about the battery and power supply.) Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs and convenience receptacles, and at the point where cords exit from the tablet or its dock. Do not overload wall outlets, extensi…

Text truncated - open the document above for the full version.

Xplore Technologies, Inc. 14000 Summit Road Suite 900 Austin, TX 78728 888-44-XPLORE Page 1of 12/28/2006 February, 01, 2006 Federal Communication Commission Equipment Approval Service Attention: Authorization and Evaluation Division Reference: Xplore Technologies FCC ID: Q2GIX104-147 To Whom It May Concern: Subject: Request for Confidentiality Pursuant to Sections 0.457 (d) (1) (ii) and 0.459 of the Commission’s rules, the Applicant hereby requests confidential treatment of the Xplore Technologies supplied information accompanying this application. The confidential information includes the following: •Schematics •Block Diagrams •Bill of Materials •Operational Descriptions •Tune up information The materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of this information might be harmful to Xplore Technologies and provide unjustified benefits to our competitors. Xplore Technologies understands that pursuant to 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of the grant. Best regards, Mazyar Razzaz ElectricalEngineer Xplore Technologies, Inc.

Xplore Technologies, Inc. 14000 Summit Road Suite 900 Austin, TX 78728 888-44-XPLORE Page 1of 12/28/2006 February01, 2006 To Whom It May Concern: Subject: None Co-Transmission of WLAN and GSM Declaration WE, Xplore Technologies, 14000 Summit Road Suite 900 Austin, TX 78728 Herby declare under our sole responsibilities that the iX104C2 tablet equipped with the radio WLAN, HSDPA/EDGE/GSM and Bluetooth radios. Only one transmitter either WLAN or GSM canoperate, these radiosare set up to nottransmit simultaneously.Only following set of radios are set up to co-transmit: •WLAN and BT •HSDPA/EDGE/GSM and BT Best regards, Mazyar Razzaz ElectricalEngineer Xplore Technologies, Inc.

Xplore Technologies, Inc. 14000 Summit Road Suite 900 Austin, TX 78728 888-44-XPLORE January 14, 2006 To Whom It May Concern: Subject: No changes to the iX104C2, base unit, WLAN, or BT Declaration WE, Xplore Technologies, 14000 Summit Road Suite 900 Austin, TX 78728 Herby declare that there has been no changes to the iX104C2 tablet PC base unit and is the same as when it was certified by TCB for USA (FCC) and Canada (IC) in the summer of 2005. Further more, the same WLAN and BT radios that were certified by TCB in summer of 2005 are being used in the current and on going regulatory certification. Therefore, The radiated EMC and SAR reports obtained for the prior FCC/IC ID in summer of 2005 shall be used for the current and on going regulatory certifications. Best regards, Mazyar Razzaz Electrical Engineer Xplore Technologies, Inc. Page 1 of 1 1/16/2006

Xplore Technologies, Inc. 14000 Summit Road Suite 900 Austin, TX 78728 888-44-XPLORE Page 1of 12/28/2006 February 01, 2006 To Whom It May Concern: Subject: User prevention of 802.11a portion of WLAN Declaration WE, Xplore Technologies, 14000 Summit Road Suite 900 Austin, TX 78728 Herby declare under our sole responsibilities that the iX104C2 tablet equipped with the radio 802.11a/b/g WLAN radio. The user is prevented from using the 802.11a portion of the radio by modification of the default settings. Due to the modification to the default settings the user can only access the 802.11b/g portion of WLAN radio available in iX104C2 tablet. Best regards, Mazyar Razzaz ElectricalEngineer Xplore Technologies, Inc.

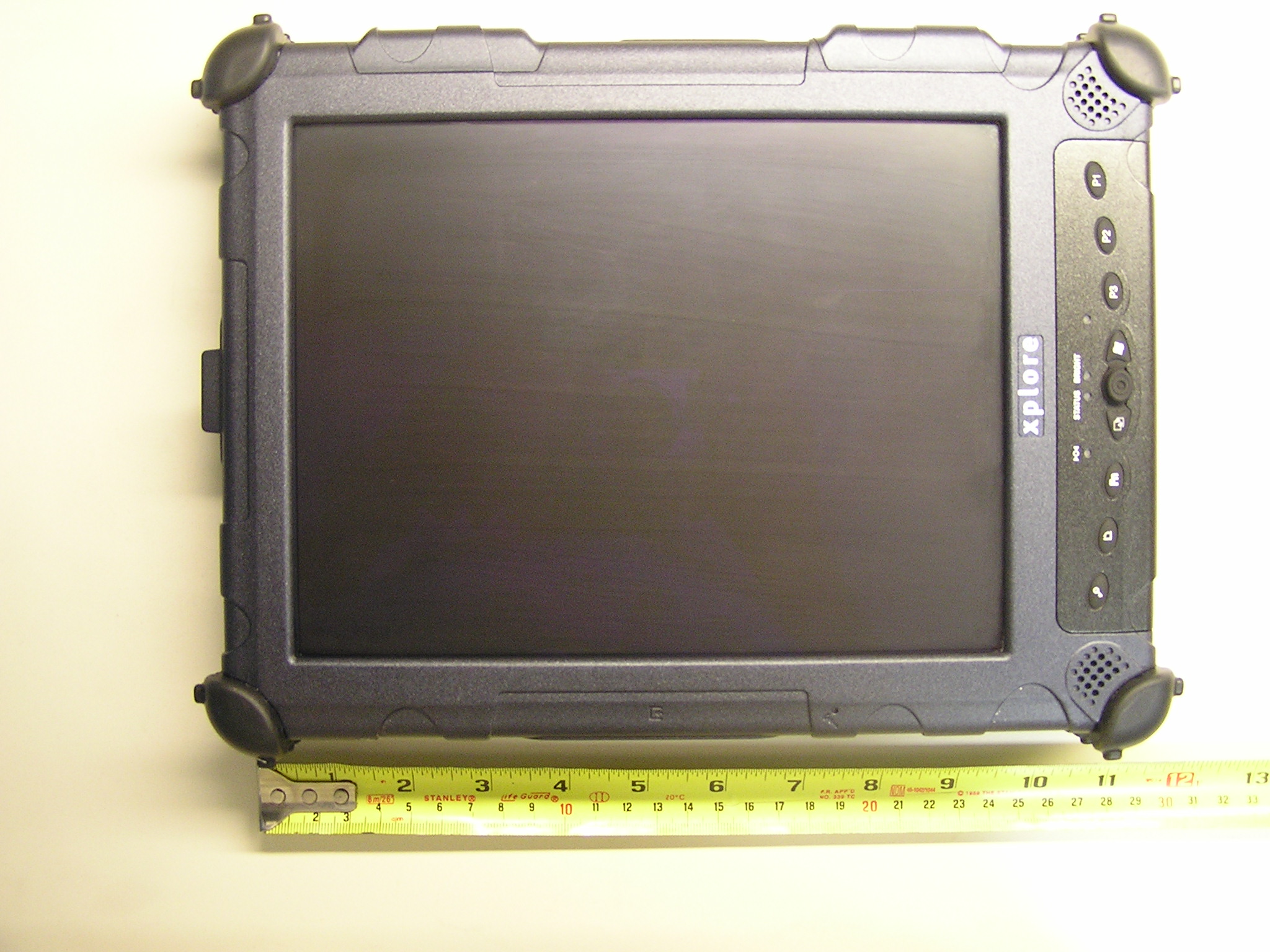

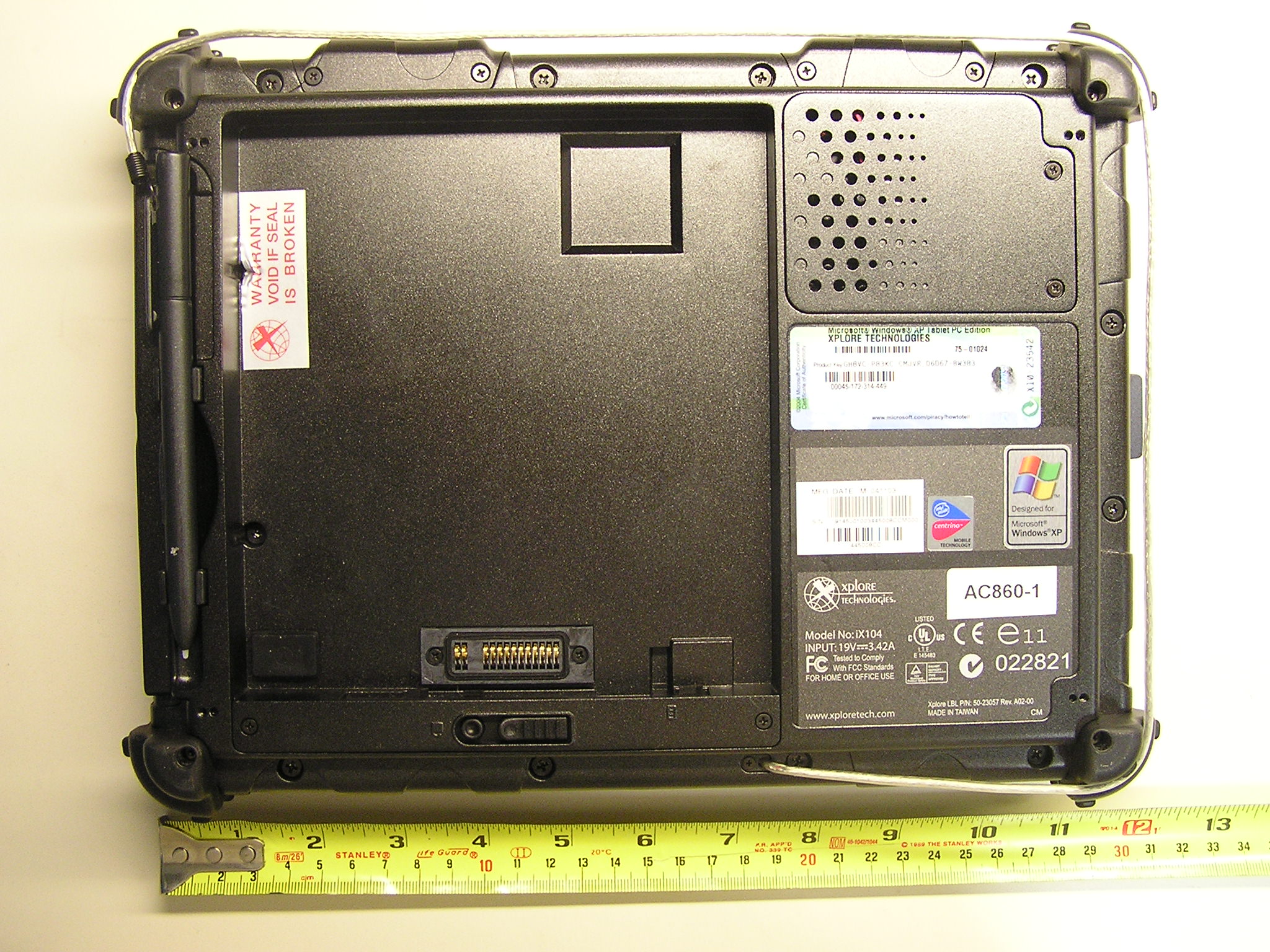

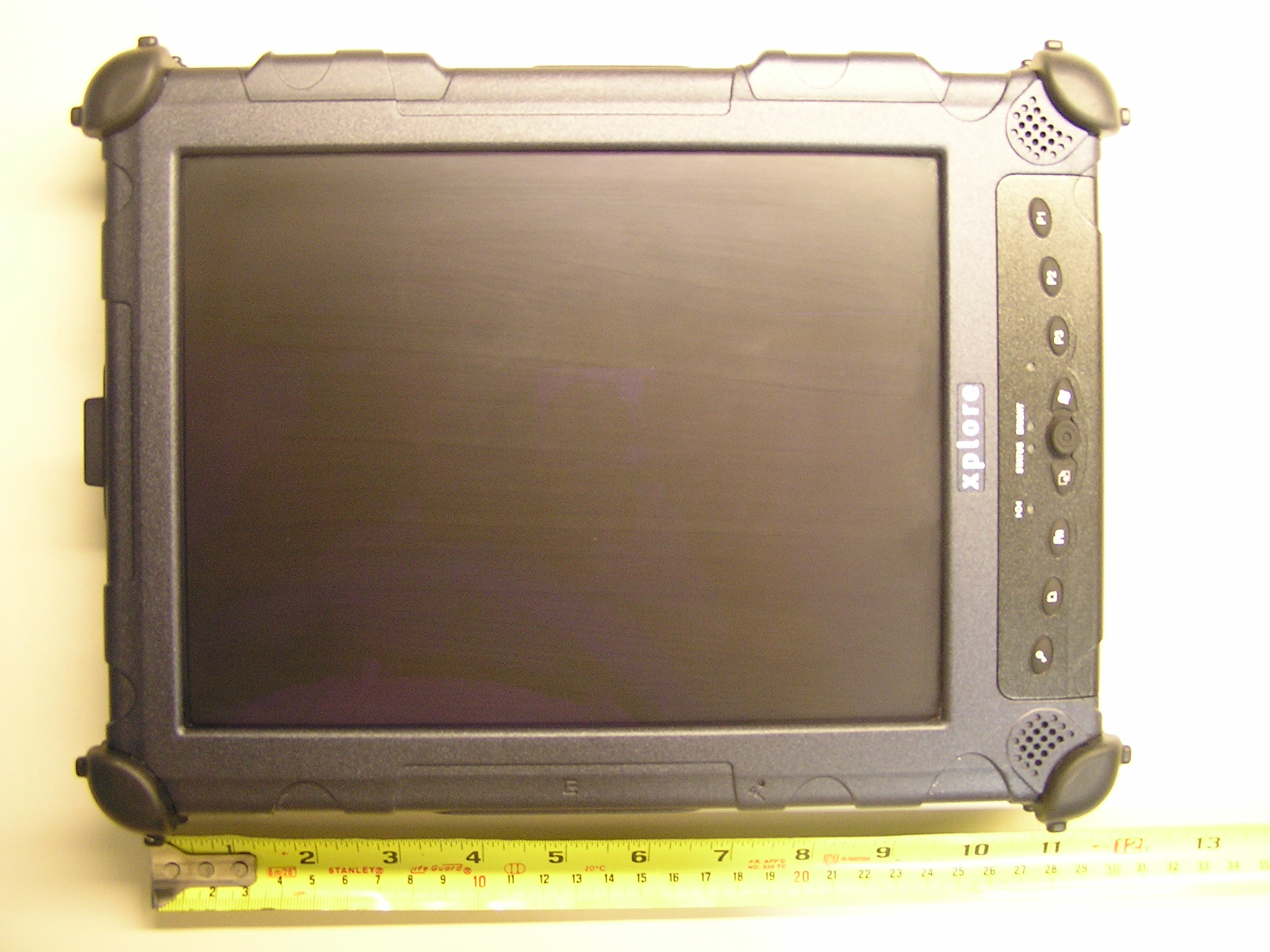

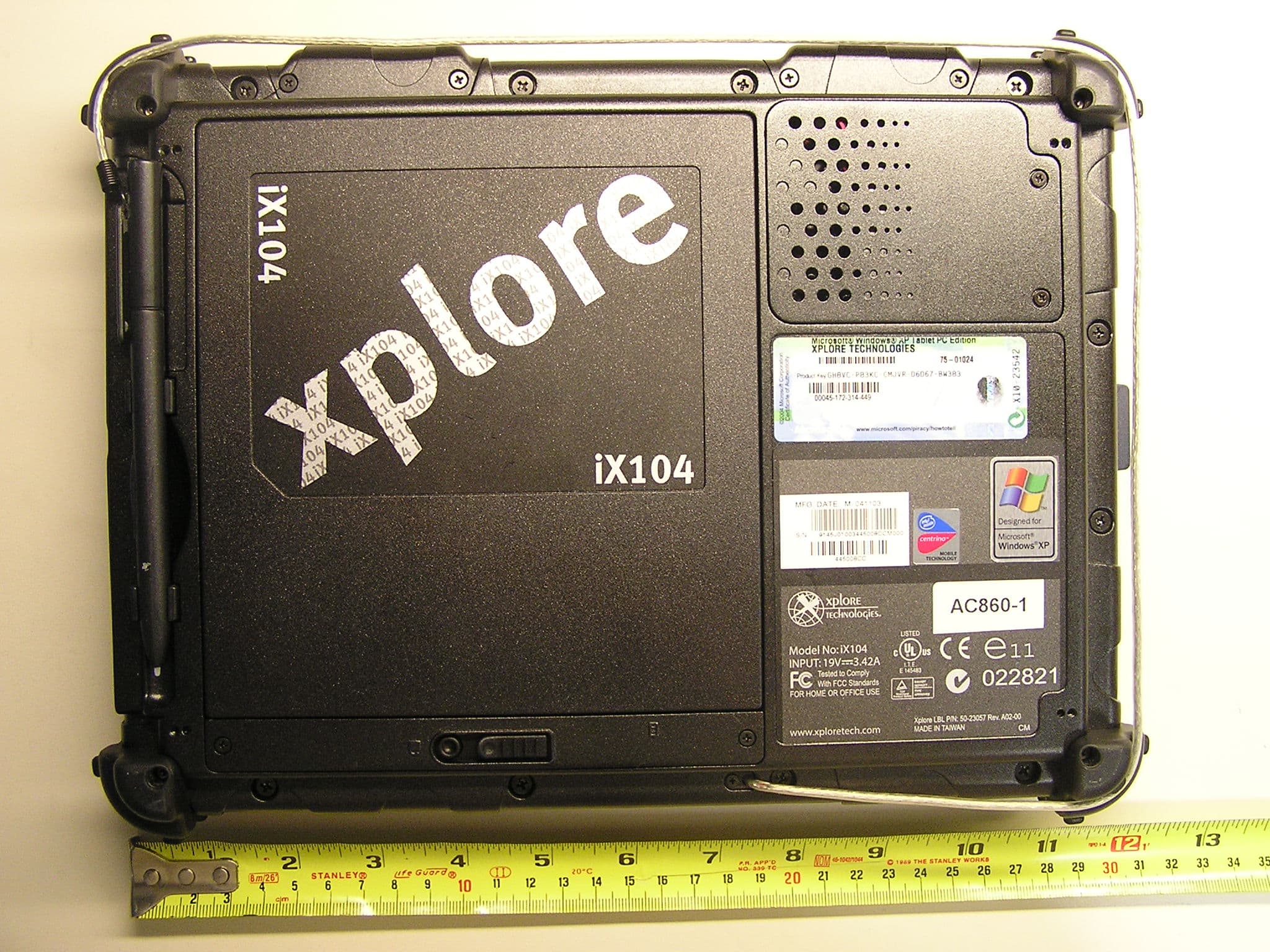

XPLORE AC860 : External PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : External PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : External PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : External PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : External PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG

Label & Label Location FCC ID: Q2GIX104-147 & IC ID: 4596A-IX104WBG FCC ID: Q2GIX104-147 IC ID: 4596A-IX104WBG Label & Label Location FCC ID: Q2GIX104-147 & IC ID: 4596A-IX104WBG FCC ID: Q2GIX104-147 IC ID: 4596A-IX104WBG iX104C2

XPLORE AC860 : Internal PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : Internal PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : Internal PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : Internal PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG XPLORE AC860 : Internal PhotosFCC-IDs: Q2GIX104-145, Q2GIX104-146, Q2GIX104-147, Q2GIX104-148IC-ID : IC 4596A-IX104WBG

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 \\stupendousman\rootappsdata\emc\projects_emc\xplore\xplor-002-05002 - ix104_w_ac860\2_test_reports\sar\q2gix104-147_ac860_wlan\wlan\sar_958_2005_fcc_2450_wlan_147.doc © Copyright by CETECOM SAR Test Report No.: SAR_958_2005_FCC_2450_WLAN_147 for the Xplore Technologies Tablet Computer Model Number: iX104C2 FCC ID: Q2GIX104-147 IC-ID: 4596A-IX104WBG Date of Report: 07/27/2005 Date of issue: 07/27/2005 Report Copy No.: 01 SAR Test Report No.: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 07/27/2005 Page 2 of 23 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents 1 ASSESSMENT ...................................................................................................................4 2 ADMINISTRATIVE DATA...................................................................................................5 2.1 Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 2.2 Identification of the Client...........................................................................................5 2.3 Identification of the Manufacturer...............................................................................5 3 EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 3.1 Identification of the Equipment under Investigation ...................................................6 4 SUBJECT OF INVESTIGATION ........................................................................................7 4.1 The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................7 4.2 Distinction Between Exposed Population, Duration of Exposure and Frequencies...7 4.3 Distinction between Maximum Permissible Exposure and SAR Limits......................8 4.4 SAR Limit ...................................................................................................................8 5 THE FCC MEASUREMENT PROCEDURE .......................................................................9 5.1 General Requirements...............................................................................................9 5.2 Body-worn and Other Configurations.........................................................................9 5.3 Procedure for assessing the peak spatial-average SAR .........................................10 5.4 Determination of the largest peak spatial-average SAR ..........................................12 6 THE MEASUREMENT SYSTEM ......................................................................................13 6.1 Robot system specification ......................................................................................13 6.2 Probe and amplifier specification .............................................................................14 6.3 Phantoms.................................................................................................................14 6.4 SAR measurement procedure .................................................................................15 6.5 SARA2 Interpolation and Extrapolation schemes ....................................................15 6.6 Interpolation of 2D area scan...................................................................................16 6.7 Extrapolation of 3D scan..........................................................................................16 6.8 Interpolation of 3D scan and volume averaging.......................................................16 SAR Test Report No.: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 07/27/2005 Page 3 of 23 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 7 UNCERTAINTY ASSESSMENT.......................................................................................18 7.1 Table of Measurement Uncertainty Values of SAR Evaluations..............................19 7.2 Table of Measurement Uncertainty Values for SAR System Verification ................20 8 TEST RESULTS SUMMARY............................................................................................21 8.1 Conducted Output Power.........................................................................................21 8.2 Test Positions and Configurations ...........................................................................21 8.3 WLAN Operating Mode............................................................................................21 8.4 2450 MHz band SAR Results for iX104C2 with Intel 2915ABG ..............................22 8.5 Validation Check Results .........................................................................................22 9 REFERENCES..................................................................................................................23 SAR Test Report No.: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 07/27/2005 Page 4 of 23 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 1 Assessment The Xplore Technologies iX104C2 Tablet Computer, FCC ID: Q2GIX104-147, is in compliance with the limits for general population uncontrolled exposure specified in FCC 2.1093. The device wa…

Text truncated - open the document above for the full version.

SAR Test Report No.: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix A Plots Page 1 of 4 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/17/2005 3:01:38 PM DUT Battery Model/No: Filename: temp.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 2450 Device Under Test: Xplore Relative Permittivity: 51.35 Relative Humidity: 50% Conductivity: 1.947 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -45.00 mm DUT Position: lap Max SAR Z-axis Location: -138.80 mm Antenna Configuration: WLAN Max E Field: 3.29 V/m Test Frequency: 2412MHz 802.11b 1Mb SAR 1g: 0.017 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.009 W/kg Conversion Factors: 0.705 / 0.705 / 0.705 SAR Start: 0.006 W/kg Type of Modulation: SAR End: 0.006 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.00 dB Diode Compression Factors (V*200): 19 / 19 / 19 Probe battery last changed: 5/27/05 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix A Plots Page 2 of 4 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/17/2005 3:35:38 PM DUT Battery Model/No: Filename: lap2412_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 2450 Device Under Test: Xplore Relative Permittivity: 51.70 Relative Humidity: 50% Conductivity: 1.959 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -26.00 mm DUT Position: lap Max SAR Z-axis Location: -140.60 mm Antenna Configuration: WLAN Max E Field: 4.67 V/m Test Frequency: 2437 802.11b 1Mb/SMHz SAR 1g: 0.035 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.020 W/kg Conversion Factors: 0.705 / 0.705 / 0.705 SAR Start: 0.009 W/kg Type of Modulation: SAR End: 0.009 W/kg Modn. Duty Cycle: SAR Drift during Scan: -0.01 dB Diode Compression Factors (V*200): 19 / 19 / 19 Probe battery last changed: 5/27/05 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix A Plots Page 3 of 4 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/17/2005 4:16:39 PM DUT Battery Model/No: Filename: lap2437_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 2450 Device Under Test: Xplore Relative Permittivity: 51.09 Relative Humidity: 50% Conductivity: 1.957 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -12.00 mm DUT Position: lap Max SAR Z-axis Location: -153.20 mm Antenna Configuration: WLAN Max E Field: 5.23 V/m Test Frequency: 2462 802.11b 1Mb/SMHz SAR 1g: 0.042 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.024 W/kg Conversion Factors: 0.705 / 0.705 / 0.705 SAR Start: 0.011 W/kg Type of Modulation: SAR End: 0.011 W/kg Modn. Duty Cycle: SAR Drift during Scan: -0.02 dB Diode Compression Factors (V*200): 19 / 19 / 19 Probe battery last changed: 5/27/05 Input Power Level: max Extrapolation: poly4 SAR Test Report No.: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix A Plots Page 4 of 4 System / software: SARA2 / 2.3 VPM Input Power Drift: Date / Time: 6/17/2005 4:52:30 PM DUT Battery Model/No: Filename: lap2462_3d.txt Probe Serial Number: 0123 Ambient Temperature: 22.0°C Liquid Simulant: 2450 Device Under Test: Xplore Relative Permittivity: 51.35 Relative Humidity: 50% Conductivity: 1.947 Phantom S/No: HeadBox_new_spout.c sv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR Y-axis Location: -26.00 mm DUT Position: lap Max SAR Z-axis Location: -138.80 mm Antenna Configuration: WLAN Max E Field: 3.79 V/m Test Frequency: 2412 802.11g 6Mb/SMHz SAR 1g: 0.022 W/kg Air Factors: 346 / 318 / 386 SAR 10g: 0.013 W/kg Conversion Factors: 0.705 / 0.705 / 0.705 SAR Start: 0.008 W/kg Type of Modulation: SAR End: 0.008 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.34 dB Diode Compression Factors (V*200): 19 / 19 / 19 Probe battery last changed: 5/27/05 Input Power Level: max Extrapolation: poly4

SAR Test Report No.: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix B Page 1 of 5 Appendix B: Photos EUT Photos: Photo 1. Antenna locations Please note: all three antennas are installed in the device even if the corresponding radio module is not installed. SAR Test Report No.: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix B Page 2 of 5 Photo 2. EUT front SAR Test Report No.: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix B Page 3 of 5 Photo 3. EUT back SAR Test Report No.: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix B Page 4 of 5 Setup Photos Photo 4. 2450 MHz antenna lap position SAR Test Report No.: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix B Page 5 of 5 Photo 5 Photo to demonstrate 15 cm Z-axis flat phantom

SAR Test Report No: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix C Miscellaneous Page 1 of 9 1 Tissue Parameters 2450MHz Head liquid: Recipe: 53.74% distilled water 22.59% DGBE 22.59% triton X-100 0.98% salt 0.1% bactericide Di-electric constants measured on 06/17/2005. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 2450 38.51 1.738 2450MHz Body Liquid: Recipe: 73.3% distilled water 12.88% DGBE 12.88% triton X-100 0.84% salt 0.1% bactericide Di-electric constants measured on 06/17/2005. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 2412 51.35 1.947 2437 51.70 1.959 2462 51.309 1.957 Environment: 06/17/2005: Temperature: 20.1 °C – 23.9°C Humidity: 45% _ 55 % SAR Test Report No: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix C Miscellaneous Page 2 of 9 2 Test Equipment Test Equipment Model Serial Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) Bench top Robot Mitsubishi supplied by IndexSAR RV-E2 EA1030108 N/A N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by IndexSAR SAM 03FT26 04/03 N/A Flat Phantom IndexSAR HeadBox_Spout N/A N/A N/A Software IndexSAR SARA2 v0.420 N/A N/A N/A 2450 MHz Head Tissue Simulant Cetecom Inc. 2450 Head N/A 6/17/2005 N/A 2450 MHz body Tissue Simulant Cetecom Inc. 2450 Body N/A 6/17/2005 N/A 2450 MHz Dipole IndexSAR – IEEE 1528 design IXD-245 0016 07/20/2004 07/20/2005 Directional coupler Werlatone C6529 11249 N/A N/A RF Amplifier Vectawave VTL5400 N/A N/A N/A SAR Probe IndexSAR IXP-050 S/N 0123 10/07/2004 10/07/2005 Probe amplifier IndexSAR IXA-010 S/N 043 N/A N/A Thermometer Control Company 4039 20410549 11/20/2001 11/20/2005 Dielectric Measurement Kit IndexSAR Di-Line N/A N/A N/A SAR Test Report No: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix C Miscellaneous Page 3 of 9 3 Equipment Calibration/Performance Documents: Validation Dipoles Performance Measurements: Pages 4 to 9 Please Note: (The following pages of Appendix C show calibration documents. These calibration documents are inserted into this appendix. The header information with page numbering scheme is a part of this report and is included on all pages of the report and appendixes. This header is used to track all of the contents of this report.) SAR Test Report No: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix C Miscellaneous Page 4 of 9 4 Report No. SN0016_090-180-190-245 July 1 st 2002 Revised 7/20/2004 INDEXSAR Validation Dipoles Type IXD-090, IXD-180, IXD-190 & IXD-245 Performance measurements S/N: 090-0016 S/N: 180-0016 S/N: 245-0016 S/N: 190-0016 MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5DR. UK. Tel: +44 (0) 1306 631233 Fax: +44 (0) 1306 631834 e-mail: [email protected] SAR Test Report No: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix C Miscellaneous Page 5 of 9 5 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An HP 8753B vector network analyser was used for the return loss measurements. The dipole was placed in a special holder made of low-permittivity, low-loss materials. This holder enables the dipole to be positioned accurately in the centre of the base of the Indexsar box-phantom used for flat-surface testing and validation checks. The validation dipoles are supplied with special spacers made form a low-permittivity, low-loss foam material. These spacers are fitted to the dipole arms to ensure that, when the dipole is offered up to the phantom surface, the spacing between the dipole and the liquid surface is accurately aligned according to the guidance in the relevant standards documentation. The spacers are rectangular with a central hole equal to the dipole arm diameter and dimensioned so that the longer side can be used to ensure a spacing of 15mm from the liquid in the phantom (for tests at 900MHz and below) and the shorter side can be used for tests at 1800MHz and above to ensure a spacing of 10mm from the liquid in the phantom. The spacers are made on a CNC milling machine with an accuracy of 1/40 th mm but they may suffer wear and tear and need to be replaced periodically. The material used is Rohacell, which has a relative permittivity of approx. 1.05 and a negligible loss tangent. The apparatus supplied by Indexsar for dipole validation tests thus includes: Balanced dipoles for each frequency required are dimensioned according to the guidelines given in IEEE 1528 [1]. The dipoles are made from semi-rigid 50 ohm co-ax, which is joined by soldering and is gold-plated subsequently. The constructed dipoles are easily deformed, if mis-handled, and periodic checks need to be made of their symmetry. Rohacell foam spacers designed for presenting the dipoles to 2mm thick PMMA box phantoms. These components also suffer wear and tear and should be replaced when the central hole is a loose-fit on the dipole arms or if the edges are too worn to ensure accurate alignment. The standard spacers are dimensioned for use with 2mm wall thickness (additional spacers are available for 4mm wall thickness). SAR Test Report No: SAR_958_2005_FCC_2450_WLAN_147 Date of Report: 7/27/2005 Appendix C Miscellaneous Page 6 of 9 6 2. SAR Measurement SAR validation checks using the dipoles can be performed with the box-phantom located on the SARA2 phantom support base on the SARA2 robot system. Tests may be conducted at a feed power level of 0.25W. However, the actual power level should be recorded and used to normalise the results obtained…

Text truncated - open the document above for the full version.

Page 1 of 18 Report Number: INTEL-040412F FCC ID: PD9WM3B2915ABG Modular Approval Test Report And Application for Grant of Equipment Authorization Pertaining To: EUT FCC ID: Intel PRO/Wireless 2915ABG Network Connection, MN: WM3B2915ABG PD9WM3B2915ABG Configuration 802.11a / 802.11b / 802.11g with a set of Ethertronics Antennas MEASUREMENTS PERFORMED IN ACCORDANCE WITH Regulatory Standard(s) 47 CFR Part 15, Subpart C Section 15.247 Test Method: ANSI C63.4: 1992 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Certificate Number: 1111.01 APPLICANT: PREPARED BY: Intel Corporation Aegis Labs, Inc. EC2-02 13280 Evening Creek Drive 22431 Antonio Parkway B160-417 San Diego, California 92128 Rancho S. Margarita, CA 92688 Contact(s): Mr. Robert Paxman Agent(s): Mr. Steve Kuiper Mr. Rick Candelas Mr. Johnny Candelas Test Report #: INTEL-040412F APPENDICES REPORT BODY A TOTAL PAGES PAGES 18 73 91 Test Report Revision: None The contents of this report shall not be reproduced except in full, without the written approval of Aegis Labs, Inc. Page 2 of 18 Report Number: INTEL-040412F FCC ID: PD9WM3B2915ABG TABLE OF CONTENTS SECTION TITLE PAGE COVER SHEET.................................................................................... 01 TABLE OF CONTENTS............................................................................................... 02 1.0 CERTIFICATION OF TEST DATA............................................................................. 03 2.0 SUMMARY OF TEST RESULTS.............................................................. 06 3.0 ADMINISTRATIVE DATA AND TEST DESCRIPTION.......................................... 07 4.0 DESCRIPTION OF EUT..................................................................................... 08 4.1 EUT Description..................................................................................... 08 4.1.1 Channel Number and Frequencies................................................................ 09 4.2 EUT Configuration.................................................................................. 10 4.3 List o…
