Q2I19249Wireless Door Chime

Push Button Mounting Instructions NOTE: Avoid mounting on metal surfaces, as it may result in a reduce range of transmission. Do not mount in an area exposed to direct rain. Push buttons are typically mounted at the same height as the door knob or handle (between 36” and 44” above the floor). 1. Remove the front cover of the push button. (See Figure 1) 2. Before mounting, choose a mounting location that is no further than 150 feet from the chime unit location. Place the push button where you would like to mount and test with the chime as close to its final location as possible. If it works, continue with mounting the button. If it does not work, see TROUBLESHOOTING. 3. Drill two holes with 1/16”drill bit in the marked mounting hole locations. (See Figure 4) 4. With arrow on the back plate pointing up, secure the back plate to the mounting surface with the two 2x12mm screws included. 5. Press front housing onto back cover. 6. Test operation. If chime does not work, see TROUBLESHOOTING. Troubleshooting If the chime does not work: 1. Make sure push button switch is pressed down and held for at least 1 second. 2. Verify battery installation is correct, noting polarity. 3. Try a fresh battery in push button. 4. Make sure chime is no further than 150 feet away from push button. 5. Ensure push button is not mounted on metal, near metal studs, or near the floor. 6. Try a new location for the chime. Functional range may be adversely affected by one or more of the following factors: weather, radio frequency interference, low transmitter battery and obstructions between the transmitter and receiver. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage to try to correct the interference by one or more of the following measur es: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Made in China - Hecho en China Shunde Advante Electron Ltd. Wireless Door Chime Installation Instructions Required Tools: small flat blade screwdriver and 1/16” The wireless door chime kit has two components: Installing battery in push button 1. Remove the front cover of the push button housing by pushing a flat blade screwdrivier into the slot at the bottom of the transmitter. (See Figure 1) 2. Install the CR2032 battery (included) with the positive side up. 3. Keep the front cover off the push button until melody selection is complete. Pairing the transmitter to receiver NOTE- the chime and receiver come paired in the package. Once battery is installed in the push button and chime is plugged in, press the button to ensure the chime sounds. IF CHIME DOES NOT SOUND, FOLLOW DIRECTIONS BELOW TO PAIR THE TRANSMITTER TO RECEIVER. 1. To clear settings: Press and hold the Pairing button on the bottom of the chime while plugging the chime into the outlet. 2. Once chime is plugged in, release the Pairing button. 3. Press and hold the Pairing button again. You will hear the “Ding Dong” melody twice, and then the double beep to alert you the chime is ready to pair with the push button. Release the Pairing button. 4. Press the push button and you will hear one beep letting you know the chime accepted the signal. 5. Wait 10 seconds and you will hear the double beep again to alert you the chime is now paired with the push button. 6. Press the push button to test. Melody Selection Setting The chime has 8 different melodies. Select the melody by pushing the Melody Selection Button located inside the push button housing (See Figure 1). Press and release the button until you hear the desired melody. Table 1 shows the order the melodies will be heard. The last melody played will be your selected chime melody. Table 1 1 Dingdong 2 Westmister 3 Knocks (3 times) 4 Fanfare 5 Mozart 6 Good Vibes 7 Patriotic 8 Tango 19249 12/17/2012 Push-Button (Transmitter) Figure 1 Receiver Figure 1 Mounting hole locations Battery compartment Melody selection button Push button Figure 4 Push button Mounting hole locations Batter y compar tment Melody selection button Push button Use flat screw driver to push the hole, to open the cover Figure 3 Push button Mounting hole locations Battery compartment Melody selection button Push button Use flat screw driver to push the hole, to open the cover Warning: Changes or modifications to this unit not expressly approved by the part responsible Volume Pairing for compliance could void the user's authority to operate the equipment.

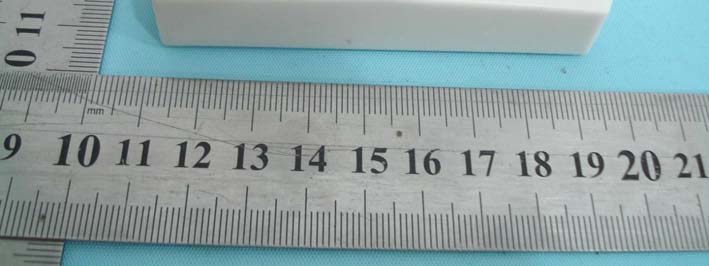

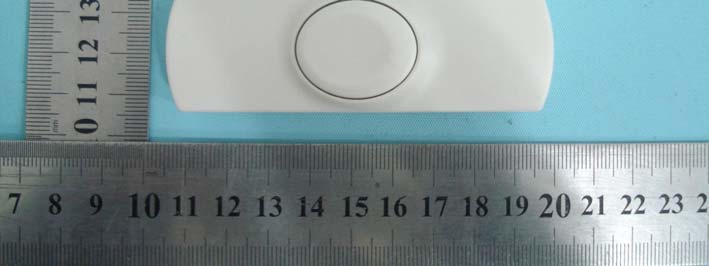

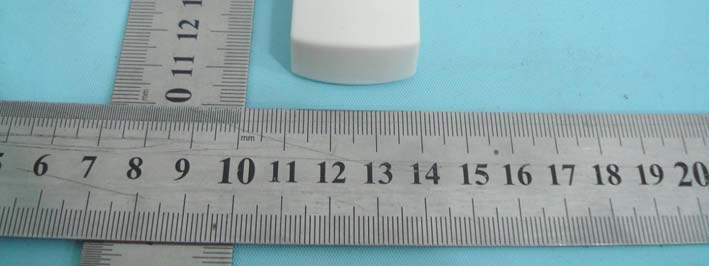

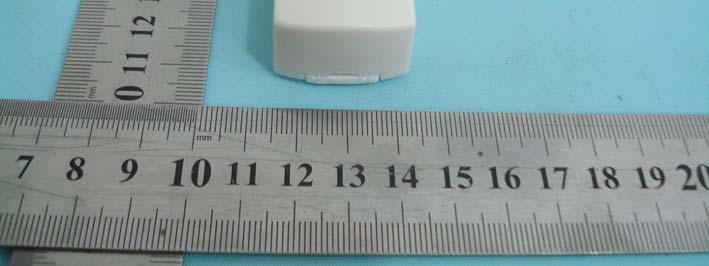

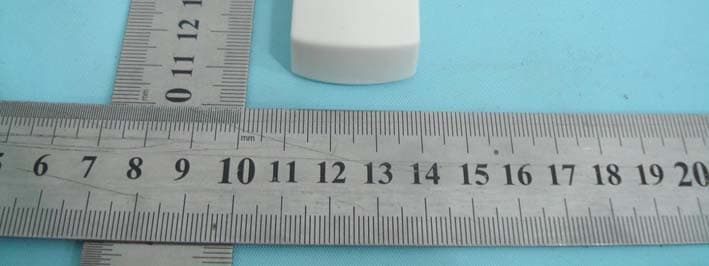

DONGGUAN NTC CO., LTD. FCC ID: Q2I19249 Report No.:NTC1212199F DONGGUAN NTC CO., LTD. FCC ID: Q2I19249 Report No.:NTC1212199F DONGGUAN NTC CO., LTD. FCC ID: Q2I19249 Report No.:NTC1212199F

DONGGUAN NTC CO., LTD. FCC ID: Q2I19249 Report No.:NTC1212199F Size: 40 *20 mm Black text on white sticker 19301 Q2 DONGGUAN NTC CO., LTD. FCC ID: Q2I19249 Report No.:NTC1212199F FCC ID Label Location

DONGGUAN NTC CO., LTD. FCC ID: Q2I19249 Report No.:NTC1212199F DONGGUAN NTC CO., LTD. FCC ID: Q2I19249 Report No.:NTC1212199F RF Chip Antenna

DONGGUAN NTC CO., LTD. Report No.: NTC1212199F FCC ID: Q2I19249 Page 1 of 19 FCC PART 15 SUBPART C MEASURMENT AND TEST REPORT For Shunde Advante Electron Ltd. North Second XinXi Road, LunJiao Industrial Avenue LunJiao, Shunde, Foshan, Guangdong, China E.U.T.: Wireless Door Chime Model Name: 19249, 19301, Q2 Brand Name: N/A FCC ID: Q2I19249 Report Number: NTC1212199F Test Date(s): January 10, 2013 to January 22, 2013 Report Date(s): January 28, 2013 Prepared by Dongguan NTC Co., Ltd. Building D, Gaosheng Science and Technology Park, Hongtu Road, Nancheng District, Dongguan City, Guangdong Province, China Tel: +86-769-22022444 Fax: +86-769-22022799 Prepared By Approved & Authorized Signer Rose Hu / Engineer Sunm Lv / Q.A. Director Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Dongguan NTC Co., Ltd. The test results referenced from this report are relevant only to the sample tested. DONGGUAN NTC CO., LTD. Report No.: NTC1212199F FCC ID: Q2I19249 Page 2 of 19 Table of Contents 1. GENERAL INFORMATION ................................................................................................ 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST................................................................ 3 1.2 RELATED SUBMITTAL(S) / GRANT (S) ............................................................................................ 4 1.3 TEST METHODOLOGY................................................................................................................... 4 1.4 EQUIPMENT MODIFICATIONS........................................................................................................ 4 1.5 SUPPORT DEVICE........................................................................................................................ 4 1.6 TEST FACILITY AND LOCATION...................................................................................................... 4 1.7 SUMMARY OF TEST RESULTS....................................................................................................... 5 2. RADIATED EMISSION TEST............................................................................................. 6 2.1 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 6 2.2 MEASUREMENT PROCEDURE........................................................................................................ 7 2.3 LIMIT............................................................................................................................................ 8 2.4 MEASUREMENT RESULTS ....................................................................................................... 9 3. OCCUPIED BANDWIDTH ................................................................................................ 14 3.1 MEASUREMENT PROCEDURE..................................................................................................... 14 3.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 14 3.3 LIMIT.......................................................................................................................................... 14 3.4 MEASUREMENT RESULTS........................................................................................................... 14 4. TRANSMISSION TIME..................................................................................................... 16 4.1 MEASUREMENT PROCEDURE..................................................................................................... 16 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 16 4.3 LIMIT.......................................................................................................................................... 16 4.4 MEASUREMENT RESULTS........................................................................................................... 16 5. ANTENNA APPLICATION ............................................................................................... 18 5.1 ANTENNA REQUIREMENT.............................................................................................................. 18 5.2 MEASUREMENT RESULTS............................................................................................................. 18 6. TEST EQUIPMENT LIST.................................................................................................. 19 DONGGUAN NTC CO., LTD. Report No.: NTC1212199F FCC ID: Q2I19249 Page 3 of 19 1. GENERAL INFORMATION 1.1 Product Description for Equipment under Test The Shunde Advante Electron Ltd.’s product, model name: 19249 is a transmission system for wireless door chime. It’s powered by internal coin battery 3V. For more details features, please refer to User’s Manual. Manufacturer : Shunde Advante Electron Ltd. Address : North Second XinXi Road, LunJiao Industrial Avenue LunJiao, Shunde, Foshan, Guangdong, China Frequency: : 433.92MHz (±0.5MHz) Modulation : ASK Antenna Type : Integral Antenna Gain : 0.3 dBi Number of Channels : 1 Power supply : DC 3V Coin battery Model name : 19249, 19301, Q2 Note: : These models are the same except shell and 19249 has the Dial switch on the basis of 19301,Q2. DONGGUAN NTC CO., LTD. Report No.: NTC1212199F FCC ID: Q2I19249 Page 4 of 19 1.2 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: Q2I19249 filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rule. 1.3 Test Methodology The radiated emission measurements was performed according to the procedures in ANSI C63.4 (2003). Radiated emission measurement was performed in semi-anechoic chamber. For radiated emission measurement, preliminary scans were performed in the semi-anechoic chamber only to determine the worst case…

Text truncated - open the document above for the full version.

DONGGUAN NTC CO., LTD. FCC ID: Q2I19249 Report No.:NTC1212199F Radiated Emission
