Q2I2019FEKinetic Wireless Doorbell

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is —Consult the dealer or an experienced radio/TV technician for help.

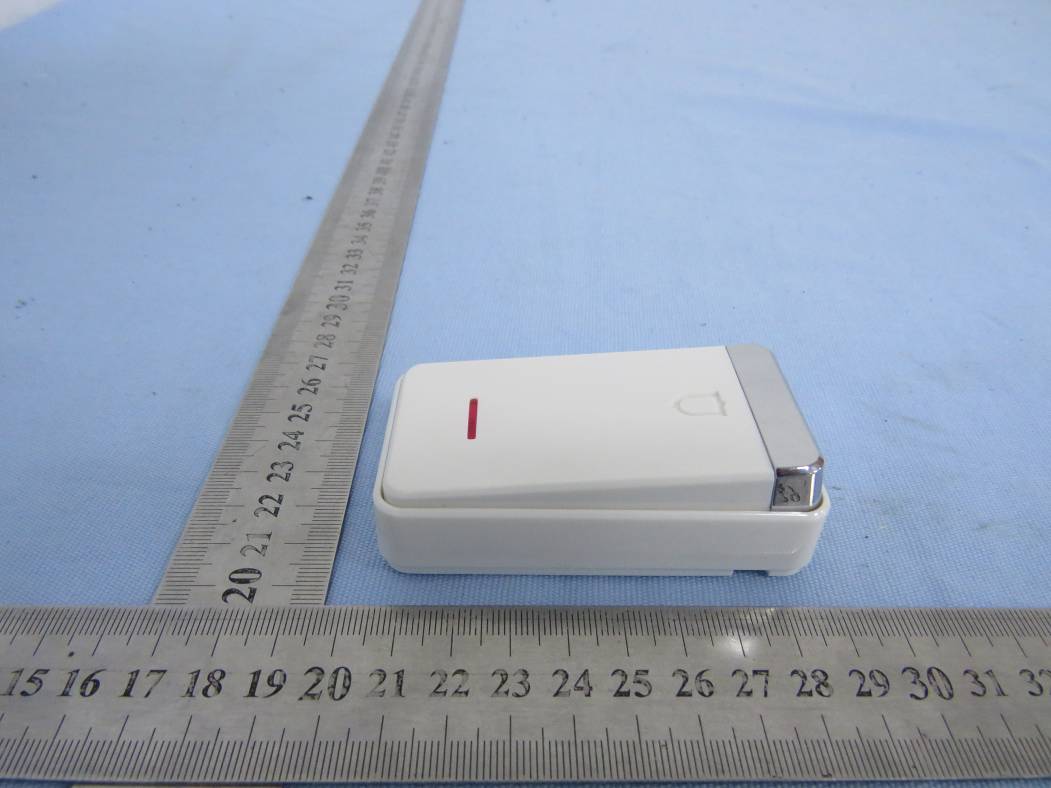

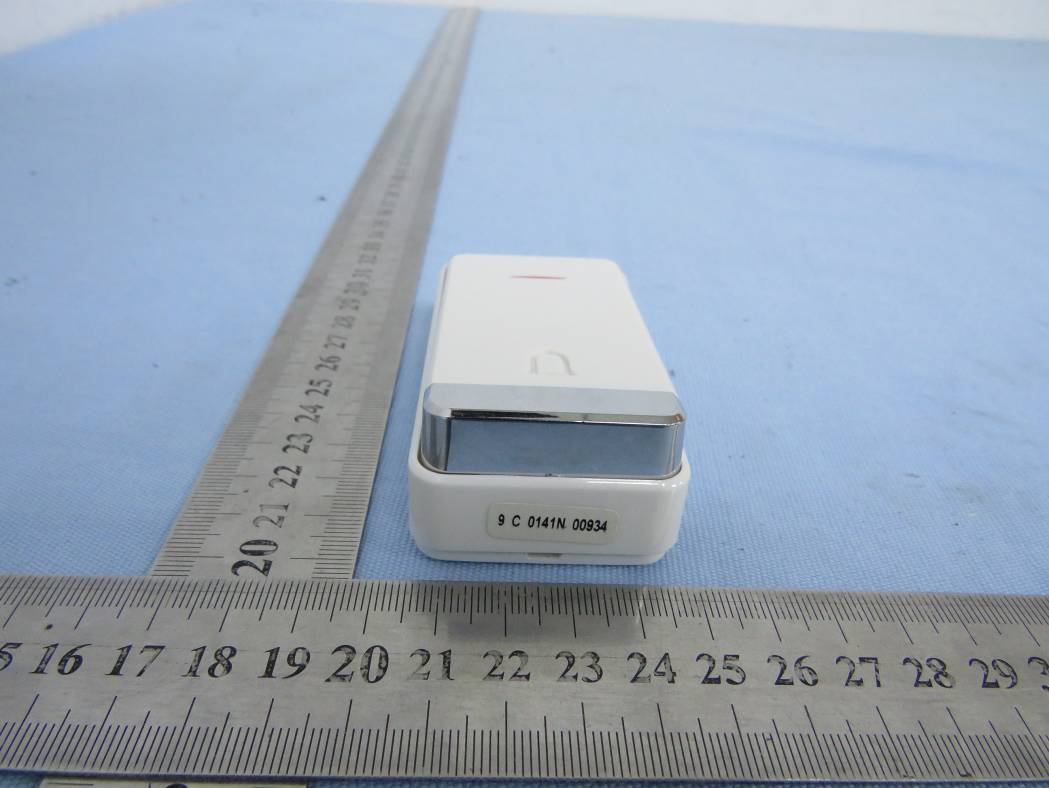

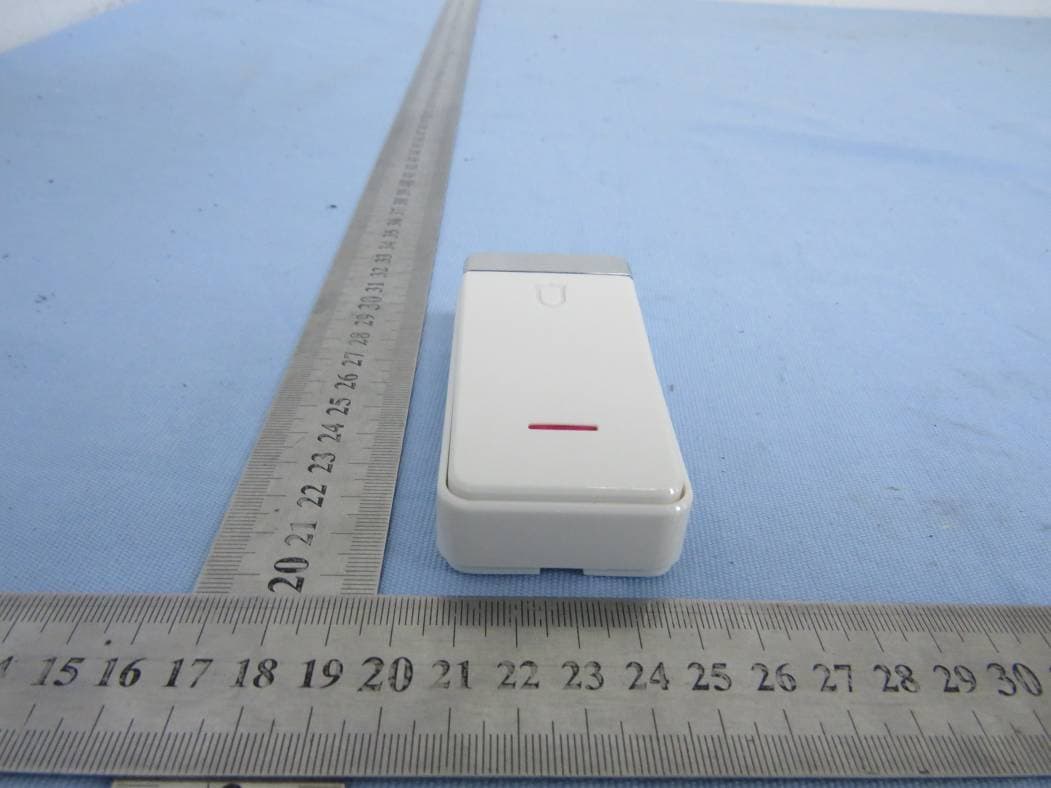

External photo FCC ID: Q2I2019FE FCC ID: Q2I2019FE

FCC ID: Q2I2019FE Label Location

Internal photo RF Antenna FCC ID: Q2I2019FE RF Chip FCC ID: Q2I2019FE

ShundeAdvanteElectronLtd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:FE,FA,FB,FNB FCCID:Q2I2019FE fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforIntegralantennatype(s) describedbelow: ModelNo.ofantenna:Ant Typeofantenna:Integralantenna Gainoftheantenna:0dBi Frequencyrange:433.92MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ShundeAdvanteElectronLtd. Address: NorthSecondXinXiRoad,LunJiaoIndustrialAvenue,LunJiao City:Shunde,Foshan,Guangdong ZIP/Postalcode: Country: China Place: Steven Date: 2019-12-31 Signature:

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1909016F-1 FCC ID: Q2I2019FE RF EXPOSURE EVALUATION EUT Specification EUT Kinetic Wireless Doorbell Model Name FE, FA, FB, FNB Frequency band WLAN: 2.412GHz ~ 2.462GHz (Operating) WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others(433.92MHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 75.45dBuV/m (-19.81dBm)( 0.01mW) Antenna gain 0dBi Evaluation applied MPE Evaluation SAR Evaluation Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1909016F-1 FCC ID: Q2I2019FE Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Measurement Result Channel Max Output Max Output Calculation Threshold Frequency power (dBm) power (mW) Value (Note 1) Value (MHz) 433.92 -19.81 0.01 0.0014 3.0 EIRP=E-104.8+20logD=75.45-104.8+20log3=-19.81dBm Note 1: Calculation Value =[(max. power of channel, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 0.01/5*√0.43392=0.0014≤ 3.0 According to KDB447498 D01 V05, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required. The SAR measurement is not necessary.

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1909016FV00 FCC ID: Q2I2019FE Page 2 of 24 Table of Contents 1. GENERAL INFORMATION ................................................................................................ 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST .................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................ 6 1.3 TEST METHODOLOGY ....................................................................................................................... 6 1.4 EQUIPMENT MODIFICATIONS ............................................................................................................ 6 1.5 SUPPORT DEVICE ............................................................................................................................ 6 1.6 TEST FACILITY AND LOCATION .......................................................................................................... 7 1.7 SUMMARY OF TEST RESULTS ........................................................................................................... 8 1.8 DEVIATIONS AND ABNORMALITIES FROM STANDARD CONDITIONS ..................................................... 8 2. RADIATED EMISSION TEST ............................................................................................. 9 2.1 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................................... 9 2.2 MEASUREMENT PROCEDURE ......................................................................................................... 10 2.3 LIMIT .............................................................................................................................................. 11 2.4 MEASUREMENT RESULTS ..................................................................................................... 12 3. OCCUPIED BANDWIDTH ................................................................................................ 19 3.1 MEASUREMENT PROCEDURE ......................................................................................................... 19 3.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 19 3.3 LIMIT .............................................................................................................................................. 19 3.4 MEASUREMENT RESULTS ............................................................................................................... 19 4 TRANSMISSION TIME ...................................................................................................... 21 4.1 MEASUREMENT PROCEDURE ......................................................................................................... 21 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 21 4.3 LIMIT .............................................................................................................................................. 21 4.4 MEASUREMENT RESULTS ............................................................................................................... 21 5. ANTENNA APPLICATION ............................................................................................... 23 5.1 ANTENNA REQUIREMENT ................................................................................................................ 23 5.2 MEASUREMENT RESULTS ............................................................................................................... 23 6. TEST EQUIPMENT LIST .................................................................................................. 24 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1909016FV00 FCC ID: Q2I2019FE Page 3 of 24 Revision History of This Test Report Report Number Description Issued Date NTC1909016FV00 Initial Issue 2019-12-30 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1909016FV00 FCC ID: Q2I2019FE Page 4 of 24 1. GENERAL INFORMATION 1.1 Product Description for Equipment under Test E.U.T. : Kinetic Wireless Doorbell Main Model Name : FE Additional Model name : FA, FB, FNB Rating : DC 3.0V(by kinetic bell push button) Adapter : N/A Test Voltage : DC 3.0V Cable : N/A I/O Port : N/A Hardware version : V1.0 Software version : V1.0 Description of model difference : These models have the same circuitry, electrical mechanical, PCB layout and physical construction. The differences in model number and color of appearance due to trading purpose. Note : N/A Remark : According these model difference, all tests were carried on model FE . Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1909016FV00 FCC ID: Q2I2019FE Page 5 of 24 Technical parameters Declaring the Frequency: : 433.92MHz Modulation : FSK Antenna Type : Integral Antenna Antenna Gain : 0dBi Channelized system/ Non-channelized system : Non-channelized system Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1909016FV00 FCC ID: Q2I2019FE Page 6 of 24 1.2 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: Q2I2019FE filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rule. 1.3 Test Methodology The radiated emission measurement was performed according to the procedures in ANSI C63.10 (2013). Radiated emission measurement was performed in semi-anechoic chamber. For radiated emission measurement, preliminary scans were performed in the semi-anechoic chamber only to determine the worst case modes. All radiated tests were performed at an antenna to EUT distance of 3 meters. 1.4 Equipment Modifications Not available for this EUT intended for grant. 1.5 Support Device None Dongguan Nore Testing Center Co., Ltd. Report No.: NTC1909016FV00 FCC ID: Q2I2019FE Page 7 of 24 1.6 Test Facility and Location Site Description EM…

Text truncated - open the document above for the full version.

Test photo Radiated emission Below 30MHz 30MHz-1GHz FCC ID: Q2I2019FE Above 1GHz FCC ID: Q2I2019FE
