Q2L-01010100Bluetooth GPS

GS-301 Bluetooth GPS receiver User Guide GS-301 Bluetooth GPS User Guide By John Hsu 2004.08.18 2 TABLE OF CONTENTS 1. Introduction .......................................................................... 3 2. Packing ................................................................................ 3 3. Feature ................................................................................ 3 4. Specification .......................................................................... 4 5. Getting Start .......................................................................... 7 6. Hardware.... .......................................................................... 7 6.1Dimension ...........................................................................9 6.2LED Status ......................................................................... 9 6.3External Antenna .................................................................10 7. Bluetooth Connection................................................................11 8. FQA ...... ............................................................................. 14 9. Warranty .............................................................................. 14 10. Declaration ........................................................................ 15 GS-301 Bluetooth GPS User Guide By John Hsu 2004.08.18 3 1. Introduction TheGS-301 Bluetooth GPS Receiver is a total solution GPS receiver with Bluetooth, UART interface and built-in rechargeable battery for high sensitivity to tracking signal. GS-301 design is based on Panasonic module with low power consumption. This positioning application meets strict needs such as car navigation, mapping, surveying, security, agriculture and so on. Only clear view of sky and certain power supply are necessary to the unit, GS-301 contacts to other device through Bluetooth device, and built-in recharge battery to save satellite information such as the status of satellite signal, the last location, date and time of last use. With low power consumption, the GS-301 tracks up to 12 satellites at a time, re-acquires satellite signals in 100 ms and updates position data every second, Trickle-Power allows the unit operates a fraction of the time and Push-to Fix permits user to have a quick position fix even though the receiver usually stays off. 2. Packing Great appreciate on your purchase of the GS-301 Bluetooth GPS Receiver. We hope it will be useful to you for a long time. Before you begin, make sure that your package includes the following item. If any of these items are missing, please contact your dealer or distributor. zGS-301 Bluetooth GPS receiver 1 Set zUser Manual CD 1 Set zGS-301 Quick guide 1 Set zWarranty card 1 Set GS-301 Bluetooth GPS User Guide By John Hsu 2004.08.18 4 3. Features: zBuilds on Panasonic module. z12 parallel satellite-tracking channels for fast acquisition and reacquisition. zBuild – in auto switch antenna, reduce internal interference. zHigh speed signal acquisition using 1920 time/frequency search channels. zSupport NMEA0183 V3.0 data protocol zCompatible with Bluetooth Serial Port Profile (SPP) completely zLow power consumption with Lithium-Polymer (750mA) inside, make GS-301 continual work up to 8 Hr. zBuilt-in rechargeable battery for memory and RTC backup and for fast Time to First Fix(TTFF) z4 colors LED to show the status of device. zActive antenna connector for better satellites signal reception zEnhanced algorithms provide superior navigation performance in urban, canyon and foliage environments. zFor Car Navigation, Marine navigation, Fleet Management, AVL and Location-Based Services, Auto Pilot, Personal Navigation or touring devices, Tracking devices/systems and Mapping devices application. 4. Specification 4.1. Specification zChipset : Panasonic Module zChannels : 12 parallel satellite0tracking channels. zFrequency : 1575.42 MHZ. zReceiver : L1,C/A code. zUpdate rate: 1 Hz 4.2. Acquisition Time (averaged) zReacquisition : 0.1 sec. zSnap start : < 3 seconds (at <25 minutes off period) zCold start : <45 seconds. zWarm start : < 35 seconds. zHot start : <8 second. zUpdate rate : 1 second continuously. 4.3. Position accuracy: zNon DGPS (Differential GPS) Position 5-25 m CEP without SA GS-301 Bluetooth GPS User Guide By John Hsu 2004.08.18 5 Velocity 0.1 m/sec, without SA Time 1 sec sync GPS Time 4.4. Dynamic Conditions: zVelocity 300Km / H MAX zAcceleration 5m/s, MAX 4.5. Power Supply zExternal Voltage : 5VDC +/- 10% zBatteries: Main Power : Built-in rechargeable Lithium-Polymer (750mA) for system power. Backup Power : Rechargeable Lithium-ion battery for memory & RTC backup. zWorking period(In Battery full power status): > 8 hours on Continue mode. 4.5. Output and Interface zOutput Output protocol Baud Rate : 4800 bps Data bit : 8 Parity : No Stop bit : 1 Format NMEA0183 V3.0 : GPGGA(1 tima/1 sec),GPGSA(1 time/1 sec),GPGSV(1 time/5 sec), GPRMC(1 time/1 sec), Datum : WGS84. zInput/ Output Interface: Compatible Bluetooth Serial Port Profile (SPP), Version 1.1 and class 2(up to 10 meter range). zInternal Antenna interface: Build-in patch antenna with auto switch function Noise figure: 1.6 dB (typical) Gain: 29 dBi (typical) Lowest signal: -175 Dbw zExternal Antenna interface: 3.0 V input MCX type active antenna connector. 4.7. Physical zSize : 74 x 45 x 23 mm zWeight : < 55 g zOperating Temperature : -10 0 C to + 60 0 C zStorage Temperature : -20 0 C to + 85 0 C zOperating humidity : 5% to 95% No condensing. 4.8. Other Functions 6.Bluetooth frequency : 2.4~2.48GHZ GS-301 Bluetooth GPS User Guide By John Hsu 2004.08.18 6 7.Bluetooth Input Sensitivity : -80dbm. 8.Low sensitivity of receiving satellite signal : -175dBW. 9.LED Functions : Indicate Bluetooth status, GPS status, Battery Status and Battery charging status. GS-301 Bluetooth GPS User Guide By John Hsu 2004.08.18 7 5.Getting Start Step 1. Battery Charging Please charge battery till LED off for the first time. Power cable…

Text truncated - open the document above for the full version.

1 Helen Zhao Subject:FW: ??: FW: Chih-Kan Technology Co., Ltd., FCC ID: Q2L-01010100, Assessment NO.: AN04T4320, Notice#1 GS-301 UserMan revised 1115.pd... GS-301 TestRpt revised 1112.pd... -----Original Message----- From: [email protected] [mailto:[email protected]]On Behalf Of [email protected] Sent: Monday, November 15, 2004 5:23 PM To: Helen Zhao Cc: Application (CCS TW) (E-mail) Subject: ??: FW: Chih-Kan Technology Co., Ltd., FCC ID: Q2L-01010100, Assessment NO.: AN04T4320, Notice#1 Hi Helen, Please refer to the below for details. Best Regards, Ting -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Thursday, November 11, 2004 3:06 PM To: Helen Zhao Subject: Chih-Kan Technology Co., Ltd., FCC ID: Q2L-01010100, Assessment NO.: AN04T4320, Notice#1 Question #1: The user manual indicated that an AC multi-power adaptor will be provided to the end-user, and page 9 shows the port of DC power Jack on the device. Please provide external photos of the AC multi-power adaptor and resubmit the power line conducted emission test data when the AC multi-power adaptor is used. Ans. As manual page7 indicated, it's a DC jacket but it uses a USB cable to contact to PC or Notebook for charging but not a AC power adapter. Please refer to page 1 of external photos for the USB cable. Besides, we have performed AC Line conduction test to verify when the BT GPS connects to the host for charging as indicated in the test report. Question #2: The user manual mentioned internal antenna with 29dBi gain and external antenna(not specifying gain), never mentioned ceramic antenna with 4.0 dBi gain. The antenna specification and test report indicates a 4.0 dBi gain ceramic antenna was used. Please specify which antenna(s) will be used for GPS function, which antenna will be used for Bluetooth function. Please also indicate clearly on the internal photos to show antenna locations. For your information, GPS receiver is not subject to FCC certification. Ans. The internal antenna of 29dBi gain is for GPS itself not BT. BT spec. is indicated in the section 4.8 of page 5 of user manual. As for the antenna BT used, it uses a Ceramic Chip Antenna as indicated on the upper 2 photo of page 2 of internal photos with part no."4" on it. Question #3: Page 3 of the user manual mentioned GR-230, please explain what is the relationship between GR-230 and GS-301. Ans. Please refer to the revised user manual as attached. (See attached file: GS-301 UserMan revised 1115.pdf) Question #4: Section 7.7 checked Mobile device but stated: "SAR evaluation is not required for the PORTABLE device while its maximum output power is lower than the general population low threshold: 60/f(GHz)=60/2.441=24.58mW)". Please note the statement itself is correct, but this is not the case. Since this device is considered as mobile device, MPE calculation is required. Ans. Please refer to attached for the revised test report. (See attached file: GS-301 TestRpt revised 1112.pdf) Question #5: The same page of section 7.7 RF Exposure lists frequency range of "2402-2480GHz", please correct. You may need to revise "WLAN: 5.745GHz ~ 5825GHz" as well. Ans. Please refer to attached for the revised test report. Question #6: This is for your information. Bluetooth device can certified as "DTS -Digital Transmission System" if tested according to DTS requirements, or "DSS-Spread spectrum devices" if tested according to FHSS requirements. Almost all CCS TW tested Bluetooth devices based on FHSS requirement, the proper Equipment of Class should be "DSS" instead of "DTS". Best regards, Helen Zhao

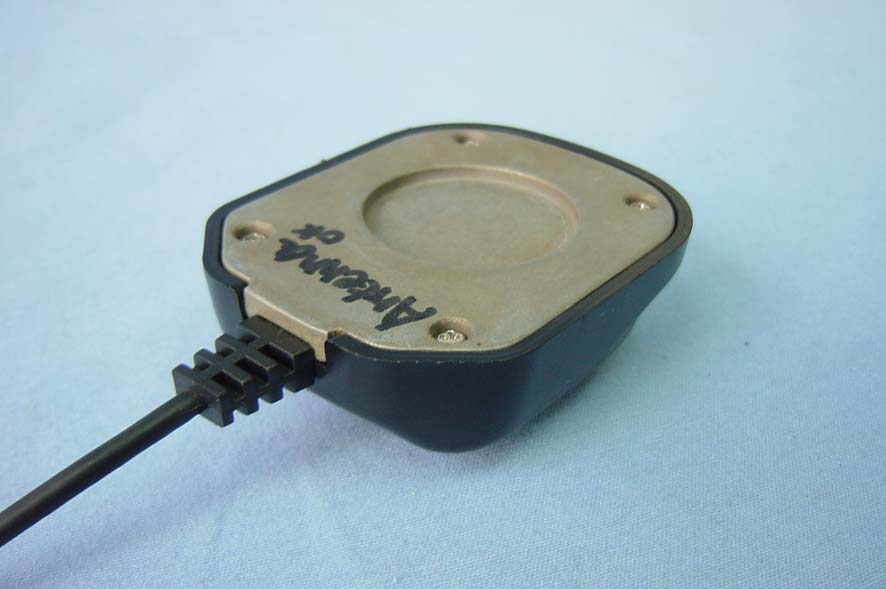

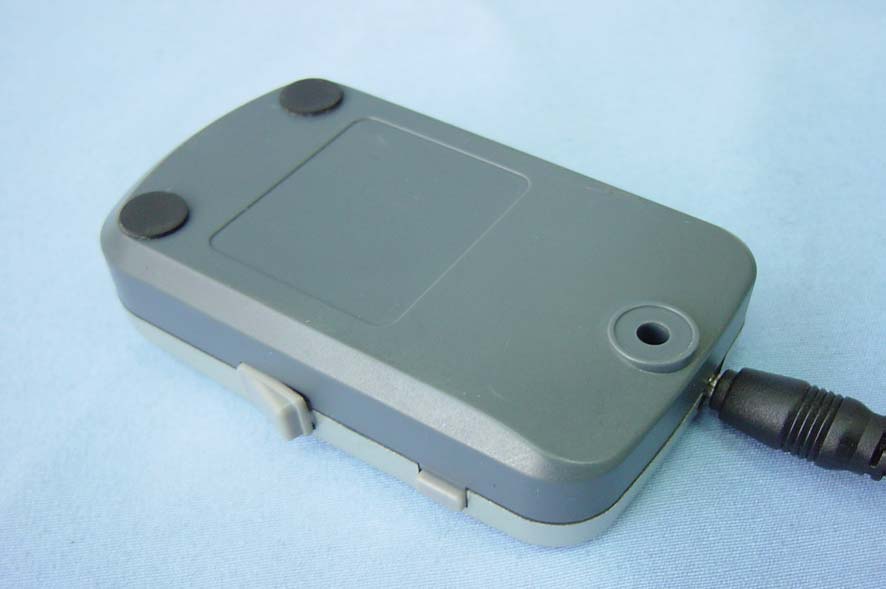

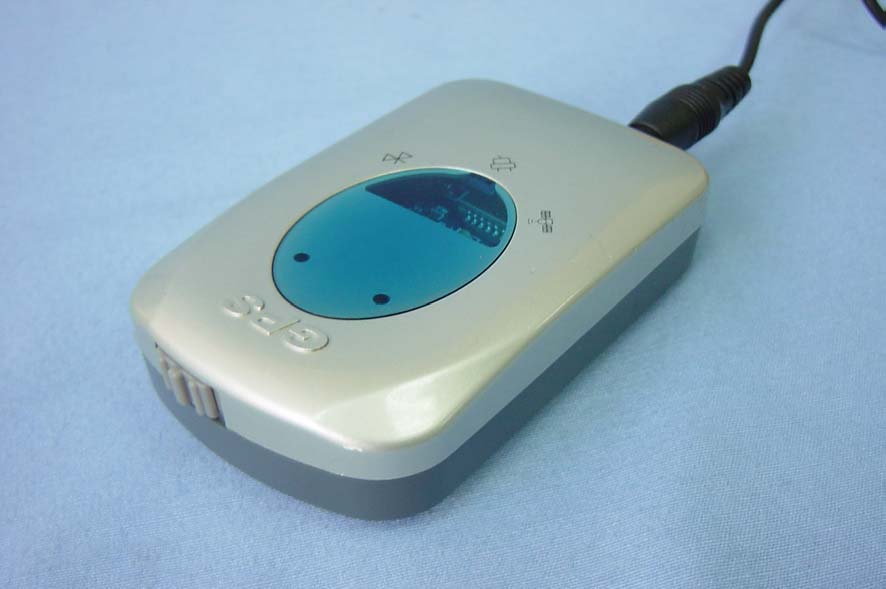

Compliance Certification Services Inc. Report No: 40716001 Date of Issue: November 03, 2004 Page 1 of 5 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: 40716001 Date of Issue: November 03, 2004 Page 2

Chih Kan Bluetooth GPS Receiver MODEL: GS-301 FCC ID: Q2L-01010100 S/N: 4GXXXX MADE IN TAIWAN

Compliance Certification Services Inc. Report No: 40716001 Date of Issue: November 03, 2004 Page 3 INTERNAL PHOTOGARPHS OF EUT Compliance Certification Services Inc. Report No: 40716001 Date of Issue: November 03, 2004 Page 4 Compliance Certification Services Inc. Report No: 40716001 Date of Issue: November 03, 2004 Page 5

SPECIFICATION FOR APPROVAL Customer Part No. Commodity Type / Model Approval Signatures Date Please return one copy with your approval : 30129 TEL: 03-5992646 FAX: 03-5905194 : R&D Print date 03/08/05 Preliminary use only 2003-06-23 5320 Ceramic Chip Antenna for WLAN & Bluetooth Application 4311 1xx 00245 AN2450000753201B TW/Mars 2003-06- 23 Page 1 sheet 190-1 A4 spec.doc Phycomp Taiwan Ltd. 5320 Ceramic Chip Antenna for IEEE 802.11 b/g Bluetooth Application ANTENNA PRODUCTS R&D Print date 03/08/05 Preliminary use only 2003-06-23 5320 Ceramic Chip Antenna for WLAN & Bluetooth Application 4311 1xx 00245 AN2450000753201B TW/Mars 2003-06- 23 Page 2 sheet 190-2 A4 spec.doc Phycomp Taiwan Ltd. 5320 Ceramic Chip Antenna for IEEE802.11 b/g Bluetooth Application Product Specification Quick Reference Data Central Frequency 2.45GHz* Bandwidth at least 200 MHz* VSWR 2.0 (Max.)* Polarization Linear Azimuth Beamwidth Omni-directional Peak Gain 4.0 dBi* Impedance 50O Operating Temperature -55~125 o C Termination Ni / Sn (Environmentally-Friendly Leadless) Resistance to soldering heats 260 , 10sec. Maximum Power 1W 1 All the technical data and information contained herein are subject to change without prior notice 2 Testing under evaluation board of page2 1. Mechanical Data (5.3 x 2.0 x 1.3 mm) R&D Print date 03/08/05 Preliminary use only 2003-06-23 5320 Ceramic Chip Antenna for WLAN & Bluetooth Application 4311 1xx 00245 AN2450000753201B TW/Mars 2003-06- 23 Page 3 sheet 190-3 A4 spec.doc Phycomp Taiwan Ltd. Unit: mm 2. Evaluation Board Dimension and Outlook Unit: mm R&D Print date 03/08/05 Preliminary use only 2003-06-23 5320 Ceramic Chip Antenna for WLAN & Bluetooth Application 4311 1xx 00245 AN2450000753201B TW/Mars 2003-06- 23 Page 4 sheet 190-4 A4 spec.doc Phycomp Taiwan Ltd. 3. Soldering Pads Dimension 4. Return Loss R&D Print date 03/08/05 Preliminary use only 2003-06-23 5320 Ceramic Chip Antenna for WLAN & Bluetooth Application 4311 1xx 00245 AN2450000753201B TW/Mars 2003-06- 23 Page 5 sheet 190-5 A4 spec.doc Phycomp Taiwan Ltd. 5. The Definition of X-Y-Z Plane and Angle R&D Print date 03/08/05 Preliminary use only 2003-06-23 5320 Ceramic Chip Antenna for WLAN & Bluetooth Application 4311 1xx 00245 AN2450000753201B TW/Mars 2003-06- 23 Page 6 sheet 190-6 A4 spec.doc Phycomp Taiwan Ltd. R&D Print date 03/08/05 Preliminary use only 2003-06-23 5320 Ceramic Chip Antenna for WLAN & Bluetooth Application 4311 1xx 00245 AN2450000753201B TW/Mars 2003-06- 23 Page 7 sheet 190-7 A4 spec.doc Phycomp Taiwan Ltd. 6. The Environment of Antenna Radiation Pattern Anechoic Chamber Dimension=10(m) 6(m) 6(m) R&D Print date 03/08/05 Preliminary use only 2003-06-23 5320 Ceramic Chip Antenna for WLAN & Bluetooth Application 4311 1xx 00245 AN2450000753201B TW/Mars 2003-06- 23 Page 8 sheet 190-8 A4 spec.doc Phycomp Taiwan Ltd. -270 -225 -180 -135 -90 -45 0 45 -10 -10 -20 -20 -30 -30-40 -270 -225 -180 -135 -90 -45 0 45 -10 -10 -20 -20 -30 -30-40 -270 -225 -180 -135 -90 -45 0 45 -10 -10 -20 -20 -30 -30-40 7. Radiation Pattern XY Plane(dBi) XZ Plane(dBi) YZ Plane(dBi) Vertical Pol. (max)= -3.8 Vertical Pol. (max)= 2.6 Vertical Pol. (max)= -1.8 Vertical Pol. (avg)= -8.4 Vertical Pol. (avg)= -1.6 Vertical Pol. (avg)= -9.7 Horizontal Pol.(max)= 4.0 Horizontal Pol. (max)= -1.9 Horizontal Pol. (max)= 2.7 Horizontal Pol. (avg)= -2.2 Horizontal Pol. (avg)= -8.4 Horizontal Pol. (avg)= -2.1 Total Gain (max)= 4.0 Total Gain (max)= 2.7 Total Gain (max)= 2.7 Total Gain (avg)= -1.9 Total Gain (avg)= -1.3 Total Gain (avg)= -1.9 R&D Print date 03/08/05 Preliminary use only 2003-06-23 5320 Ceramic Chip Antenna for WLAN & Bluetooth Application 4311 1xx 00245 AN2450000753201B TW/Mars 2003-06- 23 Page 9 sheet 190-9 A4 spec.doc Phycomp Taiwan Ltd. Ordering Information: Method-I by 12NC Ordering Code The antennas may be ordered by using the 12 NC ordering code. These code numbers can be determined by the following rules: 43 11 1 xx 00 245 F C M S T A F. Family Code 43 = Antenna C. Packing Type Code 11 = bulk packaging, 1000 pcs M. Materials Code 1 = High Frequency Material S. Size Code xx = 5.3 * 2.0 *1.3 mm 3 T. Tolerance 00 = at least 200 MHz Impedance Bandwidth A. Working Frequency 245 = 2.45 GHz Example: 12NC 4311 1xx 00245 Product description: Antenna (43) by 1000 pcs bulk (11) of High Frequency Material (1), Size 5.3 * 2.0 *1.3 mm 3 (xx); Tolerance (00) of 200MHz Impedance Bandwidth (VSWR<2) Working Frequency (245) = 2.45G Hz Ordering Information: Method II- by Clear Text Code The antennas may be ordered by using the 16-digit clear text ordering code. These code numbers can be determined by the following rules: AN2450000753201B (Clear Text Code Example) AN 2450 00 07 5320 1 B Product Central Freq. Bandwidth Material Size Quantities Packing AN= Antenna 2450=2.45GHz 00=200MH z 07=K7 5320=5.3*2.0*1.3 mm 1 = 1K B = Bulk R&D Print date 03/08/05 Preliminary use only 2003-06-23 5320 Ceramic Chip Antenna for WLAN & Bluetooth Application 4311 1xx 00245 AN2450000753201B TW/Mars 2003-06- 23 Page 10 sheet 190- 10 A4 spec.doc Phycomp Taiwan Ltd. Revision Control: Revision Date Content Remark Jun. 23, 2003 New Issued

Compliance Certification Services Inc. Report No.: 40716001-RP1 FCC ID: Q2L-01010100 Date of Issue: November 03, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 50 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Chih-Kan Technology Co., Ltd. Bluetooth GPS Model: GS-301 Trade Name: Chih-Kan Issued to Chih-Kan Technology Co., Ltd. 10F, No. 166, Da-Yieh RD. Pei-Tou, 112 Taipei, Taiwan, R.O.C Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 40716001-RP1 FCC ID: Q2L-01010100 Date of Issue: November 03, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES ........ ...............................................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 PEAK POWER....................................................................................................................................11 7.2 BAND EDGES MEASUREMENT ................................................................................................12 7.3 PEAK POWER SPECTRAL DENSITY....................................................................................................17 7.4 FREQUENCY SEPARATION.......................................................................................................20 7.5 NUMBER OF HOPPING FREQUENCY ......................................................................................22 7.6 TIME OF OCCUPANCY (DWELL TIME)...................................................................................24 7.7 RADIO FREQUENCY EXPOSURE........................................................................................................31 7.8 SPURIOUS EMISSIONS ................................................................................................................34 7.9 POWERLINE CONDUCTED EMISSIONS...............................................................................................46 APPENDIX 1 PHOTOGRPHS OF TEST SETUP .................................................................................49 Compliance Certification Services Inc. Report No.: 40716001-RP1 FCC ID: Q2L-01010100 Date of Issue: November 03, 2004 Page 4 2. EUT DESCRIPTION Product Bluetooth GPS Trade Name Chih-Kan Model Number GS-301 Model Discrepancy N/A Power Supply Powered from host device Frequency Range 2402 ~ 2480 MHz Transmit Power 5.5 dBm Modulation Technique FHSS Transmit Data Rate 1MHz Number of Channels 79 Channels Antenna Specification Chip Antenna / Gain: 4.0 dBi Note: This submittal(s) (test report) is intended for FCC ID: Q2L-01010100 filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: 40716001-RP1 FCC ID: Q2L-01010100 Date of Issue: November 03, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of t…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 40716001-RP1 FCC ID: Q2L-01010100 Date of Issue: November 03, 2004 Page 47 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No.: 40716001-RP1 FCC ID: Q2L-01010100 Date of Issue: November 03, 2004 Page 48 Conducted Emission Set Up Photos
