Q2LCKH10101Bluetooth Headset

CKH-10101 CHIH-KAN TECHNOLOGY CO. LTD. 10F, No. 166 Dah-Yieh RD Pei_Tou Taipei, Taiwan, R.O.C. 1 Bluetooth Headset CKH-10101 User Manual CKH-10101 CHIH-KAN TECHNOLOGY CO. LTD. 10F, No. 166 Dah-Yieh RD Pei_Tou Taipei, Taiwan, R.O.C. 2 Welcome Welcome to our personal area wireless networking. You can place a call directly from your Bluetooth TM Wireless Headset by using your Bluetooth capable phone and your phone’s voice activation feature. The headset provides hands free convenience and freedom from cables and wires. Bluetooth technology makes all connections quickly and without any cables. We are confident that you will find your Bluetooth Wireless Headset to be a convenient and secure way to make clear, crisp phone calls. Thank you for choosing our Bluetooth product! CKH-10101 CHIH-KAN TECHNOLOGY CO. LTD. 10F, No. 166 Dah-Yieh RD Pei_Tou Taipei, Taiwan, R.O.C. 3 DECLARATION All the parts of this product, including accessorysoftware and this user guide, are owned by us. Any transmitted transcribedimitated, or translated into any language in any form or by means without permission from us are illegal. The specification and information about this product in this user guide just supply for your reference. Any damages arising from any detect or error in this user guide or product, It will no responsibility from us. and will no any kinds notice for any update of content. P. S: Their Company owns the product and brand which description in this User Guide. CKH-10101 CHIH-KAN TECHNOLOGY CO. LTD. 10F, No. 166 Dah-Yieh RD Pei_Tou Taipei, Taiwan, R.O.C. 4 General Information Warranty Subject to the conditions of this Warranty, We warrants this product to be free from defects in design, material and workmanship at the time of its original purchase by a consumer, and for a subsequent period of one year. Should your Product need warranty service, please return it to the dealer from whom it was purchased or contact us to get further information. If, during the warranty period, this Product fails to operate under normal use and service, due to defects in materials or workmanship, we will, at their option, either repair or replace the product in accordance with the conditions stipulated herein. What is Bluetooth headset can do? Bluetooth wireless technology propels you into a new dimension in connectivity. Bluetooth devices communicate without wires, using built-in radio transceivers that operate on a globally available radio frequency to ensure worldwide compatibility. Your Bluetooth Headset can communicate with other Bluetooth devices within a range of approximately 10 meters (33 feet). CKH-10101 CHIH-KAN TECHNOLOGY CO. LTD. 10F, No. 166 Dah-Yieh RD Pei_Tou Taipei, Taiwan, R.O.C. 5 Getting Started 1. Introduction RF LED Status LED Volume up Connect / Disconnect Volume down Indicators Mode RF LED (Blue) Status LED (Red) Audio Tone Power Off Off Off Off Standby Flashes at 3-second interval (0.1 second ON, 2.9 second OFF) Off Off Pairing Flashes at 1-second interval (0.1 second ON, 0.9 second OFF) On, Off when success Off, Pairing tone when success Connecting Flashes at 1-second interval (0.1 second ON, 0.9 second OFF) Off Off Connected Flashes at 1.5-second interval (0.1 second ON, 1.4 second OFF) Off Off Mute Flashes at 1.5-second interval (0.1 second ON, 1.4 second OFF) On Mute tone Long distance Flashes at 1.5-second interval (0.1 second ON, 1.4 second OFF) Off Alter tone Sheet 1 CKH-10101 CHIH-KAN TECHNOLOGY CO. LTD. 10F, No. 166 Dah-Yieh RD Pei_Tou Taipei, Taiwan, R.O.C. 6 2. Battery When you install the battery on, the earphones will enter the pairing model automatically. (Status LED sees Sheet 1) If it’s already pairing, the CKH-10101 will enter standing-by model. (Status LED sees Sheet 1) Any model, press connect-button for almost 3 seconds, CKH-10101 will play turning-off music and into turning-off model. Turning on, just again and the CKH-10101 will play turning-on music and into pairing or standing model. Its will entering decides by CKH-10101 and your Bluetooth mobile phone paired or not. If there is no action when installed battery, re-install the battery and sure battery is fully power, if abnormally, just take off battery and re-install, its will not erase the last paired information. 3. Paring Make sure cognition the CKH-10101 and your Bluetooth mobile phone before using; it’s called “pairing”. Only when CKH-10101 reset or first time to use it, it’s just beginning one time. After paring processor were done. You can use CKH-10101 to calling, receiving and dialing. Pairing Step (1) When first using or reset CKH-10101, the headset will enter the pairing model automatically. (Status LED sees Sheet 1) Press “ + ” button for 3 seconds will enter the pairing model, (Status LED sees Sheet 1) the Red LED will on. (2) Move the Bluetooth mobile phone close to CKH-10101 will pairing. (Please refer to the mobile phone user’s manuals describe pairing step.) (3) CKH-10101 will play tip-music and Red LED off to enter standing-by model if pairing successes. If failed, restart it again. Warning: Because of power save, the pairing-step must success during 3 minutes, if not, replay step once again. 4. Make phone calls (1) Dialing ( Placing a call) You can dial phone calls for two ways: CKH-10101 CHIH-KAN TECHNOLOGY CO. LTD. 10F, No. 166 Dah-Yieh RD Pei_Tou Taipei, Taiwan, R.O.C. 7 a If you dial up the phone call on your Bluetooth mobile phone, the talk sounds will refer to the CKH-10101 from mobile phone. You can communicate by telephone directly when you wearing this Bluetooth headset. b If your Bluetooth mobile phone supposed voice dialing , just press the talk-button to send a voice tag in your CKH-10101 from your microphone (2) Receiving a call You will listen a sound-music when paired phone has any calling incoming, to receiving calls to press connect-button when you listening sound-ring. (3) Ending a call If you want to ending a call just press connect/disconnect-button to over. (4) Volume Control Cont…

Text truncated - open the document above for the full version.

Headset Block Diagram Bluetooth Module Audio Codec Antenna Earphone Microphone AAA Ni-MH Battery

From: Eva Kao [[email protected]] Sent: Friday, April 18, 2003 2:47 AM To: Mike Kuo; Vincent Subject: Re: CHIH-KAN Technology Co., Ltd., FCC ID:Q2LCKH10101, AN03T2769 Hi Mike, Attached please find the revised test report and set up photo. We add the test mode of spurious emission. Thank you! Eva > -----Original Message----- > From: Mike Kuo [mailto:[email protected]] > Sent: Wednesday, April 16, 2003 1:31 PM > To: 'Vincent'; Mike Kuo > Cc: Lucy (E-mail) > Subject: RE: CHIH-KAN Technology Co., Ltd., FCC ID:Q2LCKH10101, AN03T2769 > > HI Vincent : > > Do not enable engineering mode, test the product as it is normally used but > with external audio modulation. You may connect the device to CD player by > connecting audio cable and tune the volume to max. At this test setup, low, > middle and high channel is not necessary. Submit the data. > > Best Regards > > Mike Kuo > Compliance Certification Services > 561F Monterey Road > Morgan Hill, CA 95037 > Tel: (408)463-0885 x:105 > Fax:(408)463-0888 > e-mail:[email protected] > > > -----Original Message----- > From: Vincent [mailto:[email protected]] > Sent: Tuesday, April 15, 2003 10:32 PM > To: Mike Kuo > Cc: Lucy (E-mail) > Subject: RE: CHIH-KAN Technology Co., Ltd., FCC ID:Q2LCKH10101, AN03T2769 > > > > Hi Mike, > > Regarding your question, I have to explain to you that, we cannot fix the > transmit frequency to low, mid and high with external audio modulation, > because it's under engineering mode the mode is just for EMI testing. It's > not for normal use. > > Vincent > > > -----Original Message----- > From: Mike Kuo [mailto:[email protected]] > Sent: Wednesday, April 16, 2003 8:40 AM > To: '[email protected]' > Cc: Lucy (E-mail) > Subject: FW: CHIH-KAN Technology Co., Ltd., FCC ID:Q2LCKH10101, AN03T2769 > > > -----Original Message----- > From: CERTADM > Sent: Tuesday, April 15, 2003 5:39 PM > To: '[email protected]' > Subject: CHIH-KAN Technology Co., Ltd., FCC ID:Q2LCKH10101, AN03T2769 > > > Notice_content > ------------- > Question #1: EUT is equipped with external audio connector. Per ANSI C63.4 > section 13.1.1.1 applied modulation, external modulation shall be used > during the tests. From the test setup photos and support equipment list, I > could not locate such external modulation source. Please confirm the > external modulation condition during the tests, if such modulation did not > use, please redo the radiated spurious emission and submit the test data, > setup photo and support equipment information. > > Best Regards > > Mike Kuo > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. >

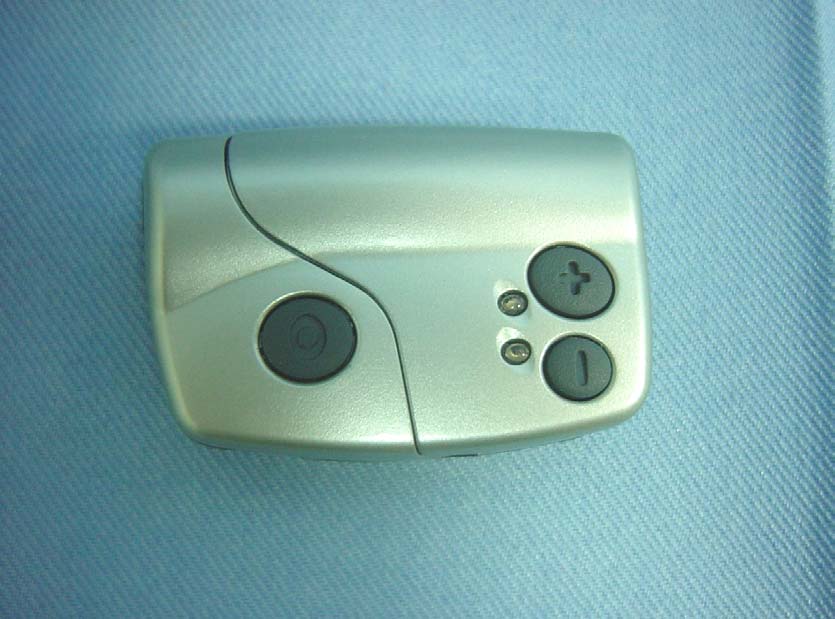

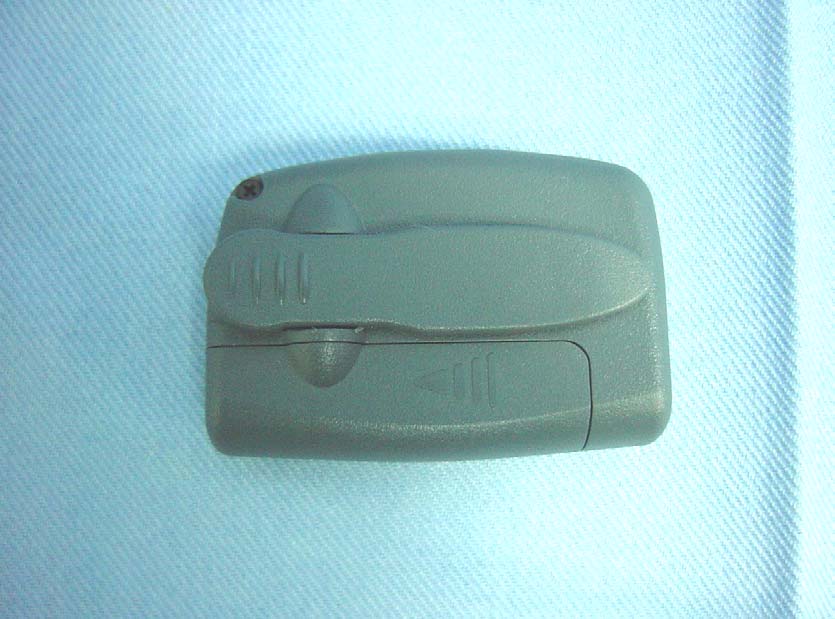

C&C Laboratory Co. Ltd. REPORT NO: 030027-RF-ID FCC ID: Q2LCKH10101 DATE:04/07/2003 APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 030027-RF-ID FCC ID: Q2LCKH10101 DATE:04/07/2003 All of EUT Above View of EUT C&C Laboratory Co. Ltd. REPORT NO: 030027-RF-ID FCC ID: Q2LCKH10101 DATE:04/07/2003 Below View of EUT Left View of EUT C&C Laboratory Co. Ltd. REPORT NO: 030027-RF-ID FCC ID: Q2LCKH10101 DATE:04/07/2003 Back View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: CHIH-KAN Technology Co., Ltd. FCC ID: Q2LCKH10101 FCC ID: Q2LCKH10101 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

C&C Laboratory Co. Ltd. REPORT NO: 030027-RF-ID FCC ID: Q2LCKH10101 DATE:04/07/2003 APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 030027-RF-ID FCC ID: Q2LCKH10101 DATE:04/07/2003 Open View of PDA Front View of EUT C&C Laboratory Co. Ltd. REPORT NO: 030027-RF-ID FCC ID: Q2LCKH10101 DATE:04/07/2003 Back View of EUT

• All specifications are subject to change without notice. (1/2) 001-03 / 20020520 / e851_cabpb0730a.fm RF Components CABPB0730A(7×7×3mm Type) Ceramic Patch Antennas For Bluetooth TM and 2.4GHz Wireless LAN SHAPES AND DIMENSIONS RECOMMENDED PC BOARD PATTERNS LAND SOLDER RESIST TEMPERATURE AND HUMIDITY RANGES ELECTRICAL CHARACTERISTICS • Evaluated with 30 × 30mm TDK STD evaluation base. TYPICAL ELECTRICAL CHARACTERISTICS RETURN LOSS AND GAIN • Evaluated with 30 × 30mm TDK STD evaluation base. 7 37 0.46C Weight: 0.8g Dimensions in mm 0.7 10 1.2 2.4 1.8 0.6 10 9-ø0.6 50Ω line 10.2 10.2 1.2×1.2 2.6 8-2.0×2.0 1.0×2.0 1.6 0.7 Dimensions in mm Operating temperature range–30 to +85°C Storage temperature range–40 to +85°C Humidity range 0 to 90(%)RH [Maximum wet-bulb temperature: 38°C] Center frequency2442MHz Band width85MHz Return loss –2.5dB max.[2400 to 2485MHz] Antenna gain –1dBi max.[2400 to 2485MHz] Input impedance50 Ω [2400 to 2485MHz] VSWR 7 max. –6 –4 –2 0 Return ( dB ) –15 –10 –5 0 Gain ( dBi ) Frequency ( GHz ) 2.32.352.42.452.52.552.6 Return Spec ( –2.5dB ) Gain • All specifications are subject to change without notice. (2/2) 001-03 / 20020520 / e851_cabpb0730a.fm RF Components CABPB0730A(7×7×3mm Type) Ceramic Patch Antennas For Bluetooth TM and 2.4GHz Wireless LAN RADIATION PATTERN •The radiation pattern is measured by mounting the antenna on 30 × 30mm TDK STD evaluation base. •Standard antenna: Standard dipole(Anritsu) Tx antenna: Horn(Condor Systems) Directivity angle Vertical polarizationHorizontal polarization 270 ̊ 0 ̊ 180 ̊ 90 ̊ 2.4GHz 2.44GHz 2.485GHz 180 ̊ Vertical polarization 270 ̊90 ̊ –10 –20 0 ( dBi ) –30 –40 –50 0 ̊ 315 ̊ 135 ̊ 45 ̊ 225 ̊ 2.4GHz 2.44GHz 2.485GHz 180 ̊ Horizontal polarization 270 ̊ 315 ̊ 135 ̊ 45 ̊ 225 ̊ 90 ̊ –10 –20 0 ( dBi ) –30 –40 –50 0 ̊ 270 ̊ 0 ̊ 180 ̊ 90 ̊ 2.4GHz 2.44GHz 2.485GHz 180 ̊ Vertical polarization 270 ̊90 ̊ –10 –20 0 ( dBi ) –30 –40 –50 0 ̊ 315 ̊ 135 ̊ 45 ̊ 225 ̊ 2.4GHz 2.44GHz 2.485GHz 180 ̊ Horizontal polarization 270 ̊ 315 ̊ 135 ̊ 45 ̊ 225 ̊ 90 ̊ –10 –20 0 ( dBi ) –30 –40 –50 0 ̊ 0 ̊ 90 ̊ 270 ̊ 180 ̊ 2.4GHz 2.44GHz 2.485GHz 180 ̊ Vertical polarization 270 ̊ 315 ̊ 135 ̊ 45 ̊ 225 ̊ 90 ̊ –10 –20 0 ( dBi ) –30 –40 –50 0 ̊ 2.4GHz 2.44GHz 2.485GHz 180 ̊ Horizontal polarization 270 ̊90 ̊ –10 0 ( dBi ) –30 –40 –50 0 ̊ 315 ̊ 135 ̊ 45 ̊ 225 ̊ –20

C&C Laboratory Co. Ltd. REPORT NO: 030027-RF-ID FCC ID: Q2LCKH10101 DATE:04/07/2003 Page 1 of 48 Rev. 01 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF CHIH-KAN Bluetooth Headset MODEL No.: CKH-10101-01 BRAND NAME: CK FCC ID: Q2LCKH10101 REPORT NO: 030027-RF-ID ISSUE DATE: Mar. 25, 2003 Prepared for CHIH-KAN Technology Co., Ltd. No. 24-1, Phi Shin Chou, Ming Ho Vil, Shan Hsiang, Tainan Country, Taiwan, R.O.C. Prepared by C&C LABORATORY, CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02) 8642-2256 C&C Laboratory Co. Ltd. REPORT NO: 030027-RF-ID FCC ID: Q2LCKH10101 DATE:04/07/2003 Page 2 Rev. 01 VERIFICATION OF COMPLIANCE Applicant: CHIH-KAN Technology Co., Ltd. No. 24-1, Phi Shin Chou, Ming Ho Vil, Shan Hsiang, Tainan Country, Taiwan, R.O.C. Equipment Under Test: CHIH-KAN Bluetooth Headset BRAND NAME: CK MODEL No.: CKH-10101-01 Model Difference: N/A Serial Number: N/A File Number: 030027-RF-ID Date of test: Feb 26 ~ Mar 25, 2003 We hereby certify that: The above equipment was tested by C&C Laboratory Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15. The test results of this report relate only to the tested sample identified in this report. Approved By ________________________________ Vincent Su / RF Dept. Vice Manager C&C Laboratory Co., Ltd C&C Laboratory Co. Ltd. REPORT NO: 030027-RF-ID FCC ID: Q2LCKH10101 DATE:04/07/2003 Page 3 Rev. 01 Table of Contents 1. GENERAL INFORMATION .........................................................................................................5 1.1 Product Description ............................................................................................................................5 1.2 Related Submittal(s) / Grant (s) ..........................................................................................................5 1.3 Test Methodology ...............................................................................................................................5 1.4 Test Facility.........................................................................................................................................5 1.5 Special Accessories .............................................................................................................................5 1.6 Equipment Modifications....................................................................................................................5 2. SYSTEM TEST CONFIGURATION ............................................................................................6 2.1 EUT Configuration .............................................................................................................................6 2.2 EUT Exercise ......................................................................................................................................6 2.3 Test Procedure.....................................................................................................................................6 2.4 Configuration of Tested System..........................................................................................................7 3. SUMMARY OF TEST RESULTS .................................................................................................8 4. DESCRIPTION OF TEST MODES ..............................................................................................9 5. CONDUCTED EMISSION TEST................................................................................................10 5.1 Standard Applicable ..........................................................................................................................10 5.2 EUT Setup.........................................................................................................................................10 5.3 Measurement Procedure....................................................................................................................10 5.4 Measurement Equipment Used: ........................................................................................................11 5.5 Measurement Result..........................................................................................................................11 6. PEAK OUTPUT POWER MEASUREMENT............................................................................12 6.1 Standard Applicable ..........................................................................................................................12 6.2 Measurement Procedure....................................................................................................................12 6.3 Measurement Result..........................................................................................................................12 6.4 Measurement Equipment Used: ........................................................................................................12 7. 20dB BAND WIDTH .....................................................................................................................15 7.1 Standard Applicable ..........................................................................................................................15 7.2 Measurement Procedure....................................................................................................................15 7.3 Measurement Result..........................................................................................................................15 7.4 Measurement Equipment Used: ..............…

Text truncated - open the document above for the full version.

C&C Laboratory Co. Ltd. REPORT NO: 030027-RF-ID FCC ID: Q2LCKH10101 DATE:04/07/2003 APPENDIX 1 PHOTOGRPHS OF SET UP C&C Laboratory Co. Ltd. REPORT NO: 030027-RF-ID FCC ID: Q2LCKH10101 DATE:04/07/2003 Radiated Emission Set up Photos Radiated Emission LINK Set up Photos
