Q3ISOT01Inductive Reader SAFE-O-TRONIC

INSTALLATION SAFE-O-TRONIC (1) (2) Fig. 1: SAFE-O-TRONIClayout right (layout left = mirror image) (1) Recommended door hole diameter 23 mm (2) max. door thickness 21.5 mm SAG SAFE-O-TRONIC Installation Schulte-Schlagbaum AGPage2of12SOT-Manual.DOC Copyright 1998 -2003by Schulte-Schlagbaum AG NevigeserStraße 100 D-42553Velbert Tel.: +49 20512086155 With the edition of this document, all previous editions become void. Indications made in this manual may be changed without previous notice. Copying of this document, and giving it to others and the use or communication of the contents thereof are forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved in the event of the grant of a patent or the registration of a utility model or design. Composition of the information in this document has been done to the best of our knowledge.Schulte- Schlagbaum AG does not guarantee the correctness and completeness of the details given in this manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since, despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips. The instructions given in this manual are based on advantageous boundary conditions.Schulte-Schlagbaum AG does not give any guarantee promise for perfect function in cross environments. Schulte-Schlagbaum AG assumes no responsibility for the use of any information contained in this document and makes no representation that they free of patent infringement.Schulte-Schlagbaum AG does not convey any license under its patent rights nor the rights of others. SAG SAFE-O-TRONIC Installation Schulte-Schlagbaum AGPage3of12SOT-Manual.DOC Contents 1. Safety and warning notices – read before commissioning.......................................4 2. Basic functions of theSAFE-O-TRONIC.....................................................................5 2.1. Locking theSAFE-O-TRONIC..................................................................................5 2.2. Unlocking the SAFE-O-TRONIC..............................................................................5 3. LED indicators..............................................................................................................6 4. Installation.....................................................................................................................7 5. Commissioning.............................................................................................................7 5.1. Function testing with the "TestKey"..........................................................................7 5.2. Configuring theSAFE-O-TRONICwith the "SetupKey"..........................................8 5.3. Resetting aSAFE-O-TRONICwith the "ResetKey".................................................9 5.4. Replacing aSAFE-O-TRONIC.................................................................................9 6. Battery.........................................................................................................................10 6.1. Battery replacement...............................................................................................10 7. Service / Maintenance................................................................................................10 8. Technical Data............................................................................................................11 9. Approval......................................................................................................................12 9.1. Europe (CE)...........................................................................................................12 9.2. USA (FCC).............................................................................................................12 SAG SAFE-O-TRONIC Installation Schulte-Schlagbaum AGPage4of12SOT-Manual.DOC 1.Safety and warning notices – read before commissioning •The device may only be used for the purpose intended by the manufacturer. •The operating instructions have to be handed out to every user and kept in an easily accessi- ble place. •Unacceptable changes as well as the use of spare parts and special features which are not sold or recommended by the manufacturer, may cause fire, electric shocks and injuries. Therefore, such measures lead tononliability of the manufacturer and a lapse of all warranty claims. •The appliance is subject to the manufacturer’s guarantee regulations in the version valid at the time of purchase. We cannot be held liable for improper or faulty manual or automatic adjust- ment of parametersresp. improper use of the appliance. •Repair work may only be carried out by the manufacturer. •The user has to make sure that the appliance is installed and operated according to the tech- nical rules of the country of installation as well as other regional regulations. SAG SAFE-O-TRONIC Installation Schulte-Schlagbaum AGPage5of12SOT-Manual.DOC 2.Basic functions of theSAFE-O-TRONIC (1)Rotary knob: With integrated LED display (red / green) and antenna for exchange betweenSAFE-O-TRONICand megaKey. (2)Battery compartment: Use special screwdriver to open (Type:ID MS.SSD-A). 2.1.Locking theSAFE-O-TRONIC 1. Push rotary knob SAFE-O-TRONICis activated for 8 sec. (no indicator) 2. Present megaKey: The green LED flashes for a max. of 8 sec. As long as the green LED is flashing, the rotary knob can be turned 90°and theSAFE-O-TRONIClocked. 3. Rotate knob 90° Turning the knob locks theSAFE-O-TRONIC, which acknowledges this by turning on the green LED for several seconds. 2.2.Unlocking the SAFE-O-TRONIC 1. Push rotary knob SAFE-O-TRONICis activated for 8 sec. (no indicator) 2. Present megaKey: As soon as a valid megaKey is recognized by the SAFE-O-TRONICthe green LED begins to flash and the rotary knob turns itself back to „unlocked“ position. SAG SAFE-O-TRONIC Installation Schulte-Schlagbaum AGPage6of12SOT-…

Text truncated - open the document above for the full version.

Request for Confidentiality 13 June 2003 PHOENIX TEST-LAB GmbH Königswinkel 10 D32825 Blomberg Germany RE: Certification Application FCC ID: Q3ISOT01 Please be advised that the following information is to be held confidential on behalf of Schulte- Schlagbaum AG • Schematics • Parts Lists • Block Diagram • Technical Description The application contains technical information which Schulte-Schlagbaum AG deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory

FCC ID: Q3ISOT01 External Photos Page 1 of 4 FCC ID: Q3ISOT01 External Photos Page 2 of 4 FCC ID: Q3ISOT01 External Photos Page 3 of 4 FCC ID: Q3ISOT01 External Photos Page 4 of 4

This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: Q3ISOT01

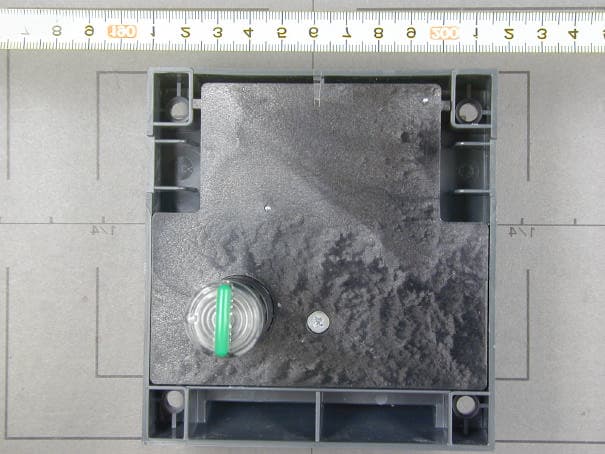

FCC ID: Q3ISOT01 Internal Photos Page 1 of 4 FCC ID: Q3ISOT01 Internal Photos Page 2 of 4 FCC ID: Q3ISOT01 Internal Photos Page 3 of 4 FCC ID: Q3ISOT01 Internal Photos Page 4 of 4

EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50602-30263 Page 1 of 18 Pages Straubing, 05 May 2003 T E S T - R E P O R T No. 50602-30263 for megalock-l Inductive Reader Applicant: FEIG ELECTRONIC GmbH Test Specification: FCC Code of Federal Regulations, CFR 47, Part 15, Section 15.209 Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50602-30263 Page 2 of 18 Pages Table of Contents 1. Administrative Data.................................................................................... 3 2. Identification of Test Laboratory................................................................. 4 3. Operation Mode of EUT ............................................................................. 5 4. Configuration.............................................................................................. 6 5. Measuring Methods ................................................................................... 7 5.1. Radiated Emission Measurement 9 kHz ñ 30 MHz ............................. 7 5.2. Field Strength of Emissions, Prescans in a fully-anechoic Room ................................................................................................... 8 5.3. Radiated Emission Measurement at Open Area Test Site .................. 9 6. Photographs Taken During Testing ......................................................... 10 7. List of Measurements............................................................................... 14 8. Referenced Regulations .......................................................................... 17 Charts taken during testing .............................................................................. 18 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50602-30263 Page 3 of 18 Pages 1. Administrative Data Test item (EUT) Type designation megalock-l Serial number(s): 001 Type of equipment: Inductive Reader Parts/accessories: FCC-ID: PJM Technical data Frequency range 0.125 MHz Operational frequencies N/A Type of modulation 10K0A1D Pulse frequency N/A Pulse width N/A Antenna Integrated Power supply 6 V Battery Applicant: (full address) FEIG ELECTRONIC GmbH Lange Strasse 4 D-35781 Weilburg-Waldhausen Contract identification: --- Contact person: Bernhard Schuessler Manufacturer: FEIG ELECTRONIC GmbH Application details Receipt of EUT: 22 April 2003 Date of test: February 2003 Note: Responsible for testing: Johann Roidt Responsible for test report: Johann Roidt EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50602-30263 Page 4 of 18 Pages 2. Identification of Test Laboratory DETAILS OF THE TEST LABORATORY COMPANY NAME: Senton GmbH EMI/EMC Test Center ADDRESS: Aeussere Fruehlingsstrasse 45 D-94315 Straubing Germany LABORATORY ACCREDITATION: DAR-Registration No. TTI-P-G 062/94-40 FCC TEST SITE LISTING INDUSTRY CANADA TEST SITE REGISTRATION IC 3050 NAME FOR CONTACT PURPOSES: Mr. Johann Roidt TELEPHONE: (+49) (0)9421 5522-0 FAX: (+49) (0)9421 5522-99 PERSONNEL INVOLVED IN THIS TEST REPORT TECHNICAL DIRECTOR: Mr. Johann Roidt RESPONSIBLE FOR TESTING: Mr. Johann Roidt RESPONSIBLE FOR TEST REPORT: Mr. Johann Roidt SUMMARY OF TEST RESULTS The tested sample complies with the requirements set forth in the Code of Regulations CFR 47, Part 15, Section 15.209 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50602-30263 Page 5 of 18 Pages 3. Operation Mode of EUT Continously reading a transponder card EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50602-30263 Page 6 of 18 Pages 4. Configuration Configuration of the EUT Not applicable Cables connected to the EUT Not applicable Peripheral devices connected to the EUT Not applicable EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50602-30263 Page 7 of 18 Pages 5. Measuring Methods 5.1. Radiated Emission Measurement 9 kHz ñ 30 MHz Rules and Specifications: Sections 15.109 & 15.209 Guide: ANSI C63.4 1997 Measurement Procedure: Radiated emissions in the frequency range 9 kHz ñ 30 MHz were measured initially at a distance of 3 meters. A prescan at 3 meter distance were performed in a shielded room with the detector of the spectrum analyzer or EMI Receiver set to peak. Hand-held or body-worn devices are rotated through three orthogonal axes to determine which attitude and configuration produces the highest emission relative to the limit and therefore shall be used for final testing. Final measurement is then performed at 30 meter distance. In case the regulation requires testing at other distances, the result will be extrapolated. The extrapolation factor is determined by making a second measurement at 10 meter distance. In cases of very low emissions measurements are performed at shorter distances and results are extrapolated to the required distance. The provisions of 15.31 (d) apply. According to section 15.209 (d) final measurementis performed with the detector set to Quasi Peak except for the frequency bands 9 ñ 90 kHz and 110 ñ 490 kHz where average detector is employed. Test instruments used: No. Type Model Serial Number Manufacturer 01 Test receiver ESH 3 880112/032 Rohde & Schwarz 02 Loop antenna HFH2-Z2 882964/1 Rohde & Schwarz 03 Open Field Test Site No. 1 N/A Senton EMI Receiver EUT 30 m test distance EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50602-30263 Page 8 of 18 Pages 5.2. Field Strength of Emissions, Prescans in a fully-anechoic Room Rules and Specifications: Sections 15.109 & 15.209 Guide: ANSI C63.4 1997 Measurement Procedure: Radiated emissions are measured over the frequency range from 30 MHz to the 5 th harmonic of the maximum frequency of the EUT. Measurements were made in both the horizontal and vertical planes of polarization in a fully anechoic room using a spectrum analyzer with the detector fun…

Text truncated - open the document above for the full version.

EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50602-30263 Page 11 of 18 Pages Test setup for radiated emission measurement 9kHz – 30 MHz EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50602-30263 Page 12 of 18 Pages Test setup for radiated emission measurement (fully anechoic room) EMV-Prüfzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50602-30263 Page 13 of 18 Pages Test setup for radiated emission measurement (Open area test site)
