April 22, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Flextronics Sales & Marketing, Ltd. FCC ID: Q3OKWC-K112 Part 22 Certification Gentlemen: Submitted herewith, on behalf of Flextronics Sales & Marketing, Ltd., is an application for Part 22 Certification of the Dual-Mode Cellular Phone (AMPS/CDMA). Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Flextronics Sales & Marketing , Ltd.

FLEXTRONICS FCC ID: Q3OKWC-K112 EUT Photographs © 2003 PCTEST Lab. Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112 FLEXTRONICS FCC ID: Q3OKWC-K112 EUT Photographs © 2003 PCTEST Lab. Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112 FLEXTRONICS FCC ID: Q3OKWC-K112 EUT Photographs © 2003 PCTEST Lab. Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112 FLEXTRONICS FCC ID: Q3OKWC-K112 EUT Photographs © 2003 PCTEST Lab. Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112 FLEXTRONICS FCC ID: Q3OKWC-K112 EUT Photographs © 2003 PCTEST Lab. Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112

© 2003 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

FLEXTRONICS FCC ID: Q3OKWC-K112 EUT Photographs © 2003 PCTEST Lab. Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112 FLEXTRONICS FCC ID: Q3OKWC-K112 EUT Photographs © 2003 PCTEST Lab. Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112 FLEXTRONICS FCC ID: Q3OKWC-K112 EUT Photographs © 2003 PCTEST Lab. Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112 FLEXTRONICS FCC ID: Q3OKWC-K112 EUT Photographs © 2003 PCTEST Lab. Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112 FLEXTRONICS FCC ID: Q3OKWC-K112 EUT Photographs © 2003 PCTEST Lab. Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112 FLEXTRONICS FCC ID: Q3OKWC-K112 EUT Photographs © 2003 PCTEST Lab. Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112 FLEXTRONICS FCC ID: Q3OKWC-K112 EUT Photographs © 2003 PCTEST Lab. Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112 FLEXTRONICS FCC ID: Q3OKWC-K112 EUT Photographs © 2003 PCTEST Lab. Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112

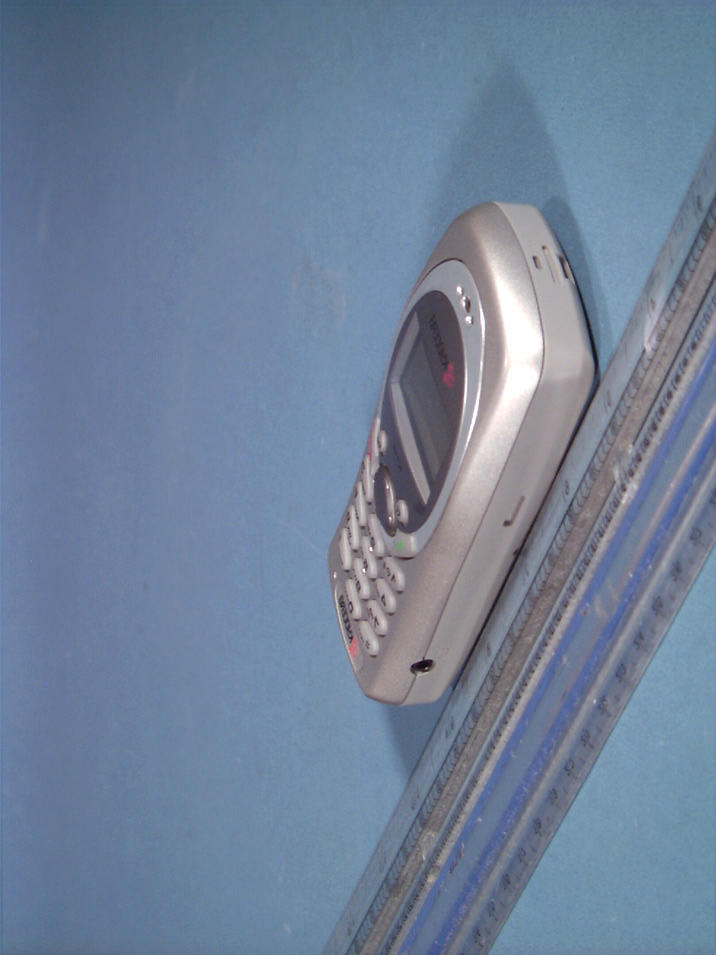

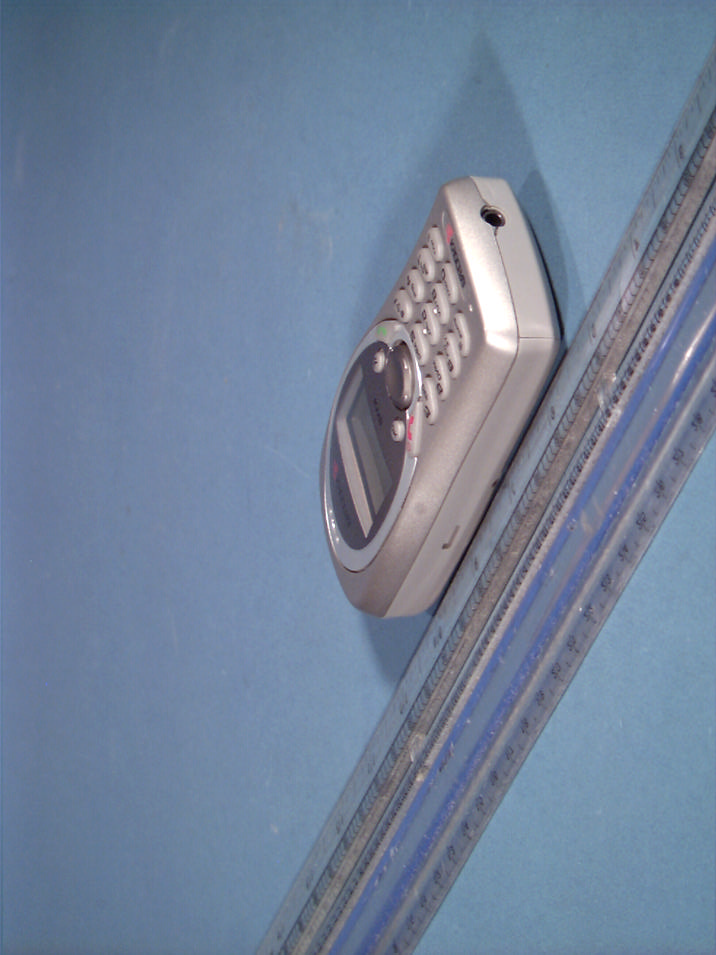

TEST REPORT Your Ref:Date: 9 April 2003 Our Ref: 56S030279/01 Page: 1 of 46 DID: 68851464 Fax: 67741459 NOTE: This Report is issued subject to the “ Terms and Conditions Governing Technical Services” set out in the “Request for Technical Services” form. The terms and conditions governing the issue of this report are set out overleaf. FORMAL REPORT ON TESTING IN ACCORDANCE WITH SAR (SPECIFIC ABSORPTION RATE) REQUIREMENTS Supplement C (Edition 01-01) FCC OET Bulletin 65 (Edition 97-01) OF A MOBILE PHONE come with CDMA_2000 1x (800MHz) & Amps [ Model: K112 ] TEST FACILITY Telecoms & EMC, Testing Group, PSB Corporation Pte Ltd 1 Science Park Drive, Singapore 118221 APPLICANT Mr. Loh Boon Liang Flextronics Sales & Marketing (A-P) Ltd Suite 402, St James Court, St Dennis Street, Port Louis, Mauritius Tel: (65) 62998888Fax: (65) 65466346 JOB NUMBER 56S030279 TEST PERIOD 3 April 2003 - 4 April 2003 PREPARED BYAPPROVED BY ____________________ Gary Ng Ah Chye Associate Engineer ____________________ Benjamin Foo Assistant Vice President LA-2001-0212-A LA-2001-0213-F LA-2001-0214-E LA-2001-0215-B LA-2001-0216-G LA-2001-0217-G The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme PSB Corporation Pte Ltd • Testing Group • 1 Science Park Drive Singapore 118221 • Tel 65 772 9620 • Fax 65 775 9725 • Email [email protected] • Website www.psbcorp.com Your product quality and safety mark April 2002Page 2 of 46 This Report is issued under the following conditions: 1. Results of the testing/calibration in the form of a report will be issued immediately after the service has been completed or terminated. 2. Unless otherwise requested, a reported shall contain only technical results. Analysis and interpretation of the results and professional opinion and recommendations expressed thereupon, if required, shall be clearly indicated and additional fee paid for, by the Client. 3. This report is not a Certificate of Quality. It only applies to the sample of the specific product/equipment given at the time of its testing/calibration. The results are not used to indicate or imply that they are application to other similar items. In addition, such results must not be used to indicate or imply that PSB Corporation approves, recommends or endorses the manufacturer, supplier or user of such product/equipment, or that PSB Corporation in any way “guarantees” the later performance of the product/equipment. 4. The sample/s mentioned in this report is/are submitted/supplied/manufactured by the Client, PSB Corporation therefore assumes no responsibility for the accuracy of information on the brand name, model number, origin of manufacture, consignment or any information supplied. 5. Additional copies of the report are available to the Client at an additional fee. No third party can obtain a copy of this report through PSB Corporation, unless the Client has authorised PSB Corporation in writing to do so. 6. PSB Corporation may at its sole discretion add to amend the conditions of the report at the time of issue of the report and such report and such additions or amendments shall be binding on the Client. 7. All copyright in the report shall remain with PSB Corporation and the Client shall, upon payment of PSB Corporation’s fees for the carrying out of the tests/calibrations, be granted a license to use or publish the report to the third parties subject to the terms and conditions herein, provided always that PSB Corporation may at its absolute discretion be entitled to impose such conditions on the license as it sees fit. 8. Nothing in this report shall be interpreted to mean that PSB Corporation has verified or ascertained any endorsement or marks from any testing authority or bodies that may be found on that sample. 9. This report shall not be reproduced wholly or in parts and no reference shall be made by the Client to PSB Corporation or to the report or results furnished by PSB Corporation in any advertisements or sales promotion. 56S030279/01Flextronics Sales & Marketing (A-P) LtdPage 3 of 46 Mobile Phone come with CDMA_2000 1x (800MHz) & Amps [ Model: K112 ] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION TEST RESULTS ANNEX A-TEST INSTRUMENTATION & GENERAL PROCEDURES ANNEX B-EUT PHOTOGRAPHS / DIAGRAMS Test Setup EUT Photographs ANNEX C-TISSUE SIMULANT DATA SHEETS ANNEX D-SAR VALIDATION RESULTS ANNEX E-SAR PROBE CALIBRATION CERTIFICATES ANNEX F-REFERENCES 56S030279/01Flextronics Sales & Marketing (A-P) LtdPage 4 of 46 Mobile Phone come with CDMA_2000 1x (800MHz) & Amps [ Model: K112 ] TEST SUMMARY The product was tested in accordance with the following standards. Test Results Summary Test StandardsDescriptionPass / Fail SAR Measurement (AMPS Mode) Device at head phantom Pass > SAR Measurement (CDMA Mode) Device at head phantom Pass > SAR Measurement (AMPS Mode) Body Worn Configuration Only Pass > • Supplement C (Edition 01-01) to FCC OET Bulletin 65 (Edition 97-01) • ANSI/IEEE Standard C95.1-1993 SAR Measurement (CDMA Mode) Body Worn Configuration Only Pass > Note: 1. The worst-case SAR value was found to be 1.290W/kg which is lower than the maximum limit of 1.60 W/kg, over 1g of tissue . >Based on spatial peak uncontrolled exposure / general population level: Head: 1.60 W/kg, over 1g of tissue. Body: 1.60 W/kg, over 1g of tissue. Modifications No modifications were made. 56S030279/01Flextronics Sales & Marketing (A-P) LtdPage 5 of 46 Mobile Phone come with CDMA_2000 1x (800MHz) & Amps [ Model: K112 ] DEVICE DESCRIPTION DEVICE DESCRIPTION DescriptionMobile Phone comes with CDMA _2000 1x (800MHz) & Amps Device CategoryPortable Device Exposure EnvironmentGeneral Population/Uncontrolled exposure Test Device Type Pre-Pilot Unit ModelK112 Brand NameKyocera Serial NumbersPB100300254 FCC IDQ3OKWC - K112 DEVICE OPERATING CONFIGURATION Operating Frequencies AMPS Mode Channel 991 (824.04Mhz) …

Text truncated - open the document above for the full version.

PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.230414187.Q3O Test Dates: April 15-16, 2003 Phone Type: Dual-Mode (AMPS/CDMA) FCC ID: Q3OKWC-K112 Page 1 of 24 © 2003 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification FLEXTRONICS Sales & Marketing (A-P), Ltd. Dates of Tests: April 15-16, 2003 Suite 402 St. James Court St. Dennis Street Test Report S/N: 22.230414187.Q3O Port Louis, Mauritius Test Site: PCTEST Lab, Columbia MD USA Attn: Loh Boon Liang, Project Manager FCC ID Q3OKWC-K112 APPLICANT FLEXTRONICS Sales & Marketing (A-P), Ltd. Classification: Non-Broadcast Transmitter held to ear (TNE) FCC Rule Part(s): §22(H), §22.901(d), §2 EUT Type: Dual-Mode Cellular Phone (AMPS/CDMA) Model: K112 Tx Frequency Range: 824.04MHz – 848.97MHz (AMPS) / 824.70 – 848.31MHz (CDMA) Rx Frequency Range: 869.04MHz – 893.97MHz (AMPS) / 869.70 – 893.31MHz (CDMA) Max. RF Output Power: 0.419 W ERP AMPS (26.219 dBm) / 0.284 W ERP CDMA (24.533 dBm) Max. SAR Measurement: 1.170 W/kg AMPS Head SAR; 1.290 W/kg AMPS Body SAR; 0.771 W/kg CDMA Head SAR; 0.911 W/kg CDMA Body SAR Emission Designator(s): 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: PB100300254] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Output is ERP. SAR compliance for body-worn operating configurations is limited to the specific configuration tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that provide at least 1.1 cm. separation between the device, and the user’s body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862 230414187.Q3O PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.230414187.Q3O Test Dates: April 15-16, 2003 Phone Type: Dual-Mode (AMPS/CDMA) FCC ID: Q3OKWC-K112 Page 2 of 24 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-8 5.1 EFFECTIVE RADIATED POWER OUTPUT 9-10 6.1 RADIATED MEASUREMENTS 11-16 7.1 FREQUENCY STABILITY 17-20 8.1 PLOTS OF EMISSIONS 21 9.1 LIST OF TEST EQUIPMENT 22 10.1 SAMPLE CALCULATIONS 23 11.1 CONCLUSION 24 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.230414187.Q3O Test Dates: April 15-16, 2003 Phone Type: Dual-Mode (AMPS/CDMA) FCC ID: Q3OKWC-K112 Page 3 of 24 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: FLEXTRONICS Sales & Marketing (A-P), Ltd. Address: Suite 402 St. James Court St. Dennis Street Port Louis, Mauritius Attention: Loh Boon Liang, Project Manager • FCC ID: Q3OKWC-K112 • Quantity: Quantity production is planned • Emission Designators: 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) • Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) • Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) • Max. Power Rating: 0.419 W ERP AMPS (26.219 dBm) 0.284 W ERP CDMA (24.533 dBm) • FCC Classification(s): Non-Broadcast Transmitter held to ear (TNE) • Equipment (EUT) Type: Dual-Mode Cellular Phone (AMPS/CDMA) • Modulation(s): AMPS / CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): §22(H), §22.901(d), §2 • Dates of Tests: April 15-16, 2003 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22.230414187.Q3O PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.230414187.Q3O Test Dates: April 15-16, 2003 Phone Type: Dual-Mode (AMPS/CDMA) FCC ID: Q3OKWC-K112 Page 4 of 24 © 2003 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance wi…

Text truncated - open the document above for the full version.

PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22.230414187.Q3O FCC Part 24/22Test Date:04.15.2003 EUT:FLEXTRONICS Dual-Mode Cellular Phone (AMPS/CDMA) Model:K112 FCC ID:Q3OKWC-K112 REFERENCE:1 kHz = 0 dB Modulation Limiting 0 2000 4000 6000 8000 10000 12000 14000 -35-30-25-20-15-10-50 Audio Input Level (dBV) Deviation (Hz) 3KHz 1KHz 300Hz FLEXTRONICS Dual-Mode Cellular Phone (AMPS/CDMA) FCC ID: Q3OKWC-K112 PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22.230414187.Q3O FCC Part 24/22Test Date:04.15.2003 EUT:FLEXTRONICS Dual-Mode Cellular Phone (AMPS/CDMA) Model:K112 FCC ID:Q3OKWC-K112 REFERENCE:1 kHz = 0 dB Frequency Response of Audio Low Pass Filter -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0.0 10.0 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 10k1k 100k FLEXTRONICS Dual-Mode Cellular Phone (AMPS/CDMA) FCC ID: Q3OKWC-K112 PCTEST Engineering Lab., Inc. SUBJECT:Modulation CharacteristicsTest Report No.:22.230414187.Q3O FCC Part 24/22Test Date:04.15.2003 EUT:FLEXTRONICS Dual-Mode Cellular Phone (AMPS/CDMA) Model:K112 FCC ID:Q3OKWC-K112 REFERENCE:1 kHz = 0 dB Transmitter Audio Frequency Response -60.00 -50.00 -40.00 -30.00 -20.00 -10.00 0.00 10.00 20.00 FREQUENCY (Hz) LEVEL (dB) Relative to 1kHz 100 1k 10k 100k FLEXTRONICS Dual-Mode Cellular Phone (AMPS/CDMA) FCC ID: Q3OKWC-K112
