Q4B-TDHHRMRH6G/MRH5G

2, 4 3 3 Ø × Note: when you see Ú in the instructions, press the top and the bottom of the device rocker for 2 seconds 3 How to install and use the radioMiro TM room remote control English Read and retain these instructions Français Español Ready? Application For more information on designing, installing and using radioMiro TM systems, and for expert technical help, visit our web site at www.passandseymour.com/miro Use the radioMiro TM room remote control in a room with any number of radioMiro TM dimming or non-dim devices, normally including one or more wall-mounting radioMiro TM room preset controllers. The radioMiro TM room remote control gives you fingertip control of individual circuits, presets and overall room light level, in a convenient unit that looks and feels good on the coffee table or by the bed! Note: for whole-house control, use a radioMiro TM whole-house preset controller or handheld remote. Batteries Figure 1 1. Remove the battery cover in the base of the unit, and install the three AAA cells provided in accordance with the diagram in the battery compartment. 2. Replace the battery cover and press any button – the status LED will be green if the batteries are good 3. When the batteries start to lose their charge, the status LED will blink red, indicating that new batteries are required. 4. Note that to conserve battery life, the remote ‘goes to sleep’ when it has not been used for one minute, and the status LED goes out. Pressing any button while the remote is asleep causes the remote to ‘wake up’, ready for use. Get Set... Configuration Figure 2 To prevent interference between neighboring systems, radioMiro TM devices must acquire a unique house ID before use. It’s simple! 1. With all devices installed and energized, check that every radioMiro TM device is showing a yellow LED. If not, check that the circuit breaker is on and that the device is correctly installed. 2. All devices in a home must be ‘bound’ to the same home ID. For a new radioMiro TM installation, simultaneously press and hold the top and bottom (Ú) of any device paddle for 2 seconds. Its LED flashes yellow, indicating that it has acquired a unique House ID. 3. Check that all other radioMiro TM device LEDs are flashing green, indicating that they have acquired the same House ID. 4. Return to the first device, and press Ú again for 2 seconds. All device LEDs revert to green, indicating that house binding is complete. Note: if you’re adding the device to an existing radioMiro TM installation, simply press and hold Ú on any previously bound device for 2 seconds to start the procedure, verify that the newly added device LED is flashing green, indicating that it has acquired the House ID. Press and hold Ú for 2 seconds again on the same previously installed device to terminate. Handheld devices will not respond to a binding signal when they are not in use. Need Graphic - Battery installation placeholder Status LED 2 1 3, 5, 6 Either wake them up by pressing any button prior to binding, or add them to the House later. Room Setup Figure 3, Room Binding When all the radioMiro TM devices in the room are successfully bound to the House ID, it’s time to bind them together as a Room. The procedure is the same, but it must start from a radioMiro TM room preset controller. 1. Go to the radioMiro TM room remote, and press Ú For 2 seconds. Its LED starts flashing yellow, and all the others start flashing green. 2. Go to each other radioMiro TM device in the room and press Ú for 2 seconds. The LED of each device starts flashing yellow as you add it to the Room. Be sure to bind every radioMiro TM device in the room. You only need to bind one member of a Group into the room. 3. Return to the room remote and press Ú for 2 seconds to terminate Room binding. All Room devices revert to green status LEDs. 4. You can repeat the procedure any time you need to change Room configuration. Use Ú (2 sec) to toggle devices in and out of the Room. Flashing yellow LED = in, flashing green LED = out.) Important – when you’ve bound the remote to a Room, it belongs to that Room only. You cannot share a remote between two Rooms. Go! Use Figure 4 Figure 5 First, make yourself comfortable! You may as well get used to controlling your environment with your feet up! Controlling Individual Devices You can select and control any radioMiro TM device already bound in to the room (see previous section). 1. Press the seek button – each time you press it, the radioMiro TM remote selects the next radioMiro TM device bound in to the room. If it’s a lighting circuit, the light will momentarily blink, telling you which circuit you are controlling. If it’s a non- dim device or a fan control, the device status LED will flash. Either way, you know which device you’ve selected. 2. Having selected a device to control, use the raise/lower rocker, as follows: ƒ Touch × momentarily to fade the circuit to its last-used level (or full bright if the circuit is already on) ƒ Press and hold × to increase the present level ƒ Touch Ø momentarily to fade the circuit to OFF ƒ Press and hold Ø to decrease the present level 3. When you select a radioMiro TM fan control from the room remote, the five preset buttons act as fan speed controllers – from fastest at the top to stop at the bottom. Recording and Recalling Scenes 4. Use the radioMiro TM remote to record and play back scenes. Note that the five scenes available from the remote are the same five scenes that you access from the room preset controller. 5. To record a scene, adjust the lighting in the room as described above, then press and hold one of the top four (recordable) preset buttons for two seconds. The status LED will blink, confirming that the scene has been recorded. 6. To recall a scene, simply press any of the recordable preset buttons, and the scene will smoothly fade from the prior lighting state. Pressing the bottom OFF button causes the Room to fade to black. 1, 3 2 2 2 2 Status LED Raise/Lower Rocker P…

Text truncated - open the document above for the full version.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . the Watt Stopper June 12, 2003 Block Diagram The Wattstopper, 6120 Passeo del Norte Carlsbad CA, 92009 Tel (760) 804-9701 Fax (760)804-9712 Mixer 3 L1 VCO LNA IF STAGE DEMOD Control PA /N LPF PD Charge pump /R Osc Bias L2 PDATA, PCLK, PALE DCLK DIO CC1000 R Bias OSC 2 OSC 1 11.0592 MHz +/- 20 ppm VCO inductor Input/ Output Matching Filter and antenna matching Antenna RF out RF in

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . the Watt Stopper July 30, 2003 To whom it may concern, Dear Sir or Madam: The Miro line of product is a group of 16 different products for the residential market. Some of them use a radio transceiver to exchange data with a proprietary protocol. The WoW line of product is for the commercial market with only radio products. Between Miro and WoW, only the plastic enclosure is different. We need an original certification FCC part 15.247. The table below describes all the products, for some of them a limited modular approval is needed, and other one a product approval is needed. The MR reference is the commercial reference for the Miro line of products, W reference is the commercial reference for the Wow line of products. TD is only an engineering reference. W means white G means grey (W/G) means we have 2 different references one gray (example MRD2G) and one white (example MRD2W) TD201 (W/B) MRD2 (W/G) W1 Network 2-Wire Dimmer TD206 (W/B) MRD4 (W/G) W2 Network Univ Dimmer Wall product TD207 (W/B) MRD3 (W/G) W3 Network Non-Dim 2 buttons radio board TD203 (W/B) MRD8 (W/G) W4 Network Remote limited modular approuval TD205 (W/B)- MRD9 (W/G) W13 Network Fan Controller TD204 (W/B) MRD6 (W/G) W8 Room Preset Remote Wall product TD211 (W/B) MRD5 (W/B) House Preset Remote 7 buttons radio board TD251B MRH6 G W9 Handheld Room Remote Hand held remoteproduct approuval TD252B MRH5G Handheld House Remote TD253W MRP6W W11 Plug-In Lamp Module plug inlimited modular approuval TD254W MRP7 W12 Plug-In Appl Module TD261 MRR2G W10 Repeater repeaterproduct approuval Sincerely, Bertrand DEBEVER Senior electronic engineer The Wattstopper, 6212 Corte Del Abeto, Suite 200 Carlsbad CA, 92009 Tel (760) 804-9701 Fax (760)804-9712

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . the Watt Stopper June 13, 2003 Federal communications Commission Authorization and evaluation division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, Dear Sir or Madam: We hereby respectfully request that under the provision of 47 CFR 0.459, the document listed below and attached with this application for certification be provided with confidential status. • Schematics • Theory of operation Any exhibit/ information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be return to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Bertrand DEBEVER Senior electronic engineer The Wattstopper, 6120 Passeo del Norte Carlsbad CA, 92009 Tel (760) 804-9701 Fax (760)804-9712

Northwest EMC TCB Compliance Opinion Revision 1/3/03 WATT0009 Information about the Applicant Company Name The Watt Stopper, Inc. Address 6120 Paseo Del Norte, Suite 1-2 City, State, Zip Carlsbad, CA 92009 Requested By Bertrand Debever Job Number WATT0009 Model MRH6G/MRH5G FCC ID Q4B-TDHHR Agent The Watt Stopper, Inc., Bertrand Debever Approval Type Certification Equipment Type Low Power Unlicensed Transmitter Rule Part 15.247 Overview The equipment is the Watt Stopper MRH5G and MRH6G Handheld remote control of room lighting operating in the 902-928 MHz band as a 15.247(f) hybrid system. Both the MRH5G and the MRH6G use the same radio board, only the plastic enclosure is different, therefore only one device was actually tested. All products use a fully integrated transceiver, the CC1000 from Chipcon, almost no external components are needed. The approval for this type of device is being approved as outlined in the FCC Public Notice of May 16, 2002. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. August 14, 2003 _______________________________ ______________ Dean Ghizzone, President Date Northwest EMC TCB Compliance Opinion Revision 1/3/03 WATT0009 Findings and Resolution Item The client cover letter specifically requests approval under FCC Part 15.249, yet all testing and applications reflect 15.247. Please provide the proper reference in the cover letter. Resolution The client has provided an updated letter with corrections. Item Only Front view photos were provided of the EUT exterior, please provide photos of the rear of the EUT exterior. Resolution The client has provided additional photographs. Item Internal photos have only been provided with one view. Please provide photos that show both sides of the PCB as well as both internal views of the enclosure. Resolution The client has provided additional photographs. Item A hybrid system uses both digital modulation and frequency hopping techniques at the same time on the same carrier. This is similar to the combination DTS/FHSS system described above in the first example but the system is subject to slightly different standards. As indicated in Section 15.247(f), a hybrid system must comply with the power density standard of 8 dBm in any 3 kHz band when the frequency hopping function is turned off. The transmission also must comply with a 0.4 second/channel maximum dwell time when the hopping function is turned on. There is no requirement for this type of hybrid system to comply with the 500 kHz minimum bandwidth normally associated with a DTS transmission; and, there is no minimum number of hopping channels associated with this type of hybrid system. However, the hopping function must be a true hopping system, as described in Section 15.247(a)(1). The specific requirements in Section 15.247(a)(1) are: 1) A minimum channel separation. 2) Pseudorandom hop sequence. 3) Equal use of each frequency. 4) Receiver matching bandwidth and Synchronization. The additional requirements in Section 15.247 for a hybrid transmitter include the requirements the 1 watt output limit and RF safety requirements in Section 15.247(b) and the spurious emission limits of Section 15.247(c). Specifically, please describe how you meet the requirements of being a "true hopping system". Please describe how you meet the Pseudorandom hop sequence, Equal use of each frequency, and the receiver matching bandwidth and Synchronization. Resolution The client has provided updated information supporting the requirements above. In addition, we requested and received confirmation from Joe Dichoso of the FCC confirming this equipment meets the requirements outlined above and in the requirements. Northwest EMC TCB Compliance Opinion Revision 1/3/03 WATT0009 Opinion Specification Requirements Description 15.247(b)(5) RF Exposure Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted an RF Exposure exhibit demonstrating compliance. Reference: RF Exposure Exhibit Specification Requirements Description 15.247(a) Occupied Bandwidth Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 15.247(b)(3) Power Output Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 15.247(c) Spurious Emissions, Antenna Conducted Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 15.247; 15.205; 15.209 Spurious Emissions, Radiated Emissions Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Northwest EMC TCB Compliance Opinion Revision 1/3/03 WATT0009 Specification Requirements Description 15.247(d) Power Spectral Density Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 15.207 Conducted Emissions Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: Battery powered device, no conducted emissions required. Reference: N/A Specification Requirements Description 15.247 Minimum Channel Separation Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The operational description shows the equipment meets the requirements sh…

Text truncated - open the document above for the full version.

54.05 41.82 MRH6 Miro™ model MRH6 Radio Room Remote For best results, use alkaline batteries only. Pass & Seymour/Legrand, Inc. PO Box 4822 Syracuse, NY 13221-4822 FCC ID: Q4B-TDHHR Date Code

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . the Watt Stopper June 12, 2003 Internal photo Hand Held Remote MRH6G The Wattstopper, 6120 Passeo del Norte Carlsbad CA, 92009 Tel (760) 804-9701 Fax (760)804-9712

Compliance with 47 CFR 15.247(b)(5) “Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter.” The EUT is a handheld remote that controls room lighting and operates in the 902-928 MHz band as a 15.247(f) hybrid system. Although not typical, it is small enough to be placed into a large coat pocket. Therefore, it can be considered a portable transmitter per 47 CFR 2.1093(b). The antenna is a PCB etch internal to the unit and therefore permanently attached. The antenna has a gain of 2.0 dBi. The maximum peak conducted output power is 2.1mW. The maximum peak power is 3.4 mW (EIRP) for FCC ID: Q4B-TDHHR. The transmit frequency is 904.86 to 924.87 MHz, therefore the EUT does not require routine SAR evaluation per “TCB Exclusions List”, footnote 3 (dated July 17, 2002). See below: The exposure category is “General Population”. The distance is < 2.5 cm. Therefore the “Low Threshold” is 64.9 mW (EIRP) – above which routine SAR evaluation would be required. Since the maximum peak power of the EUT is 3.4 mW (EIRP), routine SAR evaluation is not required. The applicant’s handheld remote, FCC ID: Q4B-TDHHR, is compliant with the requirements of 15.247(b)(5).

The Watt Stopper, Inc. MRH6 June 16, 2003 Report No. WATT0009 Report Prepared By: 1-888-EMI-CERT © 2003 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: June 16, 2003 The Wattstopper, Inc. Model : MRH6 Report No: WATT0009 Emissions Description Pass Fail FCC 15.247, Spurious Radiated Emissions FCC 15.247, Output Power FCC 15.247, Band Edge Compliance FCC 15.247, Spurious Conducted Emissions FCC 15.247, Power Spectral Density FCC 15.247, Occupied Bandwidth FCC 15.247, Dwell Time FCC 15.247, Number of Hopping Frequencies FCC 15.247, Channel Spacing The equipment was tested in the configuration and mode(s) of operation provided by the client. The specific tests and test levels were specified by the client. Any additional tests, or product configurations that should be tested are the responsibility of the client. Product compliance is the responsibility of the client. List of Modifications to equipment under test required to meet the requirements: • See the modifications page of the report. Deviations to the test standard • No deviations were made to the test standard Test Facility • The measurement facility used to collect the data is located at: Northwest EMC, Inc.; 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with the FCC (Federal Communications Commission), and accepted by the FCC in a letter maintained in our files. Approved By: Greg Kiemel, Director of Engineering This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 None Northwest EMC Accreditations and Authorizations Revision 03/05/03 FCC: The Open Area Test Sites, and conducted measurement facilities, have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. TCB: Northwest EMC has been accredited by ANSI to ISO/IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. A2LA: Accreditation has been granted to Northwest EMC, Inc. to perform the Electromagnetic Compatibility (EMC) tests described in the Scope of Accreditation. Assessment performed to ISO/IEC 17025. Certificate Number: 1936-01, Certificate Number: 1936-02, Certificate Number 1936-03 Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body. (A2LA) TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0302C TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC-Subcontractors" of November 1992. Northwest EMC Accreditations and Authorizations Revision 03/05/03 NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Technology International: Assessed in accordance with ISO Guide 25 defining the general international requirements for the competence of calibration and testing laboratories and with ITI assessment criteria LACO196. Based upon that assessment Interference Technology International, Ltd., has granted approval for specifications implementing the EU Directive on EMC (89/336/EEC and amendments). The scope of the approval was provided on a Schedule of Assessment supplied with the certificate and is available upon request. Industry Canada: Accredited by Industry Canada for performance of radiated measurements. Our open area test sites comply with RSP 100, Issue 7, section 3.3. VCCI: Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Nos. - Evergreen: C-1071 and R-1025, Trails End: C-694 and R-677, Sultan: C-905, R-871 and R-1172, North Sioux City C-1246, R-1185 and R-1217) BSMI: Northwest EMC has been designated by NIST and validated by C- Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement. License No.SL2-IN-E-1017. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement GOST: Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC, to perform…

Text truncated - open the document above for the full version.

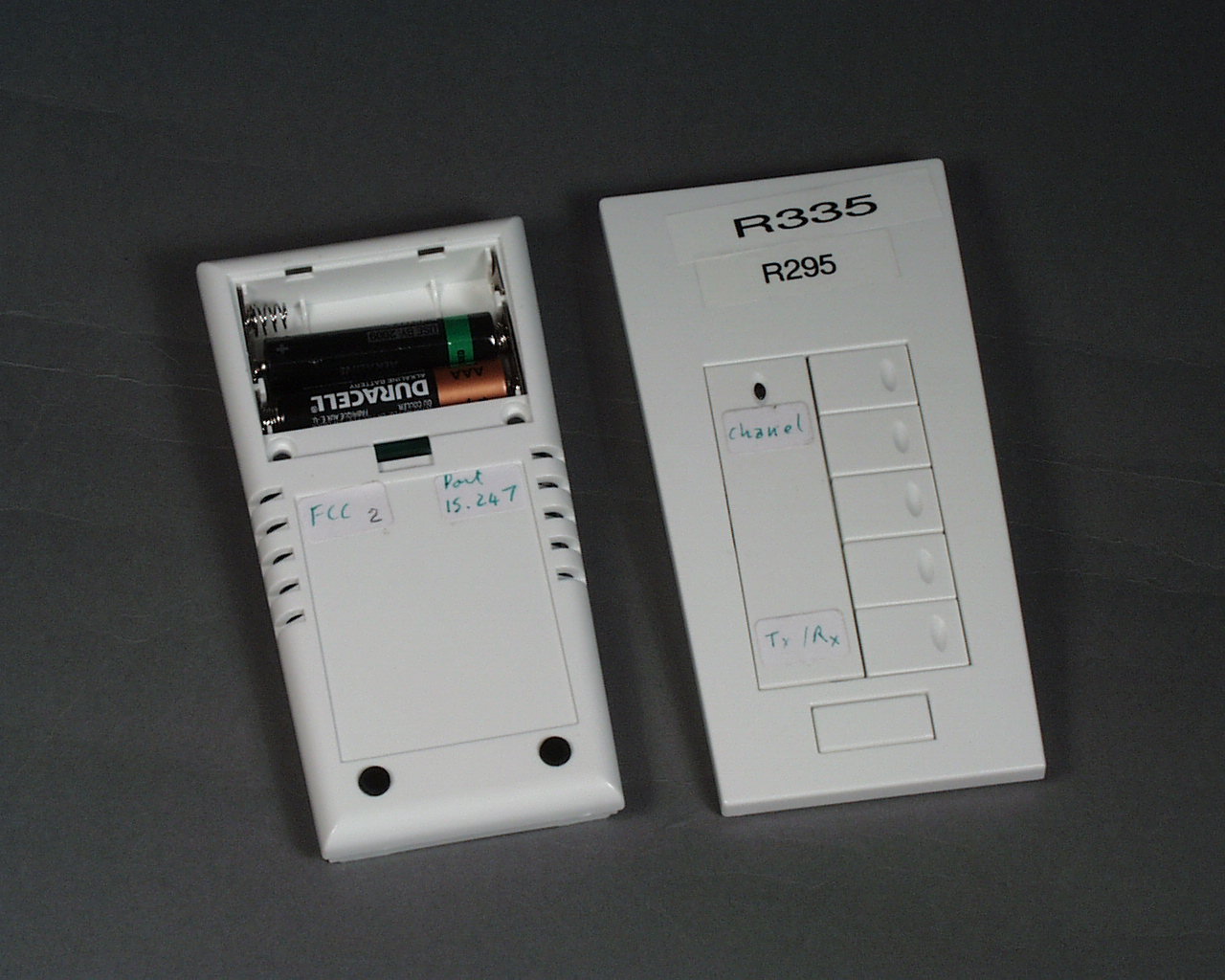

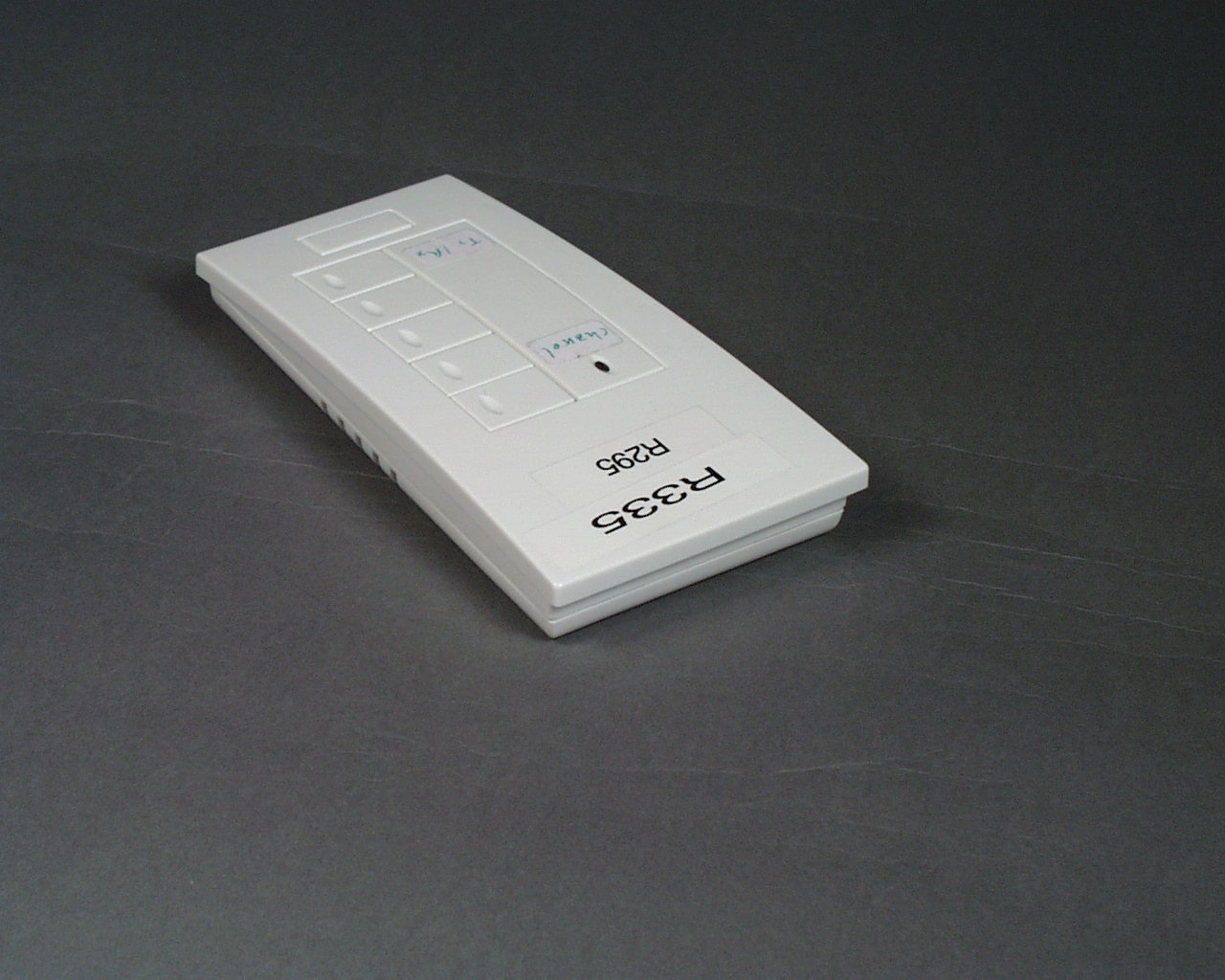

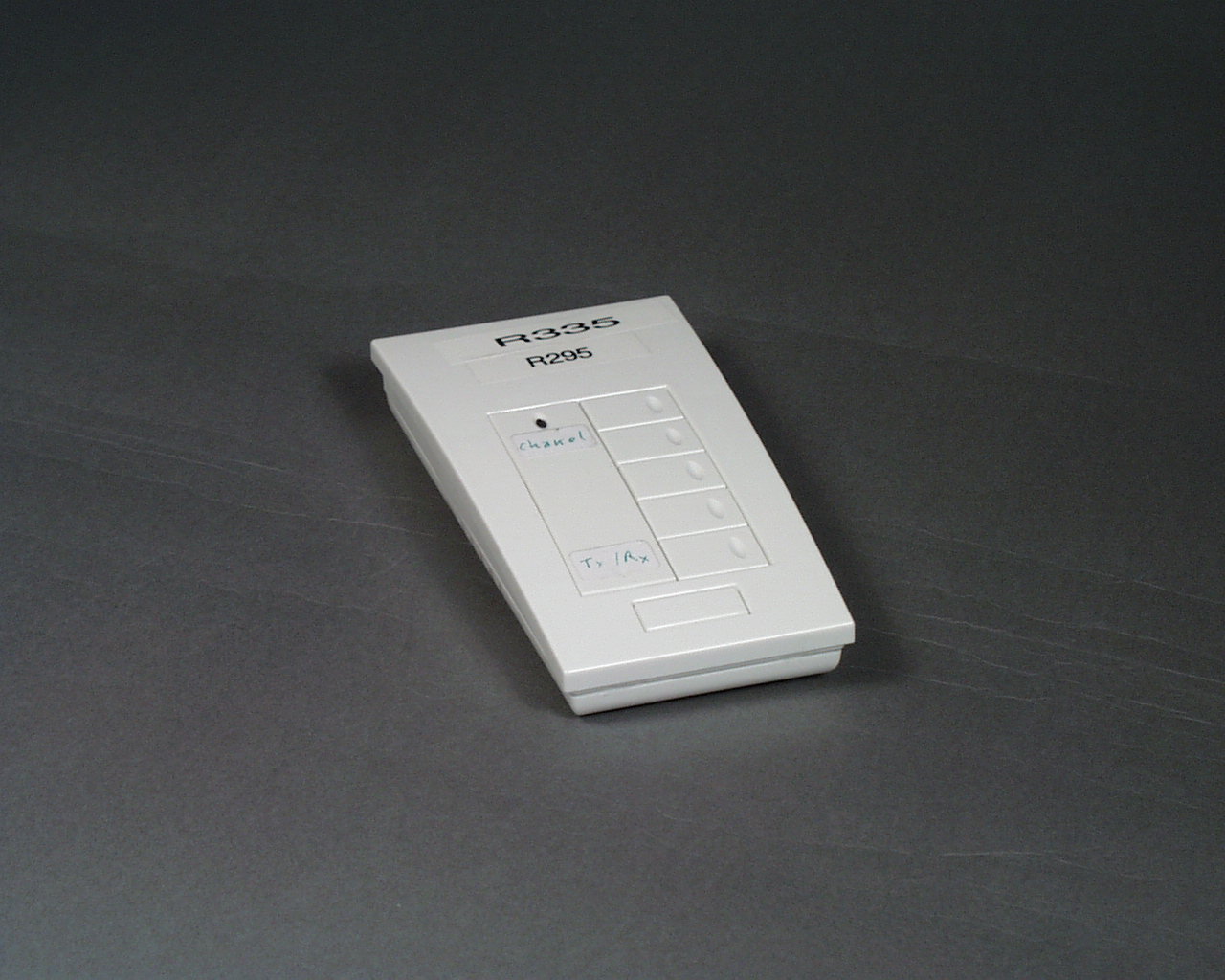

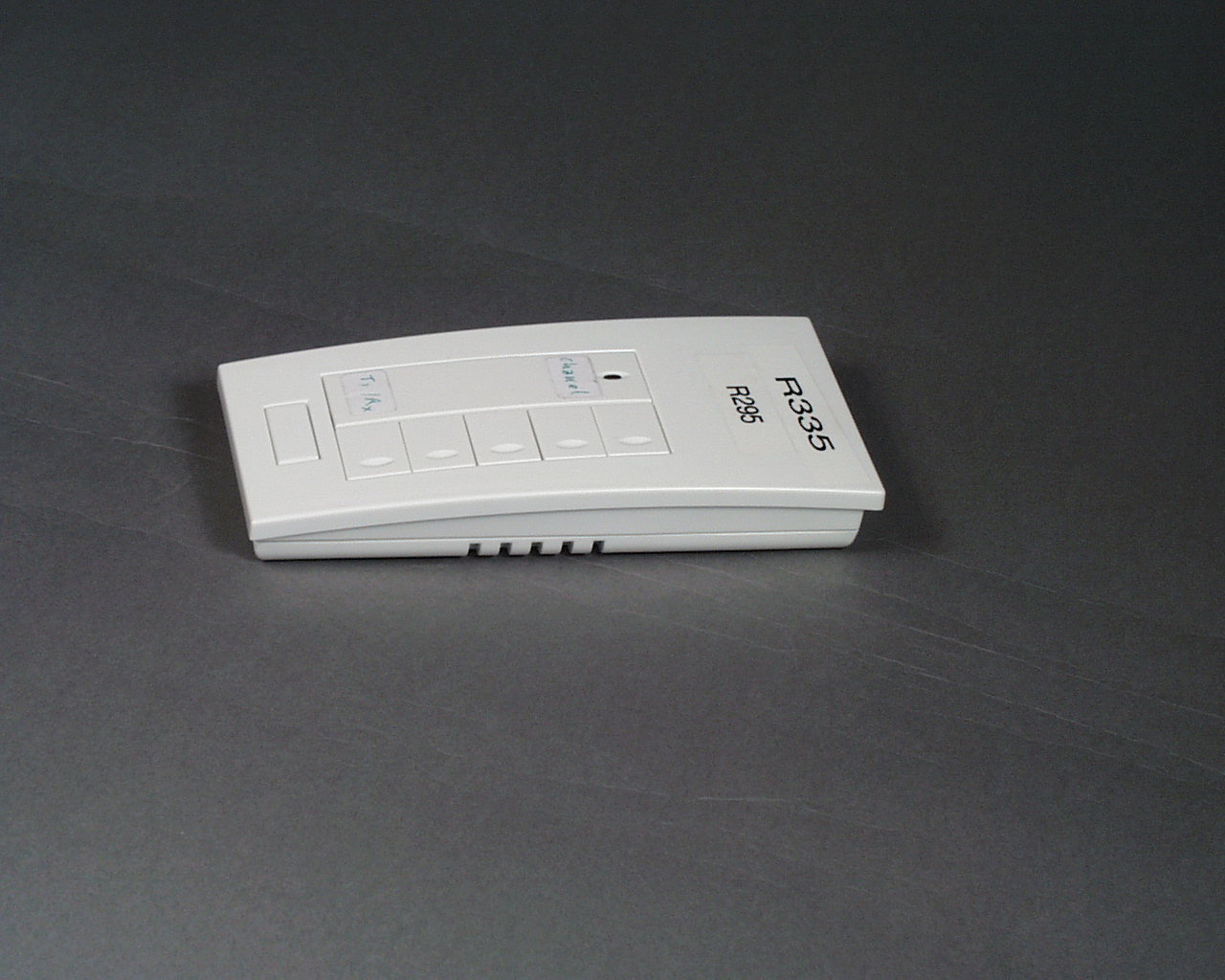

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . the Watt Stopper June 12, 2003 EUT info Hand Held Remote Product used to do the test: MRH6G (Hand Held Room Remotes) Type of Antenna: The antenna is a trace on the board. This antenna cannot be removed or replace by any other kind of antenna The Wattstopper, 6120 Passeo del Norte Carlsbad CA, 92009 Tel (760) 804-9701 Fax (760)804-9712

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . the Watt Stopper June 12, 2003 EUT info Hand Held Remote Product used to do the test: MRH6G (Hand Held Room Remotes) Type of equipment tested: pre-production Software: radio test software (this software allow to switch between channels and to switch between transmit and receive mode) Software revision: FCC_SS_HH.Hex The Wattstopper, 6120 Passeo del Norte Carlsbad CA, 92009 Tel (760) 804-9701 Fax (760)804-9712
