Q4B-ZBSDZB Wireless Slim Switch

Wattstopper ® PLUS Wireless Slim Switches Installation Instructions • Instructions d’I nstallation • Instrucciones de Instalación No: 34189 – 02/26 rev. 2 Catalog Numbers • Les Numéros de Catalogue • Los Números de Catálogo: EN-SW-1 1-ZB, EN-SW-20-ZB, EN-SW-22-ZB, EN-SW-41-ZB, EN-SW-50-ZB Country of Origin: Made in China • Pays d’origine: Fabriqué en Chine • País de origen: Hecho en China SPECIFICATIONS Power ..........Battery, (1) CR2354 Battery, 3VDC (included) Connection to PLUS network .................................Wireless Wireless (2.4GHz) Range: ....................30ft line-of-sight to repeater device, 15ft through standard wall materials Environment .......................................For Indoor Use Only Operating Temperature ...............32° to 104°F (0° to 40°C) Storage Temperature ..................23° to 176°F (-5° to 80°C) Relative Humidity ..................5% to 95% (non-condensing) Weight ............................................................67 g (2.4 oz) Certifications UL and cUL listed (UL916) CE (Conformity with all EC Directive requirements) FCC Part 15 Class B compliant FCC ID:Q4B-ZBSD IC:23947-ZBSD RoHS Compliant Product Environmental Profile (PEP) The radio frequency range of this product is 2405MHz- 2480MHz; the maximum radio transmission power is 8dBm. Legrand declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product bears the selective sort ing symbol for Waste electric al and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the ret ailer when he buys a new electric al or electronic equipment DESCRIPTION The SW Series Slim Switches are programmable, wireless control devices for manual on/off, dimming, and scene control of one or more loads from one or more locations. SW Series switches are available in multiple colors and may have custom text or icons factory printed onto buttons via our custom engraving offering. BATTERY SAFETY • Never int roduce the product and/or its batteries to extreme temperatures or alt itudes during use, storage, or transportation. • Never expose batteries to excessive heat such as sunshine, fire or the lik e. • Never damage or use damaged devices / batteries. • Never short circuit the batteries. • Always ensure batteries are installed with their correct polarity. • Ensure batteries are removed from the product after they have become exhausted. • Batteries should only be replaced by maintenance staff or other pro fessional. • This is professional equipment int ended for commercial applications only. • CAUTION: Risk of fire or explosion if the battery is replaced incorrectly. Do not apply cleaning solvent directly onto unit. Apply cleaning solvent onto a clot h, then wipe the unit clean. Dry device after cleaning. EN-SW-11-ZBEN-SW-20-ZBEN-SW-22-ZBEN-SW-41-ZBEN-SW-50-ZB Wireless Manager SSU SensorSensor Sensor Wattstopper PLUS Slim Switch Integrated Controller Etherne t Wire Ke y Wireles s W WIRELESS SYSTEM OVERVIEW This symbol indicates DC voltage. This illustratio n shows how eac h component is easil y integrated into the Wattstopper PLUS Syst em. 2 INSTALLING THE SWITCH Wattstopper PLUS Slim Switches support two installation methods: surface mount or wall-box mount. NOTE: The switches may not be installed into wall boxes with line voltage wiring. In applications such as retrofit, any such wiring must be removed from the wallbox prior to installation. Wattstopper PLUS Slim Switches are for commercial use only. NOTE: Before mounting, the battery protection tab should be removed. Surface Mount: Surface mounting requires use of a Legrand radiant ® wall plate (sold sepately). The adhesive pad is suitable for mounting to multiple materials including drywall, metal, wood, glass, and some plastics. 1. Remove the wall box screws from the switch. 2. Hook the Radiant plate on the upper plate mount bracket, then press the bottom of the plate into the switch to snap on the plate. 3. Peel the adhesive protector off of the rear of the switch. 4. Align the switch with the wall and press it firmly into the mounting surface, holding pressure for 5 seconds. For surface mounting in multi-gang applications, snap-off side alignment wings are available to assist in proper alignment. 1. Press and jiggle the wall box screws from the rear to remove them from the switches. 2. Using an appropriately sized multi-gang Radiant plate (sold separately), attach each switch to the plate by hooking the plate on the upper plate mount bracket of the switch, then pressing the bottom of the plate into the switch to snap on the plate. 3. Peel the adhesive protector off of the rear of each switch. 4. Align the assembled switch bank with the wall and press it firmly into the mounting surface, spreading a firm pressure evenly across the switch bank for 5 seconds. Alignment Wings Top/Bottom Wings (for radiant wall plates) Example of 3 gang installation with alignment wings removed BUTTONS AND INDICATORS RGBW Status and Config LED on top button White Status LED on other buttons Button(s) can be set to toggle On/Off or to activate scenes Tap to increment up or down Hold to ramp ramp up or down Config Button (for device reset) Pre-programmed LED Operation Before being programmed, device LEDs are primarily used to indicate pairing status with a PLUS wireless network. Upon powering, EN-SW Slim Switches will begin searching for a PLUS network, indicated by a short green flash every 3 seconds. When attempting to join a PLUS network, the green LED will flash rapidly. After successfully joining, the green LED will illuminate solidly for 2 seconds and then turn off. Normal LED Operation (After Programming) In normal operation, the primary function of device LEDs is to…

Text truncated - open the document above for the full version.

Covered Equipment Certification Attestation Letter 2/9/2026 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: Q4B-ZBSD The Watt Stopper, Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. The Watt Stopper, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. The Watt Stopper, Inc. (“the applicant”) certifies that the equipment for which authorization issought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity oranti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Sarah Turner Title: Compliance Engineering Manager Company Name: The Watt Stopper, Inc. Date: 1/20/2026

* the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter February 26, 2026 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: Q4B-ZBSD Per section 2.911(d)(7) of the FCC rules, The Watt Stopper, Inc. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: The Watt Stopper, Inc. Physical U.S. Company Address: 2234 Rutherford Rd., Carlsbad, CA 92008, USA Agent name: Sarah Turner Agent Email Address: [email protected] FRN: 0008513533 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Sarah Turner Printed name: Sarah Turner Title: Compliance Engineering Manager Title: Compliance Engineering Manager Company Name: The Watt Stopper, Inc. Company Name: The Watt Stopper, Inc. Date: January 26, 2026 Date: January 26, 2026 FRN Code: 0008513533 FRN Code: 0008513533

2/3/2026 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint BUREAU VERITAS LCIE CHINA COMPANY LIMITED (Add: No. 829, Xinzhuan Road, Shanghai, P.R.China 201612), to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Sarah Turner

February 27, 2026 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: Q4B-ZBSD Pursuant to Sections 0.457(d) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request permanent confidential treatment of exhibits identified as such in the table below and request they are permanently withheld from public review based on the documents containing trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. We also request short-term confidentiality on certain exhibits until the intended date of marketing as outlined below. We request the exhibits be withheld from public view for a period of 180 days. We attest marketing of the product will only commence after the period of short-term confidentiality expires, or if marketing is to commence before the requested number of days listed above, the grantee will inform Nemko to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. Exhibit Type of Confidentiality Requested Block Diagrams ☒ Permanent ☐ Short Term External Photos ------------------ ☐ Short Term Internal Photos ☐ Permanent* ☐ Short Term Operation Description ☒ Permanent ☐ Short Term Parts List & Placement/BOM ☒ Permanent ☐ Short Term Tune-Up Procedure ☐ Permanent ☐ Short Term Schematic Diagrams ☒ Permanent ☐ Short Term Test Setup Photos ------------------ ☐ Short Term User’s Manual ☐ Permanent* ☐ Short Term The asterisked items (*) require further information to be provided in this justification letter before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. Note: any documents held under the Short-Term confidentiality will automatically become public after the requested time if an appropriate extension request has not been received. Any exhibits (i.e., schematic diagrams) that may have already been requested to have “Permanent” confidentiality as shown above need not be repeated under Short-Term confidentiality request. Sincerely, Signed: Printed name: Sarah Turner Title: Compliance Engineering Manager Company Name: The Watt Stopper, Inc.

Family Certification Attestation Letter 1/20/2026 Nemko Canada Inc 303 River Road Ottawa K1V 1H2 Canada Company Name: The Watt Stopper, Inc. FCC ID: Q4B-ZBSD IC ID：23947-ZBSD Models: EN-SW-11-ZB, EN-SW-20-ZB, EN-SW-22-ZB, EN-SW-41-ZB, EN-SW-50-ZB We hereby request Family Certification for the above-mentioned models based on them being electrically identical, and physically identical apart from model name/number The button shapes and button quantities are different (See below). Signed: Printed name: Sarah Turner Title: Compliance Engineering Manager Date: 1/20/2026

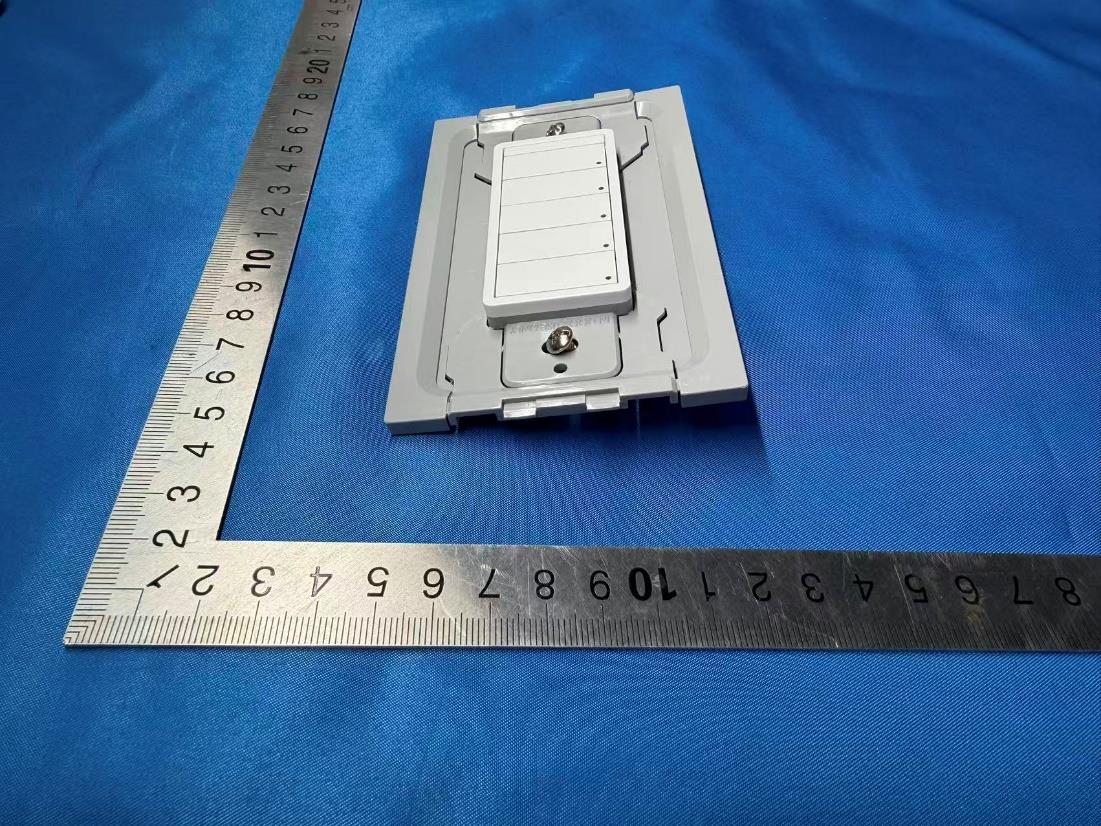

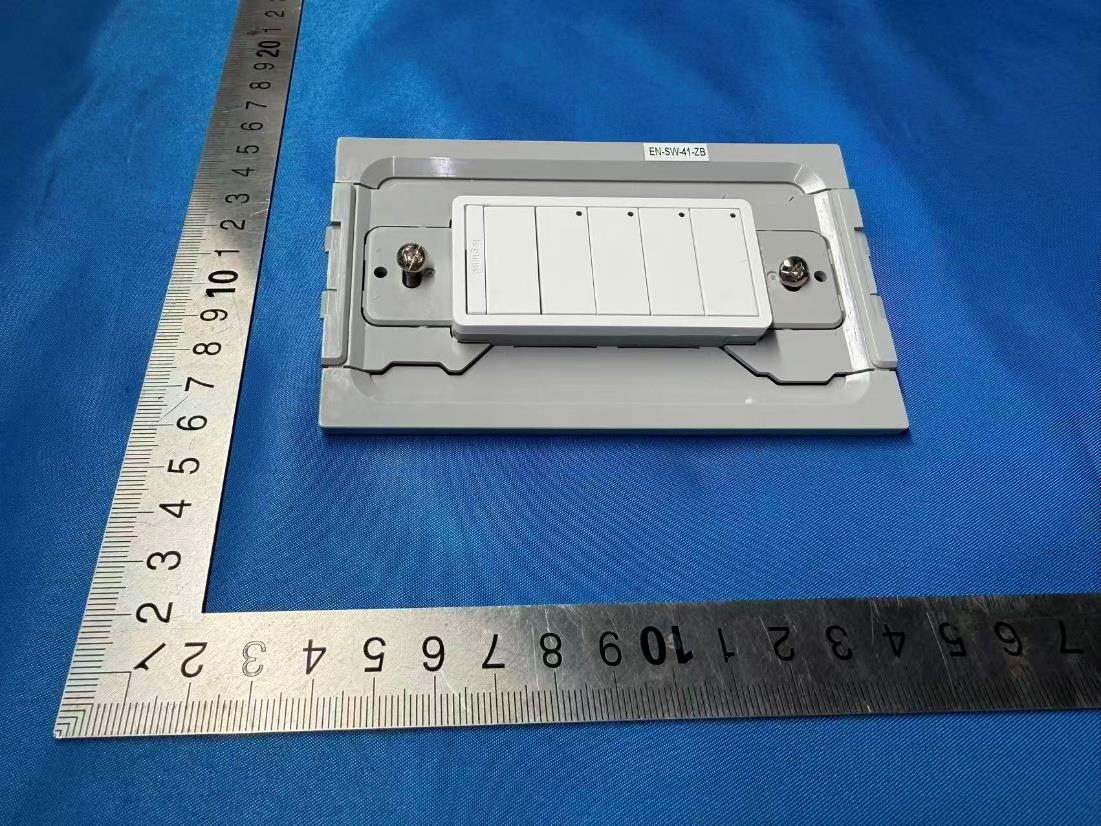

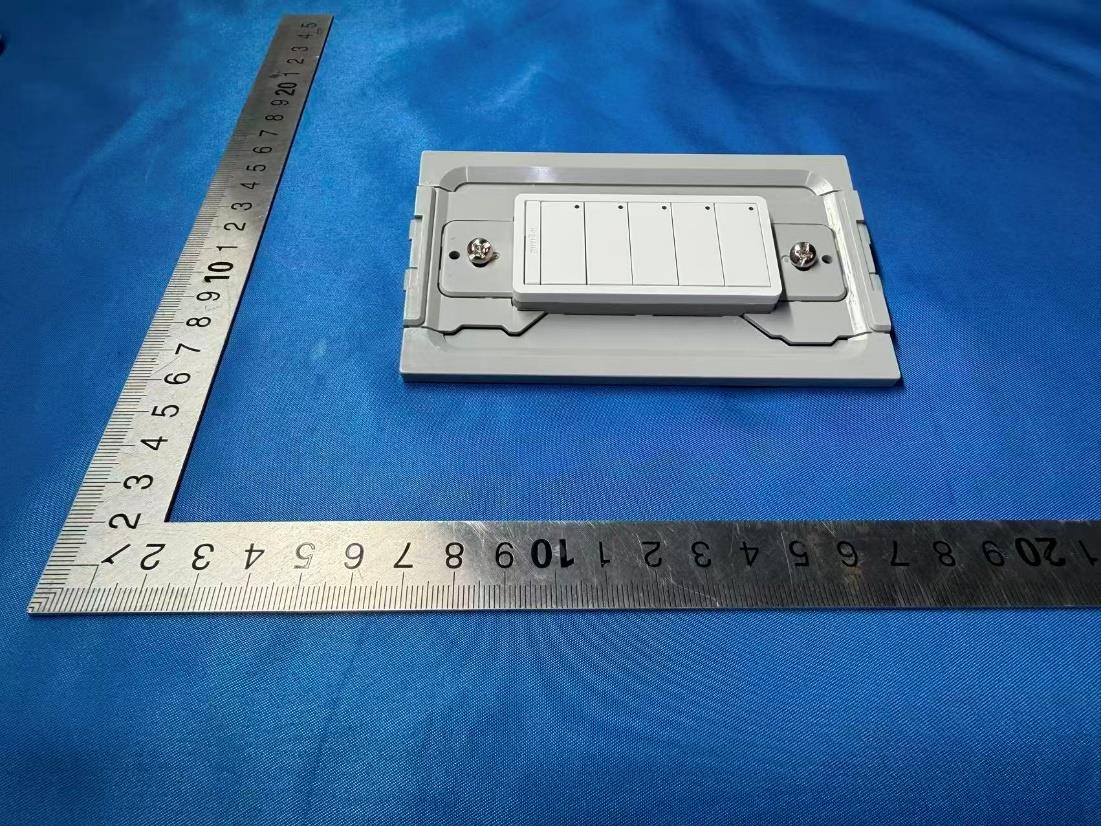

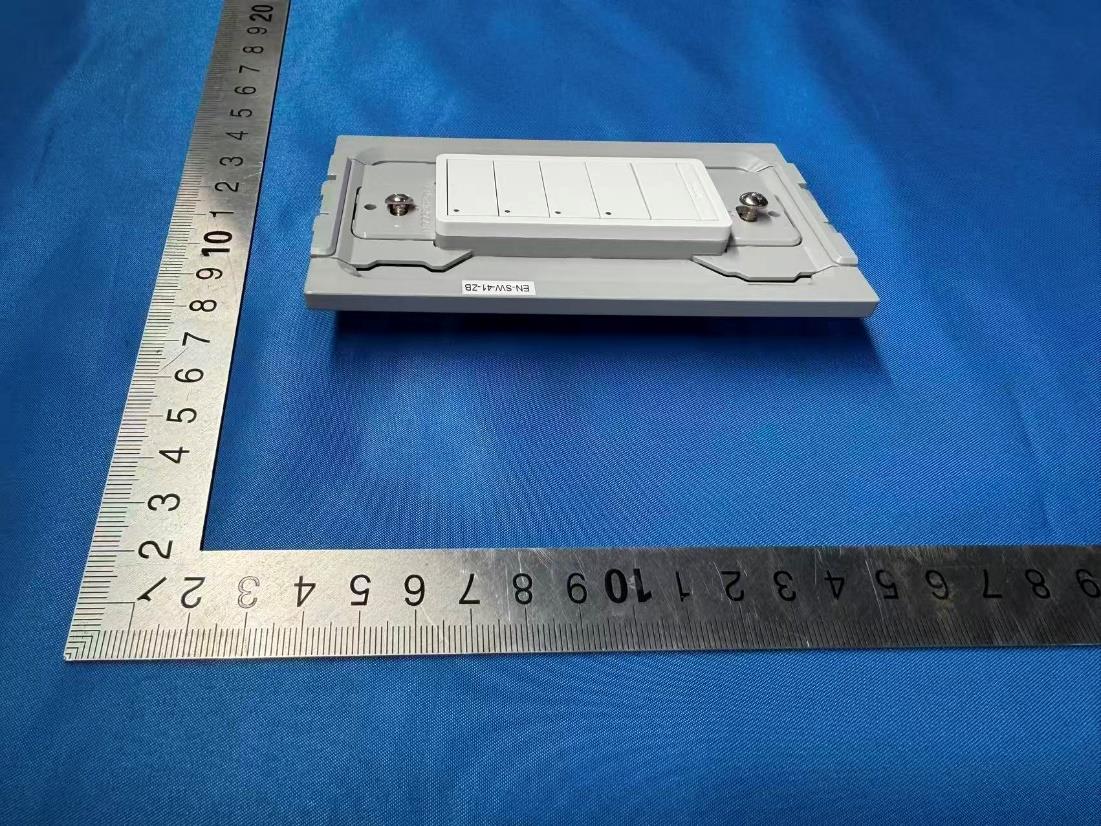

EN-SW-11-ZB EN-SW-20-ZB EN-SW-22-ZB EN-SW-41-ZB EN-SW-50-ZB

Label Location

EN-SW-11-ZB EN-SW-20-ZB Antenna Antenna EN-SW-22-ZB EN-SW-41-ZB Antenna Antenna EN-SW-50-ZB Antenna

Report No.: LGD-ESH-P25101058B-2 Page No. 1 / 6 Report Format Version: 6.1.1 MPE Test Report Report No.: LGD-ESH-P25101058B-2 FCC ID: Q4B-ZBSD Product: ZB Wireless Slim Switches Model: EN-SW-11-ZB, EN-SW-20-ZB,EN-SW-22-ZB, EN-SW-41-ZB, EN-SW-50-ZB Received Date: Oct.10, 2025 Test Date: Oct.10 to Dec.05, 2025 Issued Date: Dec.06, 2025 Applicant: The Watt Stopper, Inc. Address: 2234 Rutherford Rd., Carlsbad, CA 92008,USA Manufacturer: The Watt Stopper, Inc. Address: 2234 Rutherford Rd., Carlsbad, CA 92008,USA Issued By: BUREAU VERITAS LCIE CHINA COMPANY LIMITED Lab Address: No. 829, Xinzhuan Road, Shanghai, P.R.China (201612) FCC Registration / Designation Number: 176467/ CN1213 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: LGD-ESH-P25101058B-2 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record ............................................................................................................................... 3 1 Certificate of Conformity .................................................................................................................... 4 2 General Information ........................................................................................................................... 5 2.1 General Description of EUT............................................................................................................ 5 3 RF Exposure ..................................................................................................................................... 6 3.1 Limits For Maximum Permissible Exposure (MPE) ......................................................................... 6 3.2 MPE Calculation Formula ............................................................................................................... 6 3.3 MPE Calculation Formula ............................................................................................................... 6 3.4 Calculation Result of Maximum Permissible Exposure.................................................................... 6 Report No.: LGD-ESH-P25101058B-2 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued LGD-ESH-P25101058B-2 Original release Dec.06, 2025 Report No.: LGD-ESH-P25101058B-2 Page No. 4 / 6 Report Format Version: 6.1.1 1 Certificate of Conformity Product: ZB Wireless Slim Switches Brand: Model: EN-SW-11-ZB, EN-SW-20-ZB,EN-SW-22-ZB, EN-SW-41-ZB, EN-SW-50-ZB Applicant: The Watt Stopper, Inc. Test Date: Oct.10 to Dec.05, 2025 Standards: FCC Part 2 (Section 2.1091) KDB 447498 D01 General RF Exposure Guidance v06 IEEE C95.1-1992 The above equipment has been tested by BUREAU VERITAS LCIE CHINA COMPANY LIMITED, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. The test results in this report apply exclusively to the tested model / sample. Without written approval of BUREAU VERITAS LCIE CHINA COMPANY LIMITED, the test report shall not be reproduced except in full. BUREAU VERITAS LCIE CHINA COMPANY LIMITED lab is not responsible for the incorrect test results caused by the incorrect information provided by the applicant (such as the maximum internal operating frequency, antenna gain, cable loss, etc.) Prepared by : , Date: Dec.06, 2025 Yan ZHOU Project Engineer Approved by : , Date: Dec.06, 2025 Sean YU RF Supervisor Report No.: LGD-ESH-P25101058B-2 Page No. 5 / 6 Report Format Version: 6.1.1 2 General Information 2.1 General Description of EUT ZIGBEE Product ZB Wireless Slim Switches Brand Model EN-SW-11-ZB, EN-SW-20-ZB,EN-SW-22-ZB, EN-SW-41-ZB, EN-SW-50-ZB Difference Button configuration Power Rating 3VDC, 1*CR2354 battery Modulation Type O-QPSK Modulation Technology Zigbee Operating Frequency 2405MHz to 2480MHz Number of Channel 16 Output Power 4.22 dBm Antenna Type PCB Antenna Antenna Connector -- Antenna Gain 3.3 dBi Note: 1. For more details, please refer to the User’s manual of the EUT. 2. The cable loss of the cable from EUT will be compensated in the test data. Report No.: LGD-ESH-P25101058B-2 Page No. 6 / 6 Report Format Version: 6.1.1 3 RF Exposure 3.1 Limits For Maximum Permissible Exposure (MPE) Frequency Range…

Text truncated - open the document above for the full version.

Report No.: LGD-ESH-P25101058B-1 Page No. 1 / 52 Report Format Version: 6.1.1 FCC Test Report Report No.: LGD-ESH-P25101058B-1 FCC ID: Q4B-ZBSD Product: ZB Wireless Slim Switches Model: EN-SW-11-ZB, EN-SW-20-ZB,EN-SW-22-ZB, EN-SW-41-ZB, EN-SW-50-ZB Received Date: Oct.10, 2025 Test Date: Oct.10 to Dec.05, 2025 Issued Date: Dec.06, 2025 Applicant: The Watt Stopper, Inc. Address: 2234 Rutherford Rd., Carlsbad, CA 92008,USA Manufacturer: The Watt Stopper, Inc. Address: 2234 Rutherford Rd., Carlsbad, CA 92008,USA Issued By: BUREAU VERITAS LCIE CHINA COMPANY LIMITED Lab Address: No. 829, Xinzhuan Road, Shanghai, P.R.China (201612) FCC Registration / Designation Number: 176467/ CN1213 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: LGD-ESH-P25101058B-1 Page No. 2 / 52 Report Format Version: 6.1.1 Table of Contents Release Control Record ............................................................................................................................... 5 1 Certificate of Conformity .................................................................................................................... 6 2 Summary of Test Results ................................................................................................................... 7 2.1 Test Instruments ............................................................................................................................ 8 2.2 Measurement Uncertainty .............................................................................................................. 9 2.3 Modification Record ....................................................................................................................... 9 3 General Information ..........................................................................................................................10 3.1 General Description of EUT...........................................................................................................10 3.2 Description of Test Modes ............................................................................................................. 11 3.2.1 Test Mode Applicability: .................................................................................................................12 3.2.2 Test Condition: ..............................................................................................................................13 3.3 Duty Cycle of Test Signal ..............................................................................................................14 3.4 Description of Support Units ..........................................................................................................16 3.5 General Description of Applied Standards .....................................................................................16 4 Test Procedure and Results ..............................................................................................................17 4.1 AC Power Conducted Emission.....................................................................................................17 4.1.1 Limits ............................................................................................................................................17 4.1.2 Test Procedures ............................................................................................................................17 4.1.3 Deviation from Test Standard.........................................................................................................17 4.1.4 Test Setup .....................................................................................................................................18 4.1.5 EUT Operating Conditions .............................................................................................................18 4.1.6 Test Results ..................................................................................................................................19 4.2 Minimum 6dB Bandwidth...............................................................................................................20 4.2.1 Limit ..............................................................................................................................................20 4.2.2 Test Setup .....................................................................................................…

Text truncated - open the document above for the full version.

1 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna ApplicationReport SWRU120D–April2007–RevisedJanuary2019 2.4-GHzInvertedF Antenna ABSTRACT Thisdocumentdescribesa printed-circuitboard(PCB)antennadesignthat can be usedwith all 2.4-GHz transceiversand transmittersfromTexasInstruments™. The maximumgainwhenusedon the reference boardis measuredto be +3.3dBi, and the overallsize requirementsfor this antennaare 25.7× 7.5 mm (not includinggroundplane). Contents 1Descriptionof the antennaDesign........................................................................................2 2MeasurementResults.......................................................................................................3 2.1RadiationPattern...................................................................................................3 2.2Reflection...........................................................................................................10 2.3Bandwidth..........................................................................................................11 3Conclusion..................................................................................................................11 4References..................................................................................................................11 Trademarks TexasInstrumentsis a trademarkof TexasInstruments. All othertrademarksare the propertyof theirrespectiveowners. Descriptionof the antennaDesignwww.ti.com 2 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna 1Descriptionof the antennaDesign It is importantto makean exactcopyof the antennadimensionsto obtainoptimumperformance.The easiestapproachto implementthe antennain a PCBCADtool is to importthe antennalayoutfroma gerberfile or a DXFfile. Suchfiles are includedin CC2430DBreferencedesign[1]. The gerberfile is calledInverted_F_Antenna.spland the DXFfile is calledInverted_F_Antenna.dxf.If the antennais implementedon a PCBthat is widerthanthe antenna,avoidplacingcomponentsor havinga ground planecloseto the end pointsof the antenna.If the CADtool beinguseddoesnot supportimportinggerber or DXFfiles,see Figure1 and Table1. The antennaimpedanceis tunedto 50 ohmon the referenceboard.The impedancewill howeverbe affectedby differentsize and shapeof the groundplane,objectsin the antennanearfieldsuchas mechanicalassemblies(housing,batteries,etc.),PCBthickness,PCBmaterialand so on. It is therefore recommendedto add a pi-networkcloseto the antennafeedpointfor impedancematching. The resultspresentedin this documentare basedon an antennaimplementedon a PCBwith a 1-mm thicknessusingstandardFR-4material. Figure1. IFA Dimensions Table1. IFA Dimensions H15.70mmW20.46mm H20.74mmL125.58mm H31.29mmL216.40mm H42.21mmL32.18mm H50.66mmL44.80mm H61.21mmL51.00mm H70.80mmL61.00mm H81.80mmL73.20mm H90.61mmL80.45mm W11.21mm www.ti.comMeasurementResults 3 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna 2MeasurementResults All of the resultspresentedin this sectionare basedon measurementsperformedwith the CC2430DB[1] evaluationboard. 2.1RadiationPattern Figure2 showshow to relateall of the radiationpatternsto the orientationof the antenna.The radiation patternsweremeasuredwith the CC2430deviceprogrammedto 0-dBmoutputpower. Figure2. RelatingAntennato RadiationPatterns MeasurementResultswww.ti.com 4 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna Figure3 showsthe XY planeverticalpolarization. Figure3. XY Plane–VerticalPolarization www.ti.comMeasurementResults 5 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna Figure4 showsthe XY planehorizontalpolarization. Figure4. XY Plane–HorizontalPolarization MeasurementResultswww.ti.com 6 SWRU120D–April2007–RevisedJanuary2019 SubmitDocumentationFeedback Copyright© 2007–2019,TexasInstrumentsIncorporated 2.4-GHzInvertedF Antenna Figure5 showsthe XZ planeverticalpolarization. Figure5. XZ Plane–VerticalPolarization www.ti.comMeasu…
