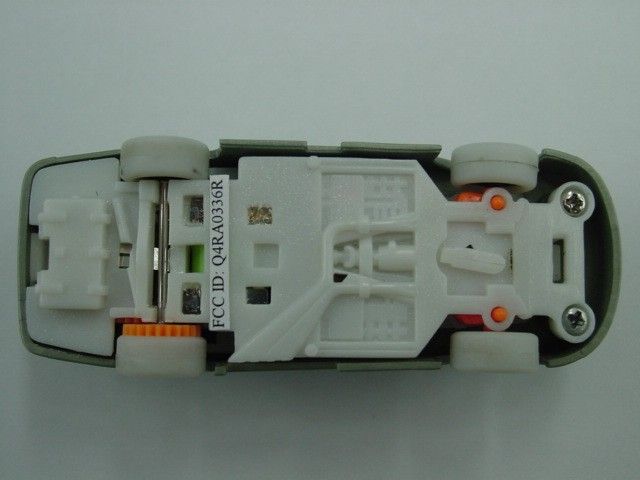

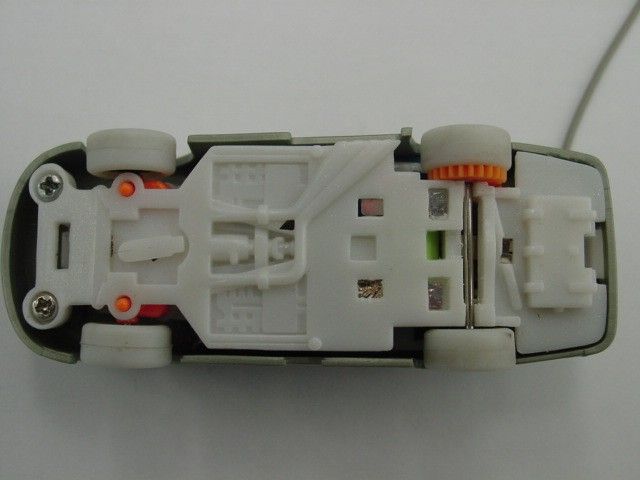

Q4RA0336R1/64 Scale RC Car 49MHz RX

push up LIGHT Please read all directions prior to assembly. Use instruction sheet to determine that all necessary parts have been included. Follow directions carefully. Read and observe all caution and warning labels. For ages 8 and up. Winner’s Circle radio-controlled race cars are available in two frequencies, so that two cars may race together. Battery recommendations:Use only fresh batteries in the required size. Do not mix old and new batteries or differing types such as standard, alkaline or rechargeable. For optimum quality, remove batteries when the unit is stored long term. Choking Hazard:Contains small and metal parts. Not appropriate for children under 8 years of age. Parental supervision recommended. 3 push down * ! Step 1:When you are ready to operate your radio-controlled race car, remove the vehicle from the charger and switch the controller to the ON position. The light indicates unit is ON. Step 2:To move the race car straight or to drive in reverse, use the left controller button. Press up to move race car forward; press down to move in reverse. Release button to stop the race car. Step 3:To steer the race car left or right, use the right controller button. Press left to turn left; press right to turn right. Release button to drive straight. Step 4:While operating in forward or reverse, the race car, on occasion, might sway to the left or right. By adjusting the directional guide on the race car’s underside, steering direction can be corrected. During normal operation, this action may need to be repeated several times. Step 5:Turn off the controller by moving the switch to the OFF position. To conserve battery power, ensure that the light indicator is OFF. Return the racer to the pedestal display for storage and recharging. Operating the Race Car DIRECTIONAL GUIDE 1:64-Scale Radio Control Race Car Instructions All drivers, names, likenesses, Trademarks and Licenses used with permission or under license. NASCAR® is a registered trademark of The National Association for Stock Car Auto Racing Inc. Winner’s Circle full-function, radio-controlled race cars showcase the fan-favorite paint schemes as seen on the racetrack. The handy display pedestal doubles as the car’s charger, while the easy-to-use, battery-fueled controller makes it fun to go racing! Step 1A) P02 tep 2A) P05 1 (2x size "AAA") (2x size "AA") 2 LIGH T Each Winner’s Circle radio- controlled race car features a handy controller, charger display and fully decorated race car. Please note: Phillips screwdriver, two (2) “AAA”batteries and two (2) “AA”batteries not included. Charger Display Step 1:The pedestal display unit doubles as a charger. To insert two (2) “AAA”batteries, use Phillips screwdriver to remove battery cover. Step 2:Insert “AAA”batteries as indicated in compartment. Step 3:Replace battery cover and secure with screwdriver. Controller Step 1:Ensure the ON/OFF switch is in the OFF position. To insert 2 “AA”batteries, use Phillips screwdriver to remove battery cover on back of controller unit. Step 2:Insert “AA”batteries as indicated in compartment. Step 3:Replace battery cover and secure with screwdriver. Step 1:To affix race car to the charger pedestal, first latch the rear portion of the car to the pedestal display. Step 2:Press the front portion to the display until the vehicle is secure. Race car should snap in place to unit. A light will signal charging is in progress. After approximately one (1) minute, the light will turn off, indicating the race car is fully charged. Assembly Charging Instructions Controller Race Car Charger Display Size “AAA” Size “AA” FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the follow- ing two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 1 2 3 1 2 3

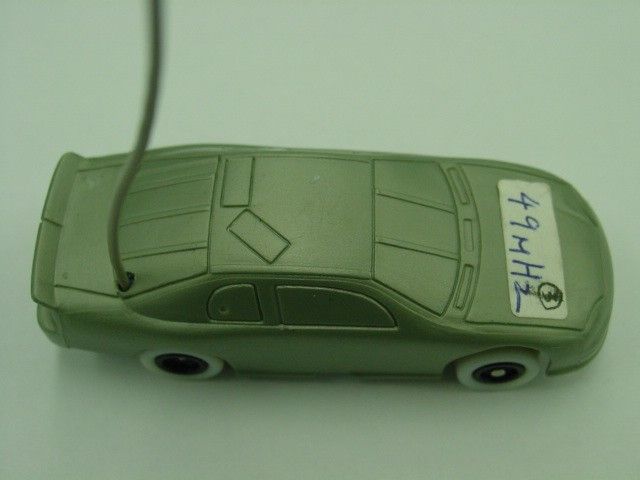

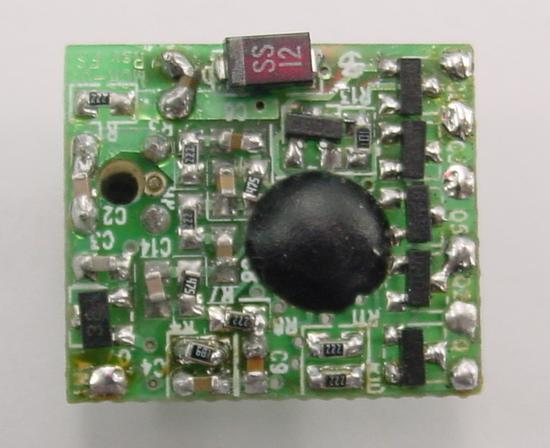

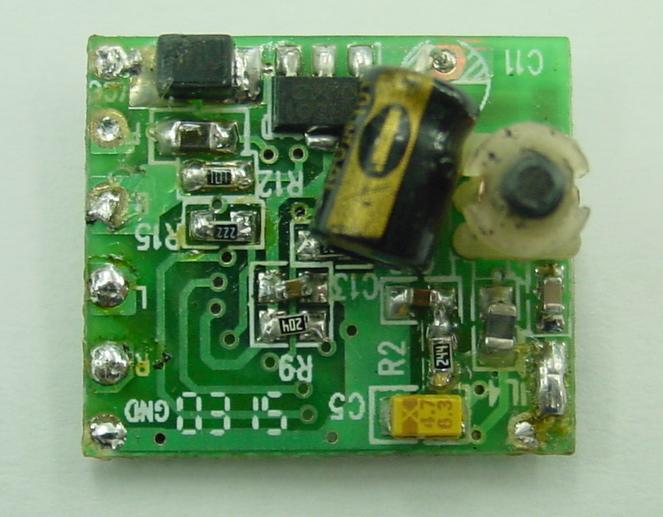

General Description The 1/64 scale RC Car 49MHz is a superregenerative receiver for operating at 49.860 MHz which is controlled by a LRC circuit. The 1/64 scale RC Car 49MHz is powered 1.5 V rechargeable battery. There a external antenna in the back of the 1/64 scale RC Car 49MHz. When received forward / backward signal, it will going forward / backward. When received Left / Right signal, it will going Left / Right. The brief circuit description is listed as follows : - Q7 and associated circuit act as superregenerative - IC1 and associated circuit act as decoder - U2 and associated circuit act as DC-DC regulator - Q1, Q2, Q3, Q4, Q5, Q6 and associated circuit act as motor driver

49M RX.sch-1 - Tue May 20 11:25:49 2003

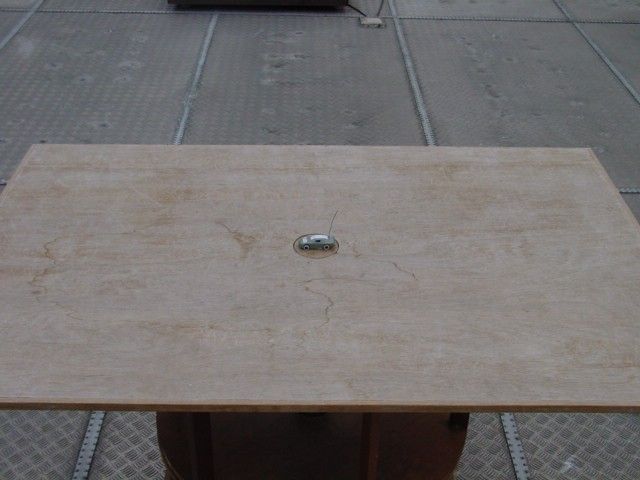

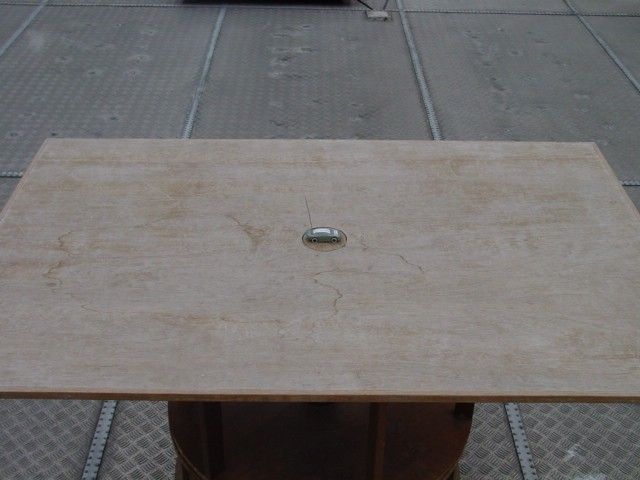

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009207-3 Date : 2003 July 23 Applicant : Early Light Industrial Co., Ltd. Early Light International Centre, No. 9, Ka Fu Close, Sheung Shui, N. T., Hong Kong. Attn. : Simon Lam / Jacky Yu Sample Description : One(1) submitted sample stated to be 1/64 Scale RC Car 49 MHz Rx of Model No. A0336 . Rating : 1.5 V rechargeable battery No. of sample(s) : Three(3) pieces *** Date Received : 2003 May 22. Test Period : 2003 May 22 – 2003 July 15. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 10. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 10 Danny Chui EMC Engineer - EL. Division FCC ID : Q4RA0336R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009207-3 Date : 2003 July 23 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document................................................................................................................. 9 5.1 Bandwidth............................................................................................................................... 9 6 Appendices.................................................................................................................................... 10 Page 2 of 10 FCC ID : Q4RA0336R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009207-3 Date : 2003 July 23 1 General Information 1.1 General Description The equipment under test (EUT) is a superregenerative receiver for 1/64 scale RC car 49 MHz Rx operating at 49.860 MHz which is controlled by a LRC circuit. The EUT is powered by 1.5 V recharge battery. There a external antenna in the back of the EUT. When received forward / backward signal, it will going forward / backward. When received Left / Right signal, it will going Left / Right. The brief circuit description is listed as follows : - Q7 and associated circuit act as superregenerative - IC1 and associated circuit act as decoder - U2 and associated circuit act as DC-DC regulator - Q1, Q2, Q3, Q4, Q5, Q6 and associated circuit act as motor driver 1.2 Related Submittal Grants This is a single application for certification of a receiver. The transmitter for this receiver is authorized by Certification procedure. Page 3 of 10 FCC ID : Q4RA0336R TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD009207-3 Date : 2003 July 23 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuan…
