Q4RWC164T1/24 BOBBLE HEAD RC CAR

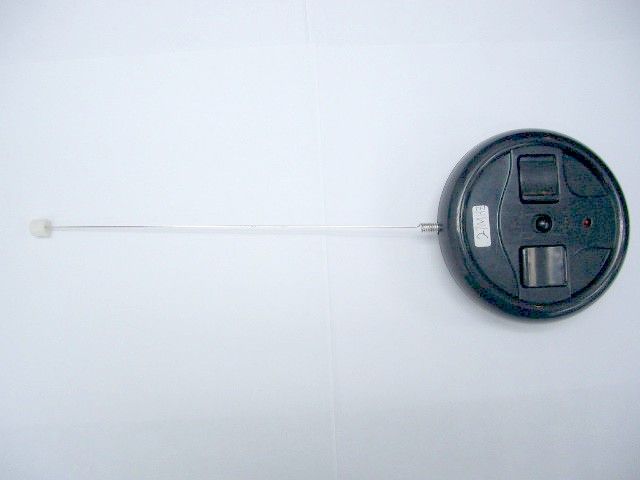

Operation Description The 1/24 Bobble Head RC Car is powered by 2 X 1.5V ìAAî size battery. There are four buttons in the front of EUT. When the forward, backward, turn left and turn right button is pressed once, it will transmit a radio signal to receiver Refer to the circuit design, the circuit description is listed as below:
 IC101 and associate circuit act as encoder.

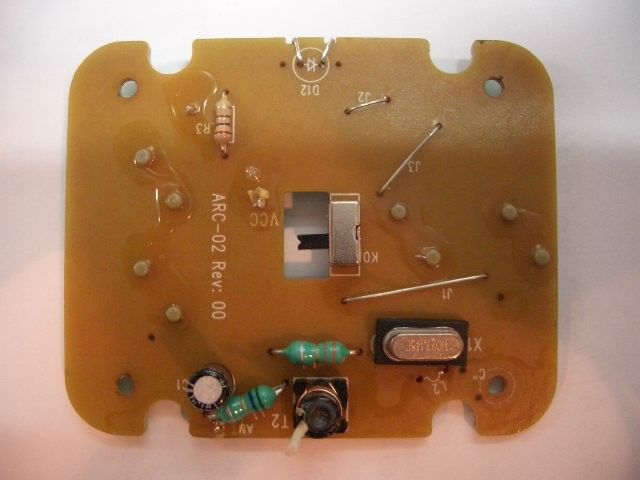

 X1 and associate circuit act as oscillator.

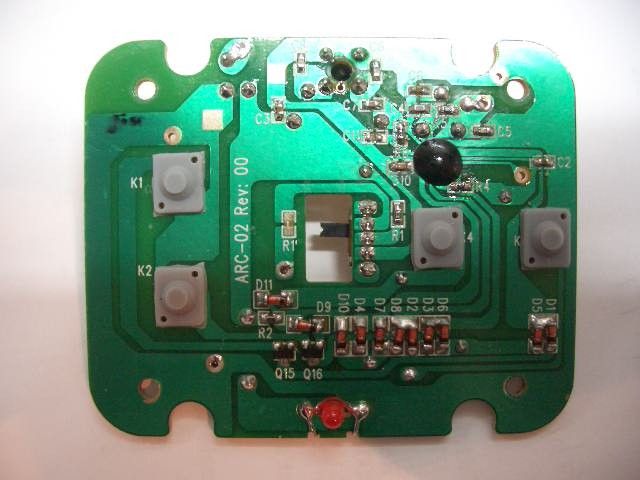

 Q101, Q102 and associate circuit act as key board control.
 T2 and associate circuit act as transmitter amplify.

TEST REPORT Report No. : AF004603-001 Date : 2005 March 18 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LF202625(6) Applicant : Early Light Industrial Co., Ltd. Early Light International Centre, No. 9, Ka Fu Close, Sheung Shui, N. T., Hong Kong. Sample Description : One(1) submitted sample stated to be 1/24 Bobble Head RC Car of Model No. WC164 Rating : 2 x 1.5 “AA” size battery No. of sample(s) : Three (3) set (s) Date Received : 2005 February 17 Test Period : 2005 February 17 – 2005 February 28 Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : Q4RWC164T TEST REPORT Report No. : AF004603-001 Date : 2005 March 18 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .................................................................................................................................................. 3 1.1 General Description ........................................................................................................................................... 3 1.2 Related Submittal Grants ................................................................................................................................... 3 1.3 Location of the test site...................................................................................................................................... 4 1.4 List of measuring equipment ............................................................................................................................. 5 2 Description of the radiated emission test ................................................................................................................... 6 2.1 Test Procedure ................................................................................................................................................... 6 2.2 Test Result ......................................................................................................................................................... 6 2.3 Radiated Emission Measurement Data .............................................................................................................. 7 3 Description of the Line-conducted Test .................................................................................................................... 8 3.1 Test Procedure ................................................................................................................................................... 8 3.2 Test Result ......................................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ........................................................................... 8 4 Photograph................................................................................................................................................................. 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ............................................ 9 4.2 Photographs of the External and Internal Configurations of the EUT............................................................... 9 5 Supplementary document ......................................................................................................................................... 10 5.1 Bandwidth........................................................................................................................................................ 10 5.2 Duty cycle......................................................................................................................................................... 10 6 Appendices ................................................................................................................................................................. 11 Page 2 of 11 FCC ID : Q4RWC164T TEST REPORT Report No. : AF004603-001 Date : 2005 March 18 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for 1/24 Bobble Head R/C car. Operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by 2 x 1.5V “AA” size battery. There are four control switch in front of EUT. When the forward, backward, turn left and turn right switch pressed once, it will transmit difference radio signal to receiver moving difference direction. The brief circuit description is listed as follows : - IC101 and associated circuit act as encoder - X1 and associated circuit act as oscillator - Q101, Q102 and associated circuit act as key board control - T2 and associated circuit act as transmitter amplify 1.2 Related Submittal …
