Q52-13EAQ52Remote Control Transceiver

Saf TGlo, Inc. 6043 N.W. 167 th Street, Suite A-14, Miami, Florida 33015, U.S.A. Toll Free 1-888-GLO-4USA / Telephone (305) 828-9811 / Facsimile (305) 828-2939 Email: [email protected] Website: www.stgaerospace.com July 18, 2003 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England To whom it may concern: This is to certify that SafTGlo Inc. hereby authorises STG Aerospace Ltd., to act on our behalf for the application of the RS001 Transceiver to Radio Frequency Investigation Ltd., Telecommunication Certification Body. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Sincerely, Gary I. Girard President GIG/bp c.c. Dan Leach, STG Aerospace Ltd.

Commercial in Confidence Commercial in Confidence STG Aerospace Inc. RS001 Certification Commercial in Confidence Commercial in Confidence CONTENTS 1 INTRODUCTION..................................................................................................................3 2 UNLICENSED MODULAR TRANSMITTER APPROVAL...........................................3 3 LABEL....................................................................................................................................4 Commercial in Confidence Commercial in Confidence 1 Introduction The RS001 device is a transceiver module used in the control of devices such as low-power low- voltage light panels. RS001 is known as the “Main Board” and is present in all control units (as in switching) and controlled units (as in lighting). The transceiver module is for battery-operated use. The transceiver module has been designed to meet the general emissions limits in paragraph 209 of the Part 15 47CFR FCC rules. The frequency used is 315MHz and complies with paragraph 205 of Part 15. Note that the RS001 module is marked RS001-A1. The A1 refers to the issue level of the board assembly and represents the issue level of the RS001 module being presented for certification. 2 Unlicensed Modular Transmitter Approval According to DA 00-1047 the requirements for modular transmitter approval are met by the following compliance statements: 1 Own RF Shielding. The transmitter has its own metal sheilding, in addition to a ground plane on the bottom of the circuit board. 2. Buffered modulation/data inputs. No data inputs are provided on the board that connect to the transmitter. The processor drives the transmitter directly at a fixed data rate. 3. Supply regulation. The transmitter has power regulation provided on-board by U7. 4. Transmit antenna. The transmit antenna is permanently attached and is part of the circuit board. 5. Stand-alone test. The emissions tests were carried out in a stand-alone configuration with battery power. The unit is designed for battery operation and will not be used from AC supplies or from units connected to AC supplies. 6. Labeling. The unit will be labeled with its own FCC ID number. Instructions for labeling the outside of the device into which the RS001 is installed are contained in the installation guide. 7. Operating requirements. The RS001 module is designed to operate under the General Limits specified in Section 15.209 and as such there are no specific operational requirements. Commercial in Confidence Commercial in Confidence 8. Exposure requirements. The RS001 module is designed to operate under the General Limits specified in Section 15.209 and as such there are no specific exposure requirements. 3 Label The RS001 module will be labelled (printed directly onto the board in a prominent place) with the FCC ID number Q52-13EAQ52. The installation instructions contain the required statement.

Saf TGlo, Inc. 6043 N.W. 167 th Street, Suite A-14, Miami, Florida 33015, USA Toll Free 1-888-GLO-4USA / Telephone (305) 828-9811 / Facsimile (305) 828-2939 Email: [email protected] Website: www.stgaerospace.com July 22, 2003 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application, FCC ID: Q52-13EAQ52 It is requested that the following information is to be held confidential on behalf of SafTGlo Inc. FCC Rules Part 0.459 refers. For all the exhibits listed below, the following statement applies: The information is commercial in confidence, would be of benefit to competitors, and is not available in the public domain, nor has it been released into the public domain. The information is the product of a lengthy design and development process and is not to form part of any information available to prospective customers who will be users of a system containing this component. Substantial competitive harm would result if the information were available to our competitors. The information contained within the Installation Guide (STG Document STGIM-RS001) is commercial in confidence because the product is an internal board that will be assembled into complete units that require FAA certification approvals. The installation instructions will only be of use to STG Aerospace and it’s suppliers, thus the Installation guide will not be in the public domain. The information has been held in commercially secure places, and any external body handling it has been subject to Non-Disclosure Agreements. The information should not be made available for public disclosure for period of at least 10 years. Only after this time will newer generations of design will be available. Exhibits: External and Internal Photographs 1file 3 pages “RS001 photos.pdf” Schematics 1 file 6 pages “RS001 schematics.pdf” Installation Guide 1 file 4 pages “RS001 Installation Guide.pdf” Parts List 1 file 2 pages “RS002 IssE.pdf” Block Diagram 1 file 2 pages “RS001 Transceiver block Diagram.pdf” Operational Description 1 file 7 pages “RS001 Transceiver Design Description.pdf” Yours sincerely, Gary Girard, President

FCCID:Q52-13EAQ52 FCCIDLabelforRS001Transceiver

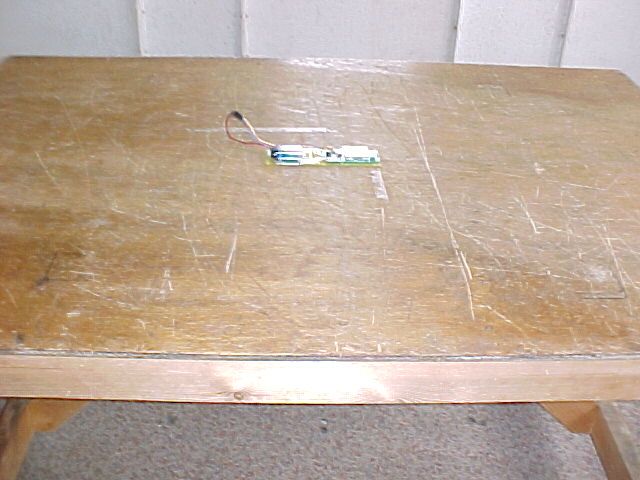

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Ash Communications Ltd. Radiolite RS001-A1 To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Sections 15.109 and 15.209(a) Test Report Serial No: RFI/MPTB1/RP45129JD02A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By: pp Release Version No: PDF01 Issue Date: 29 July 2003 Test Dates: 17 July 2003 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45129JD02A Operations Department Page 2 of 28 Issue Date: 29 July 2003 Test Of: Ash Communications Ltd. Radiolite RS001-A1 To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Sections 15.109 and 15.209(a) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45129JD02A Operations Department Page 3 of 28 Issue Date: 29 July 2003 Test Of: Ash Communications Ltd. Radiolite RS001-A1 To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Sections 15.109 and 15.209(a) Table of Contents 1. Client Information..........................................................................................................4 2. Equipment Under Test (EUT) .......................................................................................5 3. Test Specification, Methods And Procedures ............................................................7 4. Deviations From The Test Specification .....................................................................9 5. Operation Of The EUT During Testing ......................................................................10 6. Summary Of Test Results...........................................................................................11 7. Measurements, Examinations And Derived Results................................................12 8. Measurement Uncertainty ..........................................................................................17 Appendix 1. Test Equipment Used ................................................................................18 Appendix 2. Measurement Methods ..............................................................................19 Appendix 3. Test Configuration Drawings....................................................................21 Appendix 4. Graphical Test Results ..............................................................................23 RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45129JD02A Operations Department Page 4 of 28 Issue Date: 29 July 2003 Test Of: Ash Communications Ltd. Radiolite RS001-A1 To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Sections 15.109 and 15.209(a) 1. Client Information Company Name: Ash Communications Ltd Address: 5 Shaftesbury Avenue Highfield Southampton Hampshire SO17 1SB United Kingdom Contact Name: Mr Steve Braithwaite RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45129JD02A Operations Department Page 5 of 28 Issue Date: 29 July 2003 Test Of: Ash Communications Ltd. Radiolite RS001-A1 To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Sections 15.109 and 15.209(a) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Radiolite Model Name or Number: RS001-A1 Serial Number: Tx Sample: CKE010 Rx Sample: CKE040 Country of Manufacture: UK Date of Receipt: 11 July 2003 FCC ID: Q52-13EAQ52 2.2. Description Of EUT The equipment under test is a Radiolite Emergency Lighting Transceiver Module. 2.3. Modifications Incorporated In EUT The EUT has not been modified from what is described by the Model Name and Number stated above. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45129JD02A Operations Department Page 6 of 28 Issue Date: 29 July 2003 Test Of: Ash Communications Ltd. Radiolite RS001-A1 To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Sections 15.109 and 15.209(a) 2.4. Additional Information Related To Testing Power Supply Requirement: 9 V DC Supply Intended Operating Environment: Inside a plastic enclosure in the passenger cabin of commercial aircraft Equipment Category: Short Range (Low Power) Weight: Less than 100g Dimensions: 70 mm x 51 mm x 7 mm Interface Ports: Battery Connection LED light connection via 10-way FFC Incandescent lamp connection via 2-pole connector Transmit Frequency Range Fixed 315 MHz Receive Frequency Range Fixed 315 MHz Occupied Bandwidth 10.2765 MHz Highest Oscillator Frequency 304.3 MHz 2.5. Support Equipment No support equipment was used to exercise the EUT during testing. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP45129JD02A Operations Department Page 7 of 28 Issue Date: 29 July 2003 Test Of: Ash Communications Ltd. Radiolite RS001-A1 To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Sections 15.109 and 15.209(a) 3. Test Specification, Methods And Procedures 3.1. Test Specification Reference: FCC Part 15 Subpart C: 2002 (Sections 15.109 and 15.209(a) Title: Code of Federal Regulations, Part 15 (47CFR15) Radio Frequency Devices. Comments: A description of the test facility used for this test is on file with, and has been accepted by, the…
