TM170 ... SXGA TM170 ... SXGA Color TFT-LCD Monitor User’s Manual TM170 Color TFT-LCD Monitor Notes On LCD Monitors 1.The LCD panel used in this monitor is a very high technology product with 3,932,160 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, white or black. Please note that this does not indicate a defective panel. 2. Set your resolution to 1280 x 1024 pixels at 60Hz refresh rate for optimum display quality. 3. Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image when the same image has been displayed for a long time. The monitor will slowly recover from this. 4. The screen surface is very soft. Do not rub, touch or tap the screen surface with sharp object such as pen or pencil. This contact may scratch or damage the screen. These damages are not covered under the warranty. TM170 Color TFT-LCD Monitor OPERATION MANUAL CONTENTS ...............4,5 OSD USAGE SAFETY PRECAUTIONS ........................17,18,19 ...............6 SUPPLIED ACCESSORIES BEFORE CALLING FOR REPAIR SERVICE PREPARATION ......20 ...........................7 Remote Control SPECIFICATIONS TV Tuner ........................8 ..................................21 TM170 Cable Connection ........................9 ............22 Available PC VGA Mode Stand, Arm, Wall Mount ............10 WARRANTY STATEMENT..............23,24 FCC & E NERGYSTAR STATEMENTS ...25 HOW TO CONTACT US......................26 LOCATION OF USERS CONTROL ...11 REMOTE CONTROL .....................12 MONITOR INSTALLATION .......13,14,15 Appendix ...............................27,28 V-Chip ...............16 STATUS INFORMATION SAFETY PRECAUTIONS Improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your color TFT-LCD monitor product, please read the following precautions carefully before using the product. JAll operating instructions must be read and understood before the product is operated. JThese safety and operating instructions must be kept in safe place for future reference. JAll warnings on the product and in the instructions must be observed closely. JAll operating instructions must be followed. JDo not use attachments not recommended by the manufacturer. Useof inadequate attachments can result in accidents. JThis product must be operated on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consultyour dealer or local power company. For units designed to operate on batteries or another power source, refer to the operating instructions. JThe power cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product. JIf you plan to use a 12V DC power supply unit other than the ACadapter supplied with the product, make sure the power supply unit provides stable voltage with minimum fluctuations. JDo not overload AC outlets or extension cords. Overloading can cause fire or electric shock. JNever insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product. JDo not attempt to service the product yourself. Removing coverscan expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing. JIf any of the following conditions occurs, unplug the power cordfrom the AC outlet, and request a qualified service person to perform repairs. a. When the power cord or plug in damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing. JIn case the product needs replacement parts, make sure that theservice person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger. JUpon completion of service or repair work, request the servicetechnician to perform safety checks to ensure that the product is in proper operating condition. JWhen mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer. 4 SAFETY PRECAUTIONS(Continued) JUnplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. JUnplug the power cord from the AC outlet if you do not use the product for considerably long time. JDo not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement. JKeep the product away from direct rays of the Sun-light. JDo not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to …

Text truncated - open the document above for the full version.

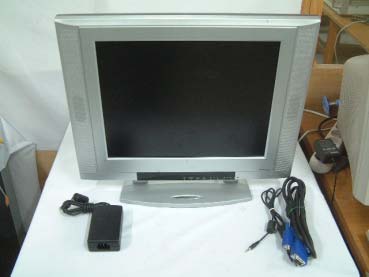

Test report Our reference : KEL03-F05013 Page : B1 of Appendix Issued date : 2003-06-17 Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> Korea EMC Laboratory <REAR VIEW OF EUT>

Test report Our reference : KEL03-F05013 Page : D1 of Appendix Issued date : 2003-06-17 Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the rear side of product. - FCC ID label sample

Test report Our reference : KEL03-F05013 Page : C1 of Appendix Issued date : 2003-06-17 Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Korea EMC Laboratory Test report Our reference : KEL03-F05013 Page : C2 of Appendix Issued date : 2003-06-17 <FRONT VIEW OF ADAPTER> Korea EMC Laboratory Test report Our reference : KEL03-F05013 Page : C3 of Appendix Issued date : 2003-06-17 <REAR VIEW OF ADAPTER> Korea EMC Laboratory Test report Our reference : KEL03-F05013 Page : C4 of Appendix Issued date : 2003-06-17 <FRONT VIEW OF MAIN BOARD> Korea EMC Laboratory Test report Our reference : KEL03-F05013 Page : C5 of Appendix Issued date : 2003-06-17 <REAR VIEW OF MAIN BOARD> Korea EMC Laboratory Test report Our reference : KEL03-F05013 Page : C6 of Appendix Issued date : 2003-06-17 <FRONT VIEW OF LCD> Korea EMC Laboratory Test report Our reference : KEL03-F05013 Page : C7 of Appendix Issued date : 2003-06-17 <REAR VIEW OF LCD> Korea EMC Laboratory

352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] CERTIFICATE OF COMPLIANCE g, Sosa-Gu, Puch oduct D Monitor 17T ons Part 15 Subpart B requirements. es an App A, Sosa-Gu, Puchon-Shi, Manufacturer’s Name : Mon-Shi, Declares that the pr M nforms to FCC Rules and Regulati d Regulations as listed 07: Conducted Emissions. sions. ORY TABLE OF CONTENTS Date :June. 17. 2003 Repo Authorized (CLASS B) CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: licant’s Name : NCW CO., Ltd. pplicant’s Address : 328-5 Songnae-1Dong Kyonggi-Do, Korea NCW CO., Ltd. anufacturer’s Address : 328-5 Songnae-1Don Kyonggi-Do, Korea Product Description : LC Brand Name : NCW odel Number : TM170 FCC ID : Q59NCW Co This product herewith complies with the requirements of the FCC Rul below: Part 15.1 Part 15.109: Radiated Spurious Emis TESTED and CERTIFIED by: KOREA EMC LABORAT 352 Youngduk-Ri, Kihung-Eup, Yongin-Si, Kyunggi-Do, 449-908, KOREA rt No :KEL03-F05013 Signature : M. S. CHO / President Test report Our reference : KEL03-F05013 Page : 2 of 13 Issued date : 2003-06-17 DESCRIPTION Page 1.1 Product Description 4 2.1 System test configuration 6 3. M 3.1 Conducted Emission Data 9 ission aph 10 12 A : Test set-up Photographs (Conducted and Radiated) ernal Photographs of E.U.T n and sample 0. VERIFICATION OF COMPLIANCE 3 1. GENERAL INFORMATION 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.5 General Setup of the test Shield room 5 1.6 Test Facility 5 2. Measurement Procedure 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 Connected Cable 6 2.5 System Configuration Diagram 6 2.6 Preliminary testing 7 2.7 Shielded Enclosure 7 2.8 Data Reporting Format 7 2.9 Operating Condition 7 2.10 Conditioning of the EUT 7 2.11 Power Line Conducted Emissions 8 2.12 Open field Radiated Emissions Tests 8 easurement Data 3.2 Conducted EmGr 3.3 Radiated Emission Data 11 3.4 Summary 4. Labeling Requirement 13 Appendix - - B : Ext - C : Internal Photographs of E.U.T - D : FCC ID label location informatio - E : Block Diagram Korea EMC Laboratory - F : User’s Manual Test report Our reference : KEL03-F05013 Page : 3 of 13 Issued date : 2003-06-17 0 . VERIFICATION OF COMPLIANCE Equipment Under Test : LCD Monitor Mo d e l N u m b e r : TM170 Serial Number : Prototype Manufacturer : NCW CO., Ltd. 328-5 Songnae-1Dong, Sosa-Gu, Puchon-Shi, Kyonggi-Do,Korea Type of Test : FCC CLASS B Report Number : KEL03-F05013 Date Tested : June. 13. 2003 Tested By : H. S. CHOI The results show that the sample equipment tested as described in this reports is in compliance with the CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B. Korea EMC Laboratory Test report Our reference : KEL03-F05013 Page : 4 of 13 Issued date : 2003-06-17 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION T h e TM170 is a LCD Monitor ma d e b y N C W C O . , L t d . i n K o r e a . R e f e r t o t h e u s e r ' s ma n u a l f o r mo r e i n f o r m a t i o n . ITEM SPECIFICATION Resolution 1280 * 1024 Color 16 million (Full Color) Panel Type : Amorphous Si TFT-LCD Actual Display size : 337.92 x 270.336 mm Diagonal Length : 17.0" Dimension (LxWxH) 480(W) x 425(H) x 62(D) mm 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type Model Name FCC ID Serial NO Manufacturer LCD Monitor TM170 Q59NCW17T Prototype NCW CO., Ltd. Adapter LSE9901B1260 Verification A20311061137 LI SHIN NOTE PC 5100C L4PK5100CX12NONE Idear Adapter F19603J Verification NONE ILAN ELEC. LTD. Printer 2225C+ DSI6XU2225 NONE HP Adapter 0912-TY Verification NONE HanSung Speaker TGX-100 - NONE TRIGEM MIC RM-1000 - NONE Hanil Mouse P801 DoC 01035620 KYE SYSTEMS USB Mouse M-U48a DoC LZE01251452 SAMSUNG Serial Mouse M-CE-15 DZLMCE15 LT292RD0295 LOGITECH 1.4 System Configuration Korea EMC Laboratory Type Model Name Serial NO Manufacturer Remark MAIN B/D LCD NE6 LM170E01 NONE NONE NCW CO., Ltd. LG PHILIPS LCD. KOREA KOREA Test report Our reference : KEL03-F05013 Page : 5 of 13 Issued date : 2003-06-17 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4 2000. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5(m). The EUT was placed on a non conductive table which is 1.0*1.5(m), 80 cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40 cm from a vertical conducting plane. Power to the EUT was provided through the LISN(ESH3-Z5, Rohde & Schwarz) which has the Impedance vs Frequency Characteristic in accordance with the conducted setup photographs in Appendix-A Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(KNW-407, KYORITSU). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9 cm high, approximately 2.0 cm in diameter and that are spaced 6 cm on the center apart. 1.6 Test Facility Location: Korea EMC Laboratory 352 Yungduck-Ri Kihung-Eup,Yongin-City Kyungki-Do,Korea Site : - 3/10m Open Fielded Radiated - Indoor Line Conducted Room(Shielded) The Open Field Radiated and Indoor Line Conducted sites are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 2000. Korea EMC Lab. was refiled in FCC in Feb. 2001. INSTRUMENTATION Description Model Manufacturer Se…

Text truncated - open the document above for the full version.

Test report Our reference : KEL03-F05013 Page : A1 of Appendix Issued date : 2003-06-17 Appendix-A : Test Setup Photographs - Conducted Setup Photographs LINE CONDUCTED SETUP PHOTOGRAPH - FRONT VIEW LINE CONDUCTED SETUP PHOTOGRAPH - REAR VIEW Korea EMC Laboratory Test report Our reference : KEL03-F05013 Page : A2 of Appendix Issued date : 2003-06-17 - Radiated Setup Photograph RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW Korea EMC Laboratory RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW
