TM18U TM18U HTM19U HTM19U HTM20U HTM20U Color TFT-LCD Monitor User’s Manual TM18U HTM19U HTM20U Color TFT-LCD Monitor OPERATION MANUAL CONTENTS ..................4,5 ............................7 ......10 .......................11 ......12,13,14 ..................15 SAFETY PRECAUTIONS SUPPLIED ACCESSORIES PREPARATION Remote Control LOCATION OF USERS CONTROL REMOTE CONTROL MONITOR INSTALLATION STATUS INFORMATION Cable Connection Stand, Arm, Wall Mount OSD USAGE ...........................19 .........................20 BEFORE CALLING FOR REPAIR SERVICE TM18U/HTM19U HTM20U SPECIFICATIONS ...........................16,17,18 .......................................21 FCC STATEMENTS ....................................24,25V-Chip Available PC VGA Mode Appendix ................6 .........................8 ...................9...............22 ...........................23 TM18U HTM19U HTM20U Color TFT-LCD Monitor Notes On LCD Monitors 1. The LCD panel used in this monitor is a very high technology product with 3,932,160 (HTM20U is 5,760,000) thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, white or black. Please note that this does not indicate a defective panel. 2. Set your resolution to 1280 x 1024 pixels at 60Hz refresh rate for optimum display quality. (HTM20U is 1600 x 1200, 60Hz) 3. Due to the nature of the LCD screen, an after image of the previous screen may remain after switching the image when the same image has been displayed for a long time. The monitor will slowly recover from this. 4. The screen surface is very soft. Do not rub, touch or tap the screen surface with sharp object such as pen or pencil. This contact may scratch or damage the screen. These damages are not covered under the warranty. 5. Turn your computer OFF before installing your new monitor. 3 SAFETY PRECAUTIONS Improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your color TFT-LCD monitor product, please read the following precautions carefully before using the product. All operating instructions must be read and understood before the product is operated. These safety and operating instructions must be kept in safe place for future reference. All warnings on the product and in the instructions must be observed closely. All operating instructions must be followed. Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents. This product must be operated on a power source specified on thespecification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. For units designed to operate on batteries or another power source, refer to the operating instructions. The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product. If you plan to use a 12V DC (HTM20U is 18V DC) power supply unit other than the AC adapter supplied with the product, make sure the power supply unit provides stable voltage with minimum fluctuations. Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock. Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/orshort internal parts. For the same reason, do not spill water or liquid on the product. Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing. If any of the following conditions occurs, unplug the power cordfrom the AC outlet, and request a qualified service person to perform repairs. a. When the power cord or plug in damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as describedin the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing. In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts canresult in fire, electric shock and/or other danger. Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition. When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer. 4 SAFETY PRECAUTIONS(Continued) Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. Unplug the power cord from the AC outlet if you do not use the product for considerably long time. Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement. Keep the product away from direct rays of the Sun-light. Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use onl…

Text truncated - open the document above for the full version.

HTM19UMonitor Block Scaler w / MCU (PW166B) Analog RGB, IIC H-Sync, V-Sync DC 12V Audio (L) Speaker (1W*2) Speaker Line Out Debug (IIC) Tuner (Option) (ZTR10) PC Stereo Composite Video S-Video TV Antenna Audio IIC Audio (R) Headphone AD Board (NE6) 2.5V : PW166B 3.3V : 3 out 5V : 2 out 9V : Fader IC ADC (SG9883A-110) Video Decoder (VPX3226E) Digital RGB x 8 YUV Fader (TDA7440) Amplifier (TDA7496) Audio LVDS Control TTL 8-bit LTM190E1(Samsung) (TFT-LCD Panel) (Inverter) Lamp Input x 4 ControlLVDS 8-bit, Sync Audio OSD (SD15) CVBS U7 U9,U10 U1 U5 U39U32 54MHz 54MHz 18MHz 16.257 MHz ICS 501 ICS 501 130MHz 108MHz U18 U19 Y2 Y3 20MHz Y1

Test report Our reference : KEL03-F07045 Page : B1 of Appendix Issued date : 2003-08-19 Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> Korea EMC Laboratory <REAR VIEW OF EUT>

Test report Our reference : KEL03-F07045 Page : D1 of Appendix Issued date : 2003-08-19 Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the rear side of product. - FCC ID label sample

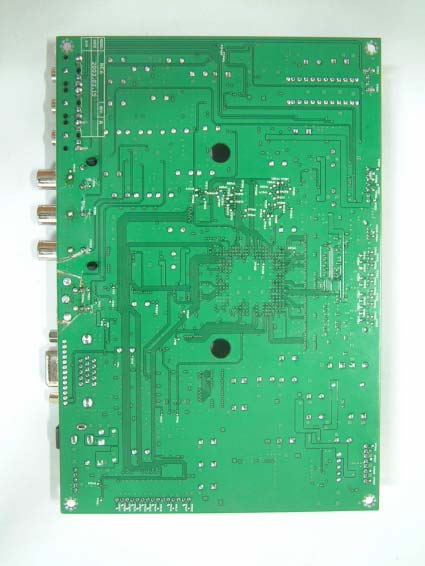

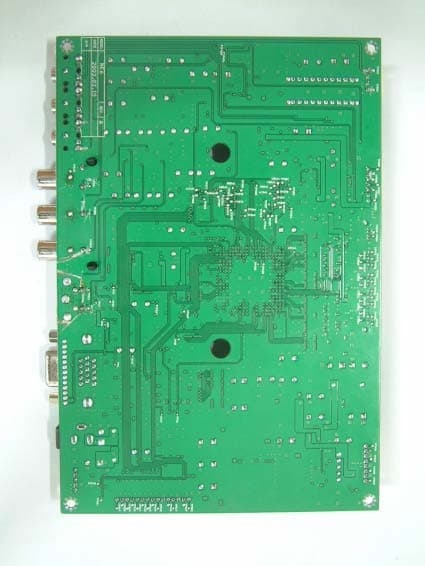

Test report Our reference : KEL03-F07045 Page : C1 of Appendix Issued date : 2003-08-19 Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Korea EMC Laboratory Test report Our reference : KEL03-F07045 Page : C2 of Appendix Issued date : 2003-08-19 <FRONT VIEW OF ADAPTER> Korea EMC Laboratory Test report Our reference : KEL03-F07045 Page : C3 of Appendix Issued date : 2003-08-19 <REAR VIEW OF ADAPTER> Korea EMC Laboratory Test report Our reference : KEL03-F07045 Page : C4 of Appendix Issued date : 2003-08-19 <FRONT VIEW OF MAIN BOARD> Korea EMC Laboratory Test report Our reference : KEL03-F07045 Page : C5 of Appendix Issued date : 2003-08-19 <REAR VIEW OF MAIN BOARD> Korea EMC Laboratory Test report Our reference : KEL03-F07045 Page : C6 of Appendix Issued date : 2003-08-19 <FRONT VIEW OF INVERTER BOARD> Korea EMC Laboratory Test report Our reference : KEL03-F07045 Page : C7 of Appendix Issued date : 2003-08-19 <REAR VIEW OF INVERTER BOARD> Korea EMC Laboratory Test report Our reference : KEL03-F07045 Page : C8 of Appendix Issued date : 2003-08-19 <FRONT VIEW OF LCD> Korea EMC Laboratory Test report Our reference : KEL03-F07045 Page : C9 of Appendix Issued date : 2003-08-19 <REAR VIEW OF LCD> Korea EMC Laboratory Test report Our reference : KEL03-F07045 Page : C10 of Appendix Issued date : 2003-08-19 <FRONT VIEW OF KEY BOARD> Korea EMC Laboratory Test report Our reference : KEL03-F07045 Page : C11 of Appendix Issued date : 2003-08-19 <REAR VIEW OF KEY BOARD > Korea EMC Laboratory

352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] CERTIFICATE OF COMPLIANCE (CLASS B) CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: Date of Tested : Aug. 16. 2003 Applicant’s Name : NCW Co., Ltd. Applicant’s Address : 328-5 Songnae-1Dong, Sosa-Gu, Puchon-Shi, Kyonggi-Do, Korea Manufacturer’s Name : NCW Co., Ltd. Manufacturer’s Address : 328-5 Songnae-1Dong, Sosa-Gu, Puchon-Shi, Kyonggi-Do, Korea Declares that the product Product Description : LCD Monitor Brand Name : NCW Model Number : HTM19U FCC ID : Q59NCW19T Conforms to FCC Rules and Regulations Part 15 Subpart B requirements. This product herewith complies with the requirements of the FCC Rules and Regulations as listed below: Part 15.107: Conducted Emissions. Part 15.109: Radiated Spurious Emissions. TESTED and CERTIFIED by: KOREA EMC LABORATORY 352 Youngduk-Ri, Kihung-Eup, Yongin-Si, Kyunggi-Do, 449-908, KOREA Date :Aug. 19. 2003 Report No :KEL03-F07045 Authorized Signature : M. S. CHO / President Test report Our reference : KEL03-F07045 Page : 2 of 13 Issued date : 2003-08-19 TABLE OF CONTENTS DESCRIPTION Page 0. VERIFICATION OF COMPLIANCE 3 1. GENERAL INFORMATION 1.1 Product Description 4 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.5 General Setup of the test Shield room 5 1.6 Test Facility 5 2. Measurement Procedure 2.1 System test configuration 6 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 Connected Cable 6 2.5 System Configuration Diagram 6 2.6 Preliminary testing 7 2.7 Shielded Enclosure 7 2.8 Data Reporting Format 7 2.9 Operating Condition 7 2.10 Conditioning of the EUT 7 2.11 Power Line Conducted Emissions 8 2.12 Open field Radiated Emissions Tests 8 3. Measurement Data 3.1 Conducted Emission Data 9 3.2 Conducted Emission Graph 10 3.3 Radiated Emission Data 11 3.4 Summary 12 4. Labeling Requirement 13 Appendix - A : Test set-up Photographs (Conducted and Radiated) - B : External Photographs of E.U.T - C : Internal Photographs of E.U.T - D : FCC ID label location information and sample - E : Block Diagram Korea EMC Laboratory - F : User’s Manual Test report Our reference : KEL03-F07045 Page : 3 of 13 Issued date : 2003-08-19 0 . VERIFICATION OF COMPLIANCE Equipment Under Test : LCD Monitor Model Number : HTM19U Serial Number : Prototype Manufacturer : NCW Co., Ltd. 328-5 Songnae-1Dong, Sosa-Gu, Puchon-Shi, Kyonggi-Do,Korea Type of Test : FCC CLASS B Report Number : KEL03-F07045 Date Tested : Aug. 16. 2003 Tested By : S. J. LEE The results show that the sample equipment tested as described in this reports is in compliance with the CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B. Korea EMC Laboratory Test report Our reference : KEL03-F07045 Page : 4 of 13 Issued date : 2003-08-19 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION The HTM19U is a LCD Monitor made by NCW Co., Ltd. in Korea. Refer to the user's manual for more information. ITEM SPECIFICATION Resolution 1280 * 1024 Color 16 million (Full Color) Brightness 250 cd/m 2 (nit) Contrast Ratio 500 : 1 Viewing Angle H : 170 V : 170 Panel Type : Amorphous Si TFT-LCD Actual Display size : 376.32(H) x 301.056(V) mm Diagonal Length : 19.0”, 481.92 mm Dimension (LxWxH) 485 x 383 x 57 mm 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type Model Name FCC ID Serial NO Manufacturer LCD Monitor HTM19U Q59NCW19T Prototype NCW Co., Ltd. Adapter LSE9901B1260 Verification 013802177 LI SHIN PC Brio BA 600/500 DoC SG95100402 HP Keyboard SKR-1032 GJJSKR-1032 1EAC000237 SEJIN Mouse M-S48a JNZ201213 LZK14072038 HP USB Mouse M-U48a DoC LZE01251452 LOGITECH Serial Mouse MT-900 DoC NONE CAMAC Printer 2225C DSI6XU2225 3119S96116 HP Adapter 0912-TY Verification NONE HanSung Joystick X03-57540 DoC NONE Microsoft 1.4 System Configuration Korea EMC Laboratory Type Model Name Serial NO Manufacturer Remark INVERTER B /D MAIN B/D KEY B/D LCD P1742E32 NE6 SD19 LTM190E1-L01 NONE NONE NONE NONE NCW Co., Ltd. NCW Co., Ltd. NCW Co., Ltd. SAMSUNG KOREA KOREA KOREA KOREA Test report Our reference : KEL03-F07045 Page : 5 of 13 Issued date : 2003-08-19 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4 2000. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5(m). The EUT was placed on a non conductive table which is 1.0*1.5(m), 80 cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40 cm from a vertical conducting plane. Power to the EUT was provided through the LISN(NSLK8128, SCHWARZBECK) which has the Impedance vs Frequency Characteristic in accordance with the conducted setup photographs in Appendix-A Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(KNW-407, KYORITSU). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9 cm high, approximately 2.0 cm in diameter and that are spaced 6 cm on the center apart. 1.6 Test Facility Location: Korea EMC Laboratory 352 Yungduck-Ri Kihung-Eup,Yongin-City Kyungki-Do,Korea Site : - 3/10m Open Fielded Radiated - Indoor Line Conducted Room(Shielded) The Open Field Radiated and Indoor Line Conducted sites are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 2000. Korea …
