Q5EPT650003

Kirisun Communication Co., Ltd.

FM Handheld Transceiver

Click to zoom

Application Details

Equipment Class: TNF - Licensed Non-Broadcast Transmitter Held to Face
Date of Grant: Jan 24, 2010
Application Purpose: Original Equipment
Date of Application: Jan 24, 2010
Equipment Note: FM Handheld Transceiver
Frequency Range: 450.00000000 - 520.00000000
Company: Kirisun Communication Co., Ltd.
Country: China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

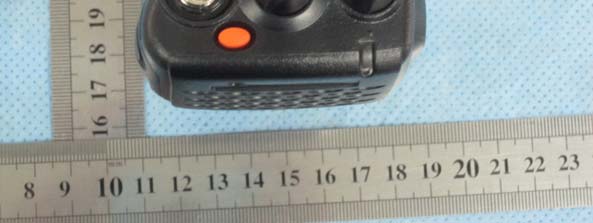

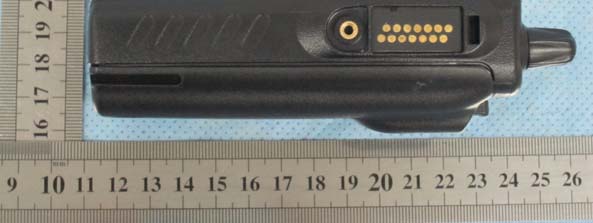

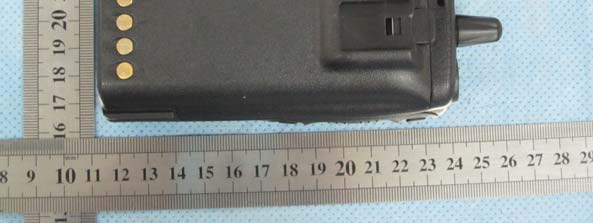

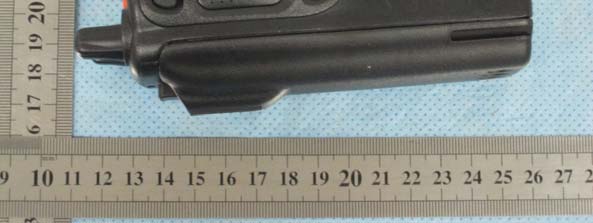

External Photos

ID Label/Location Info

Internal Photos

Parts List/Tune Up Info

Test Report

Test Setup Photos

Contact Information

Applicant

Jessica Wang(Manager)

[email protected]755-86095979Fax: 755-86096018

Test Firm

Shenzhen Huatongwei International Insp. Co., LtdMoffy Yu

[email protected]86-755-26748078Fax: 86-755-26748089

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	9	450 MHz - 520 MHz	4.3 W	16K0F3E	2.3 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is conducted. This transmitter may operate with the antennas tested for this filing in Push-to-Talk and body-worn configurations. This device must be restricted to work-related operations only in an Occupational/Controlled RF exposure environment and must operate with a duty factor not exceeding 50%. All qualified end-users of this device must have the knowledge to be aware of and control their exposure conditions and/or duration to comply with the Occupational/Controlled exposure limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational/Controlled exposure requirements, and users must be provided with the RF exposure training information. SAR compliance for body-worn operating configurations is limited to the specific belt-clip/holster/accessories tested for this filing. The highest reported SAR values are: Head: 3.59 W/kg, Body-worn: 3.736 W/kg accounting for a 50% duty cycle
