Q5ETD60Dual-mode Portable Radio

Page 1 of 3 Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with Innovation, Science, and Economic Development Canad licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RF Exposure Compliance and Control Guidelines and Operating Instructions To control your exposure and ensure compliance with the occupational/controlled environment exposure limits always adhere to the following procedures. Guidelines: Page 2 of 3 • Do not remove the RF Exposure Label from the device. • User awareness instructions should accompany device when transferred to other users. • Do not use this device if the operational requirements described herein are not met. Operating Instructions: • Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50 % of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance). • Hold the radio in a vertical position in front of face with the microphone (and the other parts of the radio, including the antenna) at least one inch (2.5 cm) away from the nose. Keeping the radio at the proper distance is important because RF exposures decrease with distance from the antenna. Antenna should be kept away from eyes. • When worn on the body, always place the radio in approved clip, holder, holster, case, or body harness for this product. Use of non-approved accessories may result in exposure levels, which exceed the occupational/controlled environment RF exposure limits. • Use only manufacturer’s name approved supplied or replacement antennas, batteries, and accessories. Use of non-manufacturer-name approved antennas, batteries, and accessories may exceed the FCC and IC RF exposure guidelines. • For a list approved accessories please consult your local dealer for information. Pour contrôler votre exposition et garantir le respect des limites d'exposition en milieu professionnel / contrôlé, respectez toujours les procédures suivantes. Des lignes directrices: • Ne retirez pas l'étiquette d'exposition RF de l'appareil. • Les instructions de sensibilisation de l'utilisateur doivent accompagner l'appareil lorsqu'il est transféré à d'autres utilisateurs. • N'utilisez pas cet appareil si les exigences opérationnelles décrites ici ne sont pas satisfaites. Mode d'emploi: • Ne transmettez pas plus que le facteur de service nominal de 50% du temps. Pour transmettre (parler), appuyez sur le bouton Push-To-Talk (PTT). Pour recevoir des appels, relâchez le bouton PTT. La transmission à 50% du temps, ou moins, est importante car cette radio génère une exposition à l'énergie RF mesurable uniquement lors de la transmission (en termes de mesure de conformité aux normes). • Tenez la radio en position verticale devant le visage avec le microphone (et les autres parties de la radio, y compris l'antenne) à au moins 2,5 cm (2,5 cm) du nez. Il est important de garder la radio à la bonne distance car les expositions aux RF Page 3 of 3 diminuent avec la distance de l'antenne. L'antenne doit être éloignée des yeux. • Lorsqu'elle est portée sur le corps, placez toujours la radio dans un clip, un support, un étui, un étui ou un harnais de sécurité approuvés pour ce produit. L'utilisation d'accessoires non approuvés peut entraîner des niveaux d'exposition qui dépassent les limites d'exposition aux RF de l'environnement professionnel / contrôlé. • Utilisez uniquement les antennes, batteries et accessoires fournis ou de remplacement approuvés par le fabricant. L'utilisation d'antennes, de batteries et d'accessoires non approuvés par le fabricant peut dépasser les directives d'exposition RF FCC et IC. • Pour obtenir une liste des accessoires approuvés, veuillez consulter votre revendeur local pour plus d'informations. The device for operation in…

Text truncated - open the document above for the full version.

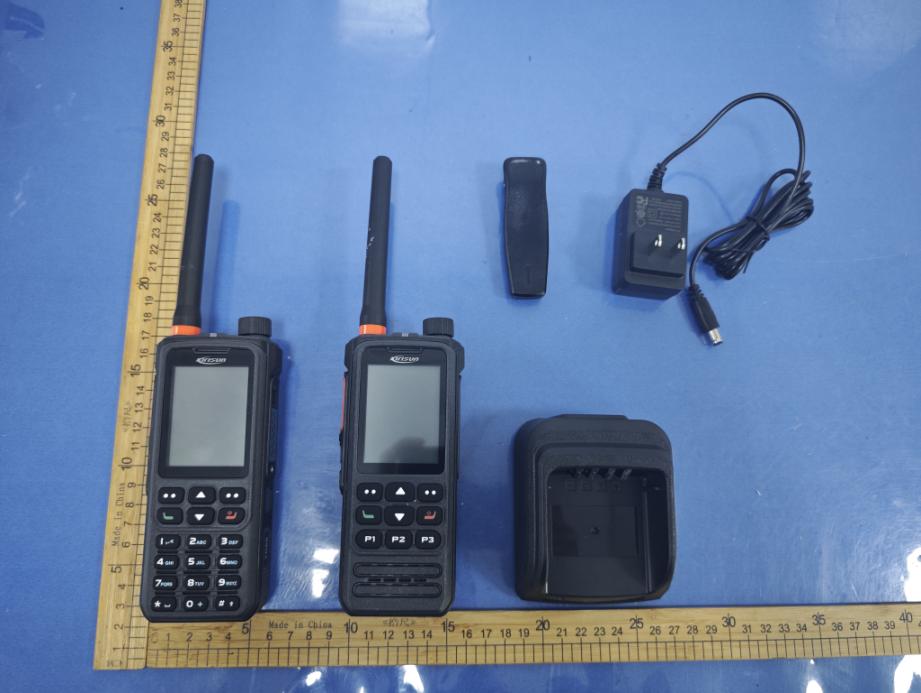

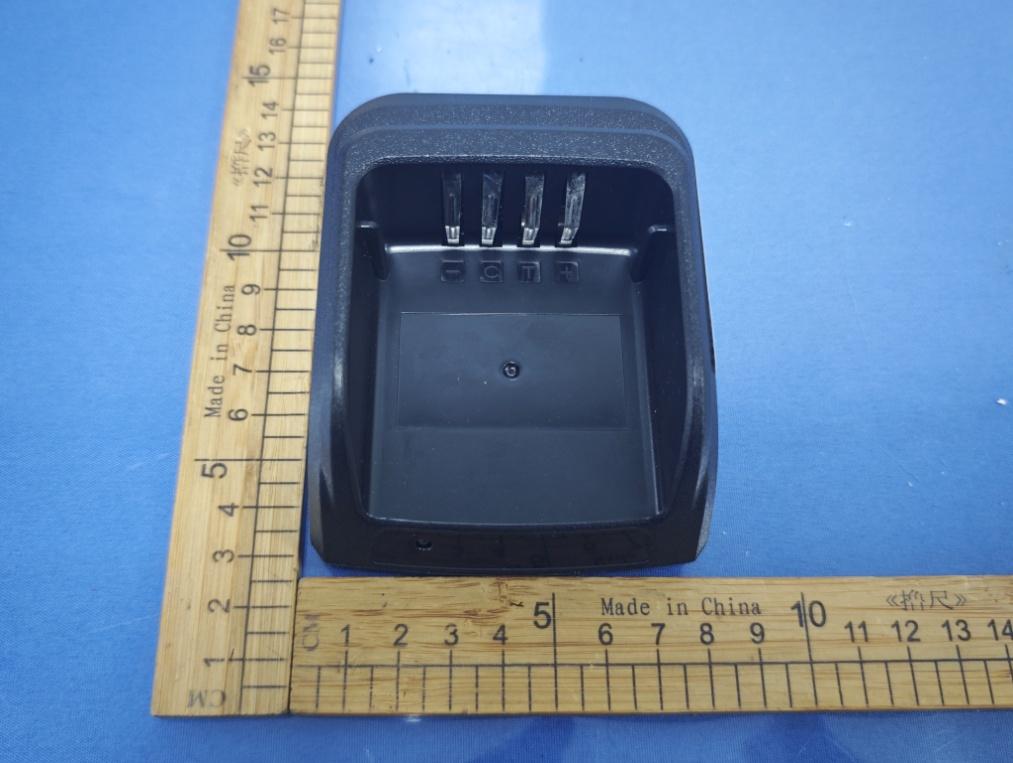

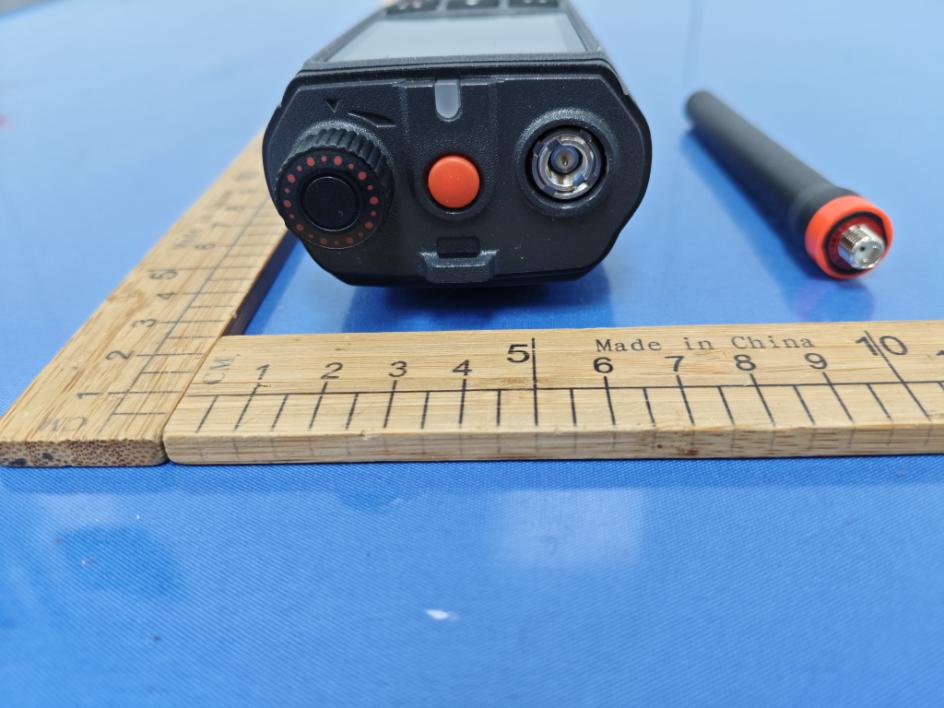

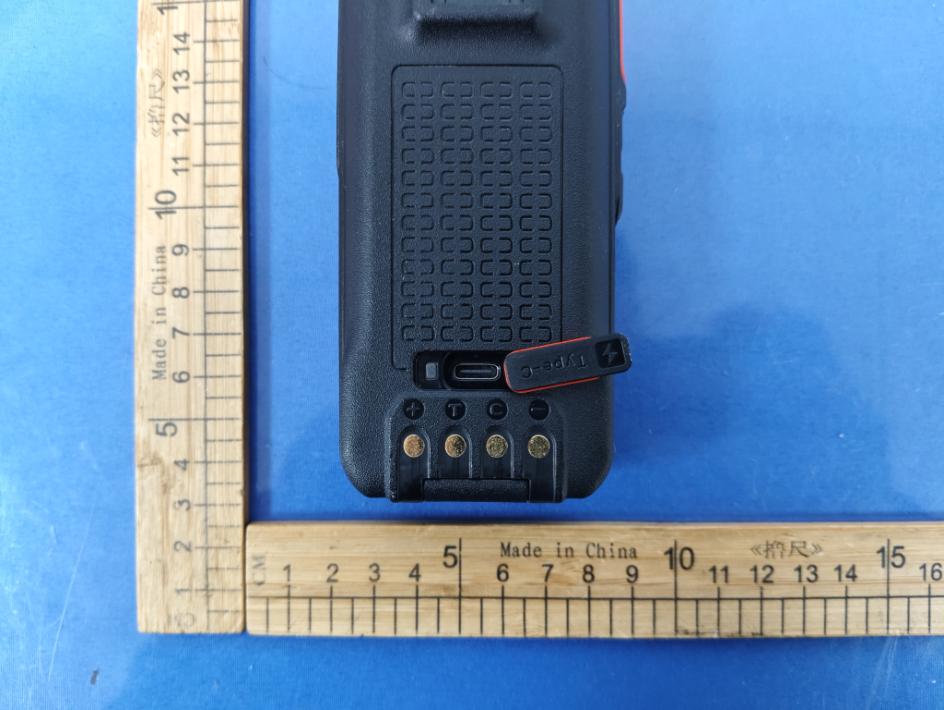

Attachments Appearance Installing/Uninstalling the Antenna Insert the threaded end of the antenna into the antenna interface, and rotate the antenna tight clockwise.T o uninstall the antenna, rotate it counterclockwise. Installing/Uninstalling Belt Clip 1. As shown in Figure Śθ To install the clip-on back, insert it into the groove on the battery until the clip snaps into place. 2. As shown in Figure śθ To remove the clip-on back, press down on the metal dome and push the back out. Dismantling and Assembling TF Card/SIM Card As shown in Figure , lift the buckle at the top left corner of the card cover and flip it to the right.As shown in Figure , the TF/SIM cardslot becomes visible. According to the markings on the card cover, select the correspondingposition to install or remove the TF card or Nano SIM card.( The recording card should be installed in TF Card 02 ) clip Please read carefully the Safety Information and Warranty Card before using the product Dual-mode Portable Radio TD66/TD60 Quick Start Guide Installing Audio Accessory Connect an audio accessory to the audio accessory interface,and fasten it using the screw . NO Item Main unitBatteryAntennaPower adapterUser manualSafety Information and W arranty Card Safety Information Card (for intrinsically safe radio) Strap Desktop charger  Belt clip  T ype-C Charging (Non-Explosion Proof Product) As shown in Figure , lift the latch at the left end of the Type-C port cover, and as shown in Figure , rotate it downwards to reveal the Type-C port and the charging indicator light.As shown in Figure , plug in the Type-C cable to charge. A steady red light indicates charging is in progress; a flashing redlight indicates a charging fault; and a red light off indicates the batteryis fully charged, and charging has ended. Installing/removing the battery 1. Align the battery with the battery holder at the back of the radio, and then insert the battery. 2. Push the battery in the direction indicated until the latch is in position. 3. Press the low part of the battery until it is latched. Stop block at the edge of the battery $OXPLQXPVKHOOHGEDWWHU\KROGH 3 167W06000460 V ersion: 1.0 Charging the battery/radio 1. Plug the power adapter into an AC power socket of the requiredspecifications. 2. Connect the power adapter to the charger, and green LED indicator light is on. 3. Put a battery or the radio installed with a battery into the charger, and make sure the battery contacts well the charging contacts.During charging, red indicator light is on. 4. It takes about 5 hours to fully charge the battery,and then the LED indicator light turns green. After this, wait 1 to 2 hours before takingout the battery to achieve the best performance 5. Disconnect the power adapter from the socket.Remove the battery/ walkie-talkie from the charging base. Note:1. The radio is delivered uncharged. Before using it for the first time, please charge the battery. 2. Always use the supplied lithium battery and desktop charger.3. A new battery or one that has been stored for more than 2 months after charging needs to be charged for several times to achieve itsnormal capacity.Please use the original factory-provided chargingadapter. 4. Please use the original factory-provided charging adapter. Indicator State Radio State Green light onY ellow light on Red light on T ransmitting signals. Receiving signals, e.g. voice, text message and data.Within call hang time (in digital mode) or auto reset time (in analog mode). Y ellow light flashing Red light flashing In emergency state, missed a call, receivinga call alert, or scanning Low power, receiving emergency alarm, failed startup self-detection. LED Indicator Red light flashing Standby. Battery LevelThe less blank in the icon, the moreremaining battery , and vice versa. When the battery is out, the icon turns red.RSSI The more bars, the stronger the signals, and viceversa. This icon is displayed only when signals arereceived.High-power transmissionLow-power transmission New messageInbox fullEmergency alarm mode enabledEncryption mode enabledThe terminal has a TF card Man Down enabledThe terminal is in Man Down modeLone WorkerenabledVoice Operated Transmitting enabledAudio recording enabledSingle Base Station StatusScanning (and the icon rotating)Dwell on conventional channel during scanDwell on priority channel 1 during scanDwell on priority channel 2 during scan ID typeMenu item selection (Call type) individual call(Call type) group call(Call type) all callItem selectedItem unselected Network Connection StatusRoaming enabledT alk-around mode enabled Bluetooth is enabled but not connected to a deviceBluetooth is connected to a device F u n ctio n De s cri p tio n I co n Icons F u n ctio n De s cri p tio n I co n 4.Making a Call - Selecting and Calling a Contact In the menu, select Contact, select a contact from the Contact List, andhold down the PTT key. - Dialing to Call a Contact (TD60 only) In the menu, select Contact, select Dial, dial a contact’s ID, and holddown the PTT key. Basic Operation 10.Entering the "Mode" menu Enter the "Mode" menu to select the mode. The main modes include: PDT Private Network and Public Network Cluster, where the PDTPrivate Network has Regular and Digital Cluster modes. T roubleshooting SN Failure Description Reason and Solution Power-on failed R: Low remaining battery capacity . S: Charge or replace the battery.R: Poor contact between the battery and the wiring terminals of the power supply.S: Install the battery again.R: Dirty battery contacts.S: Clean battery contacts. Caution for Using the Battery:Charge the battery using the attached charger , and dispose it as instructed. Do not strike, squeeze, short out or disassemble the battery.Do not put the battery in a high temperature or throw it into a fire.Stop using the battery if it is seriously bulged or immersed in water.Explosion may be incurred by using a battery of a non-supplied model, or by shorting the anode and cathode of the batter…

Text truncated - open the document above for the full version.

Report No.: 2502Y05440E-20A Page 1 of 4 APPENDIXC- EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom: Twin SAM V5.0; Type: QD000P40CC; Serial: TP:1097 Report No.: 2502Y05440E-20A Page 2 of 4 Body Back With Belt Clip Setup Photo (0 mm) Face Up Setup Photo (25 mm) 25 mm Report No.: 2502Y05440E-20A Page 3 of 4 PTT Mode: Liquid depth ≥ 15cm Report No.: 2502Y05440E-20A Page 4 of 4 Face Up Setup Photo (25mm) V Body Back With Belt Clip Setup Photo (0mm) 25mm 23mm 31mm

Shenzhen Accurate Technology Co., Ltd. No.: 2504Y26988E-RFF Test Photos Test Photos Page 1 / 2 Radiated Spurious Emissions Test View (30MHz-1GHz) Radiated Spurious Emissions Test View (Above 1GHz) Shenzhen Accurate Technology Co., Ltd. No.: 2504Y26988E-RFF Test Photos Test Photos Page 2 / 2 RF Conducted Test View ***** END *****

Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 29 of 67 TR-4-E-R039 APPENDIX Test Information: Sample No.: 3BA3-1 Test Date: 2025-11-08 to 2026-02-07 Test Site: RF Test Mode: Transmitting Tester: Benny Li/Cayde Hou Test Result: Pass Environmental Conditions: Temperature: (°C) 23-25 Relative Humidity: (%) 39-56 ATM Pressure: (kPa) 100.9-101.9 Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 30 of 67 TR-4-E-R039 RF Output Power Test Data: Mode Frequency Spacing (kHz) Frequency (MHz) Power level Output Power (dBm) Output Power (W) Limit (W) Analog 12.5 400.0125 High 36.75 4.732 4.8 Low 30.66 1.164 1.2 450.0125 High 36.79 4.775 4.8 Low 30.73 1.183 1.2 469.9875 High 36.70 4.677 4.8 Low 30.79 1.199 1.2 Analog 25 400.0125 High 36.7 4.677 4.8 Low 30.65 1.161 1.2 450.0125 High 36.63 4.603 4.8 Low 30.75 1.189 1.2 469.9875 High 36.31 4.276 4.8 Low 30.4 1.096 1.2 Digital 12.5 400.0125 High 36.52 4.487 4.8 Low 30.67 1.167 1.2 450.0125 High 36.80 4.786 4.8 Low 30.53 1.129 1.2 469.9875 High 36.73 4.710 4.8 Low 30.63 1.156 1.2 Note 1 # : The high rated power level is 4W(36.021dBm), and low rated power level is 1W(30dBm). Note 2: The output power shall not exceed by more than 20 percent the manufacturer's rated output power for the particular transmitter specifically listed on the authorization. Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 31 of 67 TR-4-E-R039 For Analog, 12.5kHz, High Power: 400.0125MHz 450.0125MHz 469.9875MHz / / Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 32 of 67 TR-4-E-R039 For Analog, 12.5kHz, Low Power: 400.0125MHz 450.0125MHz 469.9875MHz / / Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 33 of 67 TR-4-E-R039 For Analog, 25kHz, High Power: 400.0125MHz 450.0125MHz 469.9875MHz / / Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 34 of 67 TR-4-E-R039 For Analog, 25kHz, Low Power: 400.0125MHz 450.0125MHz 469.9875MHz / / Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 35 of 67 TR-4-E-R039 For Digital, High Power: 400.0125MHz 450.0125MHz 469.9875MHz / / Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 36 of 67 TR-4-E-R039 For Digital, Low Power: 400.0125MHz 450.0125MHz 469.9875MHz / / Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 37 of 67 TR-4-E-R039 Frequency Stability Test Data: For Analog Signal: CW, Reference Frequency: 450.0125MHz, Limit: ±2.5 ppm Test Environment Frequency Measure with Time Elapsed Temperature (°C) Voltage Supplied (V DC ) Measured Frequency (MHz) Frequency Error (ppm) Frequency Stability versus Input Temperature 50 7.6 450.012201 -0.66 40 7.6 450.012105 -0.88 30 7.6 450.012177 -0.72 20 7.6 450.012382 -0.26 10 7.6 450.011966 -1.19 0 7.6 450.012054 -0.99 -10 7.6 450.012058 -0.98 -20 7.6 450.012198 -0.67 -30 7.6 450.012030 -1.04 Frequency Stability versus Input Voltage 20 6.8 450.012151 -0.77 20 8.4 450.012114 -0.86 For Digital Reference Frequency: 450.0125MHz, Limit: ±2.5 ppm Test Environment Frequency Measure with Time Elapsed Temperature (°C) Voltage Supplied (V DC ) Measured Frequency (MHz) Frequency Error (ppm) Frequency Stability versus Input Temperature 50 7.6 450.012631 0.29 40 7.6 450.012566 0.15 30 7.6 450.012811 0.69 20 7.6 450.013024 1.16 10 7.6 450.012572 0.16 0 7.6 450.012603 0.23 -10 7.6 450.012652 0.34 -20 7.6 450.012722 0.49 -30 7.6 450.012870 0.82 Frequency Stability versus Input Voltage 20 6.8 450.012737 0.53 20 8.4 450.012706 0.46 Note 1: The Operation Voltage range was provided by manufacturer. Note 2: The measurement was measured in the absence of modulation. Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 38 of 67 TR-4-E-R039 Occupied Bandwidth & Emission Mask Test Data: Modulation Channel Separation (kHz) Frequency (MHz) Power Level 99% Occupied Bandwidth (kHz) 26 dB Emissions Bandwidth (kHz) Analog 12.5 400.0125 High 9.855 10.425 Low 9.865 10.425 450.0125 High 9.81 10.4125 Low 9.8125 10.415 469.9875 High 9.6425 10.385 Low 9.67 10.38 Analog 25 400.0125 High 14.805 15.52 Low 14.85 15.535 450.0125 High 14.745 15.505 Low 14.775 15.515 469.9875 High 12.63 15.485 Low 12.655 15.49 Digital 12.5 400.0125 High 7.7475 9.8825 Low 7.64 9.86 450.0125 High 7.6125 9.62 Low 7.7125 9.7925 469.9875 High 7.565 9.7425 Low 7.6 9.7675 Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 39 of 67 TR-4-E-R039 For Analog, 12.5kHz, High Power: 400.0125MHz-OBW 400.0125MHz-MASK 450.0125MHz-OBW 450.0125MHz-MASK 469.9875MHz-OBW 469.9875MHz-MASK Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 40 of 67 TR-4-E-R039 For Analog, 12.5kHz, Low Power: 400.0125MHz-OBW 400.0125MHz-MASK 450.0125MHz-OBW 450.0125MHz-MASK 469.9875MHz-OBW 469.9875MHz-MASK Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 41 of 67 TR-4-E-R039 For Analog, 25kHz, HighPower: 400.0125MHz-OBW 400.0125MHz-MASK 450.0125MHz-OBW 450.0125MHz-MASK 469.9875MHz-OBW 469.9875MHz-MASK Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 42 of 67 TR-4-E-R039 For Analog, 25kHz, Low Power: 400.0125MHz-OBW 400.0125MHz-MASK 450.0125MHz-OBW 450.0125MHz-MASK 469.9875MHz-OBW 469.9875MHz-MASK Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 43 of 67 TR-4-E-R039 For Digital High Power: 400.0125MHz-OBW 400.0125MHz-MASK 450.0125MHz-OBW 450.0125MHz-MASK 469.9875MHz-OBW 469.9875MHz-MASK Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 44 of 67 TR-4-E-R039 For Digital Low…

Text truncated - open the document above for the full version.

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA, or any agency of the Federal Government. The information marked ―#‖ is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included but no need marked. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. Floor 1, KuMaKe Building, Dongzhou Community, Guangming Street, Guangming District, Shenzhen, Guangdong, China. Tel: +86 755-26503290 Web: www.atc-lab.com Rev:A/4.0(2024/11/01) Page 1 of 67 TR-4-E-R039 TEST REPORT Applicant Name: Kirisun Communication Co.,Ltd. Address: 3rd Floor, Building A, Tongfang Information Habour, No.11 Langshan Road Nanshan District, Shenzhen 518057 China Report Number: 2504Y26988E-RF-00F FCC ID: Q5ETD60 Test Standard (s) FCC PART 90 Sample Description Product Name: Dual-mode Portable Radio Model No.: TD60, TD66 Trade Mark: , Date Received: 2025-10-16 Report Date: 2026-02-07 Test Result: The EUT complied with the standards above. Prepared and Checked By: Approved By: Roger Ling Bob.Liao EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: 2504Y26988E-RF-00F Rev:A/4.0(2024/11/01) Page 2 of 67 TR-4-E-R039 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ................................................................................................................ 4 GENERAL INFORMATION ............................................................................................................................ 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ........................................................................ 5 OBJECTIVE ................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................... 5 TEST FACILITY .............................................................................................................................................. 6 MEASUREMENT UNCERTAINTY ....................................................................................................................... 6 SYSTEM TEST CONFIGURATION ............................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION......................................................................................................... 7 EQUIPMENT MODIFICATIONS .......................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS ....................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................... 7 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................. 7 SUMMARY OF TEST RESULTS ................................................................................................................... 9 TEST EQUIPMENT LIST ............................................................................................................................. 10 RF EXPOSURE ............................................................................................................................................ 11 APPLICABLE STANDARD ............................................................................................................................... 11 RF OUTPUT POWER ................................................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................... 12 TEST DATA ................................................................................................................................................. 12 MODULATION CHARACTERISTIC ............................................................................................................ 13 APPLICABLE STANDARD ............................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................... 13 TEST DATA ................................................................................................................................................. 14 OCCUPIED BANDWIDTH & EMISSION MASK.......................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................... 15 TEST DATA ................................................................................................................................................. 1…

Text truncated - open the document above for the full version.

LTE antenna radiation pattern (X- red, Y- green, Z- dark blue) BT/BLE/Wi-Fi antenna radiation pattern (X- red, Y- green, Z- dark blue) Daily chart BT&BLE&Wi-Fi ANT: LTE DIV ANT: LTE Main ANT: Shenzhen Jinhong Wireless Technology Co., LTD Room 301, Building B1, Weiye Innovation 18th Industrial Zone, b eside Nanchang Baoyuan Road, Nanchang Community, Xixiang Sub- district, Bao 'an District, Shenzhen City Model: BT&BLE&Wi-Fi ANT: ZTX-T86C1 LTE Main ANT: JHKLX2412-417-M LTE DIV ANT: JHKLX2412-417-D Frequency range: 700-2700MHz

Report No.: 2502Y05440E-20A Page1 / 19 Plot: 1# DUT: Dual-mode Portable Radio; Type: TD60; Serial: 3BA4-1 Communication System: UID 0, Generic FDD LTE (0); Frequency: 1860 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1860 MHz; σ = 1.393 S/m; ε r = 39.455; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(8.12, 8.12, 8.12) @ 1860 MHz; Calibrated: 2025/5/26  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2025/2/17  Phantom: Twin SAM V5.0; Type: QD000P40CC; Serial: TP:1097  Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Face Up/LTE Band 2 1RB Low/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0798 W/kg Face Up/LTE Band 2 1RB Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.986 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.0940 W/kg SAR(1 g) = 0.072 W/kg; SAR(10 g) = 0.052 W/kg Smallest distance from peaks to all points 3 dB below: Larger than measurement grid (> 16 mm) Ratio of SAR at M2 to SAR at M1 = 77.2% Maximum value of SAR (measured) = 0.0761 W/kg 0 dB = 0.0761 W/kg = -11.19 dBW/kg Report No.: 2502Y05440E-20A Page2 / 19 Plot: 2# DUT: Dual-mode Portable Radio; Type: TD60; Serial: 3BA4-1 Communication System: UID 0, Generic FDD-LTE (0); Frequency: 1860 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1860 MHz; σ = 1.393 S/m; ε r = 39.455; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(8.12, 8.12, 8.12) @ 1860 MHz; Calibrated: 2025/5/26  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2025/2/17  Phantom: Twin SAM V5.0; Type: QD000P40CC; Serial: TP:1097  Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Body Back/LTE Band 2 1RB Low/Area Scan (8x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.843 W/kg Body Back/LTE Band 2 1RB Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.50 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 1.17 W/kg SAR(1 g) = 0.794 W/kg; SAR(10 g) = 0.525 W/kg Smallest distance from peaks to all points 3 dB below = 14.4 mm Ratio of SAR at M2 to SAR at M1 = 69.3% Maximum value of SAR (measured) = 0.860 W/kg 0 dB = 0.860 W/kg = -0.66 dBW/kg Report No.: 2502Y05440E-20A Page3 / 19 Plot: 3# DUT: Dual-mode Portable Radio; Type: TD60; Serial: 3BA4-1 Communication System: UID 0, Generic FDD-LTE (0); Frequency: 1732.5 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1732.5 MHz; σ = 1.343 S/m; ε r = 39.023; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(8.45, 8.45, 8.45) @ 1732.5 MHz; Calibrated: 2025/5/26  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2025/2/17  Phantom: Twin SAM V5.0; Type: QD000P40CC; Serial: TP:1097  Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Face Up/LTE Band 4 1RB Mid/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0761 W/kg Face Up/LTE Band 4 1RB Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.643 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 0.100 W/kg SAR(1 g) = 0.074 W/kg; SAR(10 g) = 0.055 W/kg Smallest distance from peaks to all points 3 dB below: Larger than measurement grid (> 16 mm) Ratio of SAR at M2 to SAR at M1 = 76.2% Maximum value of SAR (measured) = 0.0779 W/kg 0 dB = 0.0779 W/kg = -11.08 dBW/kg Report No.: 2502Y05440E-20A Page4 / 19 Plot: 4# DUT: Dual-mode Portable Radio; Type: TD60; Serial: 3BA4-1 Communication System: UID 0, Generic FDD-LTE (0); Frequency: 1732.5 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1732.5 MHz; σ = 1.343 S/m; ε r = 39.023; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(8.45, 8.45, 8.45) @ 1732.5 MHz; Calibrated: 2025/5/26  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2025/2/17  Phantom: Twin SAM V5.0; Type: QD000P40CC; Serial: TP:1097  Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Body Back/LTE Band 4 1RB Mid/Area Scan (8x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.663 W/kg Body Back/LTE Band 4 1RB Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.63 V/m; Power Drift = 0.20 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.682 W/kg; SAR(10 g) = 0.431 W/kg Smallest distanc…

Text truncated - open the document above for the full version.
