INTERNET PHONE Manual Model : Teliphone 3100 Read precautionary measures carefully before usage! Before starting This manual provides basic information concerning Teliphone3100 installation, connecting to the network and usage. It contains Teliphone3100 product features, names and functions of the parts and usage methods. In the case of any additional problems while using our product, one can contact technological assistance at the homepage below. http://www.hsteliann.com Before Using In order to connect and use Teliphone3100 via the Internet, one must first subscribe to a high-speed Internet service. By high-speed Internet service, we are referring to ADSL, cable modem, private extension etc. For those offices with a private line using a fixed IP, the telephone and PC must be installed manually. Table of Contents Chapter 1. Before using 2 1. System summary and contents 2 2. Hardware summary 4 3. IP Phone configuration 5 Chapter 2. Installation of IP Phone 8 1. Before installation 8 2. Setting by using auto network installation 9 3. Mac Cloning 10 4. Setting by using manual network installation 14 Chapter 3. Using method of IP Phone 18 1. Placing calls 18 2. Entering your name 20 3. Area Code 20 4. Setting Ringer type/volume 21 5. Using Telephone directory 21 Chapter 4. Setting the network in order to use the Internet from your PC 26 1. Windows95/98/ME 26 2. Windows2000 29 3. WindowsXP 32 Appendix 1. Delete auto connecting program 35 1. ACEMan-pro 35 2. WinPoET 36 3. EnterNET 37 4. Change internet setting 37 Teliphone3100 User Manual Chapter 1. Before using 1. System summary and contents A) Summary Teliphone3100 is a VoIP (Voice over Internet Protocol) based telephone, which uses Internet circuitry (ADSL, cable, private line) in order to provide the user with the ability to place regular calls at low rates. The Teliphone3100, which is manufactured under strict guidelines and thorough adherence to product quality can be used in the same manner that one utilizes a regular telephone and because it possesses a regular telephone (PSTN) backup (optional) function, upon connecting to the regular telephone extension, one can select to use the regular telephone function when placing calls. Because Teliphone3100 is produced according to Internet telephone standards, it is simple to connect to other equipment and VoIP internal and external webs can be constructed with ease. Also, for the user’s convenience, a convenient menu is provided and regional support is offered through SNMP/Telnet. B) Contents Open the Teliphone3100 box and check if the following items are contained inside Teliphone3100 Adapter LAN cable Manual The above contents must be verified. In the case that there is a problem with the products contained within the box, contact the purchase location immediately. Teliphone3100 User Manual Do not place product in direct sunlight. Do not place product in proximity of furnace or heater. Do not place product on rough or vibration-prone surface. Do not place product in location with poor ventilation. Remove plug when cleaning the product and never directly use water, benzene, , alcohol etc. on the product. Do not place product in a location with lots of dust. * Using this product’s ‘Call Transfer’, ‘Call Forward’, ‘Call Park’, ‘Call Pick Up’ functions (HOLD, PARK, FWD, FLASH button usage) requires support from an ITSP(Internet telephony Service Provider) system or from a server connected to some other IP Phone. Also, these functions are applicable only when connecting between IP Phones, and not valid for connections via national lines. This is not a malfunction. This product received a B level certification for suitability of emitted electric waves and can be used in the residential setting and other environments as well. Teliphone3100 User Manual Product summary This product makes voice telecommunication possible by offering an analogue interface (handset, microphone, speaker) and an interface (VoIP) linking it with the packet switch network. [ System Diagram ] ̇ IP Phone Summary Category Content Suitable line Ethernet web (ADSL, Cable, specialized line) Method of line connection Two RJ-45 Connectors (Plug Type), LAN and PC connection Usage power Fixed installation : 80~250V Free Volt Type Telecommunication protocol H.323v3, Option (H.450 1/2/3/4/5) Telecommunication speed 10Mbps Ethernet Voice compression G.711, G.723.1, G.729.a Teliphone3100 User Manual 3. IP Phone Organization A) Rear Organization B) Button Organization Power LAN connection port PC connection port PSTN connection port LCD display SD, M1~M3, Del Menu / Navigation button Dial pad Hold button Park button Received calls button Volume button Speaker phone button Redial button Teliphone3100 User Manual C) Explanation of button functions The buttons and keys composing IP Phone are classified by type and an explanation of each button/key appears below. Key name Explanation SD Use to call up the menu Use to change between preferences when entering characters (English- capital and lowercase/numerical/special characters). M1~M3 Speed dial DEL Use to make corrections to while entering Predial and Phone Book information. Å Moves up on the menu when pressed after pressing the menu button Ç Moves down on the menu when pressed after pressing the menu button Ñ Call Use to move to the right when editing the Phone Book Use to call up the Phone Book É Menu Use to move to the left when editing the Phone Book Use to bring up the menu, after entering the menu, use the direction arrows. OK Use after completion of editing of selected Phone Book Cancel Use to cancel the selected menu, entered data, etc. HOLD Use to place the connected call on hold PARK FWD Use to forward the received call to a third party VOL + / - Use to adjust the volume of the receiver FLASH Use to place another call while dialing or in the middle of a call REDIAL Use to redial the number last dialed SPK Press to carry on the call without picking up the receiver. Press again t…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA BSP0 Power Regulation DIGITAL_PWR Teliphone 3100 Block Diagram RS232 ETHERNET ORION TMS320VC5472 ARM SDRAM DSP SRAM BSP1 A DD A D nOE,R/W,nCS0,nCS1,nRESET_OUT SDRAM_nCS, SDRAM_CLK,SDRAM_CKE,nBE[0..3] DSP_A DSP_D DSP_D DSP_A A[0..22] D[0..31] A[0..22] D[0..31] DSP_D[0..15] DSP_A[0..19] DSP_R/W DSP_nCS nRESET DSP_R/W DSP_nCS I2C_DATA I2C_CLK nRESET UART_RxD,UART_TxD, UART_DCD,UART_RTS,UART_CTS RX0D[0..3] RX1D[0..3] TX0D[0..3] TX1D[0..3] COL0,CRS0,TCLK0,RCLK0, TXEN0,TXER0,RXDV0,RXER0 COL1,CRS1,TCLK1,RCLK1, TXEN1,TXER1,RXDV1,RXER1 MHZ_25ENET 25MHZCPU_CLK nRESET_OUT JTAG ARM FLASH KEYPAD I/F BDX0,BDR0,BFS0,BCLK0,DCSI_IN,nRESET_OUT COLUMN[0..5] ROW[0..4] HOST_nINT,nCS2,DC_nRST ARM_CLK(MCLK) R/W A[0..10] D[0..7] CODEC EPLD Decoding, Timing Cntrl & Data Xcver I2C_DATA I2C_CLK RJ-45 CH0 RJ-45 CH1 RJ-11 Handset LCD Interface LCD DATA, CS, R/W, D/I etc... RJ11_Console PSTN Function RJ-11 PSTN LCD Display A and Dial up Modem Function

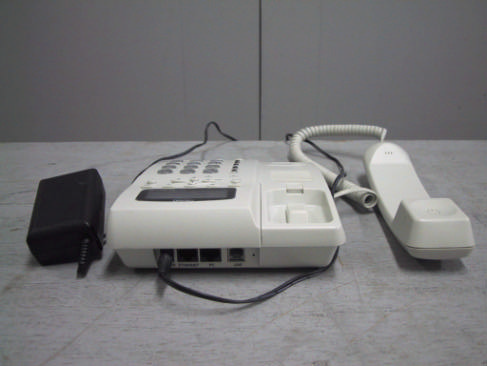

BWS TECH Inc. 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-018 FCC ID : Q6QTELIPHONE3100 Date of Test : May 9, 2003 HS Teliann, Inc. Internet Phone Teliphone 3100 Appendix 3. External Photographs

BWS TECH Inc. 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-018 FCC ID : Q6QTELIPHONE3100 Date of Test : May 9, 2003 HS Teliann, Inc. Internet Phone Teliphone 3100 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement is described in the user manual. The following FCC Warning statement will be described in the user manual. FCC Warning CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment Label Location The label shown above shall be permanently affixed at a conspicuous location on the bottom enclosure and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) HS Teliann , Inc. Internet Phone Model : Teliphone 3100 FCC ID:Q6QTELIPHONE3100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. HS Teliann, Inc. Internet phone Model : Teliphone 3100 FCCID: Q6QTELIPHONE3100 This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (3) this device may not cause harmful interference, and (4) this device must accept any interference received, including interference that may cause undesired operation.

BWS TECH Inc. 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-018 FCC ID : Q6QTELIPHONE3100 Date of Test : May 9, 2003 HS Teliann, Inc. Internet Phone Teliphone 3100 Appendix 4. Internal Photographs of EUT BWS TECH Inc. 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-018 FCC ID : Q6QTELIPHONE3100 Date of Test : May 9, 2003 HS Teliann, Inc. Internet Phone Teliphone 3100 BWS TECH Inc. 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-018 FCC ID : Q6QTELIPHONE3100 Date of Test : May 9, 2003 HS Teliann, Inc. Internet Phone Teliphone 3100

System summary Teliphone3100 is a VoIP (Voice over Internet Protocol) based telephone, which uses Internet circuitry (ADSL, cable, private line) in order to provide the user with the ability to place regular calls at low rates. The Teliphone3100, which is manufactured under strict guidelines and thorough adherence to product quality can be used in the same manner that one utilizes a regular telephone and because it possesses a regular telephone (PSTN) backup (optional) function, upon connecting to the regular telephone extension, one can select to use the regular telephone function when placing calls. Because Teliphone3100 is produced according to Internet telephone standards, it is simple to connect to other equipment and VoIP internal and external webs can be constructed with ease. Also, for the user’s convenience, a convenient menu is provided and regional support is offered through SNMP/Telnet.

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT VERIFICATION OF COMPLIANCE FCC PART15 CERTIFICATION PRODUCT : Internet Phone MODEL/TYPE NO : Teliphone 3100 FCC ID : Q6QTELIPHONE3100 TRADE NAME : HS Teliann APPLICANT : HS Teliann, Inc. 195-1, Neungpyung-Ri, Opo-Eup, Kwangju-Gun, Kyonggi-Do, 468-890 Korea. Attn. : Young Hur /Manager. FCC CLASSIFICATION : JBP : Part 15 Class B Computing Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification DATES OF TEST : May 9, 2003 DATES OF ISSUE : May 16, 2003 TEST REPORT No. : BWS-03-EF-018 TEST LAB. : BWS Tech., Inc. (Registration No. : 553281) This Internet Phone Teliphone 3100 has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. K.Young Kim Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 BWS TECH Inc. Page 2 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-018 FCC ID : Q6QTELIPHONE3100 Date of Test : May 9, 2003 HS Teliann, Inc. Internet Phone Teliphone 3100 TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~14 7. Sample Calculation and Other Information 15 8. Test Equipment List 16 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram BWS TECH Inc. Page 3 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-018 FCC ID : Q6QTELIPHONE3100 Date of Test : May 9, 2003 HS Teliann, Inc. Internet Phone Teliphone 3100 FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Appplicant : HS Teliann, Inc. Address : 195-1, Neungpyung-Ri, Opo-Eup Kwangju-Gun, Kyonggi-Do, 468-890 Korea Attention : Mr. Young Hur /Manager. l EUT Type : Internet Phone l Model Number : Teliphone 3100 l S/N : N/A l FCC Rule Part(s) : Part 15 Subpart B l Test Procedure : ANSI C63.4-2000 l FCC Classification : JBP : Part 15 Class B Computing Device Peripheral l Dates of Tests : May 9, 2003 l Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 l Test Report No. : BWS-03-EF-018 BWS TECH Inc. Page 4 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-018 FCC ID : Q6QTELIPHONE3100 Date of Test : May 9, 2003 HS Teliann, Inc. Internet Phone Teliphone 3100 2. Description of Test Facility The measurement test for radiated and conducted emission test were conducted at the open area test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated and conducted emissions from the HS Teliann Inc. Internet phone Model: Teliphone 3100 BWS TECH Inc. Page 5 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-018 FCC ID : Q6QTELIPHONE3100 Date of Test : May 9, 2003 HS Teliann, Inc. Internet Phone Teliphone 3100 3. Product Information 3.1 Equipment Description The Equipment Under Test(EUT) is the HS Teliann Inc. Internet phone model : Teliphone 3100 . This Internet phone is powered by the adapter(5VDC). 3.2 General Specification - Chassis Type : Plastic - Suitable line : Ethernet web (ADSL, Cable, specialized line) - Method of line connection : Two RJ-45 Connectors (Plug Type), LAN and PC connection PSTN connection (RJ11) - Usage power : Fixed installation : 80~250V Free Volt Type -Telecommunication protocol : H.323v3, Option (H.450 1/2/3/4/5) - Telecommunication speed : 10Mbps Ethernet - Size : 160x 210x 50 (mm) 3.3 Variations covered by this report Model Difference : N/A Technical Deviation : N/A 3.4 Additional Information Related to Testing N/A BWS TECH Inc. Page 6 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-018 FCC ID : Q6QTELIPHONE3100 Date of Test : May 9, 2003 HS Teliann, Inc. Internet Phone Teliphone 3100 4. Description of Tests 4.1 Conducted Emission Measurement Conducted …
